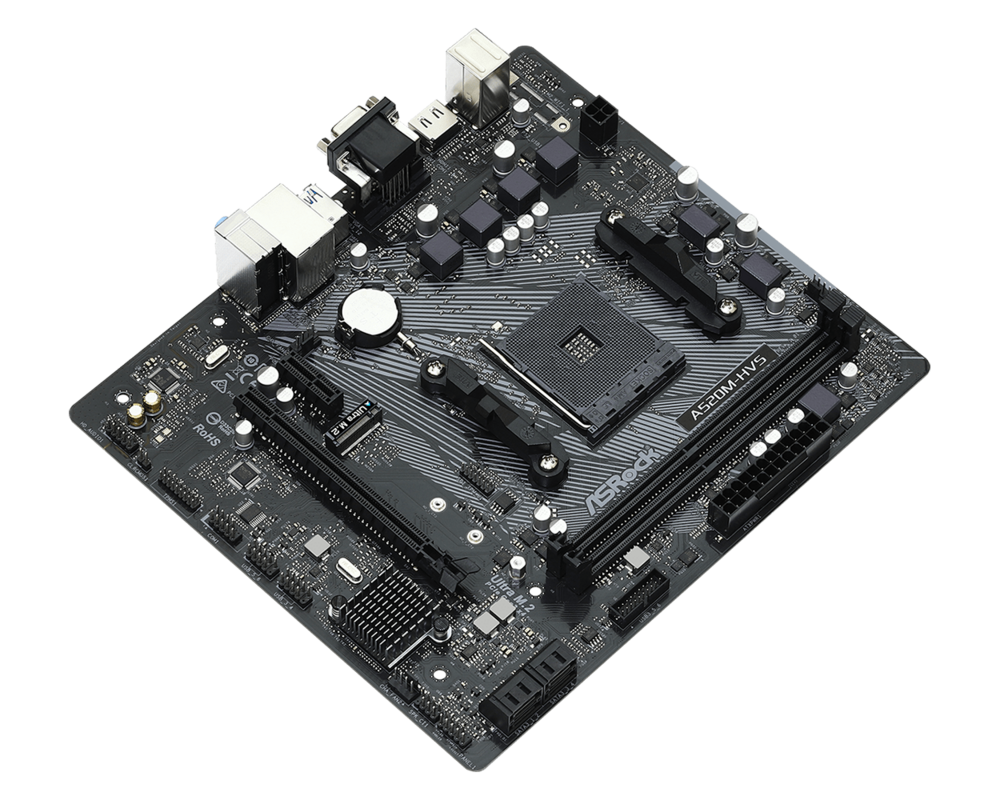

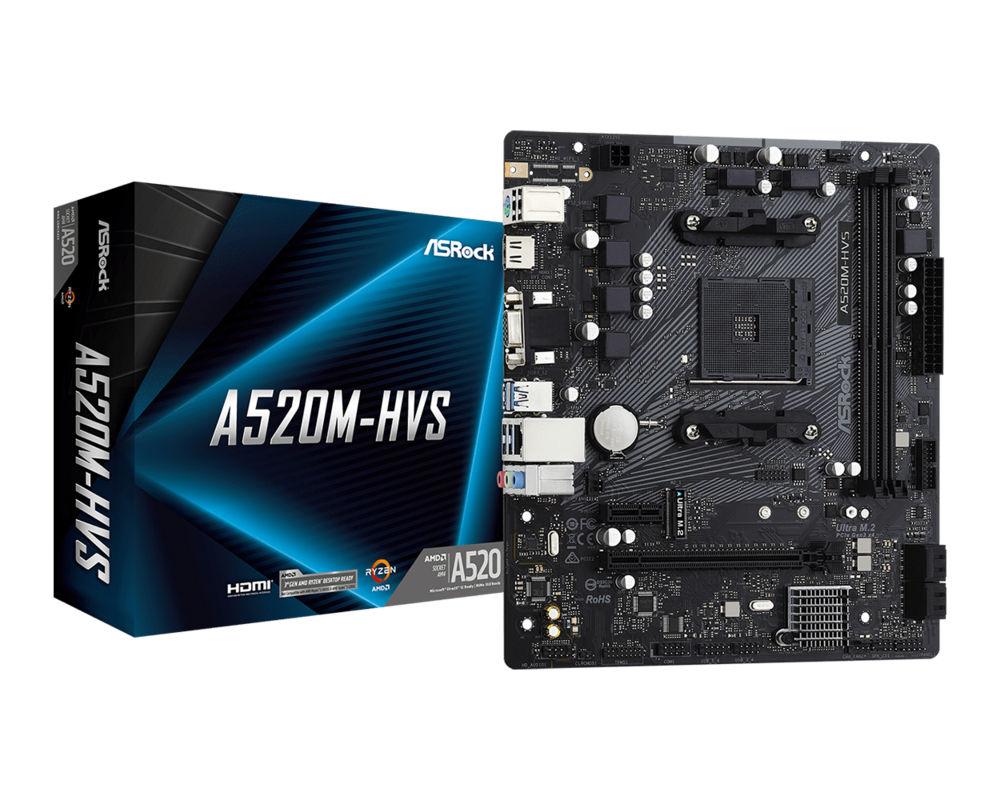

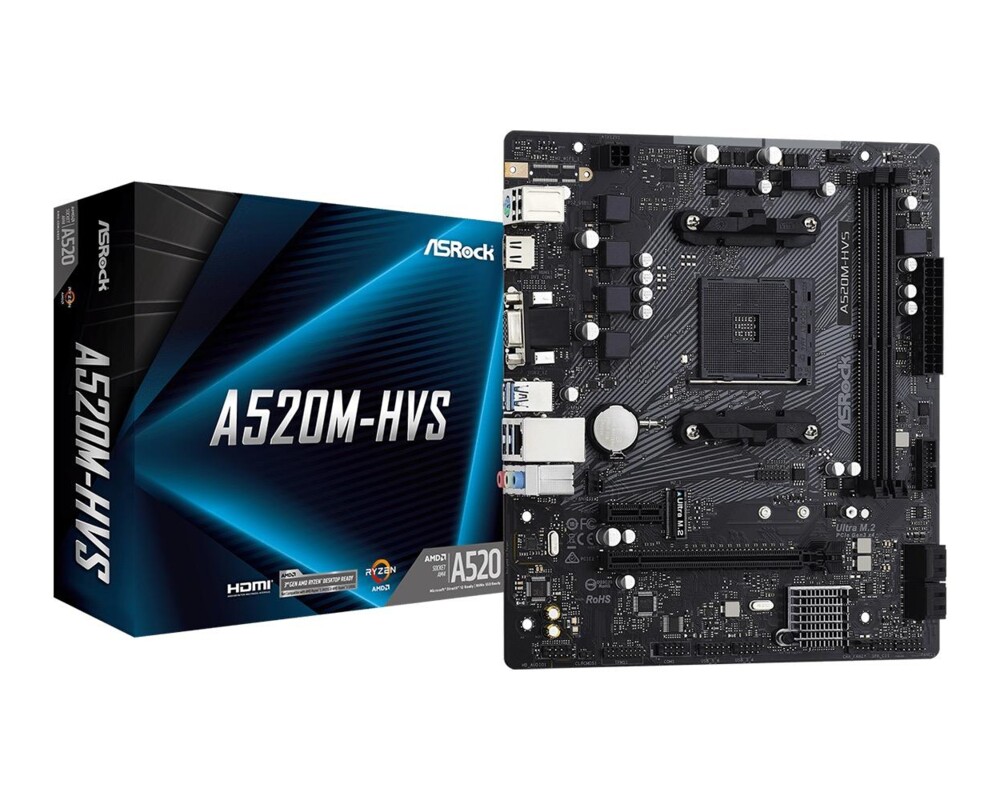

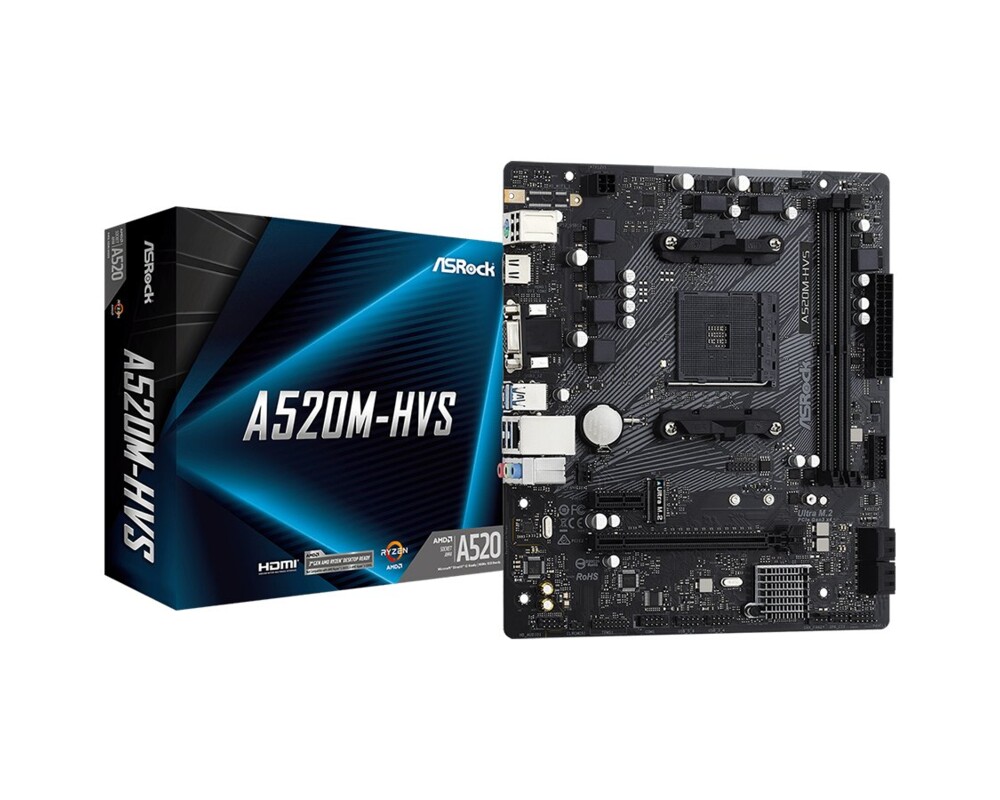

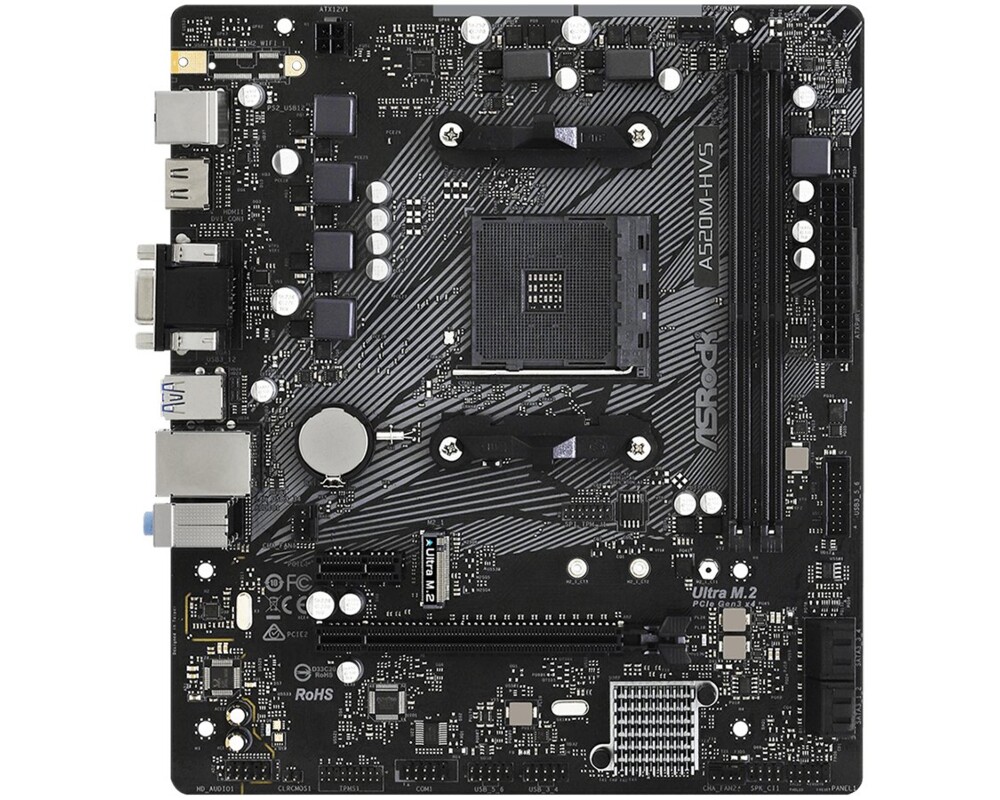

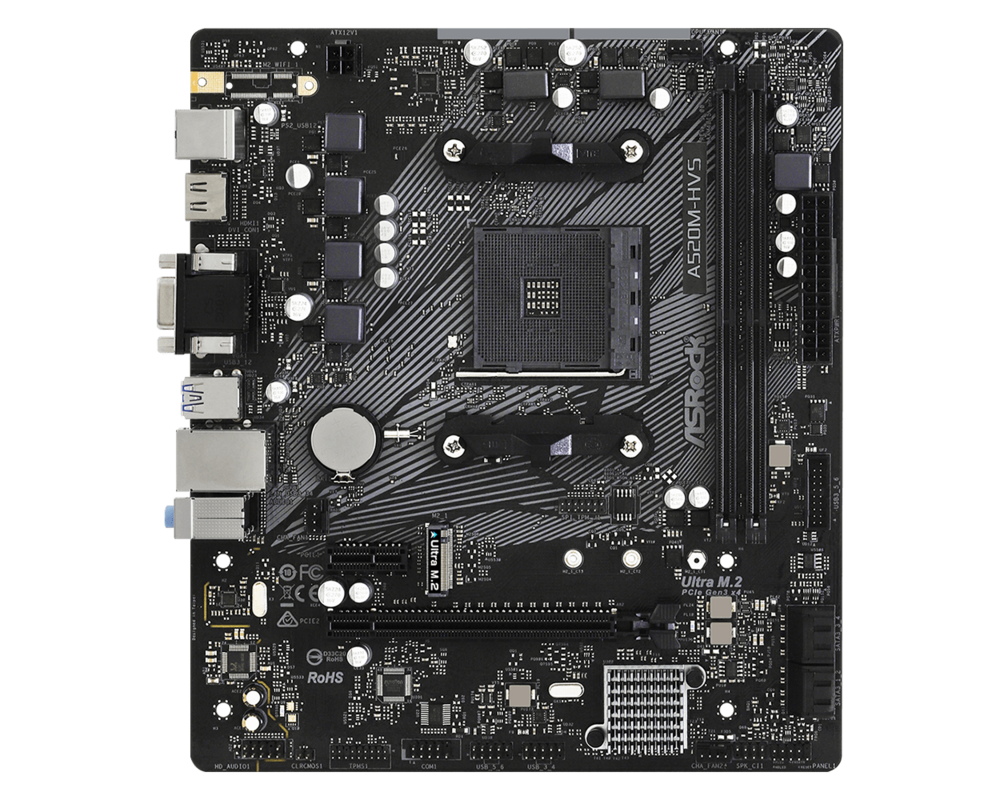

Дънна платка ASROCK A520M-HVS AM4 2xDDR4 1 x PCIe 3.0 x16 1 x PCIe 3.0 x1 D-Sub HDMI mATX MB A520M-HVS
код FALL25
за 3% отстъпка
за 3% отстъпка
Сокет: AM4
Чипсет: AMD A520
Тип на паметта: DDR4
Физически размер: Micro ATX
Слотове за памет: 2
Честота на паметта: 3200 MHz
Гаранция:
0.0
от 5.0
(0)
Купи и събери
2 точки
Плати по-лесно и сигурно с
Виж всички продукти на Asrock
Пазарувай по марка
Характеристики
| Физически размер | Micro ATX |
| Чипсет | AMD A520 |
| Сокет | AM4 |
| Съвместими процесори | Ryzen (supports 3rd Generation Ryzen) |
| BIOS | JumperFree, SMBIOS 2.3 support, UEFI BIOS, ACPI 5.1 support |
| Тип BIOS | AMI |
| Памет |
Небуферирана
XMP |
| Тип на паметта | DDR4 |
| Честота на паметта | 3200 MHz |
| Dual channel | Да |
| Формат на паметта | DIMM 288-pin |
| ECC support | Non-ECC, ECC |
| Memory Registered / Buffered | Unbuffered |
| Слотове за памет | 2 |
| Максимална памет | 64 GB |
| Слотове | 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode); - 1 x PCI Express 3.0 x1 Slot |
| Брой процесорни гнезда | 1 |
| Видео | Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU; - DirectX 12, Pixel Shader 5.0; - Shared memory default 2GB. Max Shared memory supports up to 16GB.; - Dual graphics output: support D-Sub and HDMI ports by independent display controllers; - Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz; - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz; - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required); - Supports HDR (High Dynamic Range) with HDMI 2.1; - Supports HDCP 2.3 with HDMI 2.1 Port; - Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port; - Supports Microsoft® PlayReady |
| Контролер на съхранението |
Storage Controller:
PCIe 3.0 x4/SATA (1 x M.2 (Key M)) Storage Controller: Supports: Ниво 0, Ниво 1, Ниво 1+ SATA III-600 (4) |
| Дисков интерфейс | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 SATA-600 / PCIe 3.0 -connectors: 1 x Ultra M.2 |
| SATA | 4 x SATA3 6.0 Gb/s |
| M.2 slot | 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode) |
| RAID | 0,1,10 |
| LAN порт | 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) |
| LAN standards | Gigabit Ethernet/Fast Ethernet/Ethernet |
| LAN controller | Realtek RTL8111H |
| Звук | Realtek ALC887 |
| Звуков изход | HD Audio (8-channel) |
| Аудио стандарти | High Definition Audio |

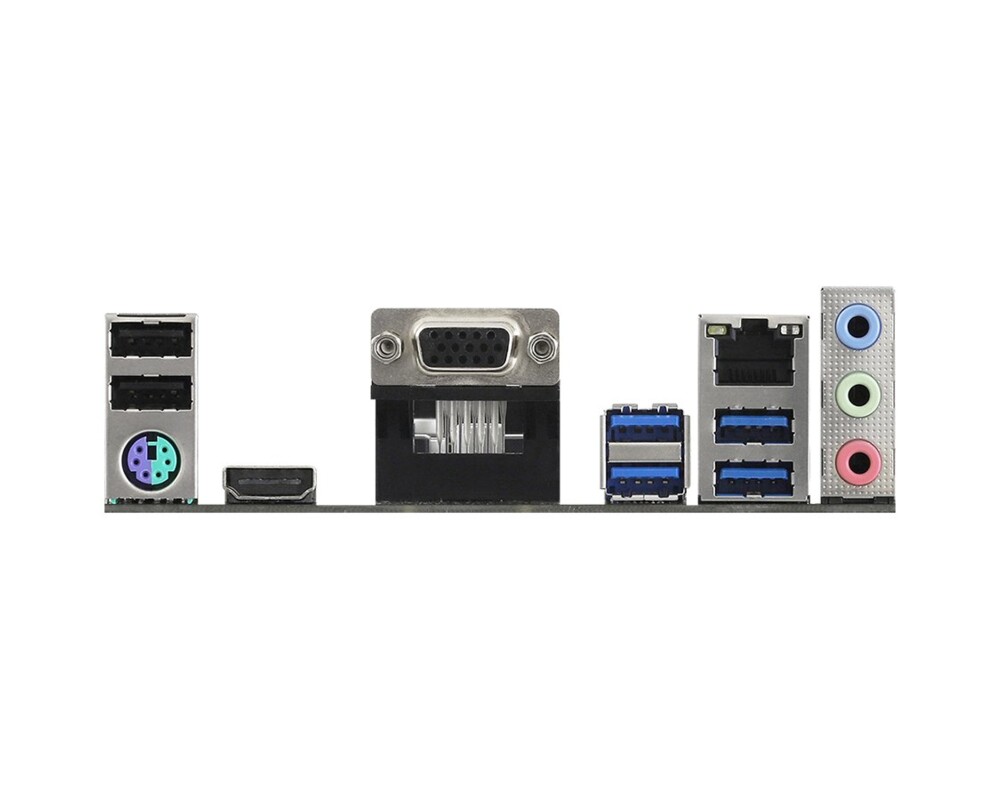

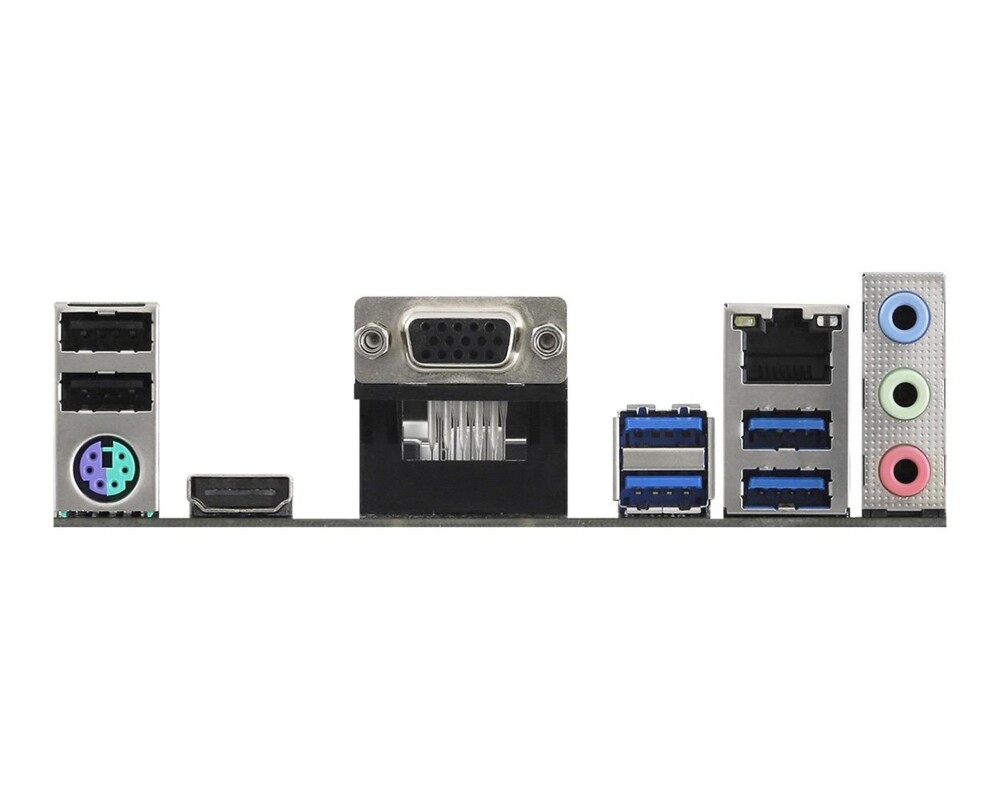

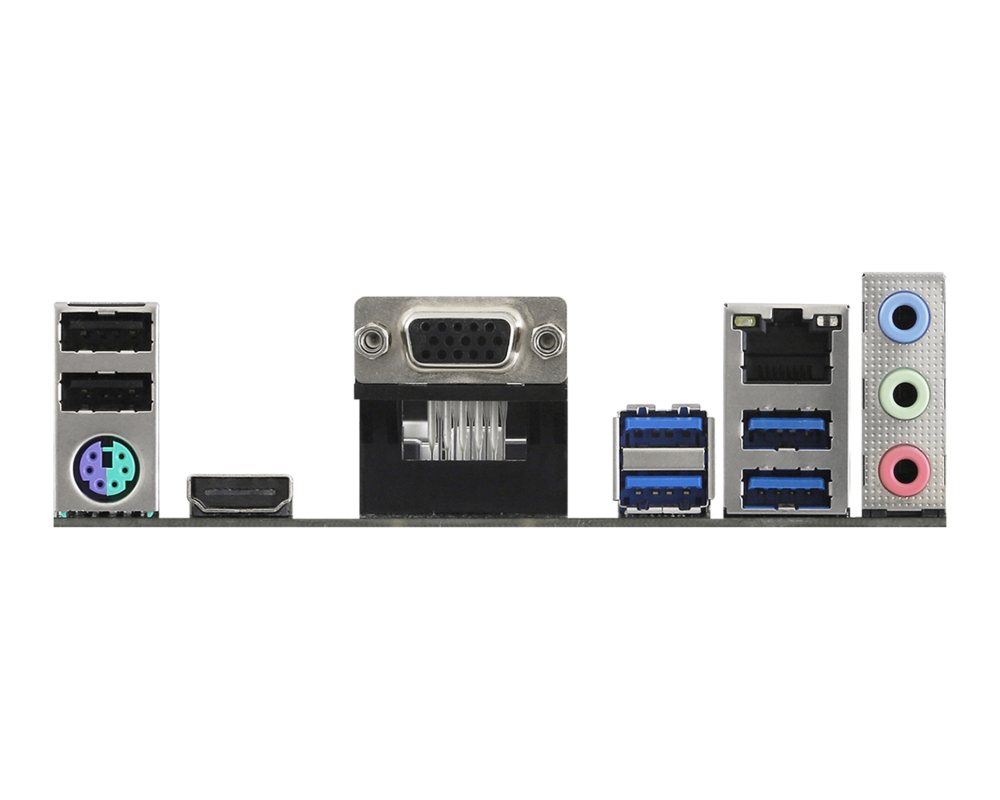

| Портове | 1 x VGA 4 x USB 3.2 Gen 1 1 x HDMI 1 x audio line-out - mini-jack 1 x microphone - mini-jack 1 x audio line-in - mini-jack 1 x PS/2 keyboard / mouse 2 x USB 2.0 1 x LAN (Gigabit Ethernet) |
| Разширителни слотове | 1 x CPU 2 x DIMM 288-pin 1 x PCIe 3.0 x16 1 x PCIe 3.0 x1 |
| PCI slots | 1x PCI Express 3.0 x1, 1x PCI Express 3.0 x16 |
| PCIe x1 | 1 |
| PCIe x16 | 1 x PCIe 3.0/2.0 x16 |
| Вътрешен интерфейс | 4 x USB 2.0 - header 2 x USB 3.2 Gen 1 - header 1 x serial - header 1 x audio - header |
| HDMI | 1 x HDMI port |
| VGA | VGA connector |
| DVI | DVI port |
| Wake on LAN | Wake on LAN (WOL) |
| Функции | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Софтуер | Drivers & Utilities, ASRock A-Tuning, Antivirus (Trial version), Google Chrome Browser, Google ChromeToolbar, ASRock XFast LAN |
| Конектори | 1 x SPI TPM Header; - 1 x COM Port Header; - 1 x Chassis Intrusion and Speaker Header; - 1 x CPU Fan Connector (4-pin); - 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control); - 1 x 24 pin ATX Power Connector; - 1 x 4 pin 12V Power Connector; - 1 x Front Panel Audio Connector; - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection); - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) |
| Конектори за захранване | 4-pin ATX12V connector, 24-pin main power connector |
| Наблюдение на хардуера | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage, opened case detection |
| Стандарти | FCC, EuP Ready, ErP Ready |
| Включени кабели | 2 x Serial ATA cable |
| Аксесоари | I/O back plate, 1 x M.2 screw |
| Височина | 201 мм |
| Ширина | 23 cm |
| Дълбочина | 20.1 cm |
| Други характеристики | ASRock Instant Flash, All-Solid Capacitor motherboard Design, 15µ Gold Contact, 6 Phase Power Design, ESD Protection, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), Triple Monitor, ASRock Full Spike Protection, ASRock APP Shop, ASRock Super Alloy, High Density Glass Fabric PCB, ASRock Full HD UEFI, Sapphire Black PCB, ASRock Live Update, ASRock Ultra M.2, Premium 50A Power Choke |
| Гаранция | 36 месеца |
| Код на продукта | A520M-HVS |
Виж повече
Допълнителна информация
- Ultra M.2 32Gb/s (PCIe Gen3 x4 & SATA3)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules. - HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry. - Dual graphics outputs
Complete with two types of most used connectors! Packed with a D-Sub + HDMI combo, you have more graphics output options now. - Premium 50A power choke
Compared to traditional chokes, ASRock's premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard. - High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity. - Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch. - Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard's components from being damaged by these unexpected voltage spikes. - Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. ASRock provides various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
