Дънна платка ASROCK H470M-HVS LGA 1200 DDR4 4xSATA mATX MB H470M-HVS
код FALL25
за 3% отстъпка
за 3% отстъпка
Сокет: LGA 1200
Чипсет: Intel H470
Тип на паметта: DDR4
Физически размер: Micro ATX
Слотове за памет: 2
Честота на паметта: 2400 MHz, 2133 MHz, 2800 MHz,...
Гаранция:
0.0
от 5.0
(0)
Купи и събери
2 точки
Плати по-лесно и сигурно с
Виж всички продукти на Asrock
Пазарувай по марка
Характеристики
| Физически размер | Micro ATX |
| Чипсет | Intel H470 |
| Сокет | LGA 1200 |
| Съвместими процесори | (supports 10th Generation Intel Core / Pentium Gold / Celeron) |
| BIOS | Multilingual BIOS, UEFI BIOS, SMBIOS 2.7 support, ACPI 6.0 support |
| Тип BIOS | AMI |
| Памет |
Two DDR Channels
Небуферирана XMP |
| Тип на паметта | DDR4 |
| Честота на паметта |
2400 MHz
2133 MHz 2800 MHz 2666 MHz 2933 MHz |
| Формат на паметта | DIMM 288-pin |
| ECC support | Non-ECC, ECC (operate in non-ECC mode) |
| Memory Registered / Buffered | Unbuffered |
| Слотове за памет | 2 |
| Максимална памет | 64 GB |
| Слотове | 1 x PCI Express 3.0 x16 Slot; - 1 x PCI Express 3.0 x1 Slot |
| Брой процесорни гнезда | 1 |
| Видео |
Hardware Accelerated Codecs: AVC/H.264
HEVC/H.265 8bit HEVC/H.265 10bit VP8 VP9 8bit VP9 10bit MPEG 2 MJPEG VC-1; - Graphics Media & Compute: Microsoft® DirectX 12 OpenGL 4.5 Intel® Built In Visuals Intel® Quick Sync Video Hybrid / Switchable Graphics OpenCL 2.1; - Display & Content Security: Rec. 2020 (Wide Color Gamut) Microsoft® PlayReady 3.0 Intel® SGX Content Protection UHD Blu-ray Disc; - Dual graphics output: support HDMI and D-Sub ports by independent display controllers; - Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz; - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz; - Supports Auto Lip Sync Deep Color (12bpc) xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required); - Supports HDCP 2.3 with HDMI 1.4 Port; - Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port |
| Контролер на съхранението |
Storage Controller:
Supports: Ниво 0, Ниво 1, Ниво 10, Ниво 5 SATA III-600 (4) |
| Дисков интерфейс | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| RAID | Intel Rapid Storage Technology |
| LAN порт | Gigabit Ethernet |
| LAN standards | Gigabit Ethernet/Fast Ethernet/Ethernet |
| LAN controller | Realtek RTL8111H |
| Звук | Realtek ALC897 |
| Звуков изход | HD Audio (8-channel) |
| Аудио стандарти | High Definition Audio |

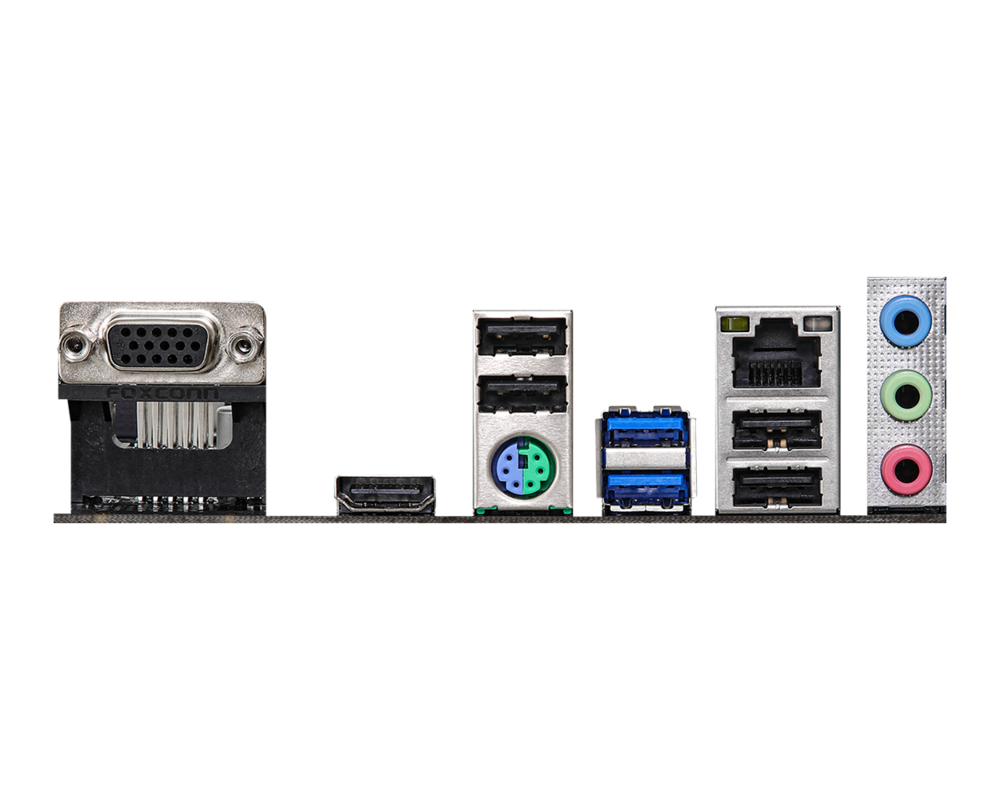

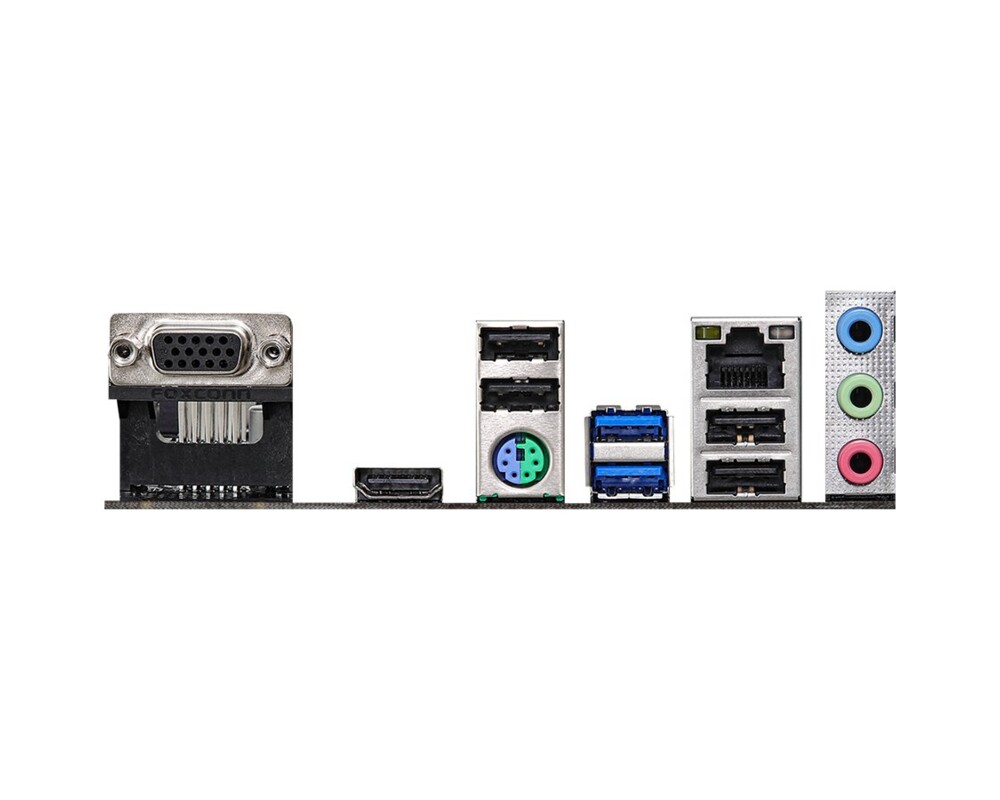

| Портове | 4 x USB 2.0 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x microphone - mini-jack 2 x USB 3.2 Gen 1 1 x PS/2 keyboard / mouse 1 x HDMI 1 x VGA 1 x LAN (Gigabit Ethernet) |
| Разширителни слотове | 1 x CPU 2 x DIMM 288-pin 1 x PCIe 3.0 x16 1 x PCIe 3.0 x1 |
| PCI slots | 1x PCI Express 3.0 x1, 1x PCI Express 3.0 x16 |
| Вътрешен интерфейс | 2 x USB 3.2 Gen 1 - header 1 x audio - header 2 x USB 2.0 - header |
| Wake on LAN | Wake on LAN (WOL) |
| Функции | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 2.0, supported ECC modules operate in non-ECC mode |
| Софтуер |
Drivers & Utilities
ASRock A-Tuning Antivirus (Trial version) Google Chrome Browser Google ChromeToolbar ASRock XFast LAN |
| Конектори | 1 x SPI TPM Header; - 1 x Chassis Intrusion and Speaker Header; - 1 x CPU Fan Connector (4-pin); - 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control); - 1 x 24 pin ATX Power Connector; - 1 x 8 pin 12V Power Connector; - 1 x Front Panel Audio Connector; - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection); - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) |
| Конектори за захранване | 24-pin main power connector, 8-pin ATX12V connector |
| Наблюдение на хардуера |
CPU core temperature
chassis temperature CPU fan tachometer chassis fan tachometer system voltage CPU core voltage power supply fan tachometer |
| Стандарти | FCC, EuP Ready, ErP Ready, HDCP 2.3 |
| Сертификати | FCC, CE, ErP/EuP ready |
| Включени кабели | Serial ATA cable |
| Аксесоари | I/O back plate |
| Височина | 188 мм |
| Ширина | 19.7 cm |
| Дълбочина | 18.8 cm |
| Други характеристики |
ASRock Instant Flash
HDCP compliant 15µ Gold Contact 5 Phase Power Design ASRock Internet Flash Digi Power Design ESD Protection Energy Efficient Ethernet 802.3az Preboot eXecution Environment (PXE) ASRock Full Spike Protection ASRock APP Shop ASRock Super Alloy High Density Glass Fabric PCB ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Easy RAID Installer Sapphire Black PCB ASRock Live Update ASRock EZ Mode Premium 50A Power Choke Intel Turbo Boost Max Technology 3.0 |
| Гаранция | 24 месеца |
| Код на продукта | H470M-HVS |
Виж повече
Допълнителна информация
- 5 power phase design
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers enhanced performance with the lowest temperature for advanced gamers. - Premium 50A power choke
Compared to traditional chokes, ASRock's premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard. - HEVC 10-bit Decoding/Encoding
Supports HEVC 10-bit Decoding/Encoding to provide substantially improved video quality and higher bit depth video experience. - Dual graphics outputs
Complete with two types of most used connectors! Packed with a HDMI + D-SUB combo, you have more graphics output options now. - Water pump header
This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise. - Full spike protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard's components from being damaged by these unexpected voltage spikes.
