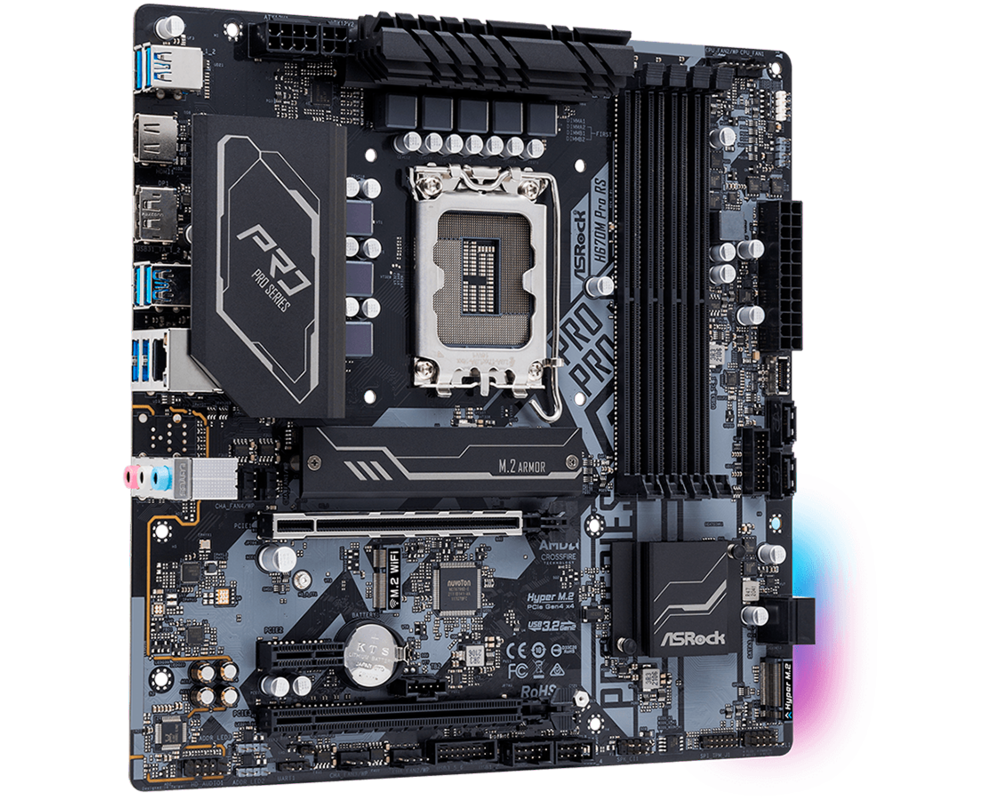

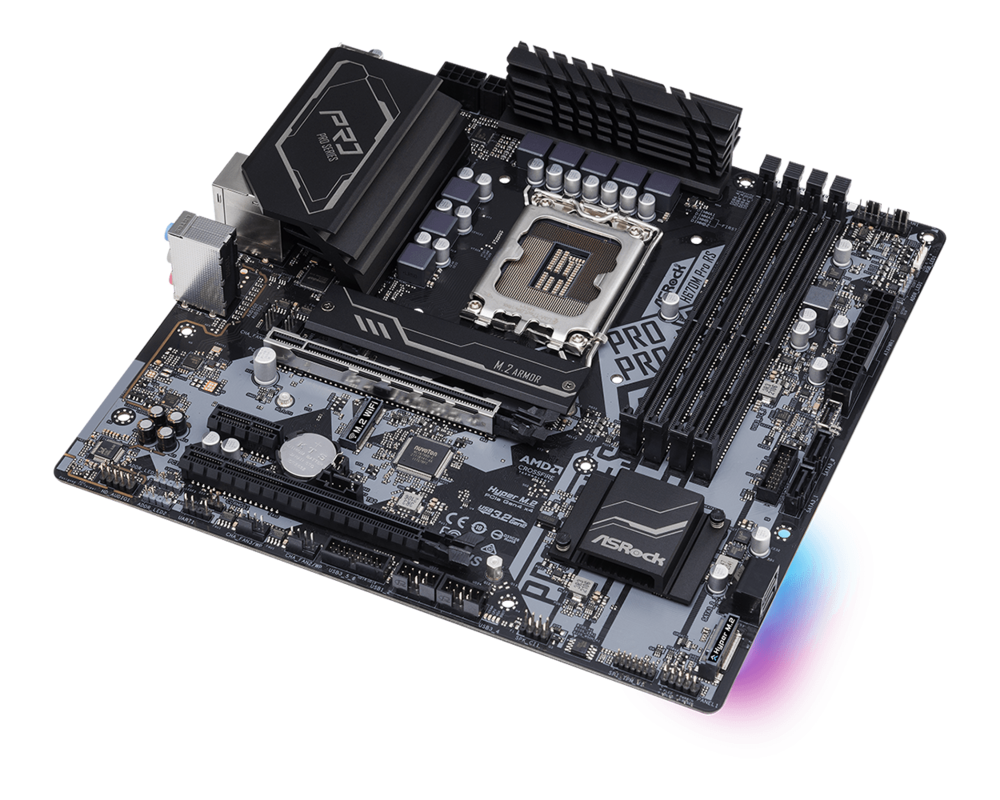

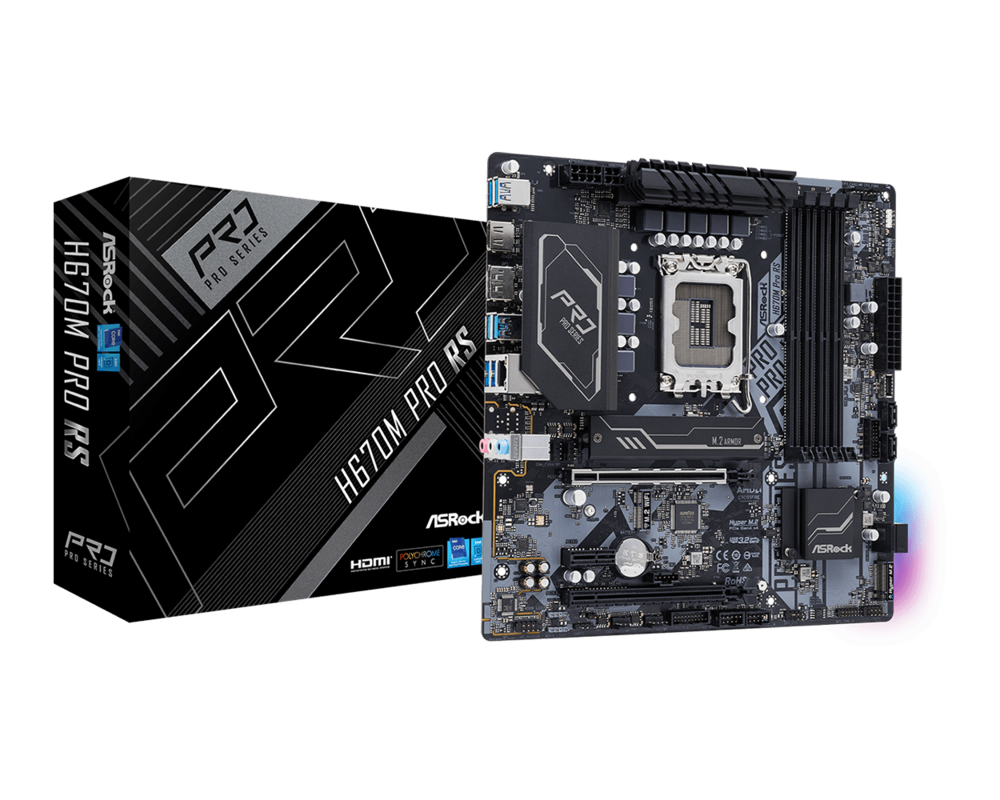

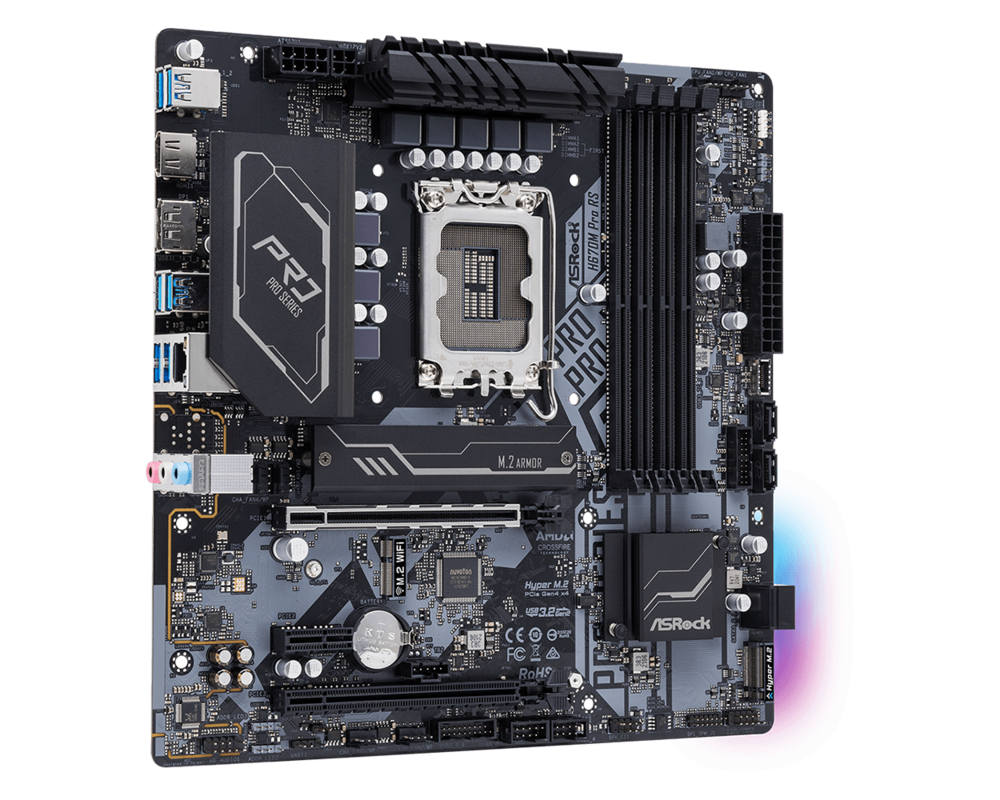

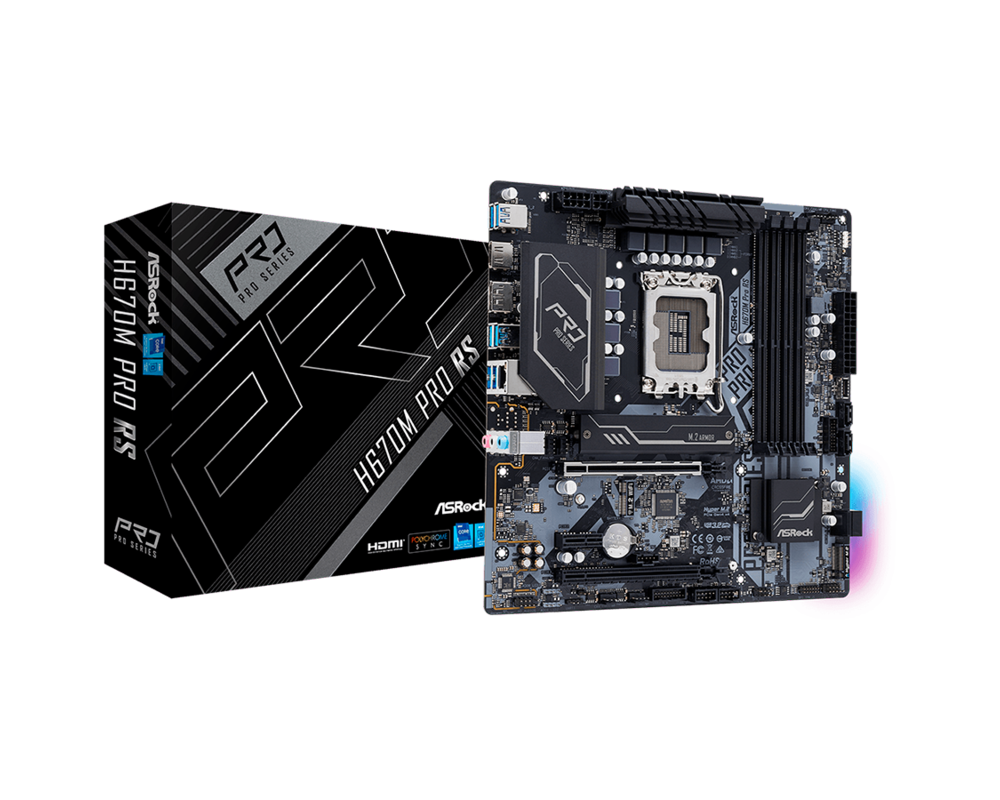

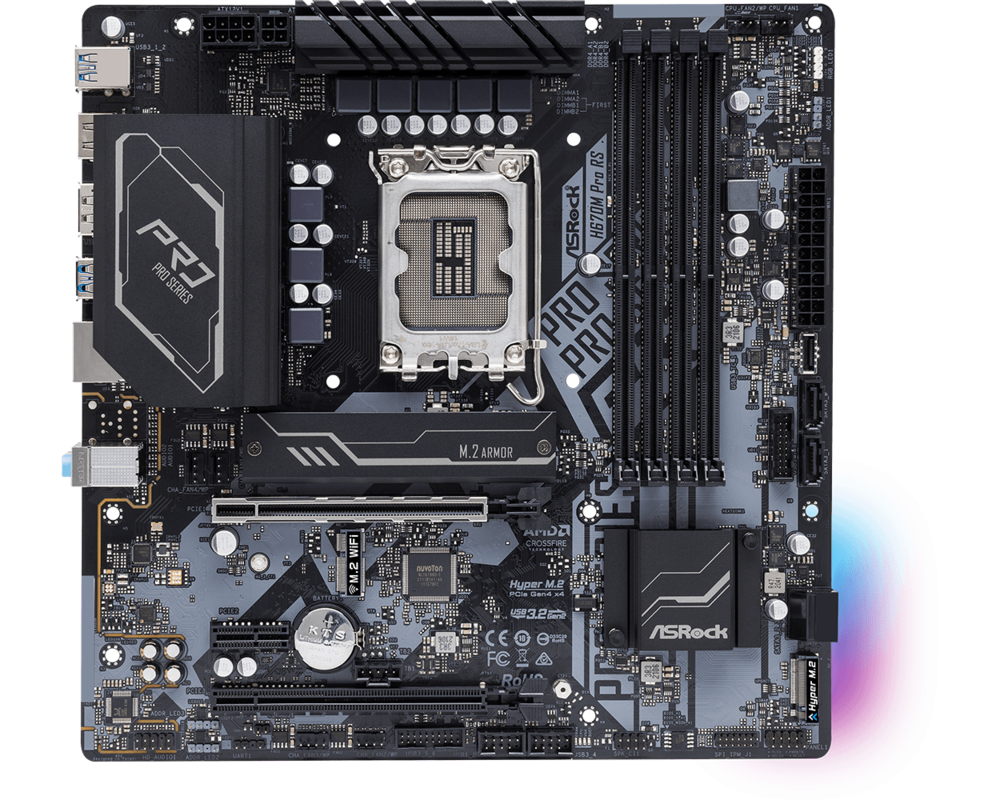

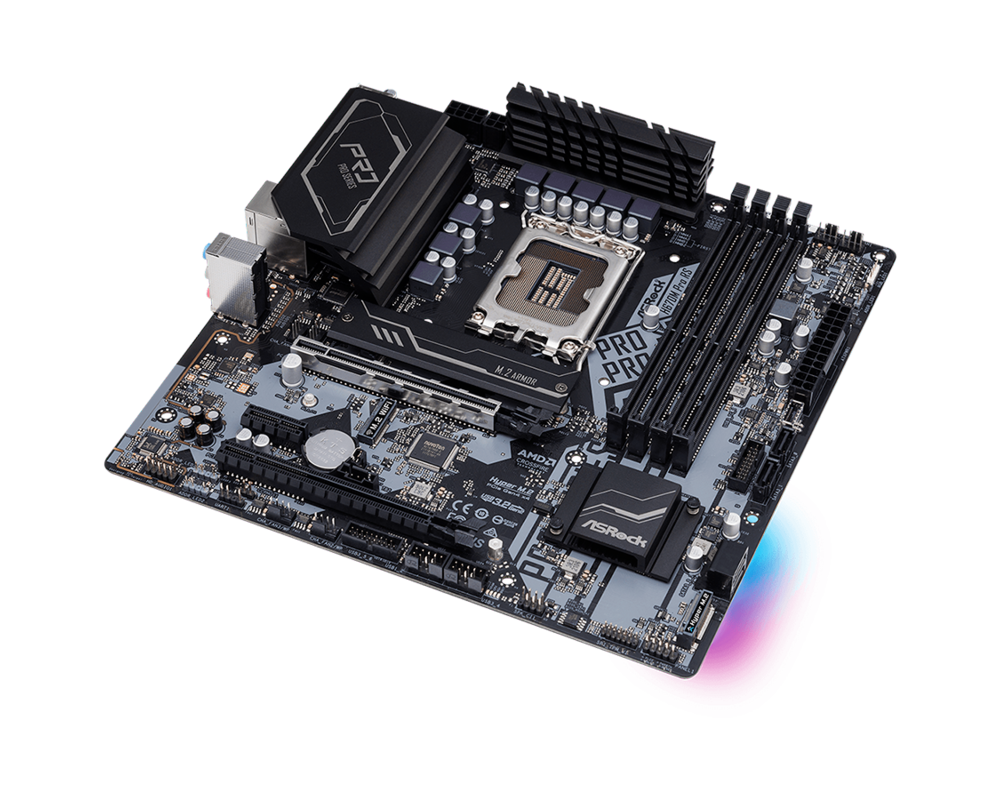

Дънна платка ASROCK H670M Pro RS LGA1700 4x DDR4 DIMM HDMI DP 1xPCIe 5.0 x16 1xPCIe 4.0 x16 3xPCIe 3.0 x1 H670M PRO RS
Топ цена
Сокет: LGA 1700
Чипсет: Intel H670
Тип на паметта: DDR4
Физически размер: Micro ATX
Слотове за памет: 4
Честота на паметта: 4800 MHz (O.C.)
Гаранция:
0.0
от 5.0
(0)
Купи и събери
1 точка
Плати по-лесно и сигурно с
Виж всички продукти на Asrock
Пазарувай по марка
Характеристики
| Приложение | Best Seller |
| Физически размер | Micro ATX |
| Чипсет | Intel H670 |
| Сокет | LGA 1700 |
| Съвместими процесори | (supports 12th Generation Intel Core) |
| BIOS | Multilingual BIOS, UEFI BIOS, SMBIOS 2.7 support, ACPI 6.0 support |
| Тип BIOS | AMI |
| Памет |
Two DDR Channels
Небуферирана XMP 2.0 |
| Тип на паметта | DDR4 |
| Честота на паметта | 4800 MHz (O.C.) |
| Формат на паметта | DIMM 288-pin |
| ECC support | Non-ECC, ECC (operate in non-ECC mode) |
| Memory Registered / Buffered | Unbuffered |
| Слотове за памет | 4 |
| Максимална памет | 128 GB |
| Слотове | CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode; Chipset: - 1 x PCIe 3.0 x16 Slot (PCIE3), supports x4 mode; - 1 x PCIe 3.0 x1 Slot (PCIE2); - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module; - Supports AMD CrossFire™ |
| Брой процесорни гнезда | 1 |
| Видео | Intel® Xe Graphics Architecture (Gen 12); - Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers; - Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz; - Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz; - Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports |
| Контролер на съхранението |
Storage Controller:
Supports: Ниво 0, Ниво 1, Ниво 10, Ниво 5 SATA III-600 (4) Storage Controller: Supports: Ниво 0, Ниво 1 PCI Express 4.0 x4 (1 x M.2 (Key M)) Storage Controller: Supports: Ниво 0, Ниво 1 PCIe 4.0 x4/SATA (1 x M.2 (Key M)) |
| Дисков интерфейс | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 |
| LAN порт | Gigabit Ethernet |
| LAN standards | Gigabit Ethernet/Fast Ethernet/Ethernet |
| LAN controller | Intel I219V |
| Wi-Fi controller |
Wi-Fi Controller:
1 x M.2 (Key E) |
| Звук | Realtek ALC897 |
| Звуков изход | HD Audio (8-channel) |
| Аудио стандарти | High Definition Audio |

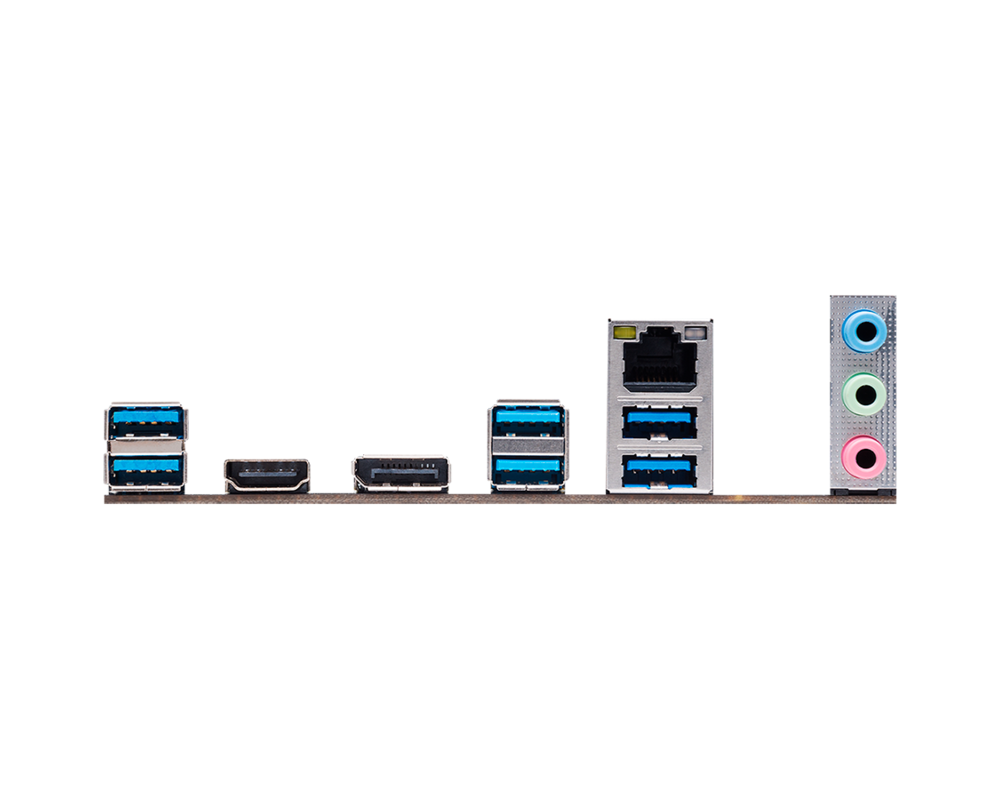

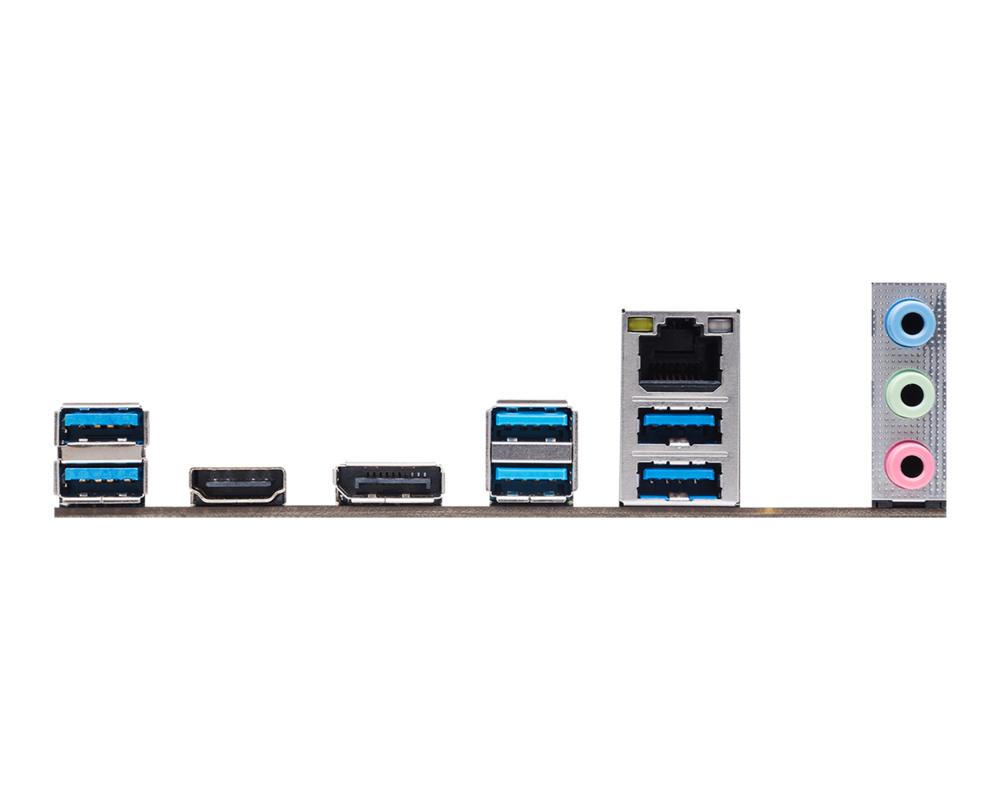

| Портове | 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x microphone - mini-jack 1 x HDMI 1 x LAN (Gigabit Ethernet) 1 x DisplayPort 2 x USB 3.2 Gen 2 4 x USB 3.2 Gen 1 |
| Разширителни слотове | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 4.0 x16 1 x PCIe 3.0 x1 1 x M.2 socket (Key E) 1 x PCIe 3.0 x16 (x4 mode) |
| PCI slots | 1x PCI Express 3.0 x1, 1x PCI Express 3.0 x16, 1x PCI Express 4.0 x16 |
| Вътрешен интерфейс | 4 x USB 3.2 Gen 1 - header 1 x audio - header 1 x Thunderbolt - header 1 x USB-C Gen 1 - header 4 x USB 2.0 - header |
| Wake on LAN | Wake on LAN (WOL) |
| Функции | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 2.0, supported ECC modules operate in non-ECC mode |
| Софтуер |
Drivers & Utilities
ASRock A-Tuning Antivirus (Trial version) ASRock XFast LAN ASRock Polychrome SYNC |
| Съвместими операционни системи |
Microsoft Windows 10 64-bit
Microsoft Windows 11 64-bit |
| Конектори | 1 x SPI TPM Header; - 1 x Chassis Intrusion and Speaker Header; - 1 x RGB LED Header; - 3 x Addressable LED Headers; - 1 x CPU Fan Connector (4-pin); - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control); - 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control); - 1 x 24 pin ATX Power Connector; - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector); - 1 x 4 pin 12V Power Connector (Hi-Density Power Connector); - 1 x Front Panel Audio Connector; - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card); - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection); - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection); - 1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection) |
| Конектори за захранване | 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector |
| Наблюдение на хардуера |
CPU core temperature
chassis temperature CPU fan tachometer chassis fan tachometer system voltage CPU core voltage opened case detection |
| Стандарти | FCC, EuP Ready, ErP Ready |
| Включени кабели | 2 x Serial ATA cable |
| Аксесоари | I/O back plate, 3 x M.2 screws, standoff for M.2 socket |
| Височина | 244 мм |
| Ширина | 24.4 cm |
| Дълбочина | 24.4 cm |
| Други характеристики |
ASRock Instant Flash
7 Phase Power Design AMD CrossFireX technology support ASRock Internet Flash ESD Protection Energy Efficient Ethernet 802.3az Preboot eXecution Environment (PXE) ASRock A-Tuning ASRock Full Spike Protection ASRock APP Shop ASRock Super Alloy High Density Glass Fabric PCB ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Easy RAID Installer Sapphire Black PCB Dr.MOS MOSFET Nahimic Audio Enhacer ASRock Live Update ASRock EZ Mode Intel Optane Memory Ready ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology ASRock Steel Slots Premium Power Choke Intel Turbo Boost Max Technology 3.0 ASRock POST Status Checker (PSC) ASRock Full Coverage M.2 Heatsink ASRock Hyper M.2 ASRock USB 3.2 Gen2 Intel Hybrid Technology |
| Гаранция | 24 месеца |
| Код на продукта | H670M PRO RS |
Виж повече
Допълнителна информация
- Intel Gigabit LAN
Intel LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users! - Nahimic Audio
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details. - Polychrome RGB
In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects. - High Speed M.2 solution
This motherboard is capable of accommodating multiple PCI Express 4.0 M.2 SSDs, which is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience. - M.2 (Key E) for WiFi
Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.
