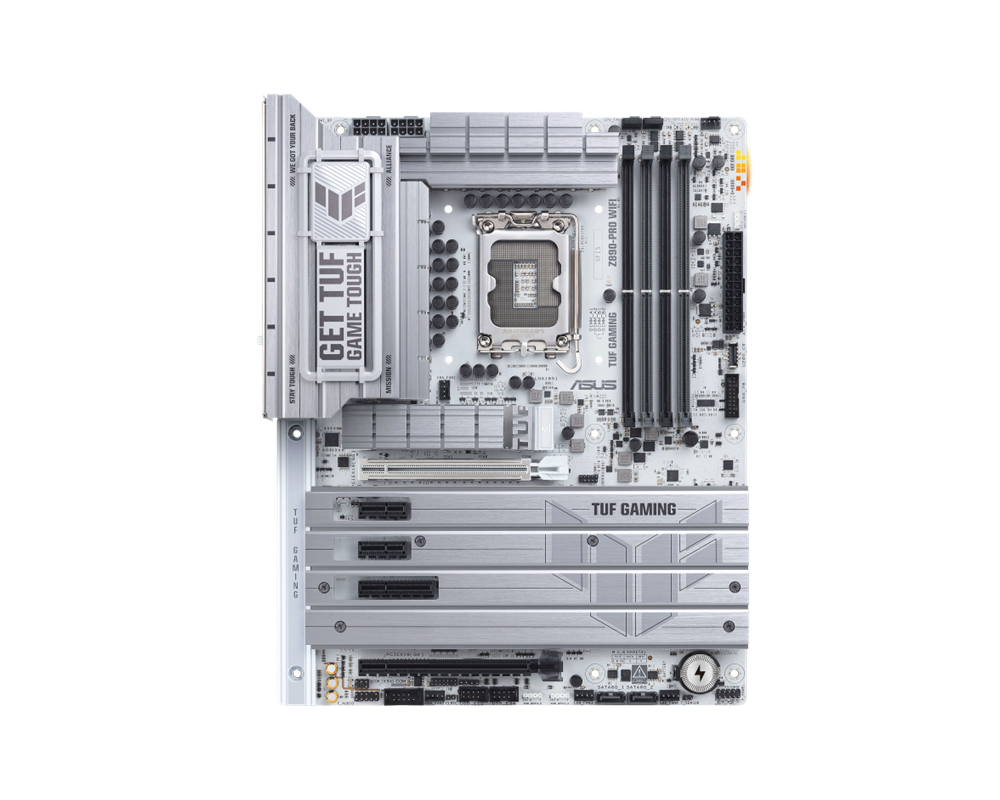

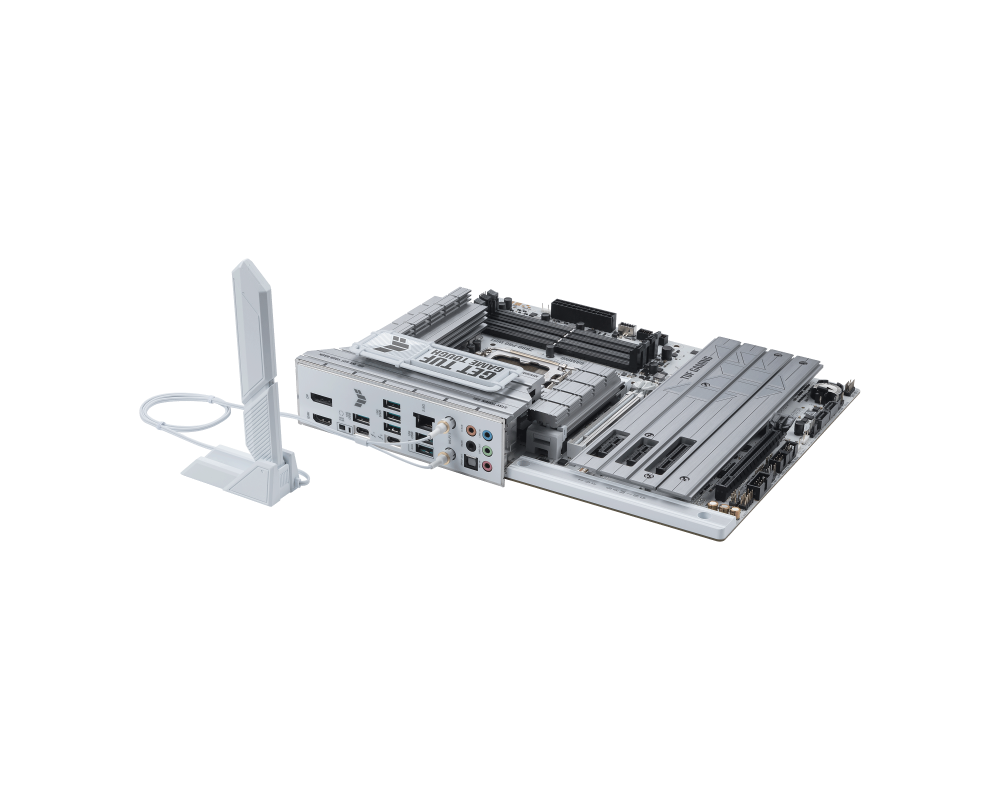

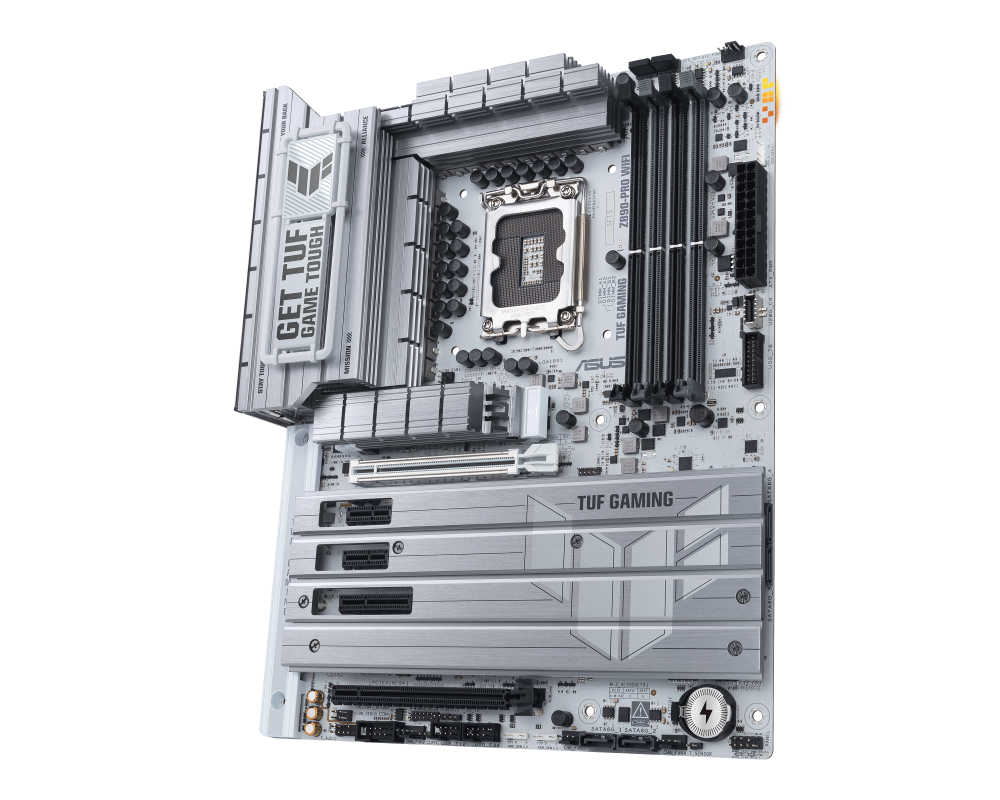

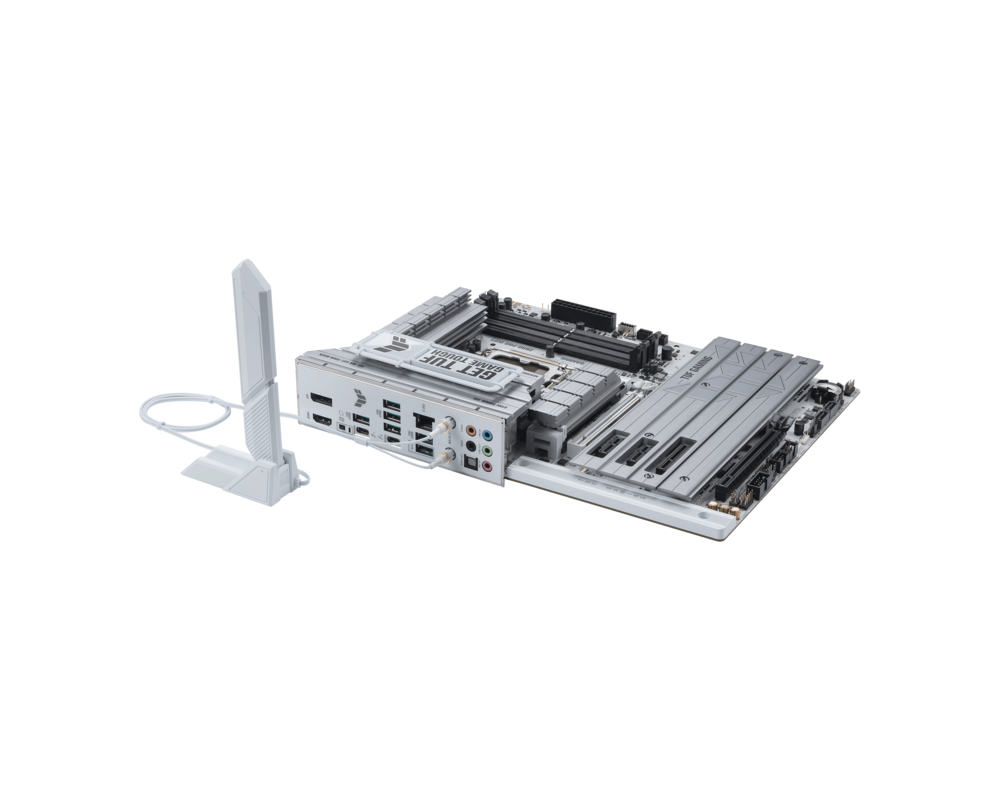

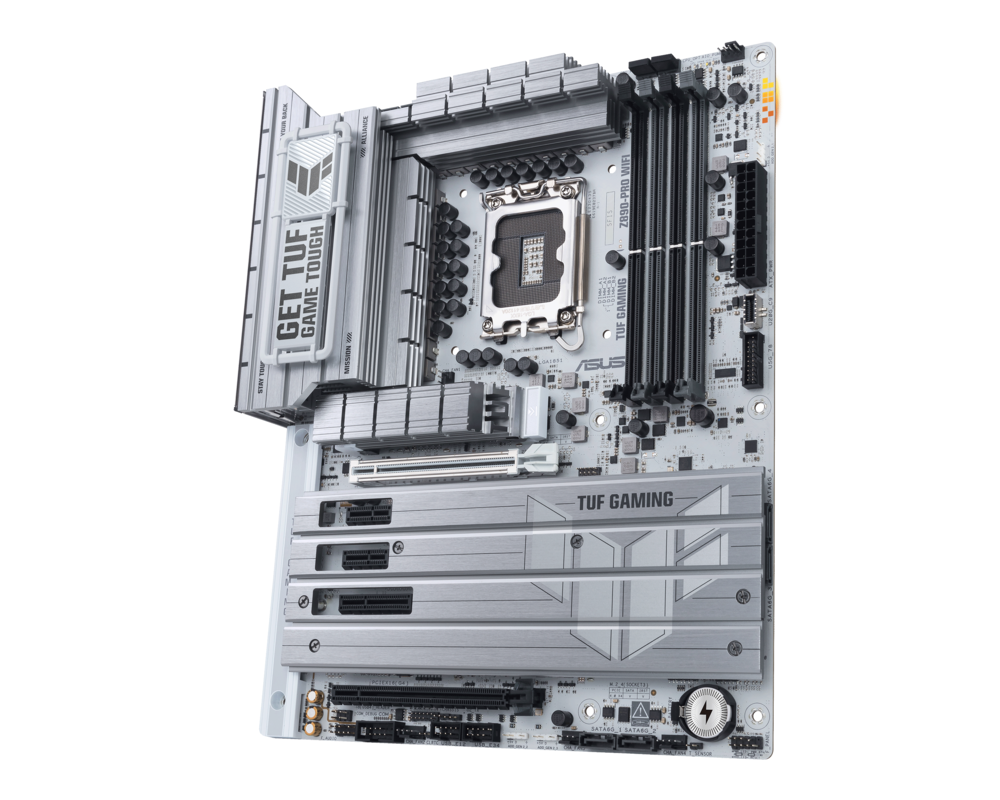

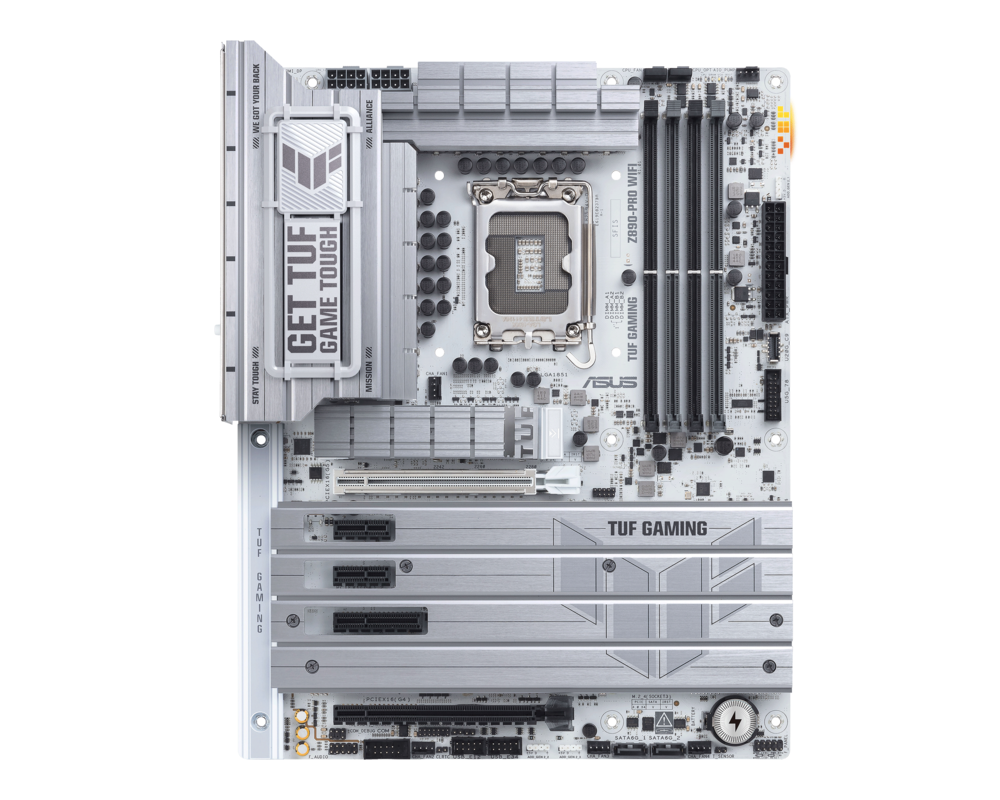

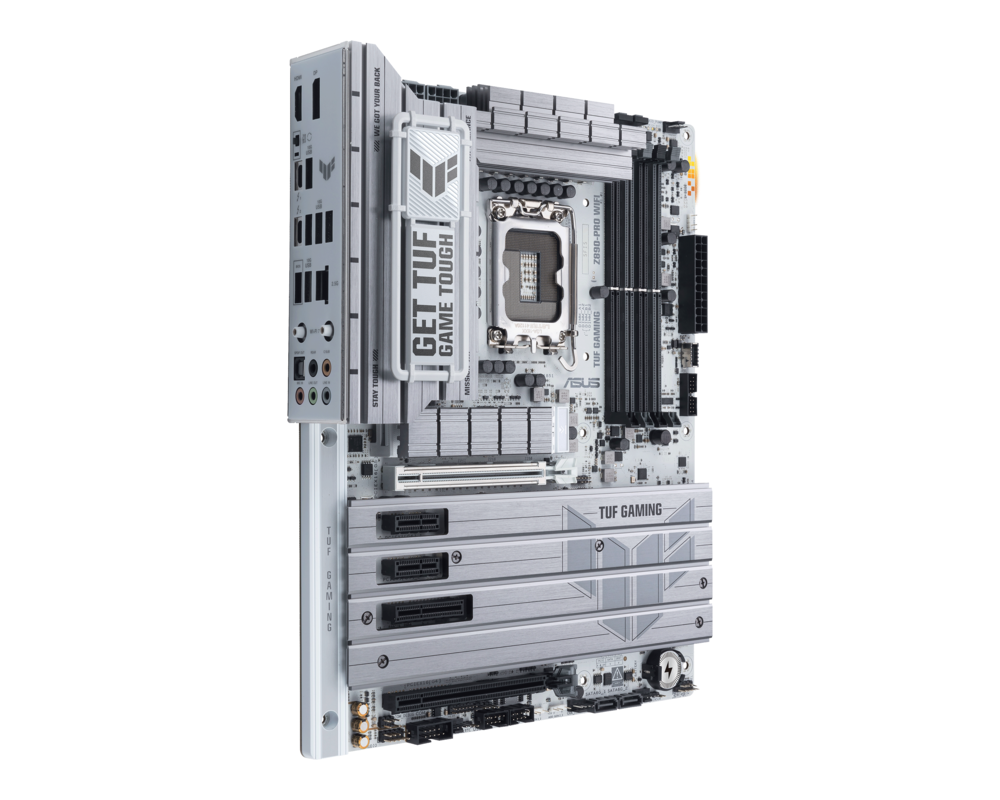

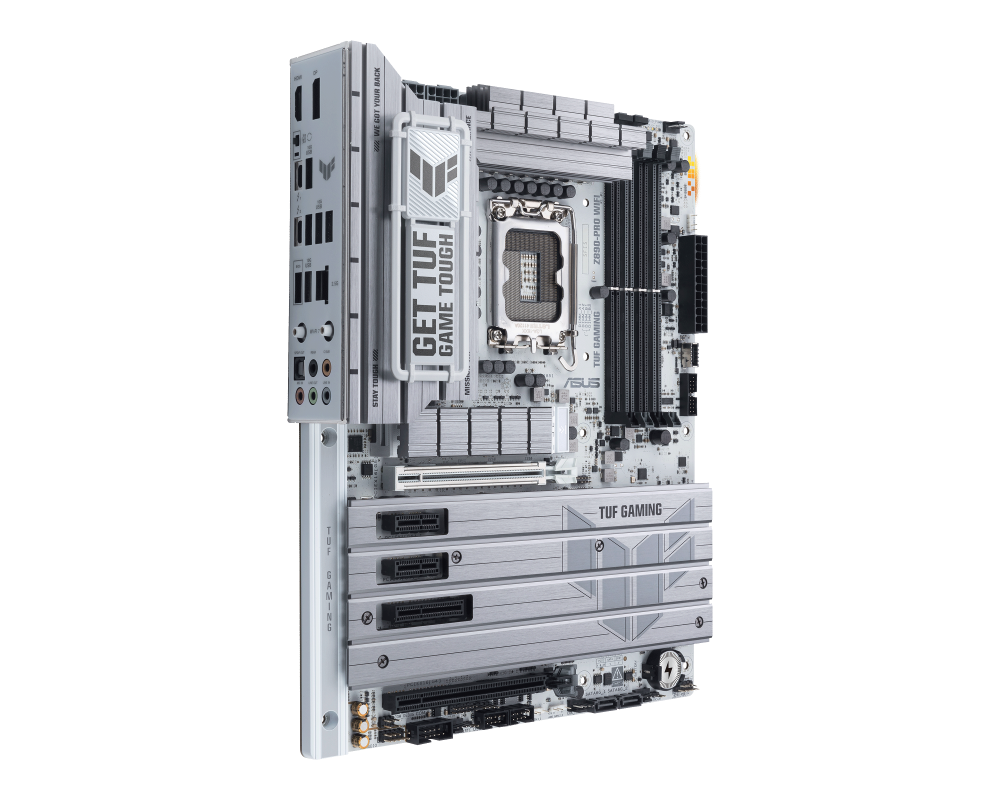

Дънна платка ASUS TUF GAMING Z890-PRO WIFI, LGA 1851 TUF-Z890-PRO-WF
изчерпано
Сокет: LGA1851
Чипсет: Intel® Z890
Тип на паметта: DDR5
Физически размер: ATX
Слотове за памет: 4
Честота на паметта: 9066 MHz
Гаранция:
0.0
от 5.0
(0)
Купи и събери
4 точки
Плати по-лесно и сигурно с
Виж всички продукти на Asus
Пазарувай по марка
Характеристики
| Физически размер | ATX |
| Чипсет | Intel® Z890 |
| Сокет | LGA1851 |
| Съвместими процесори | Support Intel® Core™ Ultra Processors (Series 2), LGA1851;Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Тип BIOS | AMI |
| Тип на паметта | DDR5 |
| Честота на паметта | 9066 MHz |
| Dual channel | Да |
| ECC support | Non-ECC |
| Memory Registered / Buffered | Unbuffered |
| Слотове за памет | 4 |
| Максимална памет | 192 GB |
| Слотове | Intel® Core™ Ultra Processors(Series 2);-1 x PCIe 5.0 x16 slot;Intel® Z890 Chipset;-1 x PCIe 4.0 x16 slot (supports x4 mode);-1 x PCIe 4.0 x4 slot;-2 x PCIe 4.0 x1 slots |
| Брой процесорни гнезда | 1 |
| Видео | 1 x DisplayPort;1 x HDMI™ port;2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs; Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.; Supports max. 4K@60Hz as specified in DisplayPort 1.4.; Supports 4K@60Hz as specified in HDMI 2.1.; In ThunderboltTM 4 mode, supports up to 8K@60Hz x1 with DSC or 4K@60Hz x 2, maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs.; In DP alt mode, Only one USB Type-C® port supports up to UHBR20 at a time.; VGA resolution support depends on processors' or graphic cards' resolution.; While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card. |
| Дисков интерфейс | Total Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports;Intel® Core™ Ultra Processors(Series 2);-M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode);-M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode);Intel® Z890 Chipset;-M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode);-M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes);-4 x SATA 6Gb/s ports; Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only support RAID 0/1/5. |
| SATA | 4 x SATA 6Gb/s |
| M.2 slot | M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode), M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes), M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) |
| RAID | 0, 1, 5, 10 |
| LAN порт | 1 x Intel® 2.5Gb Ethernet TUF LANGuard |
| Звук | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC;- Impedance sense for front and rear headphone outputs;- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers;- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking;- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in);- Supports up to 32-Bit/192 kHz playback;Audio Features;- Audio Shielding;- Rear optical S/PDIF out port;- Premium audio capacitors;- Dedicated audio PCB layers;- Audio cover;- Unique de-pop circuit; Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. |
| Звуков изход | HD Audio (8-channel) |
| Аудио стандарти | High Definition Audio |

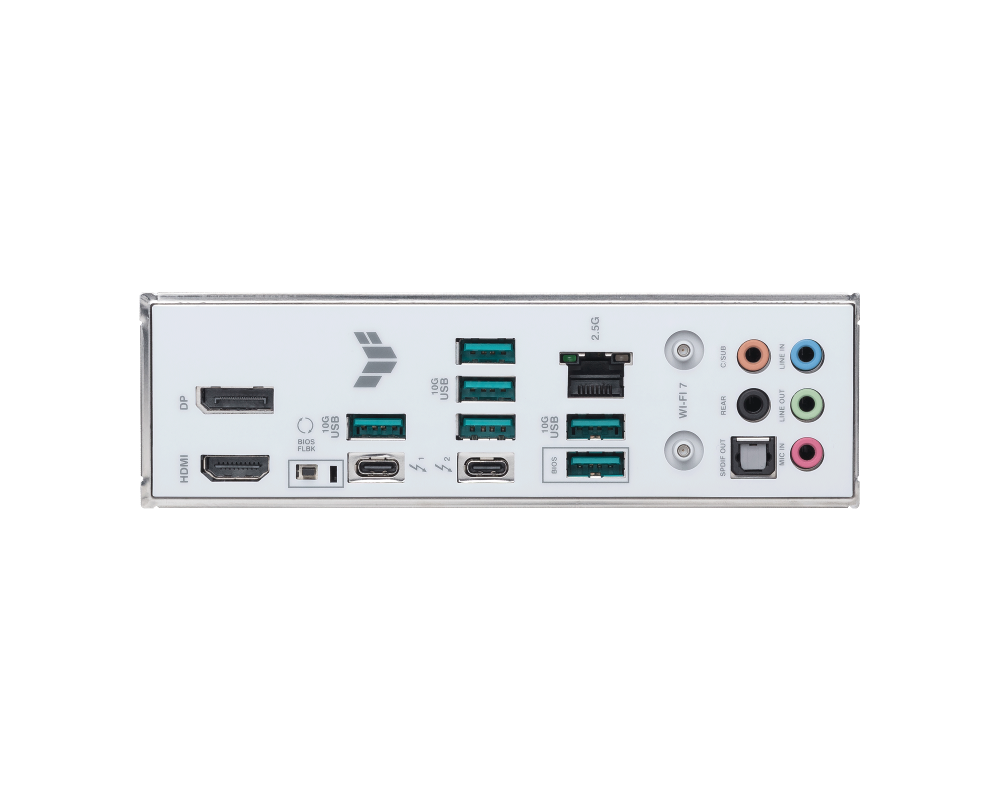

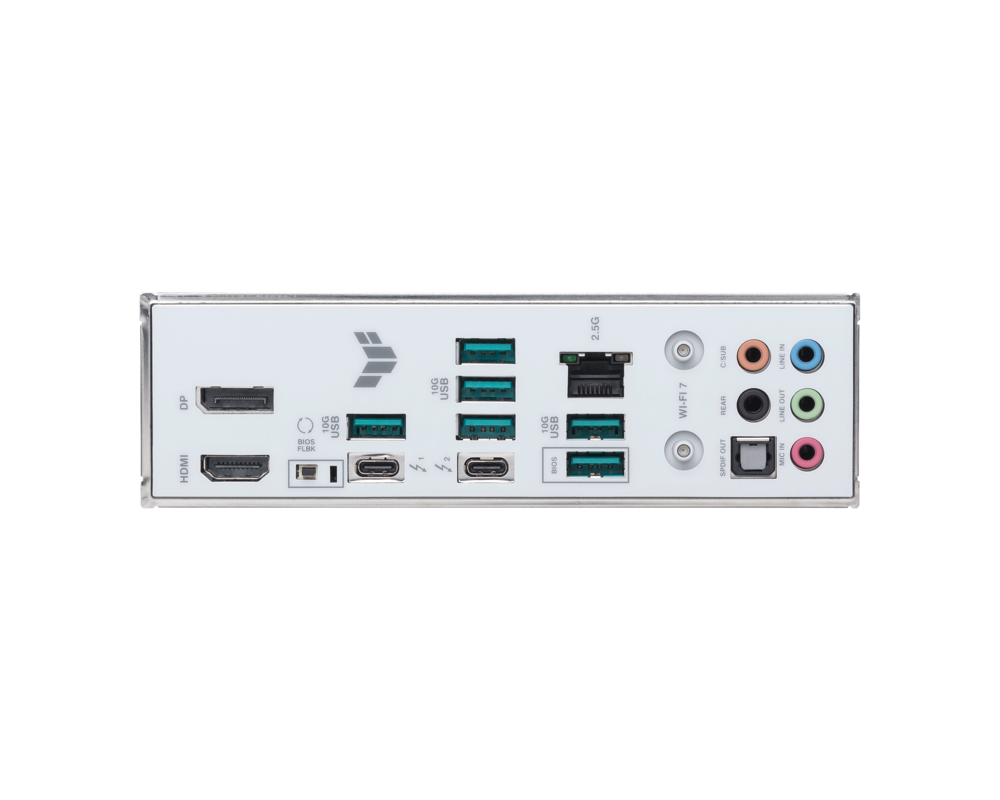

| Портове | 1 x DisplayPort;1 x HDMI™ port;1 x Wi-Fi module;1 x Intel® 2.5Gb Ethernet port;5 x Audio jacks;1 x Optical S/PDIF out port;1 x BIOS FlashBack™ button;Rear USB (Total 8 ports);2 x Thunderbolt™ 4 ports (2 x USB Type-C®);6 x USB 10Gbps ports (6 x Type-A);Front USB (Total 7 ports);1 x USB 20Gbps (supports USB Type-C® with up to 30W PD/PPS Fast-charge );1 x USB 5Gbps header supports 2 additional USB 5Gbps ports;2 x USB 2.0 headers support 4 additional USB 2.0 ports; USB Type-C® power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A |
| Разширителни слотове | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 5.0 x16 1 x PCIe 4.0 x16 (x4 mode) 1 x PCIe 4.0 x4 2 x PCIe 4.0 x1 2 x M.2 socket (2242/2260/2280 M.2 Key M slot) 1 x M.2 socket (2280 M.2 Key M slot) 1 x M.2 socket (2280/22110 M.2 Key M slot) |
| PCIe x1 | 2 |
| PCIe x4 | 1 |
| PCIe x16 | 1 x PCIe 5.0 x16 slot |
| Вътрешен интерфейс | 1 x USB-C 3.2 Gen 2x2 - header 2 x USB 3.2 Gen 1 - header 4 x USB 2.0 - header 1 x serial - header 1 x audio - header 1 x Thunderbolt 4 - header |
| Wake on LAN | Wake on LAN (WOL), wake on PME |
| Функции | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Софтуер | Adobe Creative Cloud (free trial), Armoury Crate, ASUS AURA Creator, ASUS DriverHub, ASUS Fan Xpert 4, ASUS GlideX, ASUS TUF GAMING CPU-Z, DTS Audio Processing, Norton 360 for Gamers (60 days trial), TurboV Core, USB Wattage Watcher, WinRAR (40 days trial), ASUS AI Advisor |
| Конектори | Fan and Cooling Related;-1 x 4-pin CPU Fan header;-1 x 4-pin CPU OPT Fan header;-1 x 4-pin AIO Pump header;-4 x 4-pin Chassis Fan headers;Power Related;-1 x 24-pin Main Power connector;-2 x 8-pin +12V CPU Power connectors;Storage Related;-4 x M.2 slots (Key M);-4 x SATA 6Gb/s ports;USB;-1 x USB 20Gbps connector (supports USB Type-C® );-1 x USB 5Gbps header supports 2 additional USB 5Gbps ports;-2 x USB 2.0 headers support 4 additional USB 2.0 ports;Miscellaneous;-3 x Addressable Gen 2 headers;-1 x Clear CMOS header;-1 x Chassis Intrusion header;-1 x COM Port header;-1 x Front Panel Audio header (F_AUDIO);-1 x 10-1 pin Front System Panel header;-1 x Thermal Sensor header;-1 x Thunderbolt™ (USB4®) header |
| Конектори за захранване | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
| Стандарти | DisplayPort 1.4 |
| Включени кабели | 2 x SATA Express cable |
| Аксесоари | ASUS Wi-Fi Q-antenna, M.2 Q-Slide, 2 x M.2 rubber package, M.2 screw package, TUF GAMING sticker, TUF GAMING removable nameplate |
| Ширина | 30.5 cm |
| Дълбочина | 24.4 cm |
| Други характеристики | Intel Turbo Boost Technology 2.0, Intel Turbo Boost Max Technology 3.0, ASUS Enhanced Memory Profile (AEMP) III, CUDIMM support, CrashFree BIOS 3, Preboot eXecution Environment (PXE), TUF LANGuard, BIOS FlashBack button, ASUS DIGI+ VRM, ASUS Overvoltage Protection, ASUS Q-Design, ASUS SafeSlot, ASUS Stainless Steel Back I/O, ASUS TUF Protection, ESD Guards, M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, Q-Antenna, ASUS Aura Sync, ASUS EZ DIY, ASUS ProCool, ASUS SafeDIMM, BIOS FlashBack LED, CPU Socket lever protector, M.2 heatsink, M.2 heatsink backplate, pre-mounted I/O shield, Q-Dashboard, Q-DIMM, Q-LED, Q-Slot, VRM heatsink design, DIY Friendly Design, 16+1+2+1 Phase Power Design, NPU Boost, Q-Release Slim, AI Overclocking, AI Networking II, 8 Layer PCB |
| Гаранция | 36 месеца |
| Код на продукта | TUF-Z890-PRO-WF |
