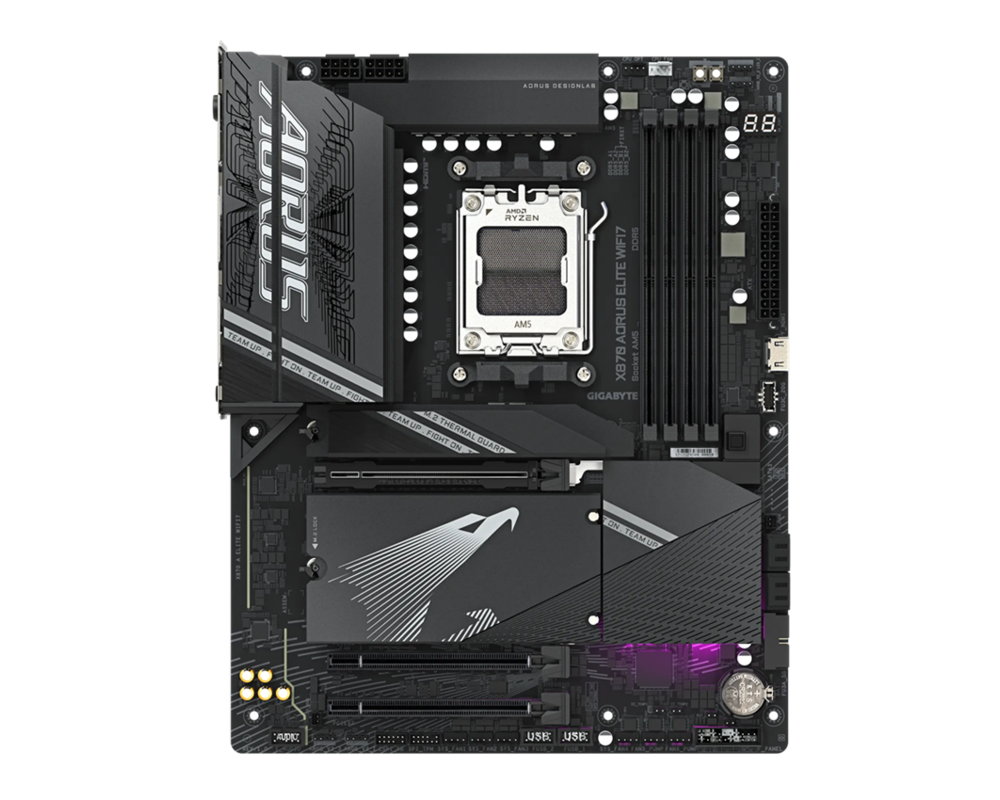

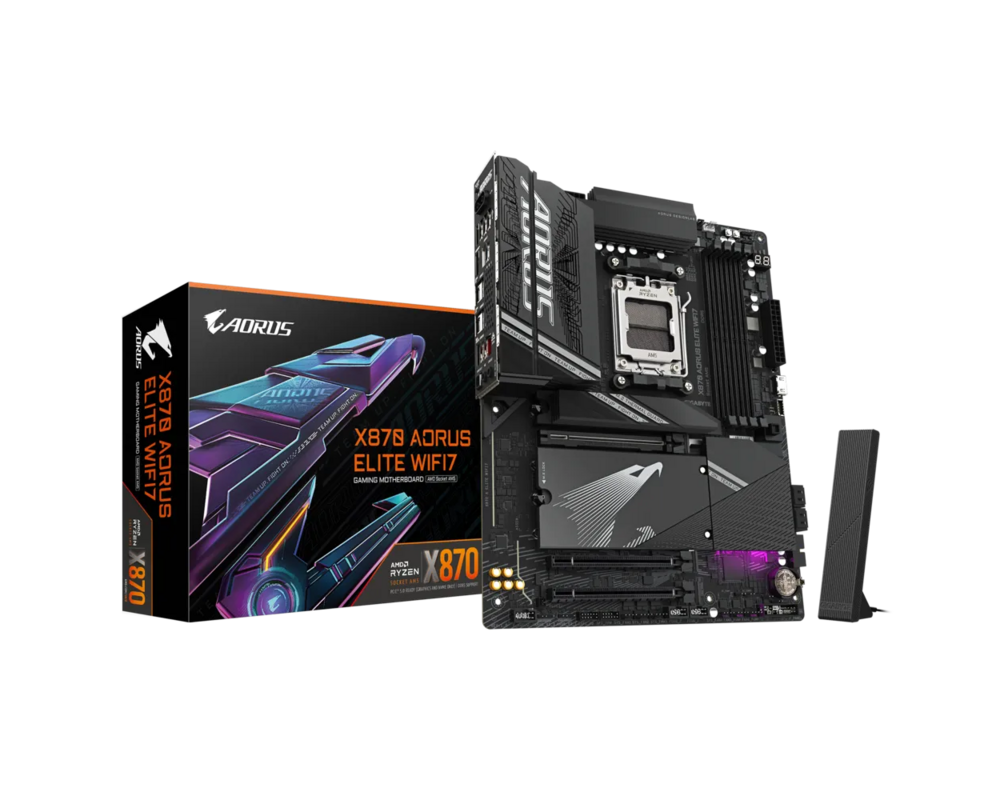

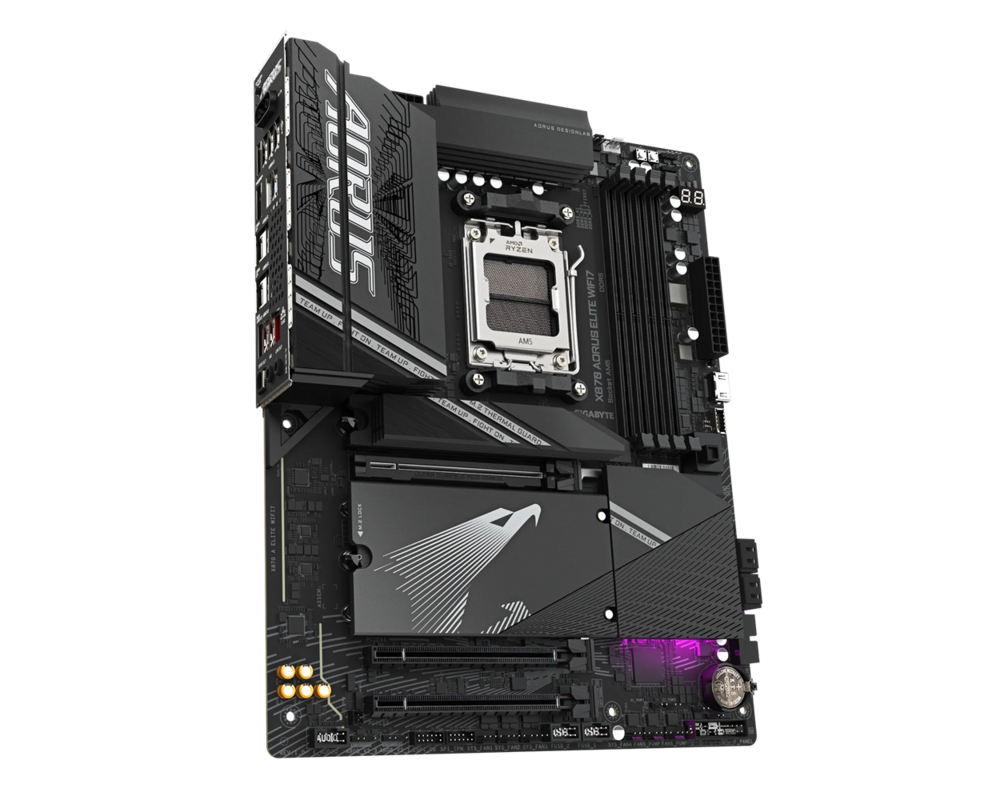

Дънна платка GB X870 A ELITE WIFI7 X870 A ELITE WIFI7 1.0
изчерпано
Сокет: AM5
Чипсет: AMD X870
Тип на паметта: DDR5
Физически размер: ATX
Честота на паметта: 5200 MHz
Гаранция:
0.0
от 5.0
(0)
Купи и събери
6 точки
Плати по-лесно и сигурно с
Виж всички продукти на Gigabyte
Пазарувай по марка
Характеристики
| Физически размер | ATX |
| Чипсет | AMD X870 |
| Сокет | AM5 |
| Съвместими процесори | AMD Socket AM5, support for;-AMD Ryzen™ 9000 Series Processors/;-AMD Ryzen™ 8000 Series Processors/;-AMD Ryzen™ 7000 Series Processors |
| BIOS | 1 x 256 Mbit flash;Use of licensed AMI UEFI BIOS;PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Тип на паметта | DDR5 |
| Честота на паметта | 5200 MHz |
| Слотове | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU;-AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode; The M2B_CPU and M2C_CPU connectors share bandwidth with the PCIEX16 slot.;When the M2B_CPU or M2C_CPU connector is populated, the PCIEX16 slot operates at up to x8 mode.;AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode;AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode;(The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.);Chipset;- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4); The PCIEX4 slot shares bandwidth with the M2D_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2D_SB connector.;- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2) |
| Видео | Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller;- 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz; Support for DisplayPort 1.4 version and HDR.;Integrated Graphics Processor with AMD Radeon™ Graphics support;- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; Support for HDMI 2.1 version, HDCP 2.3, and HDR.; Support native HDMI 2.1 TMDS compatible ports.;- 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz; Support for HDMI 1.4 version;(Graphics specifications may vary depending on CPU support.) Support for up to quad-display at the same time |
| Дисков интерфейс | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/ 22110/ 2580/ 2280 SSDs;-AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs;-AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs;-AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs;2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs;-AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs; The M2B_CPU and M2C_CPU connectors become unavailable when an AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 processor is used.;1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs;4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices; RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.;RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| LAN порт | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Звук | Realtek® ALC1220 CODEC; The back panel line out jack supports DSD audio;High Definition Audio;2/4/5.1/7.1-channel; You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.;Support for S/PDIF Out |
| Портове | iTE® I/O Controller Chip |

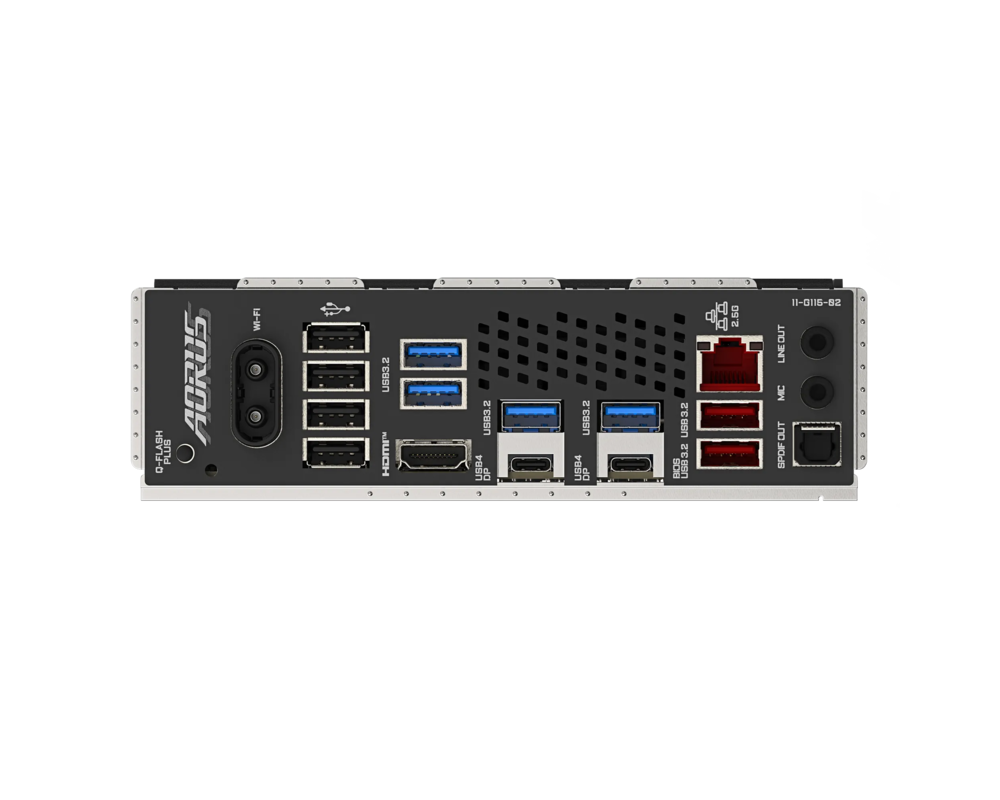

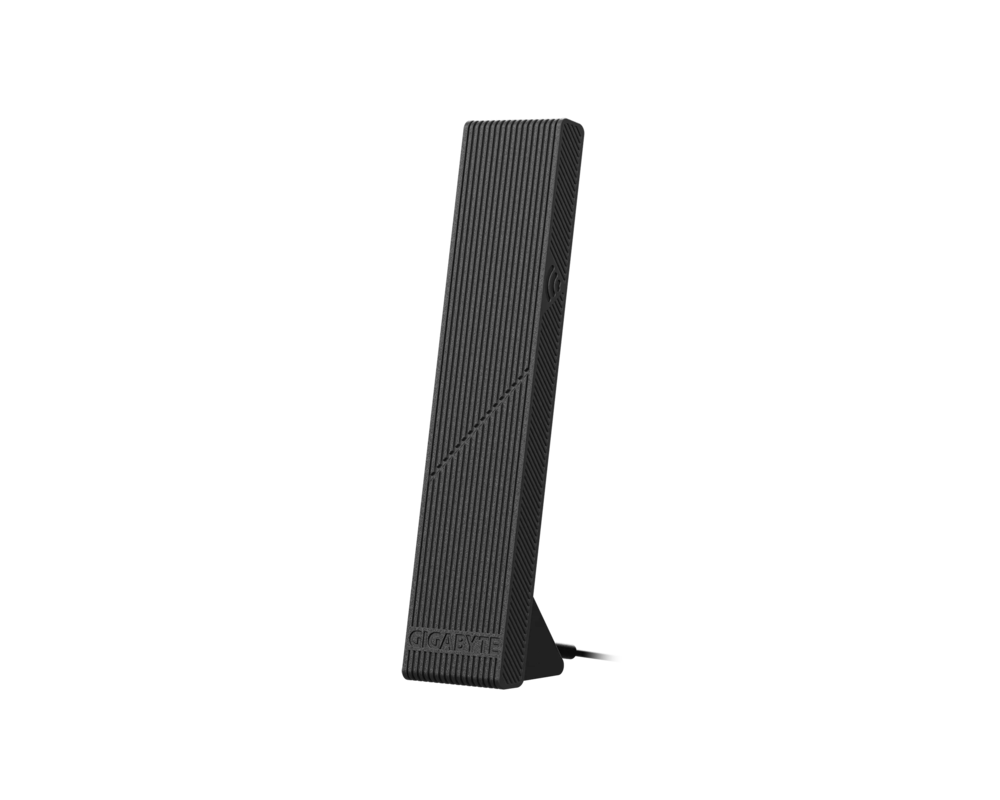

| Конектори | Internal I/O Connectors;-1 x 24-pin ATX main power connector;-2 x 8-pin ATX 12V power connectors;-1 x CPU fan header;-1 x CPU fan/water cooling pump header;-4 x system fan headers;-2 x system fan/water cooling pump headers;-3 x addressable RGB Gen2 LED strip headers;-1 x RGB LED strip header;-4 x M.2 Socket 3 connectors;-4 x SATA 6Gb/s connectors;-1 x front panel header;-1 x front panel audio header;-1 x USB Type-C® header, with USB 3.2 Gen 2x2 support;-1 x USB 3.2 Gen 1 header;-2 x USB 2.0/1.1 headers;-1 x noise detection header;-1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only);-1 x HDMI port (Note);-1 x power button;-1 x reset button;-2 x temperature sensor headers;-1 x reset jumper;-1 x Clear CMOS jumper;Back Panel Connectors;-1 x Q-Flash Plus button;-1 x HDMI port (Note);-2 x antenna connectors (2T2R);-2 x USB4® USB Type-C® ports (DisplayPort (Note));-2 x USB 3.2 Gen 2 Type-A ports (red);-4 x USB 3.2 Gen 1 ports;-4 x USB 2.0/1.1 ports;-1 x RJ-45 po |
| Гаранция | 36 месеца |
| Код на продукта | X870 A ELITE WIFI7 1.0 |
