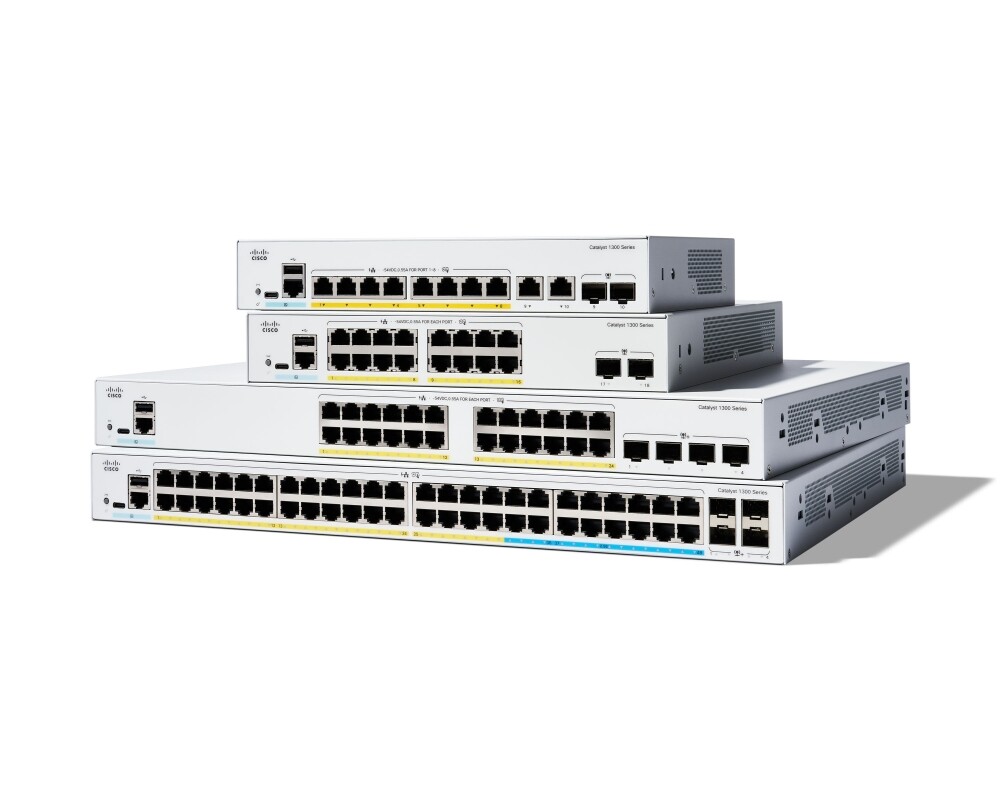

Switch (Комутатор) Cisco Catalyst 1300 48-port GE C1300-48P-4G
код FALL25
за 3% отстъпка
за 3% отстъпка
Тип: Fixed Port
Брой портове: 52
Видове портове: 48x 10/100/1000Base-T ports...
Пропускателна способност: 77.38 Mpps
Гаранция:
0.0
от 5.0
(0)
Купи и събери
17 точки
Плати по-лесно и сигурно с
Виж всички продукти на Cisco
Пазарувай по марка
Характеристики
| Съвместими стандарти |
IEEE 802.1x
IEEE 802.3az IEEE 802.1D IEEE 802.1w IEEE 802.1s IEEE 802.3ad (LACP) IEEE 802.1Q IEEE 802.1p IEEE 802.3 IEEE 802.3ab IEEE 802.3ae IEEE 802.3an IEEE 802.3u IEEE 802.3x IEEE 802.3z IEEE 802.3af IEEE 802.3at |
| Съобразени стандарти |
Plug and Play
RFC768 RFC783 RFC791 RFC792 RFC793 RFC813 RFC826 RFC879 RFC896 RFC854 RFC855 RFC856 RFC858 RFC894 RFC919 RFC920 RFC922 RFC950 RFC951 RFC1042 RFC1071 RFC1123 RFC1141 RFC1155 RFC1157 RFC1213 RFC1215 RFC1286 RFC1350 RFC1442 RFC1451 RFC1493 RFC1533 RFC1541 RFC1542 RFC1573 RFC1624 RFC1643 RFC1700 RFC1757 RFC1867 RFC1907 RFC2011 RFC2012 RFC2013 RFC2030 RFC2131 RFC2132 RFC2233 RFC2576 RFC2616 RFC2618 RFC2665 RFC2666 RFC2674 RFC2737 RFC2819 RFC2863 RFC3164 RFC3176 RFC3411 RFC3412 RFC3413 RFC3414 RFC3415 RFC3416 RFC4330 RFC4443 RFC4291 RFC2460 RFC4861 RFC4862 RFC1981 RFC4007 RFC3484 RFC5214 RFC4293 RFC3595 CSA 22.2 FCC CFR47 Part 15 UL 62368 WEEE |
| Размери (мм) | 44.5 cm x 35 cm x 4.4 cm |
| Брой на вентилаторите | 1 |
| IPv6 functionality | IPv6 host mode, IPv6 over Ethernet, dual IPv6/IPv4 stack; IPv6 neighbor and router discovery (ND); DAD, ICMP; DHCPv6; IPv6 over IPv4 network with ISATAP tunnel support; IPv6 QoS; ACL; First Hop Security; MLD |
| L2 стандарти | IEEE 802.3, IEEE 802.3u/ab/ad/z/x/af/at; IEEE 802.1D (STP)/1Q/p VLAN/w RSTP/s Multiple STP/X Port Access Authentication; RFC |
| MAC адреси | 16000 entries |
| Управление |
Cisco Business Dashboard; Cisco Business mobile app; Cisco Network Plug and Play (PnP) agent; Web user interface; SNMP; MIB; RMON; RSPAN; sFlow agent; DHCP; SCP; Other: Traceroute
single IP management HTTP/HTTPS SSH RADIUS and etc. |
| Памет | 1 GB DDR4 SDRAM |
| Flash Memory | 512 MB |
| Брой портове | 52 |
| Индикатори за състоянието | System, link/activity/speed, PoE |
| Jumbo Frame Support | 9000 bytes |
| PoE consumption | 375 W |
| Видове портове | 48 x 10/100/1000 (PoE+) + 4 x Gigabit SFP |
| Захранване през Ethernet | PoE+ |
| Захранване | 100-240V 50-60 Hz, internal, universal |
| Процесор | X ARM: 1.4 GHz |
| Производителност | Forwarding rate (64‑byte packets): 77.38 Mpps Switching capacity: 104 Gbps |
| Капацитет | MSTP instances: 8 RPVST+ instances: 126 Link aggregation groups: 8 Link aggregation ports: 8 VLAN IDs: 4093 IGMP multicast groups: 2000 IPv4 routes (static): up to 990 IPv4 interfaces: 128 ACL rules: 1024 Priority queues: 8 Packet buffer size: 3 MB |
| Interfaces | 48 x 10/100/1000 Base-T (PoE+) RJ-45 4 x 1000Base-X SFP 1 x console RJ-45 1 x USB-C console |
| QoS |
8 hardware queues; Strict priority and WRR; Port-based
802.1p VLAN priority-based IPv4/v6 IP precedence/Type of Service (ToS)/DSCP-based Differentiated Services (DiffServ) classification and remarking ACLs trusted QoS Queue assignment based on DSCP |
| Маршрутизиране | Dynamic Layer 3 routing |
| Сигурност |
SSH
SSL IEEE 802.1x (authenticator role):RADIUS authentication and accounting MD5 hash guest VLAN unauthenticated VLAN single/multiple host mode and single/multiple sessions; MAC/Web-based authentication; STP; DHCP; IPSG; DAI; IPMB; SCT; SSD; ACLs |
| Security features |
1 fan
VLAN support STP support CLI management ATP FHS QoS sFlow dynamic routing Zero-Touch Deployment Port Security Web authentication Address Resolution Protocol ARP inspection IP source guard DHCP snooping IPMB NDP router advertisement guard DHCPv6 guard layer 3 routing LAG port mirroring eco-friendly button EEE RSTP MSTP support PVST+ RPVST+ LACP Protocol-based VLANs support MAC based VLAN VLAN management Private VLAN PVE Guest VLAN GVRP CPE VLAN Auto Surveillance VLAN MVR Q-in-Q tunnelling TPID GARP UDLD DHCP relay DHCP server IGMP snooping IGMP querier IGMP proxy HoL Blocking Prevention loopback detection ACL support BOOTP support UDP High Availability MAC address authentication BPDU Guard STP Root Guard STP loop guard DAI DoS protection SCT SSD trustworthy systems Broadcast Storm Control Multicast Storm Control Storm Control Unicast Storm Control Unknown Storm Control DoS attack prevention WRR ToS DSCP based CoS DiffServ support TCP congestion iSCSI traffic optimisation path MTU discovery DAD RA guard MLD snooping MLD proxy Telnet server DNS client Telnet client DHCP client Cisco NG PnP Protocol IPv4 and IPv6 dual stack VLAN mirroring RSPAN SCP chip guard boot integrity persistent PoE PoE scheduling time-based port operation cable length detection LLDP LLDP-MED reset button |
| Капацитет на превключване | 104 Gbps |
| Включени аксесоари | Pointer card, mounting kit |
| Пропускателна способност | 77.38 Mpps |
| Тип | Fixed Port |
| Uplink портове | 4xSFP |
| VLAN | Support for up to 4093 VLANs simultaneously; Port-based and 802.1Q tag-based VLANs, MAC-based VLAN, protocol-based VLAN, IP subnet-based VLAN; Management VLAN; Private/Guest/unauthenticated/Auto surveillance/CPE/Voice/Dynamic/Multicast TV VLAN |
| Гаранция | 24 месеца |
| Тегло | 5.43 kg |
| Код на продукта | C1300-48P-4G |
