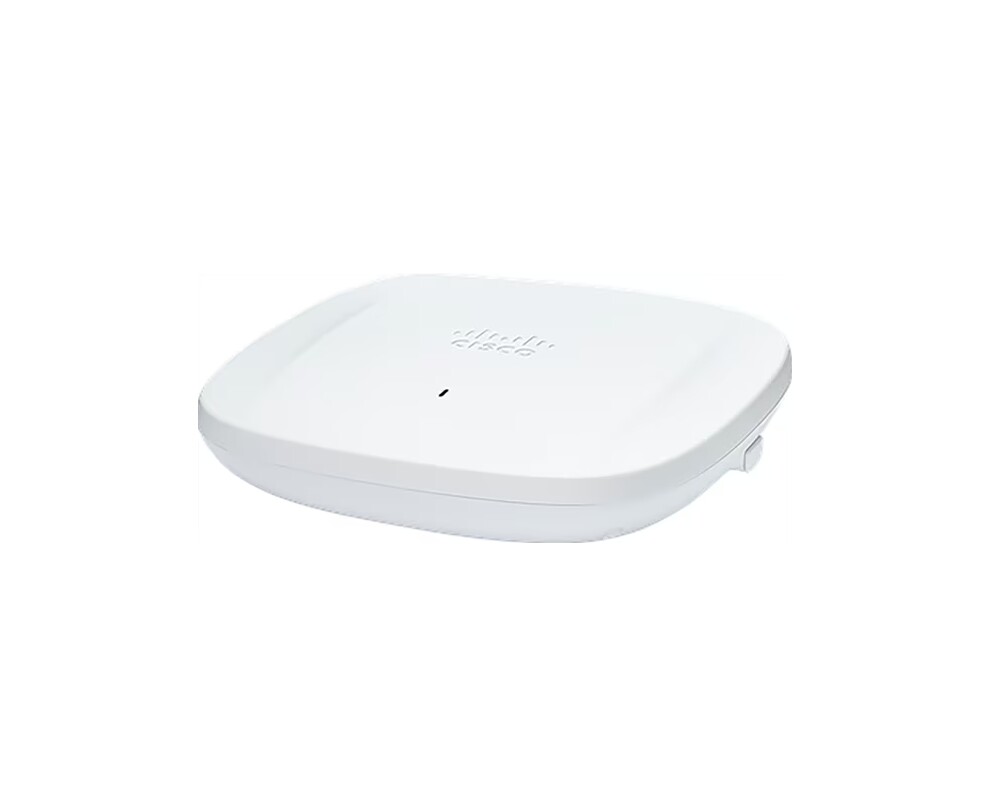

Access point (Точка за достъп) CISCO Catalyst Wireless 9162I AP W6E tri-band 2x2 w CW9162I-E
изчерпано
Стандарти: FCC Part 15.247, AS/NZS...
Скорост: 802.11ac: PHY data rates до...
Антена: Integrated antenna (internal...
Гаранция:
0.0
от 5.0
(0)
Купи и събери
6 точки
Плати по-лесно и сигурно с
Виж всички продукти на Cisco
Пазарувай по марка
Характеристики
| Интерфейс | 1 x 100/1/2.5GBase-T (UPOE) - RJ-45 1 x management - RJ-45 1 x USB 2.0 |
| Стандарти |
FCC Part 15.247
AS/NZS 60950-1 RSS-102 UL 2043 UL 60950-1 IEC 60950-1 EN 60950-1 FCC Part 15.407 FCC CFR47 Part 15 B UL Class III CNS13438:2006 RSS-247 AS/NZS 2772.2 CAN/CSA-C22.2 No. 60950-1 VCCI-CISPR 32:2016 RSP-100 RSS-GEN EN 301 893 V2.1.1 AS/NZS 4268:2017 EN 300 328 V2.2.2 EN 50385:2017 47 CFR Part 2.1091 QCVN 112:2017 Japan Std. 66 Japan Std. 71 EN 55032:2015/A11:2020 EN 61000-3-3:2013+A1:2019 CAN/CSA-C22.2 No. 62368-1 Third Edition UL 62368-1 Third Edition EN 62368-1 Third Edition IEC 62368-1 Third Edition EN 301 489-17 V3.2.4 (2020-09) EN 301 489-1 V2.2.3 (2019-11) KS C 9832 EN 62311:2020 KS X 3124:2020 KS X 3126:2020 EN 61000-6-1:2019 Draft EN 303 687 V0.0.14 AS/NZS 62368-1 Third Edition CISPR 32:2015+AMD1:2019 AS/NZS CISPR32:2015+AMD1:2020 ICES-003 issue 7 Class B KS C 9835:2019 LP002 EN 55035:2017+A11:2020 EN IEC 61000-3-2:2019+A1:2021 FCC CFR 47 Part 15 Class A |
| Скорост | 802.11ac: PHY data rates up to 866.7 Mbps (2x2 80 MHz on 5 GHz); 802.11n v2: PHY data rates up to 444.4 Mbps (40 MHz with 5 GHz and 20 MHz with 2.4 GHz) |
| Честота | 2.4 GHz, 5 GHz, 6 GHz |
| Wi-Fi speed | 3.9 Gbps |
| IEEE стандарт |
Ethernet
Fast Ethernet Gigabit Ethernet IEEE 802.11b IEEE 802.11a IEEE 802.11g IEEE 802.11n IEEE 802.11ac 2.5 Gigabit Ethernet Bluetooth 5.1 LE IEEE 802.11ax (Wi-Fi 6E) |
| Тип антена | Internal |
| Антена | Integrated antenna (internal antenna, omnidirectional in azimuth): 2.4 GHz: Peak gain 4 dBi, 5 GHz: Peak gain 5 dBi, 6 GHz: Peak gain 5 dBi |
| Метод на захранване | UPOE |
| Памет | 1 GB |
| RAM-памет | 2 GB |
| Управление | Allow you to choose between on-premises and cloud management; Cisco Smart Software Manager (SSM) |
| Сигурност |
AES
PEAP WPA2-Enterprise EAP-SIM WPA3-Enterprise WPA3-Personal EAP-FAST WPA3-Enhanced Open WPA2-Personal EAP-TLS EAP-TTLS MSCHAPv2 EAP-GTC PEAPv1 |
| Захранване | 802.3bt, Cisco Universal PoE (Cisco UPOE), 802.3at Power over Ethernet Plus (PoE+), 802.3af PoE; Max PoE Power Consumption: 25.5W (PoE+); DC power input (12V/ MA-PWR-30W) |
| Размери | 20 cm x 20 cm x 4.445 cm |
| Тегло | 930 g |
| Други характеристики | System memory: 2048 MB DRAM, 1024 MB flash |
| Гаранция | 24 месеца |
| Код на продукта | CW9162I-E |
Виж повече
Допълнителна информация
- Wi-Fi 6 and Wi-Fi 6E (802.11ax)
The IEEE 802.11ax standard, also known as High-Efficiency Wireless (HEW) or Wi-Fi 6, builds on 802.11ac. It delivers a better experience in typical environments with more predictable performance for advanced applications such as 4K or 8K video; high-density, high-definition collaboration apps; all-wireless offices; and the Internet of Things (IoT). Wi-Fi 6E is Wi-Fi 6 "extended" into the 6-GHz frequency band. - AP power optimizations (AP Power Save mode)
AP power optimizations (AP Power Save mode) allow the access point to reduce its power consumption by, for example, shutting off radios during off-hours and weekends, while being smart enough to reengage all features should they be needed. This both saves power and reduces the carbon footprint of running a wireless network. - Band steering
Band steering helps clients that are 6-GHz capable leave the 5-GHz radio and connect to the 6-GHz one. Wi-Fi 6E clients are automatically directed to connect to the 6-GHz radio to take advantage of the benefits that it offers and free up the 2.4- and 5-GHz radios for legacy clients. - Uplink/downlink OFDMA
Orthogonal Frequency-Division Multiple Access (OFDMA)-based scheduling splits the bandwidth into smaller frequency allocations called Resource Units (RUs), which can be assigned to individual clients in both the downlink and uplink directions to reduce overhead and latency. - Uplink/downlink MU‑MIMO technology
Supporting six spatial streams, multiuser multiple input, multiple output (MU-MIMO) enables the access points to split spatial streams between client devices to maximize throughput. - BSS coloring
Spatial reuse (also known as Basic Service Set [BSS] coloring) allows the access points and their clients to differentiate between BSSs, thus permitting more simultaneous transmissions. - Target Wake Time
Target Wake Time (TWT) allows the client to stay asleep and to wake up only at prescheduled (target) times to exchange data with the access point. This offers significant energy savings for battery-operated devices, up to three to four times the savings achieved by 802.11n and 802.11ac. - Intelligent Capture
Intelligent Capture probes the network and provides Cisco DNA Center with deep analysis. It can track more than 240 anomalies and instantaneously review all packets on demand, emulating the onsite network administrator. This feature allows for more informed decision making on your wireless network. - Application hosting
Application hosting helps simplify IoT deployments and ready them for the future by eliminating the need to install and manage overlay networks. Using the USB interface, containerized applications and hardware modules can be deployed to reduce cost and complexity. Adding Cisco DNA Center provides workflows and deployment-wide application lifecycle management. - Bluetooth 5.1
The integrated Bluetooth Low Energy (BLE) 5.1 radio enables location-based use cases such as asset tracking, wayfinding, and analytics. - Container support for applications
Container support enables edge computing capabilities for IoT applications on the host access point. - Choice of management mode
The Catalyst 9162 Series can be managed either on-premises with Catalyst 9800 Series Wireless Controllers or cloud-managed through the Meraki Dashboard. It gives you the flexibility to deploy the access points in one management mode and shift to a different management mode in the future.
Виж повече
Информация за производителя
| Контакт | https://www.cisco.com/c/en/us/support/index.html |
| Адрес | Cisco International Limited 9-11 New Square Park Bedfont Lakes TW14 8HA Feltham, GB |
| Уебсайт | https://www.cisco.com/web/BG |
