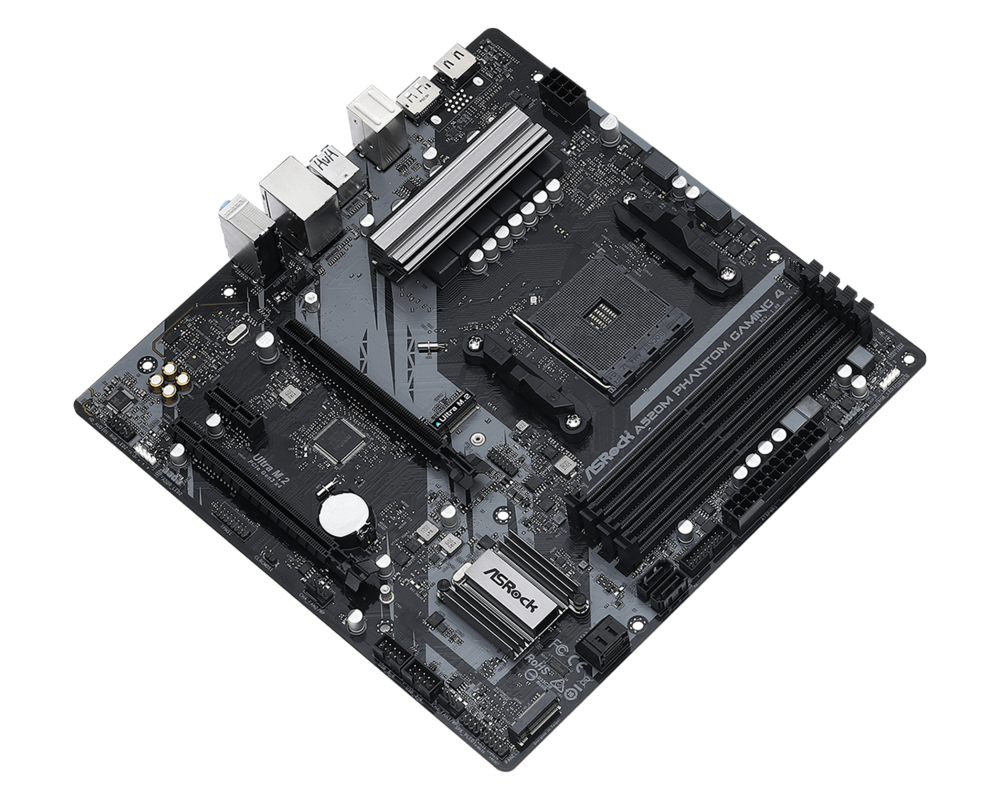

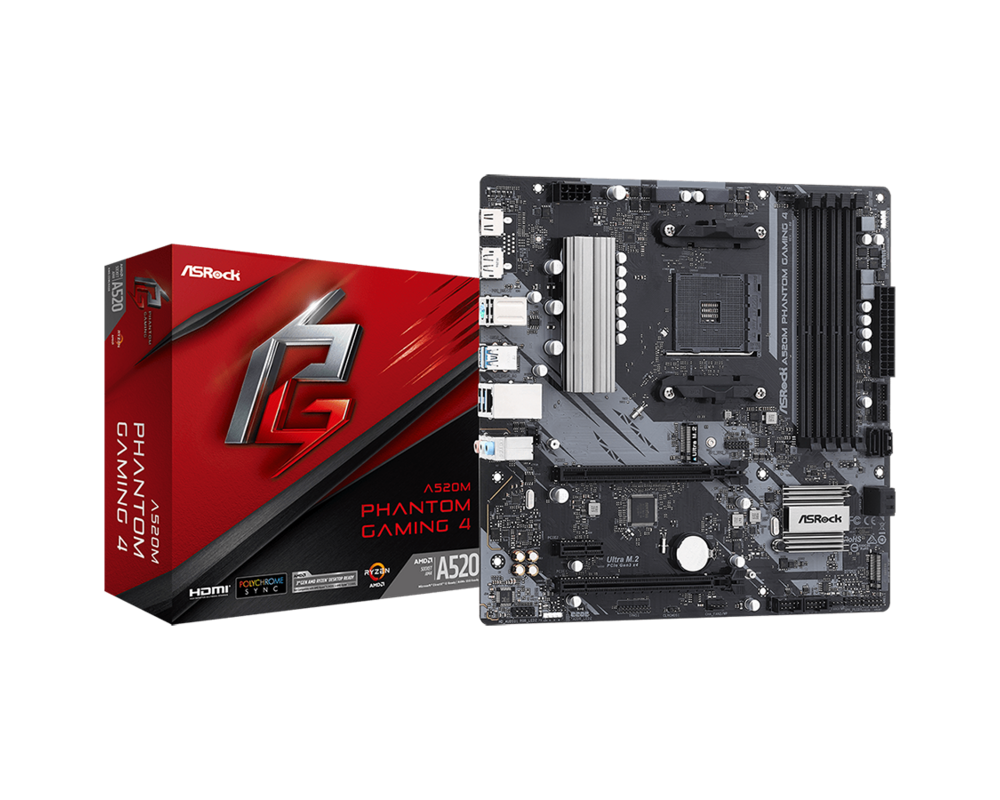

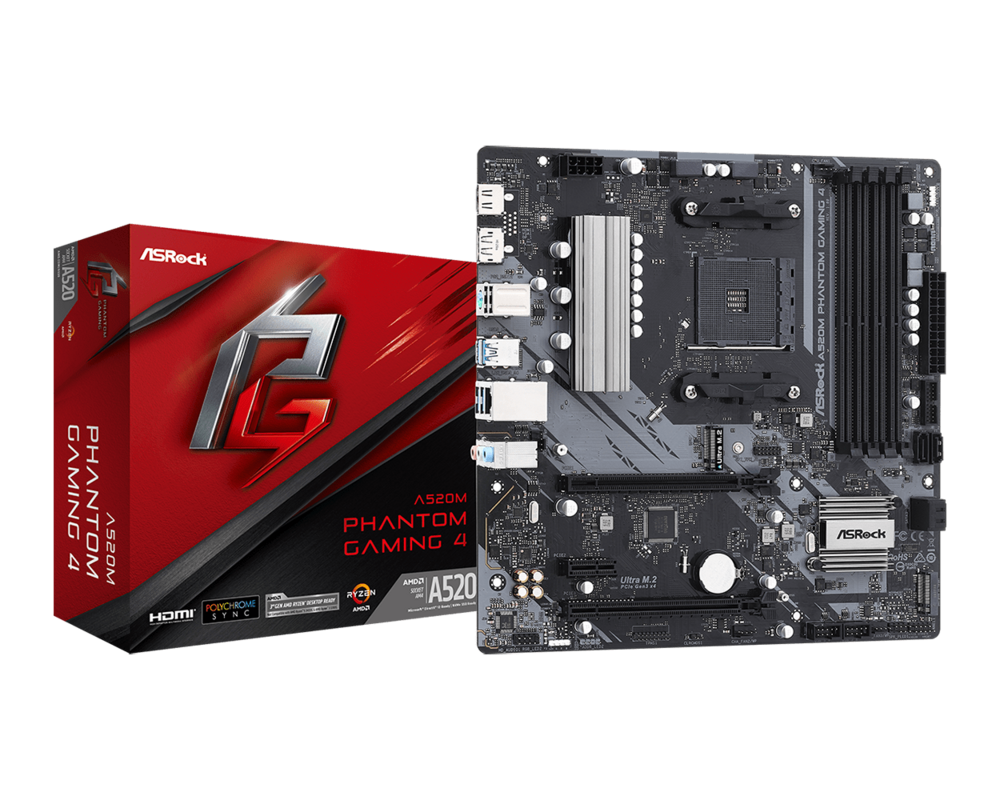

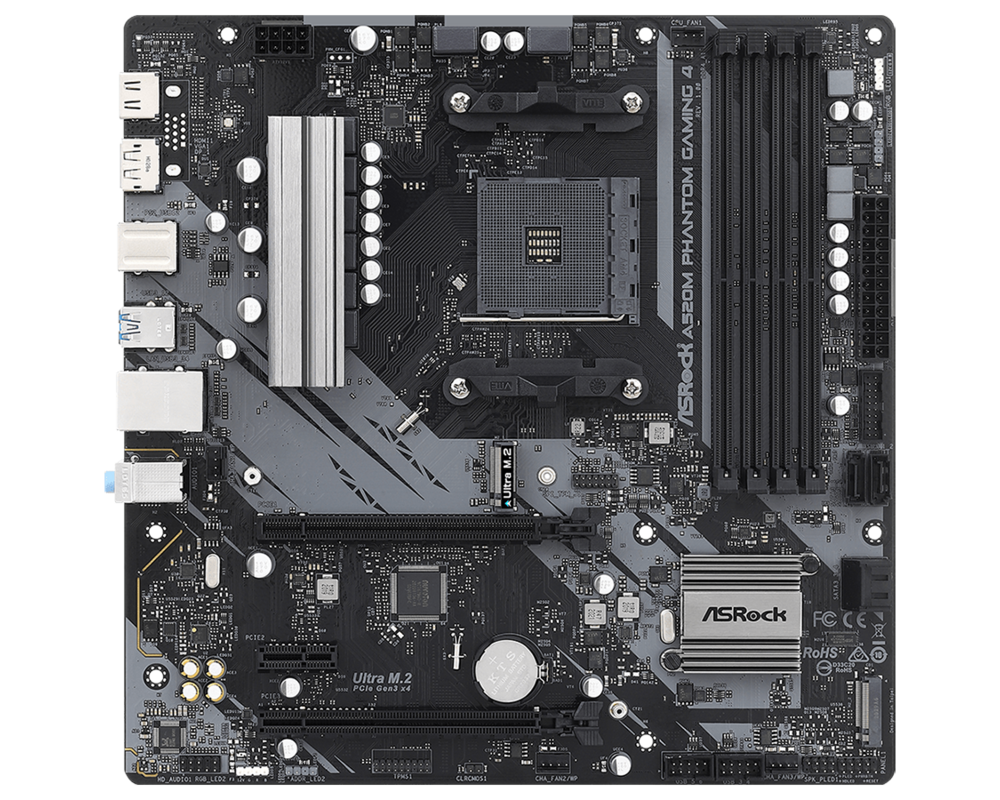

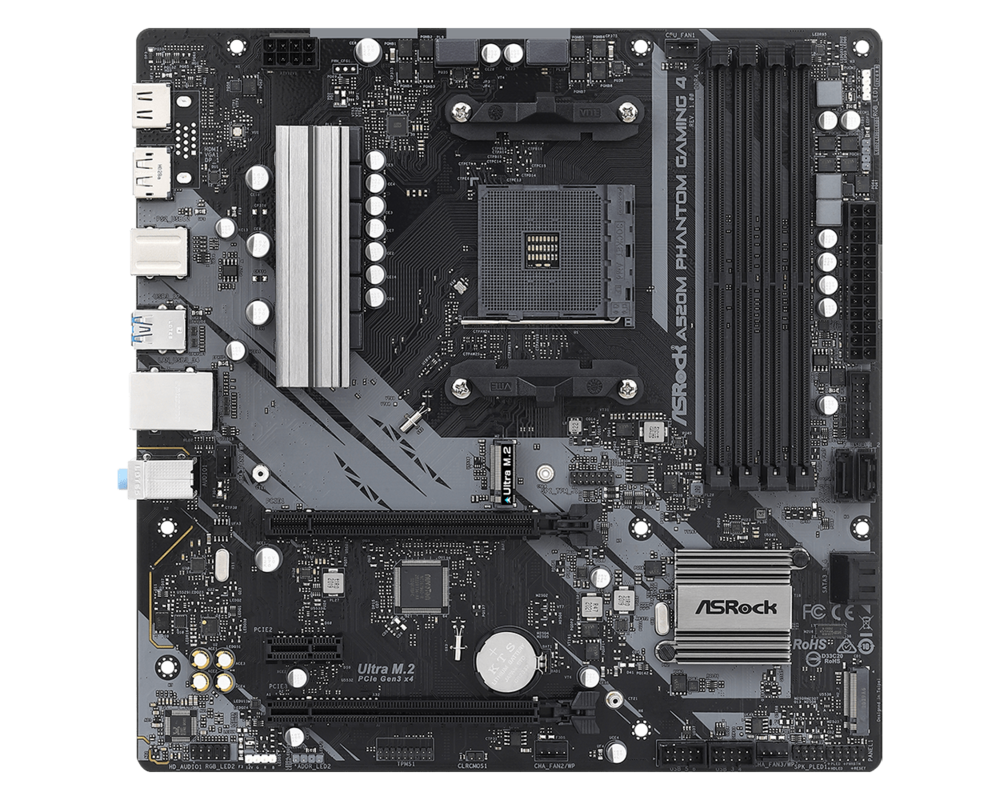

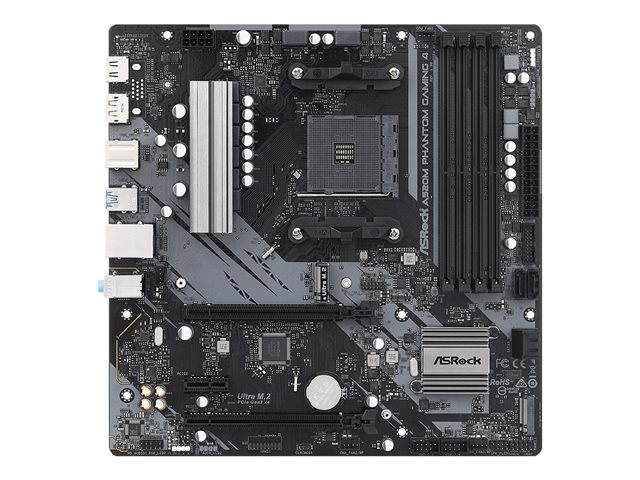

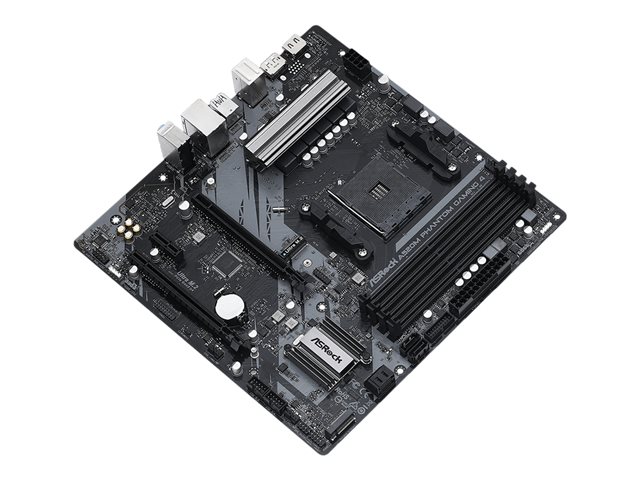

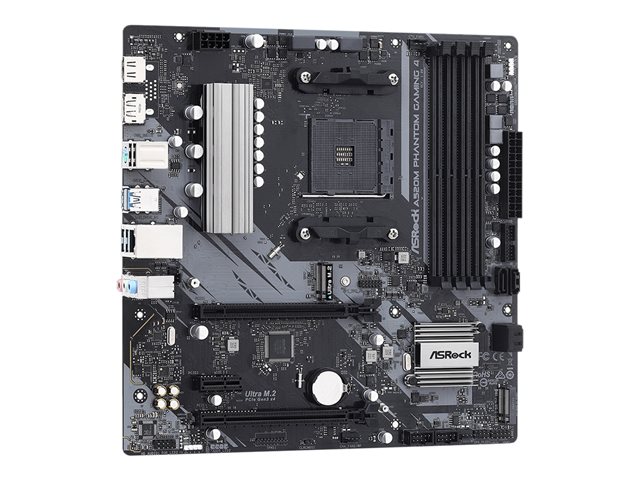

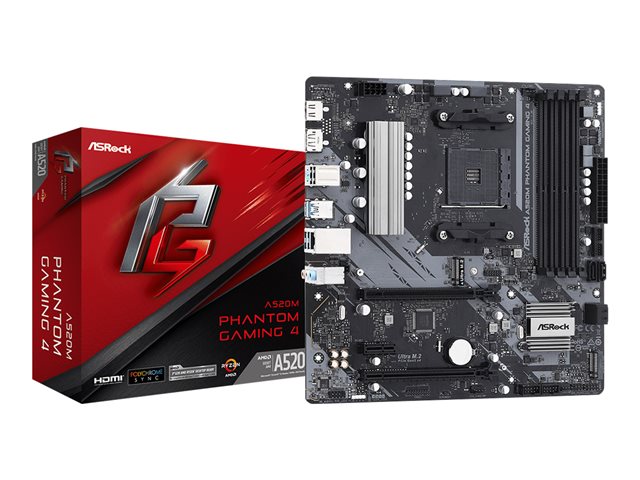

Дънна платка ASROCK A520M PHANTOM GAMING 4 AM4 DDR4 4xSATA 2xM.2 mATX MB A520M PHANTOM GAMING 4
изчерпано
Сокет: Socket AM4
Чипсет: AMD A520
Тип на паметта: DDR4
Физически размер: Motherboard - micro ATX
Слотове за памет: 4
Честота на паметта: 2400 MHz, 2133 MHz, 2667 MHz,...
Гаранция:
0.0
от 5.0
(0)
Купи и събери
2 точки
Плати по-лесно и сигурно с
Виж всички продукти на Asrock
Пазарувай по марка
Характеристики
| Физически размер | Motherboard - micro ATX |
| Чипсет | AMD A520 |
| Сокет | Socket AM4 |
| Съвместими процесори | Ryzen (supports Ryzen 3000 Series/ 4000 G-Series/ 5000 Series) |
| BIOS | JumperFree, SMBIOS 2.3 support, UEFI BIOS, ACPI 5.1 support |
| Тип BIOS | AMI |
| Памет |
Two DDR Channels
Небуферирана XMP |
| Тип на паметта | DDR4 |
| Честота на паметта | 2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz, 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3800 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4200 MHz (O.C.), 4333 MHz (O.C.), 4600 MHz (O.C.), 4533 MHz (O.C.), 3200 MHz, 4666 MHz (O.C.), 4733 MHz (O.C.), 4466 MHz (O.C.) |
| Формат на паметта | DIMM 288-pin |
| ECC support | Non-ECC, ECC |
| Memory Registered / Buffered | Unbuffered |
| Слотове за памет | 4 |
| Максимална памет | 128 GB |
| Слотове | 2 x PCI Express 3.0 x16 Slots (PCIE1: x16 mode; PCIE3: x2 mode); - 1 x PCI Express 3.0 x1 Slot |
| Брой процесорни гнезда | 1 |
| Видео | Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU; - DirectX 12, Pixel Shader 5.0; - Shared memory default 2GB. Max Shared memory supports up to 16GB.; - Dual graphics output options: HDMI and DisplayPort 1.4; - Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz; - Supports DisplayPort 1.4 with max. resolution up to 5K (5120x2880)@120Hz; - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required); - Supports HDR (High Dynamic Range) with HDMI 2.1; - Supports HDCP 2.3 with HDMI 2.1 and DisplayPort 1.4 Ports; - Supports 4K Ultra HD (UHD) playback with HDMI 2.1 and DisplayPort 1.4 Ports; - Supports Microsoft® PlayReady |
| Контролер на съхранението |
Storage Controller:
2 x M.2 (Key M) Storage Controller: Supports: Ниво 0, Ниво 1, Ниво 10 SATA III-600 (4) |
| Дисков интерфейс | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10, SATA-600 / PCIe 3.0 -connectors: 1 x M.2, PCIe 3.0 -connectors: 1 x Ultra M.2 |
| LAN порт | Gigabit Ethernet |
| LAN standards | Gigabit Ethernet/Fast Ethernet/Ethernet |
| LAN controller | Realtek RTL8111H |
| Звук | Realtek ALC887/ALC897 |
| Звуков изход | HD Audio (8-channel) |
| Аудио стандарти | High Definition Audio |

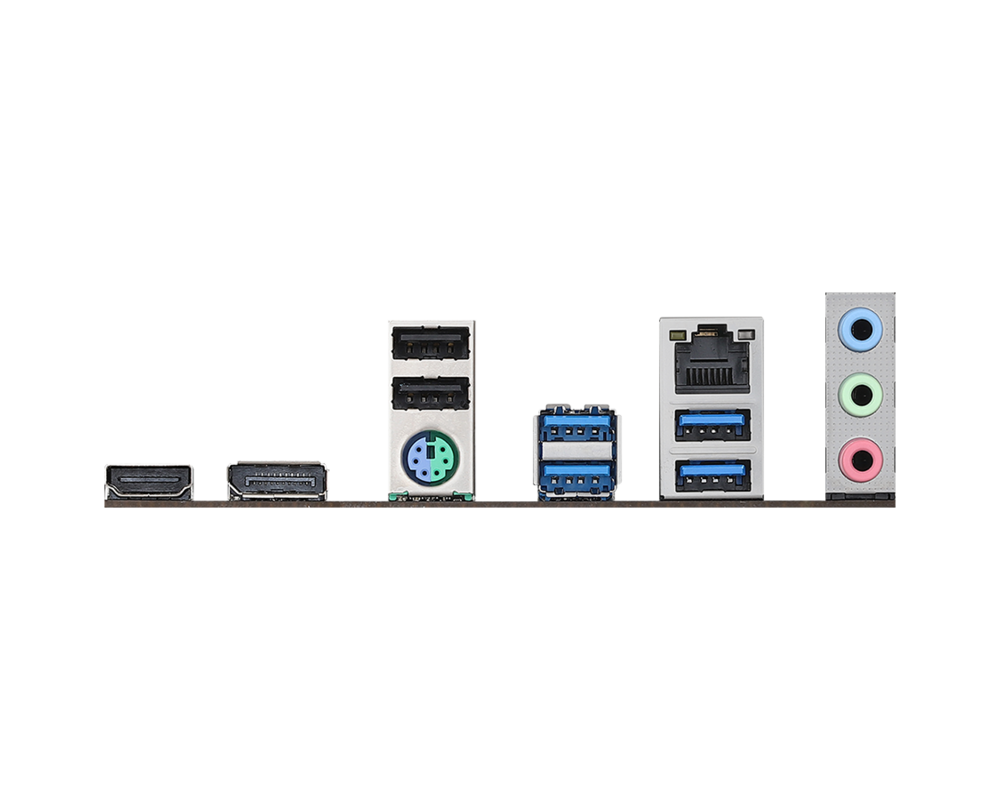

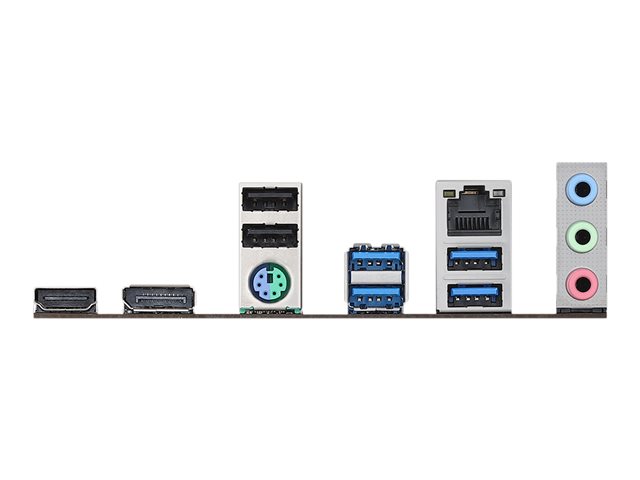

| Портове | 1 x DisplayPort, 4 x USB 3.2 Gen 1, 1 x HDMI, 1 x audio line-out - mini-jack, 1 x microphone - mini-jack, 1 x audio line-in - mini-jack, 1 x PS/2 keyboard / mouse, 2 x USB 2.0, 1 x LAN (Gigabit Ethernet) |
| Разширителни слотове | 1 x CPU, 4 x DIMM 288-pin, 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x16 (x2 mode), 1 x PCIe 3.0 x1 |
| PCI slots | 1x PCI Express 3.0 x1, 2x PCI Express 3.0 x16 |
| Вътрешен интерфейс | 4 x USB 2.0 - header, 2 x USB 3.2 Gen 1 - header, 1 x audio - header |
| Wake on LAN | Wake on LAN (WOL) |
| Функции | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Софтуер | Drivers & Utilities, ASRock A-Tuning, Antivirus (Trial version), Google Chrome Browser, Google ChromeToolbar, ASRock XFast LAN, ASRock Polychrome SYNC |
| Съвместими операционни системи |
Microsoft Windows 10 64-bit
Microsoft Windows 11 64-bit |
| Конектори | 1 x SPI TPM Header; - 1 x Power LED and Speaker Header; - 2 x RGB LED Headers; - 2 x Addressable LED Headers; - 1 x CPU Fan Connector (4-pin); - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control); - 1 x 24 pin ATX Power Connector; - 1 x 8 pin 12V Power Connector; - 1 x Front Panel Audio Connector; - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection); - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) |
| Конектори за захранване | 24-pin main power connector, 8-pin ATX12V connector |
| Наблюдение на хардуера | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage |
| Стандарти | FCC, EuP Ready, ErP Ready |
| Включени кабели | 2 x Serial ATA cable |
| Аксесоари | I/O back plate, 2 x M.2 screws |
| Височина | 244 мм |
| Ширина | 24.4 cm |
| Дълбочина | 24.4 cm |
| Други характеристики | 8 Phase Power Design, ASRock Instant Flash, All-Solid Capacitor motherboard Design, 15µ Gold Contact, ESD Protection, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), ASRock Full Spike Protection, ASRock APP Shop, ASRock Super Alloy, High Density Glass Fabric PCB, ASRock Full HD UEFI, Sapphire Black PCB, ASRock Live Update, ASRock Ultra M.2, Premium 50A Power Choke, ASRock VR Ready, 2oz Copper PCB |
| Гаранция | 36 месеца |
| Код на продукта | A520M PHANTOM GAMING 4 |
Виж повече
Допълнителна информация
- 8 power phase design
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers enhanced performance with the lowest temperature for advanced gamers. - Premium 50A power chokes
Compared to traditional chokes, ASRock's premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard. - 2 oz. copper PCB
2-ounce copper inner layers provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking, it's able to support the latest DDR4 memory modules with most extreme memory performance! - Dual graphics outputs
Complete with two types of most used connectors! Packed with a HDMI + DisplayPort combo, you have more graphics output options now. - Full spike protection
Some sensitive digital components on the motherboard are vulnerable to power surges. The excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard's components from being damaged by these unexpected voltage spikes.
