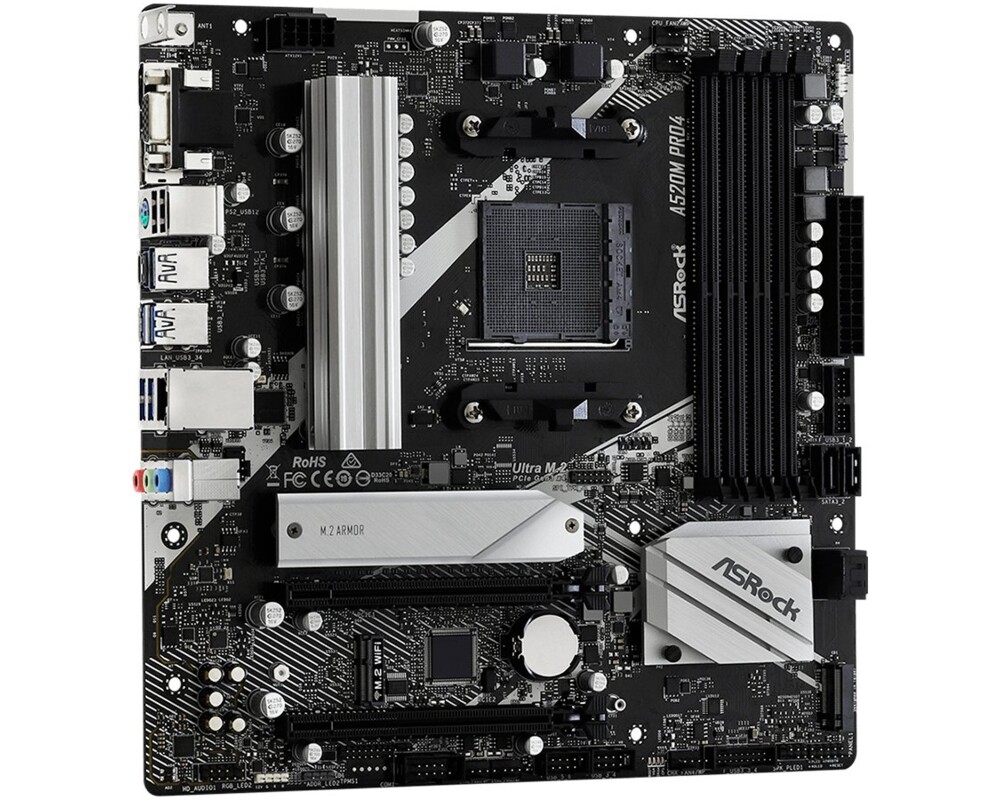

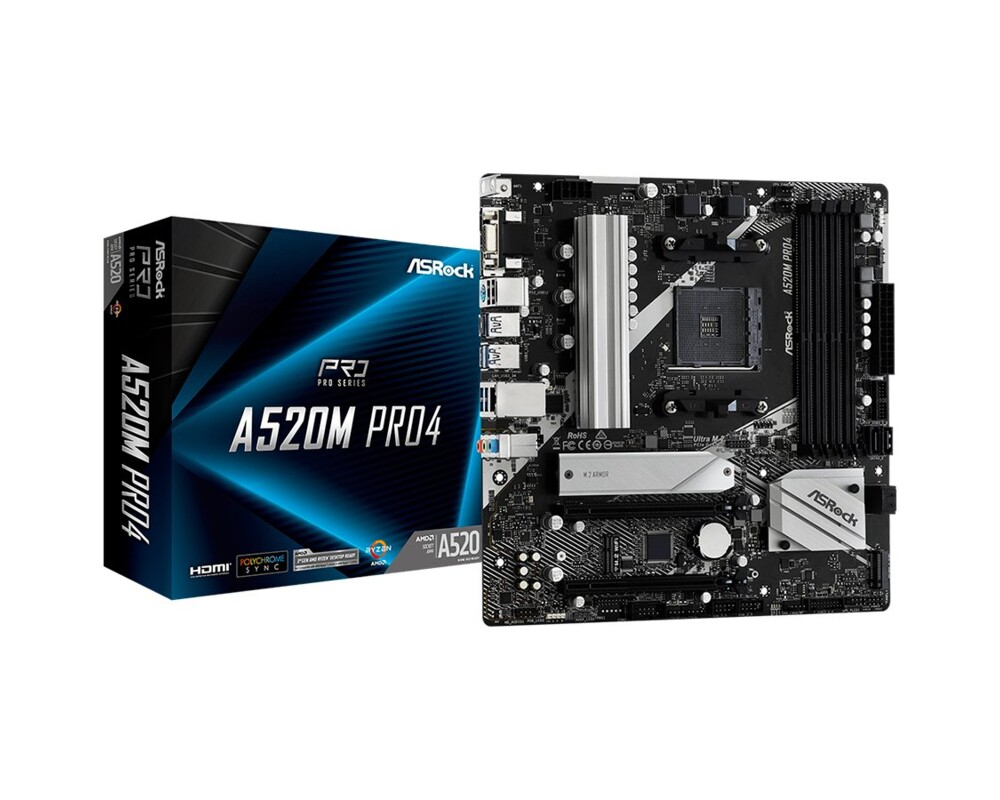

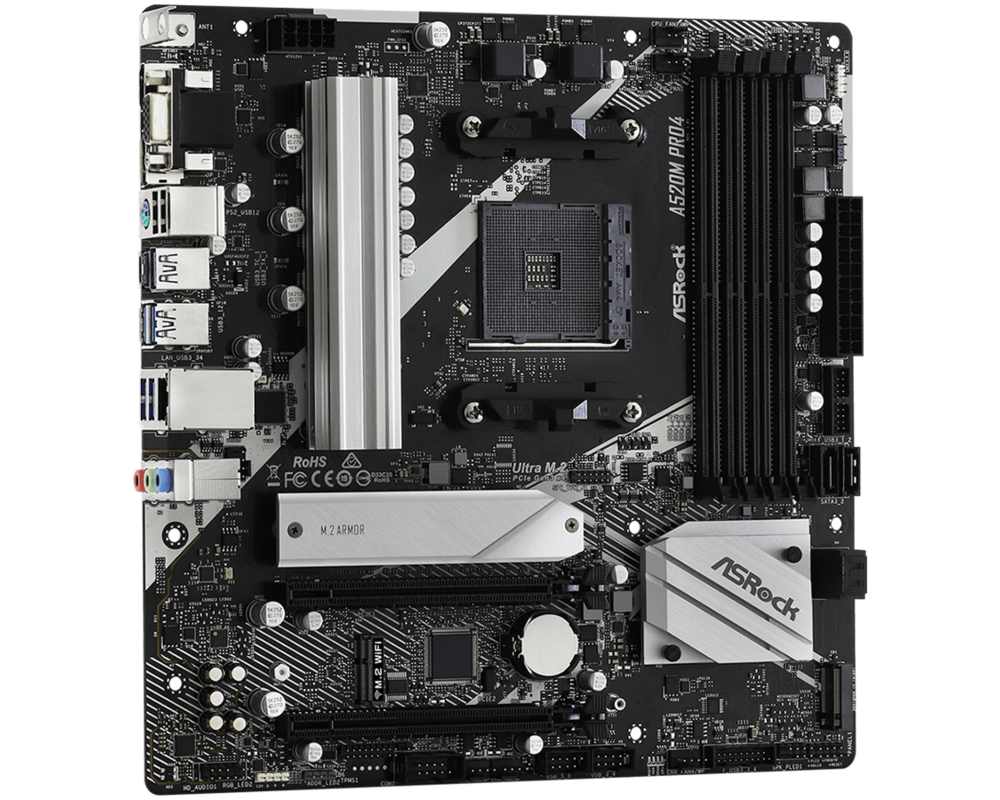

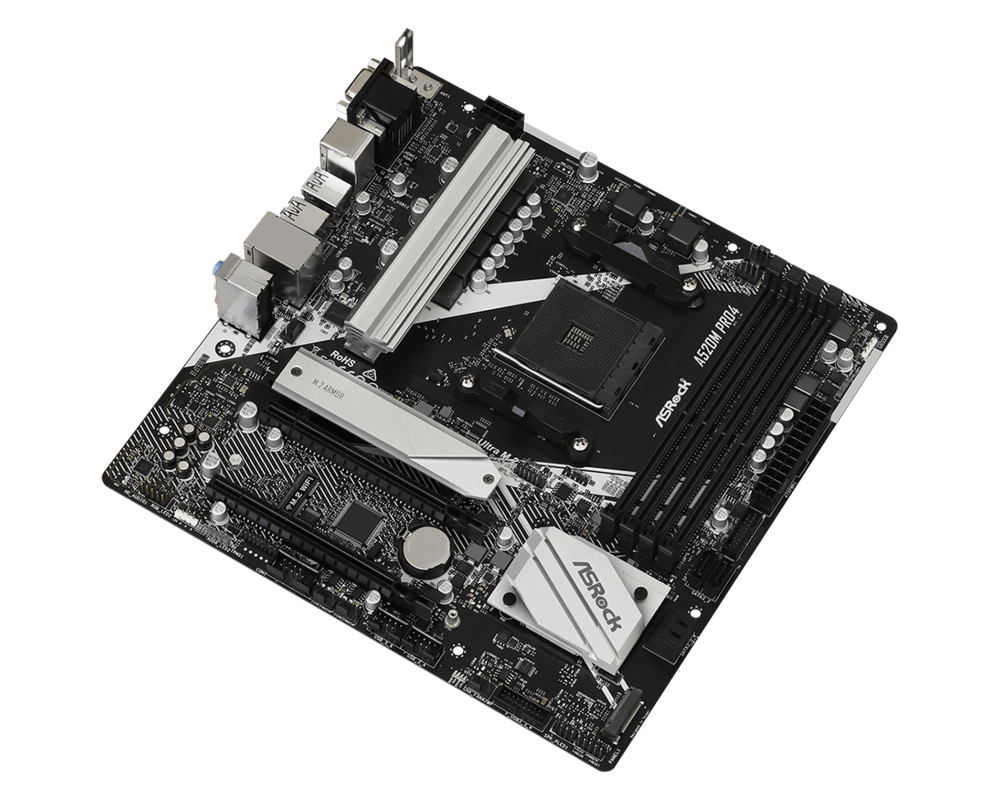

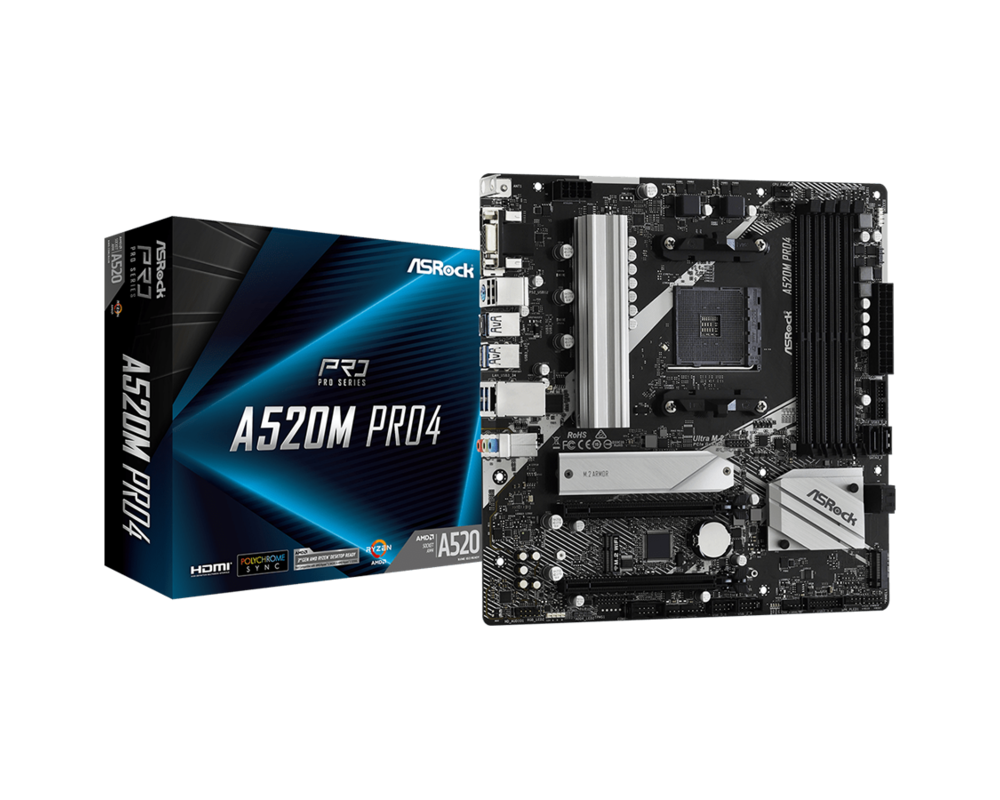

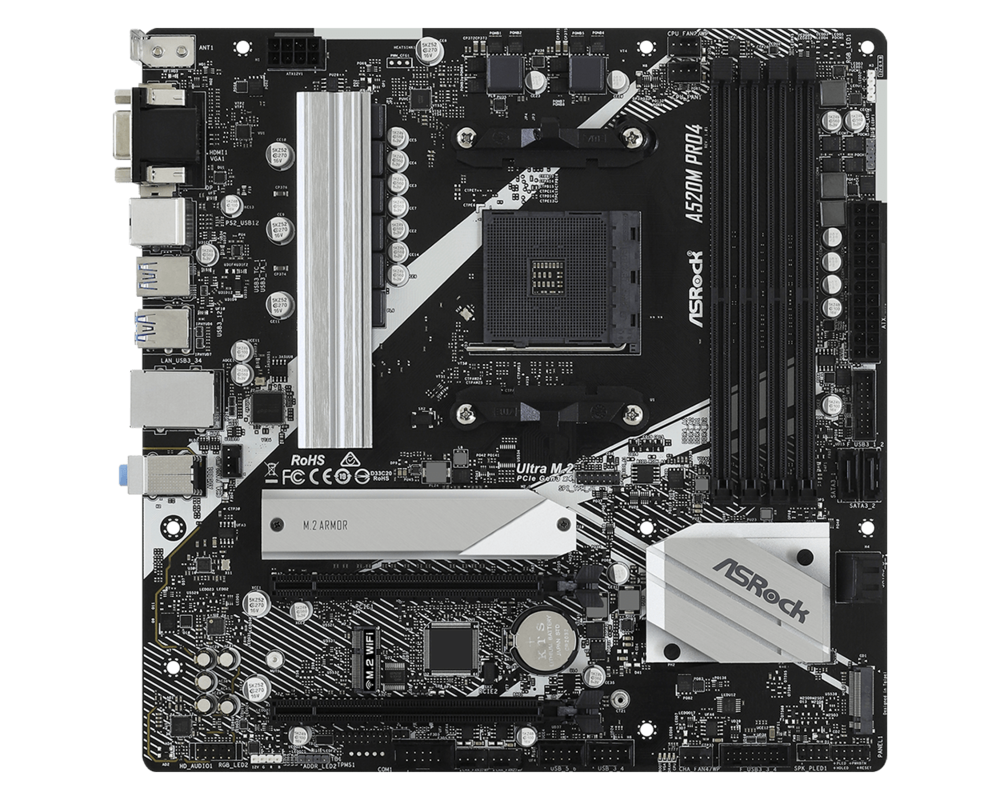

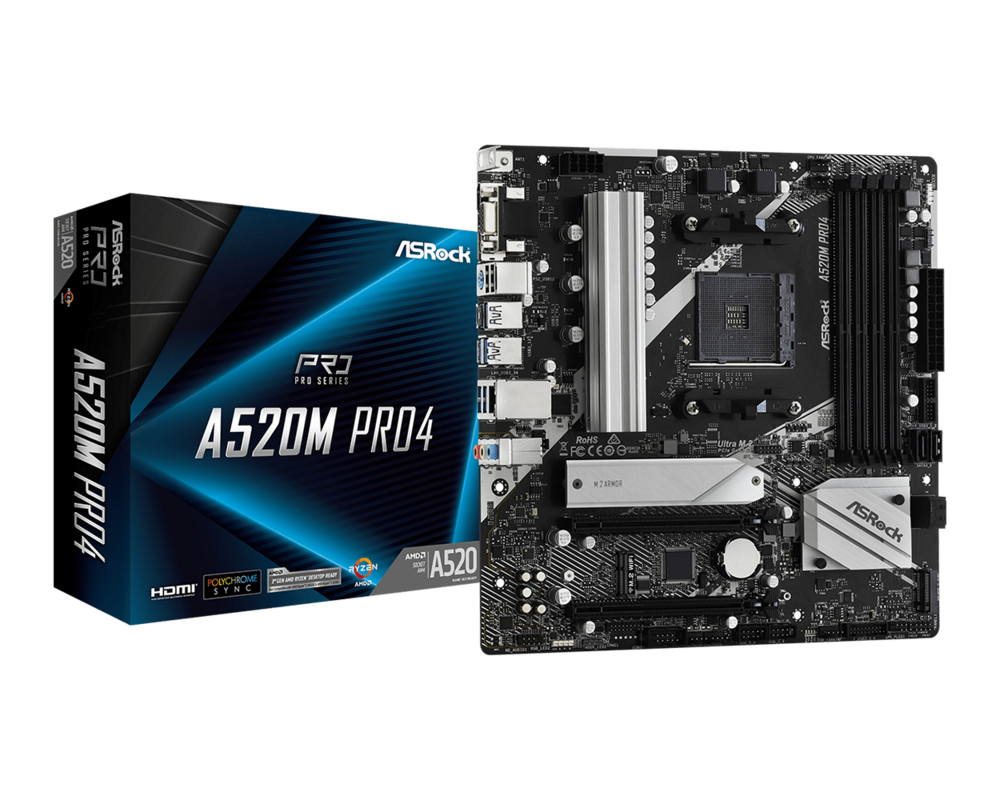

Дънна платка ASROCK A520M PRO4 AM4 2xDDR4 4xSATA 2xM.2 mATX MB A520M PRO4
изчерпано
Сокет: AM4
Чипсет: AMD A520
Тип на паметта: DDR4
Физически размер: Micro ATX
Слотове за памет: 4
Честота на паметта: 3200 MHz
Гаранция:
0.0
от 5.0
(0)
Купи и събери
2 точки
Плати по-лесно и сигурно с
Изчерпано
149 лв.
/
7618 €
Виж всички продукти на Asrock
Пазарувай по марка
Характеристики
| Физически размер | Micro ATX |
| Чипсет | AMD A520 |
| Сокет | AM4 |
| Съвместими процесори | Ryzen (supports 3rd Generation Ryzen) |
| BIOS | JumperFree, SMBIOS 2.3 support, UEFI BIOS, ACPI 5.1 support |
| Тип BIOS | AMI |
| Памет |
Two DDR Channels
Небуферирана XMP |
| Тип на паметта | DDR4 |
| Честота на паметта | 3200 MHz |
| Формат на паметта | DIMM 288-pin |
| ECC support | Non-ECC, ECC |
| Memory Registered / Buffered | Unbuffered |
| Слотове за памет | 4 |
| Максимална памет | 128 GB |
| Слотове | 2 x PCI Express 3.0 x16 Slots (PCIE1: x16 mode; PCIE3: x2 mode); - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module |
| Брой процесорни гнезда | 1 |
| Видео |
Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU; - DirectX 12
Pixel Shader 5.0; - Shared memory default 2GB. Max Shared memory supports up to 16GB.; - Three graphics output options: D-Sub HDMI and DisplayPort 1.4; - Supports Triple Monitor; - Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz; - Supports DisplayPort 1.4 with max. resolution up to 5K (5120x2880)@120Hz; - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz; - Supports Auto Lip Sync Deep Color (12bpc) xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required); - Supports HDR (High Dynamic Range) with HDMI 2.1; - Supports HDCP 2.3 with HDMI 2.1 and DisplayPort 1.4 Ports; - Supports 4K Ultra HD (UHD) playback with HDMI 2.1 and DisplayPort 1.4 Ports; - Supports Microsoft® PlayReady |
| Контролер на съхранението |
Storage Controller:
PCIe/SATA (2 x M.2 (Key M)) Storage Controller: Supports: Ниво 0, Ниво 1, Ниво 1+ SATA III-600 (4) |
| Дисков интерфейс | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 SATA-600 / PCIe 3.0 -connectors: 1 x M.2 PCIe 3.0 -connectors: 1 x Ultra M.2 |
| LAN порт | Gigabit Ethernet |
| LAN standards | Gigabit Ethernet/Fast Ethernet/Ethernet |
| LAN controller | Realtek RTL8111H |
| Wi-Fi controller |
Wi-Fi Controller:
1 x M.2 (Key E) |
| Звук | Realtek ALC1200 |
| Звуков изход | HD Audio (8-channel) |
| Аудио стандарти | High Definition Audio, Premium Blu-ray audio support |

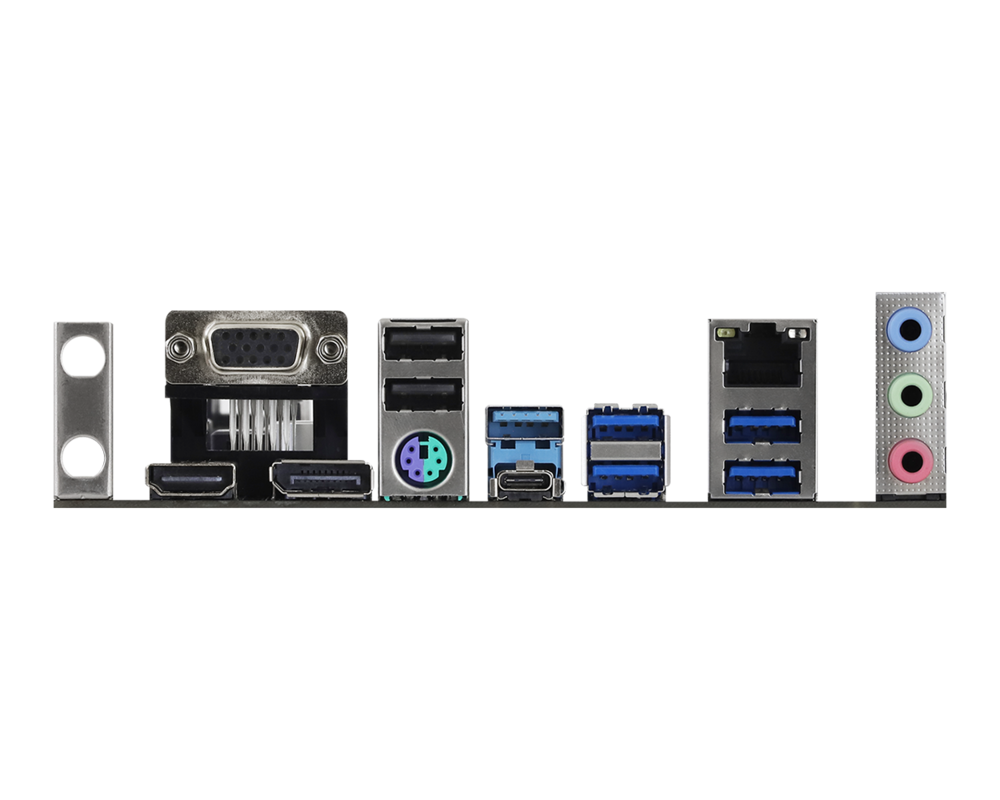

| Портове | 1 x PS/2 keyboard / mouse 1 x LAN (Gigabit Ethernet) 1 x VGA 1 x DisplayPort 1 x HDMI 2 x USB 2.0 5 x USB 3.2 Gen 1 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x microphone - mini-jack 1 x USB-C Gen1 |
| Разширителни слотове |
1 x CPU
4 x DIMM 288-pin 1 x PCIe 3.0 x16 1 x PCIe 3.0 x16 (x2 mode) 1 x M.2 socket (Key E) |
| PCI slots | 2x PCI Express 3.0 x16 |
| Вътрешен интерфейс | 4 x USB 2.0 - header 2 x USB 3.2 Gen 1 - header 1 x serial - header 1 x audio - header |
| Wake on LAN | Wake on LAN (WOL) |
| Функции | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Софтуер |
Drivers & Utilities
ASRock A-Tuning Antivirus (Trial version) Google Chrome Browser Google ChromeToolbar ASRock XFast LAN ASRock Polychrome RGB |
| Конектори | 1 x COM Port Header; - 1 x SPI TPM Header; - 1 x Power LED and Speaker Header; - 2 x RGB LED Headers; - 2 x Addressable LED Headers; - 1 x CPU Fan Connector (4-pin); - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control); - 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control); - 1 x 24 pin ATX Power Connector; - 1 x 8 pin 12V Power Connector; - 1 x Front Panel Audio Connector; - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection); - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection) |
| Конектори за захранване | 24-pin main power connector, 8-pin ATX12V connector |
| Наблюдение на хардуера |
CPU core temperature
chassis temperature CPU fan tachometer chassis fan tachometer system voltage CPU core voltage |
| Стандарти | FCC, EuP Ready, ErP Ready |
| Включени кабели | 2 x Serial ATA cable |
| Аксесоари | I/O back plate, 2 x M.2 screws |
| Височина | 244 mm |
| Ширина | 24.4 cm |
| Дълбочина | 24.4 cm |
| Други характеристики |
8 Phase Power Design
ASRock Instant Flash All-Solid Capacitor motherboard Design 15µ Gold Contact ESD Protection Energy Efficient Ethernet 802.3az Preboot eXecution Environment (PXE) Triple Monitor ASRock Full Spike Protection ASRock APP Shop ASRock Super Alloy High Density Glass Fabric PCB ASRock Full HD UEFI Sapphire Black PCB Nahimic Audio Enhacer ASRock Live Update ASRock Ultra M.2 Premium 50A Power Choke PCB Isolate Shielding 2oz Copper PCB ASRock POST Status Checker (PSC) ASRock Full Coverage M.2 Heatsink |
| Гаранция | 36 месеца |
| Код на продукта | A520M PRO4 |
Виж повече
Допълнителна информация
- Nahimic Audio
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details. - 8 power phase design
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it enhanced performance with the lowest temperature for advanced gamers. - Premium 50A power choke
Compared to traditional chokes, ASRock's premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard. - 2oz copper PCB
2-ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking, it's able to support the latest DDR4 memory modules with most extreme memory performance! - Rule your own lighting way - polychrome RGB
This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects. - Dual M.2 for SSD
One PCIe Gen3 x4 Ultra M.2 interface that pushes data transfer speeds up to 32Gb/s, and is compatible with ASRock's U.2 Kit for installing some of the world's fastest U.2 PCIe Gen3 x4 SSD. The other one supports PCIe Gen3 x2 16Gb/s transfer speed. - M.2 Armor
Good M.2 SSD protection is important for longevity and stability. ASRock provides a completed M.2 armor solution that makes SSDs to run in a certain low temperature. - Dual USB 3.2 Gen1 (Type-A + Type-C)
This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen1 ports built on the rear i/o for supporting next generation USB 3.2 Gen1 devices and to deliver up to 5 Gbps data transfer rates. - M.2 (KEY E) for Wi-Fi
Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot. - 3 graphics outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo. Plus, the HDMI port supports 4K resolution. - HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry. - 2oz copper PCB
Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking. - Premium 50A power choke
Compared to traditional chokes, ASRock's premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard. - High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity. - Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch. - Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard's components from being damaged by these unexpected voltage spikes. - Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. ASRock provides various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
