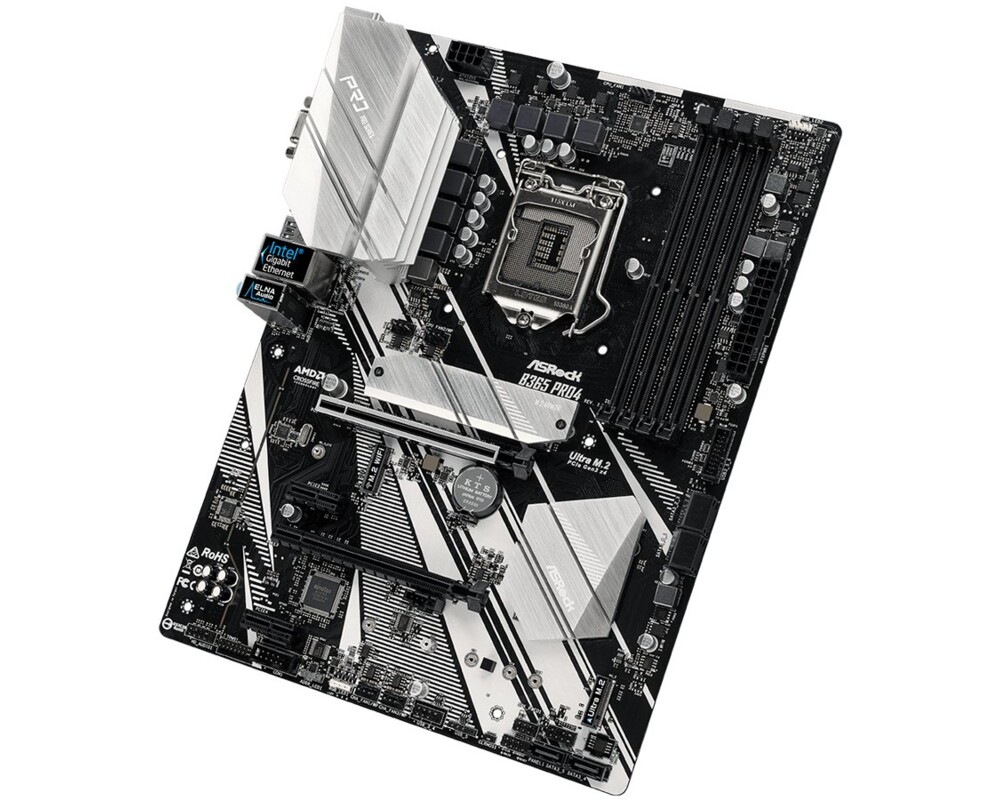

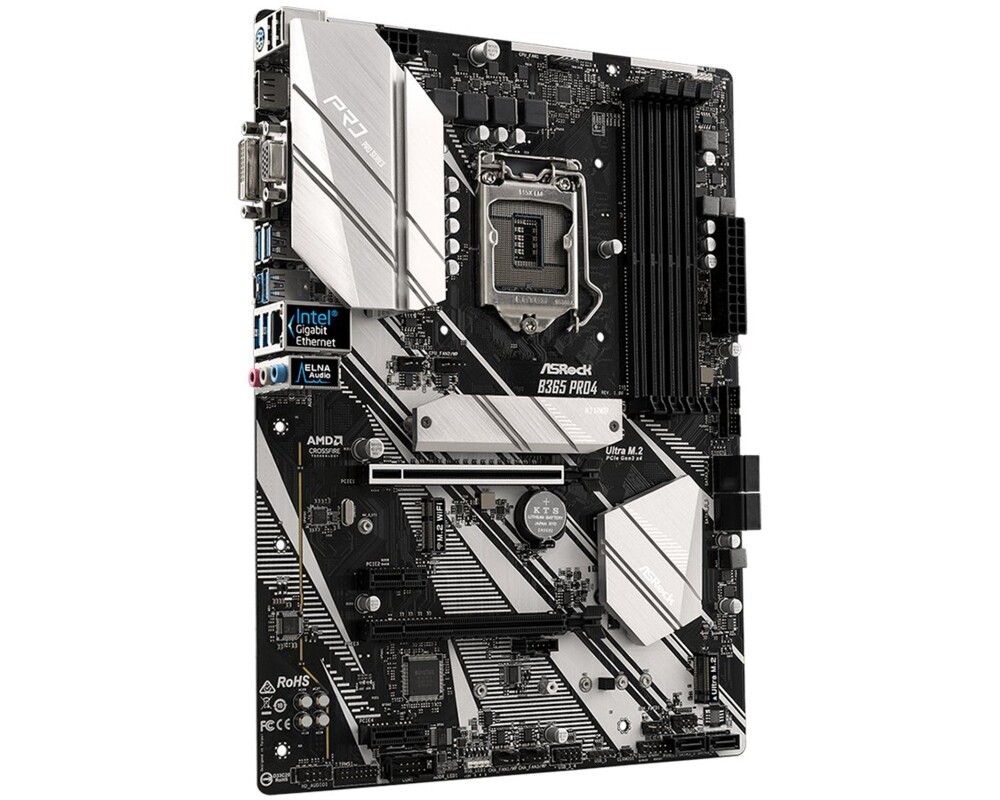

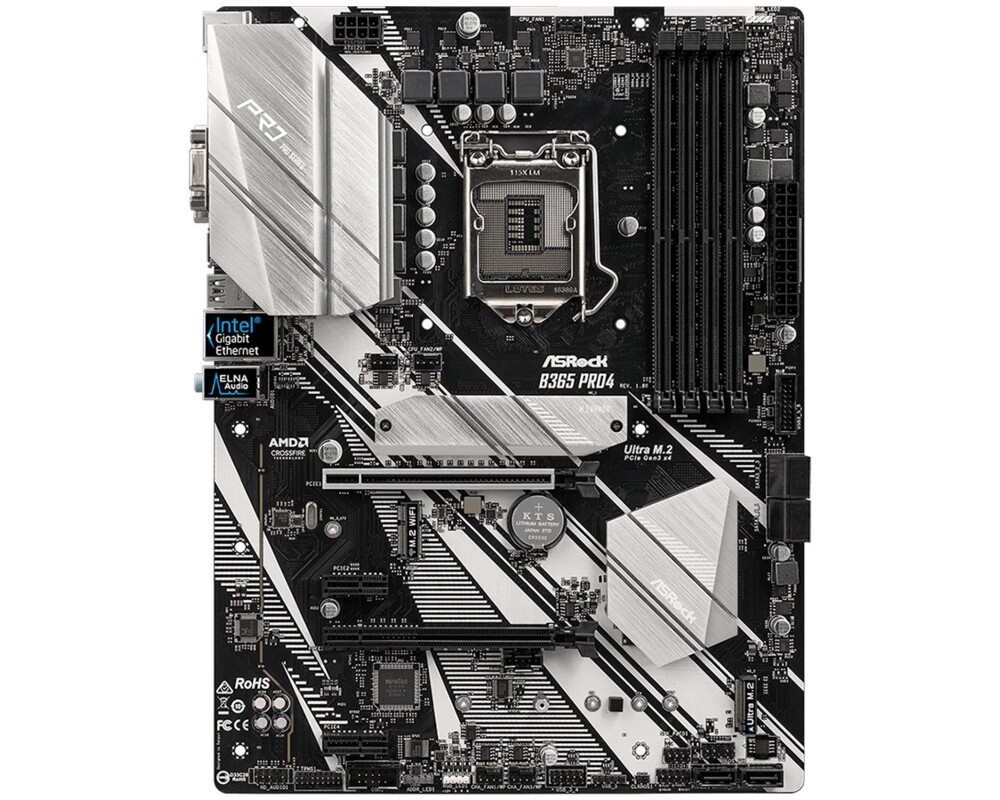

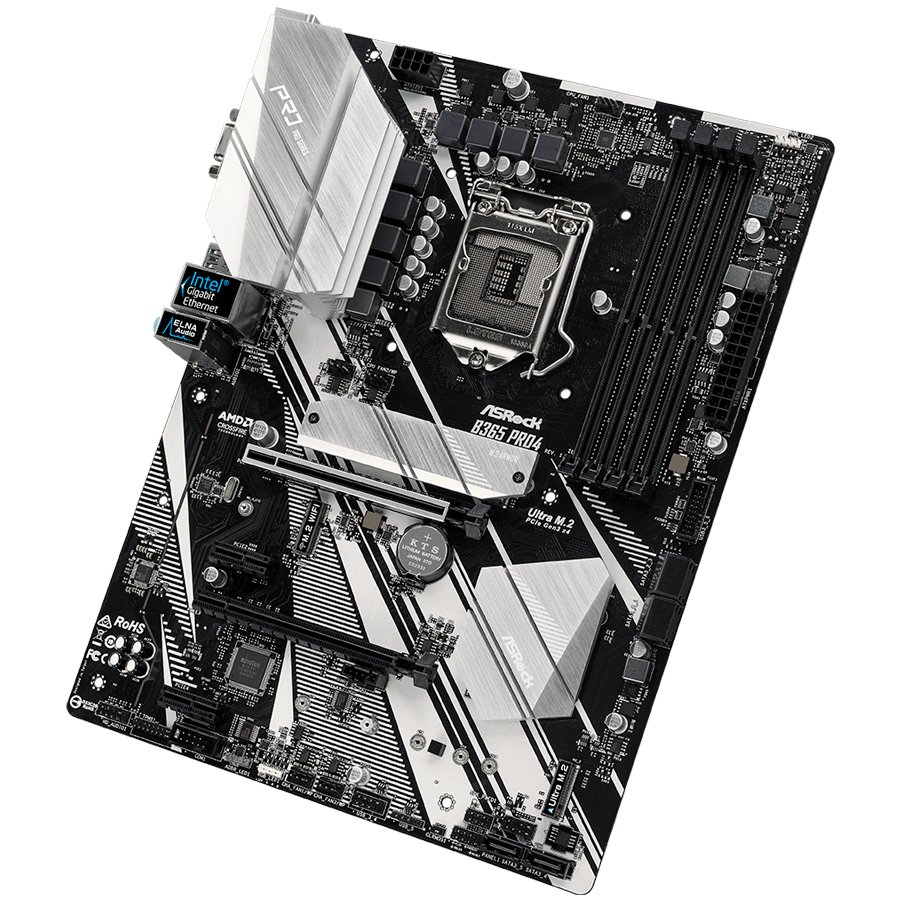

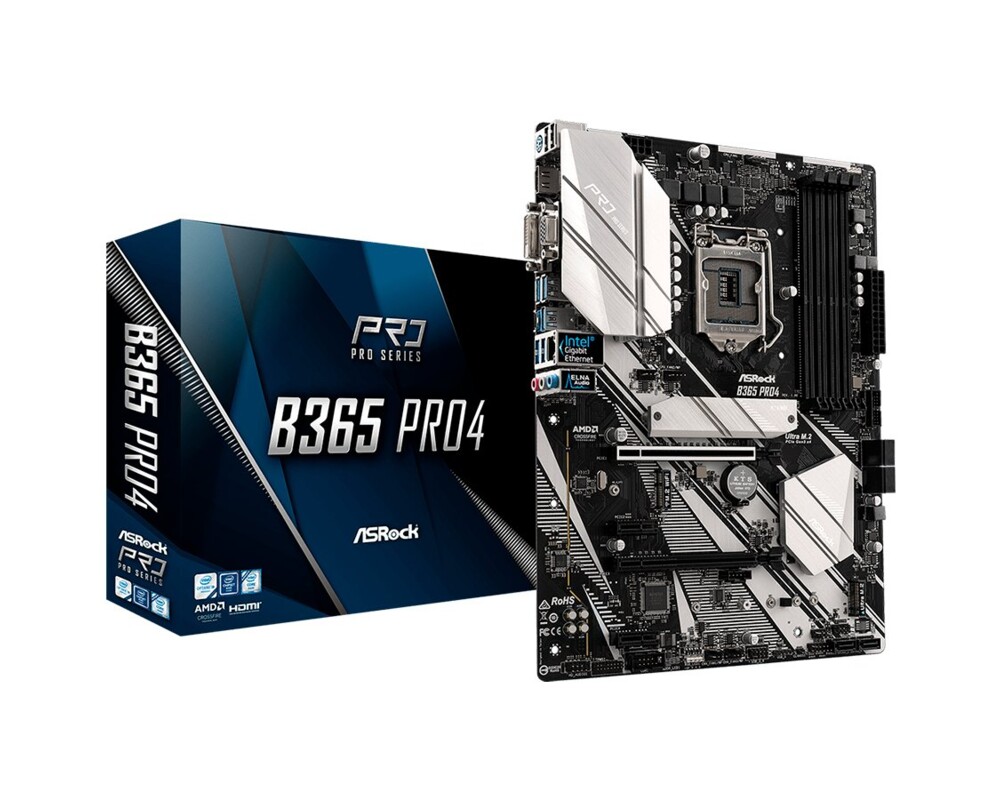

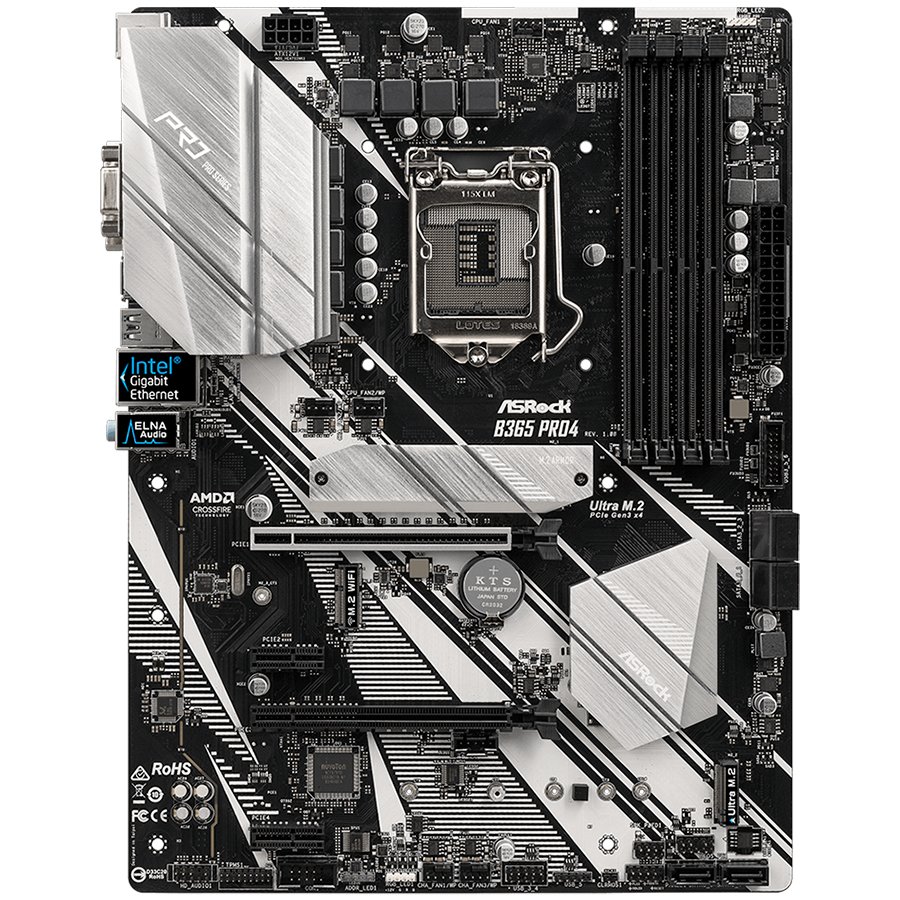

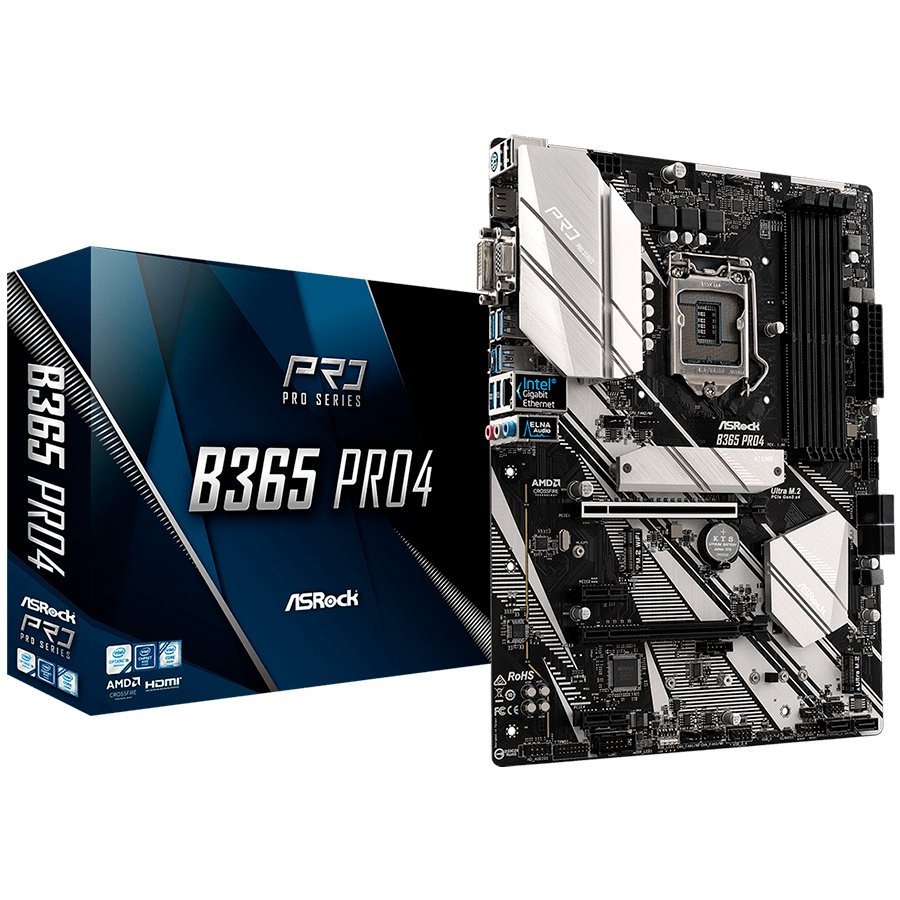

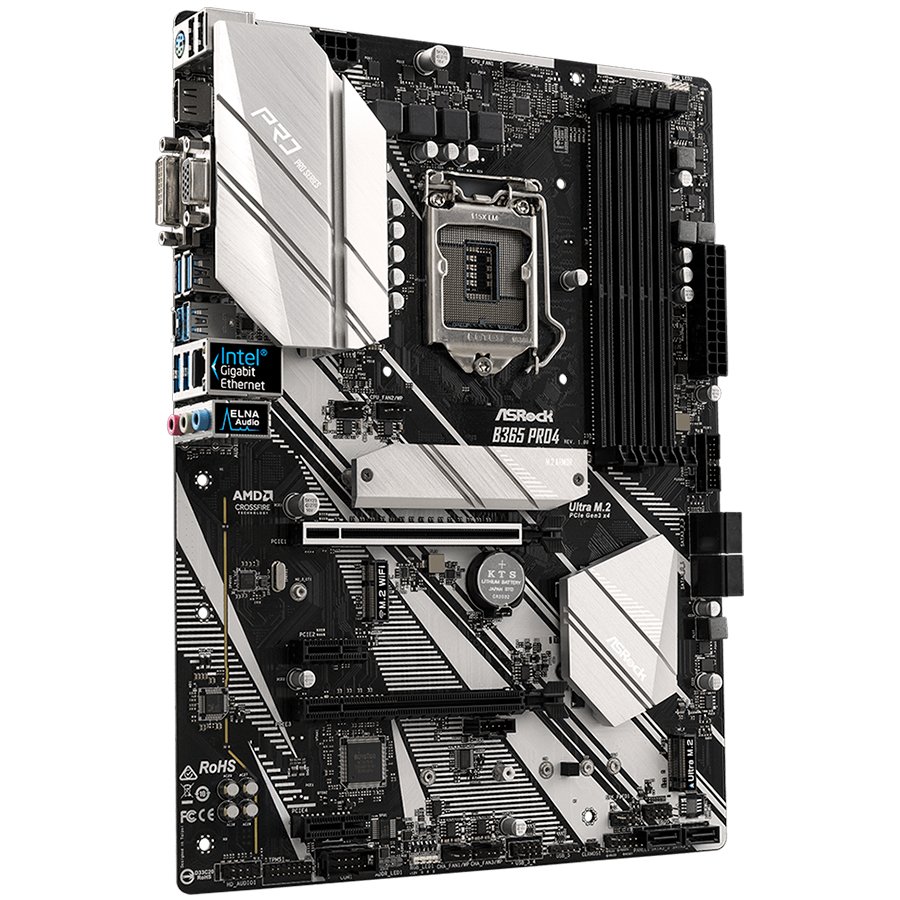

Дънна платка ASROCK B365 PRO4 Socket 1151 DDR4 2666 B365_PRO4
изчерпано
Сокет: LGA 1151
Чипсет: Intel B365
Тип на паметта: DDR4
Физически размер: ATX
Слотове за памет: 4
Честота на паметта: 2666 MHz
Гаранция:
0.0
от 5.0
(0)
Купи и събери
2 точки
Плати по-лесно и сигурно с
Изчерпано
185 лв.
/
9459 €
Виж всички продукти на Asrock
Пазарувай по марка
Характеристики
| Физически размер | ATX |
| Чипсет | Intel B365 |
| Сокет | LGA 1151 |
| Съвместими процесори | (supports 9th and 8th Generation Intel Core, Maximum TDP 95W) |
| BIOS | Multilingual BIOS, UEFI BIOS, SMBIOS 2.7 support, ACPI 6.0 support |
| Тип BIOS | AMI |
| Тип на паметта | DDR4 |
| Честота на паметта | 2666 MHz |
| ECC support | Non-ECC, ECC (operate in non-ECC mode) |
| Memory Registered / Buffered | Unbuffered |
| Слотове за памет | 4 |
| Максимална памет | 64 GB |
| Брой процесорни гнезда | 1 |
| Дисков интерфейс | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 SATA-600 / PCIe 3.0 -connectors: 1 x Ultra M.2 PCIe 3.0 -connectors: 1 x Ultra M.2 |
| RAID | Intel Rapid Storage Technology |
| LAN порт | Gigabit Ethernet |
| LAN controller | Intel I219V |
| Wi-Fi controller |
Wi-Fi Controller:
1 x M.2 (Key E) |
| Звук | Realtek ALC892 |
| Звуков изход | HD Audio (8-channel) |
| Аудио стандарти | High Definition Audio |

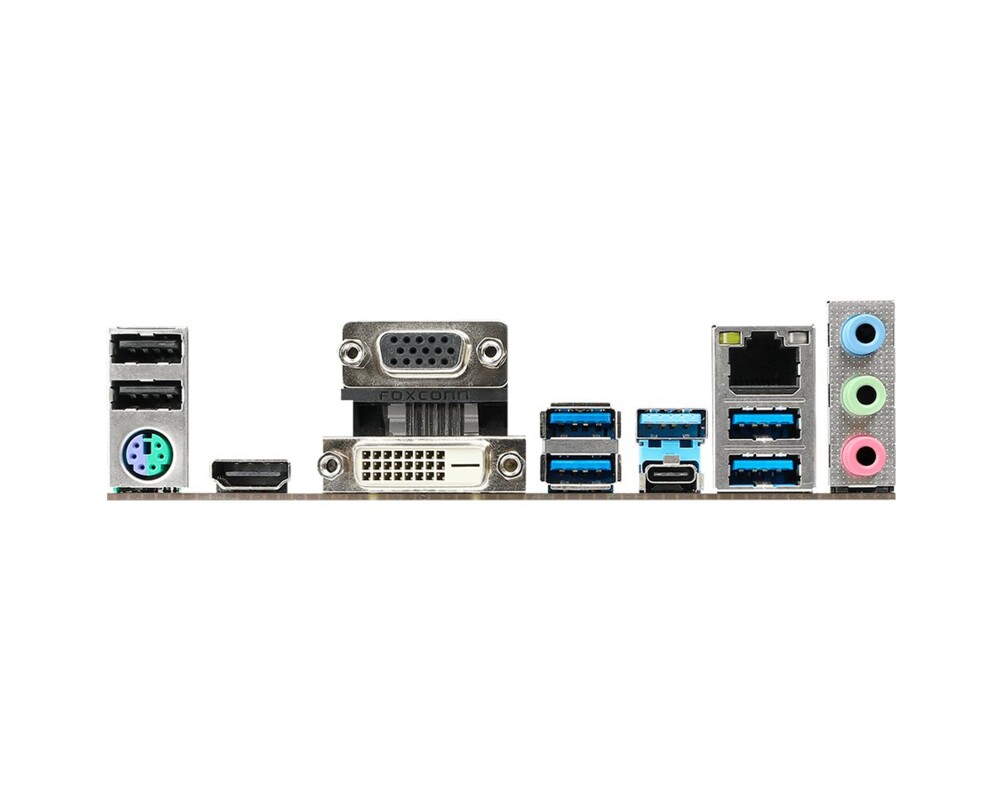

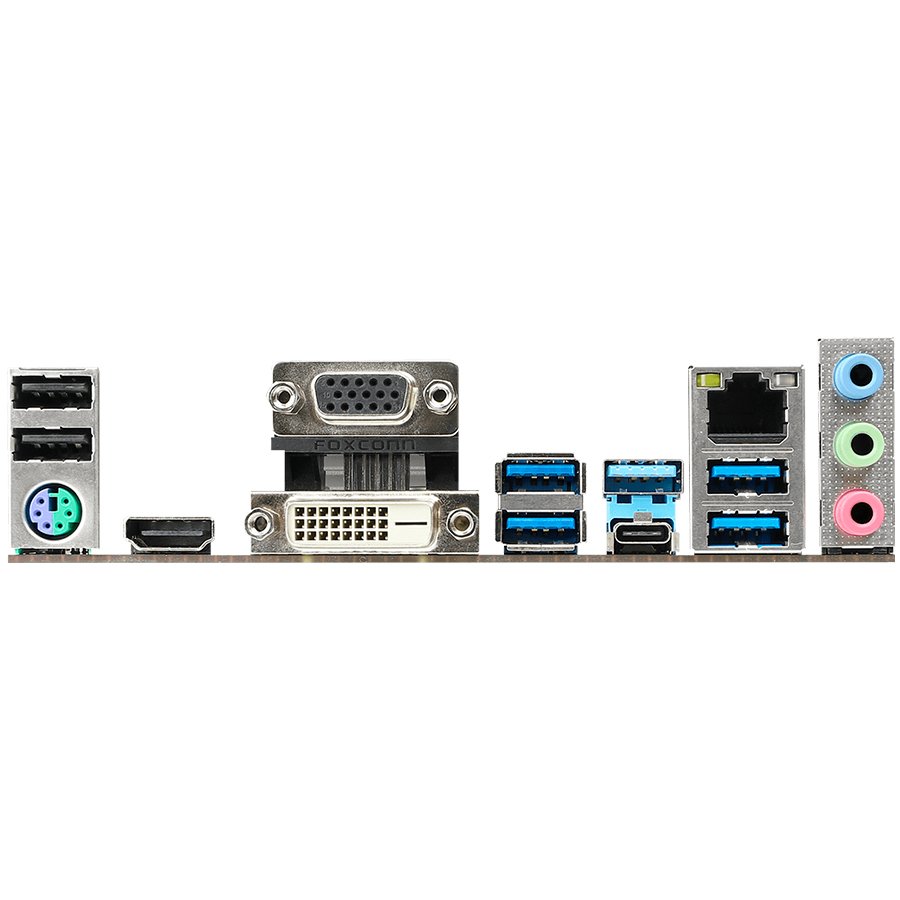

| Портове | 1 x PS/2 keyboard / mouse 1 x LAN (Gigabit Ethernet) 1 x VGA 1 x DVI-D 1 x HDMI 2 x USB 2.0 5 x USB 3.1 Gen 1 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x microphone - mini-jack 1 x USB-C Gen1 |
| Разширителни слотове | 1 x CPU 4 x DIMM 288-pin 2 x PCIe 3.0 x16 (dual x16, x4 mode; single card: x16 mode) 2 x PCIe 3.0 x1 1 x M.2 socket (Key E) |
| PCI slots | 2x PCI Express 3.0 x1, 2x PCI Express 3.0 x16 |
| Вътрешен интерфейс |
3 x USB 2.0 - header
2 x USB 3.1 Gen 1 - header 1 x serial - header 1 x audio - header 1 x Thunderbolt - header |
| Wake on LAN | Wake on LAN (WOL) |
| Функции | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 2.0, supported ECC modules operate in non-ECC mode |
| Софтуер |
Drivers & Utilities
ASRock A-Tuning Antivirus (Trial version) Google Chrome Browser Google ChromeToolbar ASRock XFast LAN ASRock Polychrome RGB |
| Конектори за захранване | 24-pin main power connector, 8-pin ATX12V connector |
| Наблюдение на хардуера |
CPU core temperature
chassis temperature CPU fan tachometer chassis fan tachometer system voltage CPU core voltage |
| Стандарти | FCC, EuP Ready, ErP Ready |
| Включени кабели | 2 x Serial ATA cable |
| Аксесоари | I/O back plate, 3 x M.2 screws |
| Ширина | 30.5 cm |
| Дълбочина | 22.9 cm |
| Други характеристики |
8 Phase Power Design
ASRock Instant Flash HDCP compliant 15µ Gold Contact Intel Turbo Boost Technology 2.0 Intel Clear Video HD Technology AMD CrossFireX technology support AMD Quad CrossFireX technology support ASRock Internet Flash Digi Power Design Intel InTru 3D Technology Intel Insider Intel Quick Sync Video ESD Protection Energy Efficient Ethernet 802.3az Preboot eXecution Environment (PXE) Triple Monitor ELNA Audio Capacitors ASRock Full Spike Protection ASRock APP Shop ASRock Super Alloy High Density Glass Fabric PCB ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Easy RAID Installer Sapphire Black PCB ASRock Live Update Intel Optane Memory Ready ASRock Ultra M.2 Premium 50A Power Choke ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology ASRock Steel Slots |
| Гаранция | 24 месеца |
| Код на продукта | B365_PRO4 |
Виж повече
Допълнителна информация
- Rule your own lighting way - Polychrome RGB
This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects. - XXL aluminum alloy heatsink
Extra-large aluminum alloy heat sinks that effectively take away heat from the MOSFET and chipset so that your whole system may perform more stable. - Full-coverage M.2 heatsink
A massive full-coverage M.2 heatsink that is able to dissipate heat efficiently to ensure your high-speed M.2 SSD always working at its best. - Intel LAN
Intel LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users! - Digi Power
This motherboard uses a next-generation Hybrid Digi Power design to bring precise control and smooth power. With the ensured efficient and clean power delivery to the CPU, the stability and lifespan of motherboard is also greatly enhanced. - ELNA audio caps
Who says high-quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles. - Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard's components from being damaged by these unexpected voltage spikes.
