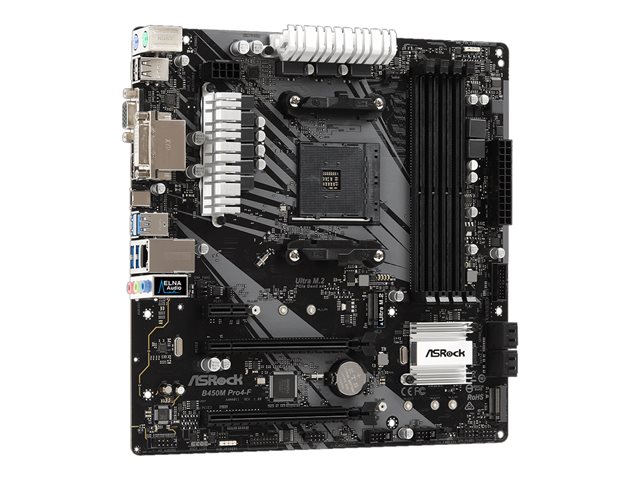

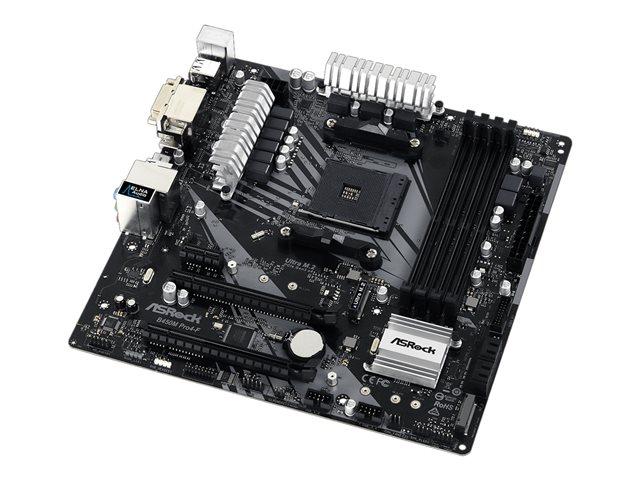

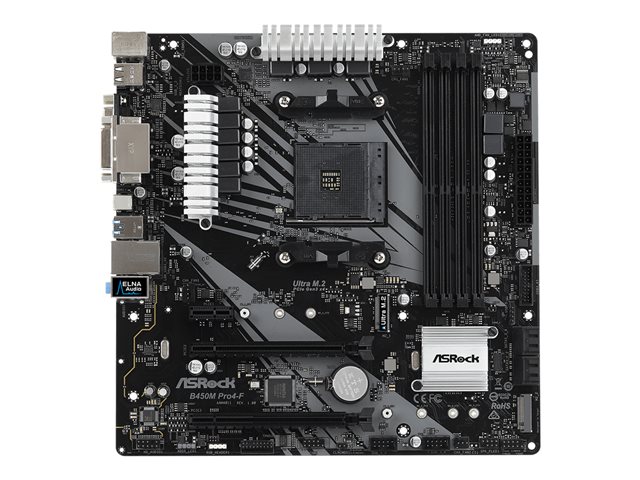

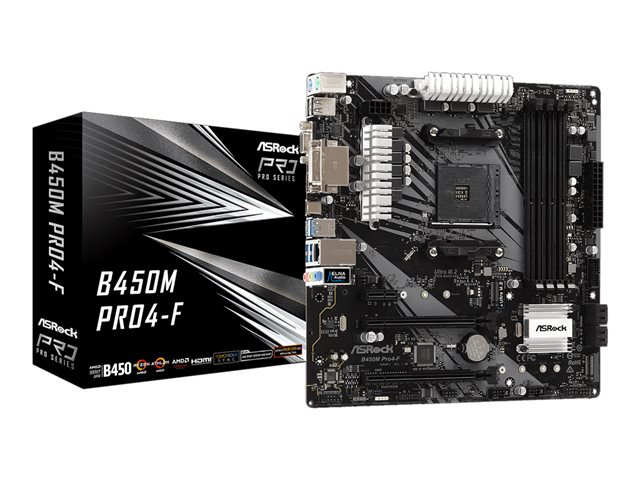

Дънна платка ASROCK B450M PRO4-F mATX AM4 4xDDR4 B450M PRO4-F
изчерпано
Сокет: AM4
Чипсет: AMD B450
Тип на паметта: DDR4
Физически размер: Micro ATX
Слотове за памет: 4
Честота на паметта: 2667 MHz
Гаранция:
0.0
от 5.0
(0)
Купи и събери
1 точка
Плати по-лесно и сигурно с
Виж всички продукти на Asrock
Пазарувай по марка
Характеристики
| Физически размер | Micro ATX |
| Чипсет | AMD B450 |
| Сокет | AM4 |
| Съвместими процесори | Ryzen |
| BIOS |
Multilingual BIOS
JumperFree SMBIOS 2.3 support UEFI BIOS ACPI 5.1 support |
| Тип BIOS | AMI |
| Памет |
Two DDR Channels
Небуферирана Dual Rank Single Rank |
| Тип на паметта | DDR4 |
| Честота на паметта | 2667 MHz |
| Формат на паметта | DIMM 288-pin |
| ECC support | Non-ECC, ECC |
| Memory Registered / Buffered | Unbuffered |
| Слотове за памет | 4 |
| Максимална памет | 64 GB |
| Брой процесорни гнезда | 1 |
| Контролер на съхранението |
Storage Controller:
Supports: Ниво 0, Ниво 1, Ниво 10 SATA III-600 (4) Storage Controller: PCI Express 3.0 x4 (1 x M.2 (Key M)) Storage Controller: SATA III-600 (1 x M.2 (Key M)) |
| Дисков интерфейс | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10, SATA-600 -connectors: 1 x M.2, PCIe 3.0 -connectors: 1 x Ultra M.2 |
| LAN порт | Gigabit Ethernet |
| LAN standards | Gigabit Ethernet/Fast Ethernet/Ethernet |
| LAN controller | Realtek RTL8111GR |
| Звук | Realtek ALC892 |
| Звуков изход | HD Audio (8-channel) |
| Аудио стандарти | High Definition Audio, Premium Blu-ray audio support |

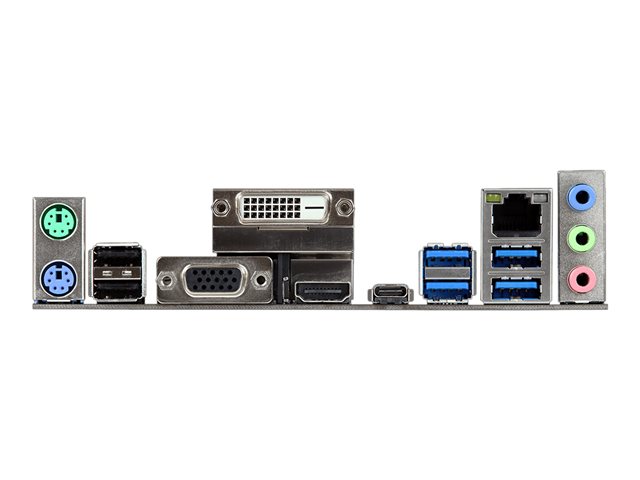

| Портове | 1 x PS/2 keyboard 1 x PS/2 mouse 1 x VGA 1 x DVI-D 1 x HDMI 2 x USB 2.0 4 x USB 3.1 Gen 1 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x microphone - mini-jack 1 x USB-C Gen1 1 x LAN (Gigabit Ethernet) |
| Разширителни слотове | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 3.0 x16 (x16 mode (with 1st and 2nd Generation Ryzen CPU); x8 mode (with Ryzen with Radeon Vega Graphics)) 1 x PCIe 2.0 x16 (x4 mode) 1 x PCIe 2.0 x1 |
| PCI slots | 1x PCI Express 2.0 x1, 1x PCI Express 2.0 x16, 1x PCI Express 3.0 x16 |
| Вътрешен интерфейс | 4 x USB 2.0 - header 2 x USB 3.1 Gen 1 - header 1 x serial - header 1 x audio - header |
| Wake on LAN | Wake on LAN (WOL) |
| Функции | Dual channel memory architecture |
| Софтуер |
Drivers & Utilities
ASRock A-Tuning Antivirus (Trial version) Google Chrome Browser Google ChromeToolbar ASRock XFast LAN ASRock Polychrome RGB |
| Конектори за захранване | 24-pin main power connector, 8-pin ATX12V connector |
| Наблюдение на хардуера |
CPU core temperature
chassis temperature CPU fan tachometer chassis fan tachometer system voltage CPU core voltage |
| Стандарти | Plug and Play, FCC, EuP Ready, ErP Ready |
| Включени кабели | 2 x Serial ATA cable |
| Аксесоари | I/O back plate, 2 x M.2 screws |
| Височина | 244 mm |
| Ширина | 24.4 cm |
| Дълбочина | 24.4 cm |
| Други характеристики |
ASRock Instant Flash
HDCP compliant 15µ Gold Contact AMD CrossFireX technology support AMD Quad CrossFireX technology support Digi Power Design ESD Protection Energy Efficient Ethernet 802.3az Preboot eXecution Environment (PXE) Triple Monitor LAN Cable Detection ELNA Audio Capacitors ASRock Full Spike Protection ASRock APP Shop ASRock Super Alloy High Density Glass Fabric PCB ASRock Full HD UEFI ASRock Easy RAID Installer Sapphire Black PCB ASRock Live Update ASRock Ultra M.2 9 Phase Power Design Premium 42A Power Choke 2oz Copper PCB |
| Гаранция | 24 месеца |
| Код на продукта | B450M PRO4-F |
Виж повече
Допълнителна информация
- AMD StoreMI Technology
A powerful tool that combines the speed of your SSD with the capacity of your hard disk into a single, fast, easy-to-manage drive. SSDs are fast, but expensive, and offer minimal capacity. Mechanical hard drives boast large capacity for a low price, but are much slower than an SSD. AMD StoreMI technology "combines" these two types of storage into a single drive and automatically moves the data you access the most to the SSD, so you get the best of both worlds: SSD responsiveness, and mechanical hard disk capacity. You can also use up to 2GB of RAM as a last-level cache for ultra-fast data. - Dual M.2 for SSD
Equipped with M.2 slot that supports both SATA3 6Gb/s and PCIe Gen3 x4 Ultra M.2 interface that pushes data transfer speeds up to 32Gb/s, and is compatible with ASRock's U.2 Kit for installing some of the world's fastest U.2 PCIe Gen3 x4 SSD. - Rule your own lighting way - Polychrome RGB
This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects. - Digi Power
This motherboard uses a next-generation Hybrid Digi Power design to bring precise control and smooth power. With the ensured efficient and clean power delivery to the CPU, the stability and lifespan of motherboard is also greatly enhanced. - ELNA audio caps
Who says high quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles. - 3 graphics outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution. - Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard's components from being damaged by these unexpected voltage spikes.
