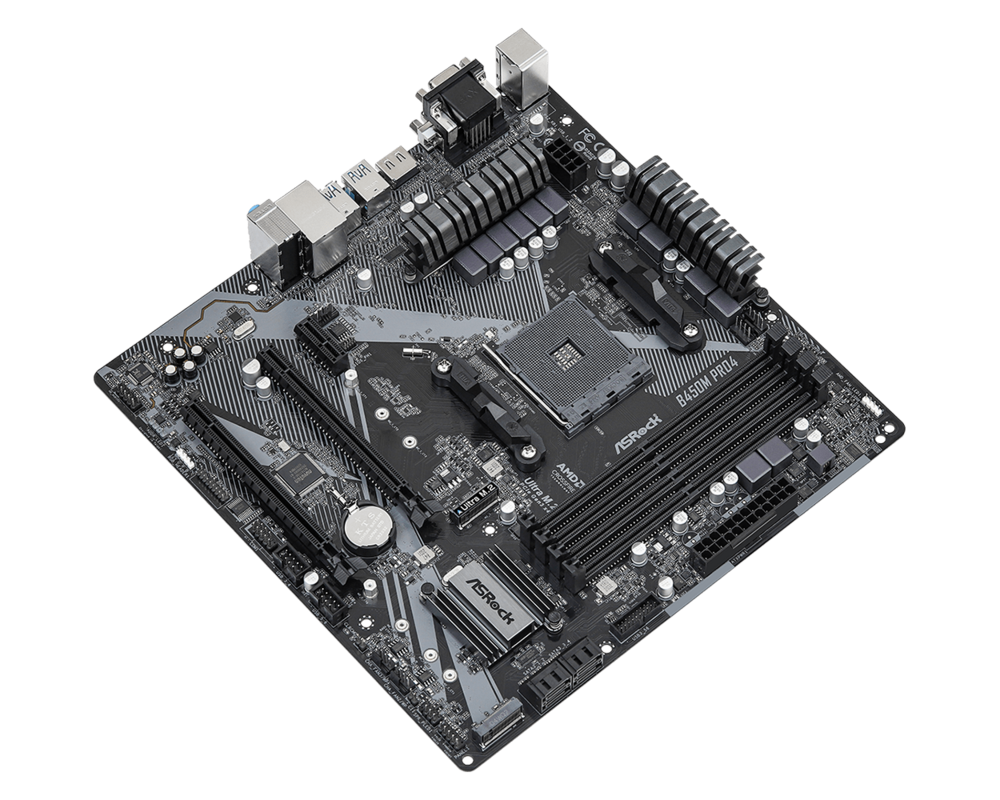

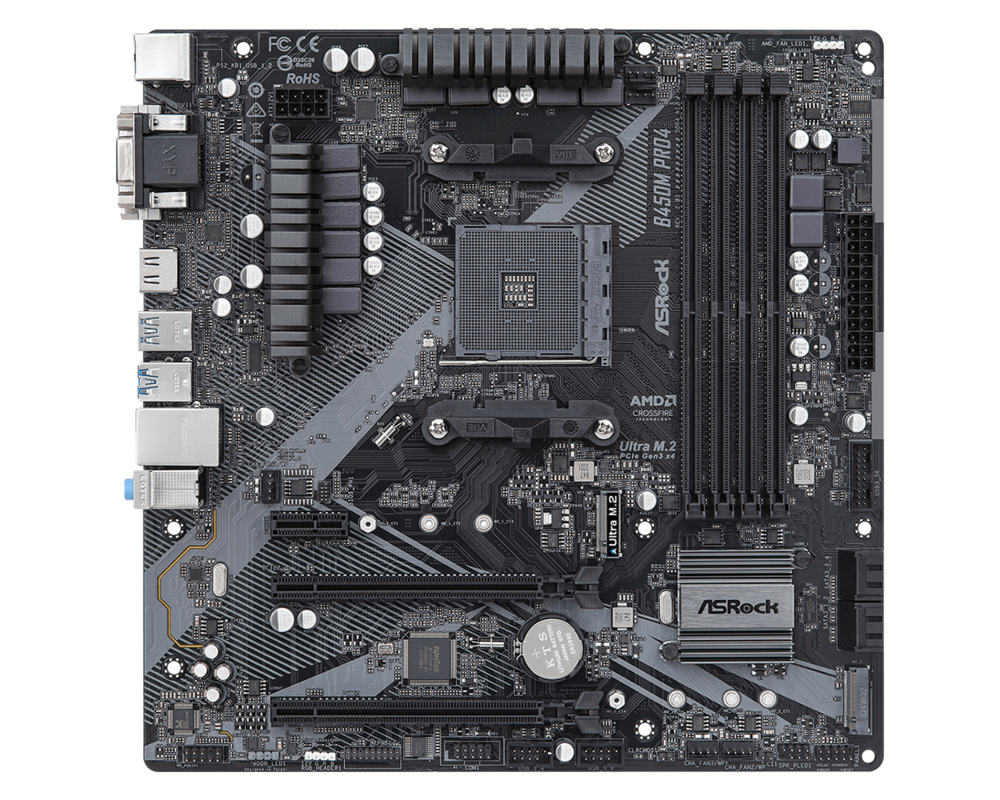

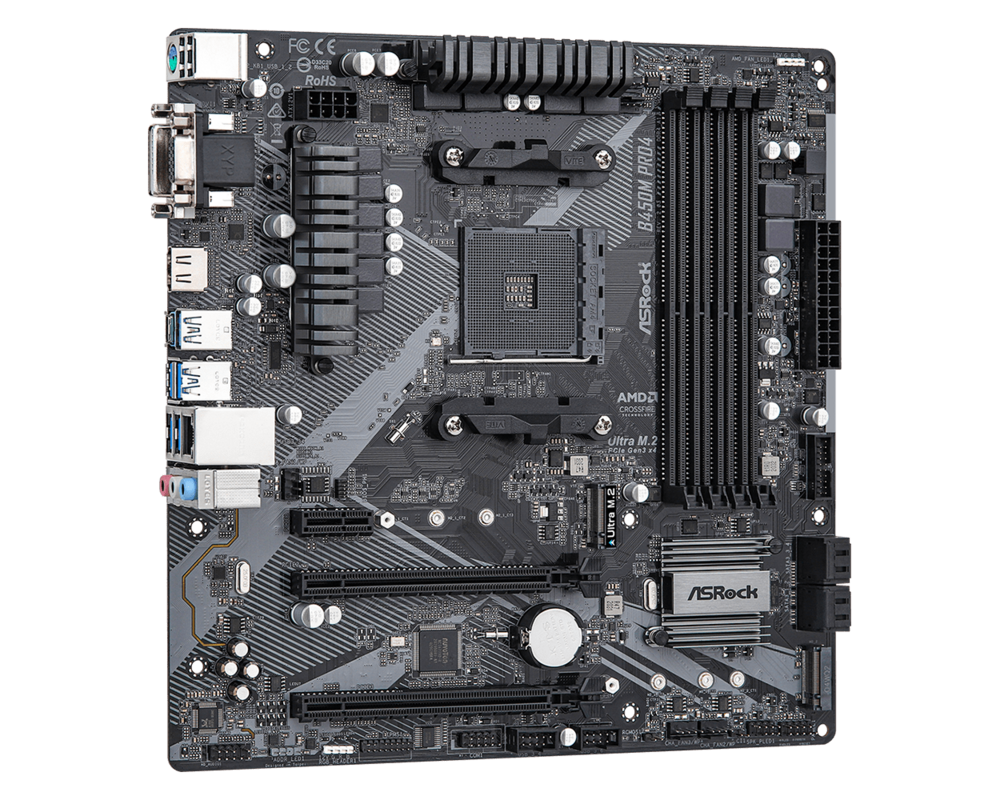

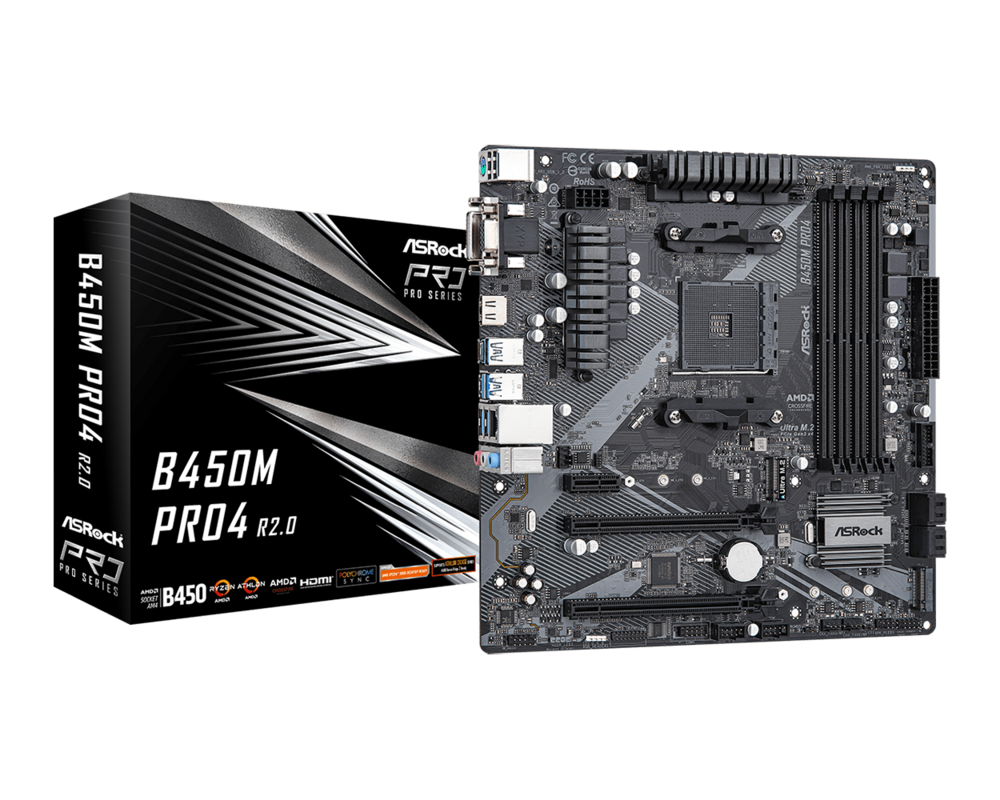

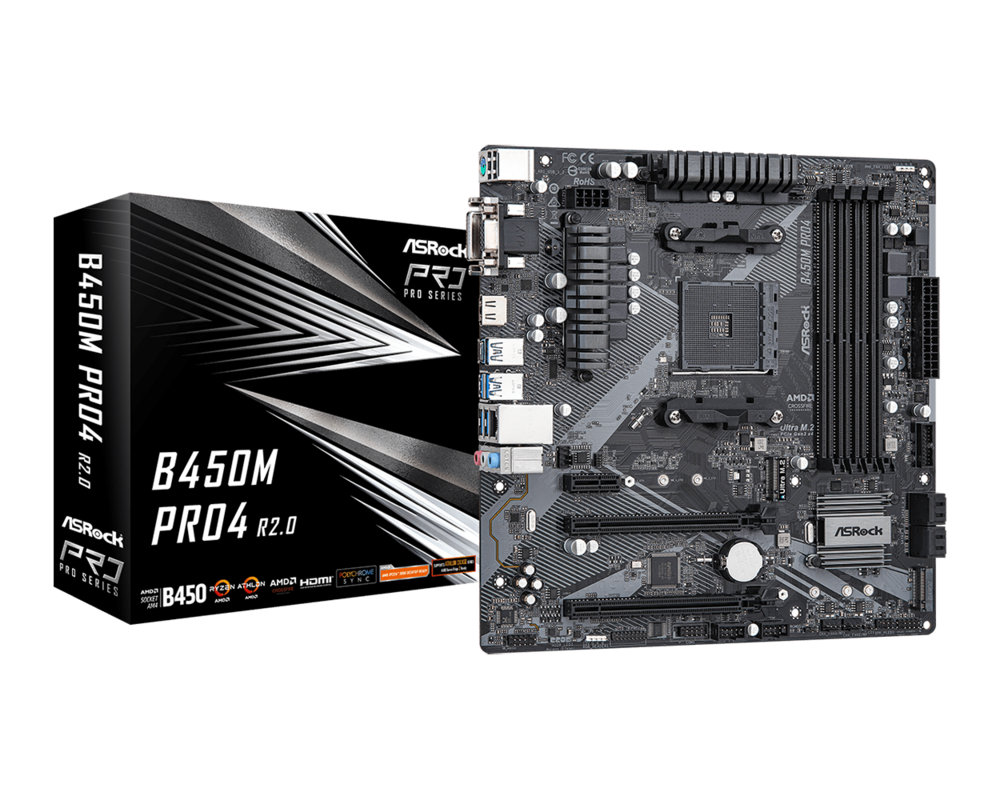

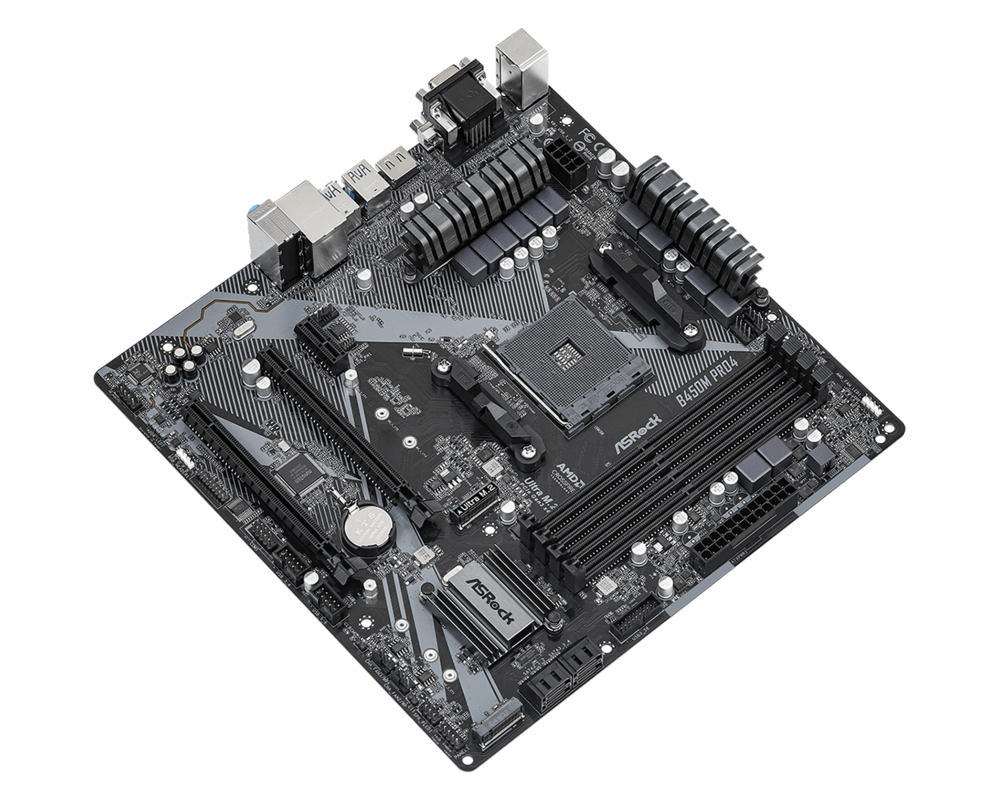

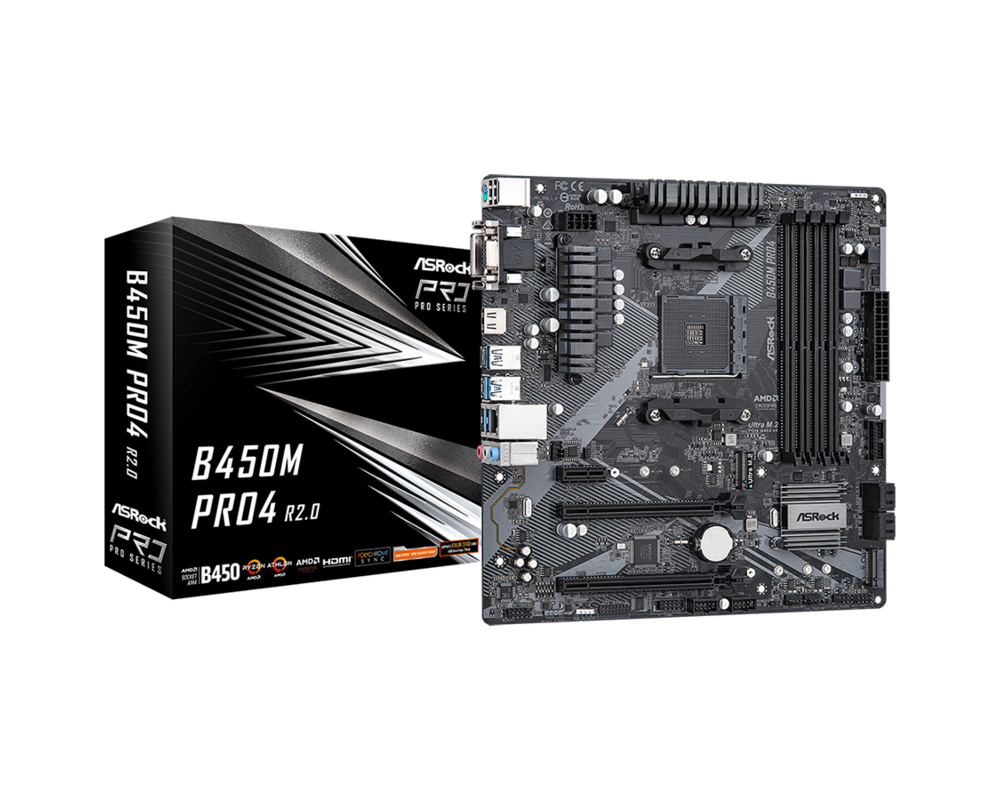

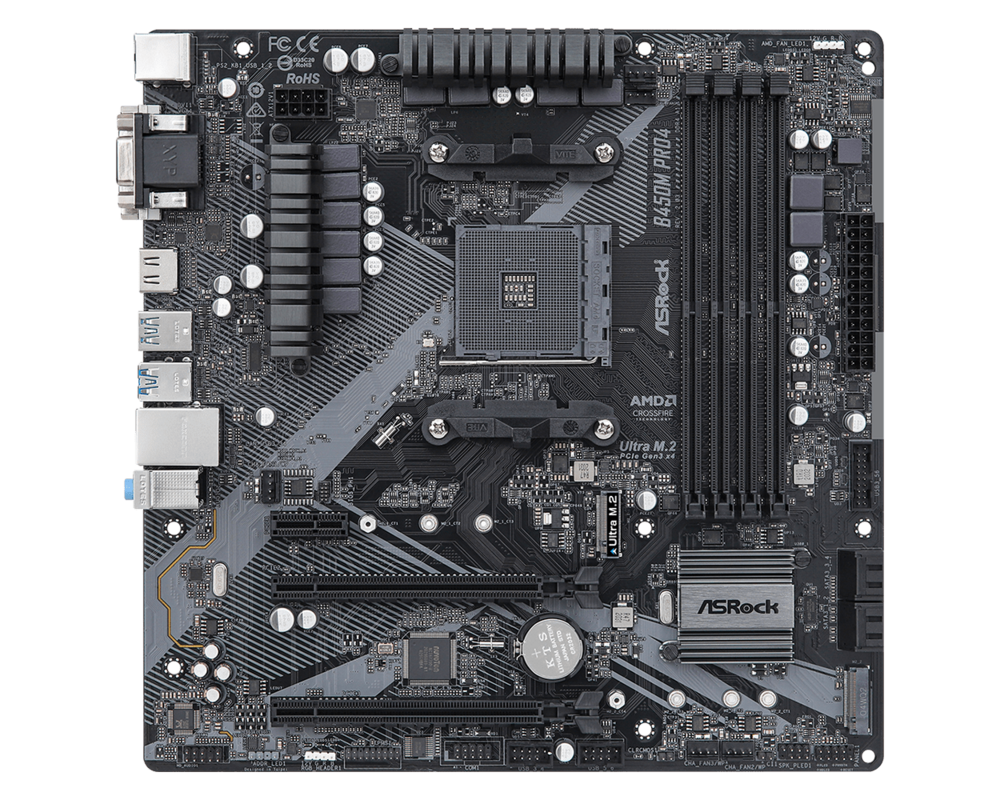

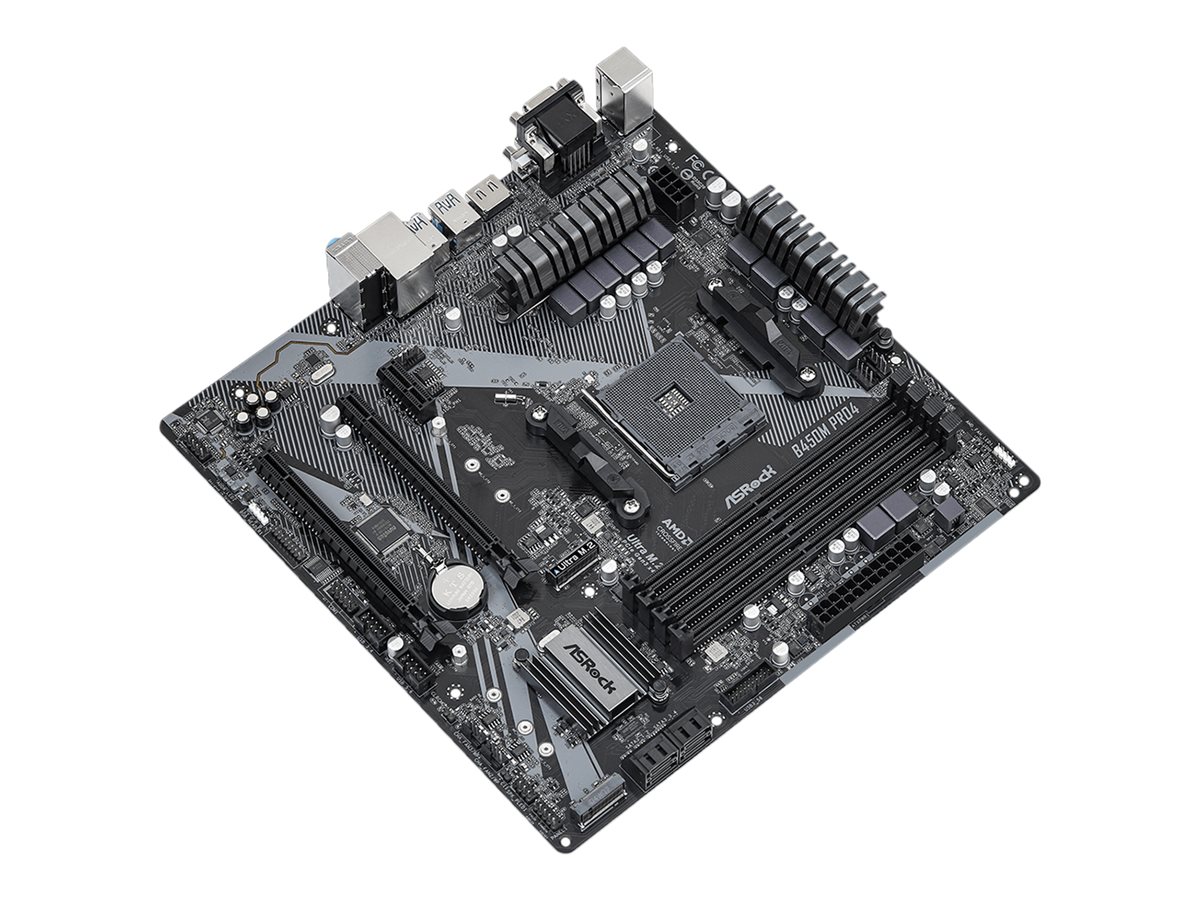

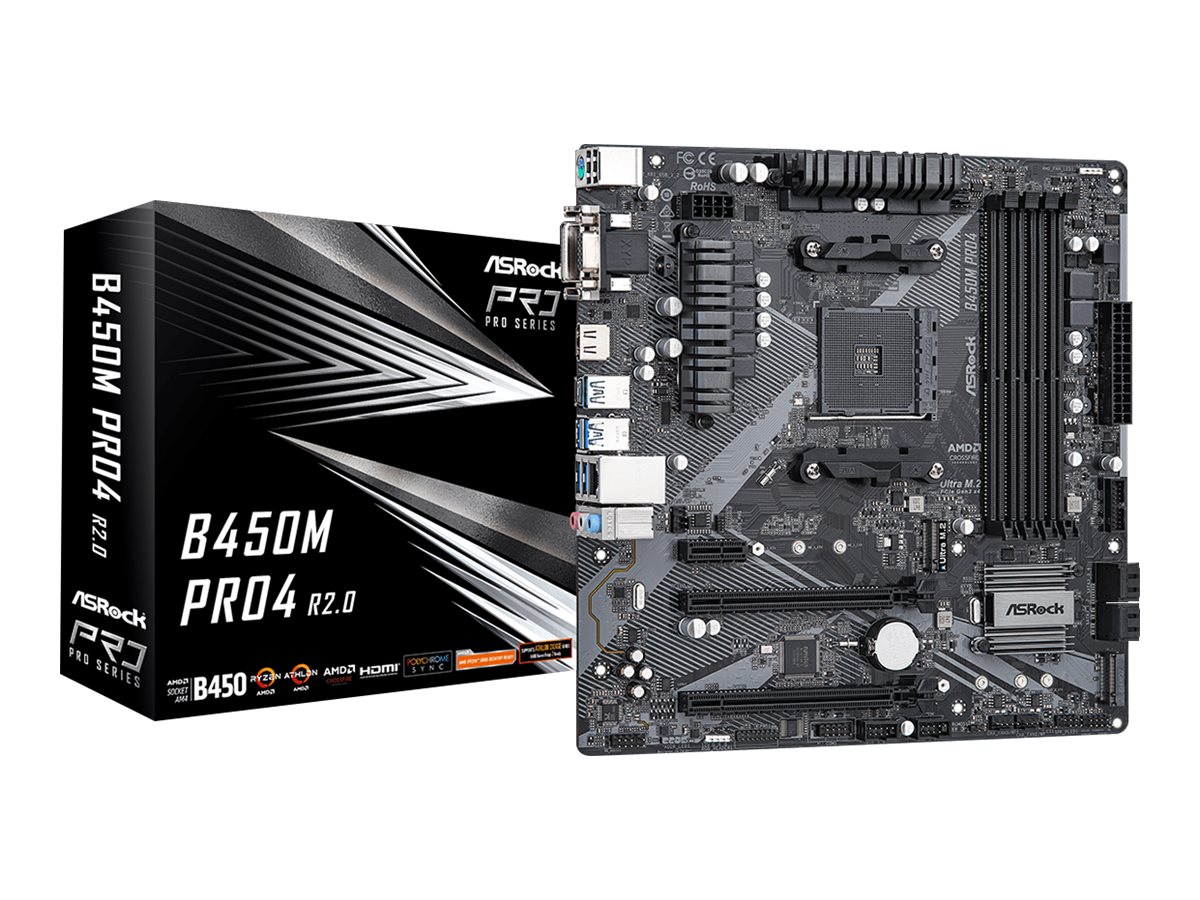

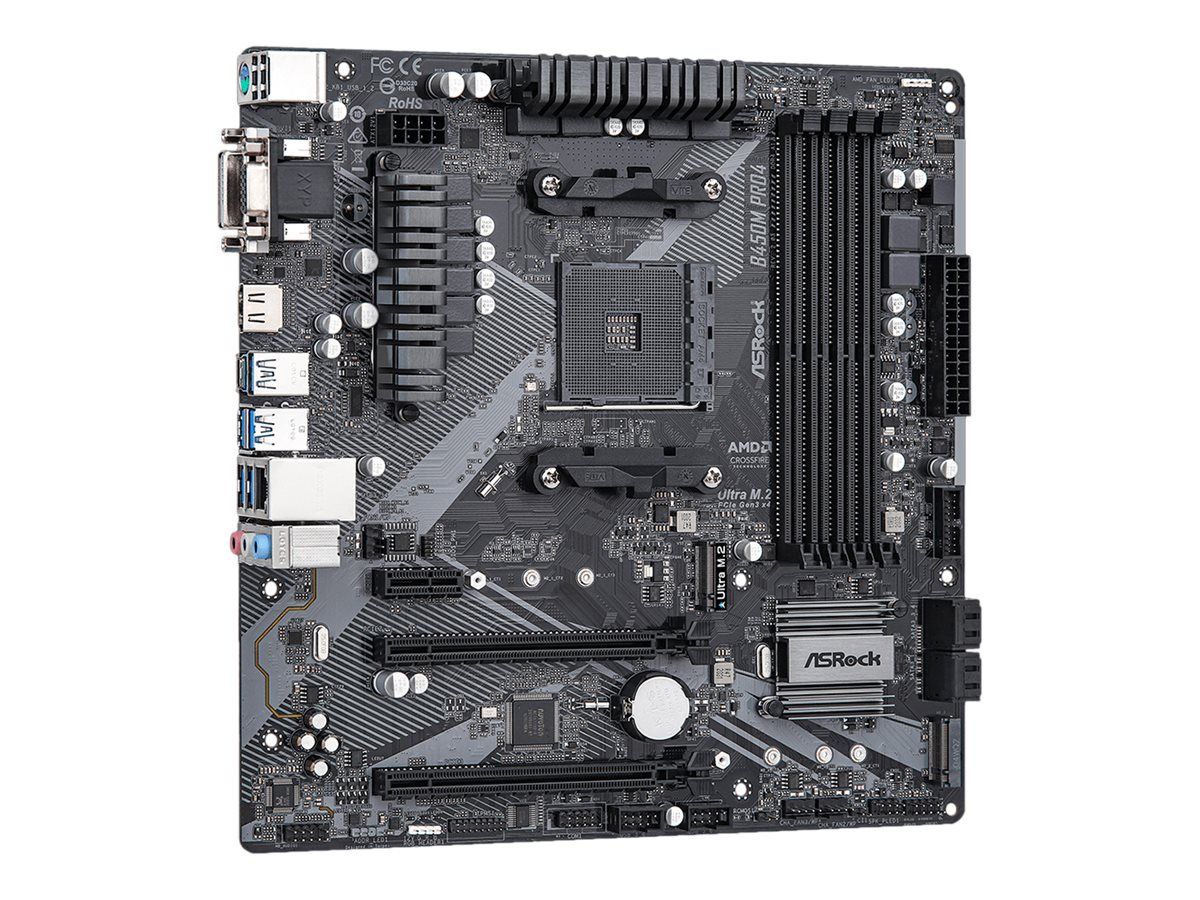

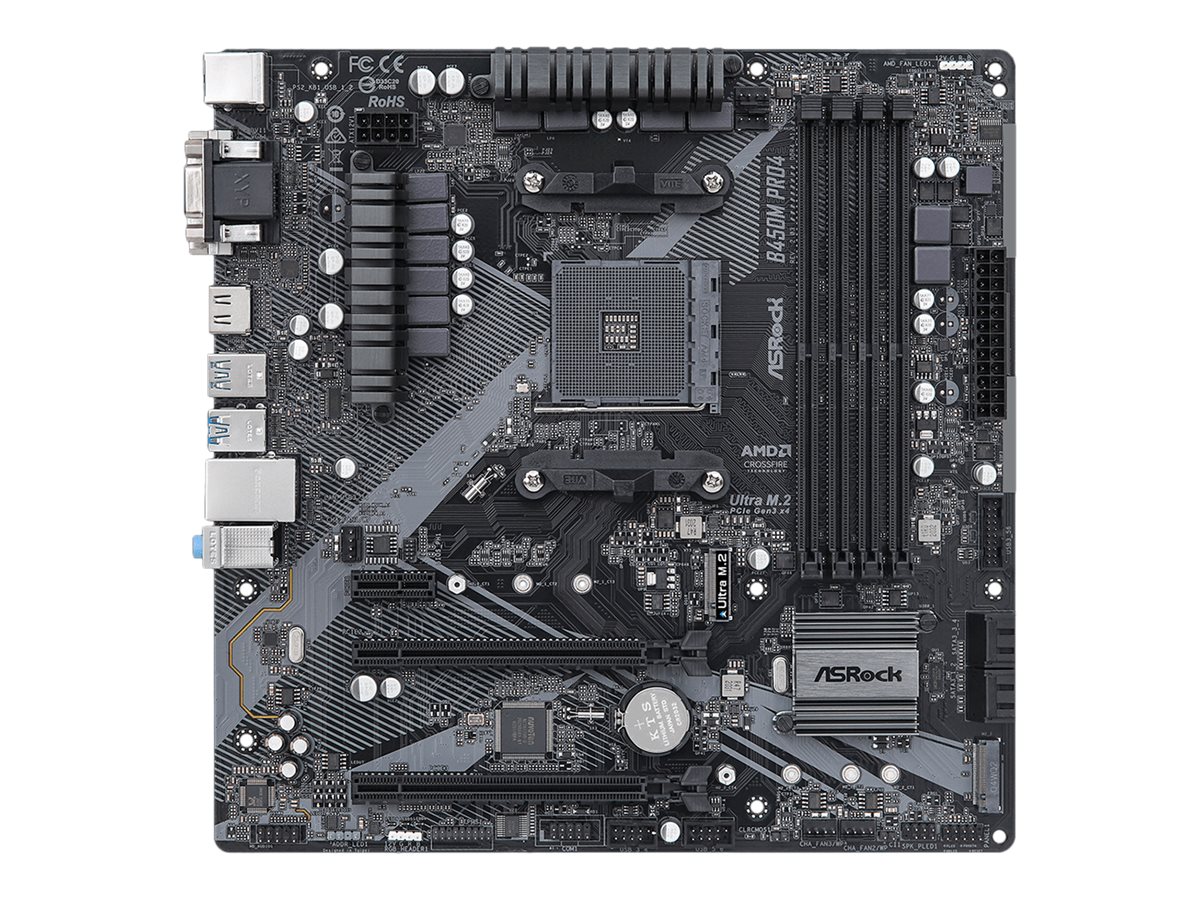

Дънна платка ASROCK B450M PRO4 R2.0 AM4 4xDDR4 4xSATA 1xM.2 mATX B450M PRO4 R2.0
Сокет: Socket AM4
Чипсет: AMD B450
Тип на паметта: DDR4
Физически размер: Micro ATX
Слотове за памет: 4
Честота на паметта: 2400 MHz, 2133 MHz, 2667 MHz,...
Гаранция:
0.0
от 5.0
(0)
Купи и събери
2 точки
Плати по-лесно и сигурно с
Виж всички продукти на Asrock
Пазарувай по марка
Характеристики
| Физически размер | Micro ATX |
| Чипсет | AMD B450 |
| Сокет | Socket AM4 |
| Съвместими процесори | Ryzen (supports Ryzen 2000 Series/ 3000 Series/ 5000 Series) |
| BIOS |
Multilingual BIOS
JumperFree SMBIOS 2.3 support UEFI BIOS ACPI 5.1 support |
| Тип BIOS | AMI |
| Памет |
Небуферирана
XMP |
| Тип на паметта | DDR4 |
| Честота на паметта |
2400 MHz
2133 MHz 2667 MHz 2933 MHz (O.C.) 3200 MHz (O.C.) |
| Dual channel | Да |
| Формат на паметта | DIMM 288-pin |
| ECC support | Non-ECC, ECC |
| Memory Registered / Buffered | Unbuffered |
| Слотове за памет | 4 |
| Максимална памет | 128 GB |
| Слотове |
AMD Ryzen series CPUs (Vermeer
Matisse Cezanne Renoir Summit Ridge and Pinnacle Ridge); - 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode); - 1 x PCI Express 2.0 x16 Slot (PCIE3: x4 mode); AMD Ryzen series CPUs (Picasso Raven Ridge); - 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode); - 1 x PCI Express 2.0 x16 Slot (PCIE3: x4 mode); AMD Athlon series CPUs; - 1 x PCI Express 3.0 x16 Slot (PCIE2: x4 mode); - 1 x PCI Express 2.0 x16 Slot (PCIE3: x4 mode); - 1 x PCI Express 2.0 x1 Slot; - Supports AMD Quad CrossFireX™ and CrossFireX™ |
| Брой процесорни гнезда | 1 |
| Видео |
Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU; - DirectX 12
Pixel Shader 5.0; - Shared memory default 2GB. Max Shared memory supports up to 16GB.; - Three graphics output options: D-Sub DVI-D and HDMI; - Supports Triple Monitor; - Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz; - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz; - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz; - Supports Auto Lip Sync Deep Color (12bpc) xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required); - Supports HDCP 1.4 with DVI-D and HDMI 1.4 Ports; - Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port |
| Контролер на съхранението |
Storage Controller:
Supports: Ниво 0, Ниво 1, Ниво 10 SATA III-600 (6) Storage Controller: PCI Express 3.0 x4 (1 x M.2) Storage Controller: PCIe/SATA (1 x M.2) |
| Дисков интерфейс | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10, SATA-600 -connectors: 1 x M.2, PCIe 3.0 -connectors: 1 x Ultra M.2 |
| SATA | 4 x SATA3 6.0 Gb/s |
| M.2 slot |
1 x M.2 connector (Socket 3
M key type 2242/2260/2280 PCIe x4/x2 SSD support) (M2P) 1 x M.2 Socket (M2_2) supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s |
| RAID | 0,1,10 |
| LAN порт | Gigabit Ethernet |
| LAN standards | Gigabit Ethernet/Fast Ethernet/Ethernet |
| LAN controller | Realtek RTL8111GR |
| Звук | Realtek ALC892/ALC897 |
| Звуков изход | HD Audio (8-channel) |
| Аудио стандарти | High Definition Audio |

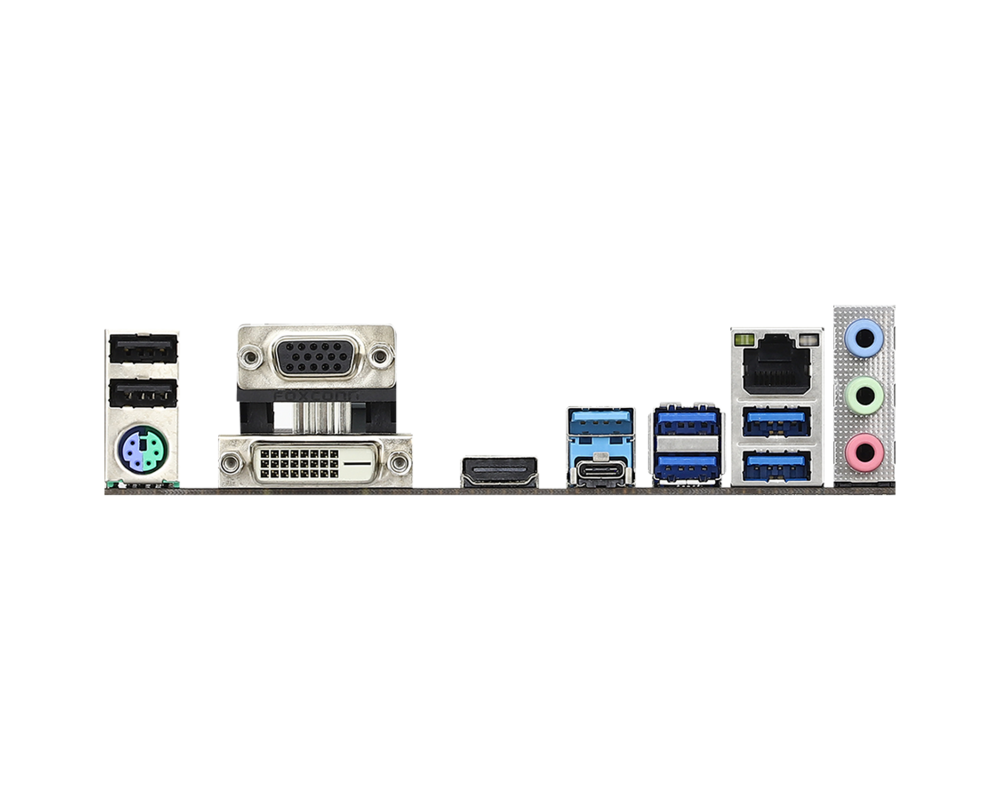

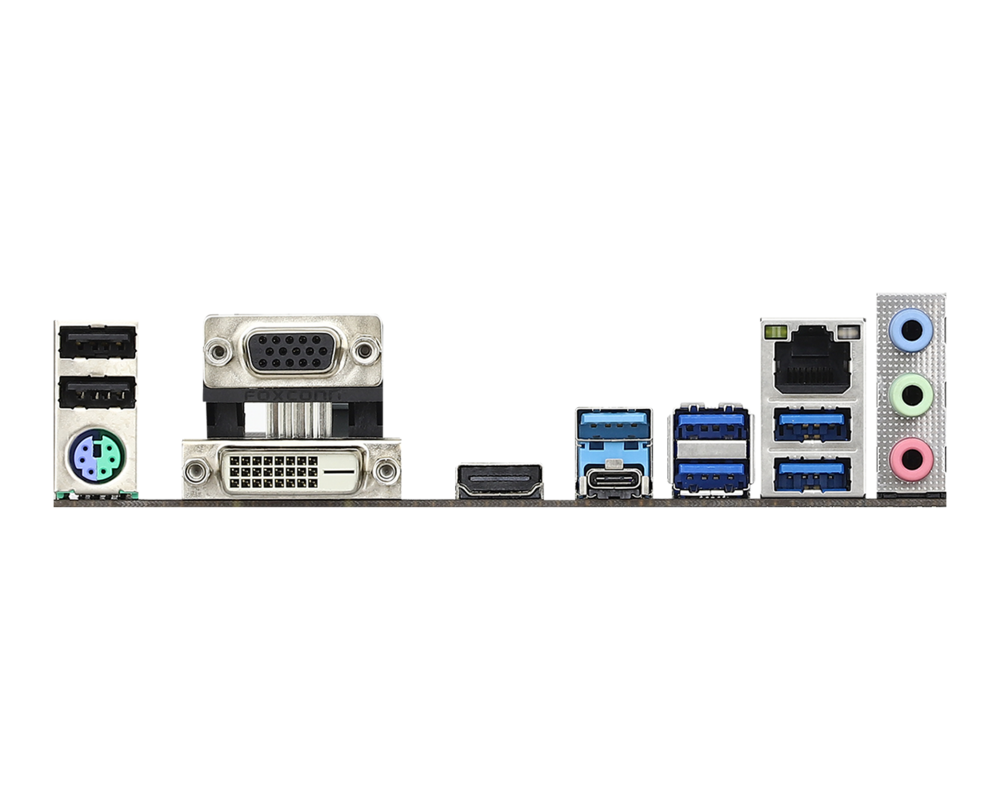

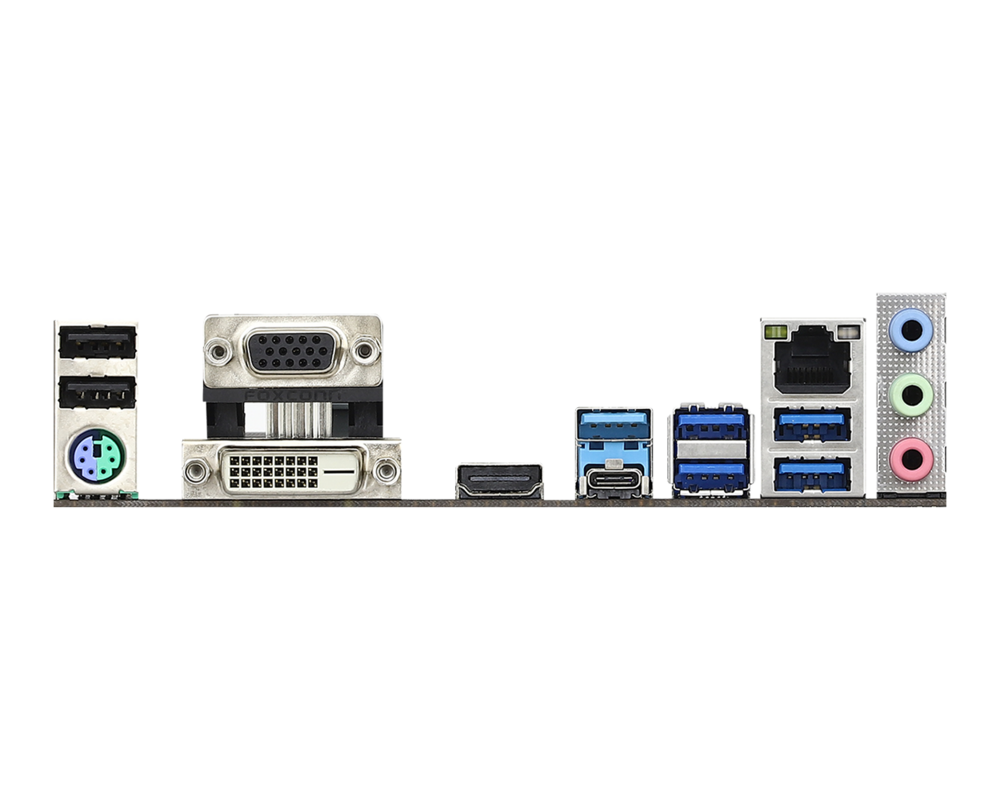

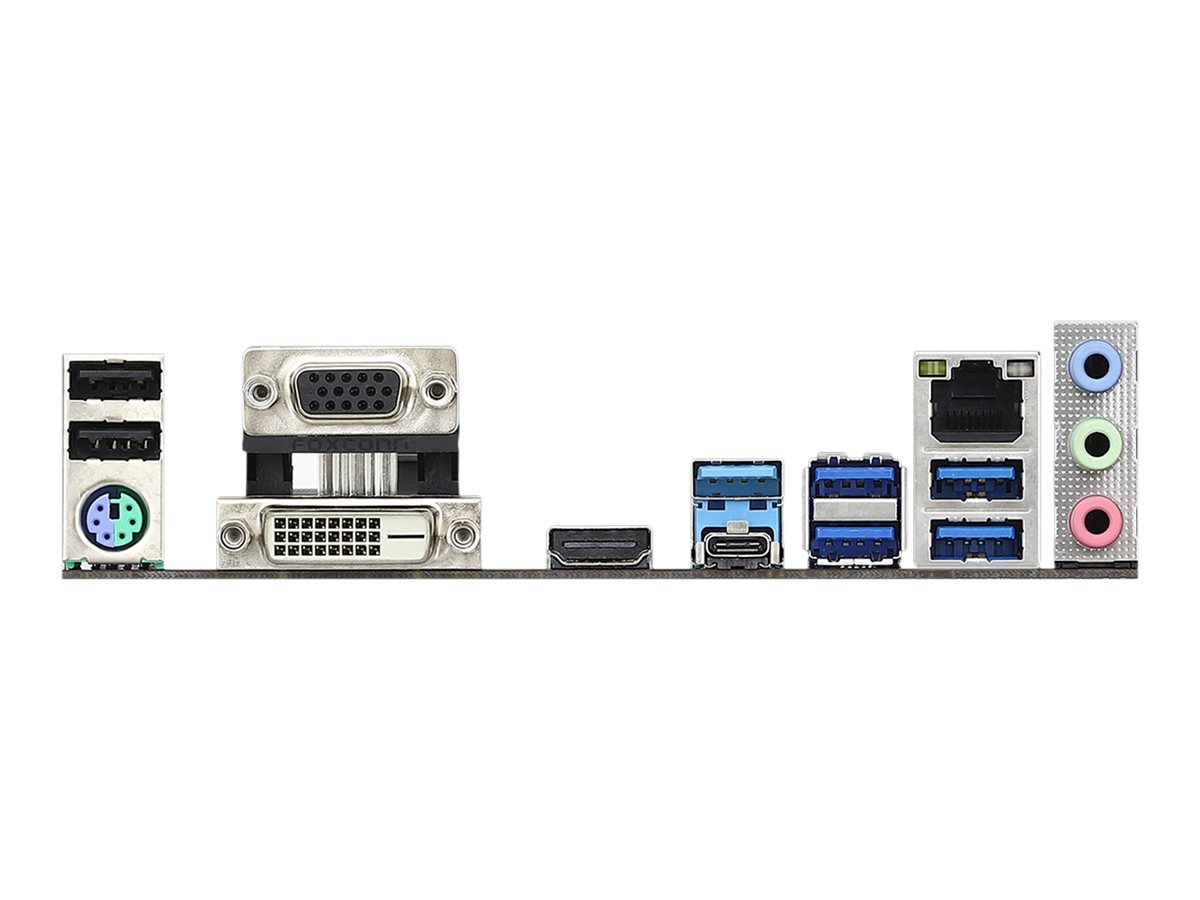

| Портове |
1 x PS/2 keyboard / mouse
1 x LAN (Gigabit Ethernet) 1 x VGA 1 x DVI-D 1 x HDMI 2 x USB 2.0 4 x USB 3.2 Gen 1 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x microphone - mini-jack 1 x USB 3.2 Gen 2 1 x USB-C Gen2 |
| Разширителни слотове |
1 x CPU
4 x DIMM 288-pin 1 x PCIe 3.0 x16 (x16 mode (with Ryzen CPU Vermeer Matisse Renoir Summit Ridge and Pinnacle Ridge); x8 mode (with Ryzen CPU Picasso Raven Ridge); x4 mode (with Athlon CPU)) 1 x PCIe 2.0 x16 (x4 mode) 1 x PCIe 2.0 x1 |
| PCI slots | 1x PCI Express 2.0 x1, 1x PCI Express 2.0 x16, 1x PCI Express 3.0 x16 |
| PCIe x1 | 1 |
| PCIe x16 | 1 |
| Вътрешен интерфейс | 4 x USB 2.0 - header, 2 x USB 3.2 Gen 1 - header, 1 x serial - header, 1 x audio - header |
| Wake on LAN | Wake on LAN (WOL) |
| Функции | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Софтуер |
Drivers & Utilities
ASRock A-Tuning Antivirus (Trial version) Google Chrome Browser Google ChromeToolbar ASRock XFast LAN ASRock Polychrome RGB |
| Съвместими операционни системи |
Microsoft Windows 10 64-bit
Microsoft Windows 11 64-bit |
| Конектори | 1 x COM Port Header; - 1 x TPM Header; - 1 x Chassis Intrusion Header; - 1 x Power LED and Speaker Header; - 1 x RGB LED Header; - 1 x Addressable LED Header; - 1 x AMD Fan LED Header; - 1 x CPU Fan Connector (4-pin); - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control); - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control); - 1 x 24 pin ATX Power Connector; - 1 x 8 pin 12V Power Connector; - 1 x Front Panel Audio Connector; - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection); - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) |
| Конектори за захранване | 24-pin main power connector, 8-pin ATX12V connector |
| Наблюдение на хардуера |
CPU core temperature
chassis temperature CPU fan tachometer chassis fan tachometer system voltage CPU core voltage opened case detection |
| Стандарти | FCC, EuP Ready, ErP Ready |
| Включени кабели | 2 x Serial ATA cable |
| Аксесоари | I/O back plate, 2 x M.2 screws |
| Височина | 224 мм |
| Ширина | 24.4 cm |
| Дълбочина | 24.4 cm |
| Други характеристики |
ASRock Instant Flash
All-Solid Capacitor motherboard Design HDCP compliant AMD CrossFireX technology support AMD Quad CrossFireX technology support Digi Power Design Energy Efficient Ethernet 802.3az Preboot eXecution Environment (PXE) Triple Monitor ASRock Full Spike Protection ASRock APP Shop ASRock Super Alloy High Density Glass Fabric PCB ASRock Full HD UEFI ASRock Easy RAID Installer Sapphire Black PCB ASRock Live Update 10 Phase Power Design ASRock Ultra M.2 Premium 42A Power Choke 2oz Copper PCB AMD StoreMI technology VR Ready |
| Гаранция | 24 месеца |
| Код на продукта | B450M PRO4 R2.0 |
Виж повече
Допълнителна информация
- 10 power phase design
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well. - Polychrome RGB: rule your own lighting
This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects. - Dual USB 3.2 Gen2 ports (Type-A + Type-C)
This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear I/O for supporting next-generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates. - AMD StoreMI technology
A powerful tool that combines the speed of your SSD with the capacity of your hard disk into a single, fast, easy-to-manage drive, AMD StoreMI technology "combines" these two types of storage into a single drive and automatically moves the data you access the most to the SSD, so you get the best of both worlds. - Premium 42A power chokes
Compared to traditional chokes, ASRock's premium 42A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard. - High Density Glass Fabric PCB
The High Density Glass Fabric PCB design reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity. - Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges. The excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard's components from being damaged by these unexpected voltage spikes.
