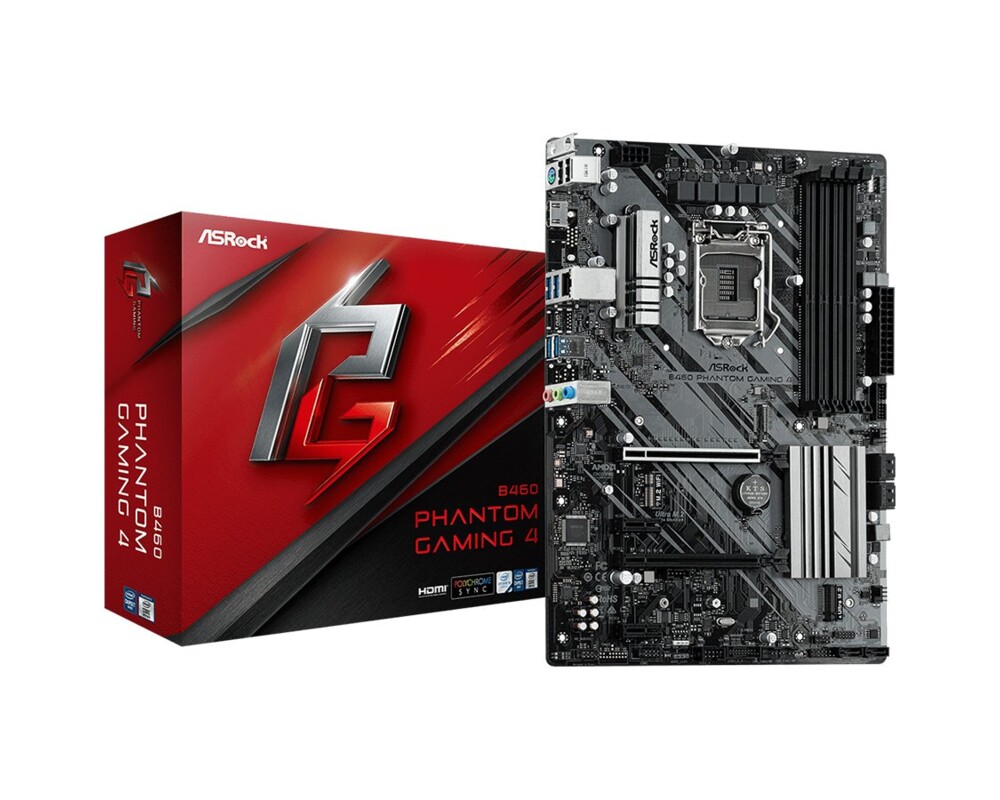

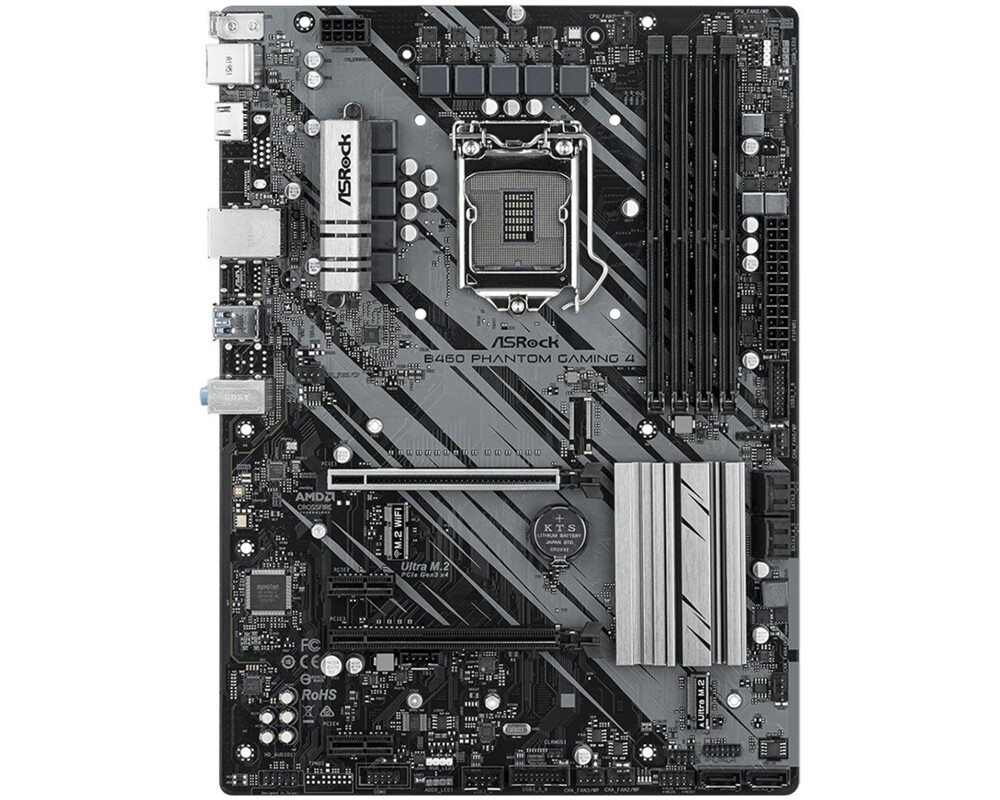

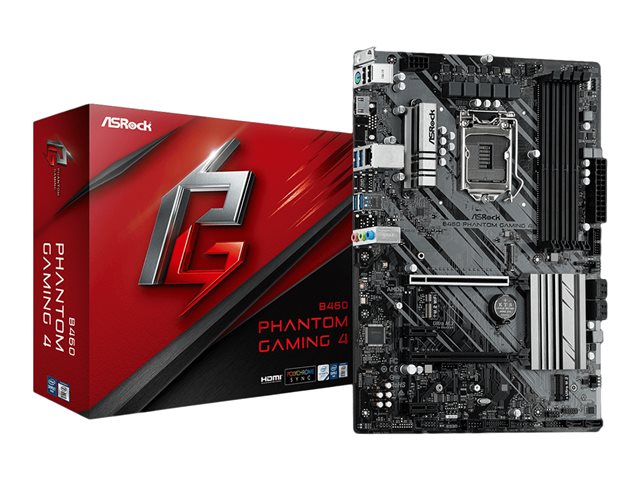

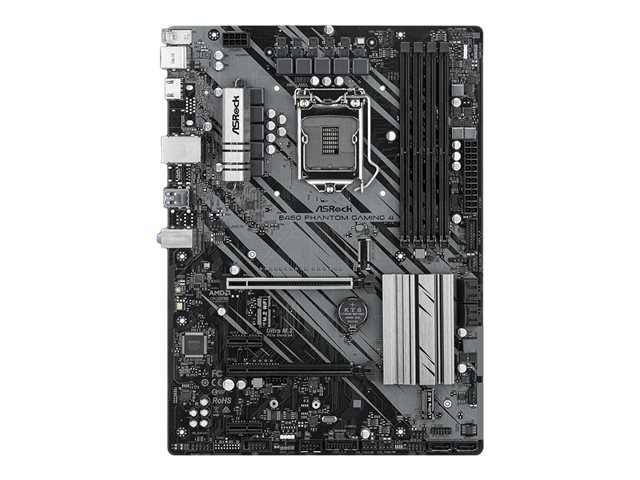

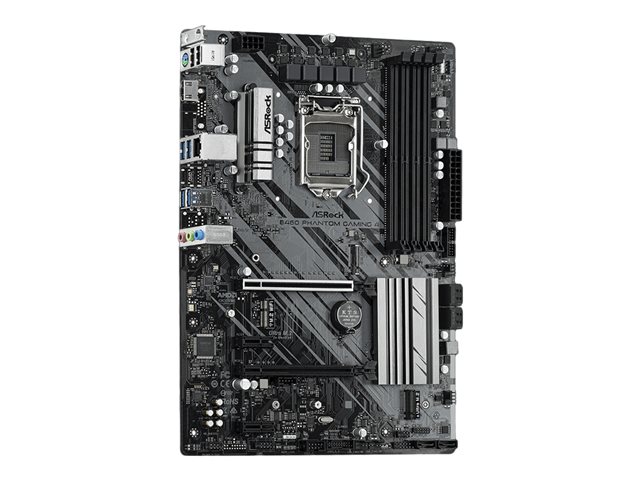

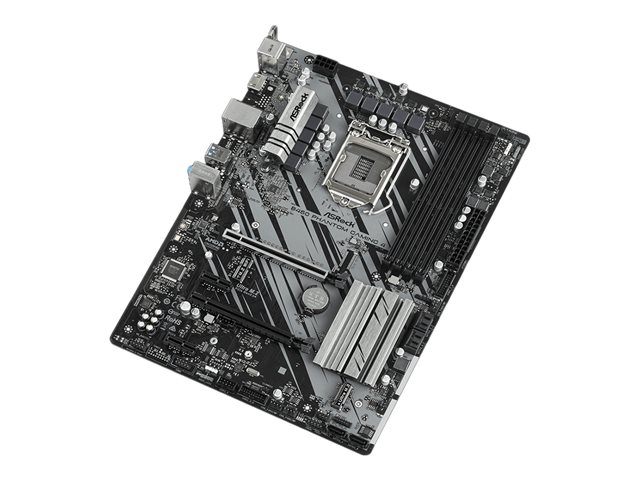

Дънна платка ASROCK B460 PHANTOM GAMING 4 LGA 1200 DDR4 2933MHz 1x PCIe 3.0 x16 1 HDMI 7.1 CH HD 6 SATA3 8 USB 3.2 Gen1 ATX MB B460 PHANTOM GAMING 4
изчерпано
Сокет: LGA 1200
Чипсет: Intel B460
Тип на паметта: DDR4
Физически размер: ATX
Слотове за памет: 4
Честота на паметта: 2933 MHz
Гаранция:
0.0
от 5.0
(0)
Купи и събери
1 точка
Плати по-лесно и сигурно с
Виж всички продукти на Asrock
Пазарувай по марка
Характеристики
| Физически размер | ATX |
| Чипсет | Intel B460 |
| Сокет | LGA 1200 |
| Съвместими процесори | (supports 10th Generation Intel Core / Pentium Gold / Celeron) |
| BIOS | Multilingual BIOS, UEFI BIOS, SMBIOS 2.7 support, ACPI 6.0 support |
| Тип BIOS | AMI |
| Памет |
Two DDR Channels
Небуферирана XMP |
| Тип на паметта | DDR4 |
| Честота на паметта | 2933 MHz |
| Формат на паметта | DIMM 288-pin |
| ECC support | Non-ECC, ECC (operate in non-ECC mode) |
| Memory Registered / Buffered | Unbuffered |
| Слотове за памет | 4 |
| Максимална памет | 128 GB |
| Брой процесорни гнезда | 1 |
| Контролер на съхранението |
Storage Controller:
Supports: Ниво 0, Ниво 1, Ниво 10, Ниво 5 SATA III-600 (6) Storage Controller: PCIe 3.0 x4/SATA (1 x M.2 (Key M)) |
| Дисков интерфейс | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 SATA-600 / PCIe 3.0 -connectors: 1 x Ultra M.2 |
| RAID | Intel Rapid Storage Technology |
| LAN порт | Gigabit Ethernet |
| LAN standards | Gigabit Ethernet/Fast Ethernet/Ethernet |
| LAN controller | Intel I219V |
| Wi-Fi controller |
Wi-Fi Controller:
1 x M.2 (Key E) |
| Звук | Realtek ALC1200 |
| Звуков изход | HD Audio (8-channel) |
| Аудио стандарти | High Definition Audio, Premium Blu-ray audio support |

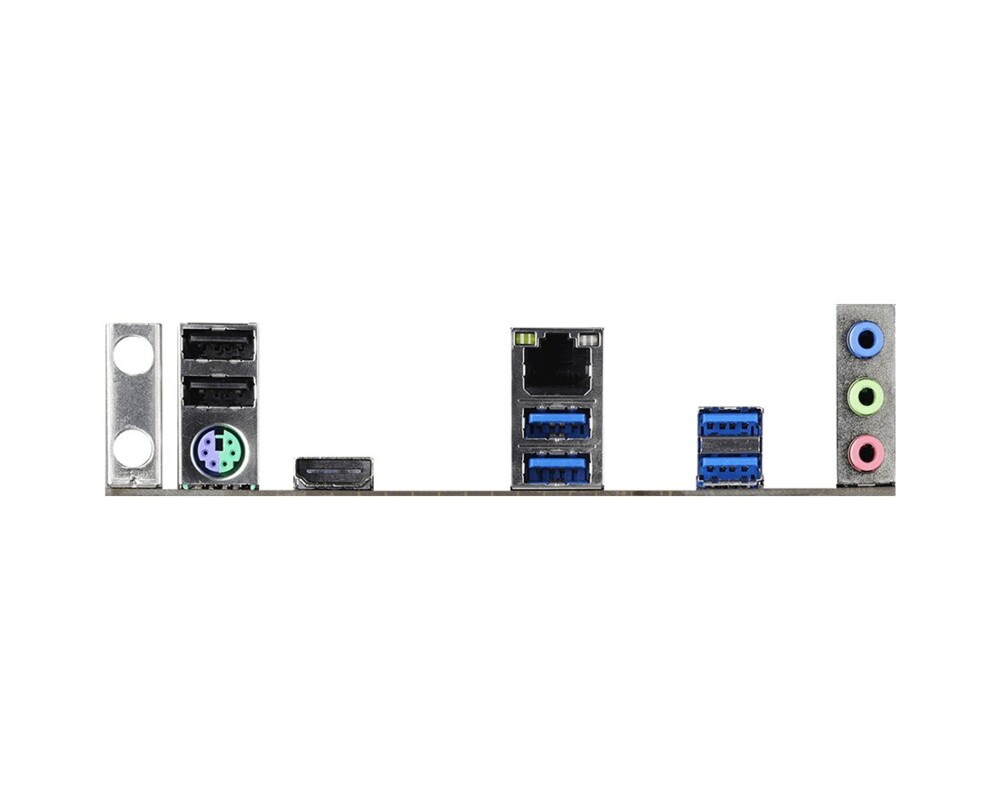

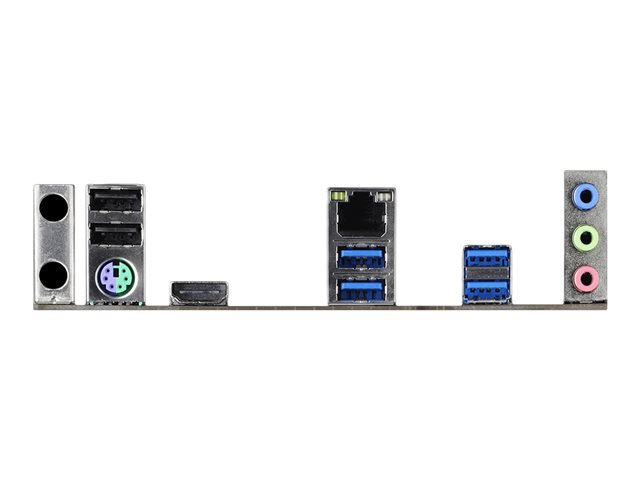

| Портове | 2 x USB 2.0 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x microphone - mini-jack 4 x USB 3.2 Gen 1 1 x PS/2 keyboard / mouse 1 x HDMI 1 x LAN (Gigabit Ethernet) |
| Разширителни слотове | 1 x CPU 4 x DIMM 288-pin 2 x PCIe 3.0 x16 (dual x16, x4 mode; single card: x16 mode) 2 x PCIe 3.0 x1 1 x M.2 socket (2230 M.2 Key E slot) |
| PCI slots | 2x PCI Express 3.0 x1, 2x PCI Express 3.0 x16 |
| Вътрешен интерфейс | 1 x Thunderbolt - header 4 x USB 3.2 Gen 1 - header 1 x audio - header 3 x USB 2.0 - header 1 x serial - header |
| Wake on LAN | Wake on LAN (WOL) |
| Функции | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 2.0, supported ECC modules operate in non-ECC mode |
| Софтуер |
Drivers & Utilities
Antivirus (Trial version) Google Chrome Browser Google ChromeToolbar ASRock XFast LAN ASRock Phantom Gaming Tuning ASRock Polychrome SYNC |
| Конектори за захранване | 24-pin main power connector, 8-pin ATX12V connector |
| Наблюдение на хардуера |
CPU core temperature
chassis temperature CPU fan tachometer chassis fan tachometer system voltage CPU core voltage power supply fan tachometer |
| Стандарти | FCC, EuP Ready, ErP Ready, HDCP 2.3 |
| Включени кабели | 2 x Serial ATA cable |
| Аксесоари | I/O back plate, 2 x M.2 screws |
| Височина | 224 mm |
| Ширина | 30.5 cm |
| Дълбочина | 22.4 cm |
| Други характеристики |
ASRock Instant Flash
15µ Gold Contact AMD CrossFireX technology support AMD Quad CrossFireX technology support ASRock Internet Flash Digi Power Design ESD Protection Energy Efficient Ethernet 802.3az Preboot eXecution Environment (PXE) ASRock Key Master ASRock Full Spike Protection ASRock APP Shop ASRock Super Alloy High Density Glass Fabric PCB ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Easy RAID Installer Sapphire Black PCB Nahimic Audio Enhacer ASRock Live Update ASRock EZ Mode ASRock Ultra M.2 Premium 50A Power Choke ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology ASRock Steel Slots 9 Phase Power Design PCB Isolate Shielding Intel Turbo Boost Max Technology 3.0 ASRock POST Status Checker (PSC) |
| Гаранция | 36 месеца |
| Код на продукта | B460 PHANTOM GAMING 4 |
Виж повече
Допълнителна информация
- Nahimic audio
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details. - Base frequency boost (BFB) technology
Who ever said that only K series CPUs and the Z-family platform are capable of being performed with maximum power. Via ASRock BFB (Boost Frequency Boost) Technology, users may install their non K series CPUs to ASRock's selected 400 series motherboards and enjoy the base frequency boost with the hidden power of processors immediately. - 9 power phase design
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well. - Premium 50A power choke
Compared to traditional chokes, ASRock's premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard. - Intel LAN

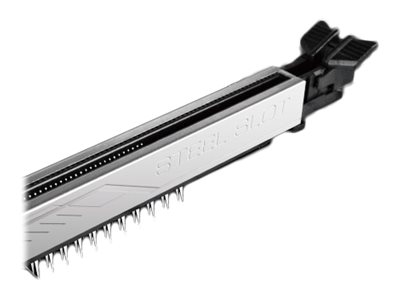

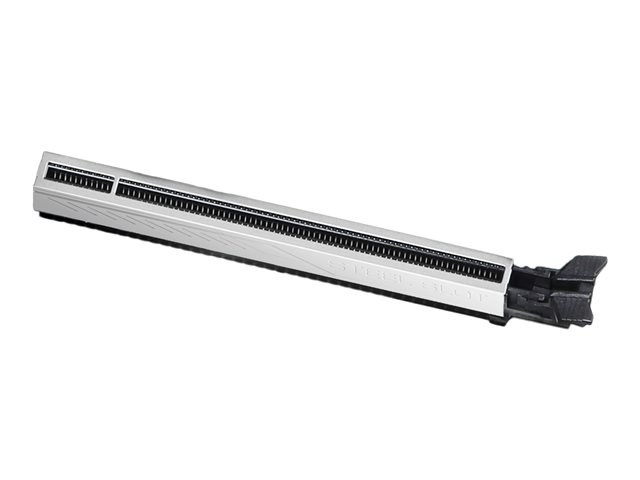

Intel LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users! - PCI-E Steel Slot
The advanced PCI-E Steel Slot packed with solid cover that prevents any signal interference with graphics cards. It also ensures the heavy graphics cards to be well-installed in the PCI-E slot safely. - Ultra M.2 32 Gb/s (PCIe Gen3 x4 & SATA3)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules, and is compatible with ASRock's U.2 Kit for installing some of the world's fastest U.2 PCIe Gen3 x4 SSDs. - M.2 (KEY E) for WiFi
Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot. - Post Status Checker
An easy troubleshooting tool that shows the CPU / DRAM / VGA / BOOT operation every time you start up the system. Post Status Checker is an fast and easy way to identify the source of the problem. - Intel Optane memory ready
Supports Intel Optane memory technology and Intel Optane storage technology that redefines a new standard of high performance and responsiveness. - Water pump header
This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise. - Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. ASRock provides various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop. - Full spike protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard's components from being damaged by these unexpected voltage spikes.
