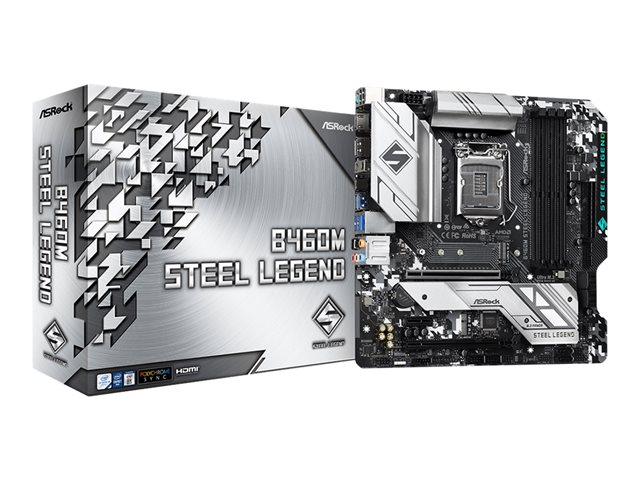

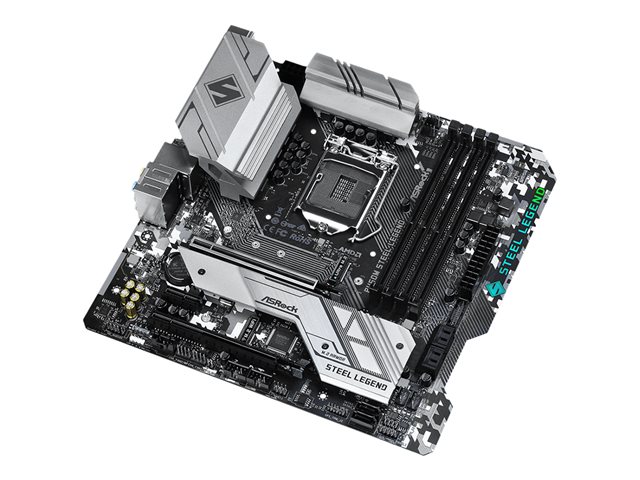

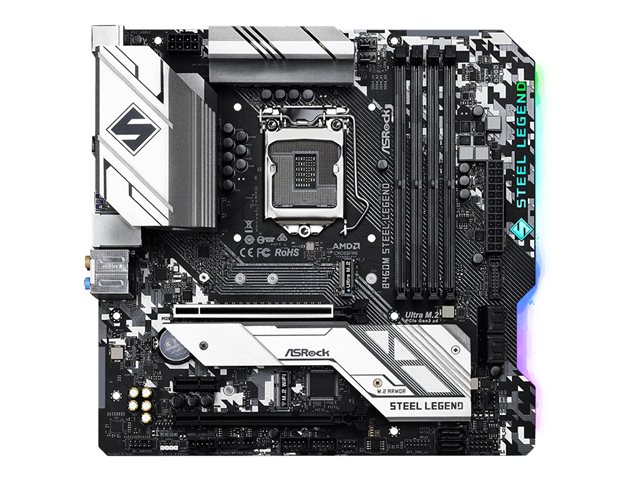

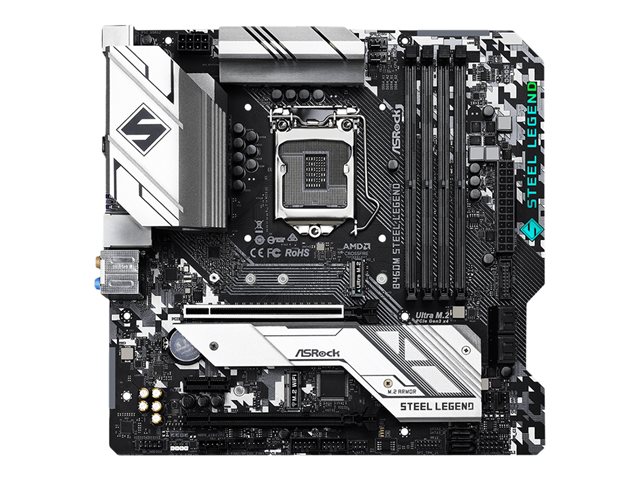

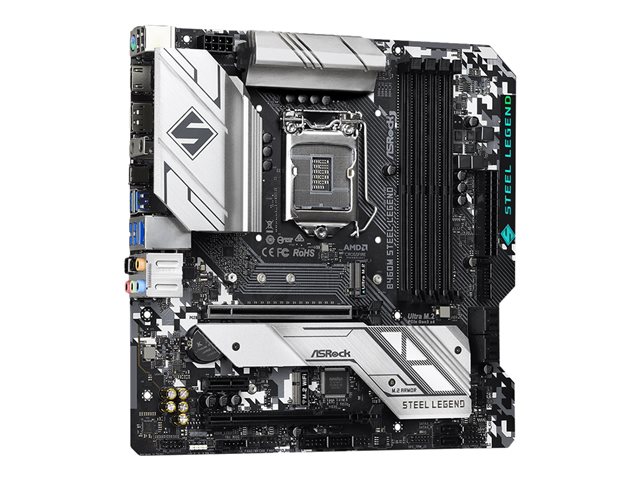

Дънна платка ASROCK B460M STEEL LEGEND LGA1200 mATX MB 4xDDR4 2933MHz 2 PCIe 3.0 x16 1 PCIe 3.0 x1 7.1 CH HD Audio 6 SATA3 1 Ultra M.2 7 USB 3.2 B460M STEEL LEGEND
изчерпано
Сокет: LGA 1200
Чипсет: Intel B460
Тип на паметта: DDR4
Физически размер: Micro ATX
Слотове за памет: 4
Честота на паметта: 2933 MHz
Гаранция:
0.0
от 5.0
(0)
Купи и събери
3 точки
Плати по-лесно и сигурно с
Виж всички продукти на Asrock
Пазарувай по марка
Характеристики
| Физически размер | Micro ATX |
| Чипсет | Intel B460 |
| Сокет | LGA 1200 |
| Съвместими процесори | (supports 10th Generation Intel Core / Pentium Gold / Celeron) |
| BIOS | Multilingual BIOS, UEFI BIOS, SMBIOS 2.7 support, ACPI 6.0 support |
| Тип BIOS | AMI |
| Тип на паметта | DDR4 |
| Честота на паметта | 2933 MHz |
| ECC support | Non-ECC, ECC (operate in non-ECC mode) |
| Memory Registered / Buffered | Unbuffered |
| Слотове за памет | 4 |
| Максимална памет | 128 GB |
| Брой процесорни гнезда | 1 |
| Дисков интерфейс | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 SATA-600 / PCIe 3.0 -connectors: 1 x Ultra M.2 PCIe 3.0 -connectors: 1 x Ultra M.2 |
| RAID | Intel Rapid Storage Technology |
| LAN порт | 2.5 Gigabit Ethernet |
| LAN controller | Realtek RTL8125BG |
| Звук | Realtek ALC1200 |
| Звуков изход | HD Audio (8-channel) |
| Аудио стандарти | High Definition Audio, Premium Blu-ray audio support |

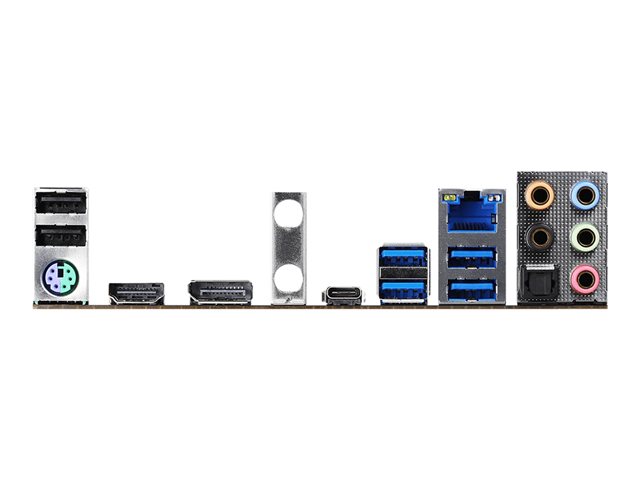

| Портове | 2 x USB 2.0 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x microphone - mini-jack 4 x USB 3.2 Gen 1 1 x PS/2 keyboard / mouse 1 x DisplayPort 1 x HDMI 1 x USB-C Gen1 1 x LAN (2.5Gigabit Ethernet) 1 x audio line-out (center/subwoofer) - mini-jack 1 x audio line-out (rear) - mini-jack 1 x TOSLINK |
| Разширителни слотове | 1 x CPU 4 x DIMM 288-pin 2 x PCIe 3.0 x16 (dual x16, x4 mode; single card: x16 mode) 1 x PCIe 3.0 x1 1 x M.2 socket (2230 M.2 Key E slot) |
| Вътрешен интерфейс | 1 x Thunderbolt - header 2 x USB 3.2 Gen 1 - header 1 x audio - header 4 x USB 2.0 - header |
| Wake on LAN | Wake on LAN (WOL) |
| Функции | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 2.0, supported ECC modules operate in non-ECC mode |
| Софтуер |
Drivers & Utilities
ASRock A-Tuning Antivirus (Trial version) Google Chrome Browser Google ChromeToolbar ASRock Polychrome SYNC ASRock Dragon 2.5G LAN Software |
| Конектори за захранване | 24-pin main power connector, 8-pin ATX12V connector |
| Наблюдение на хардуера |
CPU core temperature
chassis temperature CPU fan tachometer chassis fan tachometer system voltage CPU core voltage power supply fan tachometer |
| Стандарти |
FCC
EuP Ready ErP Ready DisplayPort 1.4 HDCP 2.3 |
| Включени кабели | 2 x Serial ATA cable |
| Аксесоари | I/O back plate, 3 x M.2 screws, standoff for M.2 socket |
| Ширина | 24.4 cm |
| Дълбочина | 24.4 cm |
| Други характеристики |
ASRock Instant Flash
15µ Gold Contact ASRock Internet Flash Digi Power Design ESD Protection Gold Plated Audio Hardware Energy Efficient Ethernet 802.3az Preboot eXecution Environment (PXE) ASRock Full Spike Protection ASRock APP Shop ASRock Super Alloy High Density Glass Fabric PCB ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Easy RAID Installer Dr.MOS MOSFET Nahimic Audio Enhacer ASRock Live Update ASRock EZ Mode Intel Optane Memory Ready ASRock Ultra M.2 Nichicon 12K Black Caps Matte Black PCB ASRock Steel Slots Premium 60A Power Choke 9 Phase Power Design PCB Isolate Shielding Combo Caps Intel Turbo Boost Max Technology 3.0 ASRock POST Status Checker (PSC) shaped PCB design ASRock Full Coverage M.2 Heatsink |
| Гаранция | 24 месеца |
| Код на продукта | B460M STEEL LEGEND |
Виж повече
Допълнителна информация
- Base Frequency Boost (BFB) Technology
Who ever said that only K series CPUs and the Z-family platform are capable of being performed with maximum power. Via ASRock BFB (Boost Frequency Boost) Technology, users may install their non K series CPUs to ASRock's selected 400 series motherboards and enjoy the base frequency boost with the hidden power of processors immediately. - Premium 60A power chokes
Compared to traditional chokes, ASRock's premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard. - Rule your own lighting way - Polychrome RGB
ASRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way! ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. - Dragon 2.5 Gb/s LAN
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5x the bandwidth compared to the standard gigabit Ethernet. You'll enjoy faster and uncompromised connectivity experience for gaming, file transfers and backups. - PCI-E steel slot
The advanced PCI-E Steel Slot is packed with a solid cover that prevents any signal interference with graphics cards. It also ensures the heavy graphics cards to be well-installed in the PCI-E slot safely. - Water pump header
The header provides a maximum of 2A power for supporting the most popular water pumps. Users also can adjust the voltage of water pump to get higher cooling performance with lower noise. - Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges: the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard's components from being damaged by these unexpected voltage spikes.
Виж повече
Информация за производителя
| Контакт | [email protected] |
| Адрес | Bijsterhuizen 11-11 6546 AR Nijmegen |
| Уебсайт | https://www.asrock.com/index.bg.asp |
Виж повече
