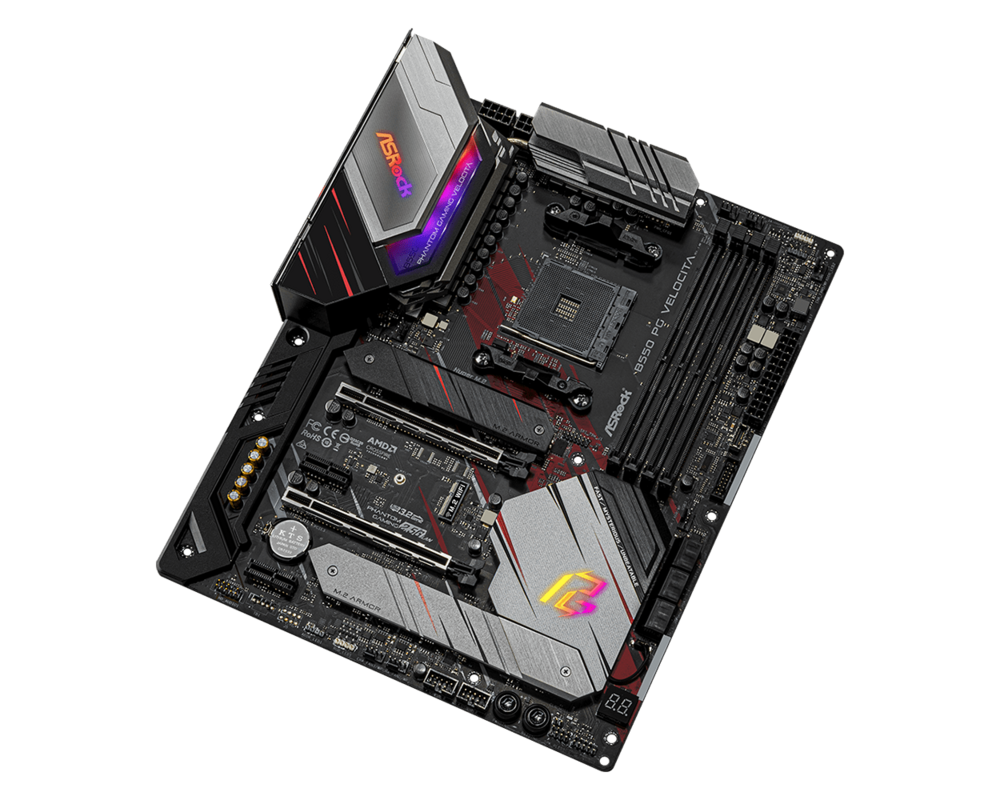

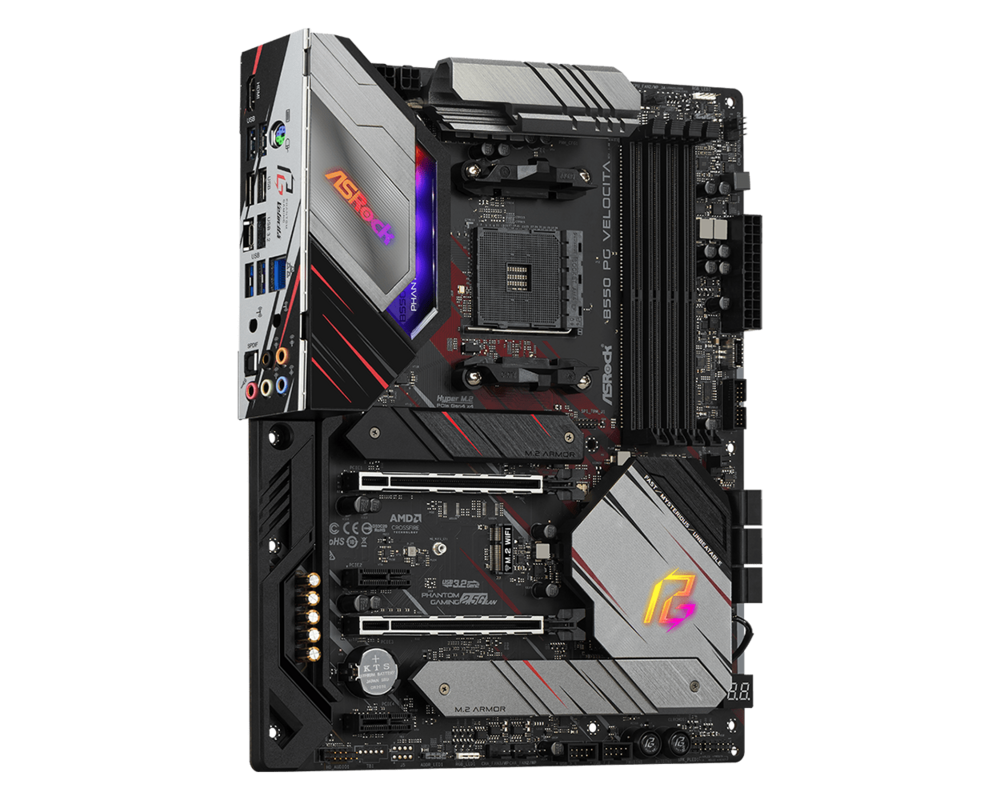

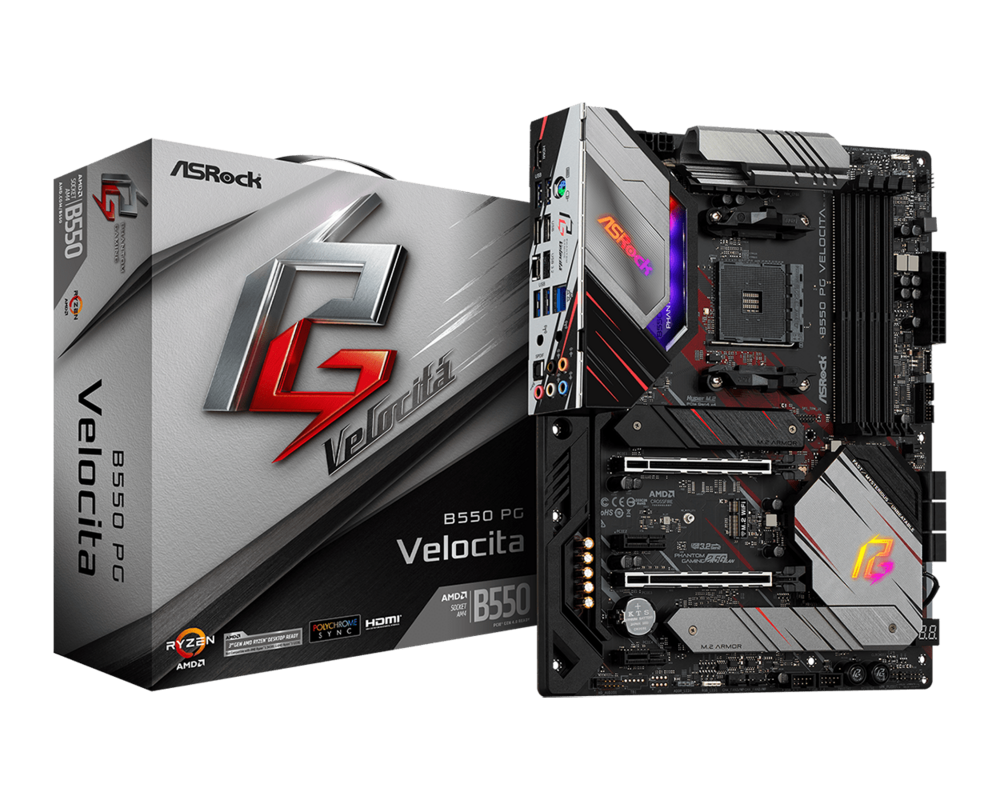

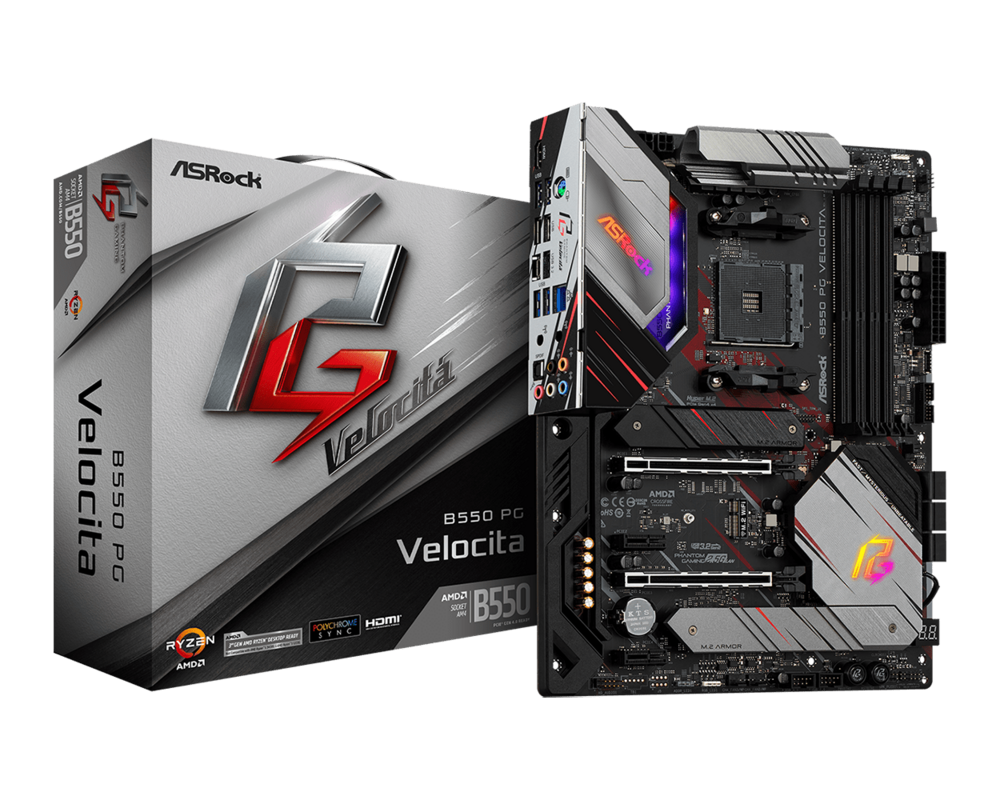

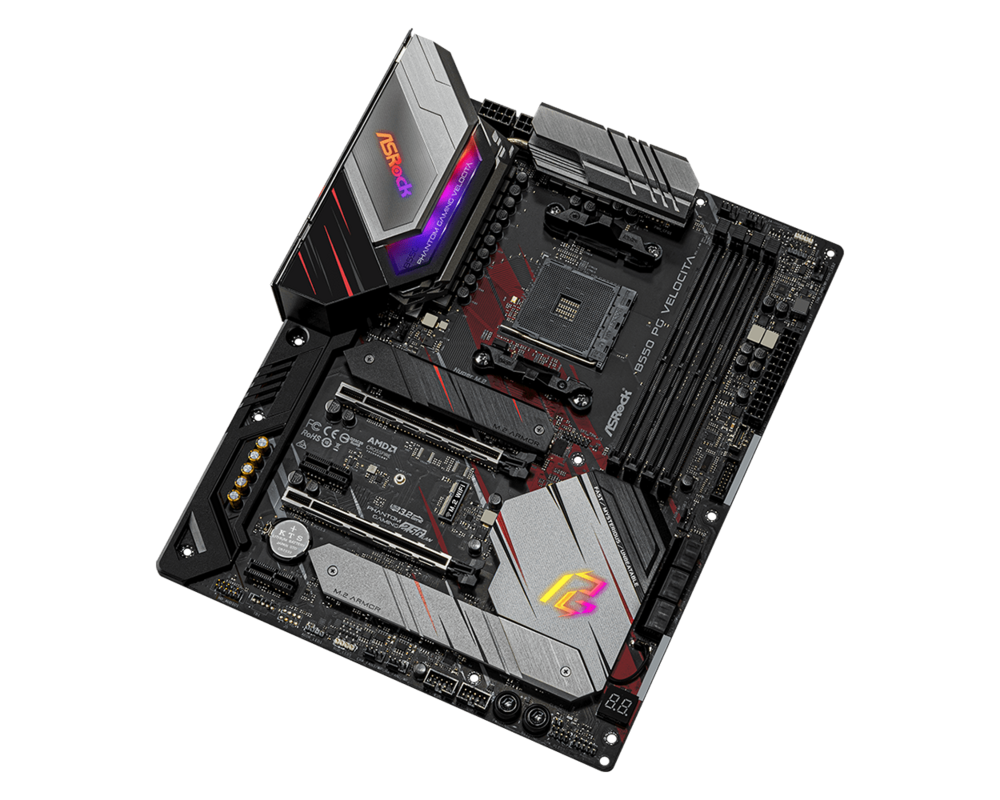

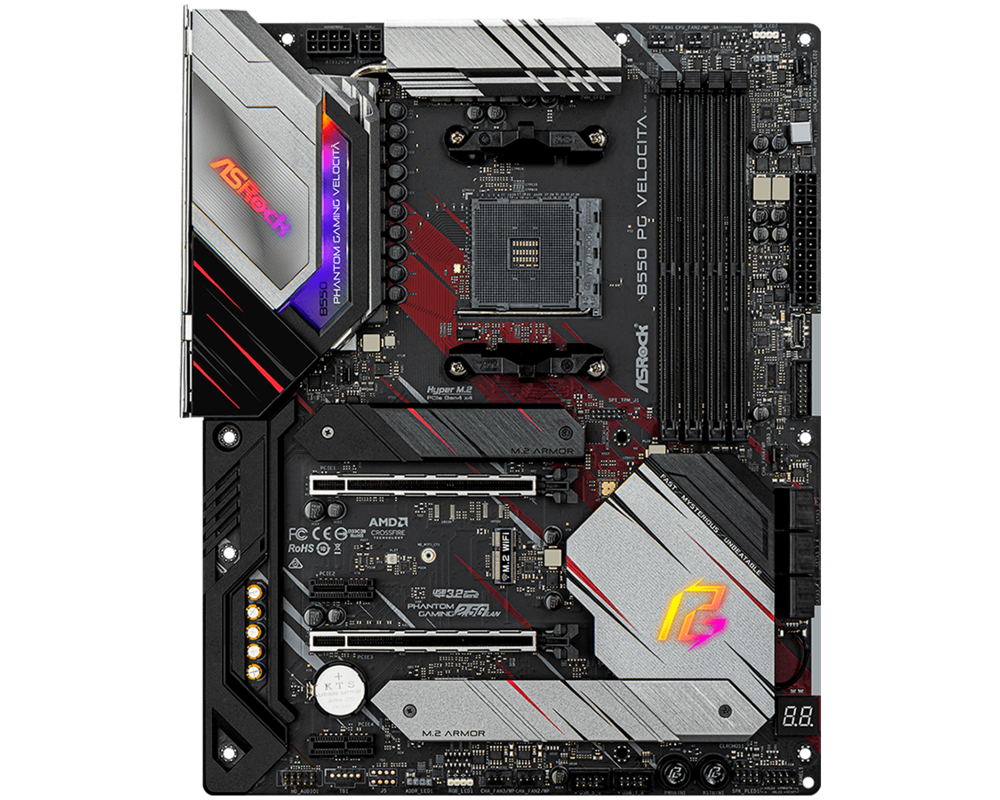

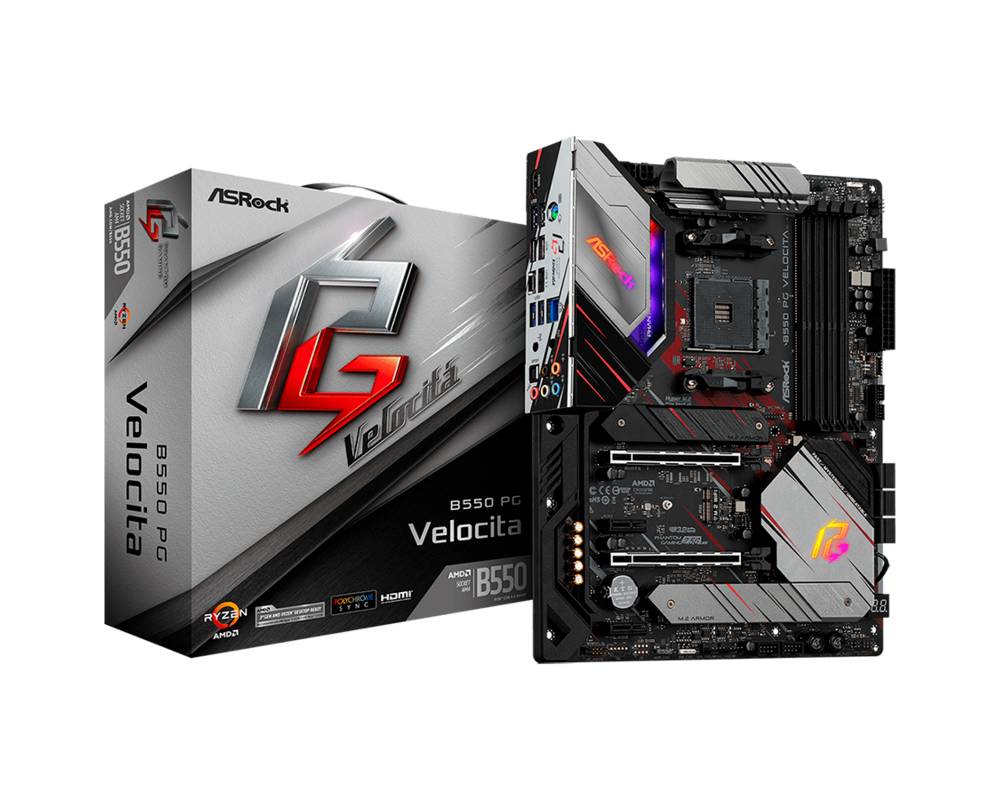

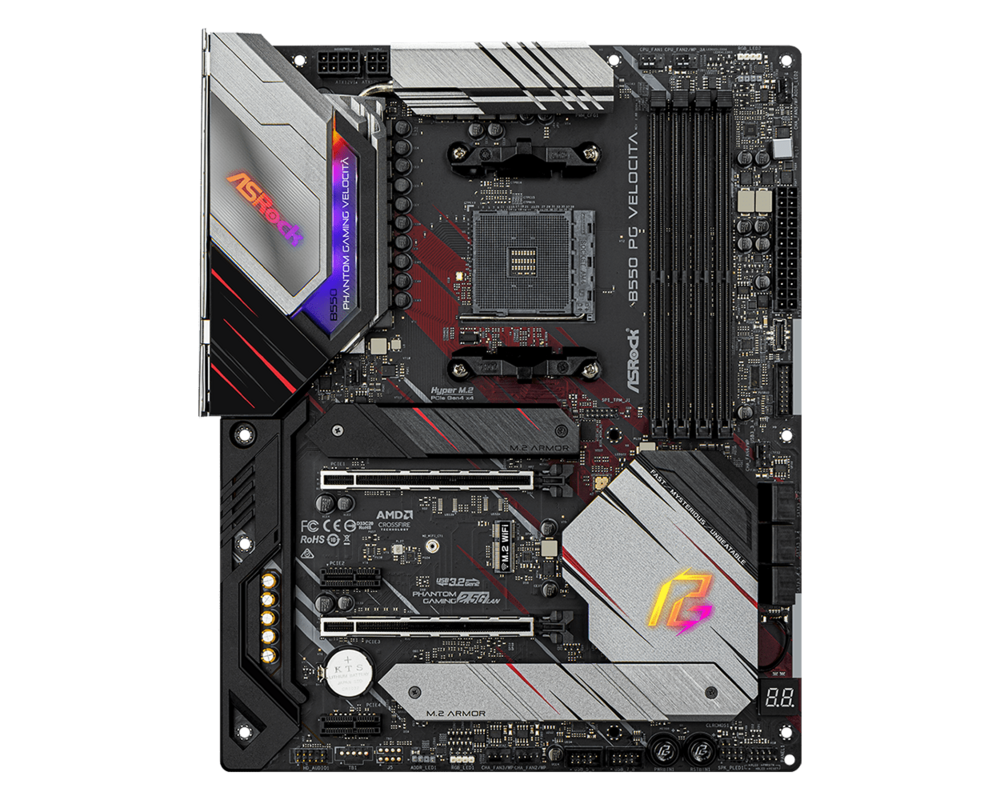

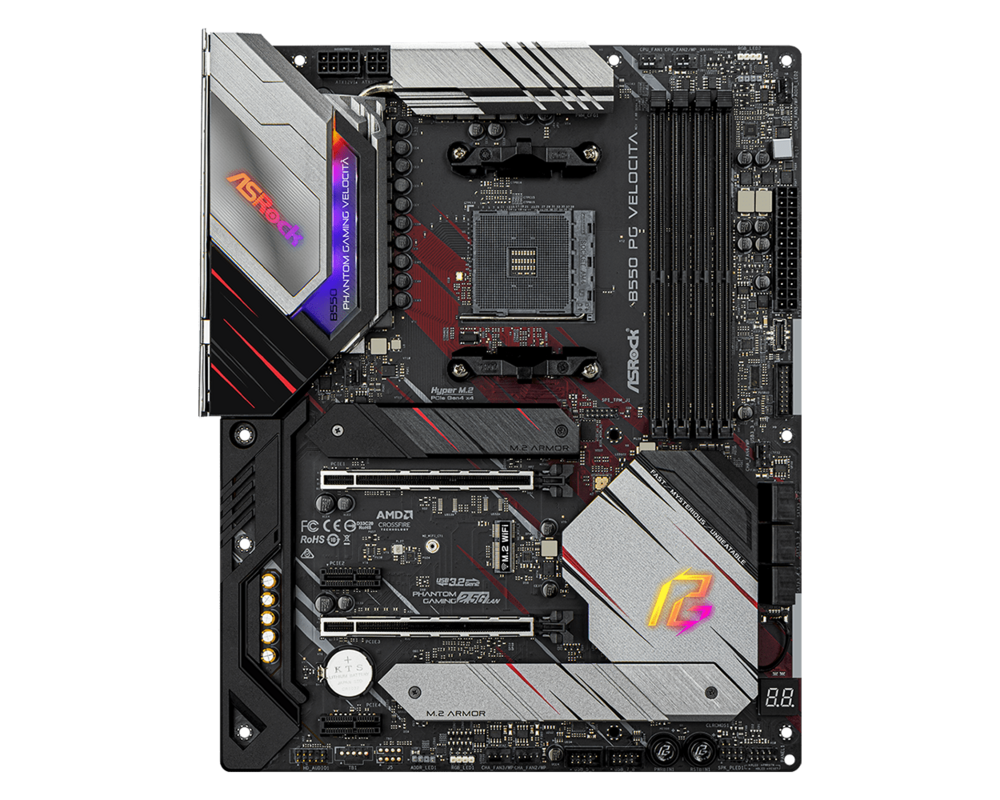

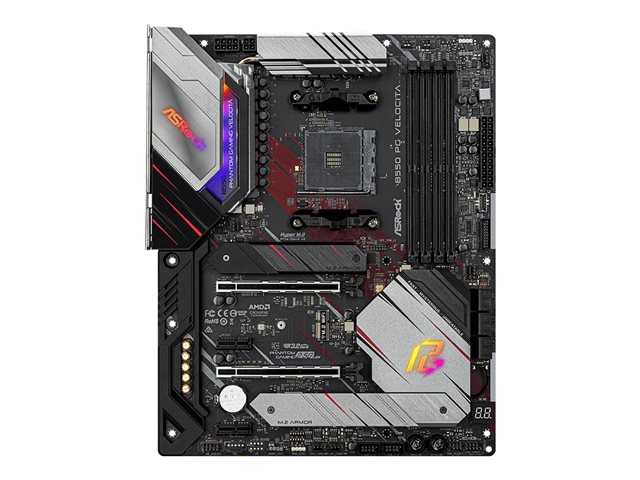

Дънна платка ASRock B550 PG Velocita B550 PG VELOCITA
изчерпано
Сокет: Socket AM4
Чипсет: AMD B550
Тип на паметта: DDR4
Физически размер: ATX
Слотове за памет: 4
Честота на паметта: 2400 MHz, 2133 MHz, 2667 MHz,...
Гаранция:
0.0
от 5.0
(0)
Купи и събери
3 точки
Плати по-лесно и сигурно с
Изчерпано
279 лв.
/
14265 €
Виж всички продукти на Asrock
Пазарувай по марка
Характеристики
| Серия | B550 |
| Физически размер | ATX |
| Чипсет | AMD B550 |
| Сокет | Socket AM4 |
| Съвместими процесори | Ryzen (supports 3rd Generation Ryzen and New Generation Ryzen with Radeon Graphics) |
| BIOS | JumperFree, SMBIOS 2.3 support, UEFI BIOS, ACPI 5.1 support |
| Тип BIOS | AMI |
| Памет |
Two DDR Channels
Небуферирана XMP |
| Тип на паметта | DDR4 |
| Честота на паметта |
2400 MHz
2133 MHz 2667 MHz 2933 MHz 3466 MHz (O.C.) 3733 MHz (O.C.) 3600 MHz (O.C.) 3800 MHz (O.C.) 3866 MHz (O.C.) 4000 MHz (O.C.) 4133 MHz (O.C.) 4400 MHz (O.C.) 4266 MHz (O.C.) 4200 MHz (O.C.) 4333 MHz (O.C.) 4600 MHz (O.C.) 4533 MHz (O.C.) 3200 MHz 4666 MHz (O.C.) 4733 MHz (O.C.) 4466 MHz (O.C.) |
| Dual channel | Да |
| Формат на паметта | DIMM 288-pin |
| ECC support | Non-ECC, ECC (operate in non-ECC mode) |
| Memory Registered / Buffered | Unbuffered |
| Слотове за памет | 4 |
| Максимална памет | 128 GB |
| Слотове | AMD Ryzen series CPUs (Matisse); - 2 x PCI Express x16 Slots (PCIE1: Gen4x16 mode; PCIE3: Gen3 x4 mode); AMD Ryzen series APUs (Renoir); - 2 x PCI Express x16 Slots (PCIE1: Gen3x16 mode; PCIE3: Gen3 x4 mode); - 2 x PCI Express 3.0 x1 Slots; - Supports AMD Quad CrossFireX™ and CrossFireX™; - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module; - 15μ Gold Contact in VGA PCIe Slot (PCIE1) |
| Брой процесорни гнезда | 1 |
| Видео | Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU; - DirectX 12, Pixel Shader 5.0; - Споделена памет с оригиналния продукт 2GB. Максималната обща памет поддържа до 16 GB.; - Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz; - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required); - Supports HDR (High Dynamic Range) with HDMI 2.1; - Supports HDCP 2.3 with HDMI 2.1 Port; - Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port; - Supports Microsoft® PlayReady |
| Контролер на съхранението |
Storage Controller:
Supports: Ниво 0, Ниво 1, Ниво 10 SATA III-600 (6) Storage Controller: PCI Express 4.0 x4 (1 x M.2 (Key M)) Storage Controller: PCIe 3.0 x2/SATA (1 x M.2 (Key M)) |
| Дисков интерфейс | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10, SATA-600 / PCIe 3.0 -connectors: 1 x M.2, PCIe 4.0 -connectors: 1 x M.2 |
| SATA | 6 x SATA3 6.0 Gb/s |
| M.2 slot |
1 x M.2 connector (Socket 3
M key type 2230/2242/2260/2280 SATA & PCIe 4.0/3.0 x4/x2 SSD support) 1 x M.2 Socket 3 with M Key type 2230/2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) |
| RAID | 0,1,10 |
| LAN порт | 2.5 Gigabit Ethernet |
| LAN standards | 2.5 Gbps |
| LAN controller | Realtek RTL8125BG |
| Wi-Fi controller |
Wi-Fi Controller:
1 x M.2 (Key E) |
| Wi-Fi antenna | 2 |
| Звук | Realtek ALC1200 |
| Звуков изход | HD Audio (8-channel) |
| Аудио стандарти | High Definition Audio, Premium Blu-ray audio support |

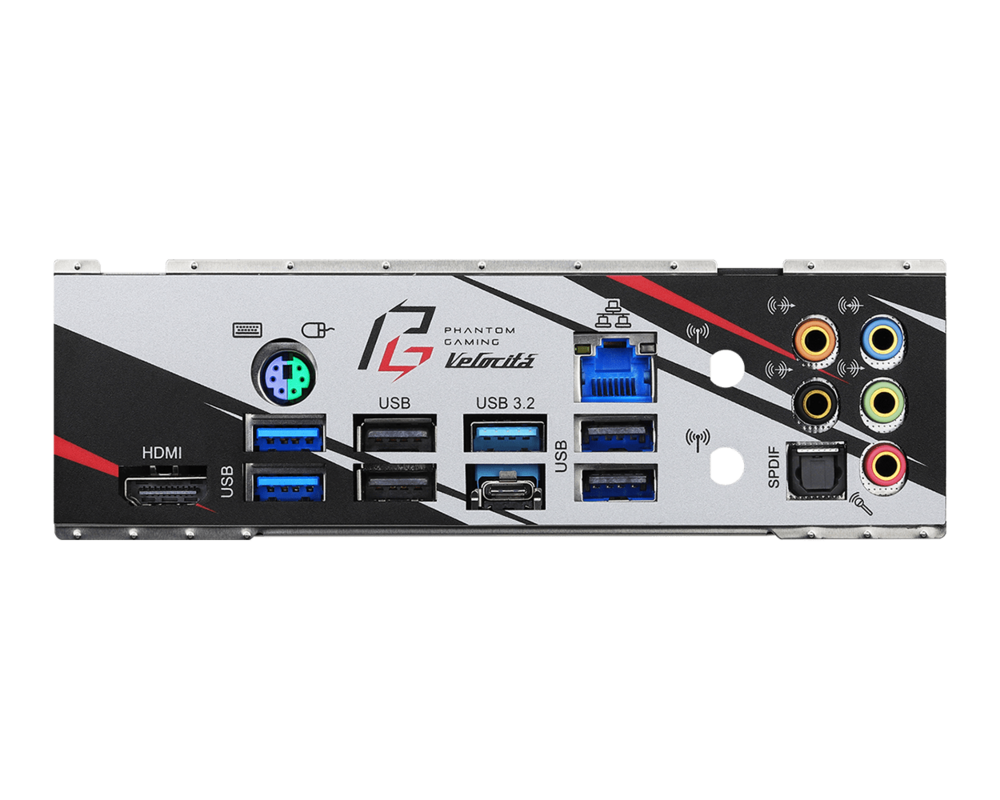

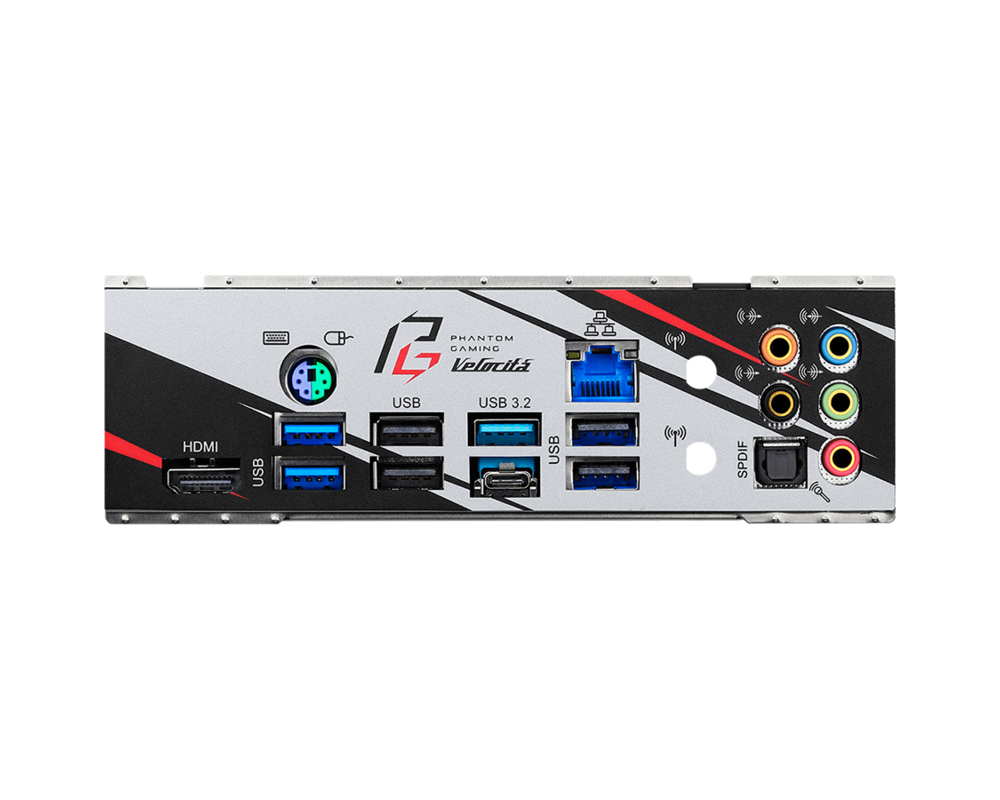

| Портове |
1 x PS/2 keyboard / mouse
1 x LAN (2.5Gigabit Ethernet) 1 x HDMI 1 x TOSLINK 4 x USB 2.0 2 x USB 3.2 Gen 1 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x microphone - mini-jack 1 x USB 3.2 Gen 2 1 x USB-C Gen2 1 x audio line-out (center/subwoofer) - mini-jack 1 x audio line-out (rear) - mini-jack |
| Разширителни слотове |
1 x CPU
4 x DIMM 288-pin 1 x PCIe 4.0 x16 (PCIe 4.0 x16 mode (Ryzen series CPUs Matisse); PCIe 3.0 x16 mode (Ryzen series APUs)) 1 x PCIe 3.0 x16 (x4 mode) 2 x PCIe 3.0 x1 1 x M.2 socket (2230 M.2 Key E slot) |
| PCI slots | 2x PCI Express 3.0 x1, 1x PCI Express 3.0 x16, 1x PCI Express 4.0 x16 |
| PCIe x1 | 2 |
| PCIe x16 | 2 x PCIe 4.0/3.0 x16 |
| Вътрешен интерфейс | 4 x USB 2.0 - header, 2 x USB 3.2 Gen 1 - header, 1 x audio - header, 1 x USB-C Gen2 - header |
| Wake on LAN | Wake on LAN (WOL) |
| Функции | Dual channel memory architecture, AMD Memory Profile (AMP), supported ECC modules operate in non-ECC mode |
| Софтуер |
Drivers & Utilities
Antivirus (Trial version) Google Chrome Browser Google ChromeToolbar ASRock Phantom Gaming Tuning ASRock Phantom Gaming LAN Software ASRock Polychrome SYNC |
| Съвместими операционни системи |
Microsoft Windows 10 64-bit
Microsoft Windows 11 64-bit |
| Конектори | 1 x SPI TPM Header; - 1 x Power LED and Speaker Header; - 2 x RGB LED Headers; - 2 x Addressable LED Headers; - 1 x CPU Fan Connector (4-pin); - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control); - 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control); - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector); - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector); - 1 x 4 pin 12V Power Connector (Hi-Density Power Connector); - 1 x Front Panel Audio Connector (15μ Gold Audio Connector); - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection); - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection); - 1 x Front Panel Type C USB 3.2 Gen2 Header (Supports ESD Protection); - 1 x Dr. Debug with LED; - 1 x Power Button with LED; - 1 x Reset Button with LED |
| Конектори за захранване | 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector |
| Наблюдение на хардуера |
CPU core temperature
chassis temperature CPU fan tachometer chassis fan tachometer system voltage CPU core voltage |
| Стандарти |
Plug and Play
FCC EuP Ready ErP Ready HDCP 2.3 |
| Включени кабели | 4 x Serial ATA cable |
| Аксесоари | 3 x M.2 screws, 2 x standoff for M.2 socket |
| Височина | 244 мм |
| Ширина | 30.5 cm |
| Дълбочина | 24.4 cm |
| Други характеристики |
ASRock Instant Flash
HDCP compliant 15µ Gold Contact ASRock Dr. Debug AMD CrossFireX technology support AMD Quad CrossFireX technology support Digi Power Design ESD Protection Gold Plated Audio Hardware Energy Efficient Ethernet 802.3az Preboot eXecution Environment (PXE) ASRock Key Master Direct Drive Technology ASRock Full Spike Protection ASRock APP Shop ASRock Super Alloy High Density Glass Fabric PCB ASRock Full HD UEFI Dr.MOS MOSFET XXL Aluminum Alloy Heatsink Nahimic Audio Enhacer I/O Armor ASRock Live Update Premium Memory Alloy Choke Nichicon 12K Black Caps Matte Black PCB TI NE5532 Premium Headset Amplifier Premium 60A Power Choke Hi-Density Power Connectors 120dB SNR DAC with Differential Amplifier Pure Power-In PCB Isolate Shielding ASRock Ultra USB Power 14 Phase Power Design 2oz Copper PCB ASRock Full Coverage M.2 Heatsink ASRock Steel Slot Gen4 ASRock Hyper M.2 |
| Гаранция | 36 месеца |
| Код на продукта | B550 PG VELOCITA |
Виж повече
Допълнителна информация
- Fast, mysterious, unbeatable
PG Velocita is a brand new high end product line under the Phantom Gaming family, the PG Velocita motherboard series packed full with uncompromised performance as well as relentless appearance. "Velocità" is Italian for "Velocity", destined to give a fast and unbeatable gaming experience to the gamers! - PCIe 4.0 for everyone
The AMD BS50 chipset makes PCIe 4 0 possible for anyone who wants higher performance, bandwidth and speed. Ready for 3rd Gen AMO Ryzen" processors and beyond. - Unbeatable heatsink armor
Forged with aluminum alloy heatsinnk top cover that effectively improves heat dissipation. Underneath its solid strong cover lie two gaming required M.2 Key M sockets for high speed SSDs. - Dual M.2 sockets for SSD
Hyper M.2 socket that supports PCIe Gen4 x4 while M.2 socket is capable of running PCIe Gen3 x2 and SATA3 mode. - Nahimic Audio
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details. The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game. - Dr. MOS
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance. - Premium 60A power choke
Compared to traditional chokes, ASRock's premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard. - Hi-density power connector
Reduces 23% power loss and decreases the connector's temperature by 22 degrees Celsius. - 2oz copper PCB
2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking, it's able to support the latest DDR4 memory modules with most extreme memory performance! - Rule your own lighting WAY - polychrome RGB
ASRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way! ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well. - Phantom gaming 2.5 Gb/s LAN
The intelligent Phantom Gaming 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you'll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups. Automatically detects and accelerates game traffic ahead of other network traffic for smoother, stutter-free in-game performance and the competitive edge. - Reinforced Steel Slot [PCIe 4.0 Version]
The reinforced steel slot comes with the next generation PCI Express 4.0 standard. The various benefits include extra anchor points, stronger latch, ensure signal stability, make sure heavy graphics cards to be well-installed. - Front USB 3.2 Gen2 Type-C
Front USB 3.2 Gen2 Type-C header delivers up to 10 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case. - Dual USB 3.2 Gen2 (Type-A + Type-C)
This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates.
USB 3.2 Gen2 doubles the data transfer rate - M.2 (KEY E) for WiFi
Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot. - Flexible integrated I/O shield
Unlike most so called pre-mounted I/O shield that is only decorated with fancy color schemes. ASRock reserves more tolerance space and allow IO shield is adjustable when installing, thus fitting chassis perfectly without any mechanical issue. - XXL aluminum alloy heatsink
Extra large aluminum alloy heat sinks that effectively take away heat from the MOSFET and chipset so that your whole system may perform more stable. - Premium 60A power choke
Compared to traditional chokes, ASRock's premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard. - Premium memory alloy choke
Specifically designed for memory power delivery, these new alloy chokes feature a highly magnetic and heat resistant design, thus delivering more stable and reliable power to the motherboard and memory modules. - Nichicon 12K black caps
Supreme 12K black capacitors with lifespans of at least 12,000 hours. Compared to other counterparts on high-end motherboards that merely have lifespans of around 10,000 hours, ASRock applied Nichicon 12K Black Caps that offer 20% longer lifespans and provide more stability and reliability. - I/O armor
A new designed protective cover for all of the crucial parts near the motherboard's rear I/O, so that they won't easily be damaged by static electricity. - Matte Black PCB
A new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end motherboards. - High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity. - Gold audio jacks
Everything will wear off in time, but gold looks better! Gold audio jack provides stable sound transmission! - Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard's components from being damaged by these unexpected voltage spikes. - Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. ASRock provides various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
