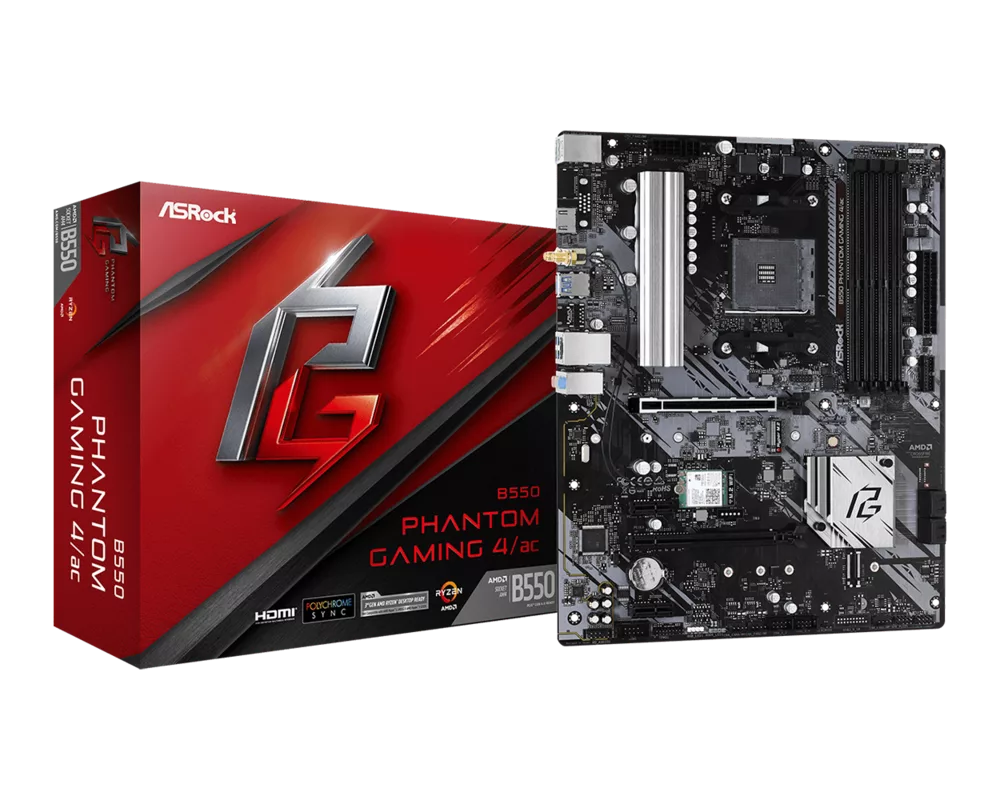

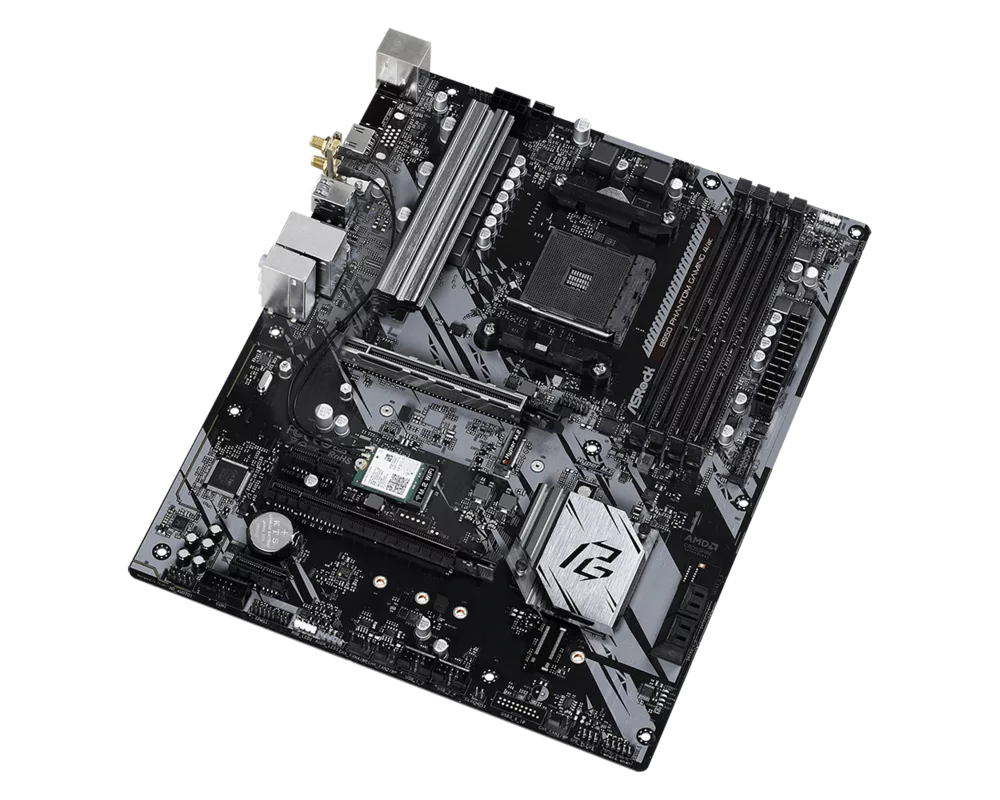

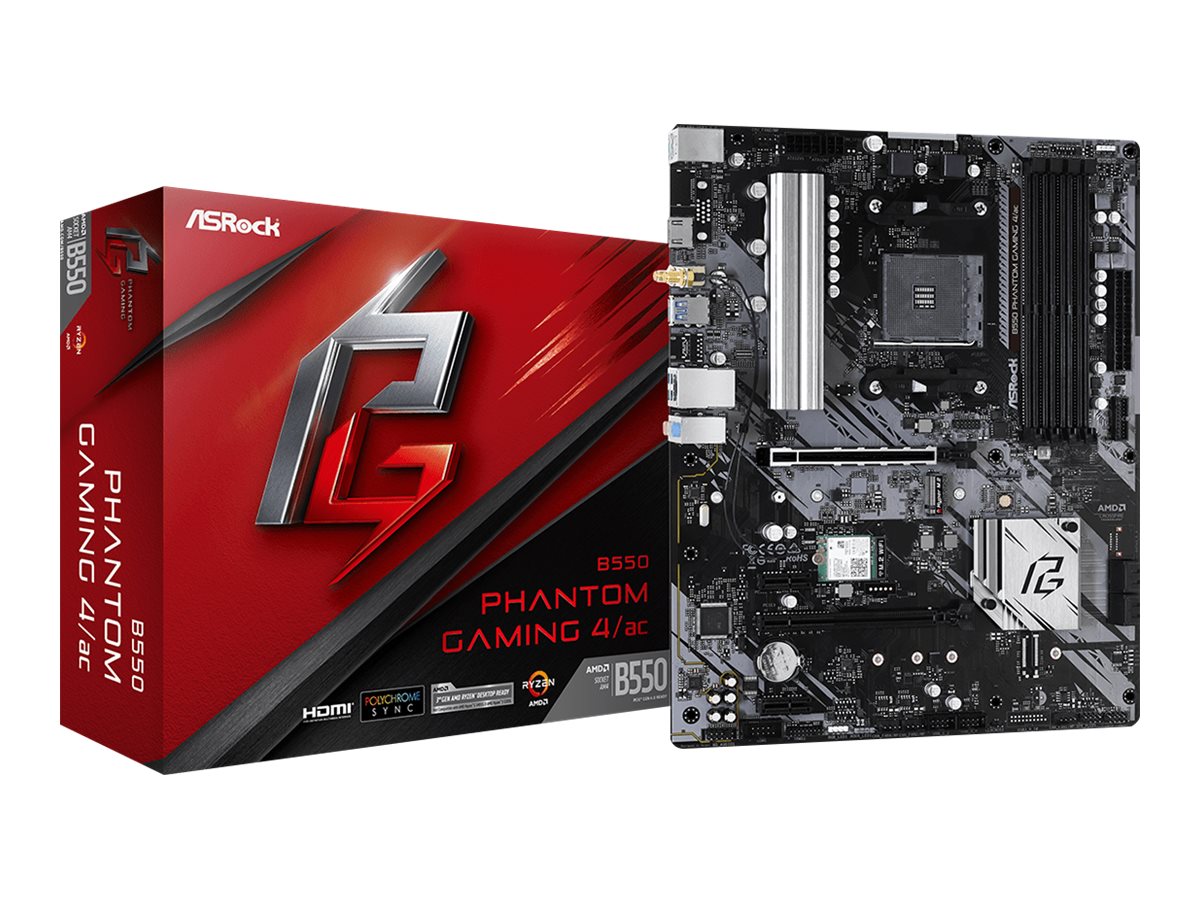

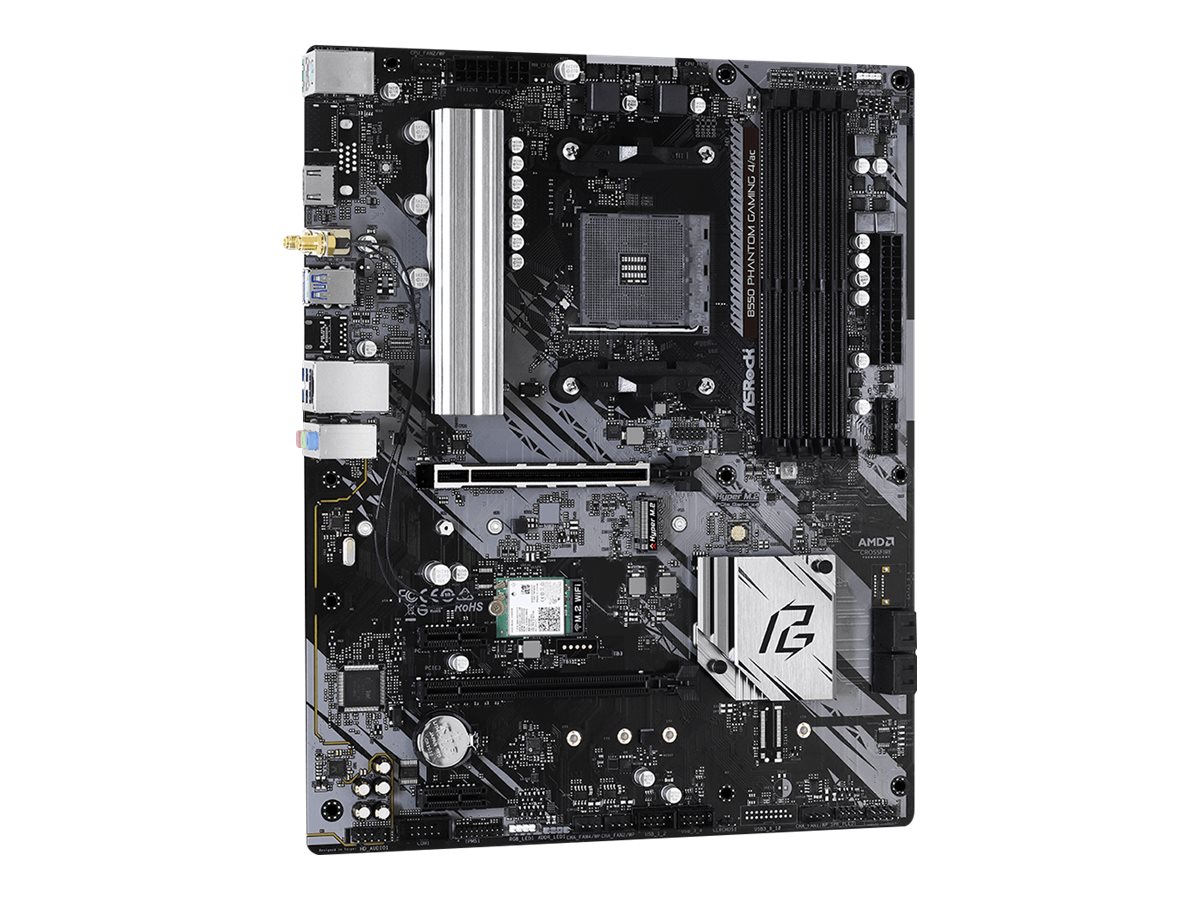

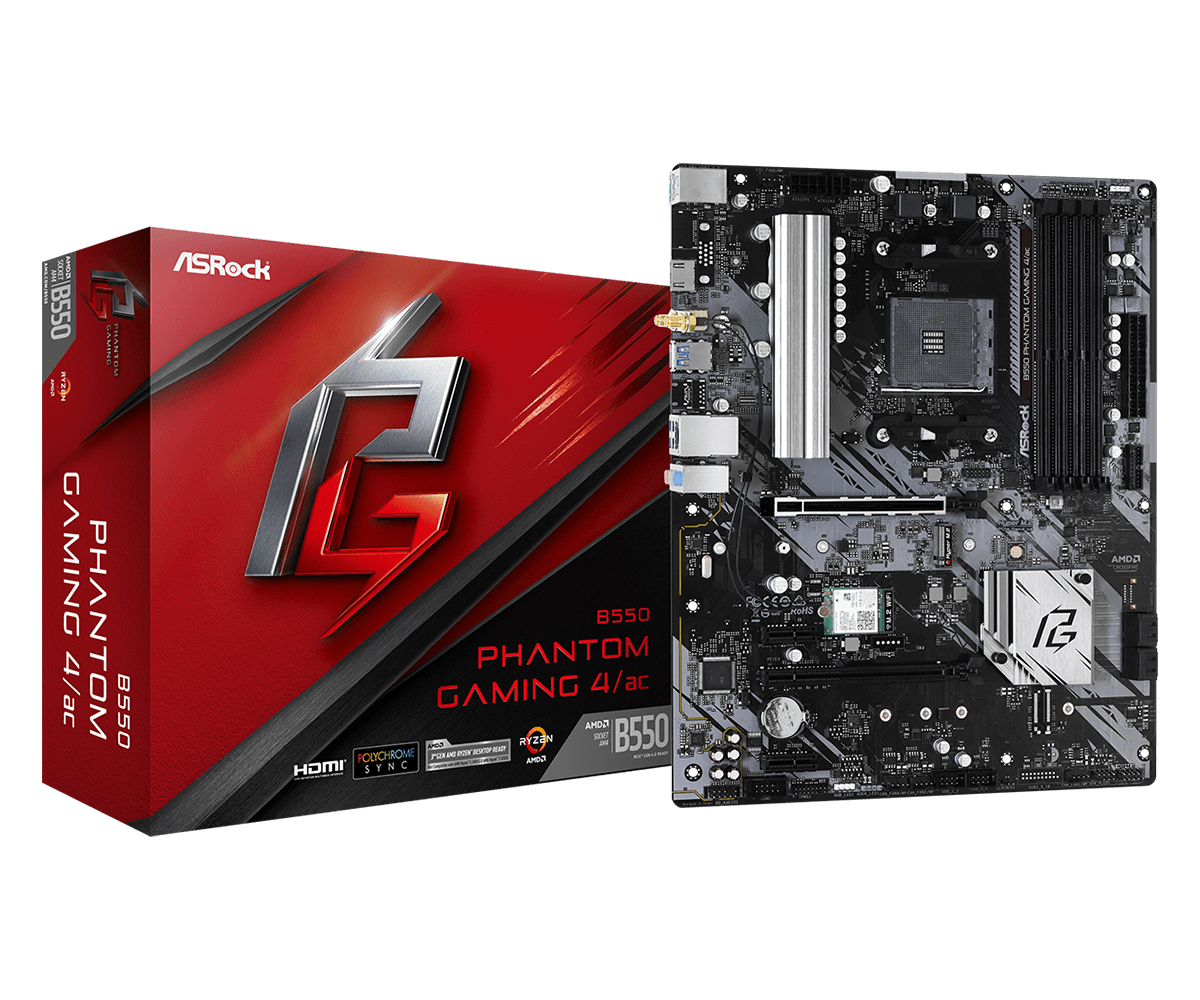

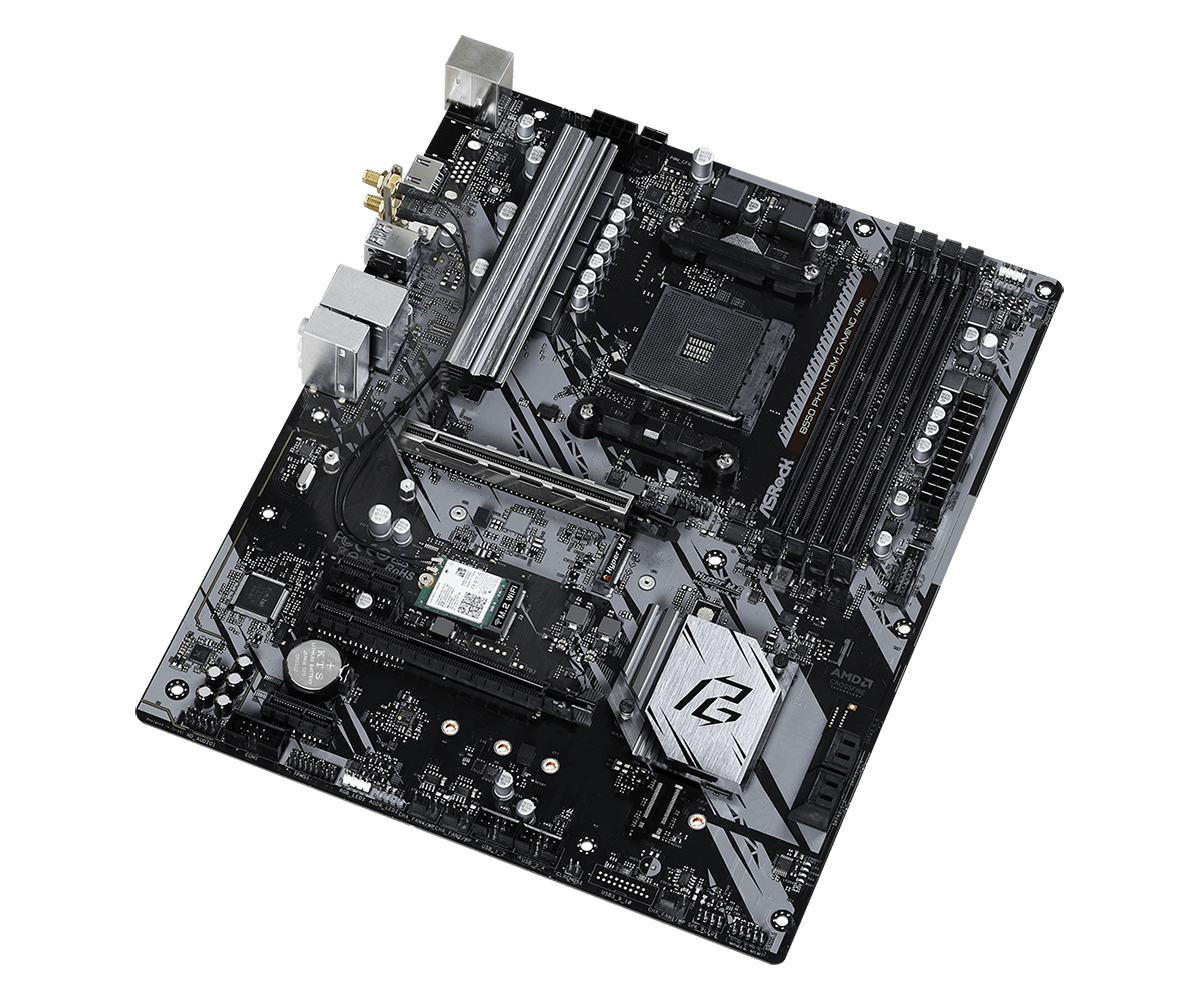

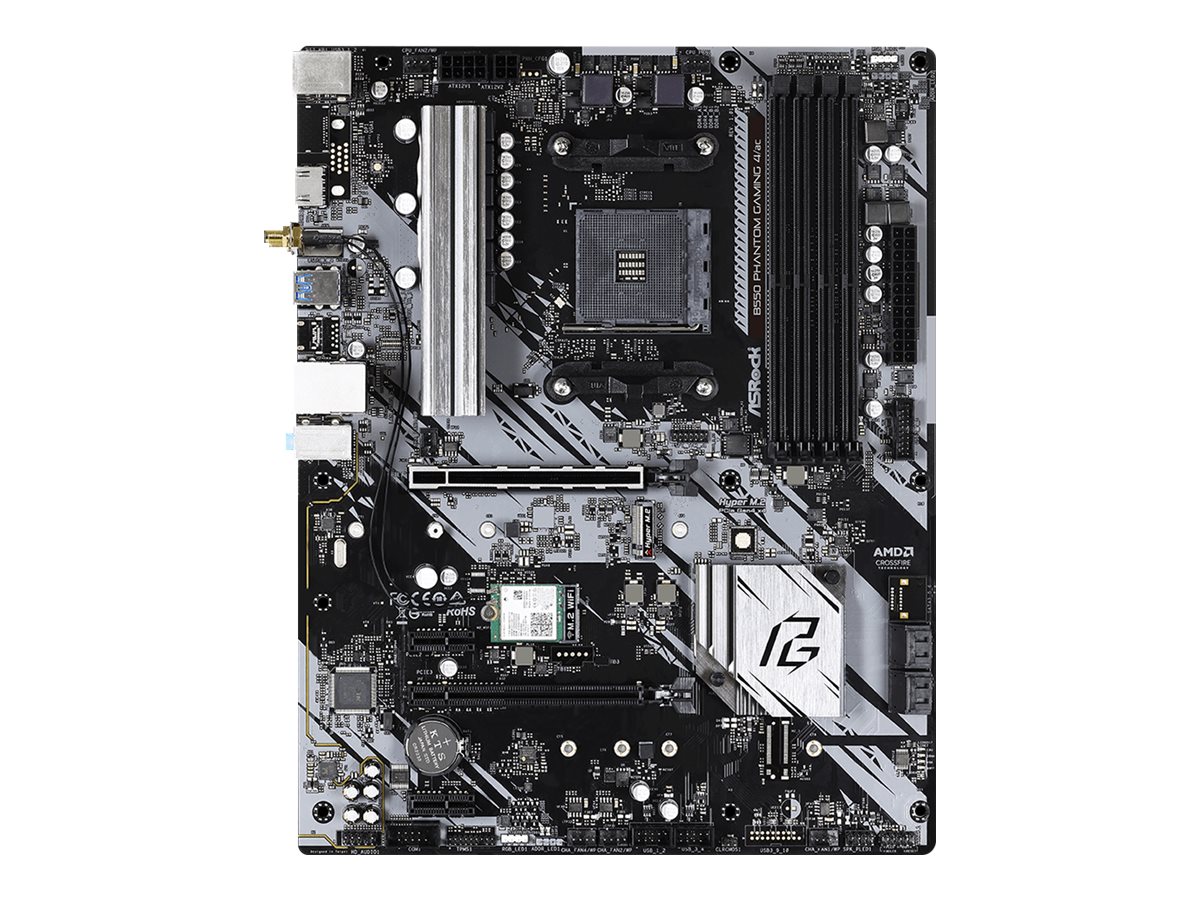

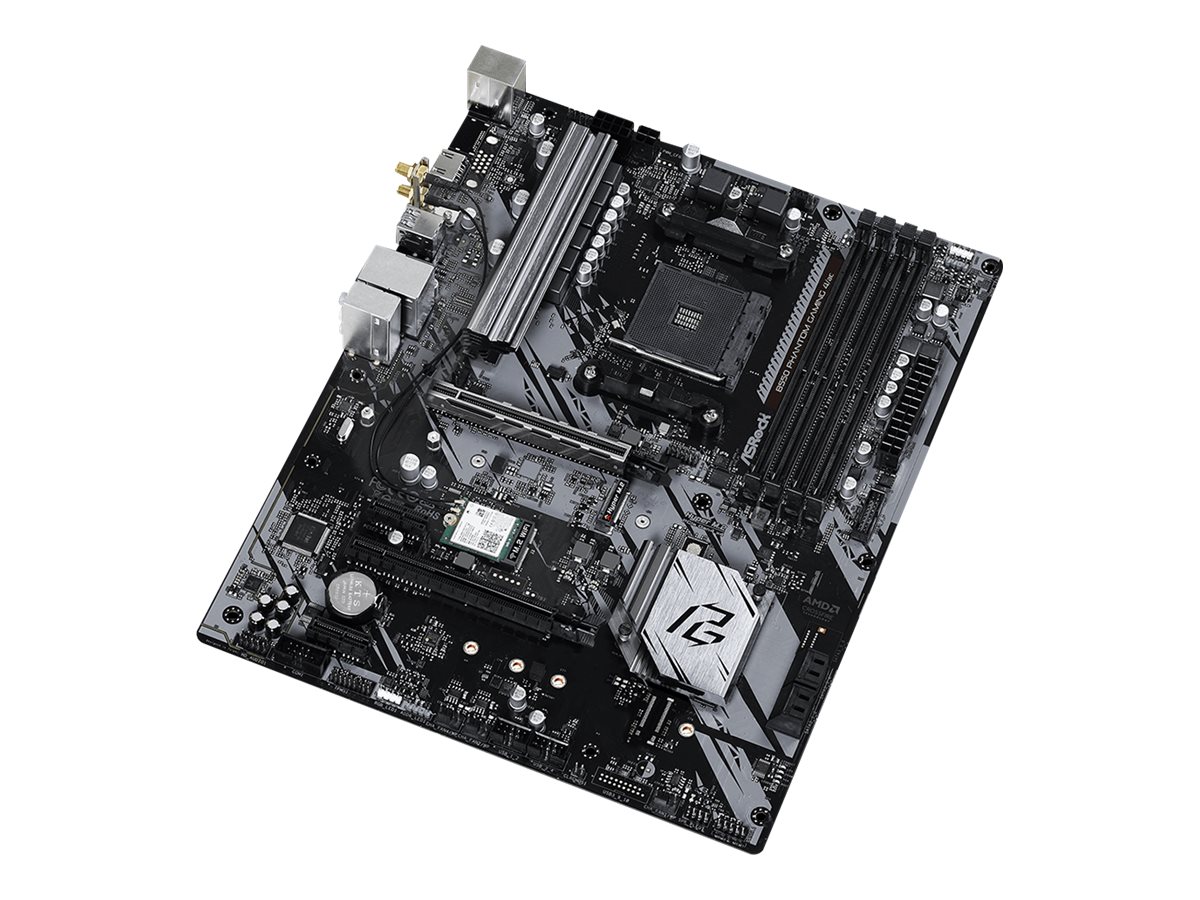

Дънна платка ASROCK B550 PHANTOM GAMING4/AC B550 PHANTOM GAMING 4/AC
изчерпано
Сокет: AM4
Чипсет: AMD B550
Тип на паметта: DDR4
Физически размер: ATX
Слотове за памет: 4
Честота на паметта: 3200 MHz
Гаранция:
0.0
от 5.0
(0)
Купи и събери
2 точки
Плати по-лесно и сигурно с
Виж всички продукти на Asrock
Пазарувай по марка
Характеристики
| Физически размер | ATX |
| Чипсет | AMD B550 |
| Сокет | AM4 |
| Съвместими процесори | Ryzen (supports 3rd Generation Ryzen and New Generation Ryzen with Radeon Graphics) |
| BIOS | JumperFree, SMBIOS 2.3 support, UEFI BIOS, ACPI 5.1 support |
| Тип BIOS | AMI |
| Памет | - Dual Channel DDR4 Memory Technology; - 4 x DDR4 DIMM Slots; - AMD Ryzen series CPUs (Matisse) support DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*; - AMD Ryzen series APUs support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*; - Max. capacity of system memory: 128GB**; - Supports Extreme Memory Profile (XMP) memory modules; - 15μ Gold Contact in DIMM Slots |
| Тип на паметта | DDR4 |
| Честота на паметта | 3200 MHz |
| ECC support | Non-ECC, ECC (operate in non-ECC mode) |
| Memory Registered / Buffered | Unbuffered |
| Слотове за памет | 4 |
| Максимална памет | 128 GB |
| Слотове | AMD Ryzen series CPUs (Matisse); - 2 x PCI Express x16 Slots (PCIE1: Gen4x16 mode; PCIE3: Gen3 x4 mode); AMD Ryzen series APUs; - 2 x PCI Express x16 Slots (PCIE1: Gen3x16 mode; PCIE3: Gen3 x4 mode); - 2 x PCI Express 3.0 x1 Slots; - Supports AMD Quad CrossFireX™ and CrossFireX™; - 1 x M.2 Socket (Key E) with the bundled WiFi-802.11ac module |
| Брой процесорни гнезда | 1 |
| Видео | Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU; - DirectX 12, Pixel Shader 5.0; - Shared memory default 2GB. Max Shared memory supports up to 16GB.; - Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz; - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required); - Supports HDR (High Dynamic Range) with HDMI 2.1; - Supports HDCP 2.3 with HDMI 2.1 Port; - Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port; - Supports Microsoft® PlayReady |
| Дисков интерфейс | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 SATA-600 / PCIe 3.0 -connectors: 1 x M.2 PCIe 4.0 -connectors: 1 x M.2 |
| LAN порт | Bluetooth, Gigabit Ethernet, 802.11a/b/g/n/ac |
| LAN controller | Realtek RTL8111H |
| Звук | Realtek ALC1200 |
| Звуков изход | HD Audio (8-channel) |
| Аудио стандарти | High Definition Audio, Premium Blu-ray audio support |

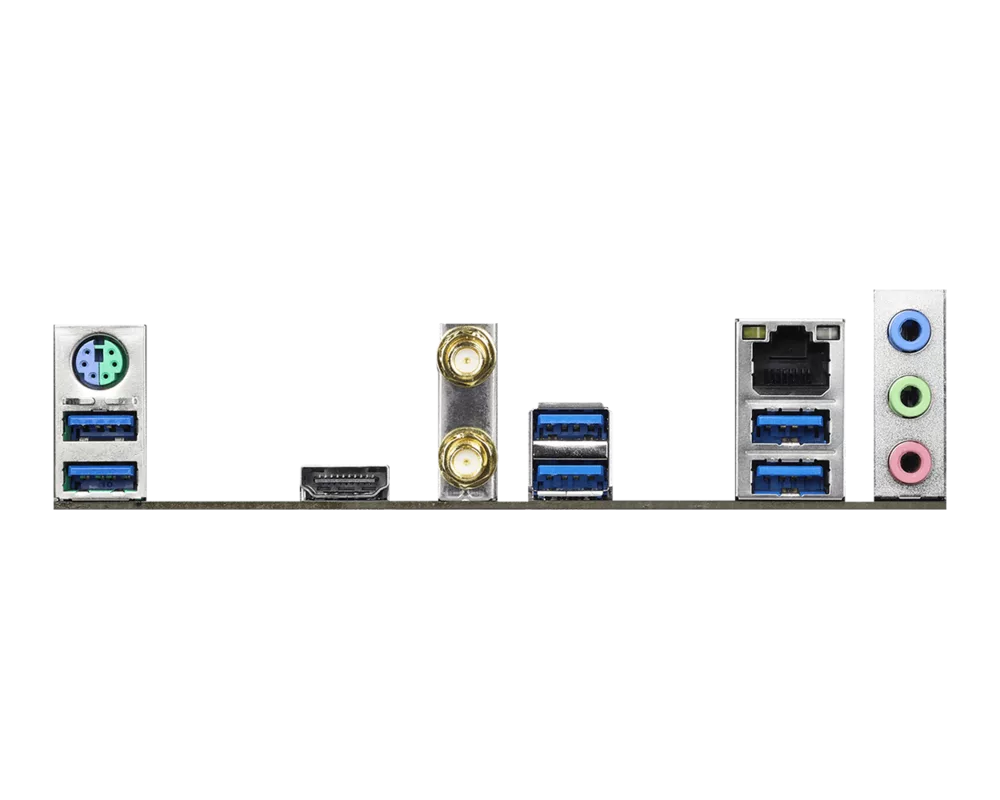

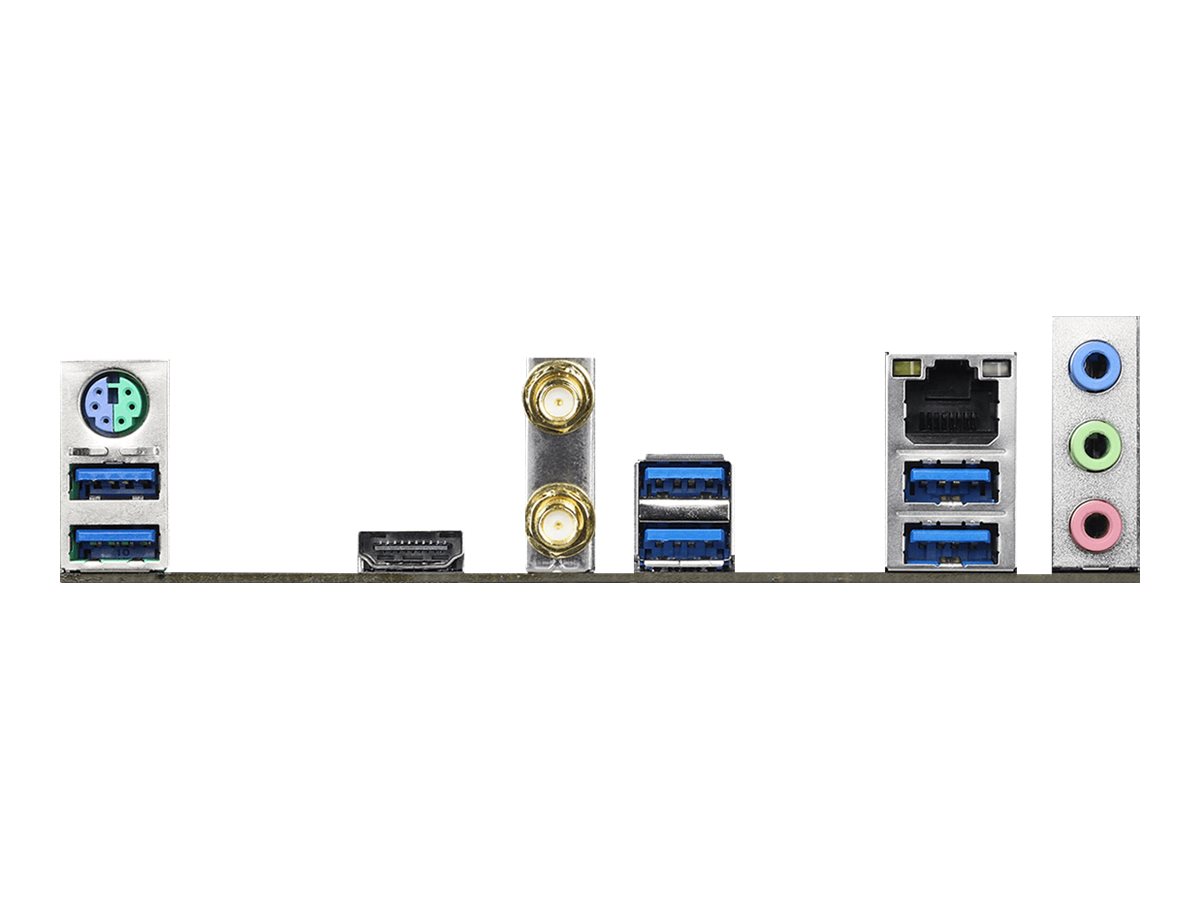

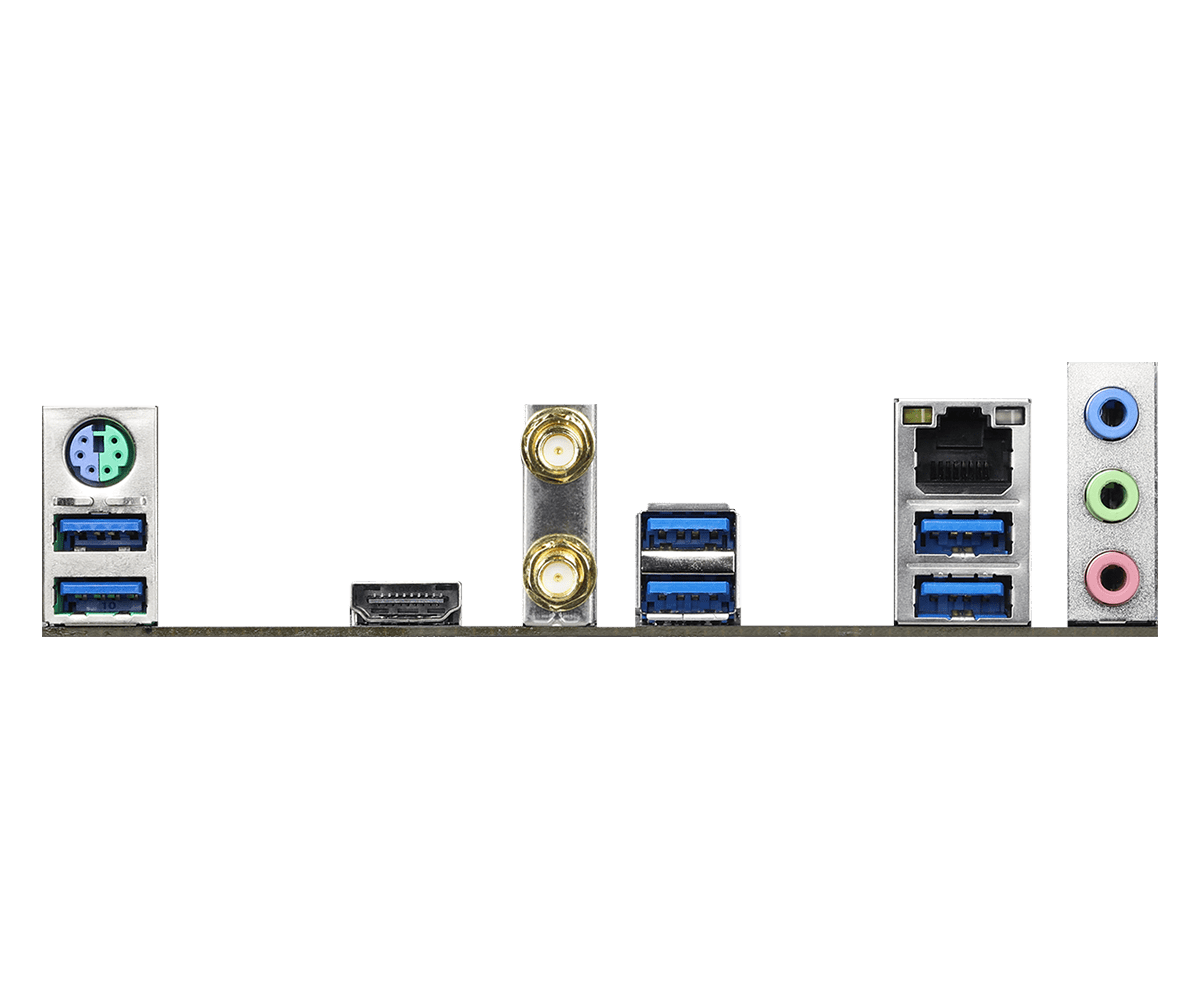

| Портове | 1 x LAN (Gigabit Ethernet) 1 x HDMI 6 x USB 3.2 Gen 1 1 x microphone - mini-jack 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x PS/2 keyboard / mouse |
| Разширителни слотове | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 4.0 x16 (PCIe 4.0 x16 mode (Ryzen series CPUs Matisse); PCIe 3.0 x16 mode (Ryzen series APUs)) 1 x PCIe 3.0 x16 (x4 mode) 2 x PCIe 3.0 x1 1 x M.2 socket (2230 M.2 Key E slot) |
| Вътрешен интерфейс | 4 x USB 2.0 - header 2 x USB 3.2 Gen 1 - header 1 x audio - header 1 x serial - header |
| Wake on LAN | Wake on LAN (WOL) |
| Функции | Dual channel memory architecture, AMD Memory Profile (AMP), supported ECC modules operate in non-ECC mode |
| Софтуер |
Drivers & Utilities
Antivirus (Trial version) Google Chrome Browser Google ChromeToolbar ASRock XFast LAN ASRock Phantom Gaming Tuning ASRock Polychrome SYNC |
| Конектори | 1 x COM Port Header; - 1 x SPI TPM Header; - 1 x Power LED and Speaker Header; - 2 x RGB LED Headers; - 2 x Addressable LED Headers; - 1 x CPU Fan Connector (4-pin); - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control); - 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control); - 1 x 24 pin ATX Power Connector; - 1 x 8 pin 12V Power Connector; - 1 x 4 pin 12V Power Connector; - 1 x Front Panel Audio Connector; - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection); - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) |
| Конектори за захранване | 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector |
| Наблюдение на хардуера |
CPU core temperature
chassis temperature CPU fan tachometer chassis fan tachometer system voltage CPU core voltage |
| Стандарти |
Plug and Play
FCC EuP Ready ErP Ready HDCP 2.3 |
| Включени кабели | 2 x Serial ATA cable |
| Аксесоари | I/O back plate, 2 x ASRock WiFi 2.4/5GHz Antennas, 3 x M.2 screws |
| Ширина | 30.5 cm |
| Дълбочина | 24.4 cm |
| Други характеристики |
8 Phase Power Design
ASRock Instant Flash HDCP compliant 15µ Gold Contact AMD CrossFireX technology support AMD Quad CrossFireX technology support Digi Power Design ESD Protection Energy Efficient Ethernet 802.3az Preboot eXecution Environment (PXE) ASRock Key Master ASRock Full Spike Protection ASRock APP Shop ASRock Super Alloy High Density Glass Fabric PCB ASRock Full HD UEFI Sapphire Black PCB XXL Aluminum Alloy Heatsink Nahimic Audio Enhacer ASRock Live Update Premium 50A Power Choke PCB Isolate Shielding 2oz Copper PCB ASRock POST Status Checker (PSC) ASRock Steel Slot Gen4 ASRock Hyper M.2 |
| Гаранция | 24 месеца |
| Код на продукта | B550 PHANTOM GAMING 4/AC |
Виж повече
Допълнителна информация
- Nahimic Audio
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details. - Post Status Checker
An easy troubleshooting tool that shows the CPU / DRAM / VGA / BOOT operation every time you start up the system. Post Status Checker is an fast and easy way to identify the source of the problem. - XXL aluminum alloy heatsink
Extra-large aluminum alloy heatsinks that effectively take away heat from the MOSFET and chipset so that your whole system may perform more stable. - Premium 50A power choke
Compared to traditional chokes, ASRock's premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard. - High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity. - Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard's components from being damaged by these unexpected voltage spikes.
