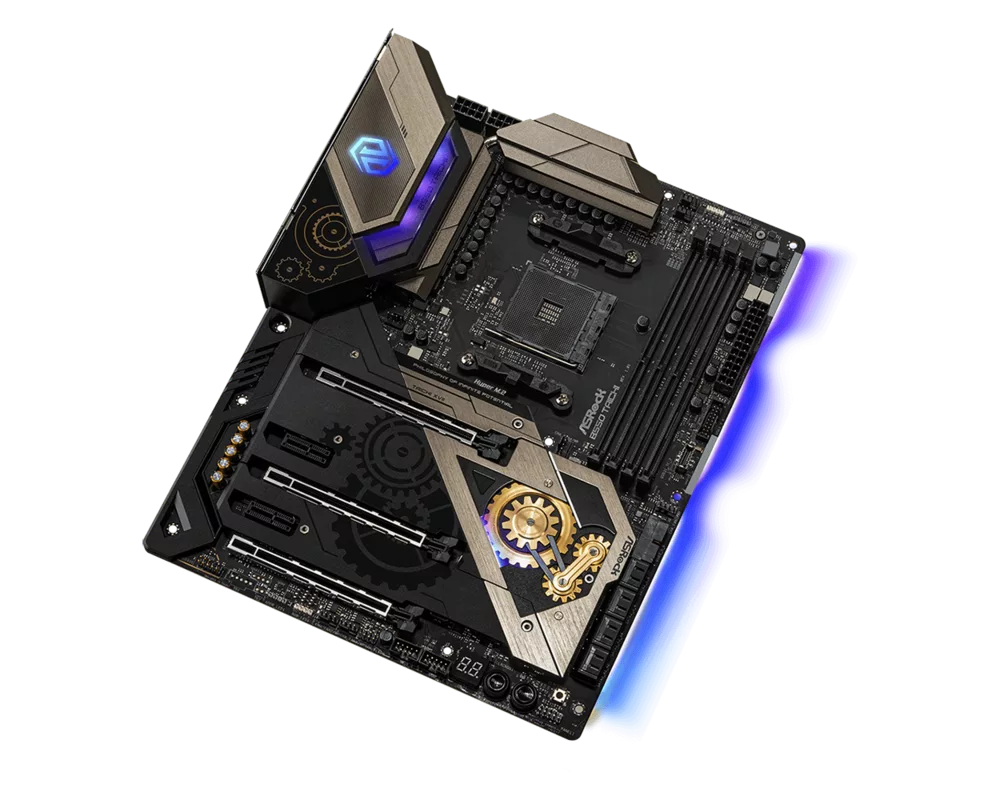

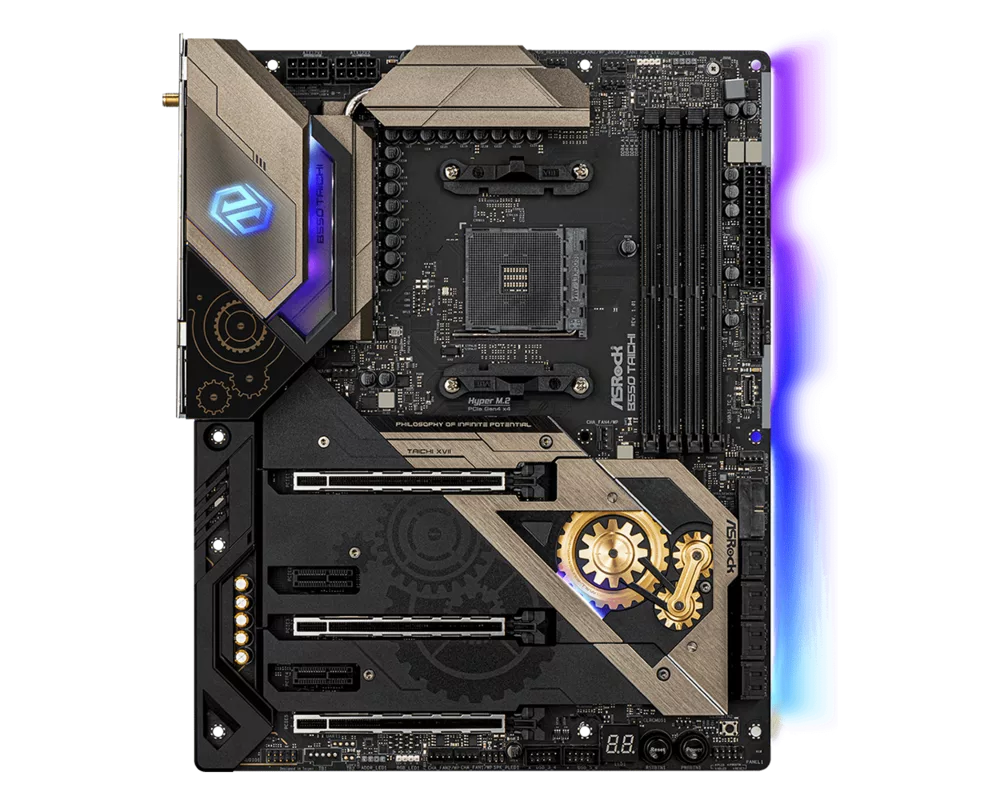

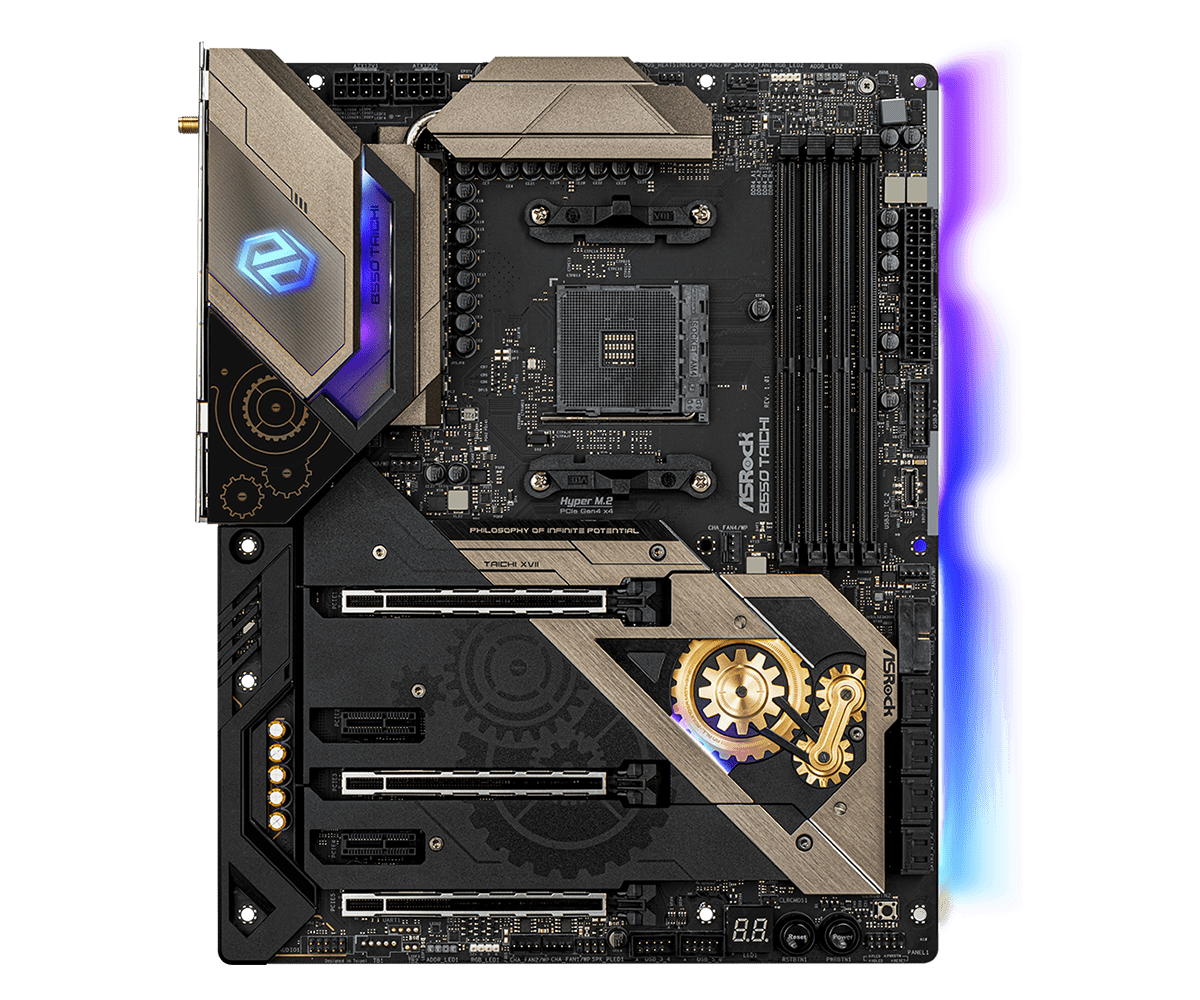

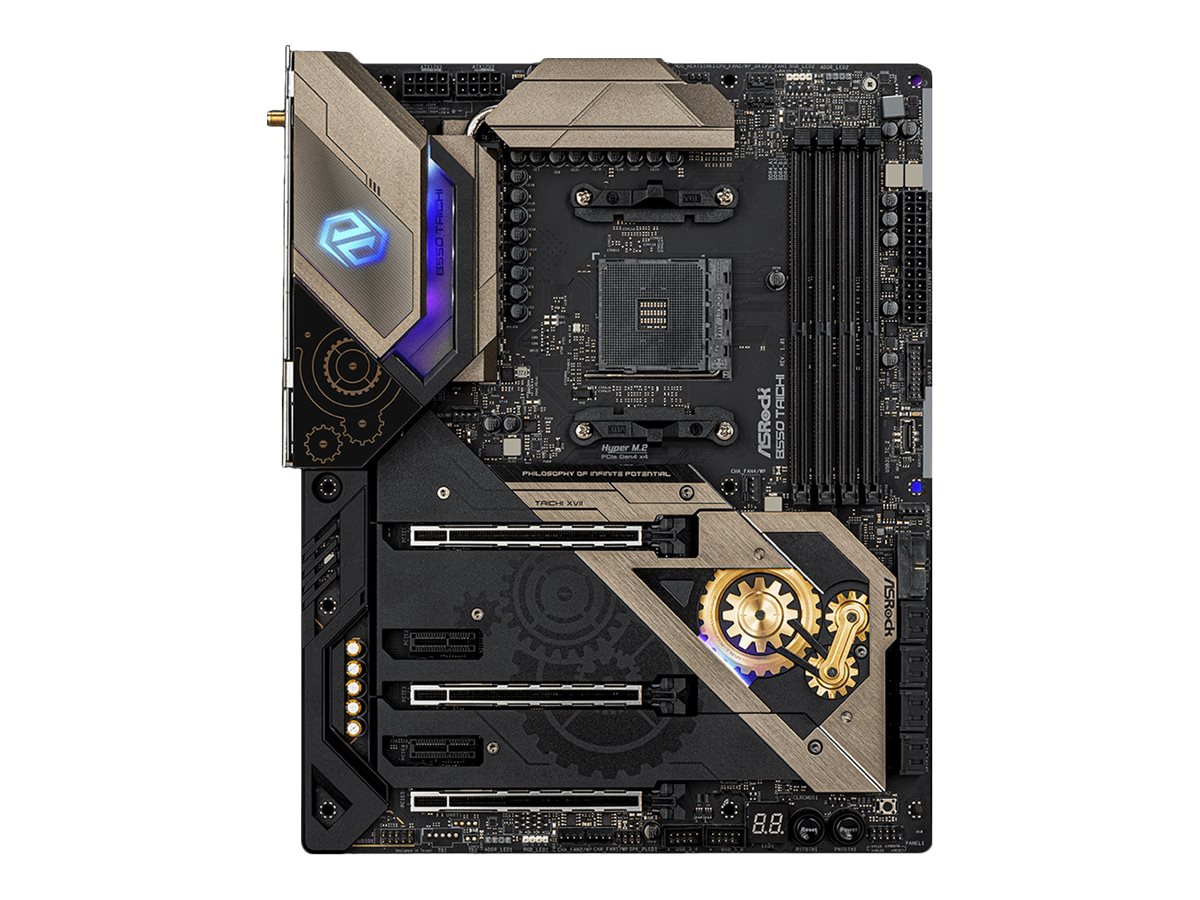

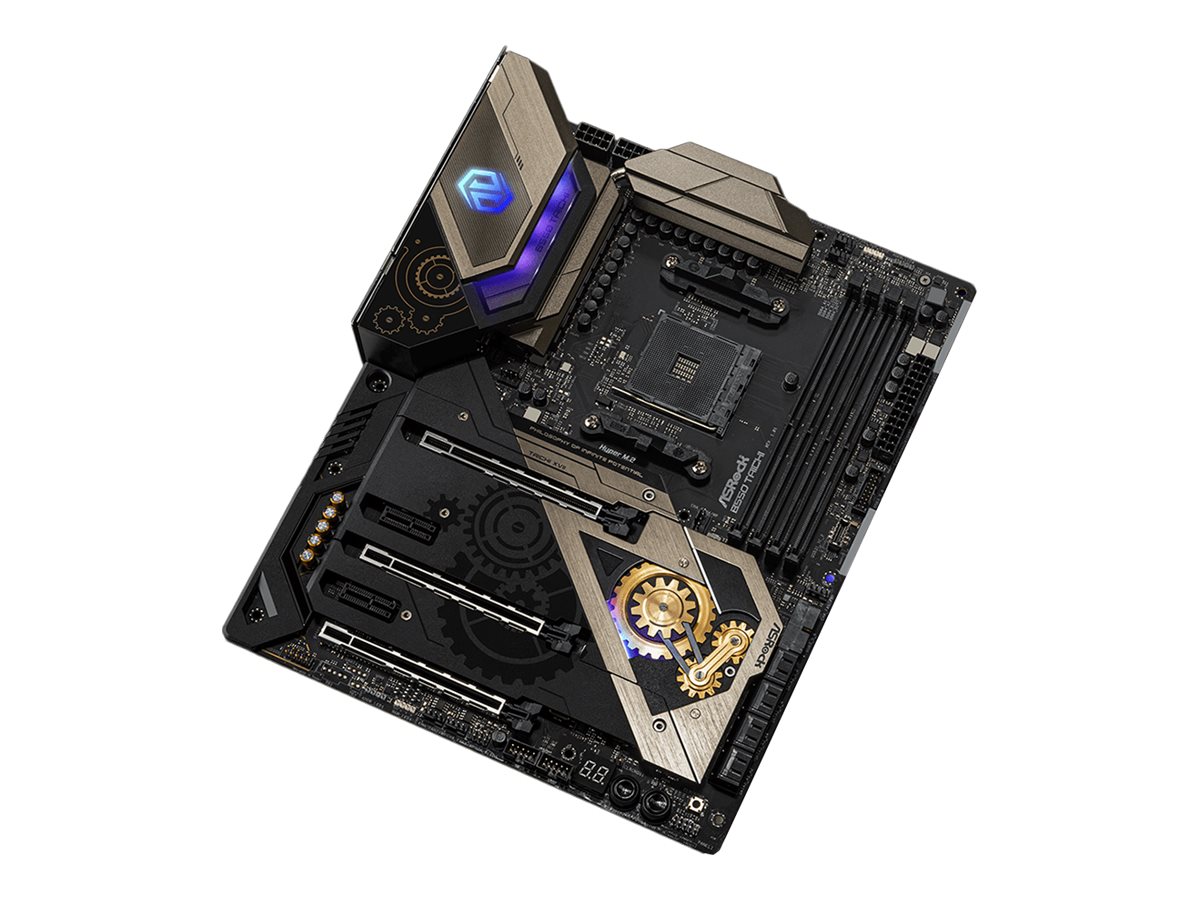

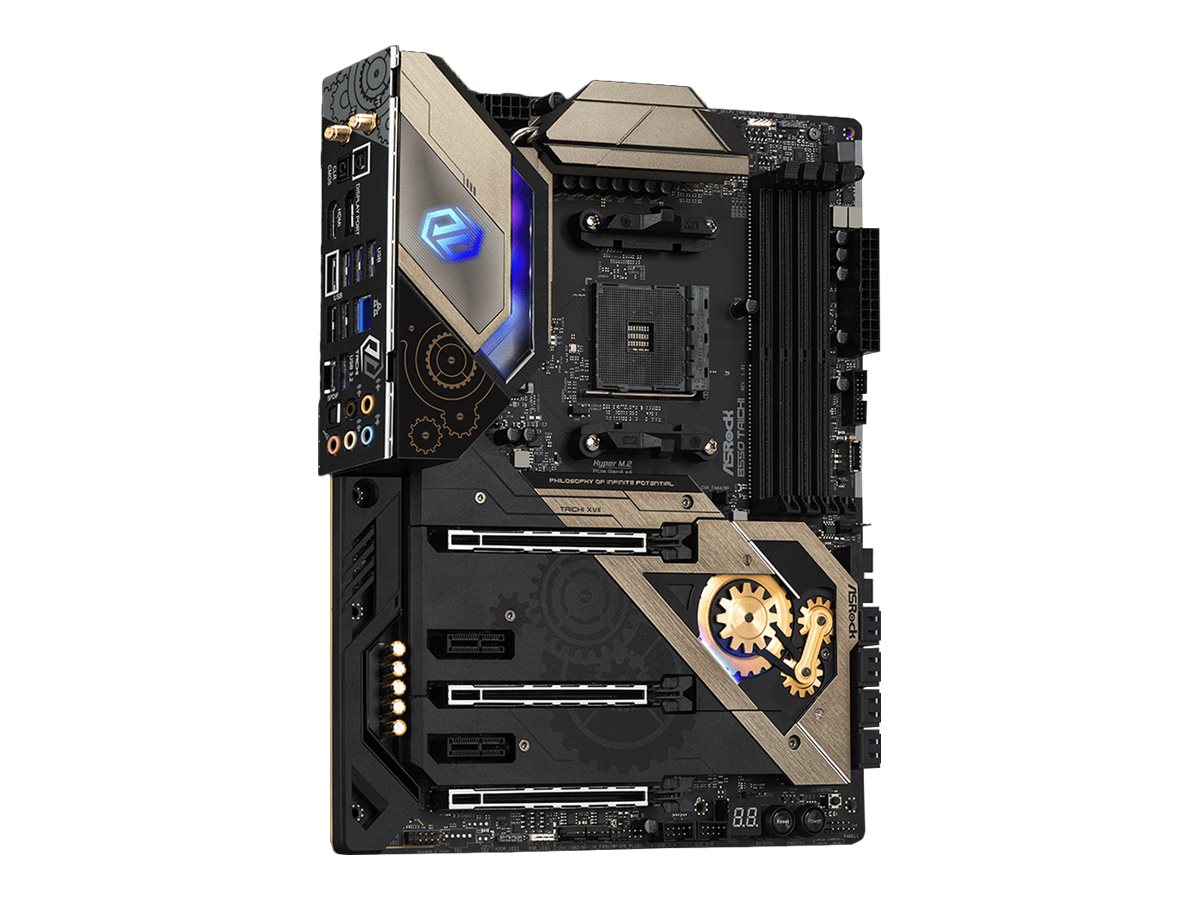

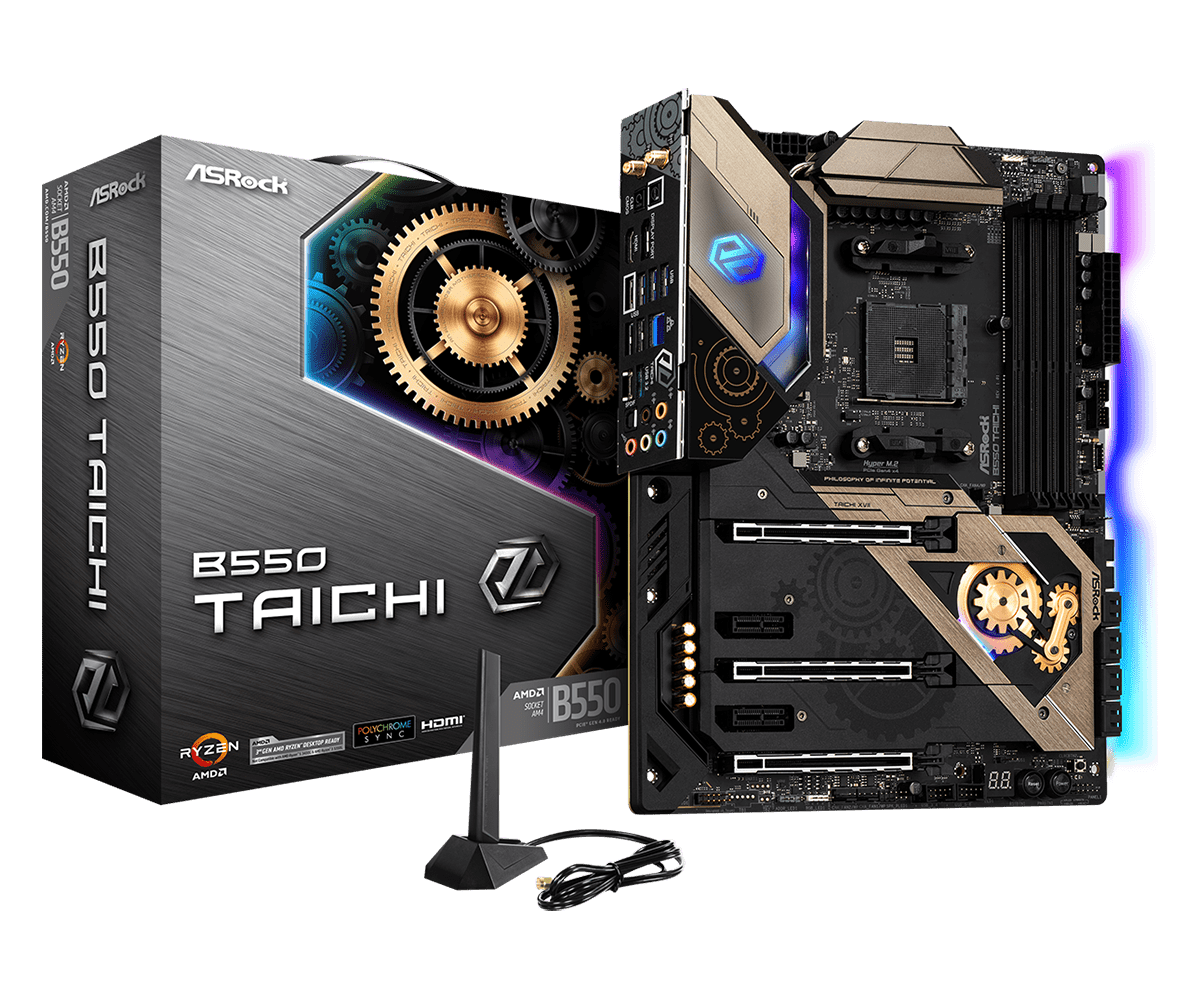

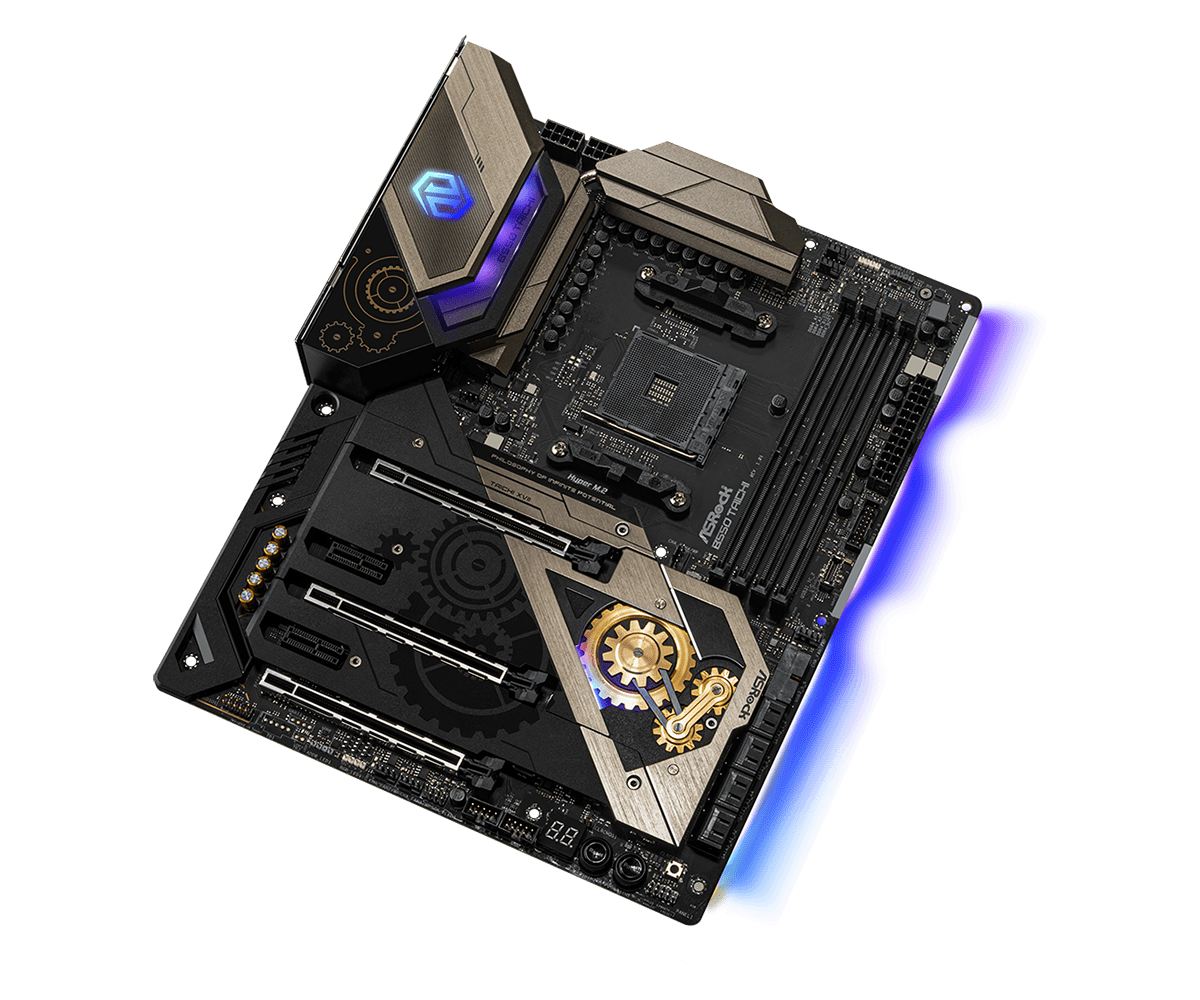

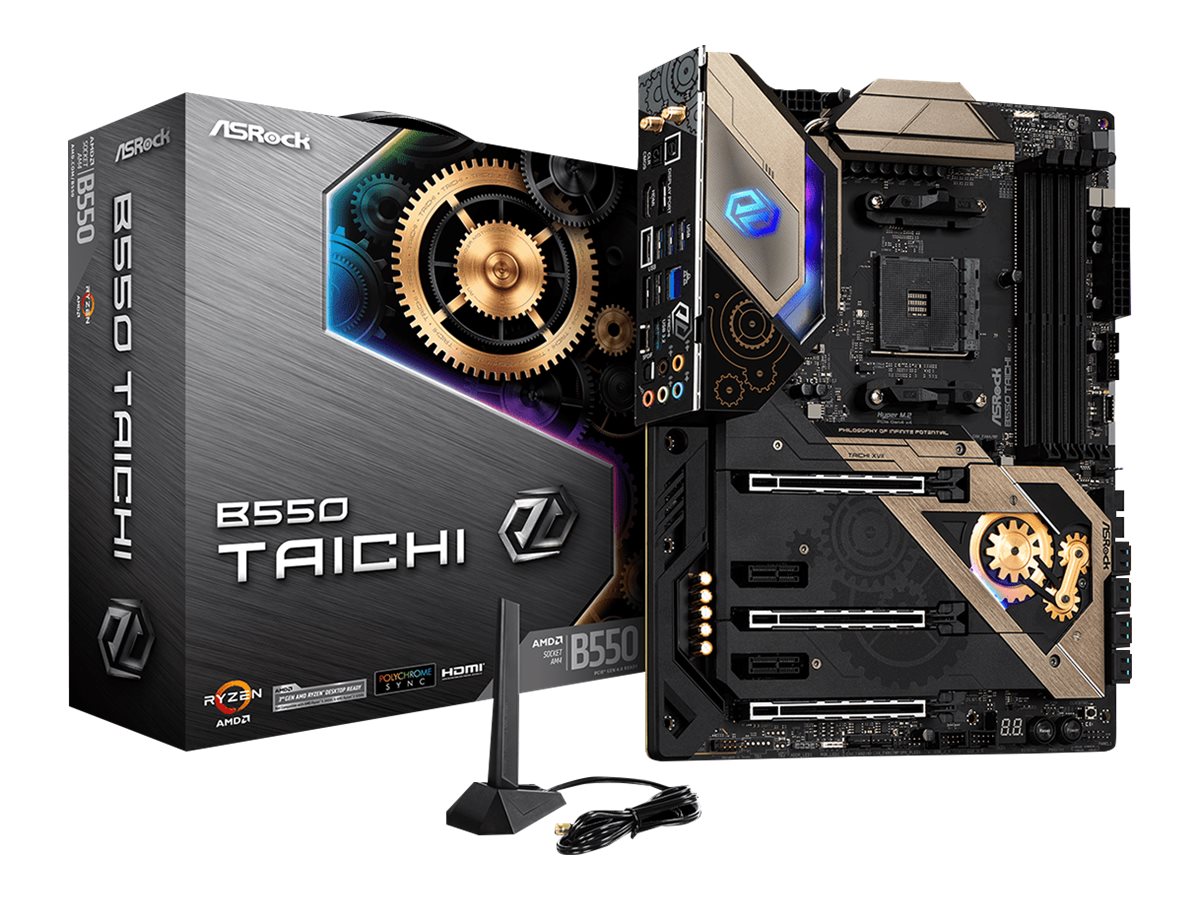

Дънна платка ASROCK B550 Taichi ATX MB 3rd Gen AMD AM4 DDR4 4733+ 1 x PCIe 3.0 x16 HDMI 7.1 CH HD 8 SATA3 USB 3.2 Gen2 Wi-Fi 6 802.11ax + BT 5.1 B550 TAICHI
изчерпано
Сокет: AM4
Чипсет: AMD B550
Тип на паметта: DDR4
Физически размер: ATX
Слотове за памет: 4
Честота на паметта: 3200 MHz
Гаранция:
0.0
от 5.0
(0)
Купи и събери
3 точки
Плати по-лесно и сигурно с
Виж всички продукти на Asrock
Пазарувай по марка
Характеристики
| Физически размер | ATX |
| Чипсет | AMD B550 |
| Сокет | AM4 |
| Съвместими процесори | Ryzen (supports 3rd Generation Ryzen) |
| BIOS | JumperFree, SMBIOS 2.3 support, UEFI BIOS, ACPI 5.1 support |
| Тип BIOS | AMI |
| Тип на паметта | DDR4 |
| Честота на паметта | 3200 MHz |
| ECC support | Non-ECC, ECC |
| Memory Registered / Buffered | Unbuffered |
| Слотове за памет | 4 |
| Максимална памет | 128 GB |
| Слотове | AMD Ryzen series CPUs (Matisse); - 3 x PCI Express x16 Slots (PCIE1/PCIE3/PCIE5: single at Gen4x16 (PCIE1); dual at Gen4x8 (PCIE1) / Gen4x8 (PCIE3); triple at Gen4x8 (PCIE1) / Gen4x8 (PCIE3) / Gen3x4 (PCIE5)); AMD Ryzen series APUs (Renoir); - 3 x PCI Express x16 Slots (PCIE1/PCIE3/PCIE5: single at Gen3x16 (PCIE1); dual at Gen3x8 (PCIE1) / Gen3x8 (PCIE3); triple at Gen3x8 (PCIE1) / Gen3x8 (PCIE3) / Gen3x4 (PCIE5)); - 2 x PCI Express 3.0 x1 Slots; - Supports AMD Quad CrossFireX™, 3-Way CrossFireX™ and CrossFireX™; - 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ax PCIe WiFi module (on the rear I/O); - 15μ Gold Contact in VGA PCIe Slot (PCIE1) |
| Брой процесорни гнезда | 1 |
| Видео | Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU; - DirectX 12, Pixel Shader 5.0; - Shared memory default 2GB. Max Shared memory supports up to 16GB.; - Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers; - Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz; - Supports DisplayPort 1.4 Input with max. resolution up to 5K (5120x2880)@120Hz; - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required); - Supports HDR (High Dynamic Range) with HDMI 2.1; - Supports HDCP 2.3 with HDMI 2.1 and DisplayPort 1.4 Ports; - Supports 4K Ultra HD (UHD) playback with HDMI 2.1 and DisplayPort 1.4 Ports; - Supports Microsoft® PlayReady |
| Дисков интерфейс | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ASMedia ASM1061: SATA-600 -connectors: 4 x 7pin Serial ATA PCIe 4.0 -connectors: 1 x M.2 SATA-600 / PCIe 4.0 -connectors: 1 x Ultra M.2 |
| LAN порт | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ax, Bluetooth 5.1 |
| LAN controller | Intel I225-V |
| Звук | Realtek ALC1200 |
| Звуков изход | HD Audio (8-channel) |
| Аудио стандарти | High Definition Audio, Premium Blu-ray audio support |

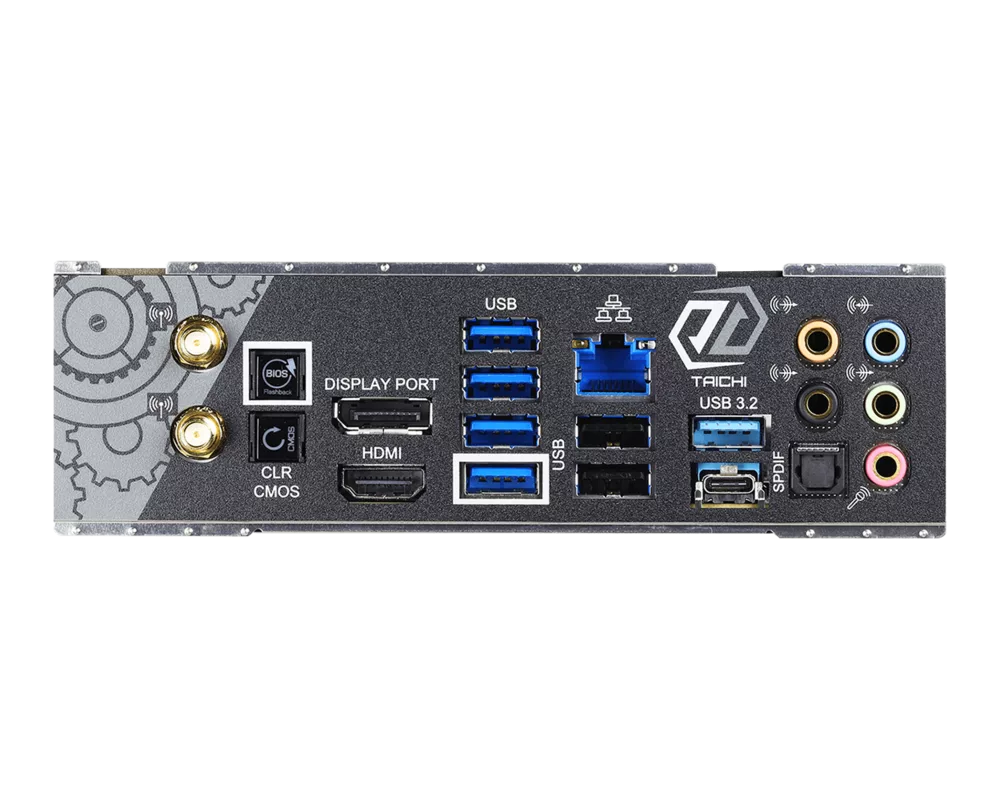

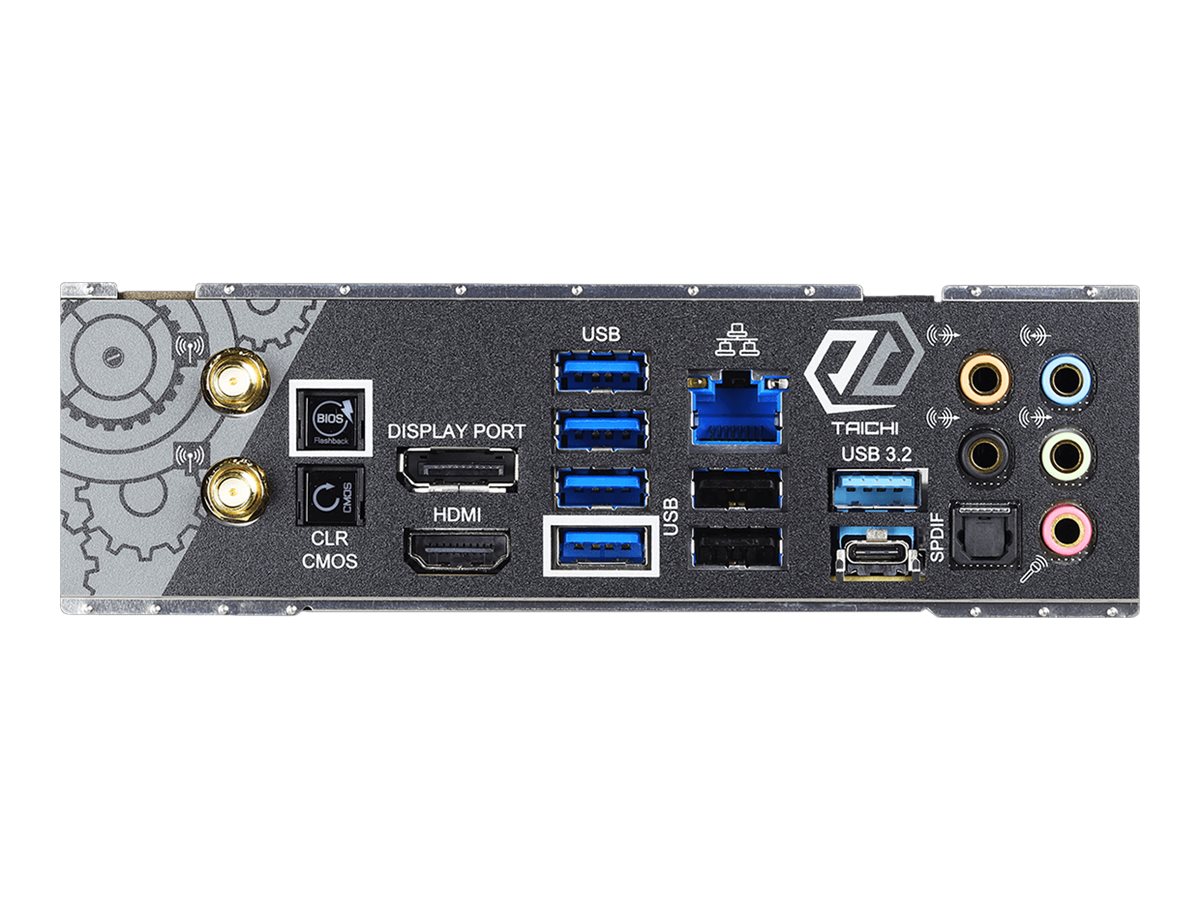

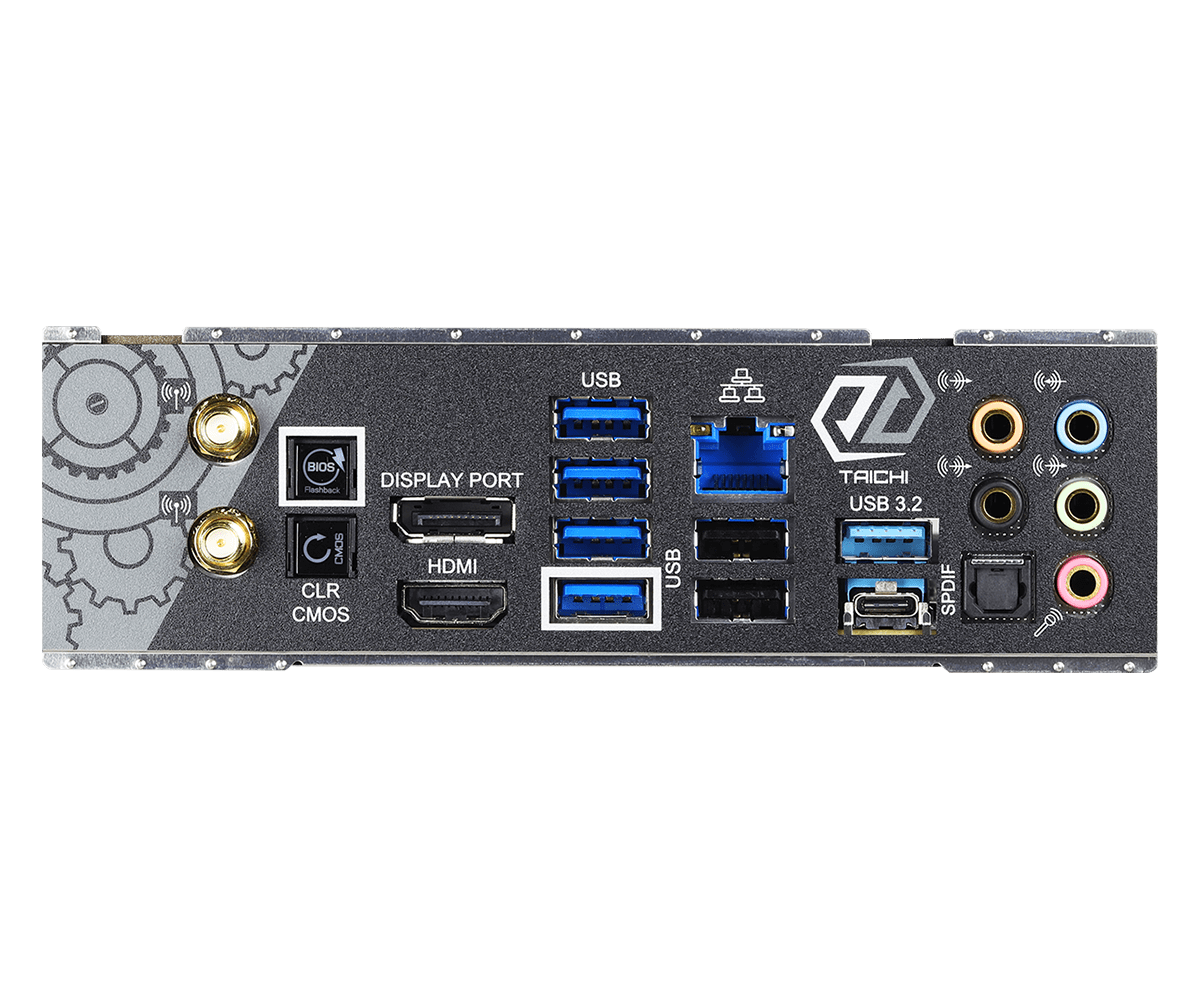

| Портове | 1 x TOSLINK 1 x DisplayPort 1 x HDMI 1 x TOSLINK 2 x USB 2.0 4 x USB 3.2 Gen 1 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x microphone - mini-jack 1 x USB 3.2 Gen 2 1 x USB-C Gen2 1 x audio line-out (center/subwoofer) - mini-jack 1 x audio line-out (rear) - mini-jack |
| Разширителни слотове | 1 x CPU, 4 x DIMM 288-pin, 3 x PCIe 4.0 x16 (PCIe 4.0 x16, x8/x8, x8/x8/PCIe 3.0 x4 modes (with Ryzen series CPUs Matisse); PCIe 3.0 x16, x8/x8, x8/x8/x4 modes (with Ryzen series CPUs Renoir)), 2 x PCIe 3.0 x1, 1 x M.2 socket (2230 M.2 Key E slot) |
| Вътрешен интерфейс | 4 x USB 2.0 - header, 4 x USB 3.2 Gen 1 - header, 1 x audio - header, 1 x USB-C Gen2 - header |
| Wake on LAN | Wake on LAN (WOL) |
| Функции | Dual channel memory architecture, AMD Memory Profile (AMP) |
| Софтуер | Drivers & Utilities, ASRock A-Tuning, Antivirus (Trial version), Google Chrome Browser, Google ChromeToolbar, ASRock XFast LAN, ASRock Polychrome SYNC |
| Конектори | 1 x Power LED and Speaker Header; - 2 x RGB LED Headers; - 2 x Addressable LED Headers; - 1 x CPU Fan Connector (4-pin); - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control); - 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control); - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector); - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector); - 1 x Front Panel Audio Connector (15μ Gold Audio Connector); - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection); - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection); - 1 x Front Panel Type C USB 3.2 Gen2 Header (Supports ESD Protection); - 1 x Dr. Debug with LED; - 1 x Power Button with LED; - 1 x Reset Button with LED; - 1 x Clear CMOS Button |
| Конектори за захранване | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
| Наблюдение на хардуера | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage |
| Стандарти | Plug and Play, FCC, EuP Ready, ErP Ready, DisplayPort 1.4, HDCP 2.3 |
| Включени кабели | 4 x Serial ATA cable |

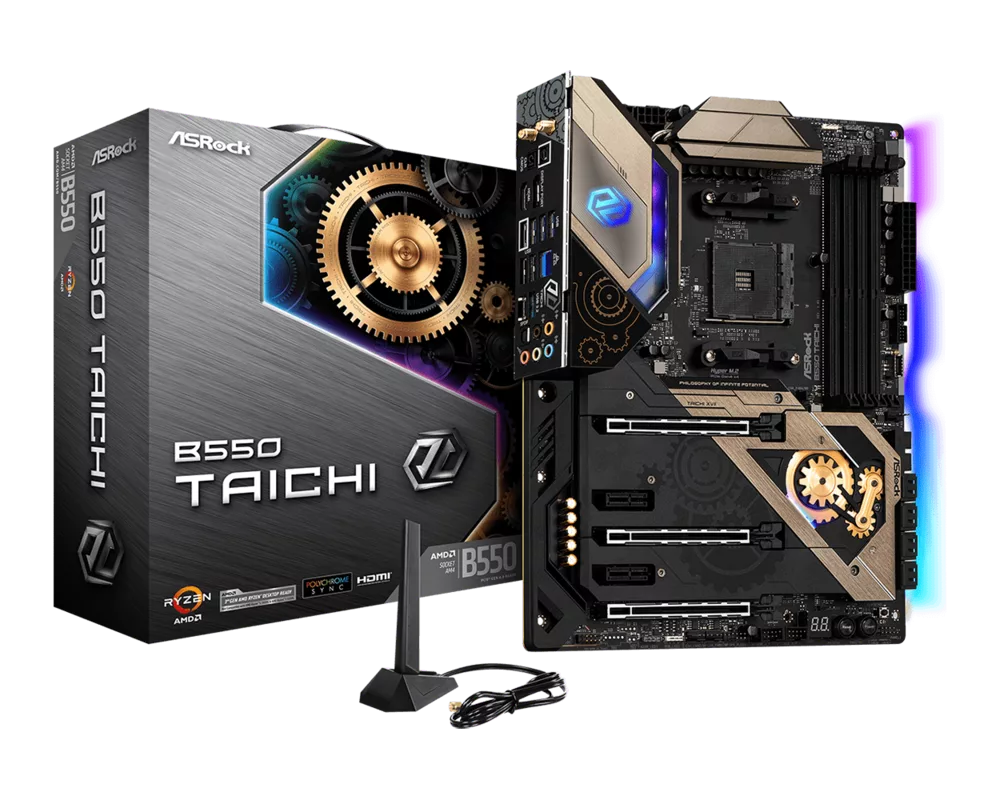

| Аксесоари | ASRock WiFi 2.4/5GHz Antenna, 2 x M.2 screws, screwdriver, 2 x standoff for M.2 socket |
| Ширина | 30.5 cm |
| Дълбочина | 24.4 cm |
| Други характеристики | ASRock Instant Flash, HDCP compliant, 15µ Gold Contact, 16 Phase Power Design, ASRock Dr. Debug, AMD CrossFireX technology support, AMD Quad CrossFireX technology support, AMD 3-way CrossFireX technology support, Digi Power Design, ESD Protection, Gold Plated Audio Hardware, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), Clear CMOS Button, Direct Drive Technology, ASRock Full Spike Protection, ASRock APP Shop, ASRock Super Alloy, High Density Glass Fabric PCB, ASRock Full HD UEFI, Dr.MOS MOSFET, XXL Aluminum Alloy Heatsink, Nahimic Audio Enhacer, I/O Armor, ASRock Live Update, Premium Memory Alloy Choke, Nichicon 12K Black Caps, Matte Black PCB, TI NE5532 Premium Headset Amplifier, Premium 60A Power Choke, 120dB SNR DAC with Differential Amplifier, Pure Power-In, PCB Isolate Shielding, ASRock Ultra USB Power, 2oz Copper PCB, ASRock Full Coverage M.2 Heatsink, ASRock Steel Slot Gen4, ASRock Hyper M.2 |
| Гаранция | 36 месеца |
| Код на продукта | B550 TAICHI |
Виж повече
Допълнителна информация
- Unbeatable heatsink armor
Forged with aluminum alloy heatsinnk top cover that effectively improves heat dissipation. Underneath its solid strong cover lie two gaming required M.2 Key M sockets for high speed SSDs. - Dual M.2 sockets for SSD
Hyper M.2 socket that supports PCIe Gen4 x4 while Ultra M.2 socket is capable of running PCIe Gen3 x4 and SATA3 mode. - Metal backplate
Strengthens the motherboard to prevent bending caused by heavy coolers or graphics cards with better airflow and enhanced stability. - Nahimic Audio
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details. - Dr. MOS
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance. - Premium 60A power choke
Compared to traditional chokes, ASRock's premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard. - 2oz copper PCB
2-ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking, it's able to support the latest DDR4 memory modules with most extreme memory performance! - Supports PCIe 4.0 x8/x8 mode
B550 Taichi not only supports the fastest PCIe 4.0 x16 slot for graphics card, but also supports PCIe 4.0 x8/x8 mode. Release the best performance when running a DX12 or Vulkan game that supports multiple GPU's. - Wi-Fi 6 802.11ax
Welcome to the new Wi-Fi standard! ASRock's motherboard equipped with next generation Intel Wi-Fi 6 802.11ax adapter. The speed will be working up to 2.4Gbps and it will also natively operate with both 2.4Ghz and 5Ghz simultaneously. Significant improvement in bi-directional MU-MIMO support is another attractive feature as well. - Intel 2.5G LAN
The 2.5G Ethernet configuration were introduced to support higher bandwidth on widely deployed CAT5e and CAT6 cabling in enterprise and metro area networks. The industry's leading Intel LAN always provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users! - Front USB 3.2 Gen2 Type-C
Front USB 3.2 Gen2 Type-C header delivers up to 10 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.
