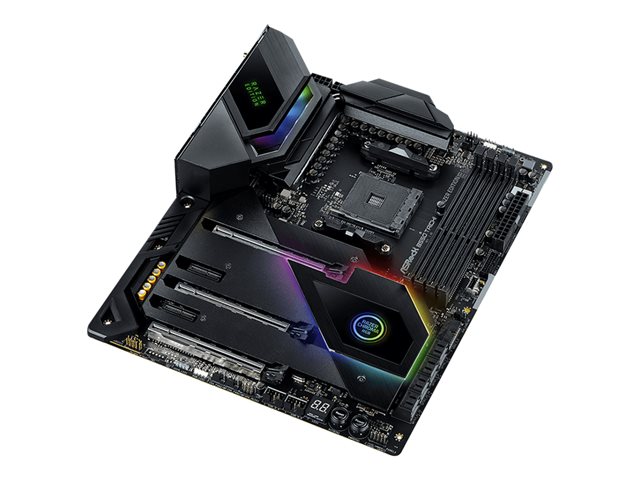

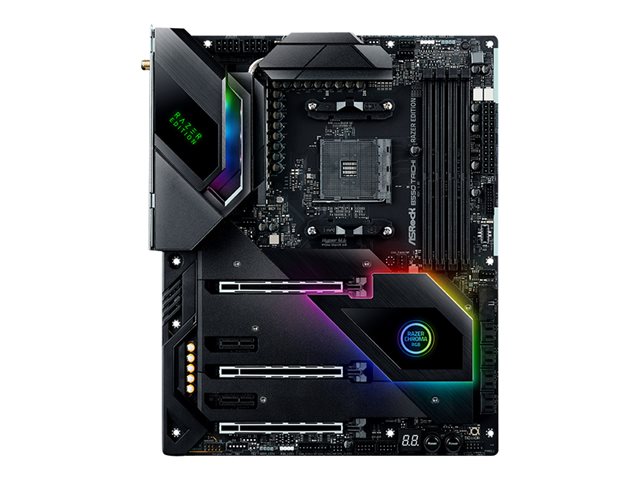

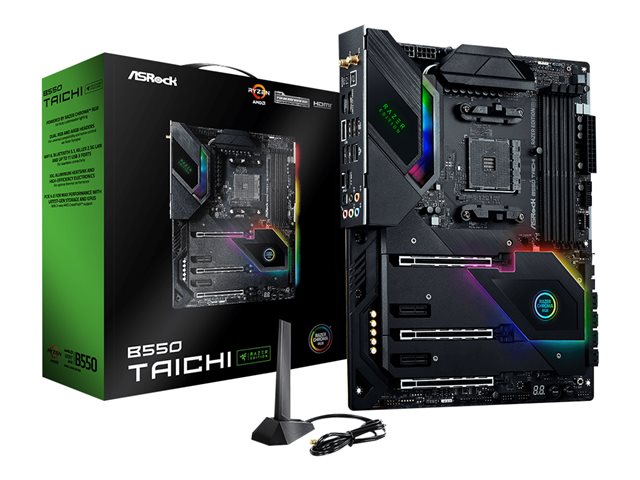

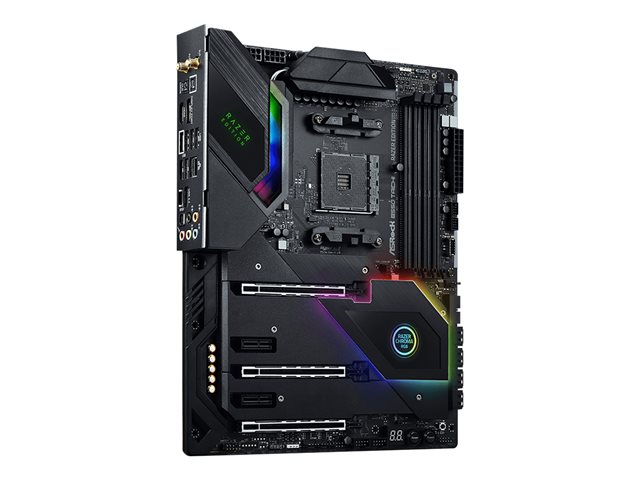

Дънна платка ASROCK B550 TAICHI RAZER EDITION AM4 4x DDR4 3x PCIe 4.0 x16 2x PCIe 3.0 x1 8x SATA3 HDMI DisplayPort 7.1 CH HD Audio ATX MB B550 TAICHI RAZER EDITION
изчерпано
Сокет: AM4
Чипсет: AMD B550
Тип на паметта: DDR4
Физически размер: ATX
Слотове за памет: 4
Честота на паметта: 3200 MHz
Гаранция:
0.0
от 5.0
(0)
Купи и събери
4 точки
Плати по-лесно и сигурно с
Виж всички продукти на Asrock
Пазарувай по марка
Характеристики
| Физически размер | ATX |
| Чипсет | AMD B550 |
| Сокет | AM4 |
| Съвместими процесори | Ryzen (supports Ryzen 3000 Series/ 4000 G-Series/ 5000 Series) |
| BIOS | JumperFree, SMBIOS 2.3 support, UEFI BIOS, ACPI 5.1 support |
| Тип BIOS | AMI |
| Памет |
Two DDR Channels
Небуферирана XMP |
| Тип на паметта | DDR4 |
| Честота на паметта | 3200 MHz |
| Формат на паметта | DIMM 288-pin |
| ECC support | Non-ECC, ECC |
| Memory Registered / Buffered | Unbuffered |
| Слотове за памет | 4 |
| Максимална памет | 128 GB |
| Брой процесорни гнезда | 1 |
| Контролер на съхранението |
Storage Controller:
SATA III-600 (4) Storage Controller: PCI Express 4.0 x4 (1 x M.2 (Key M)) Storage Controller: PCIe/SATA (1 x M.2 (Key M)) |
| Дисков интерфейс | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ASMedia ASM1061: SATA-600 -connectors: 4 x 7pin Serial ATA PCIe 4.0 -connectors: 1 x M.2 SATA-600 / PCIe 4.0 -connectors: 1 x Ultra M.2 |
| LAN порт | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ax, Bluetooth 5.1 |
| LAN standards |
Gigabit Ethernet/Fast Ethernet/Ethernet
2.5 Gbps |
| LAN controller | Killer E3100X / AX1650x |
| Wi-Fi antenna | 2 |
| Wi-Fi | IEEE 802.11ax Wi-Fi 6 |
| Звук | Realtek ALC1200 |
| Звуков изход | HD Audio (8-channel) |
| Аудио стандарти | High Definition Audio, Premium Blu-ray audio support |

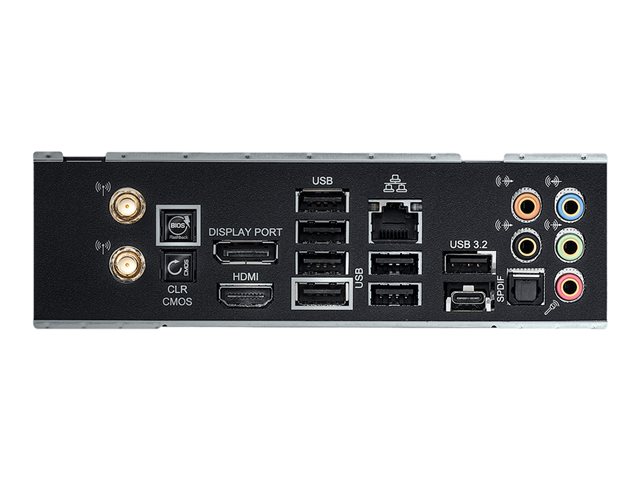

| Портове | 1 x LAN (2.5Gigabit Ethernet) 1 x DisplayPort 1 x HDMI 1 x TOSLINK 2 x USB 2.0 4 x USB 3.2 Gen 1 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x microphone - mini-jack 1 x USB 3.2 Gen 2 1 x USB-C Gen2 1 x audio line-out (center/subwoofer) - mini-jack 1 x audio line-out (rear) - mini-jack |
| Разширителни слотове |
1 x CPU
4 x DIMM 288-pin
3 x PCIe 4.0 x16 (PCIe 4.0 x16
x8/x8 x8/x8/PCIe 3.0 x4 modes (with Ryzen series CPUs Matisse); PCIe 3.0 x16 x8/x8 x8/x8/x4 modes (with Ryzen series CPUs Renoir)) 2 x PCIe 3.0 x1 1 x M.2 socket (2230 M.2 Key E slot) |
| PCI slots | 2x PCI Express 3.0 x1, 3x PCI Express 4.0 x16 |
| Вътрешен интерфейс | 4 x USB 2.0 - header 4 x USB 3.2 Gen 1 - header 1 x audio - header 1 x USB-C Gen2 - header |
| Bluetooth | Bluetooth 5.1 |
| Wake on LAN | Wake on LAN (WOL) |
| Функции | Dual channel memory architecture, AMD Memory Profile (AMP) |
| Софтуер |
Drivers & Utilities
ASRock A-Tuning Antivirus (Trial version) Google Chrome Browser Google ChromeToolbar ASRock Killer LAN Razer Synapse 3 |
| Съвместими операционни системи | Microsoft Windows 10 Pro 64-bit (License) |
| Конектори за захранване | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
| Наблюдение на хардуера |
CPU core temperature
chassis temperature CPU fan tachometer chassis fan tachometer system voltage CPU core voltage |
| Стандарти |
Plug and Play
FCC EuP Ready ErP Ready DisplayPort 1.4 HDCP 2.3 |
| Включени кабели | 4 x Serial ATA cable |
| Аксесоари | ASRock WiFi 2.4/5GHz Antenna, 2 x M.2 screws, screwdriver, 2 x standoff for M.2 socket |
| Височина | 244 мм |
| Ширина | 30.5 cm |
| Дълбочина | 24.4 cm |
| Други характеристики |
ASRock Instant Flash
15µ Gold Contact 16 Phase Power Design AMD CrossFireX technology support AMD Quad CrossFireX technology support AMD 3-way CrossFireX technology support Digi Power Design ESD Protection Gold Plated Audio Hardware Energy Efficient Ethernet 802.3az Preboot eXecution Environment (PXE) Clear CMOS Button Direct Drive Technology ASRock Full Spike Protection ASRock APP Shop ASRock Super Alloy High Density Glass Fabric PCB ASRock Full HD UEFI Dr.MOS MOSFET XXL Aluminum Alloy Heatsink Killer DoubleShot Pro Nahimic Audio Enhacer I/O Armor ASRock Live Update Premium Memory Alloy Choke Nichicon 12K Black Caps Matte Black PCB TI NE5532 Premium Headset Amplifier Premium 60A Power Choke Pure Power-In PCB Isolate Shielding ASRock Ultra USB Power 2oz Copper PCB ASRock Full Coverage M.2 Heatsink ASRock Steel Slot Gen4 ASRock Hyper M.2 |
| Гаранция | 36 месеца |
| Код на продукта | B550 TAICHI RAZER EDITION |
Виж повече
Допълнителна информация
- Unbeatable heatsink armor
Forged with aluminum alloy heatsinnk top cover that effectively improves heat dissipation. Underneath its solid strong cover lie two gaming required M.2 Key M sockets for high speed SSDs. - Dual M.2 sockets for SSD
Hyper M.2 socket that supports PCIe Gen4 x4 while Ultra M.2 socket is capable of running PCIe Gen3 x4 and SATA3 mode. - Metal backplate
Strengthens the motherboard to prevent bending caused by heavy coolers or graphics cards with better airflow and enhanced stability. - Nahimic Audio
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details. - Dr. MOS
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance. - Premium 60A power choke
Compared to traditional chokes, ASRock's premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard. - 2oz copper PCB
2-ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking, it's able to support the latest DDR4 memory modules with most extreme memory performance! - Supports PCIe 4.0 x8/x8 mode
B550 Taichi not only supports the fastest PCIe 4.0 x16 slot for graphics card, but also supports PCIe 4.0 x8/x8 mode. Release the best performance when running a DX12 or Vulkan game that supports multiple GPU's. - Wi-Fi 6 802.11ax
Welcome to the new Wi-Fi standard! ASRock's motherboard equipped with next generation Intel Wi-Fi 6 802.11ax adapter. The speed will be working up to 2.4Gbps and it will also natively operate with both 2.4Ghz and 5Ghz simultaneously. Significant improvement in bi-directional MU-MIMO support is another attractive feature as well. - Intel 2.5G LAN
The 2.5G Ethernet configuration were introduced to support higher bandwidth on widely deployed CAT5e and CAT6 cabling in enterprise and metro area networks. The industry's leading Intel LAN always provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users! - Front USB 3.2 Gen2 Type-C
Front USB 3.2 Gen2 Type-C header delivers up to 10 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.
Виж повече
Информация за производителя
| Контакт | [email protected] |
| Адрес | Bijsterhuizen 11-11 6546 AR Nijmegen |
| Уебсайт | https://www.asrock.com/index.bg.asp |
Виж повече
