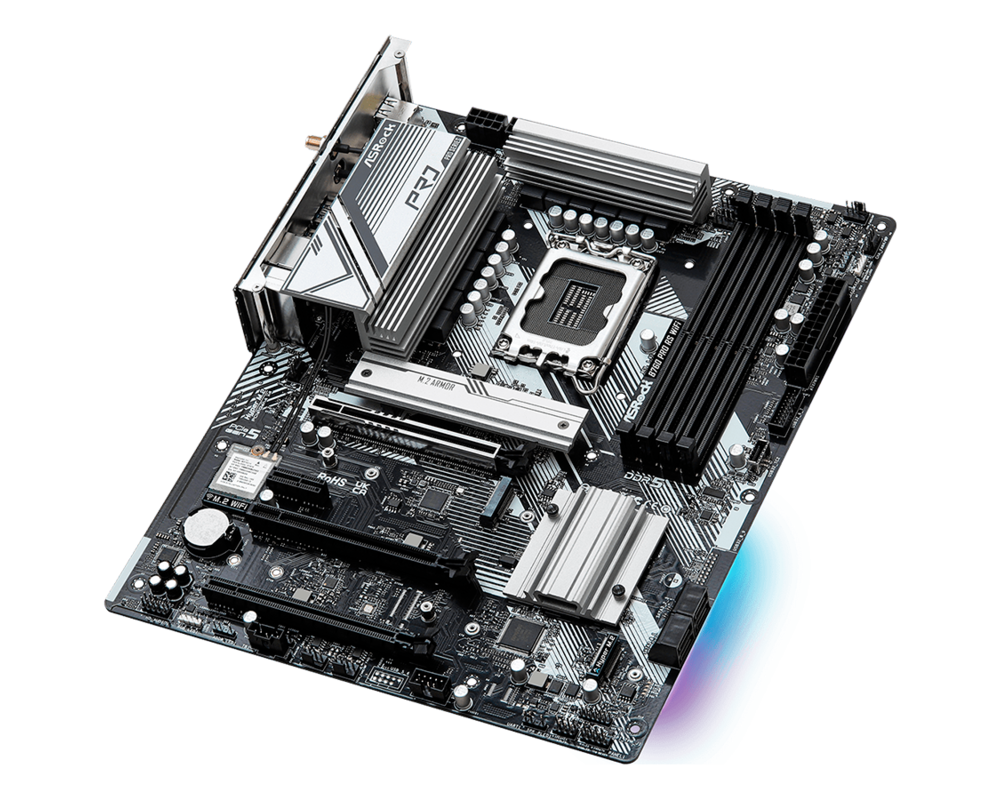

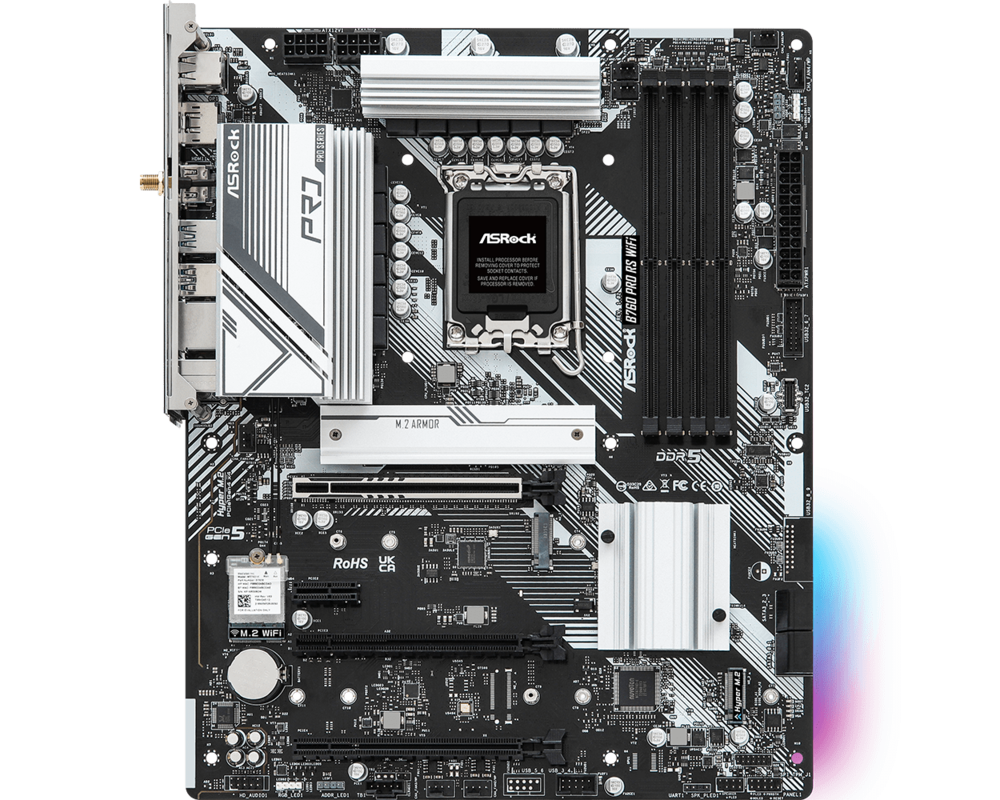

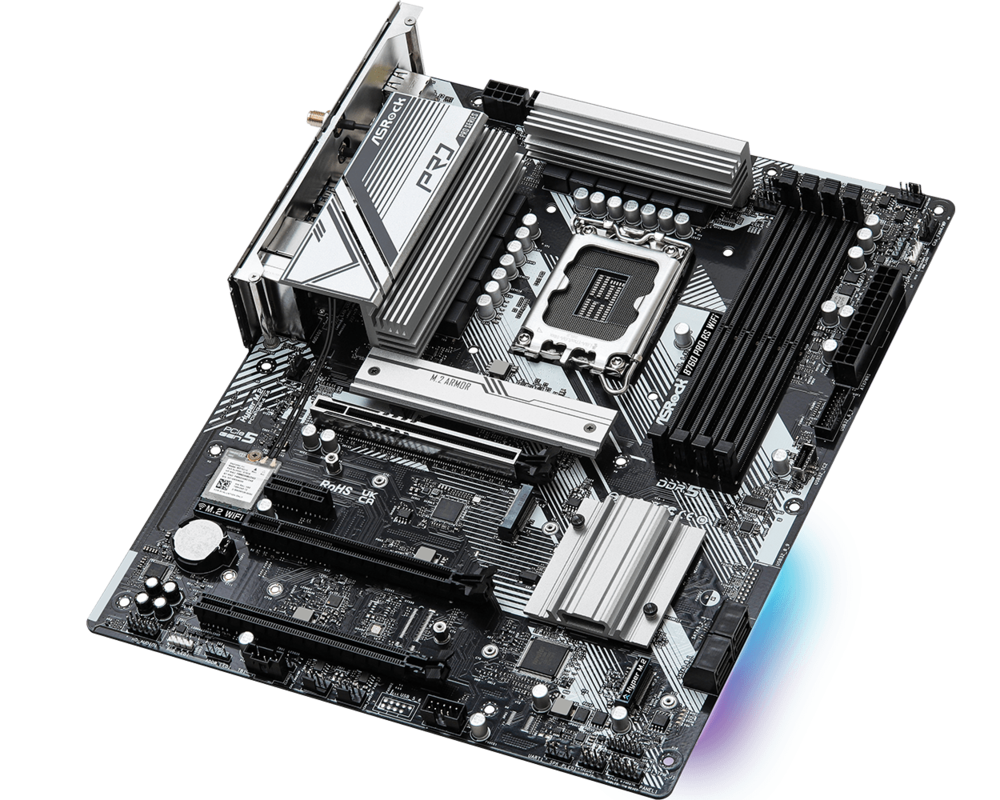

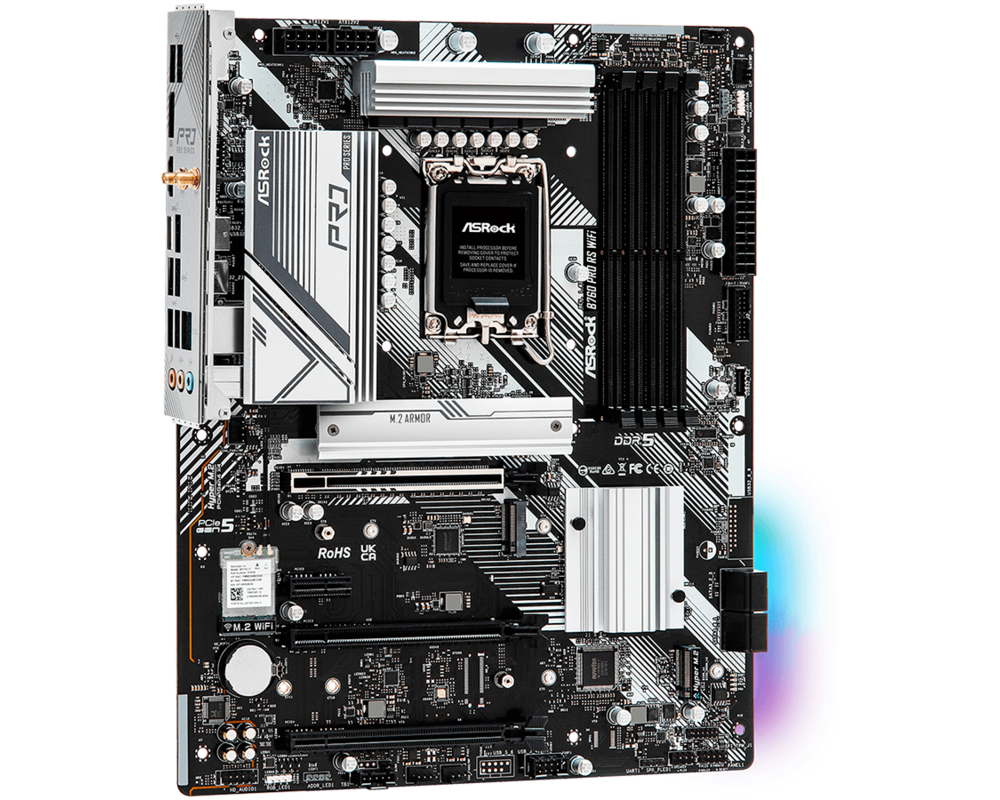

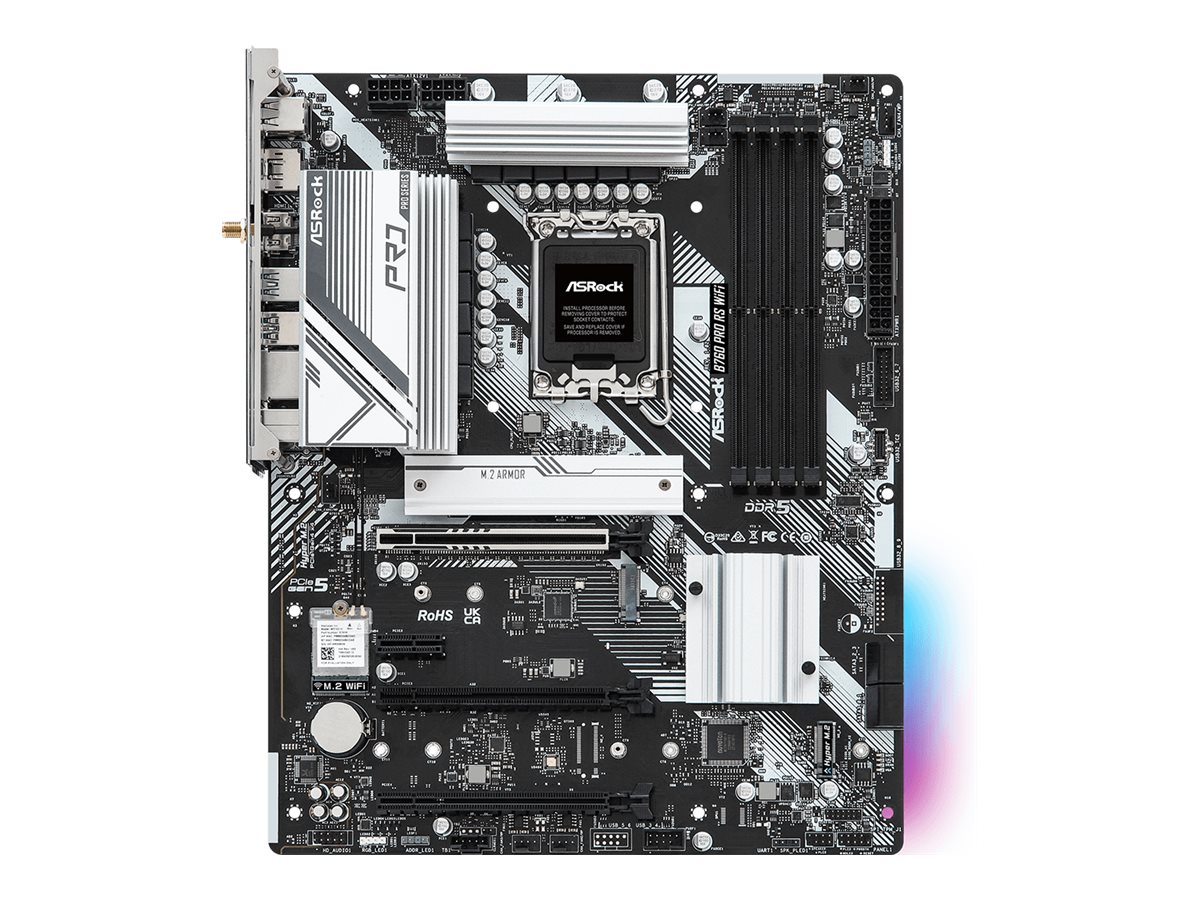

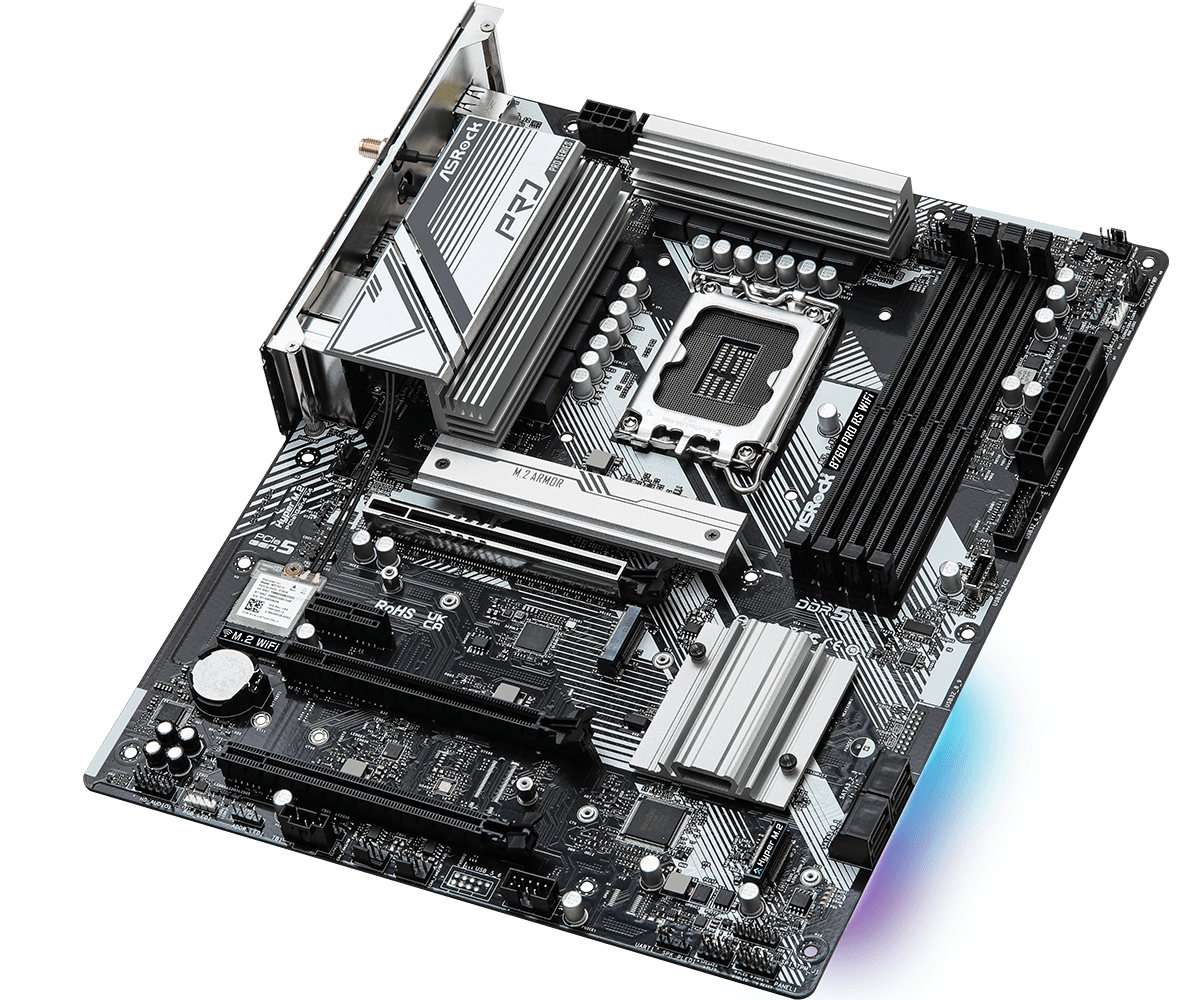

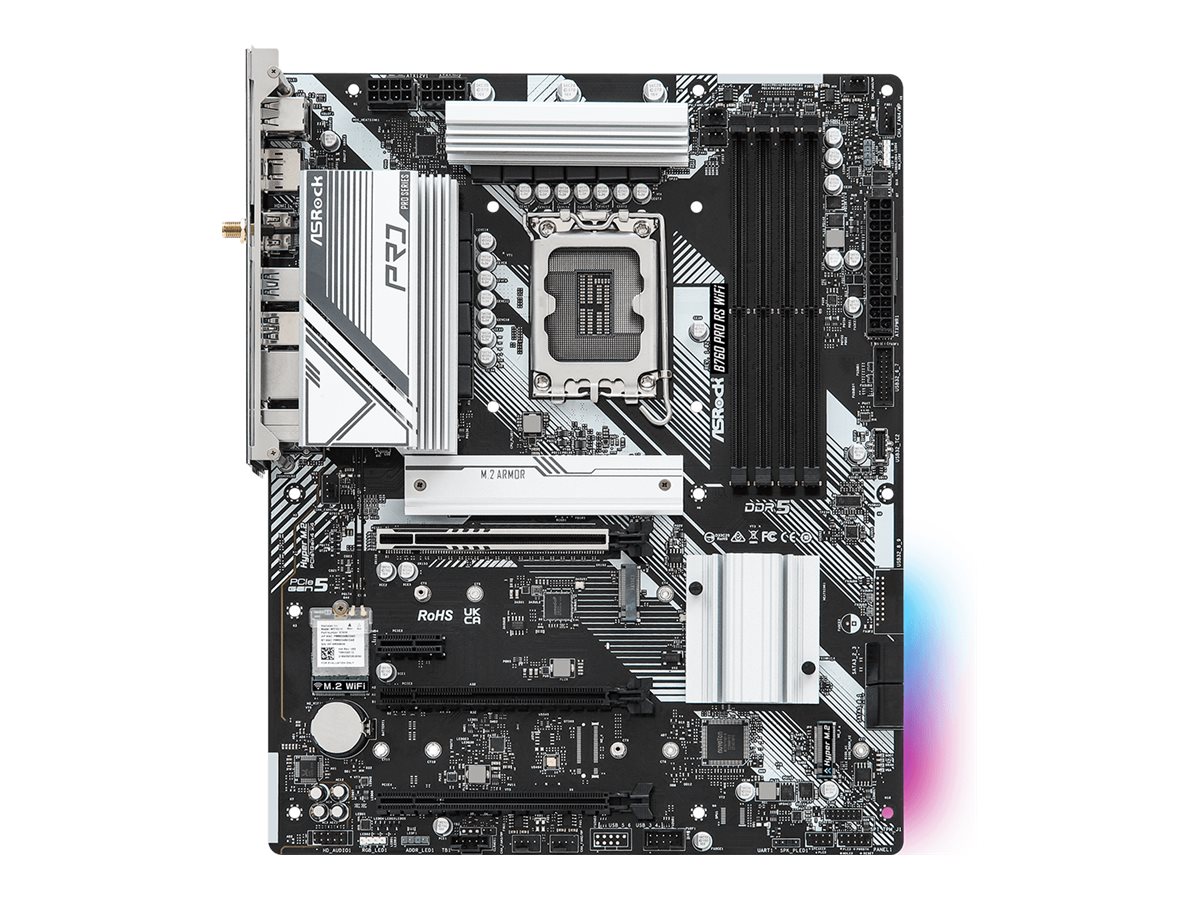

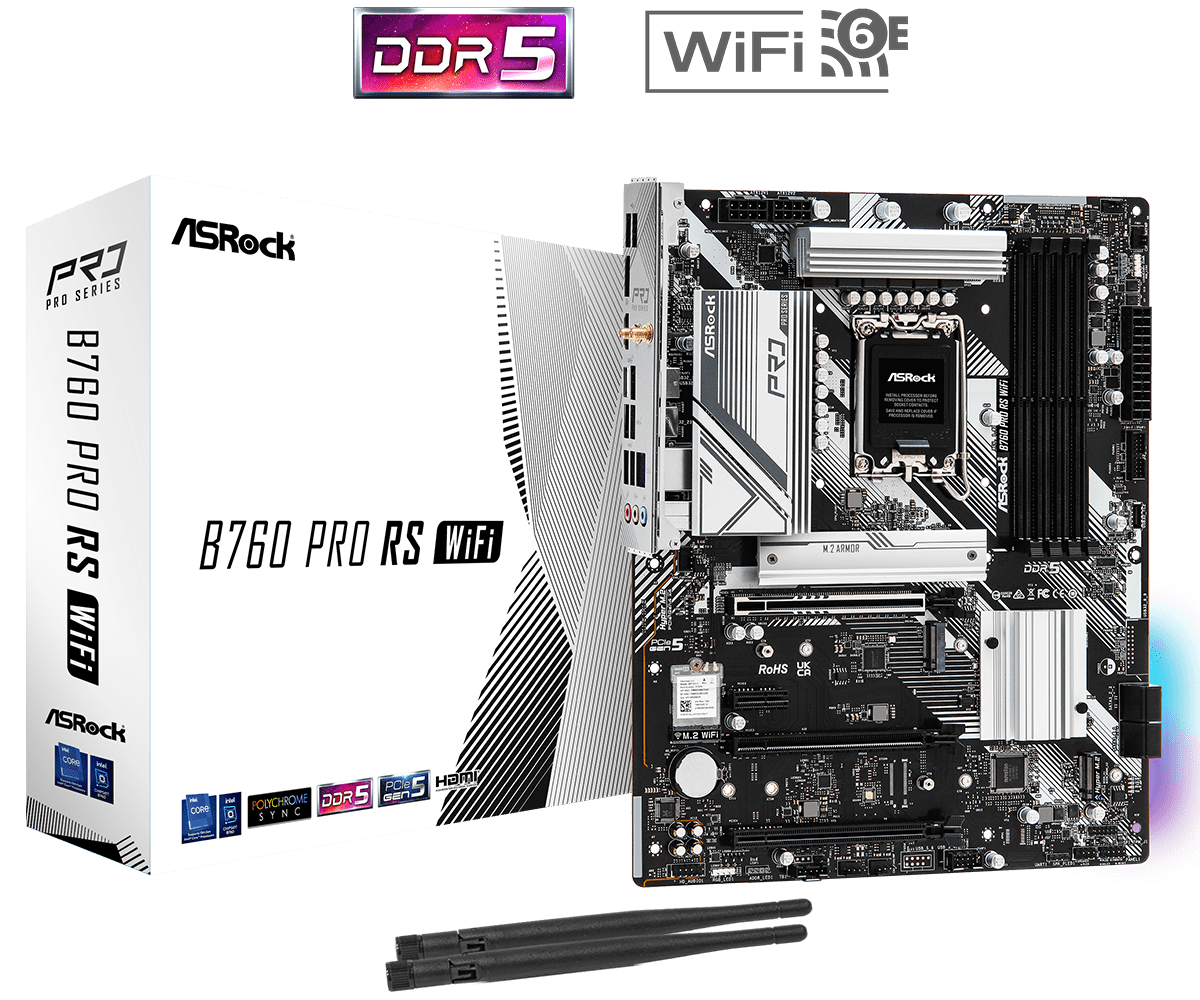

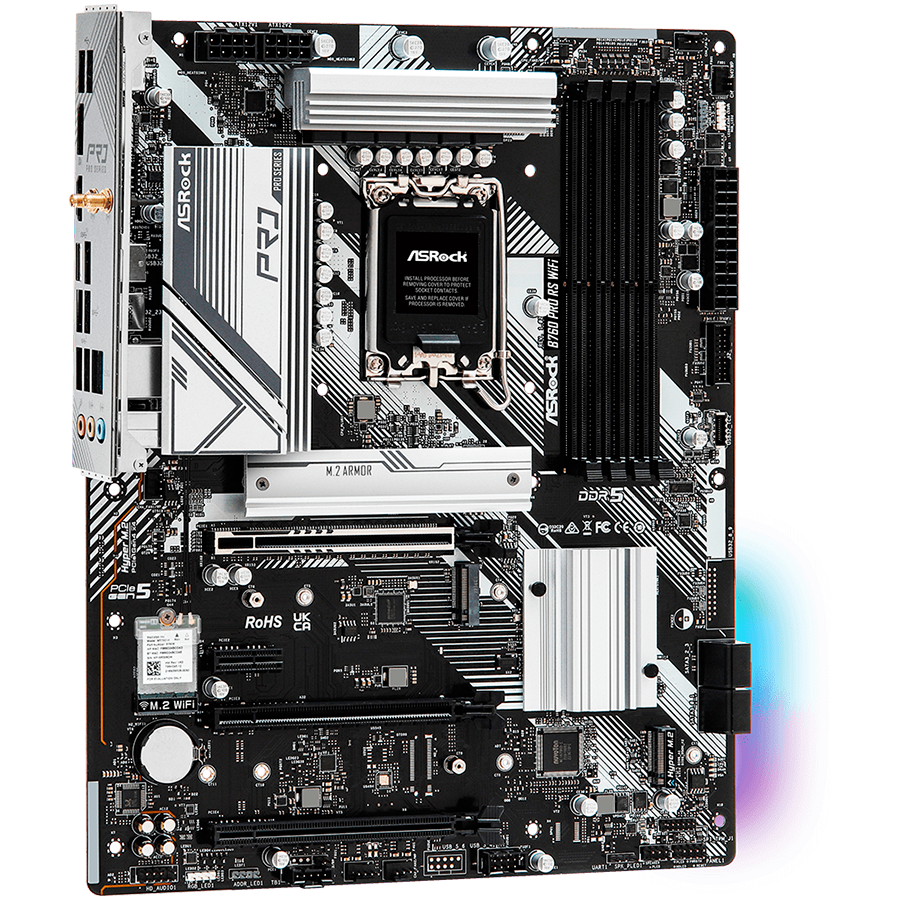

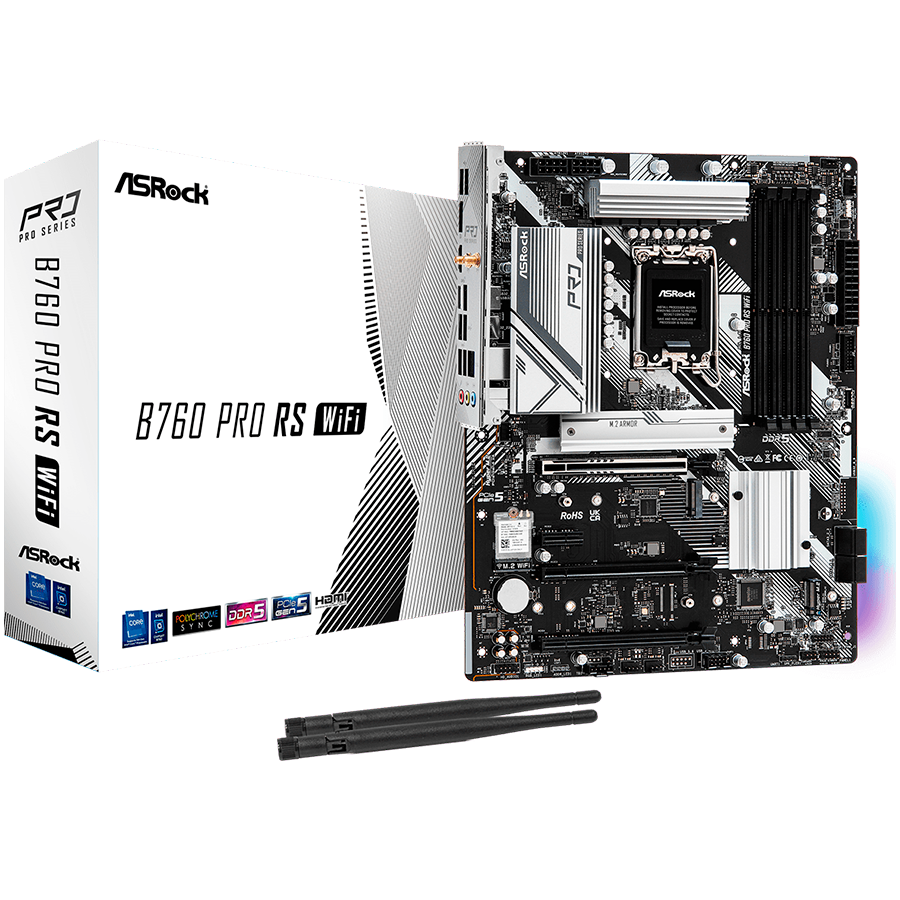

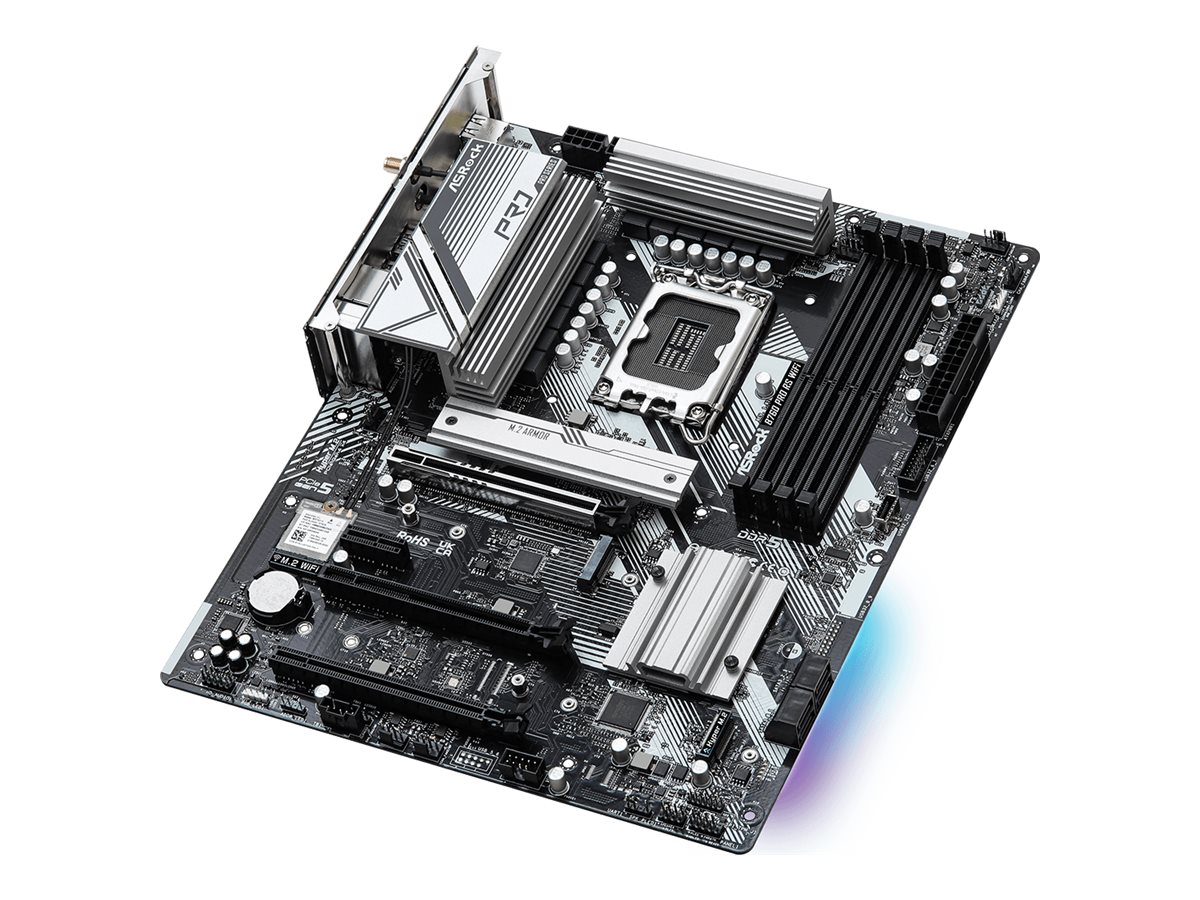

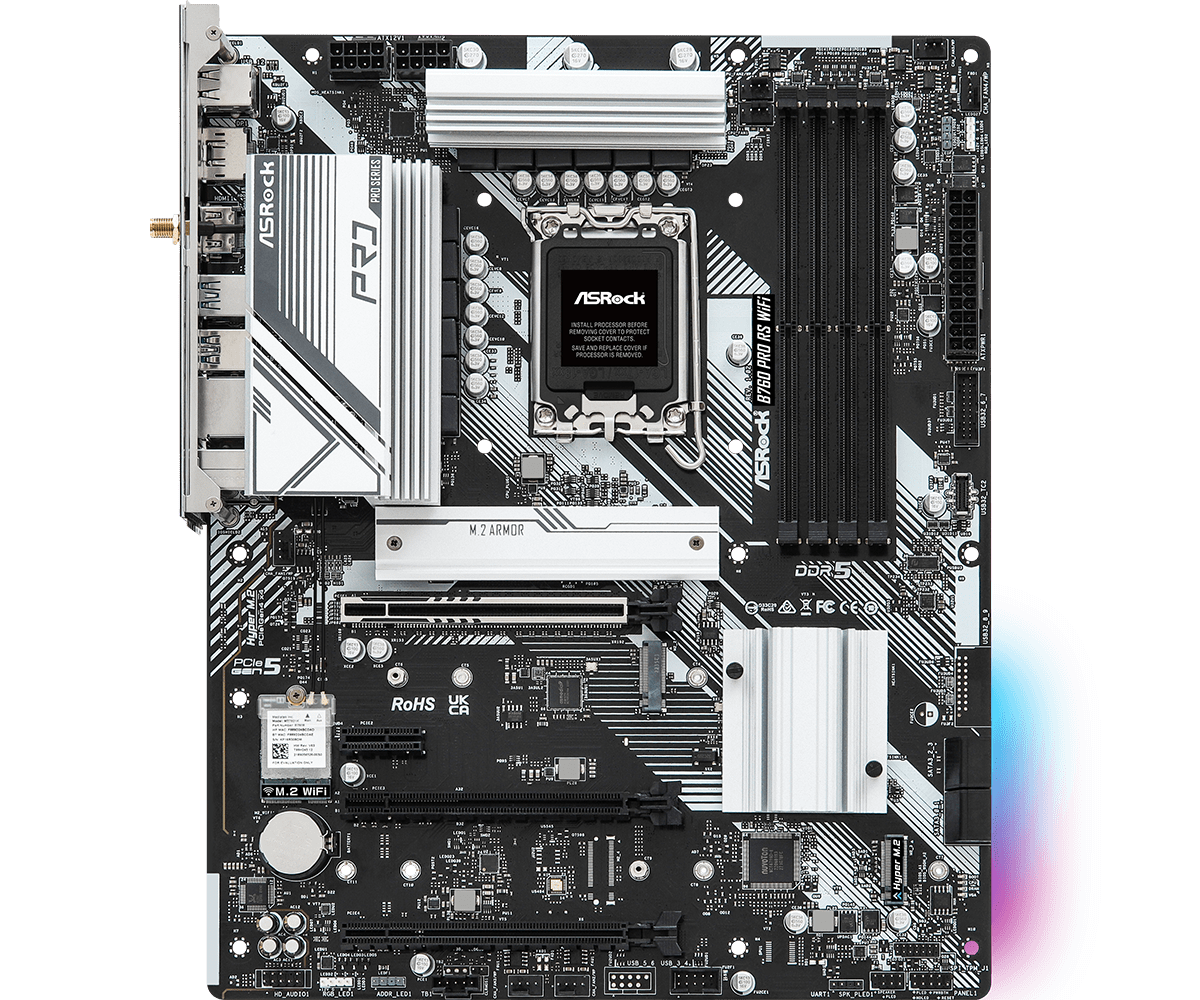

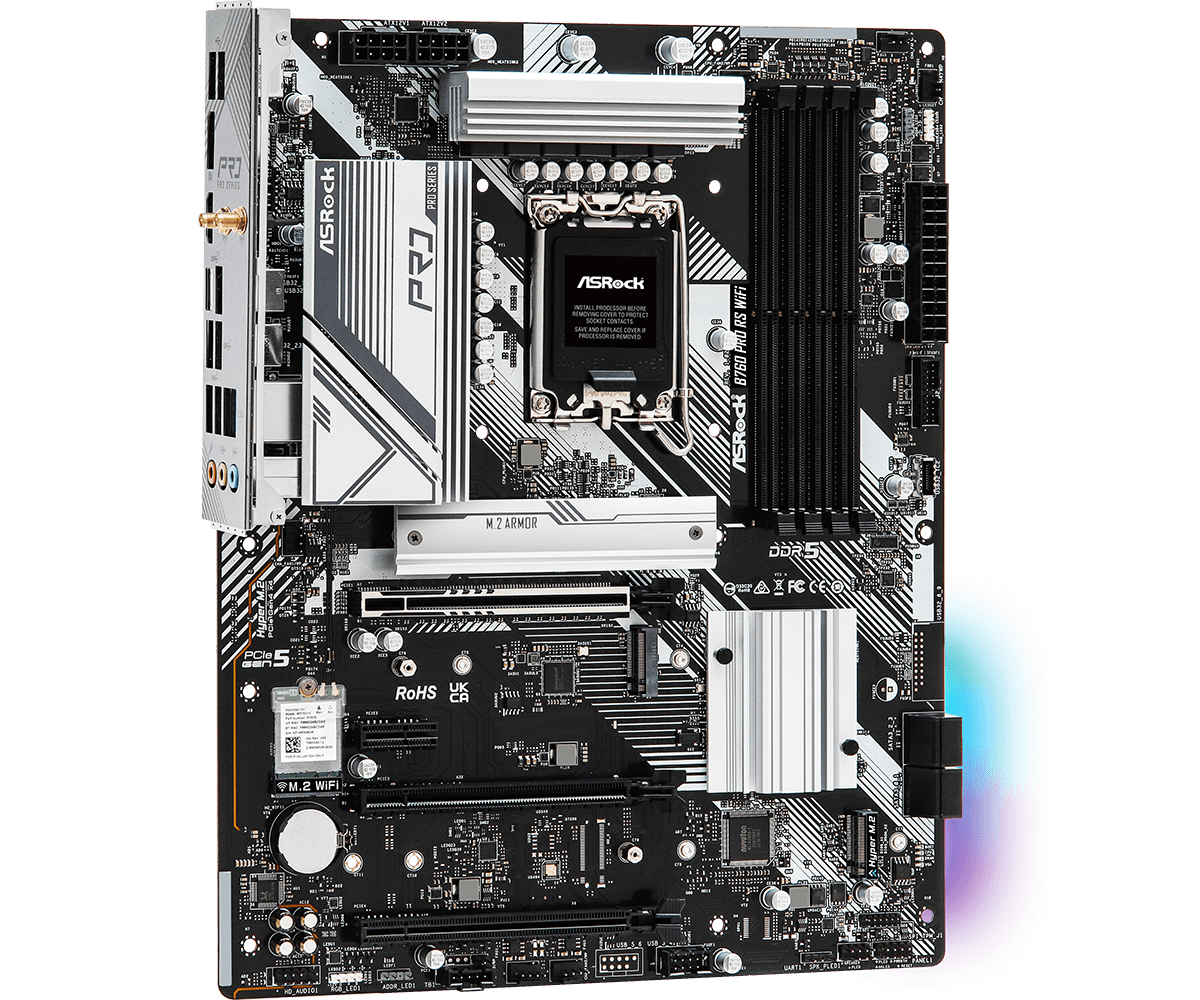

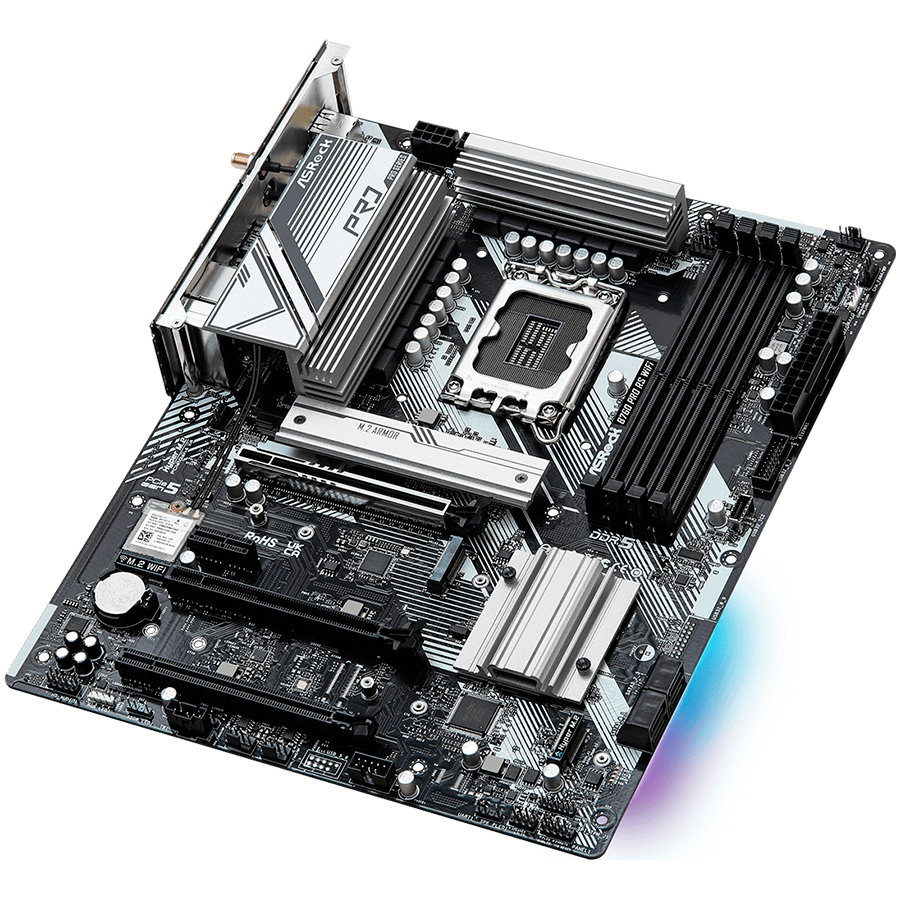

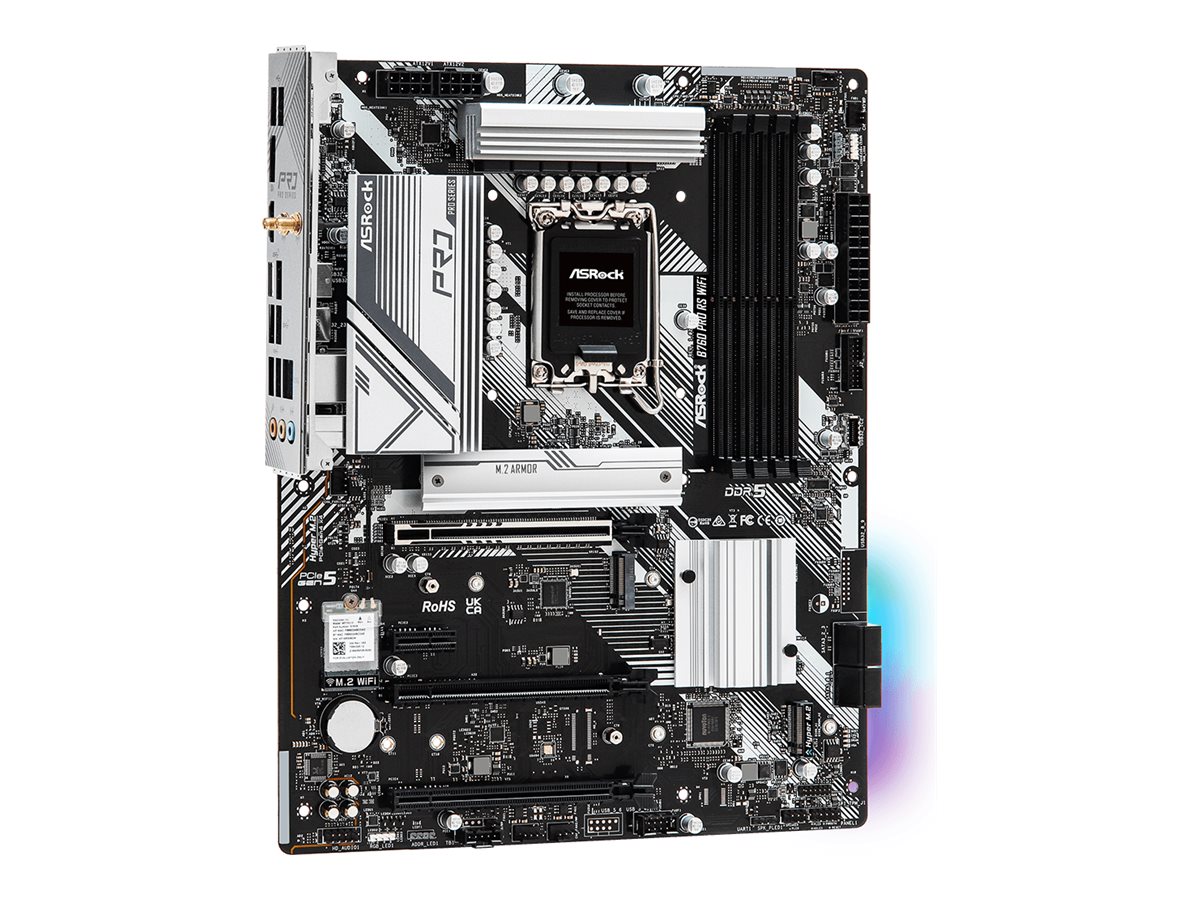

Дънна платка ASROCK B760 PRO RS WIFI /D5 B760 PRO RS WIFI
изчерпано
Сокет: LGA 1700
Чипсет: Intel B760
Тип на паметта: DDR5
Физически размер: ATX
Слотове за памет: 4
Честота на паметта: 4800 MHz
Гаранция:
0.0
от 5.0
(0)
Купи и събери
2 точки
Плати по-лесно и сигурно с
Виж всички продукти на Asrock
Пазарувай по марка
Характеристики
| Физически размер | ATX |
| Чипсет | Intel B760 |
| Сокет | LGA 1700 |
| Съвместими процесори | (supports 12th and 13th Generation Intel Core) |
| BIOS | 128Mb AMI UEFI Legal BIOS with GUI support |
| Тип BIOS | AMI |
| Памет |
Two DDR Channels
Небуферирана XMP 3.0 |
| Тип на паметта | DDR5 |
| Честота на паметта | 4800 MHz |
| Формат на паметта | DIMM 288-pin |
| ECC support | Non-ECC |
| Memory Registered / Buffered | Unbuffered |
| Слотове за памет | 4 |
| Максимална памет | 192 GB |
| Слотове |
CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1)
supports x16 mode; Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE3) supports x4 mode; - 1 x PCIe 3.0 x16 Slot (PCIE4) supports x1 mode; - 1 x PCIe 3.0 x1 Slot (PCIE2); - 1 x M.2 Socket (Key E) supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT); - Supports AMD CrossFire™ |
| Брой процесорни гнезда | 1 |
| Видео | Intel® Xe Graphics Architecture (Gen 12); - 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz; - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz; - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz |
| Контролер на съхранението |
Storage Controller:
Supports: Ниво 0, Ниво 1, Ниво 10, Ниво 5 SATA III-600 (4) Storage Controller: PCI Express 4.0 x4 (2 x M.2 (Key M)) Storage Controller: PCI Express 4.0 x2 (1 x M.2 (Key M)) |
| Дисков интерфейс |
CPU: - 1 x Hyper M.2 Socket (M2_1
Key M) supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode; Chipset: - 1 x M.2 Socket (M2_2 Key M) supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode; - 1 x Hyper M.2 Socket (M2_3 Key M) supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode; - 4 x SATA3 6.0 Gb/s Connectors |
| LAN порт | 2.5 Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax (Wi-Fi 6E) |
| LAN standards |
Gigabit Ethernet/Fast Ethernet/Ethernet
2.5 Gbps |
| LAN controller | Dragon RTL8125BG |
| Wi-Fi antenna | 2 |
| Wi-Fi | IEEE 802.11ax Wi-Fi 6E |
| Звук | Realtek ALC897 |
| Звуков изход | HD Audio (8-channel) |
| Аудио стандарти | High Definition Audio |

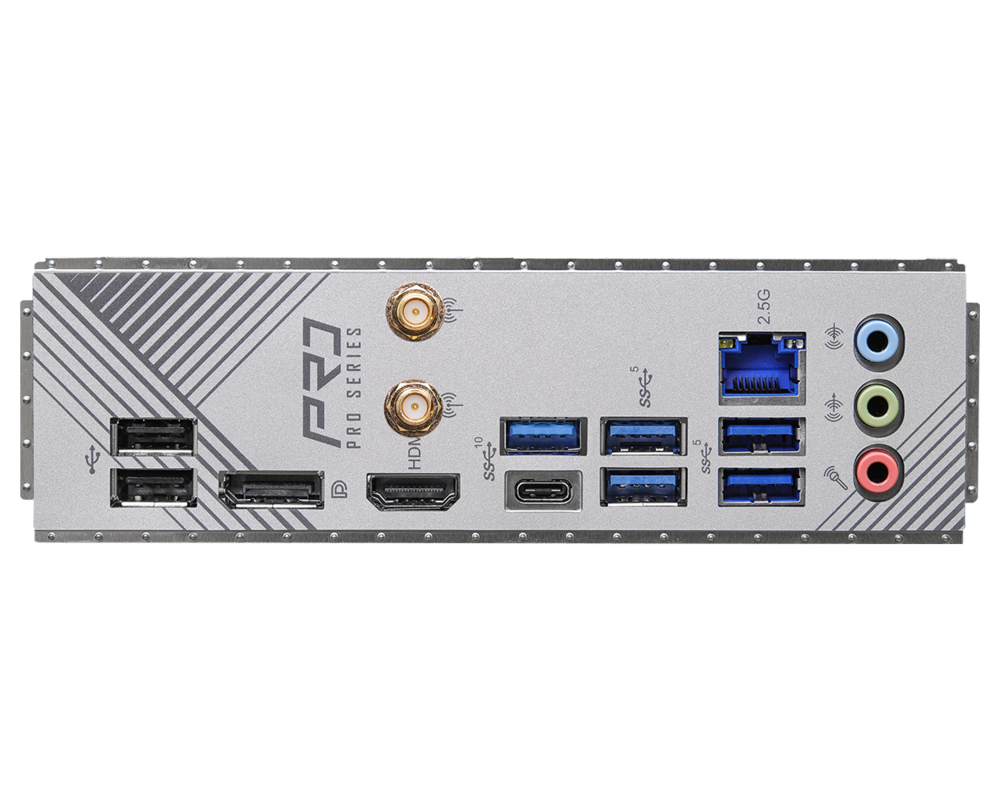

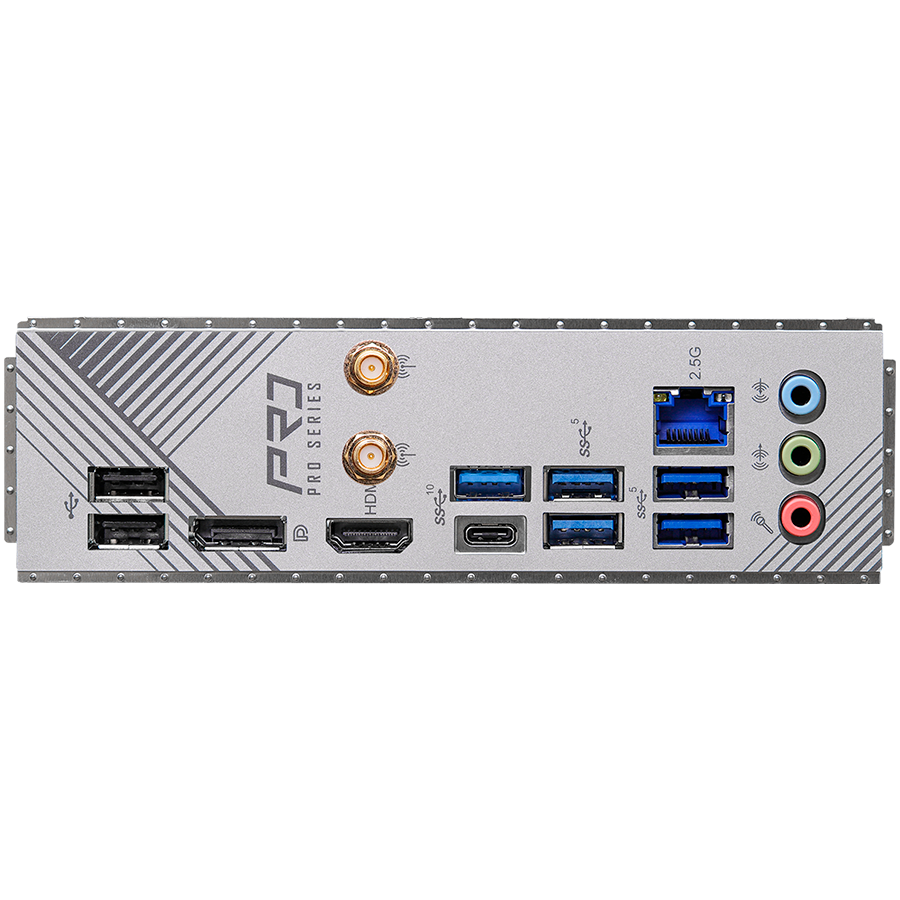

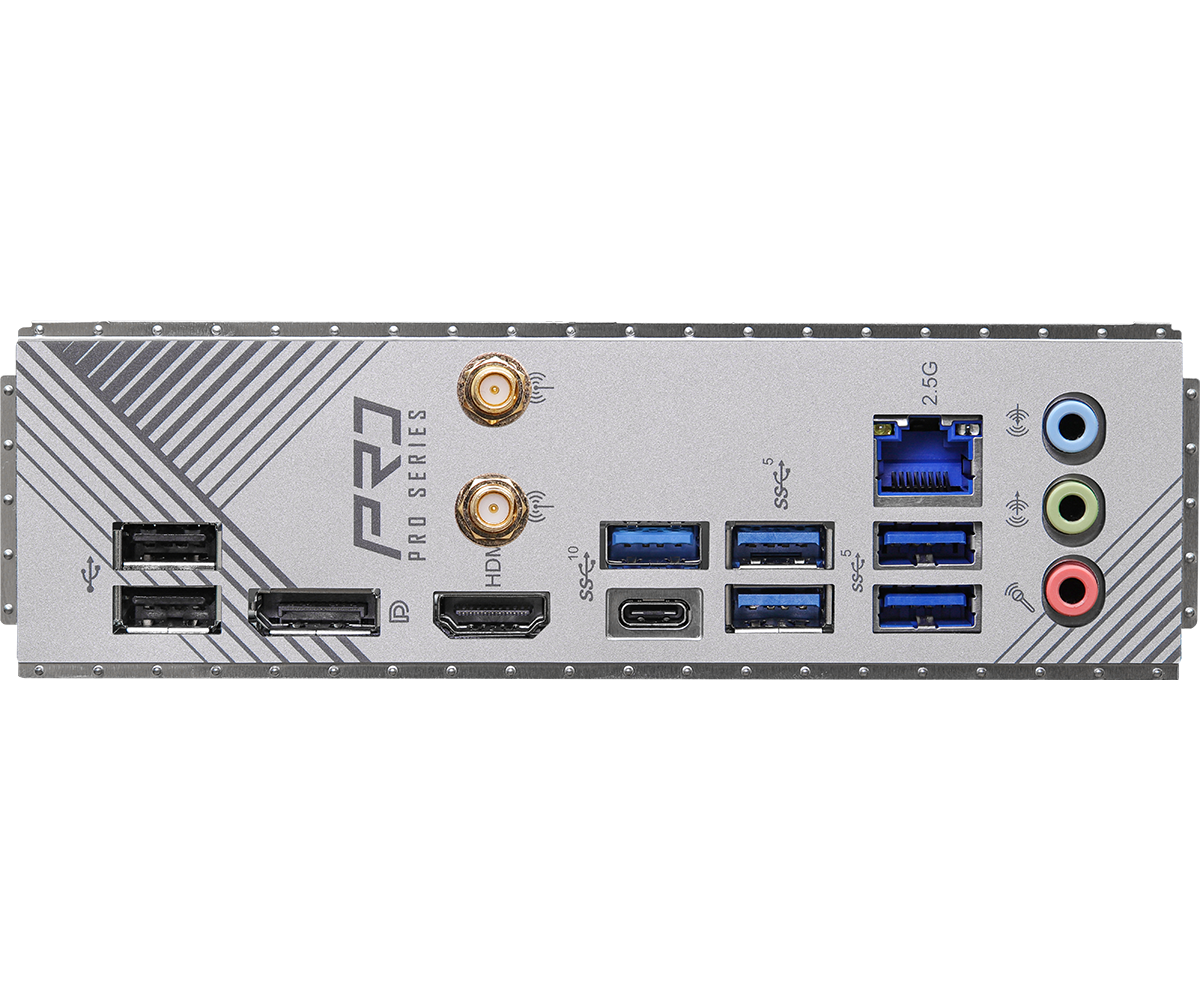

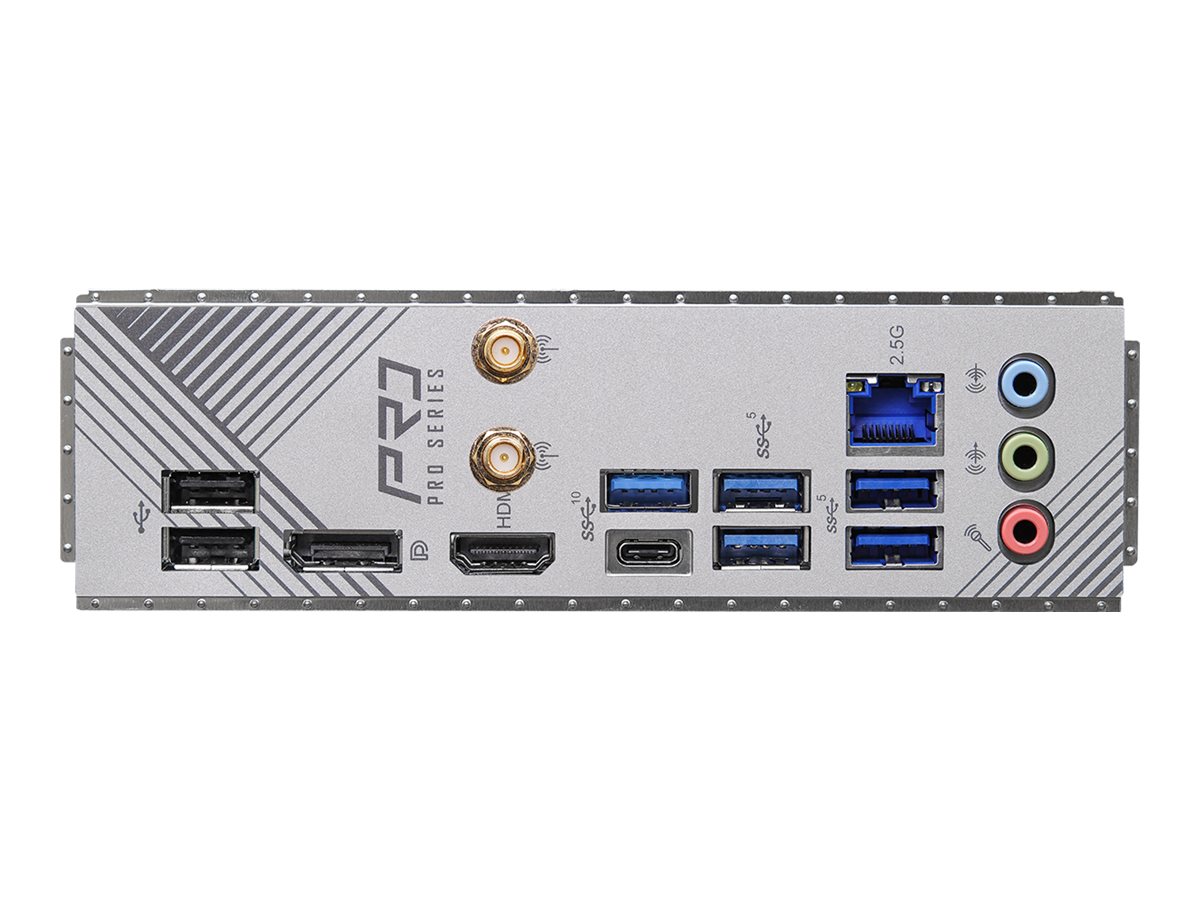

| Портове | 1 x HDMI 1 x DisplayPort 1 x USB 3.2 Gen 2 1 x USB-C 3.2 Gen 2 4 x USB 3.2 Gen 1 2 x USB 2.0 1 x LAN (2.5Gigabit Ethernet) 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x microphone - mini-jack 2 x aerial |
| Разширителни слотове |
1 x CPU
4 x DIMM 288-pin 1 x PCIe 5.0 x16 1 x PCIe 4.0 x16 (x4 mode) 1 x PCIe 3.0 x16 (x1 mode) 1 x PCIe 3.0 x1 1 x M.2 socket (2230 M.2 Key E slot) 3 x M.2 socket (2260/2280 M.2 Key M slot) |
| PCI slots | 1x PCI Express 3.0 x1, 1x PCI Express 3.0 x16, 1x PCI Express 4.0 x16, 1x PCI Express 5.0 x16 |
| Вътрешен интерфейс | 1 x USB-C 3.2 Gen 2 - header 2 x USB 3.2 Gen 1 - header 2 x USB 2.0 - header 1 x Embedded DisplayPort (eDP) - header 1 x SPI - header 1 x speaker - header 1 x audio - header 1 x Thunderbolt - header |
| Bluetooth | Bluetooth 5.3 |
| Функции | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 3.0 |
| Софтуер | ASRock A-Tuning, ASRock Dragon 2.5G LAN Software |
| Съвместими операционни системи |
Microsoft Windows 10 64-bit
Microsoft Windows 11 64-bit |
| Конектори | 1 x eDP Signal Connector; - 1 x SPI TPM Header; - 1 x Power LED and Speaker Header; - 2 x RGB LED Headers; - 2 x Addressable LED Headers; - 1 x CPU Fan Connector (4-pin); - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control); - 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control); - 1 x 24 pin ATX Power Connector; - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector); - 1 x Front Panel Audio Connector; - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card); - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports); - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports); - 1 x Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s) |
| Конектори за захранване | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
| Стандарти |
FCC
EuP Ready ErP Ready DisplayPort 1.4 HDCP 2.3 |
| Включени кабели | 2 x Serial ATA cable |

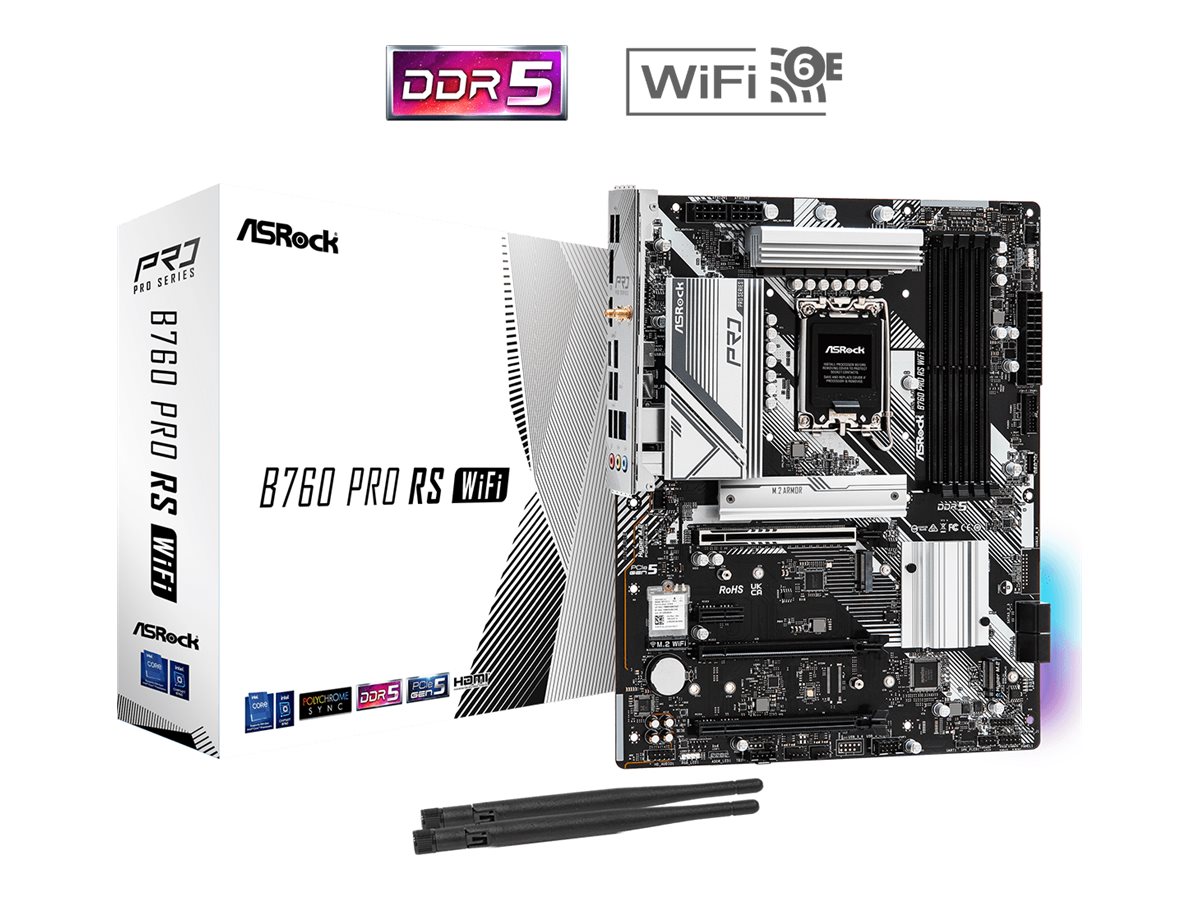

| Аксесоари | 4 x M.2 screws, standoff for M.2 socket, 2 x ASRock WiFi 2.4/5/6 GHz Antennas |
| Височина | 244 мм |
| Ширина | 30.5 cm |
| Дълбочина | 24.4 cm |
| Други характеристики |
ESD Protection
ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Easy RAID Installer Dr.MOS MOSFET ASRock EZ Mode ASRock RGB LED Hi-Density Power Connectors pre-mounted I/O shield Intel Turbo Boost Max Technology 3.0 ASRock POST Status Checker (PSC) reinforced PCIe slots Surface Mount Technology (SMT) Intel Hybrid Technology ASRock Auto Driver Installer 10+1+1 Phase Power Design ASRock 13.3" Side Panel Kit support Intel Adaptive Boost Technology (ABT) Intel Thermal Velocity Boost (TVB) 50A Power Stage |
| Гаранция | 36 месеца |
| Код на продукта | B760 PRO RS WIFI |
Виж повече
Допълнителна информация
- Dr. MOS
Dr. MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance. - 10 + 1 + 1 power phase design
Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers. - 6 layer PCB
The 6 layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the advanced memory modules with most extreme memory performance! - DDR5 XMP and EXPO support
Derived from the "built for stable and reliable" designing concept, ASRock does not compromise on any details. This motherboards is built with low-loss materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel XMP/AMD EXPO capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all. - DDR5 memory with protection circuit
Due to the unique electrical architecture of DDR5 DIMM, there's a high risk of damaging the memory module if AC power isn't disconnected properly during removal or installation. To prevent this, ASRock has implemented a trouble free protection circuit on every DDR5 motherboard, lowers the risk of damaging your memory module. - PCIe 5.0 + surface-mount tech
Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the advanced PCIe 5.0 standard. The advanced PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128 GBps, ready to unleash the full potential of future high end graphic cards. - Audio that matters
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.
