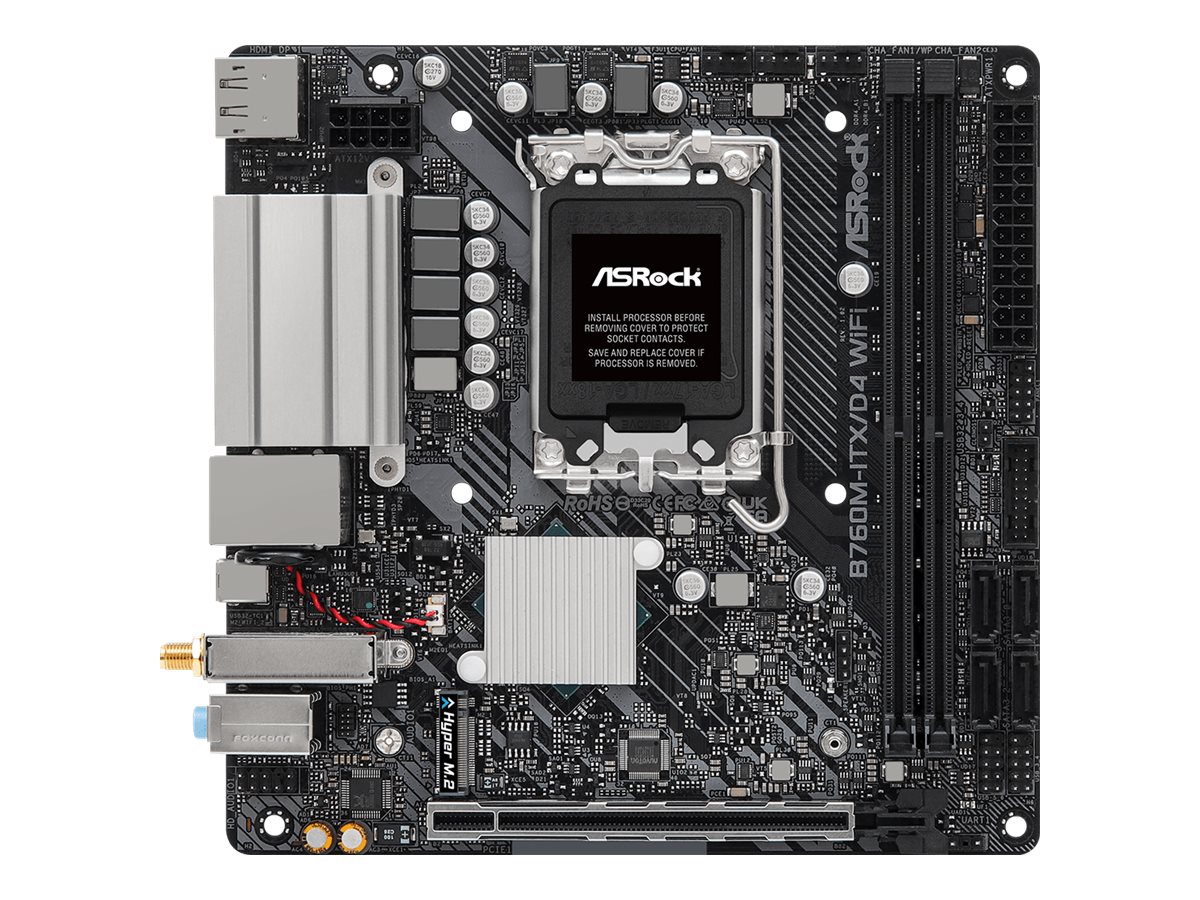

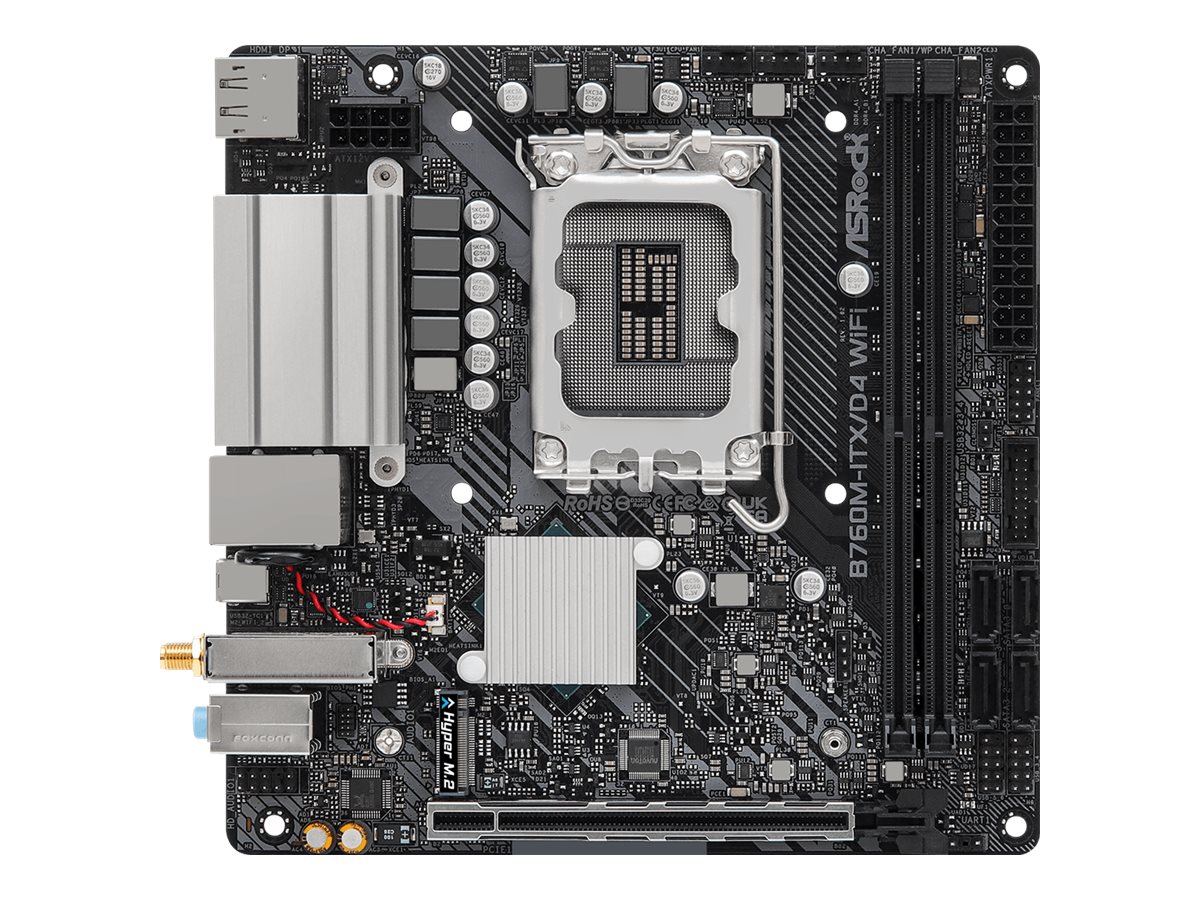

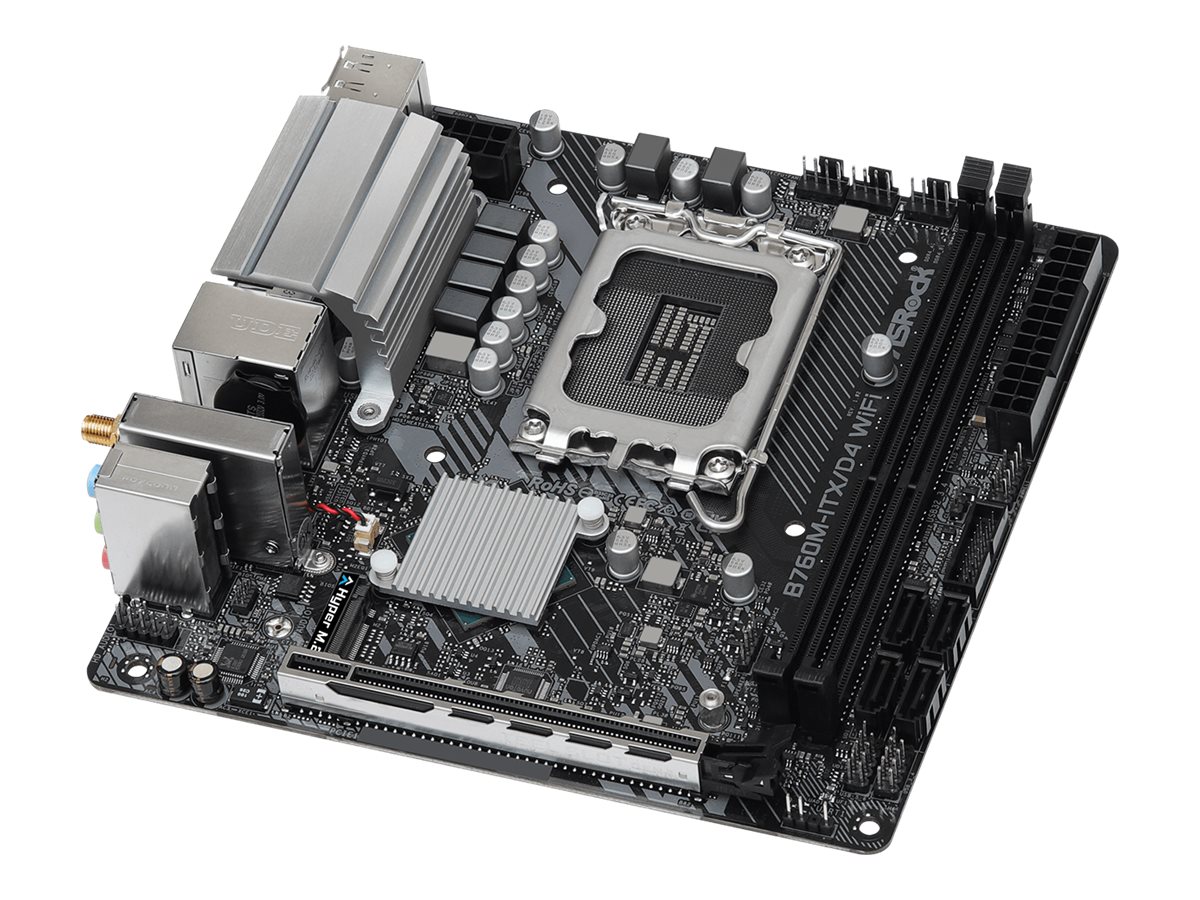

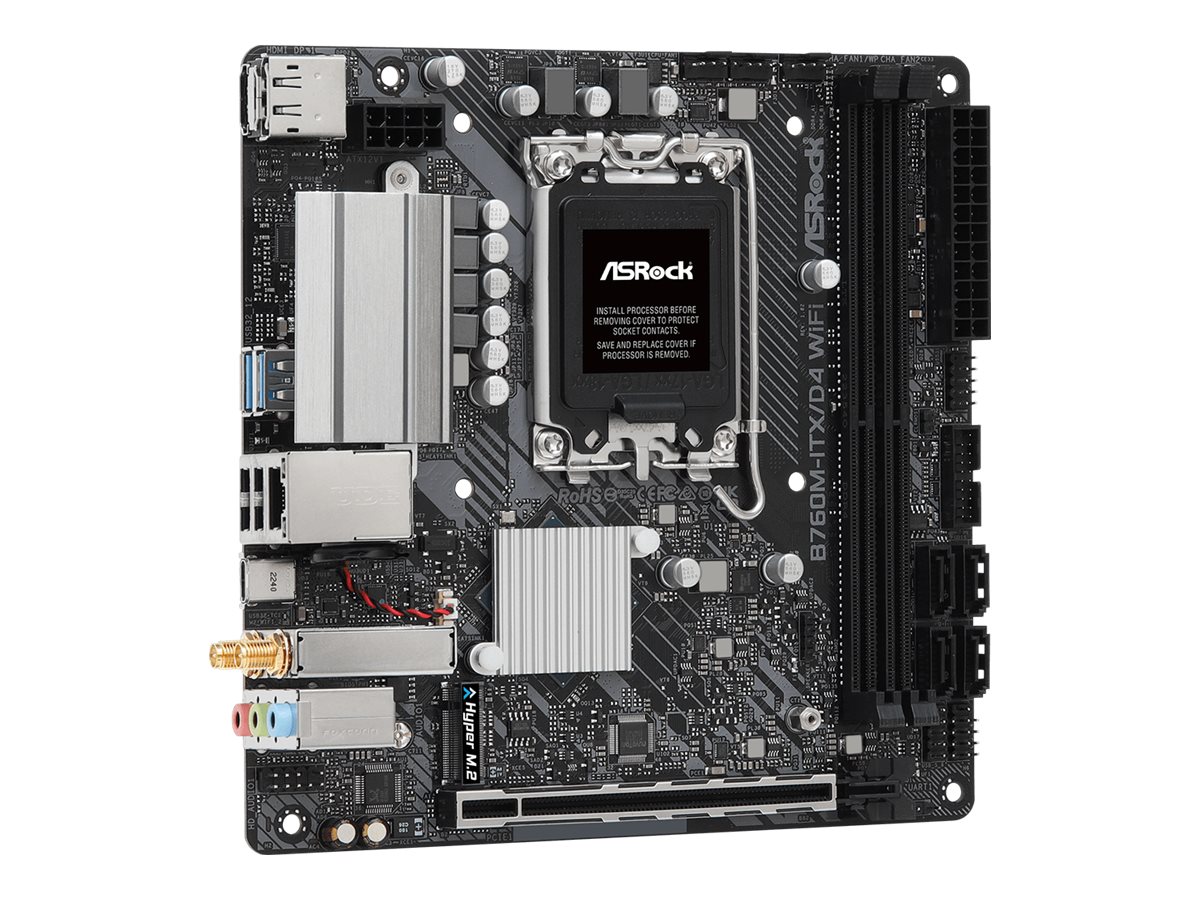

Дънна платка ASROCK B760M-ITX B760M-ITX/D4 WIFI
изчерпано
Сокет: LGA 1700
Чипсет: Intel B760
Тип на паметта: DDR4
Физически размер: Mini-ITX
Слотове за памет: 2
Честота на паметта: 3200 MHz
Гаранция:
0.0
от 5.0
(0)
Купи и събери
2 точки
Плати по-лесно и сигурно с
Виж всички продукти на Asrock
Пазарувай по марка
Характеристики
| Физически размер | Mini-ITX |
| Чипсет | Intel B760 |
| Сокет | LGA 1700 |
| Съвместими процесори | (supports 12th and 13th Generation Intel Core) |
| BIOS | UEFI BIOS |
| Тип BIOS | AMI |
| Памет |
Two DDR Channels
Небуферирана XMP 2.0 |
| Тип на паметта | DDR4 |
| Честота на паметта | 3200 MHz |
| Формат на паметта | DIMM 288-pin |
| ECC support | Non-ECC, ECC (operate in non-ECC mode) |
| Memory Registered / Buffered | Unbuffered |
| Слотове за памет | 2 |
| Максимална памет | 64 GB |
| Брой процесорни гнезда | 1 |
| Контролер на съхранението |
Storage Controller:
Supports: Ниво 0, Ниво 1, Ниво 10, Ниво 5 SATA III-600 (4) Storage Controller: PCI Express 4.0 x4 (1 x M.2 (Key M)) |
| Дисков интерфейс | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -connectors: 1 x M.2 |
| LAN порт | Bluetooth, Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E) |
| LAN standards | Gigabit Ethernet/Fast Ethernet/Ethernet |
| LAN controller | Realtek RTL8111H |
| Wi-Fi antenna | 2 |
| Wi-Fi | IEEE 802.11ax Wi-Fi 6E |
| Звук | Realtek ALC897 |
| Звуков изход | HD Audio (8-channel) |
| Аудио стандарти | High Definition Audio |

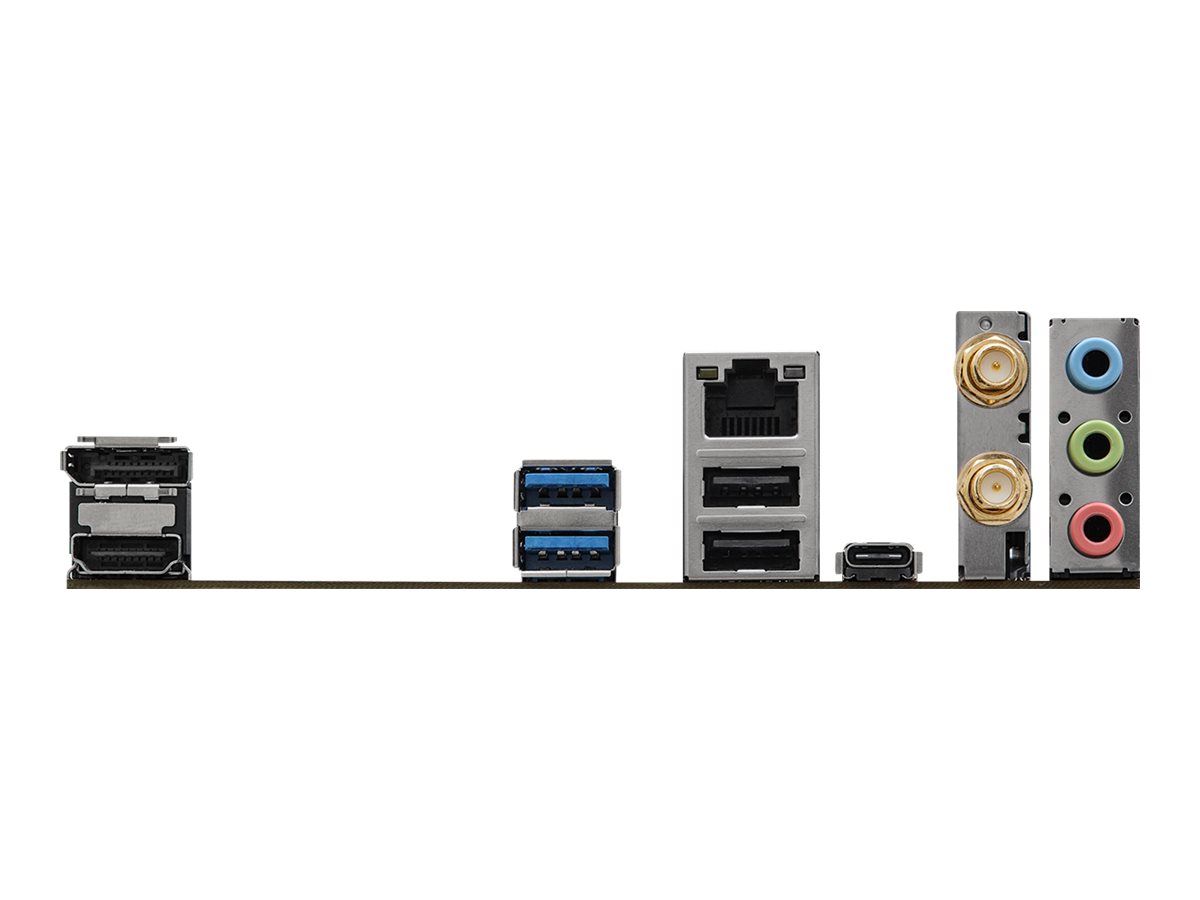

| Портове | 2 x aerial 1 x HDMI 1 x DisplayPort 1 x USB-C 3.2 Gen2x2 2 x USB 3.2 Gen 1 2 x USB 2.0 1 x LAN (Gigabit Ethernet) 1 x audio line-out - mini-jack 1 x microphone - mini-jack 1 x audio line-in - mini-jack |
| Разширителни слотове | 1 x CPU 2 x DIMM 288-pin 1 x PCIe 4.0 x16 1 x M.2 socket (2230 M.2 Key E slot) 1 x M.2 socket (2280 M.2 Key M slot) |
| PCI slots | 1x PCI Express 4.0 x16 |
| Вътрешен интерфейс | 2 x USB 3.2 Gen 1 - header, 4 x USB 2.0 - header, 1 x audio - header |
| Bluetooth | Да |
| Функции | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 2.0, supported ECC modules operate in non-ECC mode |
| Софтуер | ASRock A-Tuning, ASRock XFast LAN |
| Съвместими операционни системи |
Microsoft Windows 10 64-bit
Microsoft Windows 11 64-bit |
| Конектори за захранване | 24-pin main power connector, 8-pin ATX12V connector |
| Стандарти |
FCC
EuP Ready ErP Ready DisplayPort 1.4 HDCP 2.3 |
| Включени кабели | 2 x Serial ATA cable |

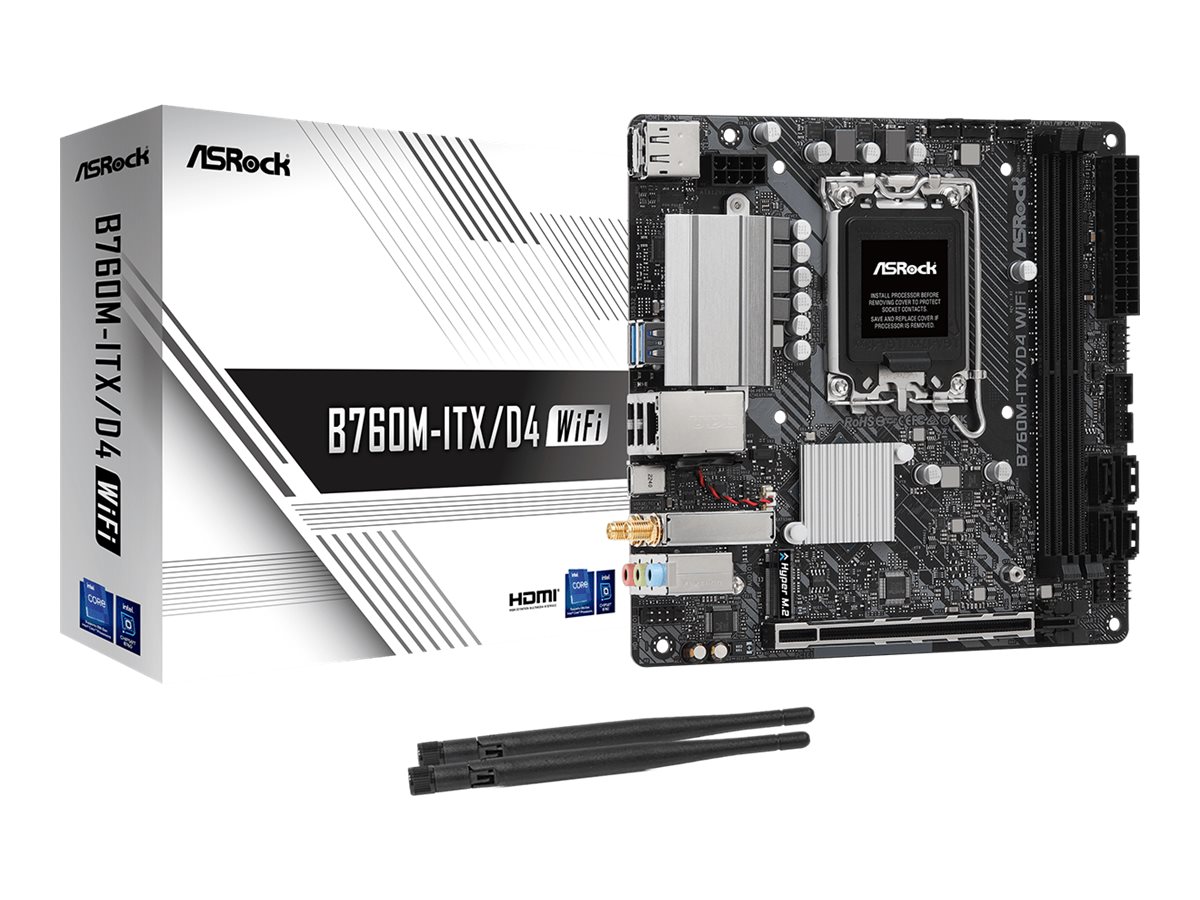

| Аксесоари | 1 x M.2 screw, IO shield, 2 x ASRock WiFi 2.4/5/6 GHz Antennas |
| Височина | 170 мм |
| Ширина | 17 cm |
| Дълбочина | 17 cm |
| Други характеристики |
ASRock Instant Flash
ESD Protection ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Easy RAID Installer 6 Layer PCB Dr.MOS MOSFET ASRock EZ Mode Intel Turbo Boost Max Technology 3.0 5+1+1 Phase Power Design reinforced PCIe slots Intel Hybrid Technology ASRock Auto Driver Installer Intel Adaptive Boost Technology (ABT) Intel Thermal Velocity Boost (TVB) 50A Power Stage |
| Гаранция | 36 месеца |
| Код на продукта | B760M-ITX/D4 WIFI |
Виж повече
Допълнителна информация
- Optimized VRM design
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance. - 5+1+1 power phase design
Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers. - 6 layer PCB
The 6 layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! - Audio that matters
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you more engaging listening experience, vibrant and rich with details. - Enhance communication quality
The powerful algorithms to ensure better noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue. - Ultimate gaming experience
The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game. Enjoy the vibrant and high-quality Surround Sound on all your favorite audio devices: Jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all of your favorite audio tools and ensures better sound with any of them. Nahimic measure and improve to optimize their technology and offer you better experience. - High speed M.2 solution
Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience. - Wi-Fi 6E 802.11ax
WiFi 6E technology has extended to the 6GHz spectrum band, providing more WiFi capability and giving even better and faster internet traffic. In addition to deliver higher speeds, the WiFi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks. - Rear USB 3.2 Gen2x2 Type-C
The USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way. - No need to worry about lack of disk drive
Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
Виж повече
Информация за производителя
| Контакт | [email protected] |
| Адрес | Bijsterhuizen 11-11 6546 AR Nijmegen |
| Уебсайт | https://www.asrock.com/index.bg.asp |
