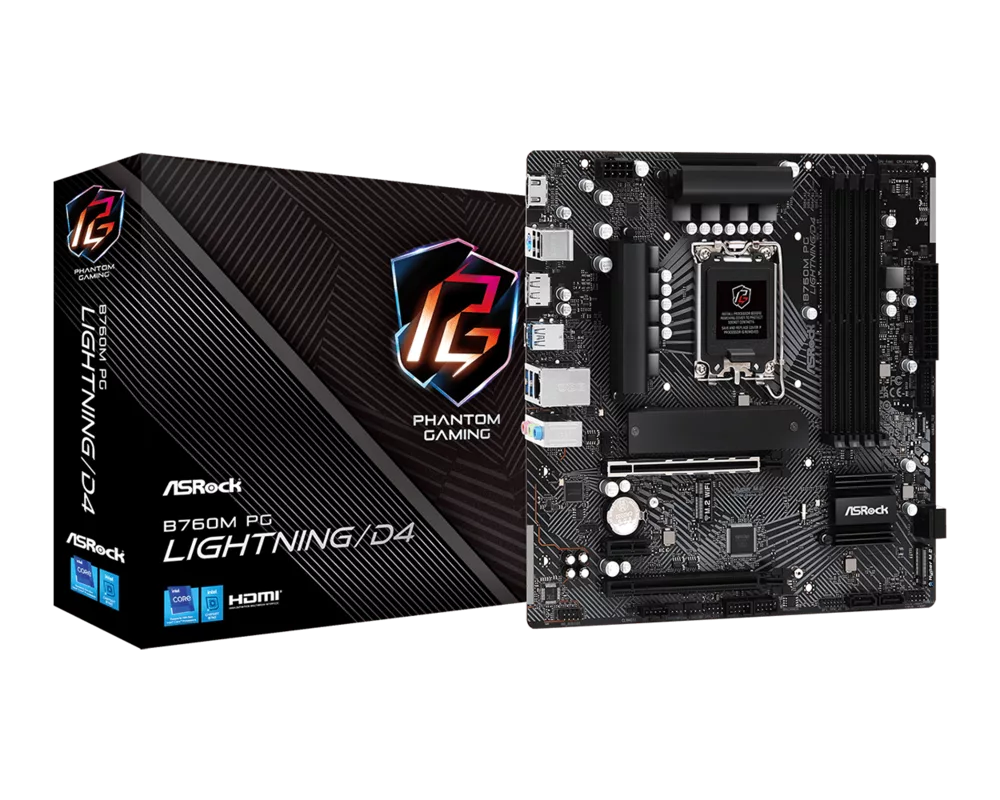

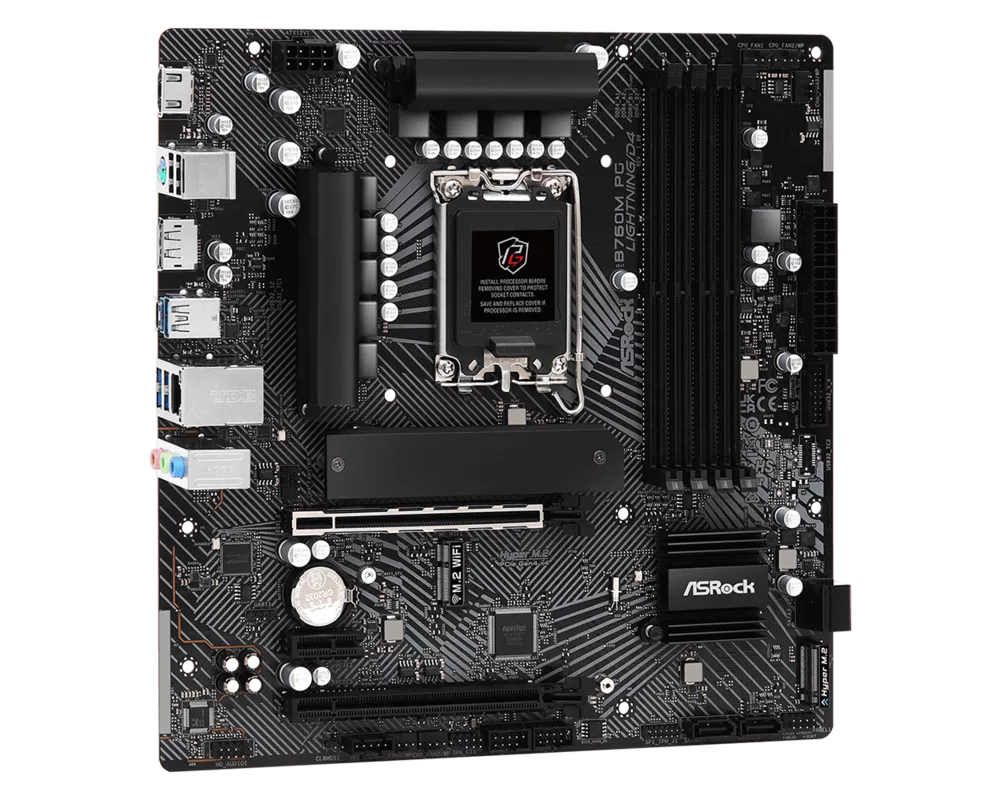

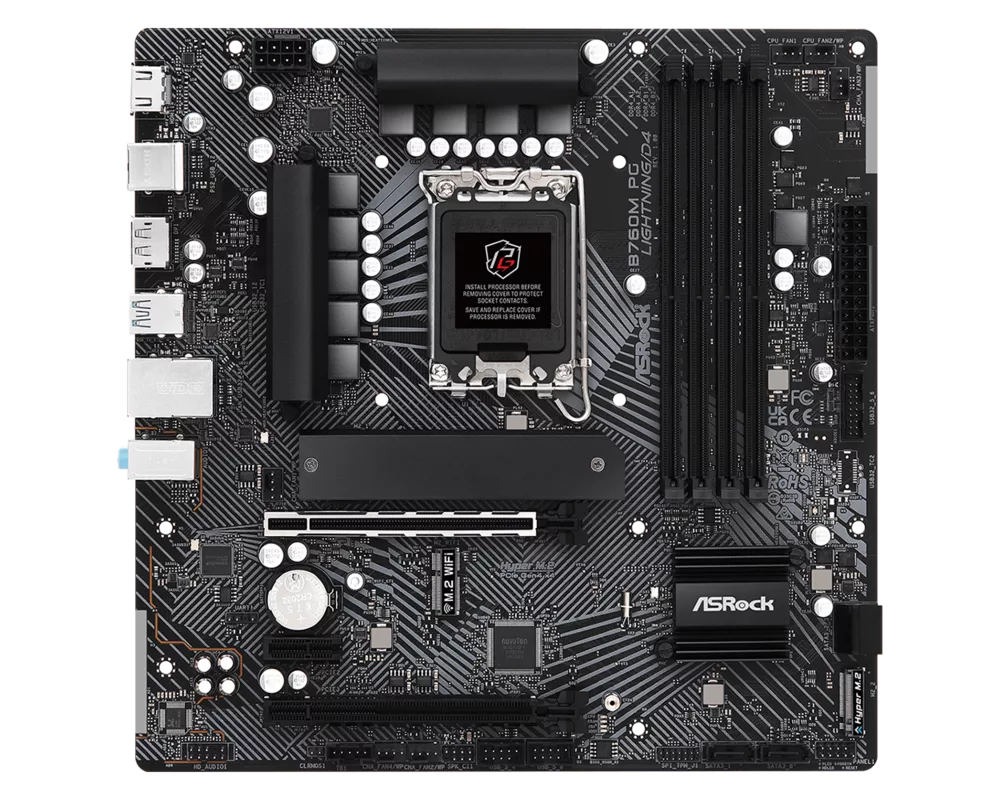

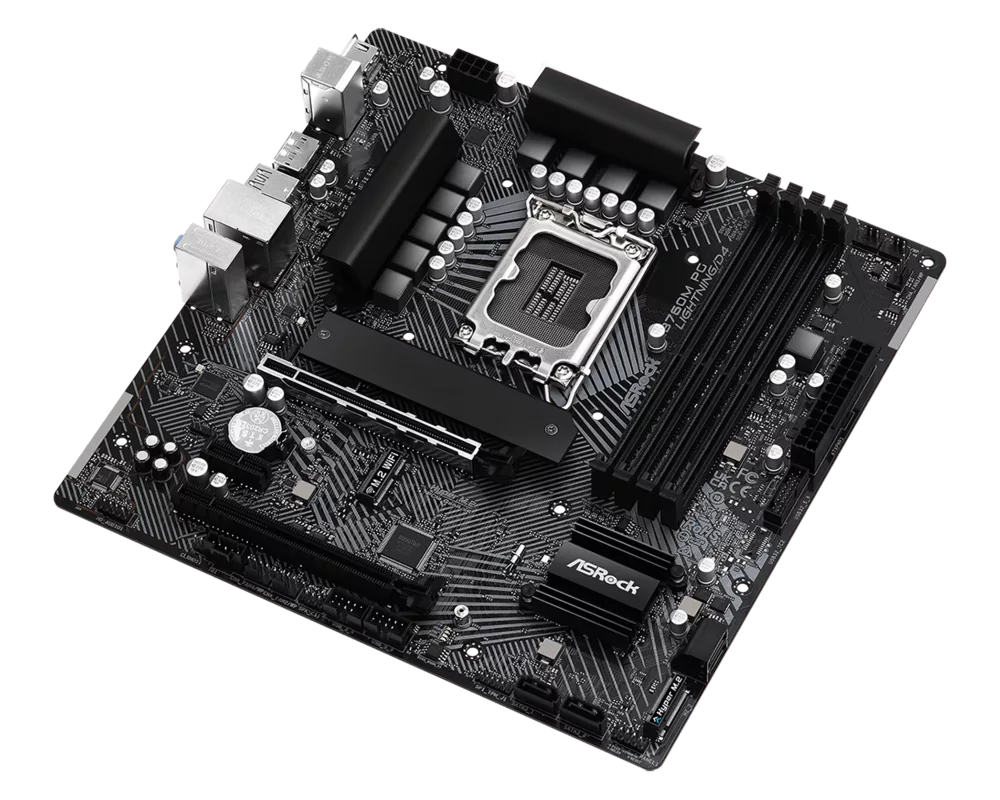

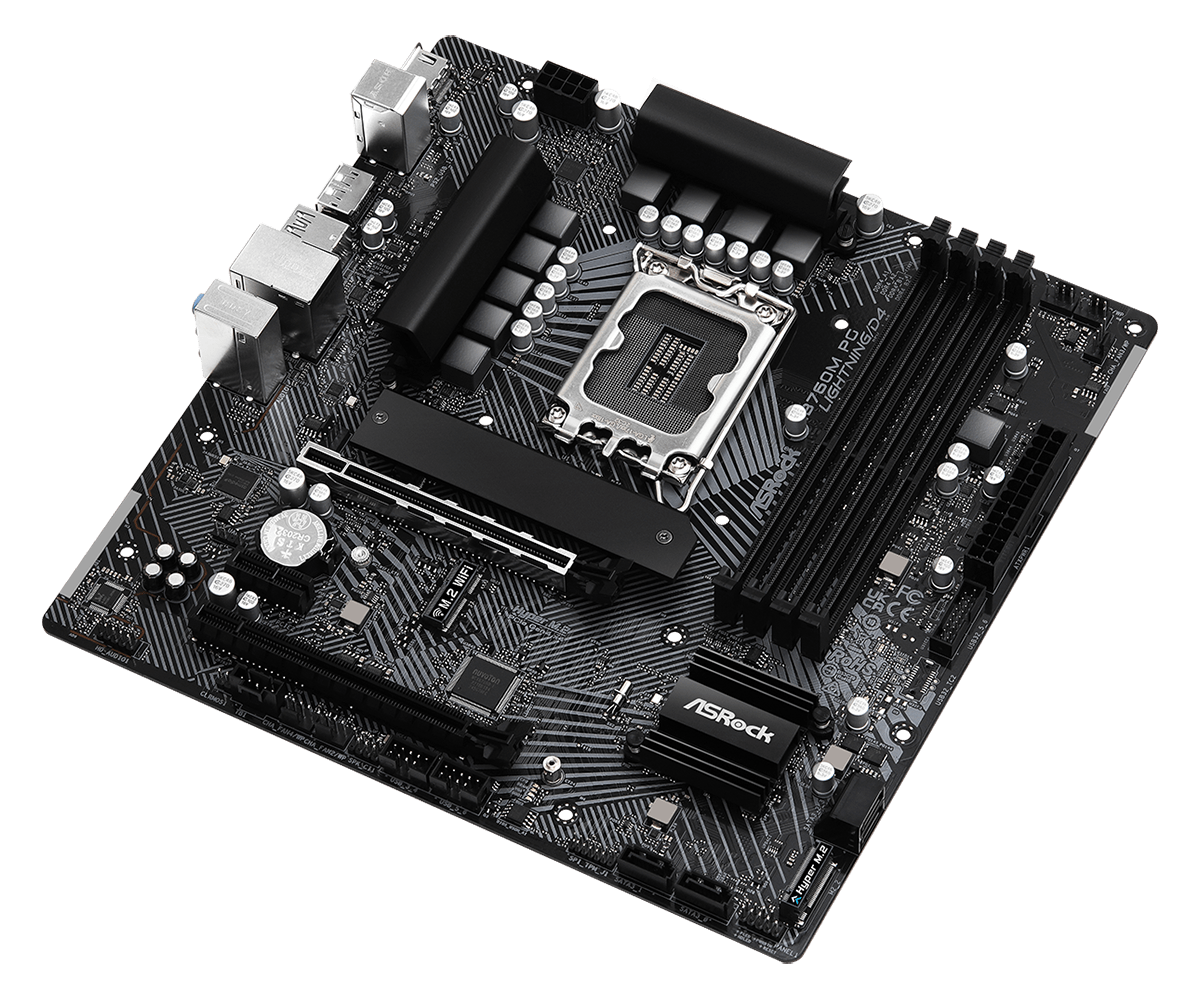

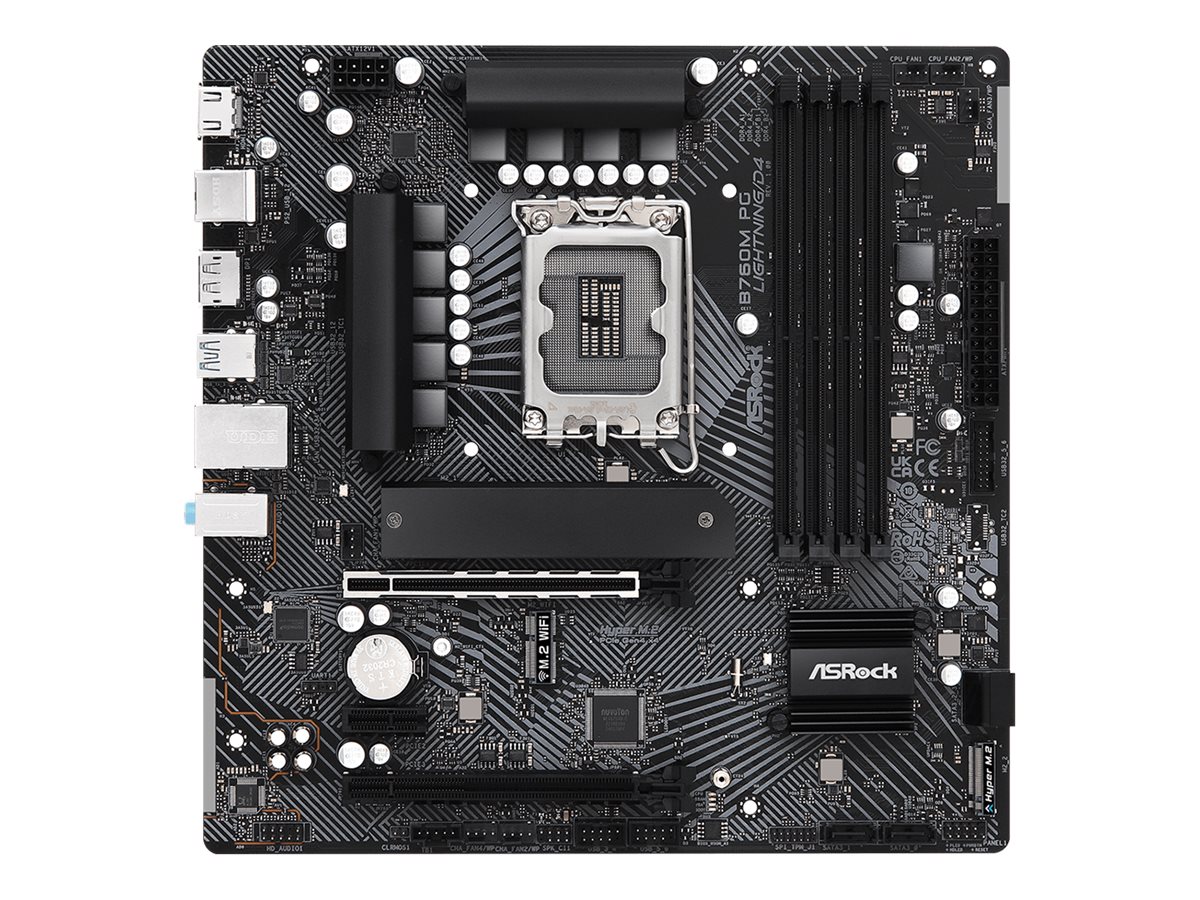

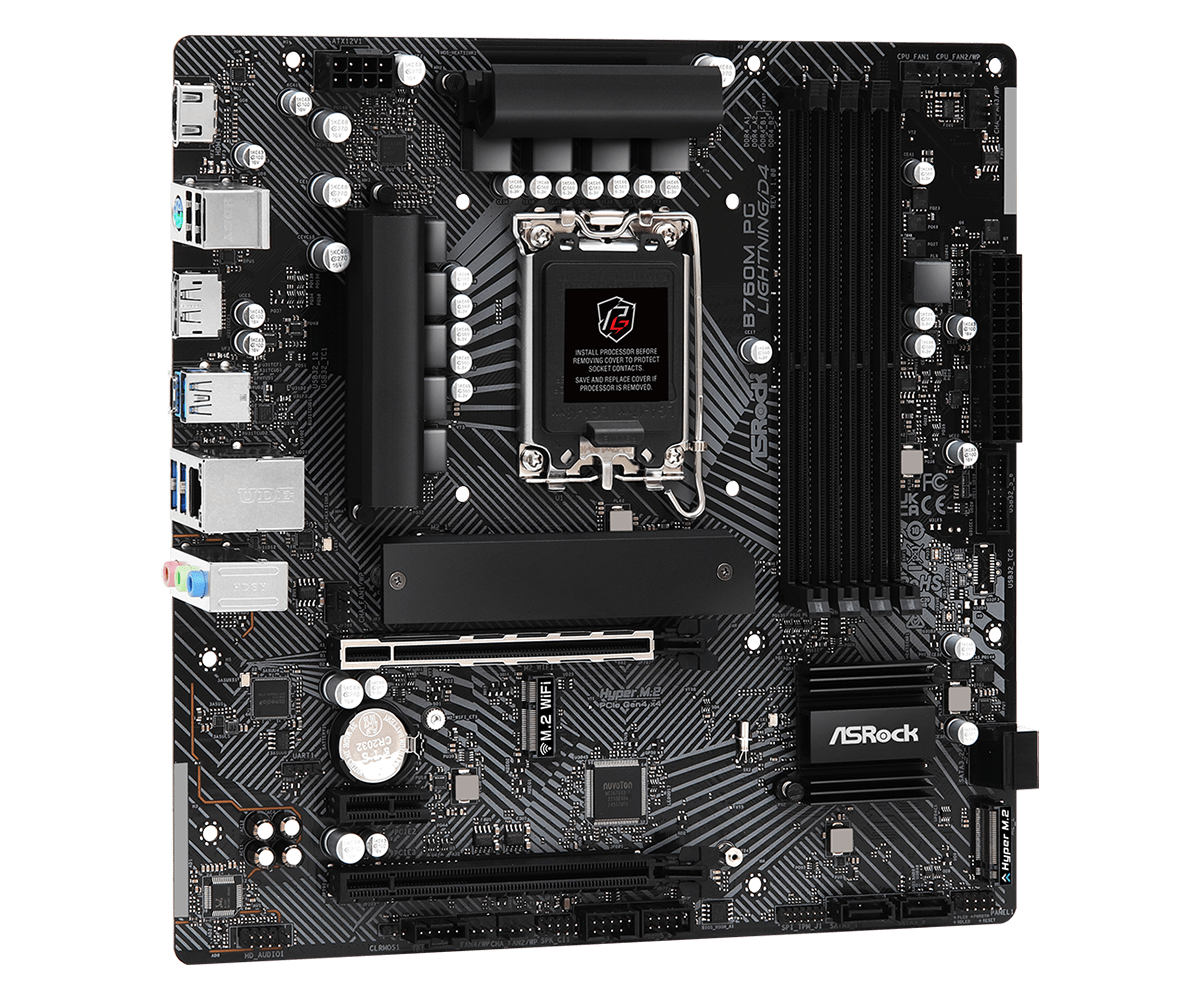

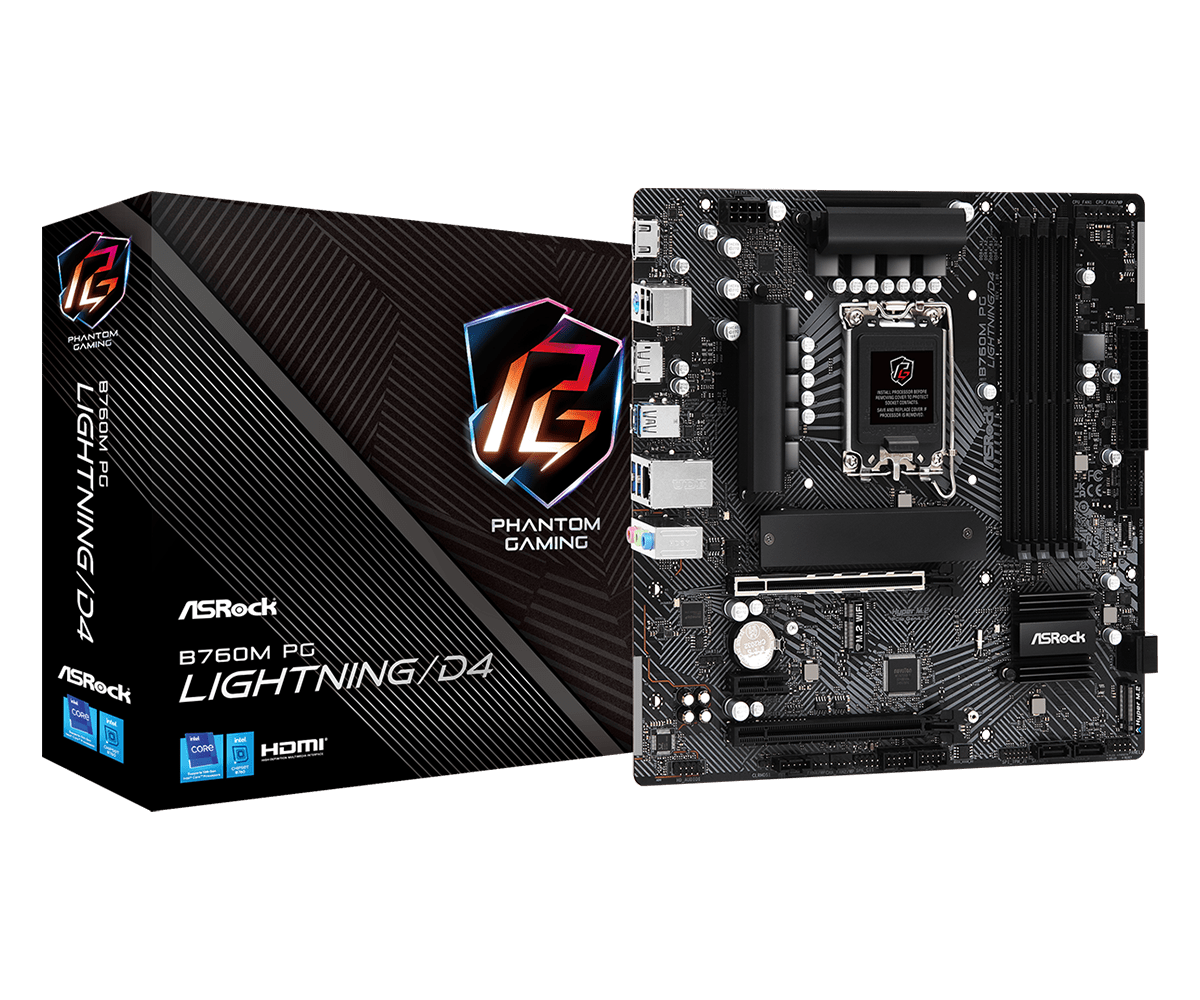

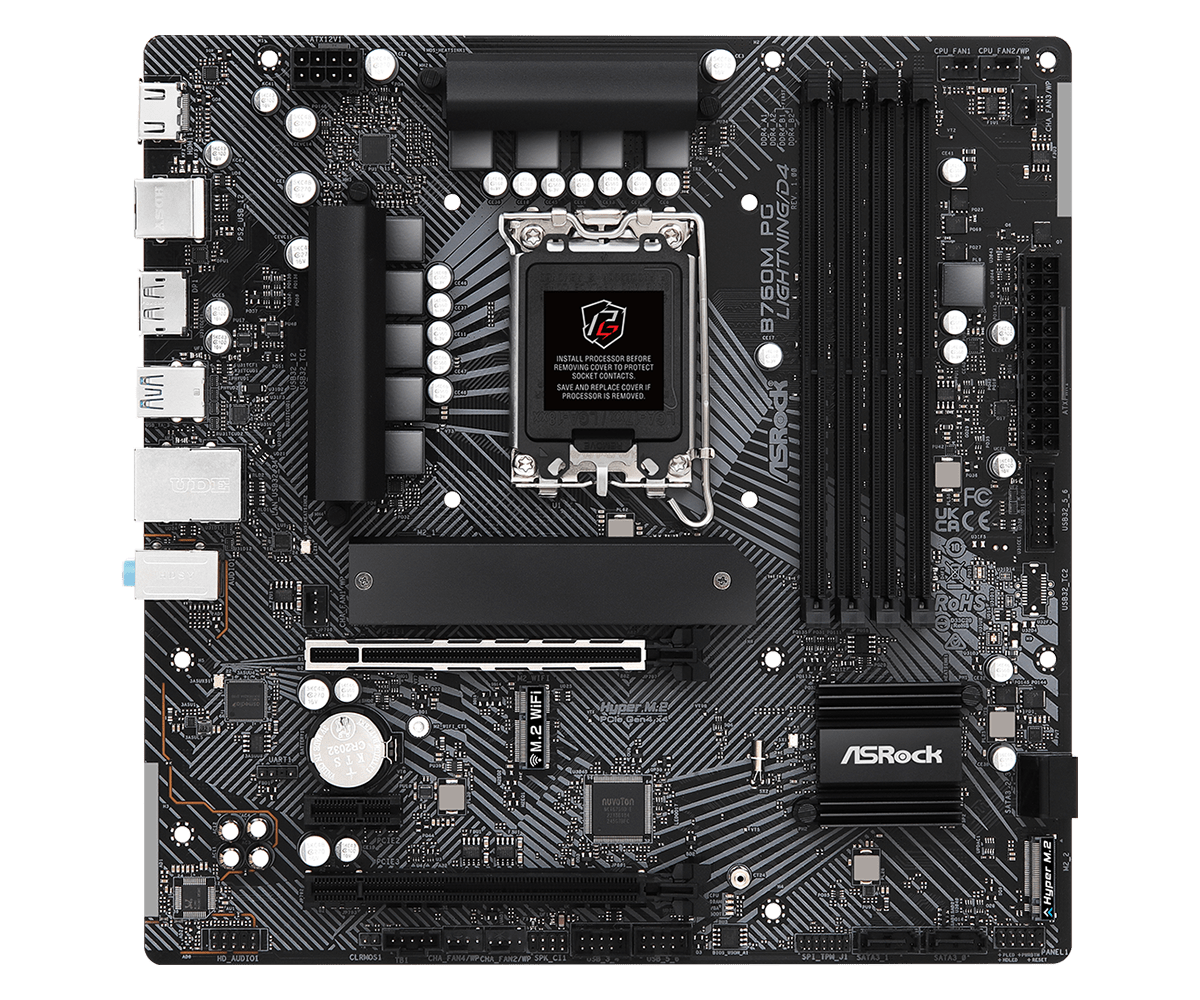

Дънна платка ASROCK B760M PG LIGHTNING /D4 B760M PG LIGHTNING/D4
изчерпано
Сокет: LGA 1700
Чипсет: Intel® B760
Тип на паметта: DDR4
Физически размер: Micro ATX
Слотове за памет: 4
Честота на паметта: 3200 MHz
Гаранция:
0.0
от 5.0
(0)
Купи и събери
2 точки
Плати по-лесно и сигурно с
Виж всички продукти на Asrock
Пазарувай по марка
Характеристики
| Физически размер | Micro ATX |
| Чипсет | Intel® B760 |
| Сокет | LGA 1700 |
| Съвместими процесори | Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700) |
| BIOS | 128Mb AMI UEFI Legal BIOS with GUI support |
| Тип BIOS | AMI |
| Тип на паметта | DDR4 |
| Честота на паметта | 3200 MHz |
| ECC support | Non-ECC, ECC (operate in non-ECC mode) |
| Memory Registered / Buffered | Unbuffered |
| Слотове за памет | 4 |
| Максимална памет | 128 GB |
| Слотове | CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode; Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode; - 1 x PCIe 4.0 x1 Slot (PCIE2); - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT); - Supports AMD CrossFire™ |
| Брой процесорни гнезда | 1 |
| Видео | Intel® Xe Graphics Architecture (Gen 12); - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz; - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz |
| Дисков интерфейс | CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode; Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode; - 4 x SATA3 6.0 Gb/s Connectors |
| LAN порт | Gigabit LAN 10/100/1000 Mb/s; - Realtek 8111H |
| LAN controller | Realtek RTL8111H |
| Звук | 7.1 CH HD Audio (Realtek ALC897 Audio Codec); - Nahimic Audio |
| Звуков изход | HD Audio (8-channel) |
| Аудио стандарти | High Definition Audio |

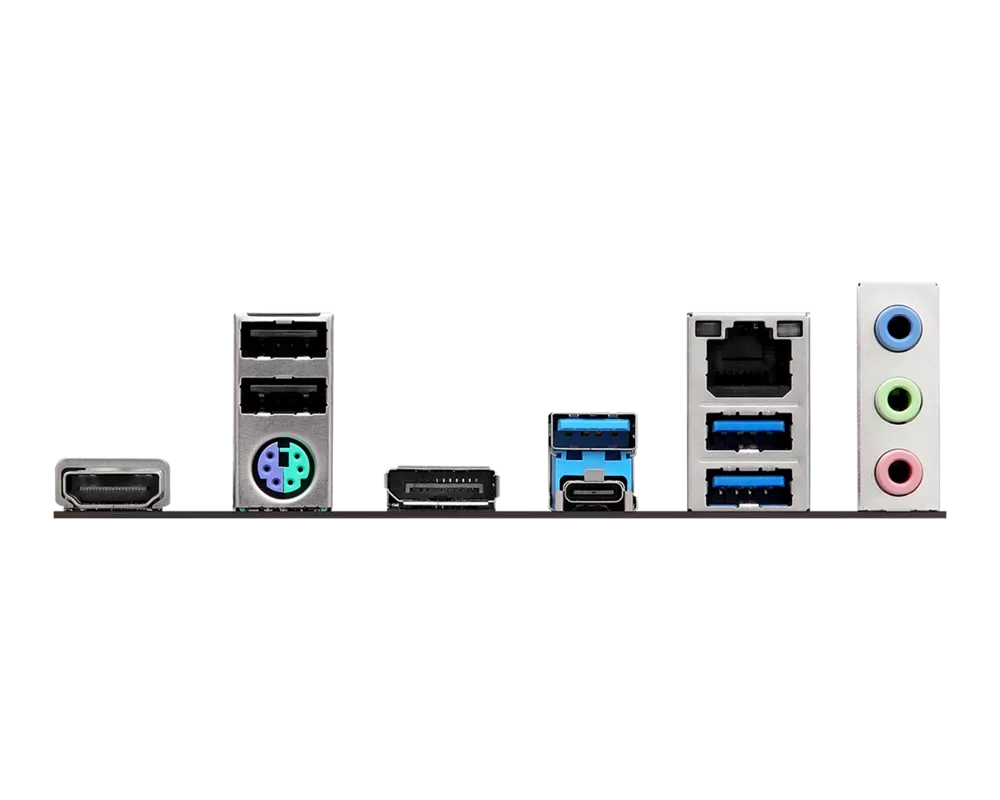

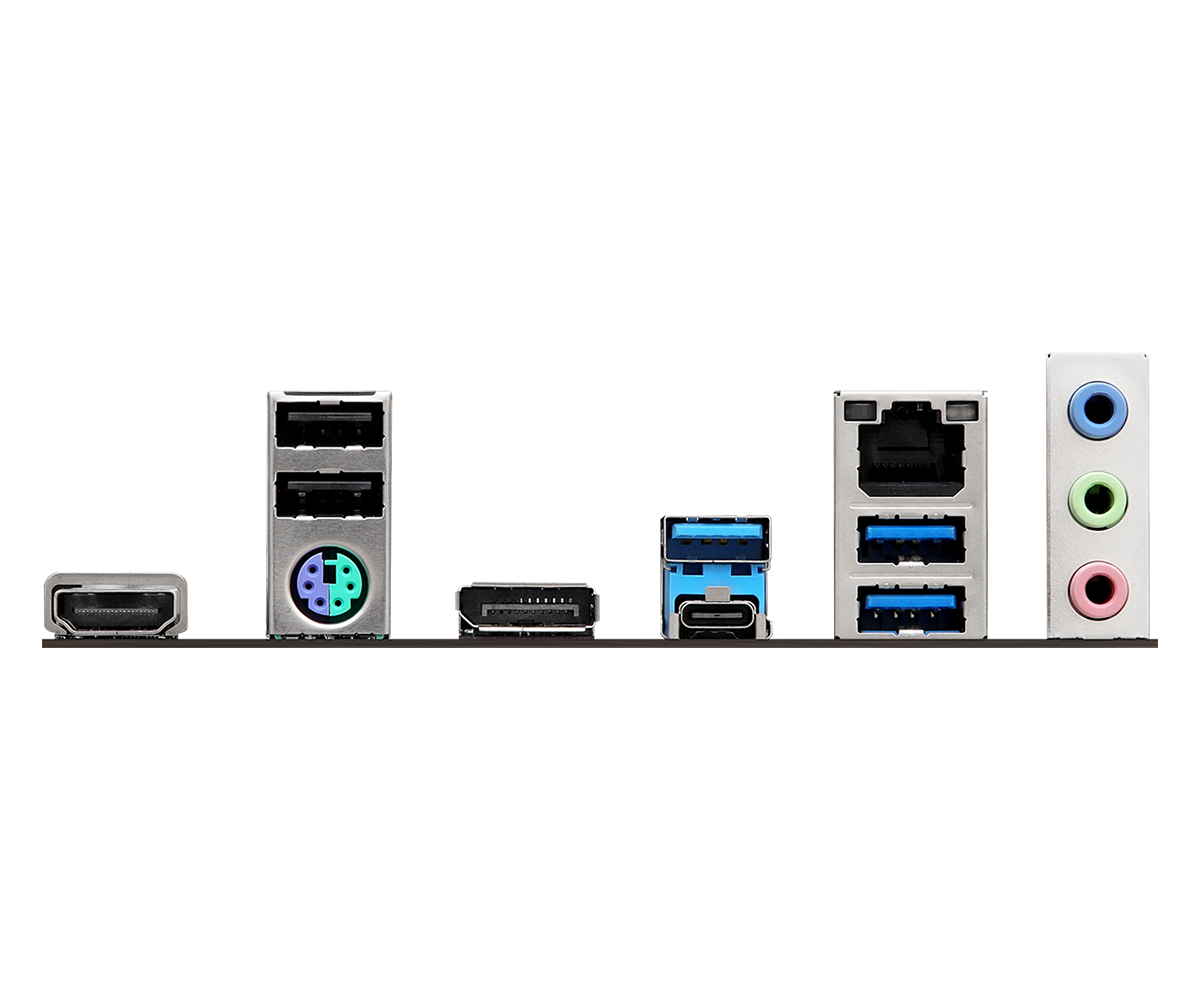

| Портове | 2 x Antenna Mounting Points; - 1 x PS/2 Mouse/Keyboard Port; - 1 x HDMI Port; - 1 x DisplayPort 1.4; - 1 x USB 3.2 Gen1 Type-C Port; - 3 x USB 3.2 Gen1 Type-A Ports; - 2 x USB 2.0 Ports; - 1 x RJ-45 LAN Port; - HD Audio Jacks: Line in / Front Speaker / Microphone |
| Разширителни слотове | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 4.0 x16 1 x PCIe 4.0 x16 (x4 mode) 1 x PCIe 4.0 x1 1 x M.2 socket (2230 M.2 Key E slot) 1 x M.2 socket (2280 M.2 Key M slot) 1 x M.2 socket (2242/2260/2280 M.2 Key M slot) |
| Вътрешен интерфейс | 1 x SPI - header 1 x Thunderbolt - header 1 x audio - header 4 x USB 2.0 - header 2 x USB 3.2 Gen 1 - header |
| Функции | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 2.0 |
| Софтуер | ASRock Phantom Gaming Tuning, ASRock XFast LAN |
| Конектори | 1 x SPI TPM Header; - 1 x Chassis Intrusion and Speaker Header; - 1 x CPU Fan Connector (4-pin); - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control); - 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control); - 1 x 24 pin ATX Power Connector; - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector); - 1 x Front Panel Audio Connector; - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card); - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports); - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) |
| Конектори за захранване | 24-pin main power connector, 8-pin ATX12V connector |
| Стандарти | FCC Part 15, ErP Ready, DisplayPort 1.4, EuP Ready |
| Включени кабели | 2 x Serial ATA cable |
| Аксесоари | 3 x M.2 screws, standoff for M.2 socket, IO shield |
| Ширина | 24.4 cm |
| Дълбочина | 24.4 cm |
| Други характеристики | Water Pump Header, ASRock Auto Driver Installer, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Instant Flash, ASRock Easy RAID Installer, 7+1+1 Phase Power Design, Dr.MOS MOSFET, ASRock POST Status Checker (PSC), ASRock Steel Slots |
| Гаранция | 36 месеца |
| Код на продукта | B760M PG LIGHTNING/D4 |
Виж повече
Допълнителна информация
- Dr. MOS
Dr. MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance. - 7 + 1 + 1 power phase design
Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers. - Aluminum heatsink
A thing that catches the eye is the optimized aluminum heatsink design. Heatsinks are crucial for efficient heat dissipation, especially during heavy workloads like gaming or productivity tasks. Motherboard that built with heatsinks can effectively manage thermal performance, hence ensure system stability and durability effortlessly. - Fantastic tuning
ASRock A-Tuning Fantastic Tuning function enables users to auto-detect the minimum duty of each fan with a single click. Users can also easily adjust the fan curve via the visualized UI interface, meeting their system's cooling performance and noise reduction requirements. - PWM/DC fan support
ASRock fan headers automatically detect whether fans are running in DC or PWM mode, allowing users to fine-tune the fan curve and achieve quieter operation. - Audio that matters
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details. - Enhance communication quality
The powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue. - High speed M.2 solution
This motherboard is capable of accommodating multiple M.2 storage devices, one of which can support PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
