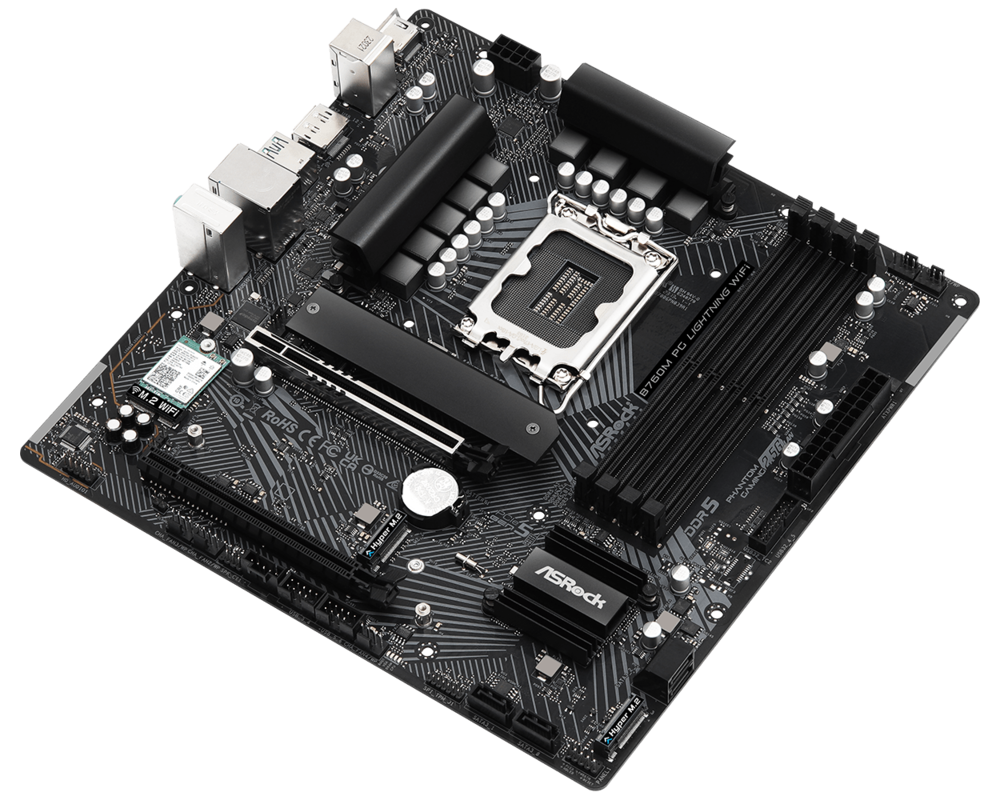

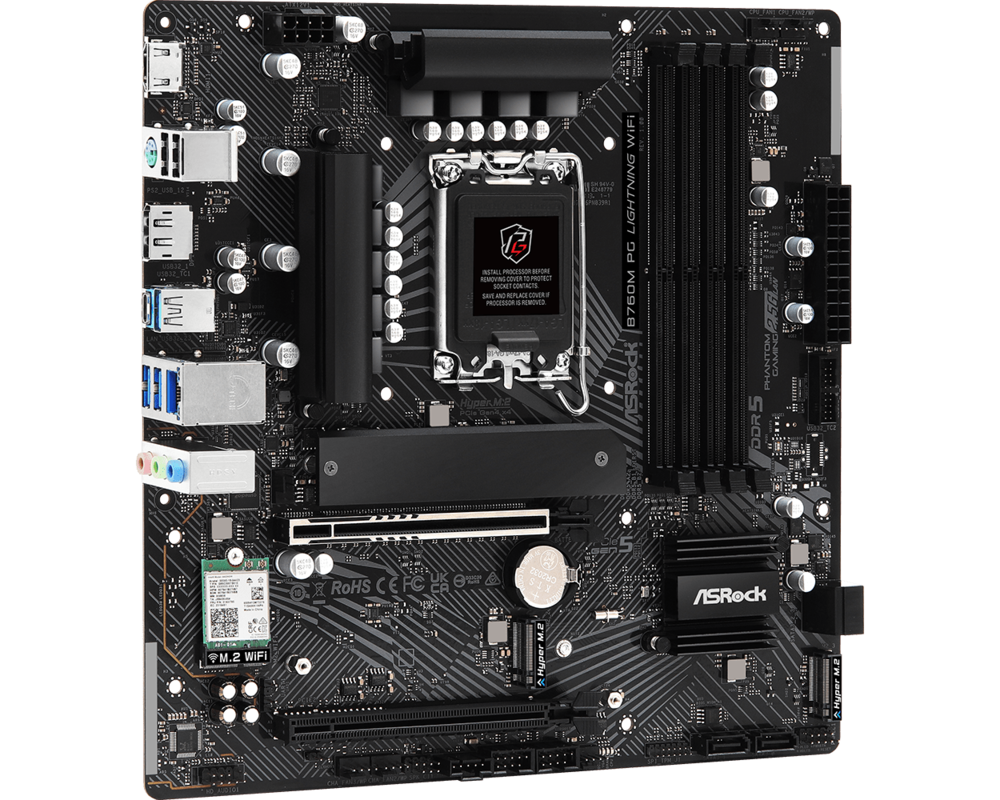

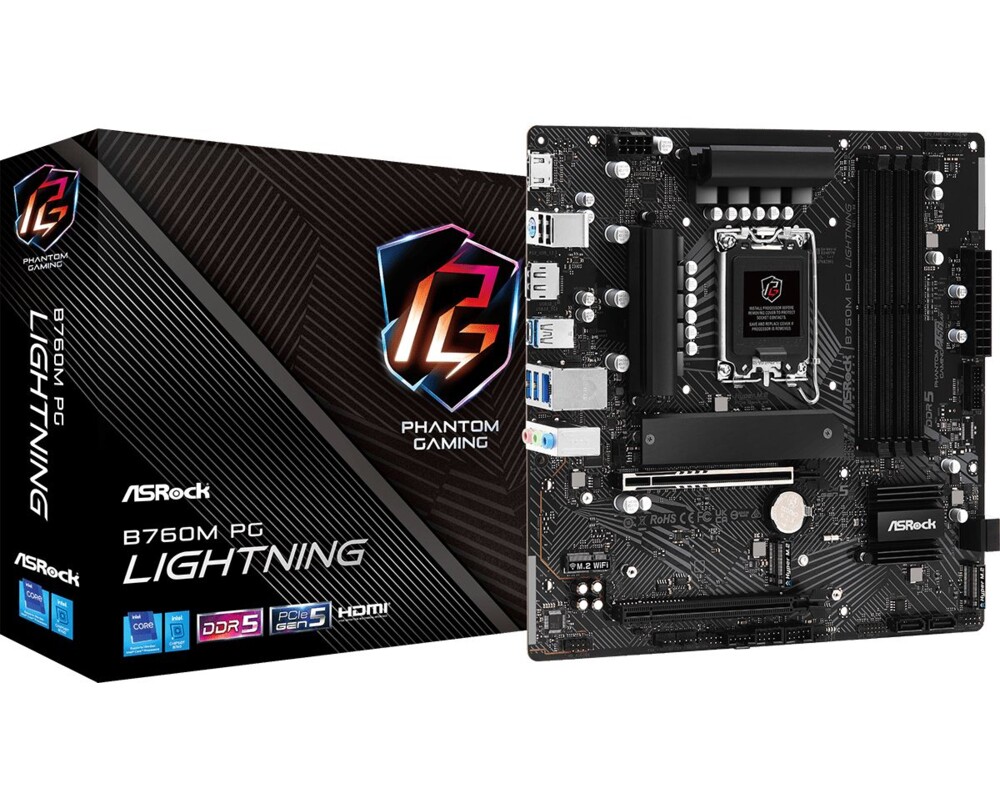

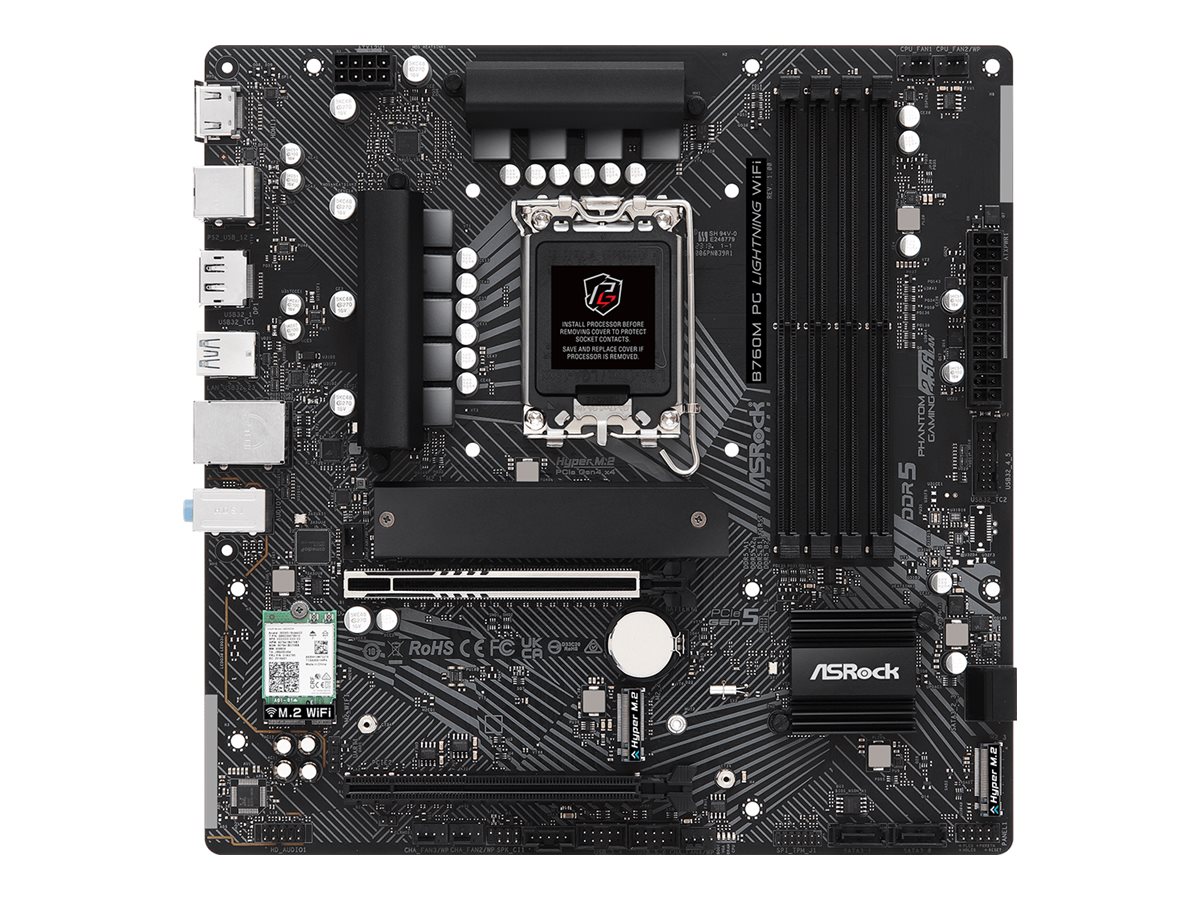

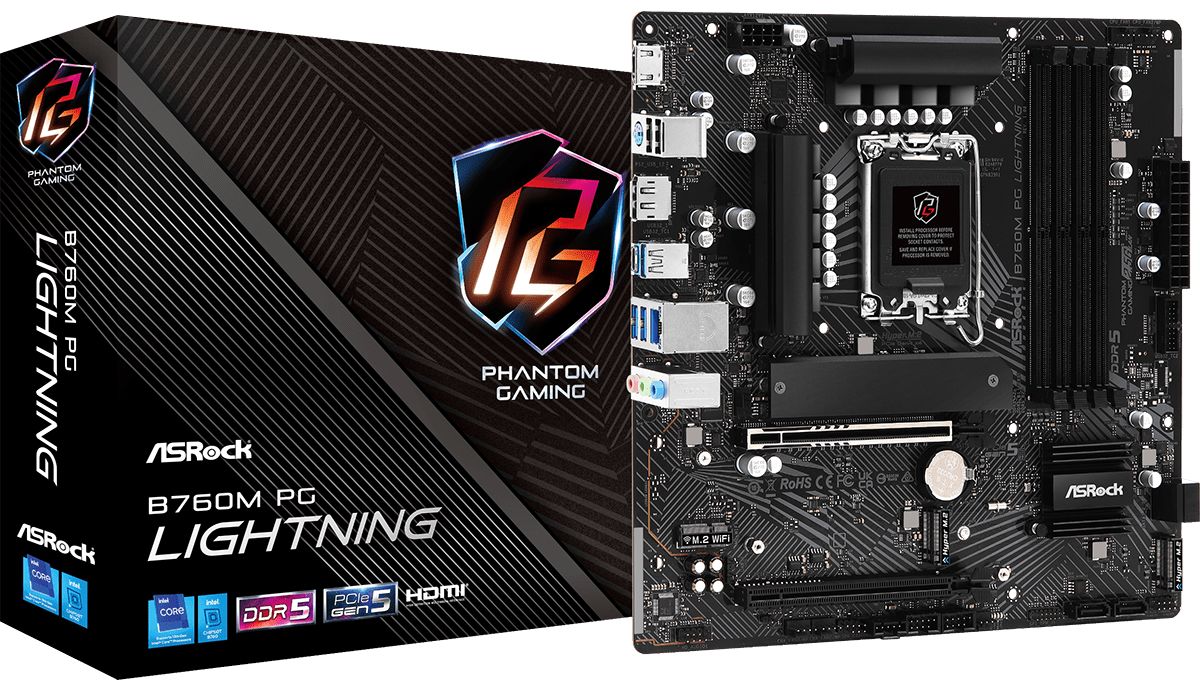

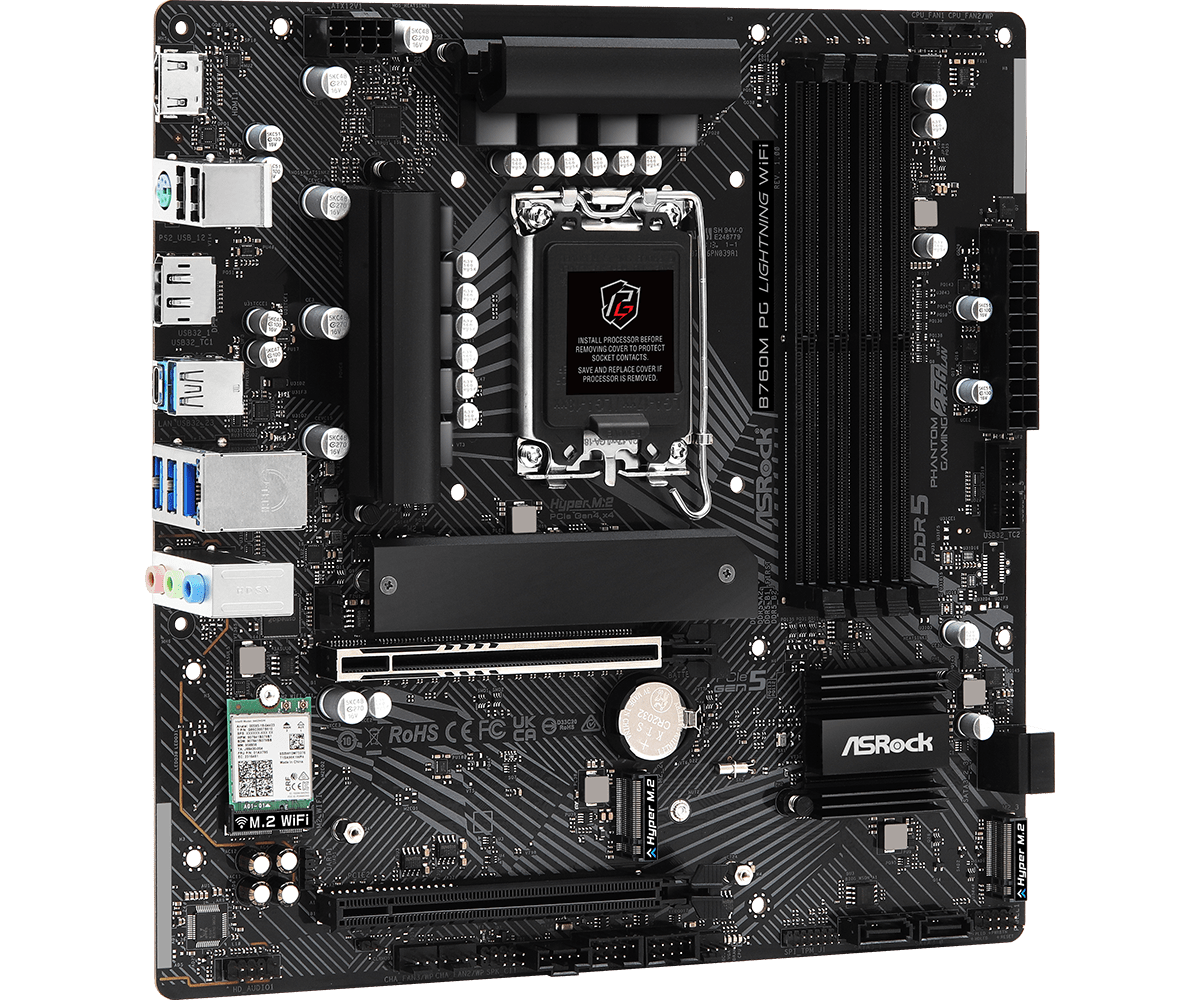

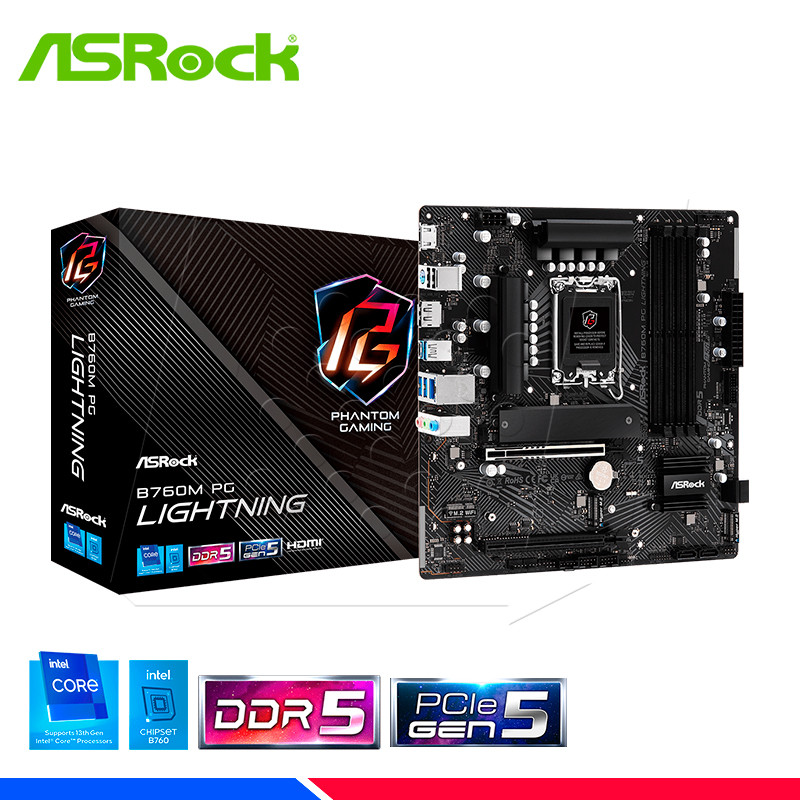

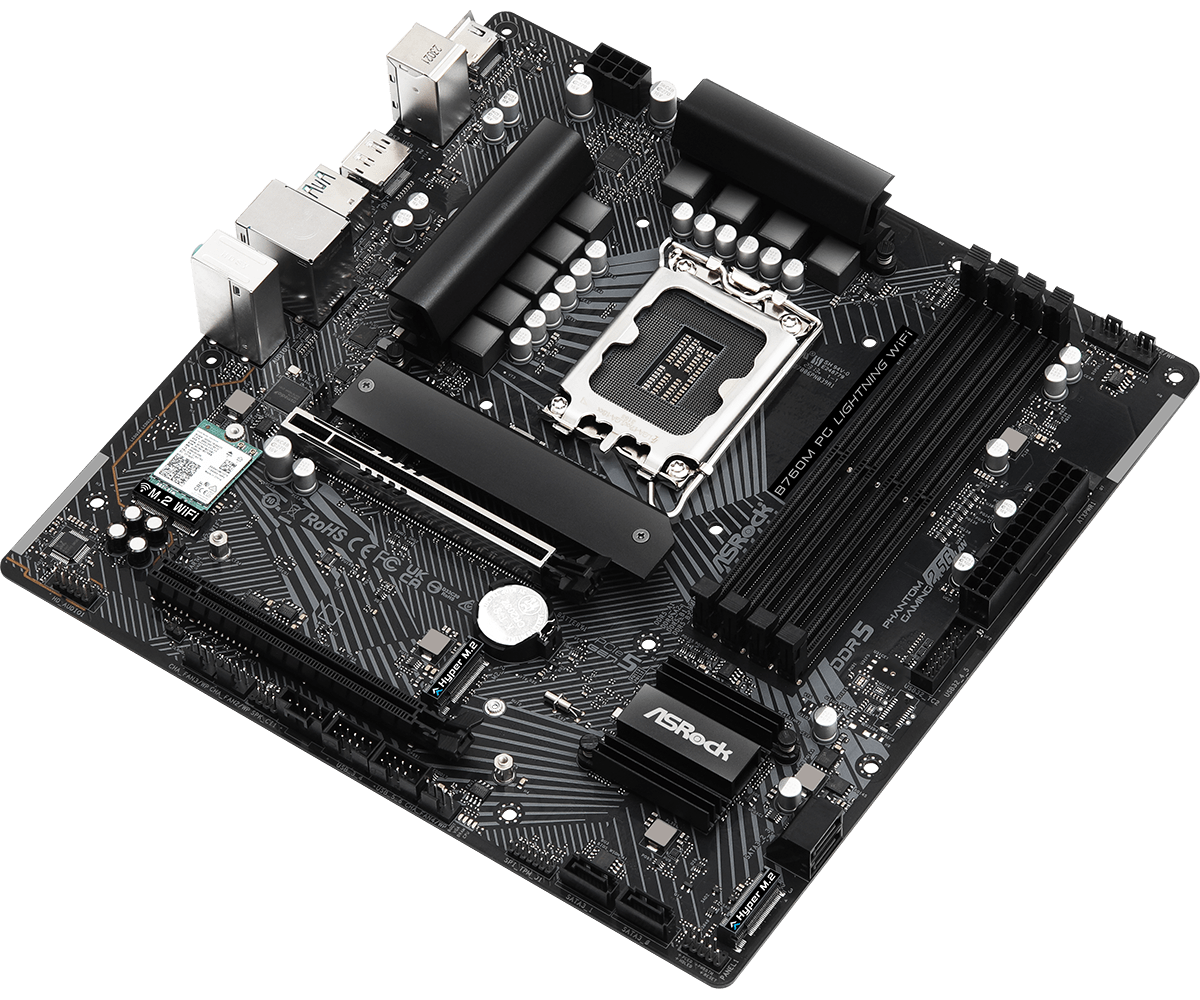

Дънна платка ASROCK B760M PG LIGHTNING WIFI LGA1700 mATX DDR5 WiFi B760M PG LIGHTNING WIFI
изчерпано
Сокет: LGA 1700
Чипсет: Intel B760
Тип на паметта: DDR5
Физически размер: Micro ATX
Слотове за памет: 4
Честота на паметта: 4800 MHz
Гаранция:
0.0
от 5.0
(0)
Купи и събери
2 точки
Плати по-лесно и сигурно с
Виж всички продукти на Asrock
Пазарувай по марка
Характеристики
| Модел | B760M PG LIGHTNING |
| Физически размер | Micro ATX |
| Чипсет | Intel® B760 |
| Сокет | LGA 1700 |
| Съвместими процесори | Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700); Supports Intel® Hybrid Technology; Supports Intel® Turbo Boost Max 3.0 Technology; Supports Intel® Thermal Velocity Boost (TVB); Supports Intel® Adaptive Boost Technology (ABT); |
| BIOS | 128Mb AMI UEFI Legal BIOS with GUI support |
| Тип BIOS | AMI |
| Тип на паметта | DDR5 |
| Честота на паметта | 4800 MHz |
| ECC support | Non-ECC |
| Memory Registered / Buffered | Unbuffered |
| Слотове за памет | 4 |
| Максимална памет | 256 GB |
| Слотове | CPU:1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode; Chipset:1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode; 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT); Supports AMD CrossFire™; |
| Брой процесорни гнезда | 1 |
| Видео | Intel® Xe Graphics Architecture (Gen 12); 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz; 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz; |
| Дисков интерфейс | CPU:1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode; Chipset:1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode; 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode; 4 x SATA3 6.0 Gb/s Connectors; |
| LAN порт | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s; Dragon RTL8125BG; Supports Phantom Gaming LAN Software; Smart Auto Adjust Bandwidth Control; Visual User Friendly UI; Visual Network Usage Statistics; Optimized Default Setting for Game, Browser, and Streaming Modes; User Customized Priority Control; Wireless LAN; 802.11ax Wi-Fi 6E Module; Supports IEEE 802.11a/b/g/n/ac/ax; Supports Dual-Band 2x2 with extended 6GHz band support; 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology; Supports Bluetooth 5.3 + High speed class II; Supports MU-MIMO; |
| LAN controller | Dragon RTL8125BG |
| Звук | 7.1 CH HD Audio (Realtek ALC897 Audio Codec); Nahimic Audio; |
| Звуков изход | HD Audio (8-channel) |
| Аудио стандарти | High Definition Audio |
| Портове | 1 x USB 3.2 Gen1 Type-C (Rear); 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front); 6 x USB 2.0 (2 Rear, 4 Front); All USB ports support ESD Protection; 2 x Antenna Ports; 1 x PS/2 Mouse/Keyboard Port; 1 x HDMI Port; 1 x DisplayPort 1.4; 1 x USB 3.2 Gen1 Type-C Port; 3 x USB 3.2 Gen1 Type-A Ports; 2 x USB 2.0 Ports; 1 x RJ-45 LAN Port; HD Audio Jacks: Line in / Front Speaker / Microphone; |
| Разширителни слотове | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 5.0 x16 1 x PCIe 3.0 x16 (x4 mode) 1 x M.2 socket (2230 M.2 Key E slot) 2 x M.2 socket (2280 M.2 Key M slot) 1 x M.2 socket (2242/2260/2280 M.2 Key M slot) |
| Вътрешен интерфейс | 1 x SPI - header 1 x Thunderbolt - header 1 x audio - header 2 x USB 2.0 - header 2 x USB 3.2 Gen 1 - header |
| Функции | Intel Extreme Memory Profiles (XMP) 3.0, dual channel memory architecture |
| Софтуер | ASRock Phantom Gaming LAN Software, ASRock Phantom Gaming Tuning |

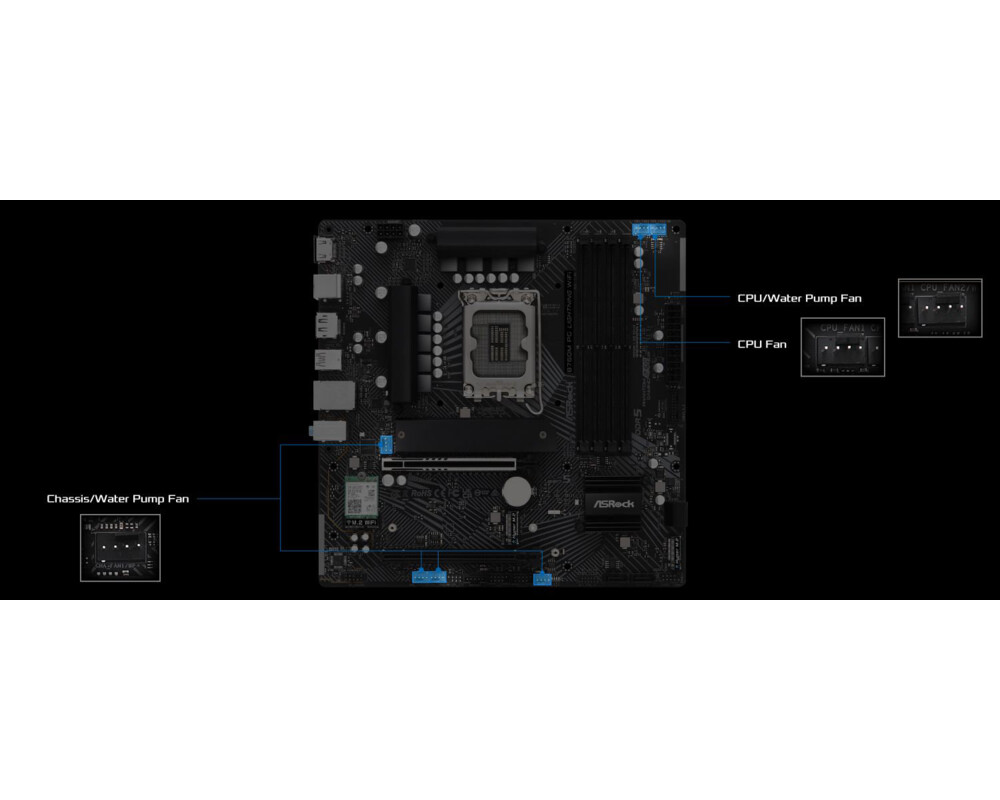

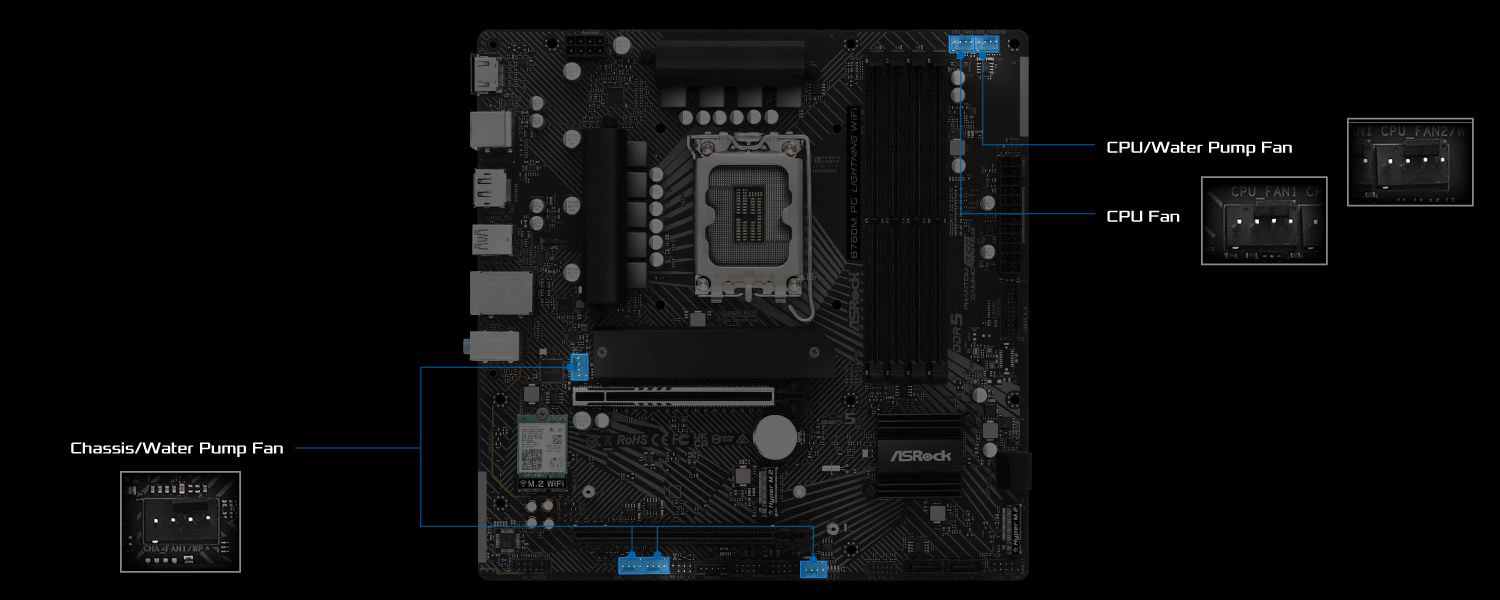

| Конектори | 1 x SPI TPM Header; 1 x Chassis Intrusion and Speaker Header; 1 x CPU Fan Connector (4-pin); 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control); 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control); 1 x 24 pin ATX Power Connector; 1 x 8 pin 12V Power Connector (Hi-Density Power Connector); 1 x Front Panel Audio Connector; 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card); 2 x USB 2.0 Headers (Support 4 USB 2.0 ports); 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports); CPU_FAN1 supports the fan power up to 1A (12W).; CPU_FAN2/WP supports the fan power up to 2A (24W).; CHA_FAN1~4/WP support the fan power up to 2A (24W).; CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use.; |
| Конектори за захранване | 24-pin main power connector, 8-pin ATX12V connector |
| Стандарти | FCC Part 15, ErP Ready, EuP Ready |
| Включени кабели | 2 x Serial ATA cable 2 x antenna cable |

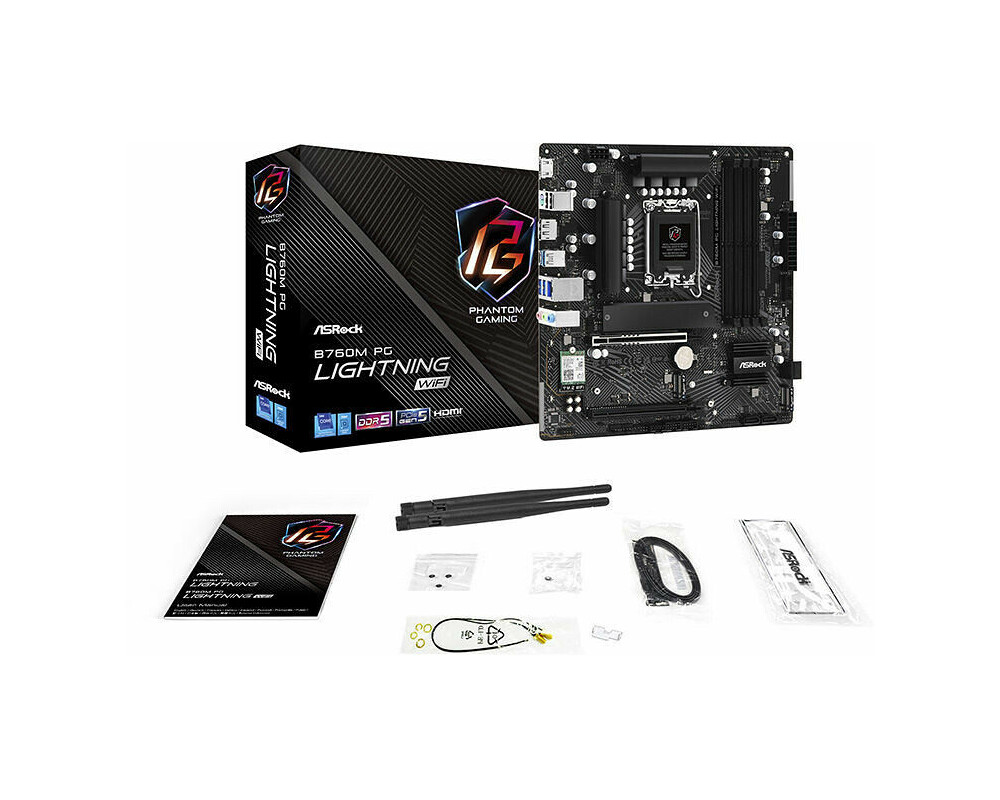

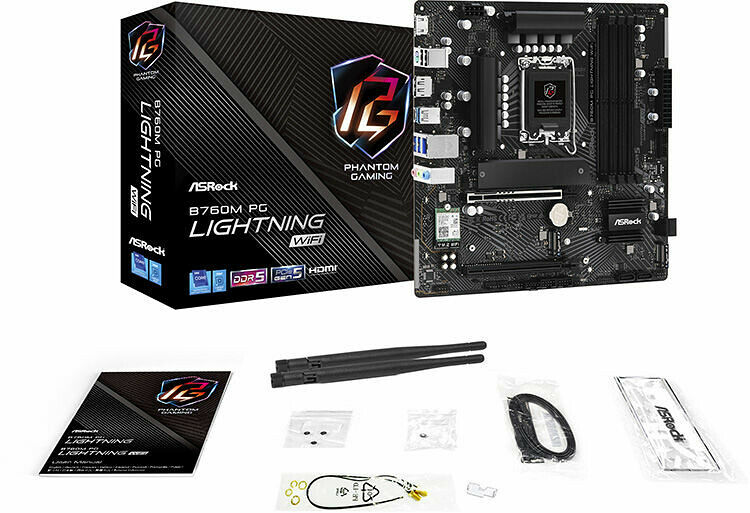

| Аксесоари | IO shield, 2 x ASRock WiFi 2.4/5/6 GHz Antennas, Wi-Fi module plastic cover, 3 x M.2 screws, standoff for M.2 socket |
| Ширина | 24.4 cm |
| Дълбочина | 24.4 cm |
| Други характеристики | Software ASRock Motherboard Utility (Phantom Gaming Tuning); ASRock Phantom Gaming LAN Software; UEFI ASRock EZ Mode; ASRock Full HD UEFI; ASRock My Favorites in UEFI; ASRock Auto Driver Installer; ASRock Instant Flash; ASRock Easy RAID Installer; Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices; Superb Productivity; PCIe Gen5 (Graphics); Dual Channel DDR5; Rock-Solid Durability; 7+1+1 Power Phase, 50A Dr.MOS for VCore+GT Ultrafast Connectivity; 2.5G LAN, 802.11ax Wi-Fi 6E; Module EZ Update; ASRock Auto Driver Installer; EZ Troubleshooter; |
| Гаранция | 36 месеца |
| Код на продукта | B760M PG LIGHTNING WIFI |
Виж повече
Допълнителна информация

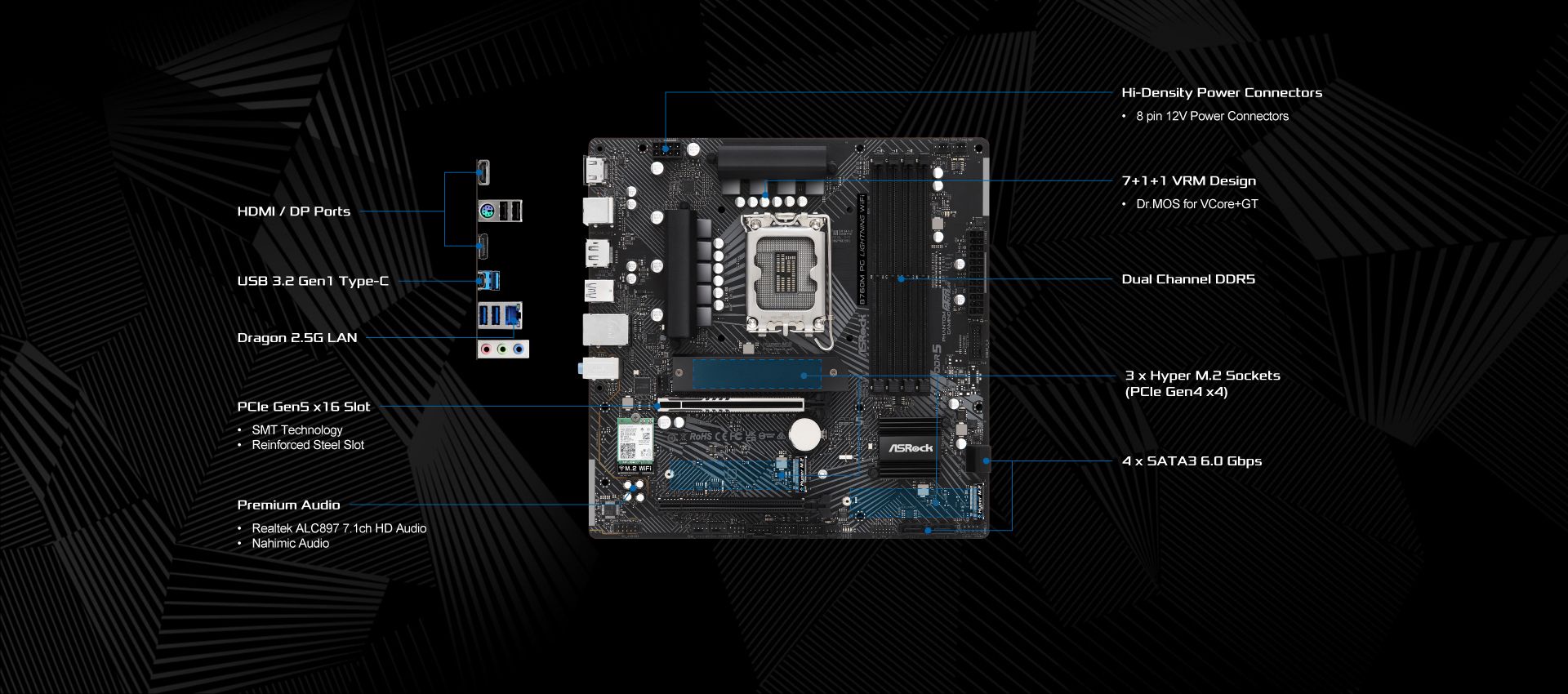

- Enhanced connectivity
Equipped with a plethora of interfaces including HDMI, DisplayPort, USB-C 3.2 Gen 1, and USB 3.2 Gen 1, the B760M PG LIGHTNING WIFI motherboard ensures a wide range of connectivity options for various devices and peripherals, enhancing user experience with flexible connection solutions. - High-speed memory support
Supporting DDR5 SDRAM with speeds up to 7200 MHz (O.C.), this motherboard allows for fast data transfer rates and improved system performance, making it suitable for gamers, content creators, and anyone requiring high-speed computing capabilities. - Advanced networking
With integrated 2.5 Gigabit Ethernet, Bluetooth 5.3, and Wi-Fi 6E, the motherboard offers versatile networking options, providing fast and reliable connections whether you're gaming online, streaming, or transferring large files over your home network. - Optimized audio experience
Featuring the Realtek ALC897 audio codec and Nahimic Audio Enhancer, the motherboard delivers high definition audio output, ensuring an immersive sound experience for gaming, movies, and music. - Robust expansion capabilities
The motherboard comes with multiple expansion slots, including PCIe 5.0 x16 and M.2 sockets, offering ample room for additional GPUs, storage, and other components, thus providing a solid foundation for future upgrades.
