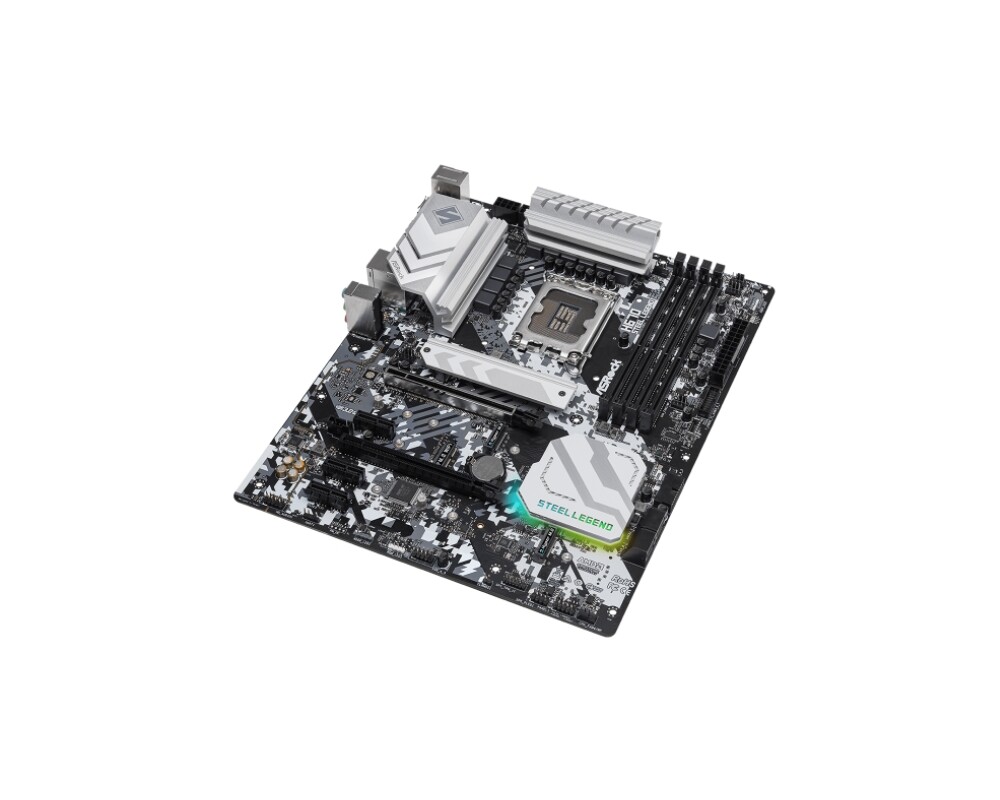

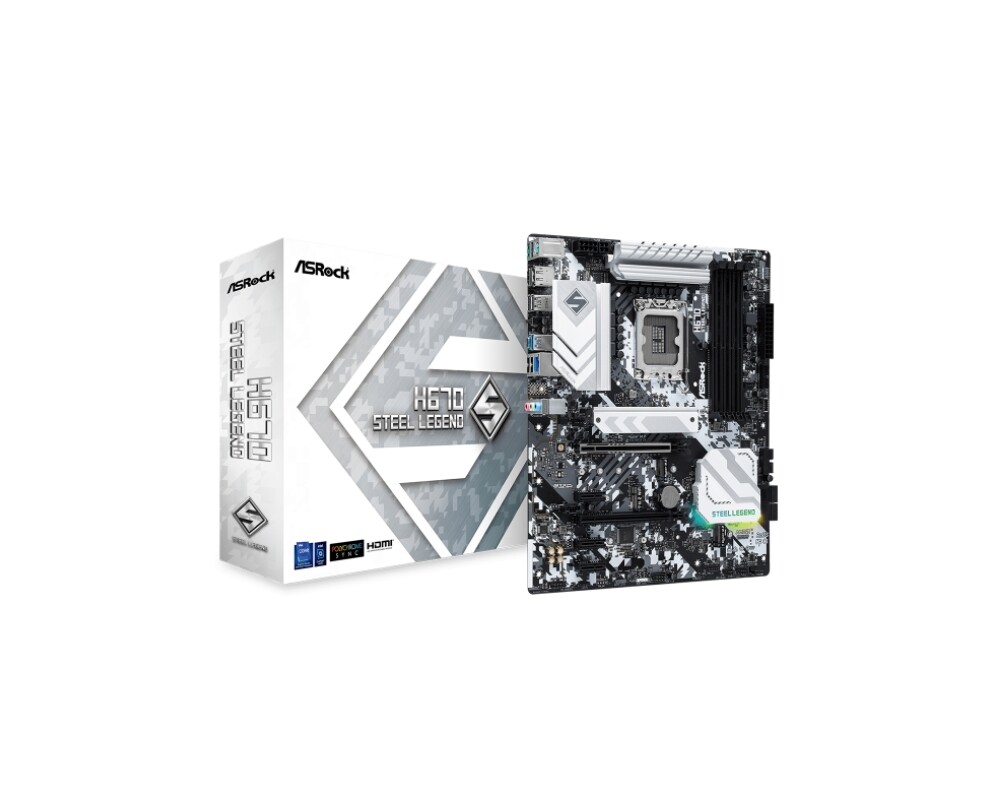

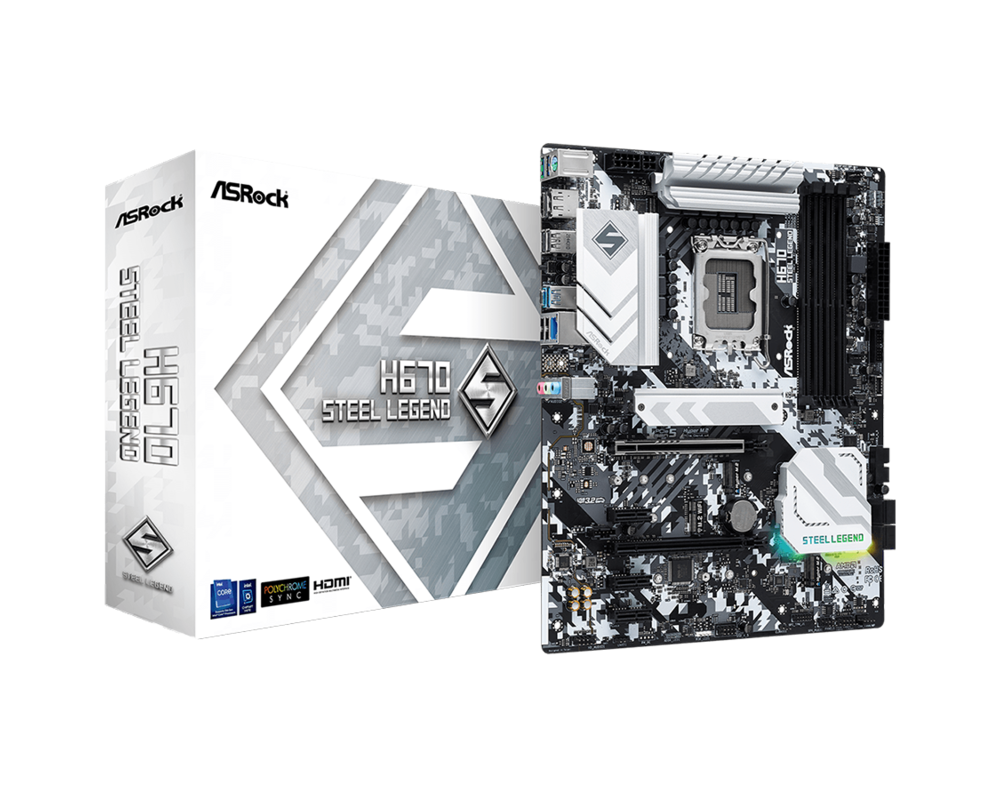

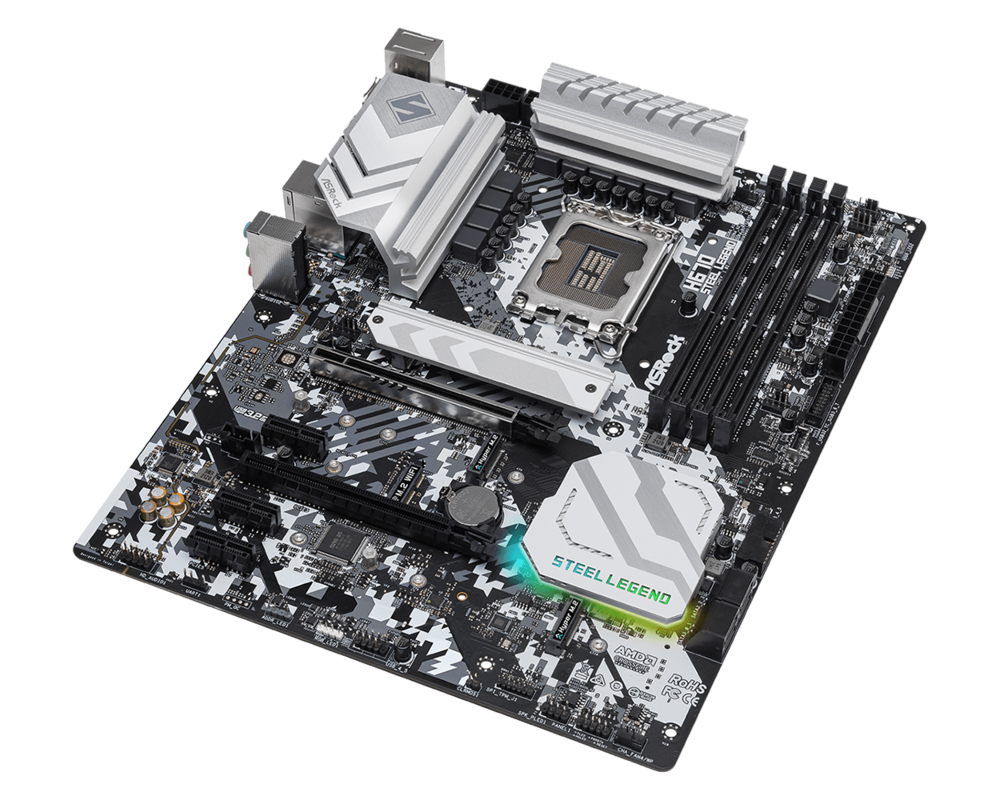

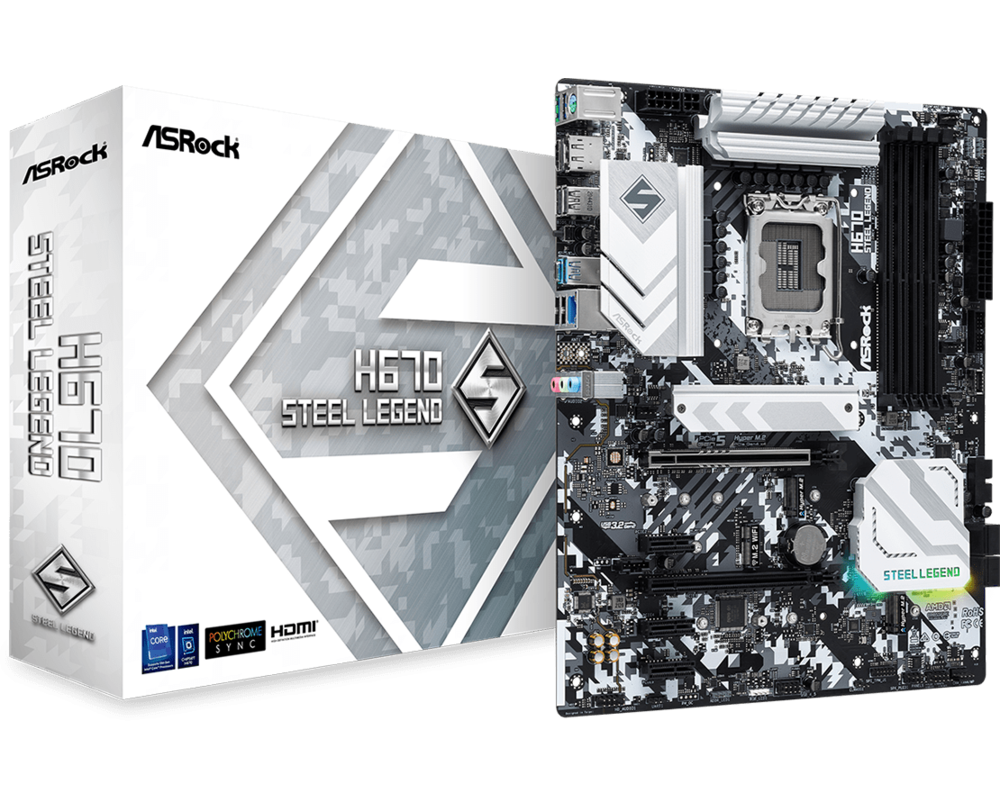

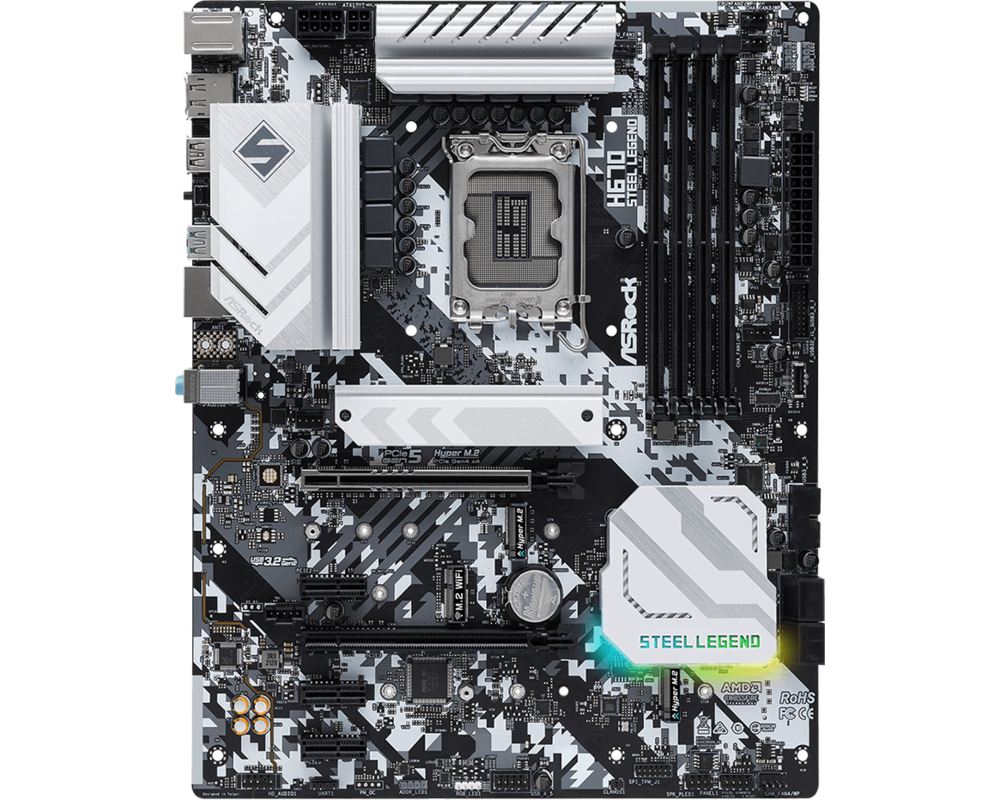

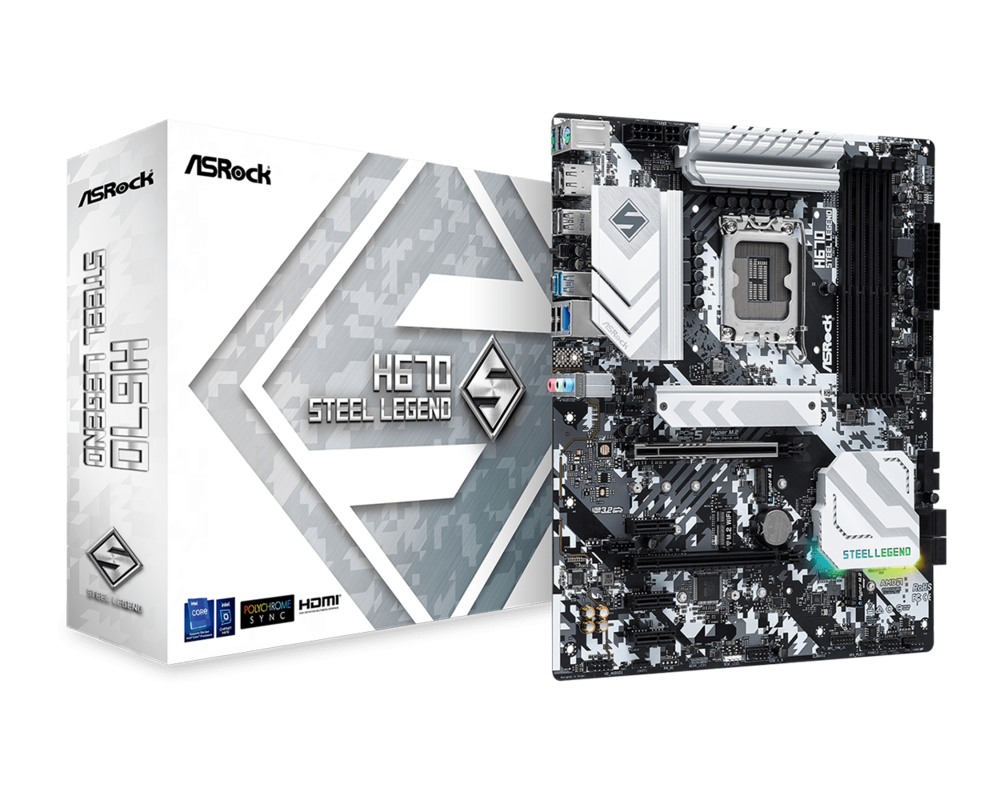

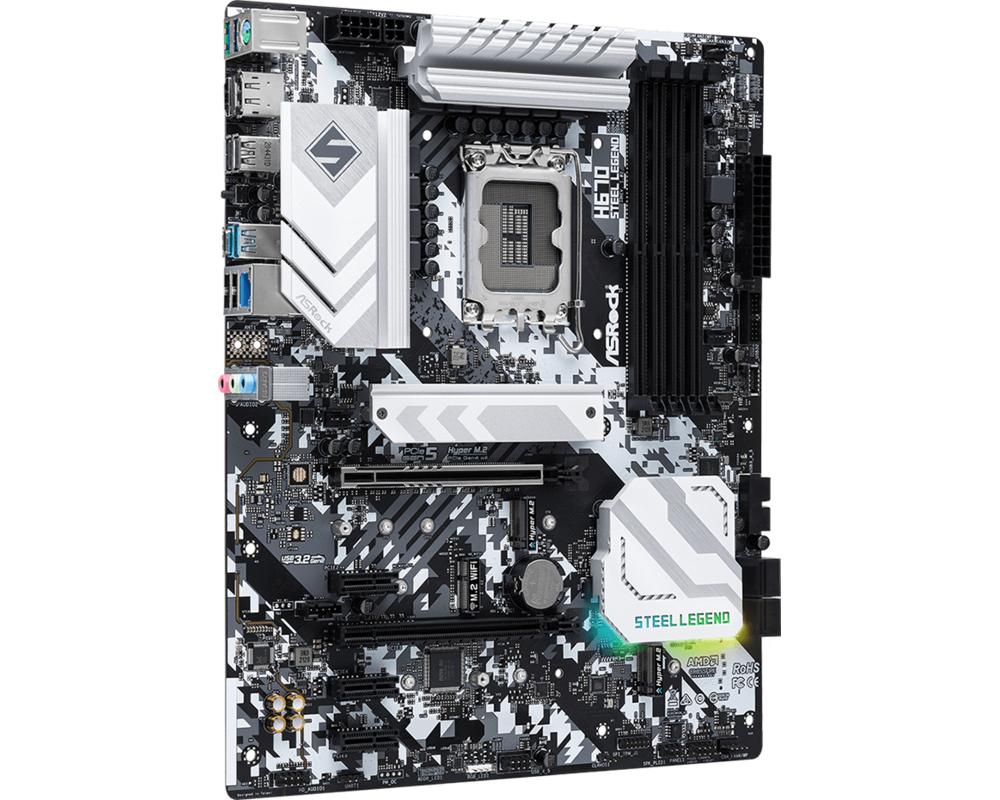

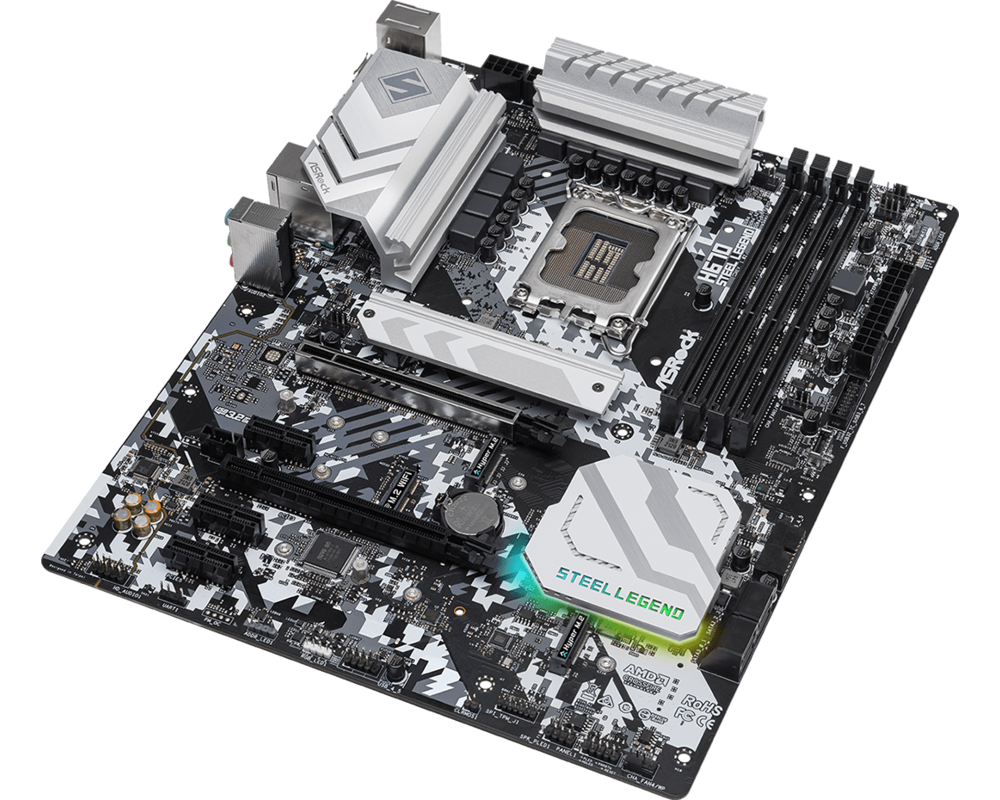

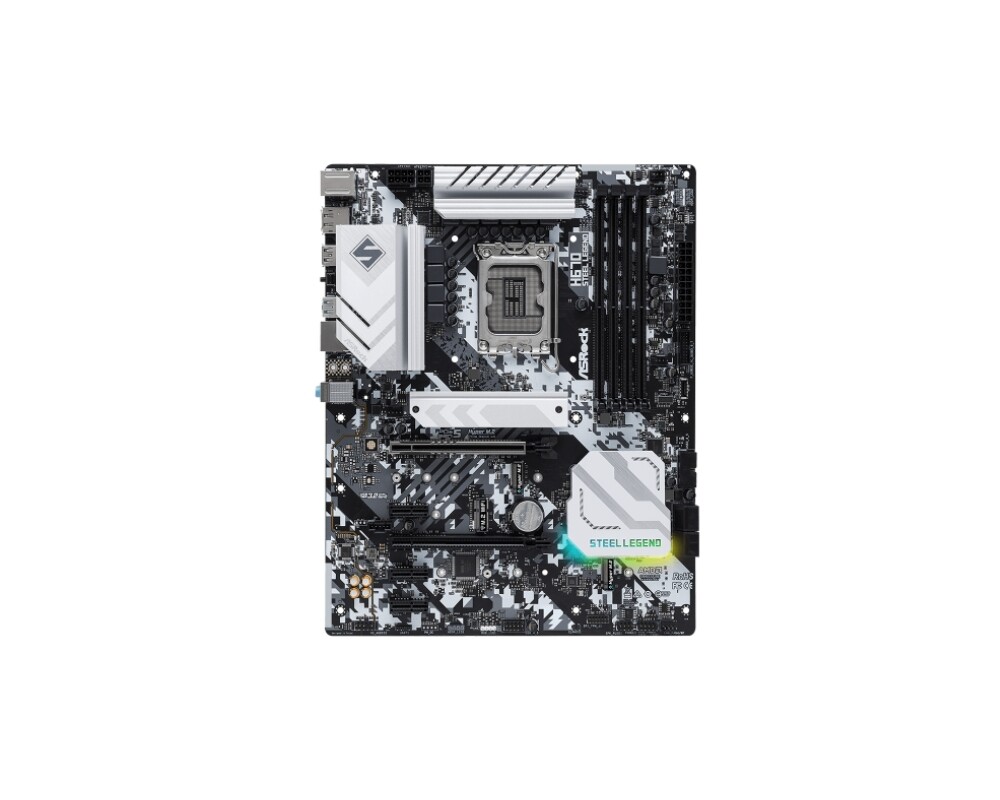

Дънна платка ASROCK H670 Steel Legend LGA1700 4x DDR4 DIMM HDMI DP 1xPCIe 5.0 x16 1xPCIe 4.0 x16 3xPCIe 3.0 x1 H670 STEEL LEGEND
изчерпано
Сокет: LGA1700 Socket
Чипсет: Intel H670
Тип на паметта: DDR4
Физически размер: Motherboard - ATX
Слотове за памет: 4
Честота на паметта: 5000 MHz (O.C.)
Гаранция:
0.0
от 5.0
(0)
Купи и събери
3 точки
Плати по-лесно и сигурно с
Изчерпано
275 лв.
/
14061 €
Виж всички продукти на Asrock
Пазарувай по марка
Характеристики
| Физически размер | Motherboard - ATX |
| Чипсет | Intel H670 |
| Сокет | LGA1700 Socket |
| Съвместими процесори | (supports 12th Generation Intel Core) |
| BIOS | Multilingual BIOS, UEFI BIOS, SMBIOS 2.7 support, ACPI 6.0 support |
| Тип BIOS | AMI |
| Памет |
Two DDR Channels
Небуферирана XMP 2.0 |
| Тип на паметта | DDR4 |
| Честота на паметта | 5000 MHz (O.C.) |
| Dual channel | Да |
| Формат на паметта | DIMM 288-pin |
| ECC support | Non-ECC, ECC (operate in non-ECC mode) |
| Memory Registered / Buffered | Unbuffered |
| Слотове за памет | 4 |
| Максимална памет | 128 GB |
| Слотове | 2 x PCIe x16 Slots (PCIE1/PCIE3: single at Gen5x16 (PCIE1); dual at Gen5x16 (PCIE1) / Gen4x4 (PCIE3)); - 3 x PCIe Gen3x1 Slots; - Supports AMD CrossFire™; - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT) |
| Брой процесорни гнезда | 1 |
| Видео | Intel® Xe Graphics Architecture (Gen 12); - Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers; - Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz; - Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz; - Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports |
| Контролер на съхранението |
Storage Controller:
Supports: Ниво 0, Ниво 1, Ниво 10, Ниво 5 SATA III-600 (4) Storage Controller: Supports: Ниво 0, Ниво 1, Ниво 5 PCI Express 4.0 x4 (2 x M.2 (Key M)) Storage Controller: Supports: Ниво 0, Ниво 1, Ниво 5 PCIe 4.0 x4/SATA (1 x M.2 (Key M)) |
| Дисков интерфейс | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5, SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10, PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 |
| SATA | 4 x SATA3 6.0 Gb/s |
| M.2 slot |
1 x Hyper M.2 Socket (M2_2
Key M) supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode 1 x Hyper M.2 Socket (M2_3 Key M) supports type 2260/2280/22110 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes 1 x M.2 Socket (Key E) supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT) 1 x Hyper M.2 Socket (M2_1 Key M) supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode |
| RAID |
Supports RAID 0
RAID 1 RAID 5 and RAID 10 for SATA storage devices Supports RAID 0 RAID 1 and RAID 5 for M.2 NVMe storage devices |
| LAN порт | 2.5 Gigabit Ethernet |
| LAN standards |
Gigabit Ethernet/Fast Ethernet/Ethernet
2.5 Gbps |
| LAN controller | Dragon RTL8125BG |
| Wi-Fi controller |
Wi-Fi Controller:
1 x M.2 (Key E) |
| Звук | Realtek ALC897 |
| Звуков изход | HD Audio (8-channel) |
| Аудио стандарти | High Definition Audio |

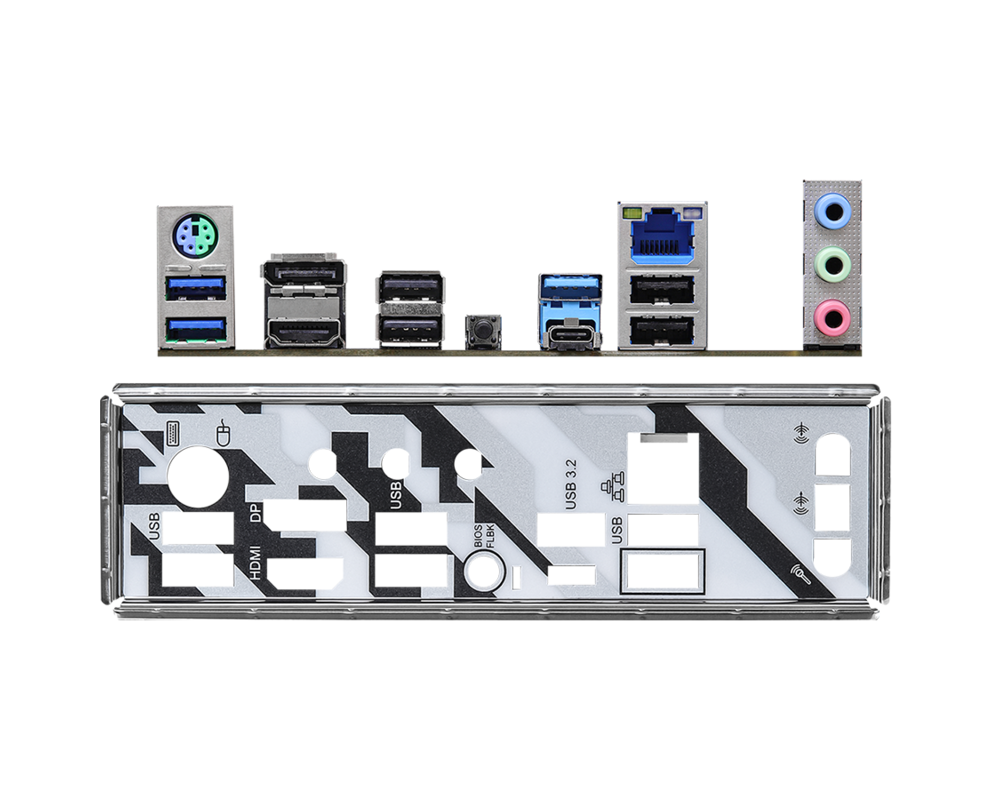

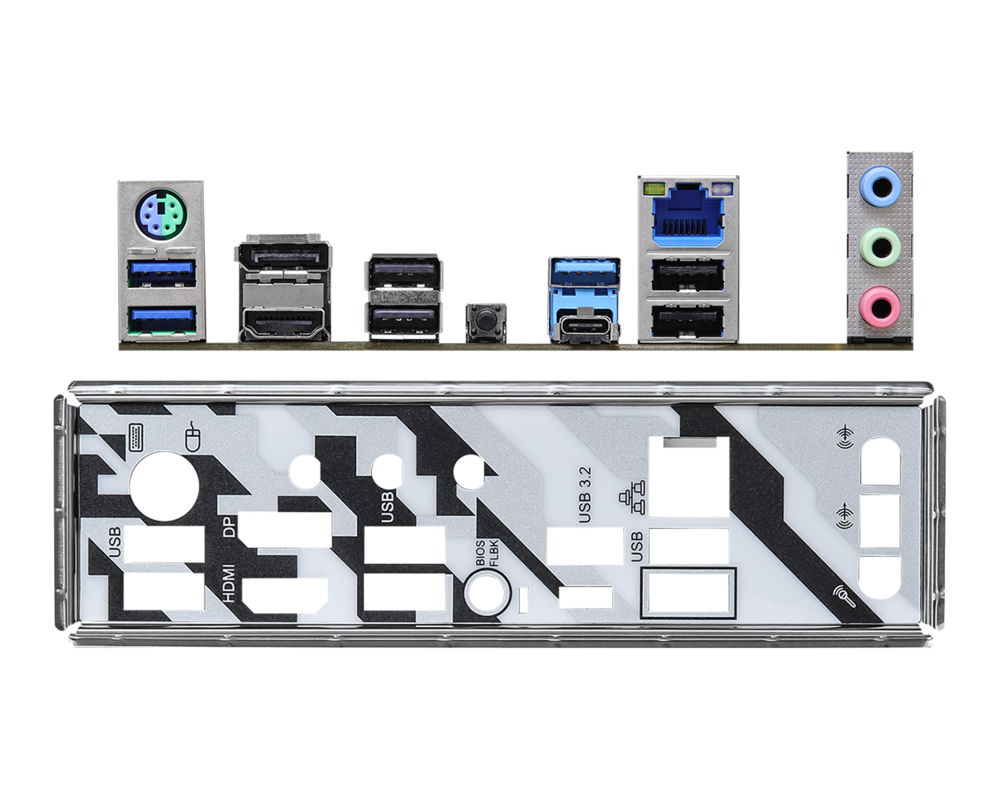

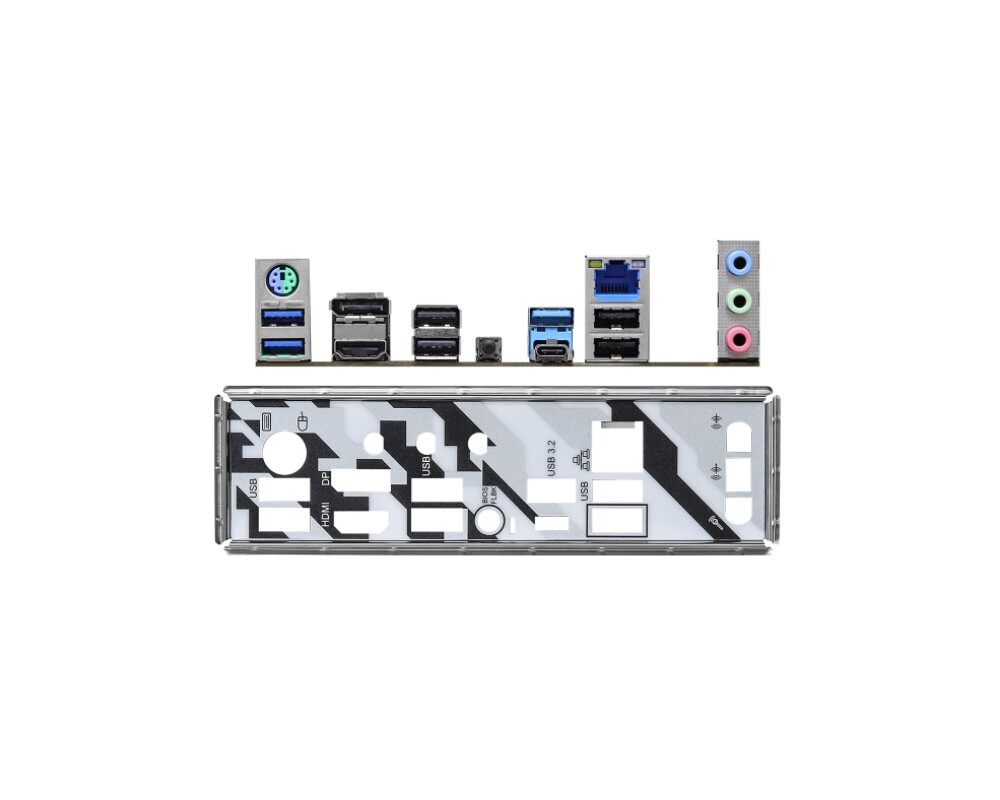

| Портове |
1 x audio line-in - mini-jack
1 x audio line-out - mini-jack 1 x microphone - mini-jack 1 x PS/2 keyboard / mouse 1 x HDMI 1 x LAN (2.5Gigabit Ethernet) 1 x DisplayPort 1 x USB 3.2 Gen 2 1 x USB-C Gen2 2 x USB 3.2 Gen 1 4 x USB 2.0 |
| Разширителни слотове |
1 x CPU
4 x DIMM 288-pin 1 x PCIe 5.0 x16 3 x PCIe 3.0 x1 1 x M.2 socket (Key E) 1 x PCIe 4.0 x16 (x4 mode) |
| PCI slots | 3x PCI Express 3.0 x1, 1x PCI Express 4.0 x16, 1x PCI Express 5.0 x16 |
| PCIe x1 | 3 |
| PCIe x16 | 2 |
| Вътрешен интерфейс |
4 x USB 3.2 Gen 1 - header
1 x audio - header 1 x Thunderbolt - header 1 x USB-C Gen 2x2 - header 2 x USB 2.0 - header |
| Wake on LAN | Wake on LAN (WOL) |
| Функции | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 2.0, supported ECC modules operate in non-ECC mode |
| Софтуер | Drivers & Utilities, ASRock A-Tuning, Antivirus (Trial version), ASRock Polychrome SYNC |
| Съвместими операционни системи |
Microsoft Windows 10 64-bit
Microsoft Windows 11 64-bit |
| Конектори | 1 x SPI TPM Header; - 1 x Power LED and Speaker Header; - 1 x RGB LED Header; - 3 x Addressable LED Headers; - 1 x CPU Fan Connector (4-pin); - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control); - 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control); - 1 x 24 pin ATX Power Connector; - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector); - 1 x 4 pin 12V Power Connector (Hi-Density Power Connector); - 1 x Front Panel Audio Connector; - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card); - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection); - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection); - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection) |
| Конектори за захранване | 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector |
| Наблюдение на хардуера |
CPU core temperature
chassis temperature CPU fan tachometer chassis fan tachometer system voltage CPU core voltage |
| Стандарти | FCC, EuP Ready, ErP Ready |
| Включени кабели | 2 x Serial ATA cable |
| Аксесоари | I/O back plate, 4 x M.2 screws, standoff for M.2 socket |
| Височина | 244 мм |
| Ширина | 30.5 cm |
| Дълбочина | 24.4 cm |
| Други характеристики |
ASRock Instant Flash
AMD CrossFireX technology support ASRock Internet Flash ESD Protection Energy Efficient Ethernet 802.3az Preboot eXecution Environment (PXE) ASRock Full Spike Protection ASRock APP Shop ASRock Super Alloy High Density Glass Fabric PCB ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Easy RAID Installer Dr.MOS MOSFET Nahimic Audio Enhacer ASRock Live Update ASRock EZ Mode Intel Optane Memory Ready Nichicon 12K Black Caps Matte Black PCB ASRock Steel Slots Premium Power Choke 9 Phase Power Design Intel Turbo Boost Max Technology 3.0 ASRock POST Status Checker (PSC) ASRock Full Coverage M.2 Heatsink ASRock Hyper M.2 ASRock USB 3.2 Gen2 Intel Hybrid Technology |
| Гаранция | 36 месеца |
| Код на продукта | H670 STEEL LEGEND |
Виж повече
Допълнителна информация
- Dr.MOS
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance. - 9 power phase design
Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers. - 6 Layer PCB
The 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with most extreme memory performance! - PCIe 5.0 + Surface-Mount Tech
Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard. The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards. - Nahimic Audio
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details. - Polychrome RGB
In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects. - High Speed M.2 solution
This motherboard is capable of accommodating multiple PCI Express 4.0 M.2 SSDs, which is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience. - Dragon 2.5 Gb/s LAN
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you'll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups. - Front USB 3.2 Gen2x2 Type-C
The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way. - Dual USB 3.2 Gen2 (Type-A + Type-C)
This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates. - BIOS Flashback
Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and power supply, No CPU, RAM or other components required. - M.2 (Key E) for WiFi
Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.
