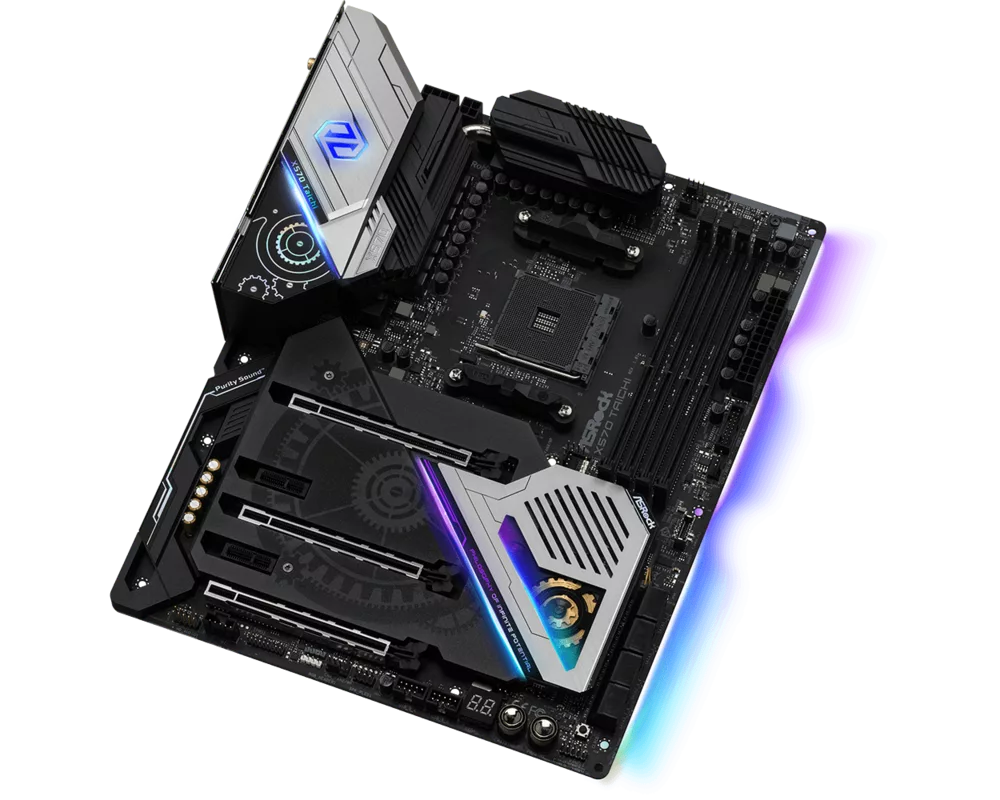

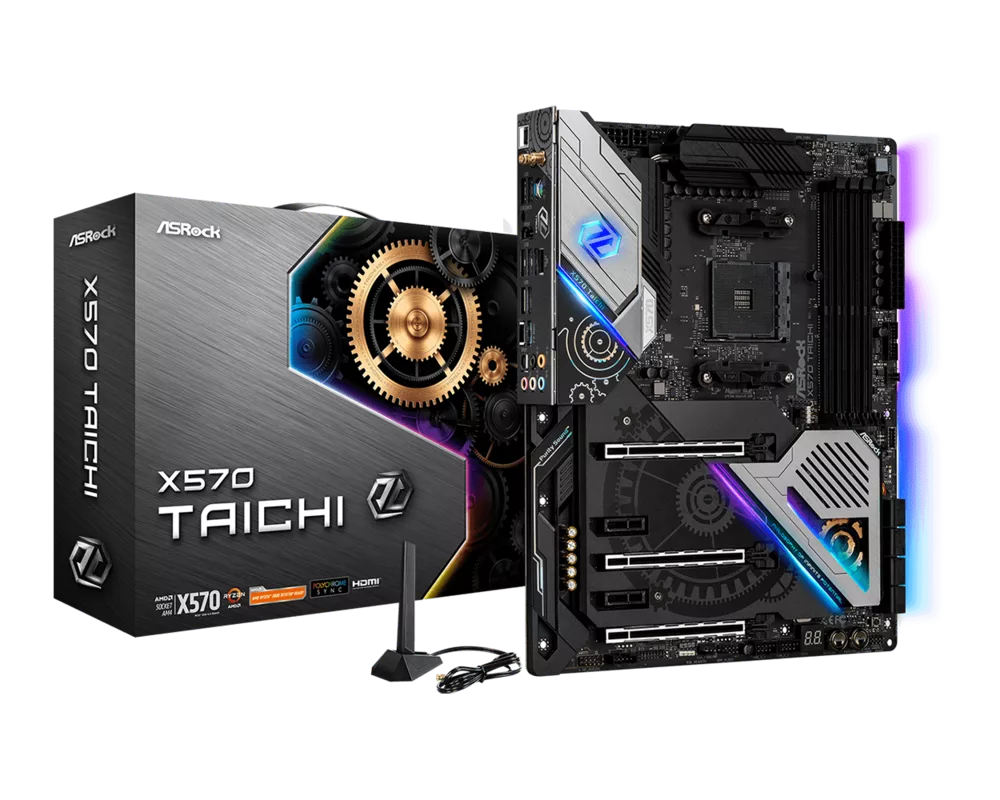

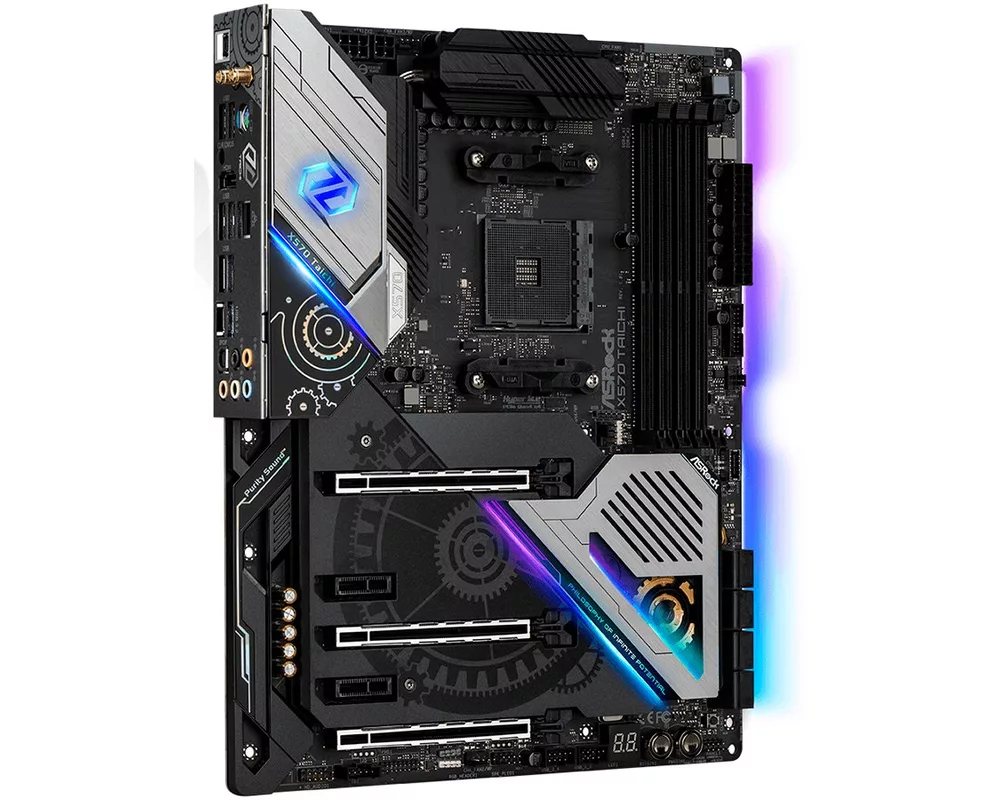

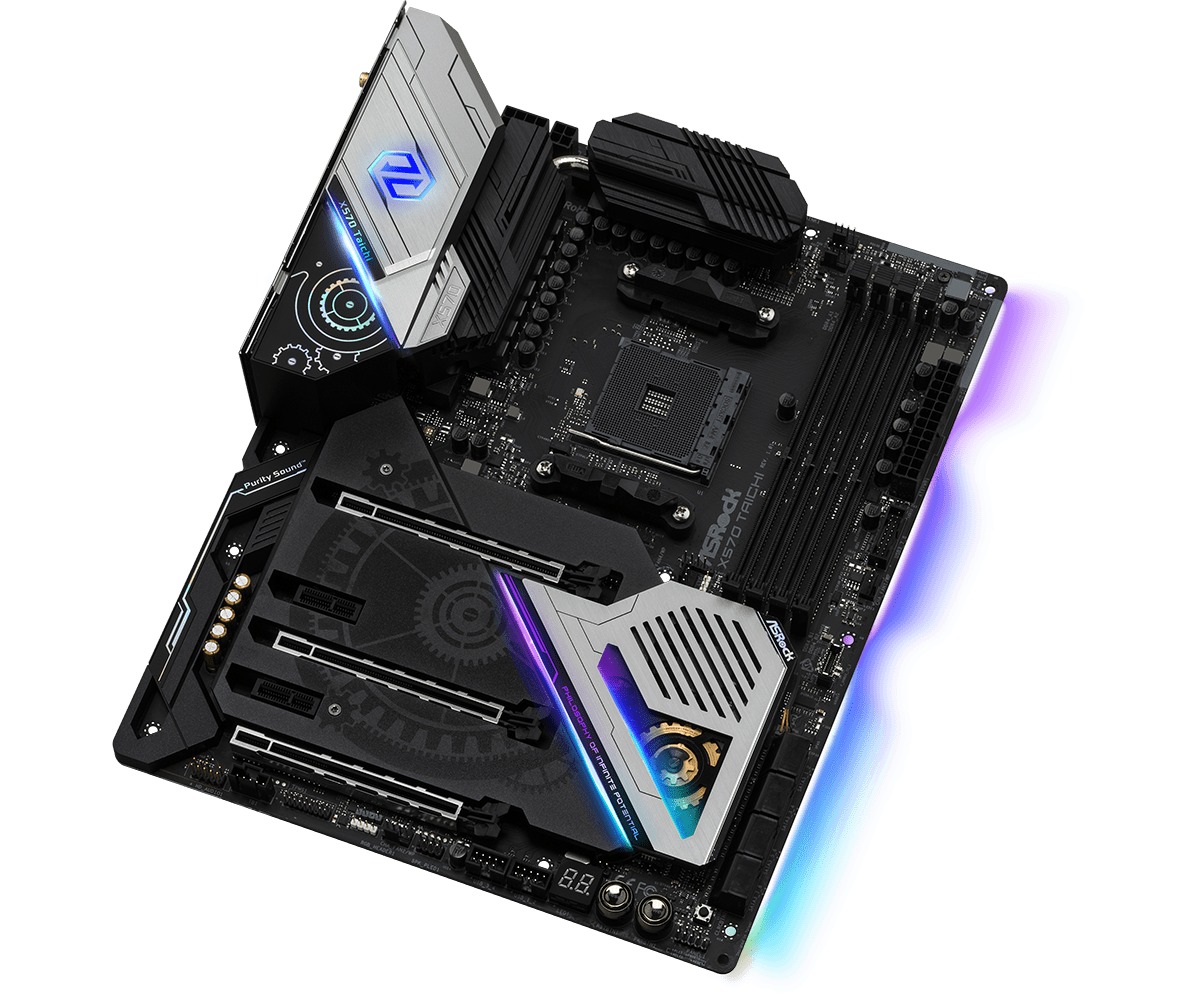

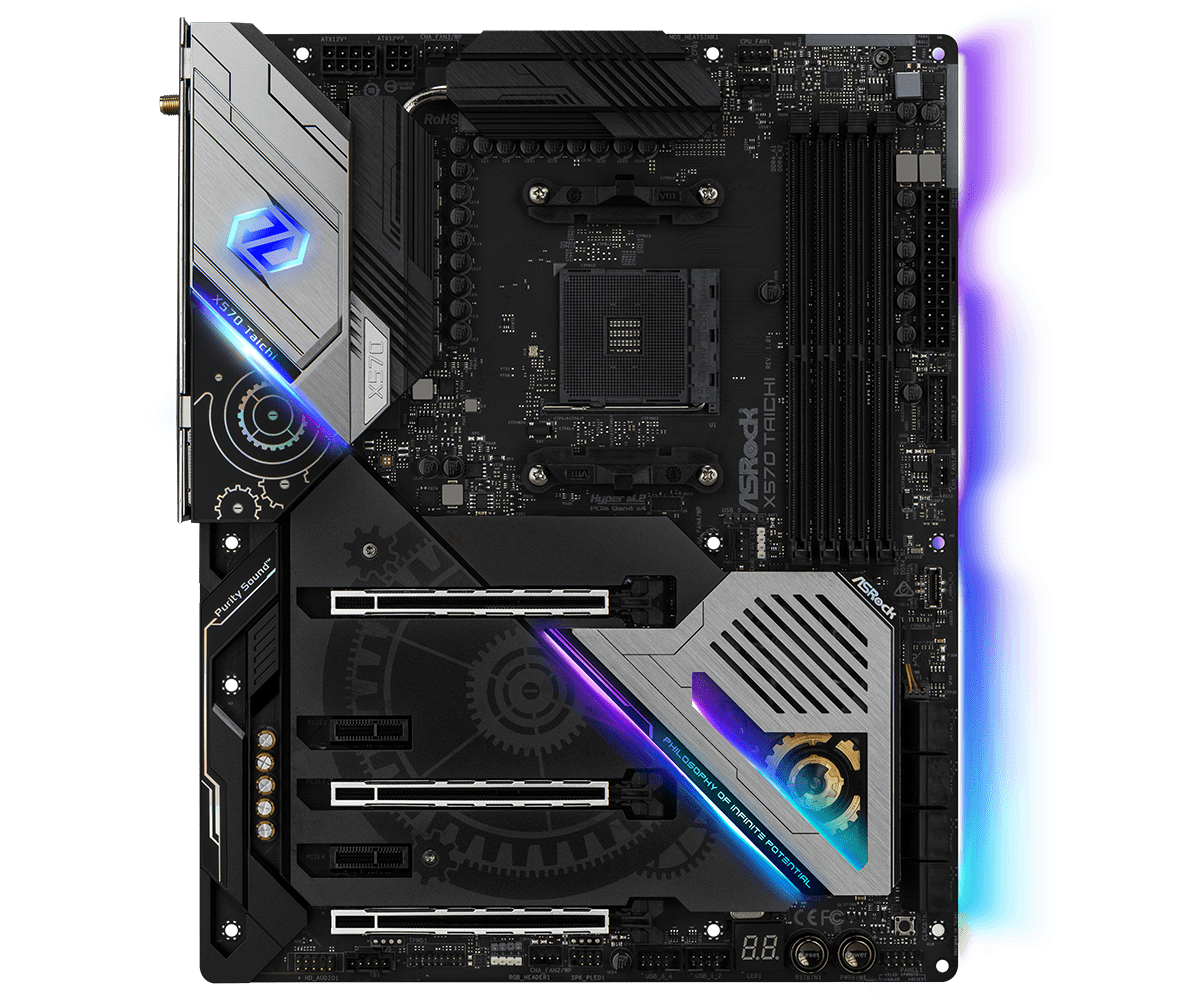

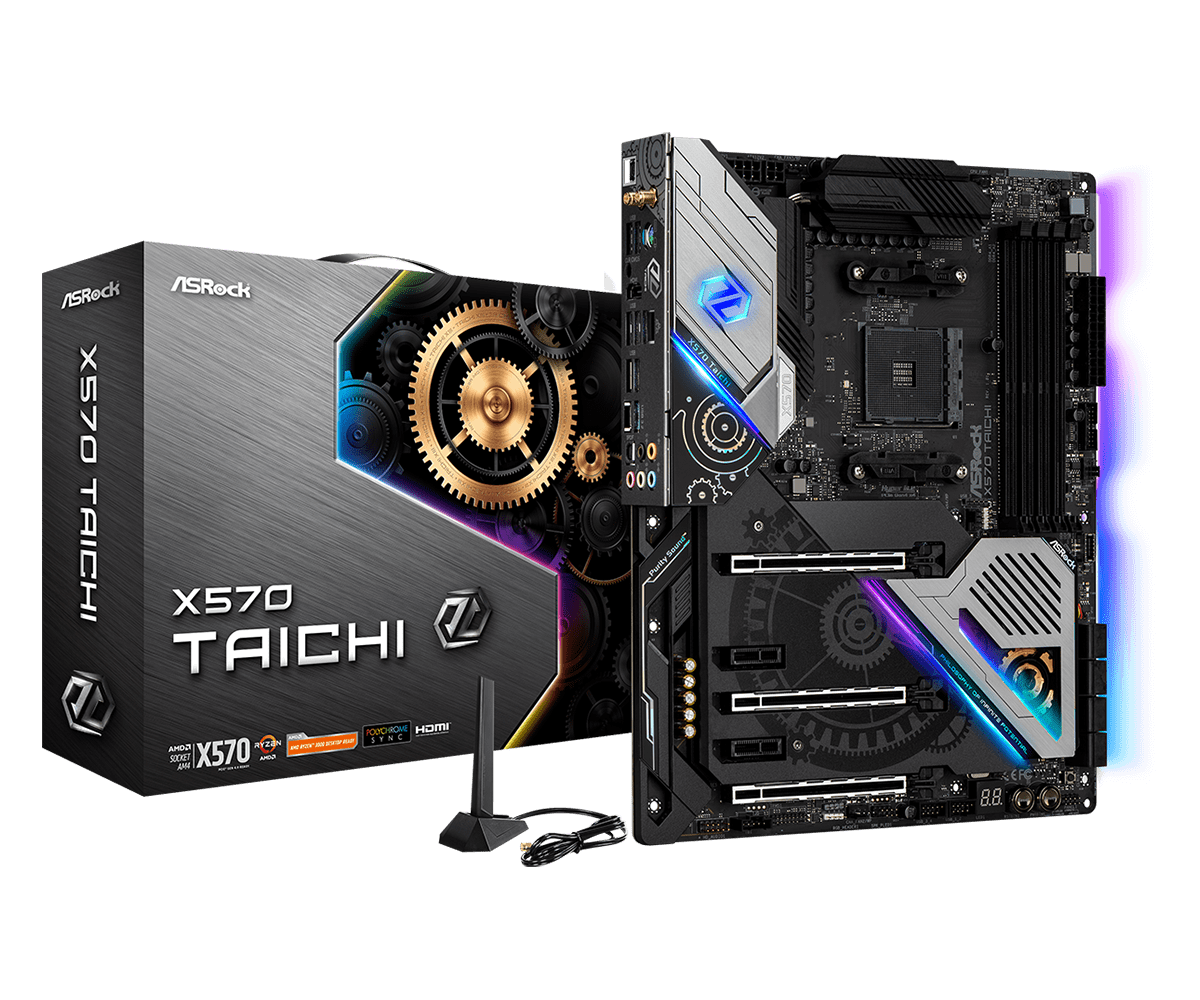

Дънна платка ASRock X570 Taichi X570 TAICHI
изчерпано
Сокет: AM4
Чипсет: - AMD X570
Тип на паметта: DDR4
Физически размер: - ATX Form Factor: 12.0-in x...
Слотове за памет: 4
Честота на паметта: 3200 MHz
Гаранция:
0.0
от 5.0
(0)
Купи и събери
3 точки
Плати по-лесно и сигурно с
Виж всички продукти на Asrock
Пазарувай по марка
Характеристики
| Серия | Taichi |
| Физически размер | - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - 2oz Copper PCB |
| Чипсет | - AMD X570 |
| Сокет | AM4 |
| Съвместими процесори | - Supports AMD AM4 Socket Ryzen™ 2000, 3000, 4000 G-Series and 5000 Series Desktop Processors*; - Intersil Digital PWM; - 14 Power Phase design; - Capable of providing extra 300W for CPU; - Supports ASRock Hyper BCLK Engine II |
| BIOS |
- 256Mb AMI UEFI Legal BIOS with GUI support; - Supports "Plug and Play"; - ACPI 5.1 compliance wake up events; - Supports jumperfree; - SMBIOS 2.3 support; - CPU
VCORE_NB DRAM VPPM PCH 1.05V +1.8V VDDP Voltage Multi-adjustment |
| Тип BIOS | AMI |
| Памет |
Dual Channel DDR4 Memory Technology; 4 x DDR4 DIMM Slots; AMD Ryzen series CPUs (Vermeer) support DDR4 4666+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC
un-buffered memory* AMD Ryzen series CPUs (Matisse) support DDR4 4666+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC un-buffered memory*AMD Ryzen series APUs (Renoir) support DDR4 4666+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC un-buffered memory*; AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3600+(OC) / 3466(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 ECC & non-ECC un-buffered memory*; AMD Ryzen series CPUs (Picasso) support DDR4 3466+(OC) / 3200(OC) / 2933 / 2667 |
| Тип на паметта | DDR4 |
| Честота на паметта | 3200 MHz |
| Формат на паметта | DIMM 288-pin |
| ECC support | ECC/Non-ECC |
| Слотове за памет | 4 |
| Максимална памет | 128 GB |
| Слотове | AMD Ryzen series CPUs (Vermeer, Matisse); - 2 x PCI Express 4.0 x16 Slots (single at x16 (PCIE1); dual at x8 (PCIE1) / x8 (PCIE3))*; AMD Ryzen series CPUs (Renoir, Pinnacle Ridge); - 2 x PCI Express 3.0 x16 Slots (single at x16 (PCIE1); dual at x8 (PCIE1) / x8 (PCIE3))*; AMD Ryzen series CPUs (Picasso); - 1 x PCI Express 3.0 x16 Slot (x8 (PCIE1))*; AMD X570 Chipset; - 1 x PCI Express 4.0 x16 Slot (x4 (PCIE5))*; - 2 x PCI Express 4.0 x1 Slots; - Supports AMD Quad CrossFireX™, 3-Way CrossFireX™ and CrossFireX™**; - Supports NVIDIA® Quad SLI™ and SLI™***; - Supports NVIDIA® NVLink™ with dual NVIDIA® GeForce RTX series graphics cards***; - 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ax PCIe WiFi module (on the rear I/O); - 15μ Gold Contact in VGA PCIe Slot (PCIE1) |
| Брой процесорни гнезда | 1 |
| Видео | - Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*; - DirectX 12, Pixel Shader 5.0; - Shared memory default 2GB. Max Shared memory supports up to 16GB.**; - Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz; - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Ports (Compliant HDMI monitor is required); - Supports HDR (High Dynamic Range) with HDMI 2.0; - Supports HDCP 2.2 with HDMI 2.0 Port; - Supports 4K Ultra HD (UHD) playback with HDMI 2.0 Port; - Supports Microsoft® PlayReady |
| Контролер на съхранението |
Storage Controller:
Supports: Ниво 0, Ниво 1, Ниво 10 SATA III-600 (8) Storage Controller: PCI Express 4.0 x4 (1 x M.2 (Key M)) Storage Controller: PCIe/SATA (2 x M.2 (Key M)) |
| Дисков интерфейс |
- 8 x SATA3 6.0 Gb/s Connectors
support RAID (RAID 0 RAID 1 and RAID 10) NCQ AHCI and Hot Plug; - 1 x Hyper M.2 Socket (M2_1) supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Vermeer Matisse) or Gen3x4 (32 Gb/s) (with Renoir Pinnacle Ridge and Picasso)*; - 1 x Hyper M.2 Socket (M2_2) supports M Key type 2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s)*; - 1 x Hyper M.2 Socket (M2_3) supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s |
| LAN порт | - Gigabit LAN 10/100/1000 Mb/s; - GigaLAN Intel® I211AT; - Supports Wake-On-LAN; - Supports Lightning/ESD Protection; - Supports Energy Efficient Ethernet 802.3az; - Supports PXE |
| LAN standards | Gigabit Ethernet/Fast Ethernet/Ethernet |
| Wi-Fi antenna | 2 |
| Wi-Fi |
IEEE 802.11ac Wi-Fi 5
IEEE 802.11ax Wi-Fi 6 IEEE 802.11abgn Wi-Fi 4 |
| Звук | - 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec); - Premium Blu-ray Audio support; - Supports Surge Protection; - Supports Purity Sound™ 4; - NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets); - Pure Power-In; - Direct Drive Technology; - PCB isolate shielding; - Impedance Sensing on Rear Out port; - Individual PCB Layers for R/L Audio Channel; - Gold Audio Jacks; - 15μ Gold Audio Connector; - Supports DTS Connect |
| Звуков изход | 7.1 канален съраунд |
| Аудио стандарти |
DTS
High Definition Audio Blu-ray Audio Layer Content Protection |

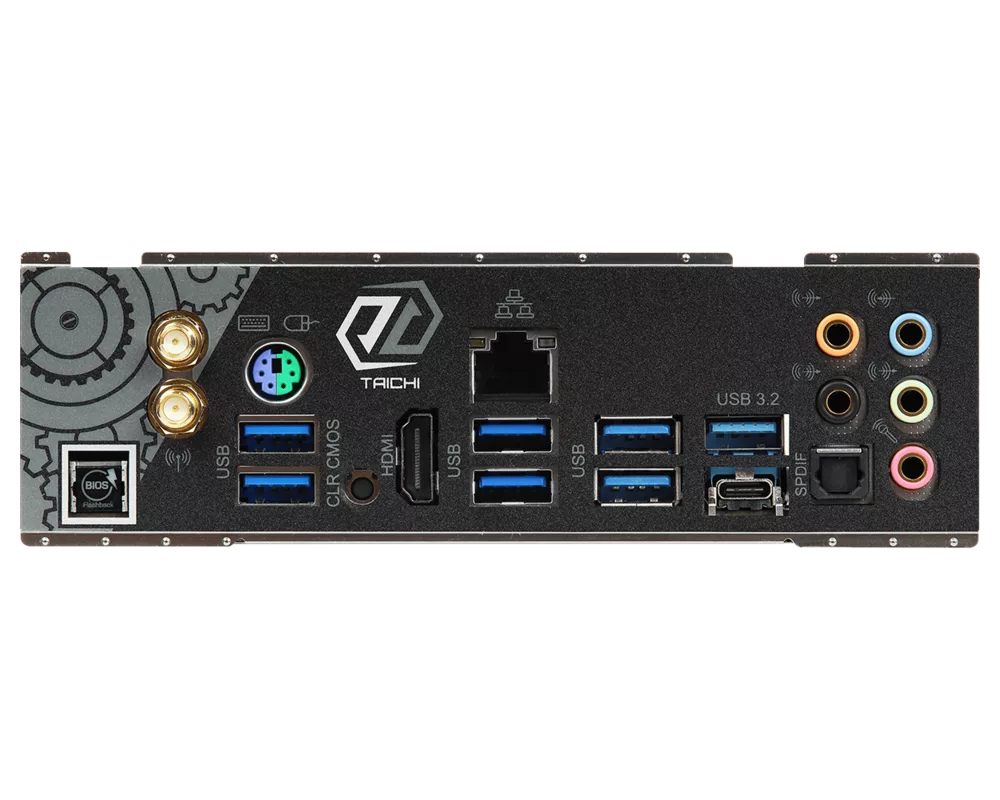

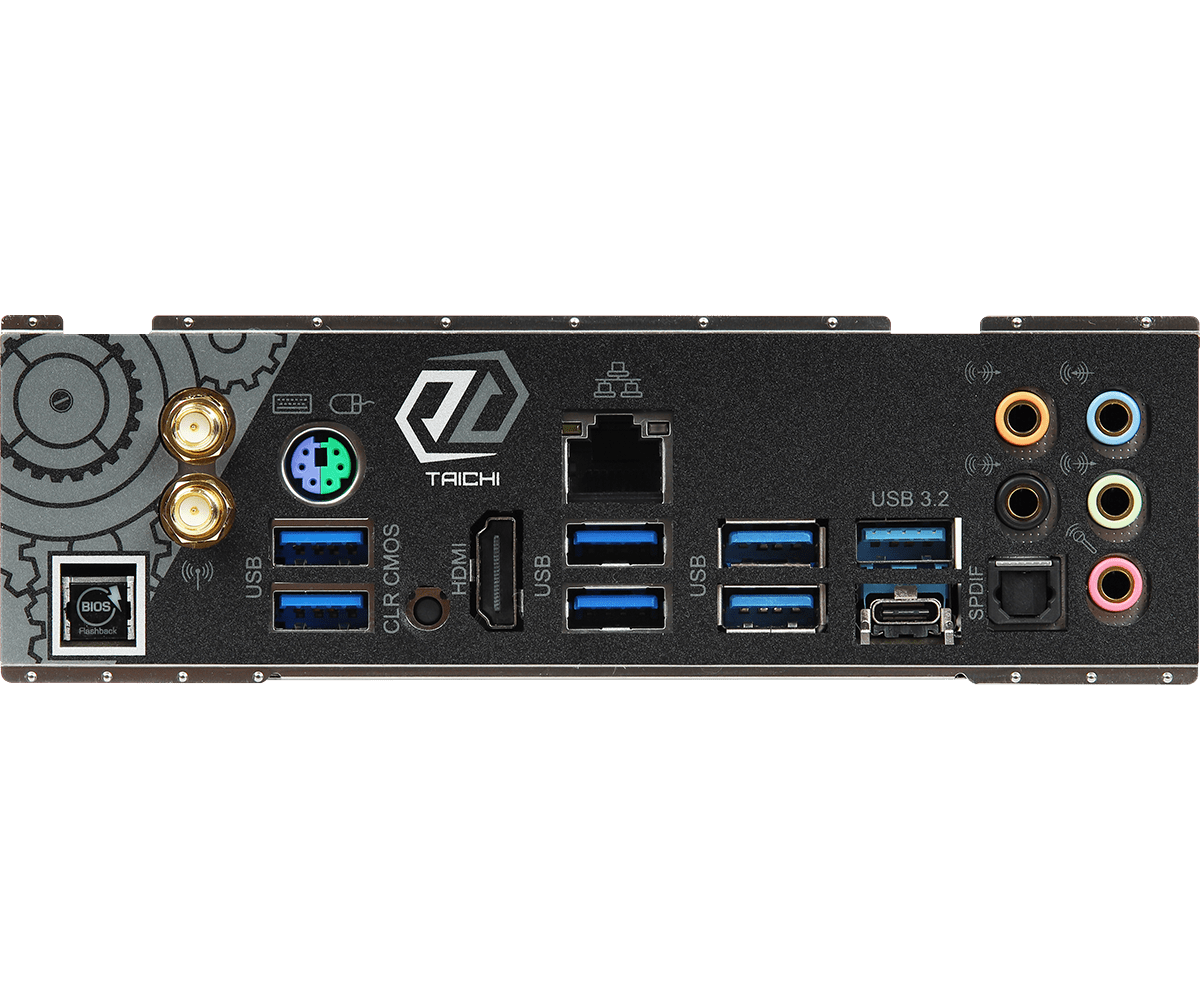

| Портове | - 2 x Antenna Ports; - 1 x PS/2 Mouse/Keyboard Port; - 1 x HDMI Port; - 1 x Optical SPDIF Out Port; - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection); - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection); - 6 x USB 3.2 Gen1 Ports (Supports ESD Protection)*; - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED); - 1 x Clear CMOS Button; - 1 x BIOS Flashback Button; - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) |
| PCI slots | 2x PCI Express 4.0 x1, 3x PCI Express 4.0 x16 |
| Bluetooth | Bluetooth 5.0 |
| Wake on LAN | Wake on LAN |
| Функции |
AMD Quad CrossFireX
AMD 3-Way CrossFireX Technology AMD CrossFireX RGB LED |
| Съвместими операционни системи | Windows 10 |
| Конектори | - 1 x Power LED and Speaker Header; - 1 x AMD Fan LED Header*; - 1 x RGB LED Header**; - 1 x Addressable LED Header***; - 1 x CPU Fan Connector (4-pin)****; - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*****; - 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)******; - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector); - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector); - 1 x 4 pin 12V Power Connector (Hi-Density Power Connector); - 1 x Front Panel Audio Connector (15μ Gold Audio Connector); - 1 x AMD LED Fan USB Header; - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 3 AIC Card R2.0 only); - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection); - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection); - 1 x Front Panel Type C USB 3.2 Gen2 Header (Supports ESD Protection); - 1 x Dr. Debug with LED; - 1 x Power Button with LED; - 1 x Reset Button with LED; - 1 x Clear CMOS Butt |
| Конектори за захранване | 24+8 pin |
| Включени кабели | 4 x SATA 6Gb/s Cables |
| Аксесоари |
Ръководство за употреба
Screws Driver CD |
| Ширина | 305 мм |
| Дълбочина | 244 мм |
| Други характеристики | - Intel® 802.11ax WiFi Module; - Supports IEEE 802.11a/b/g/n/ax; - Supports Dual-Band (2.4/5 GHz); - Supports high speed wireless connections up to 2.4Gbps; - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology; - Supports Bluetooth 5.0 + High speed class II; - Supports MU-MIMO |
| Гаранция | 36 месеца |
| Код на продукта | X570 TAICHI |
Виж повече
Информация за производителя
| Контакт | [email protected] |
| Адрес | Bijsterhuizen 11-11 6546 AR Nijmegen |
| Уебсайт | https://www.asrock.com/index.bg.asp |
Виж повече
