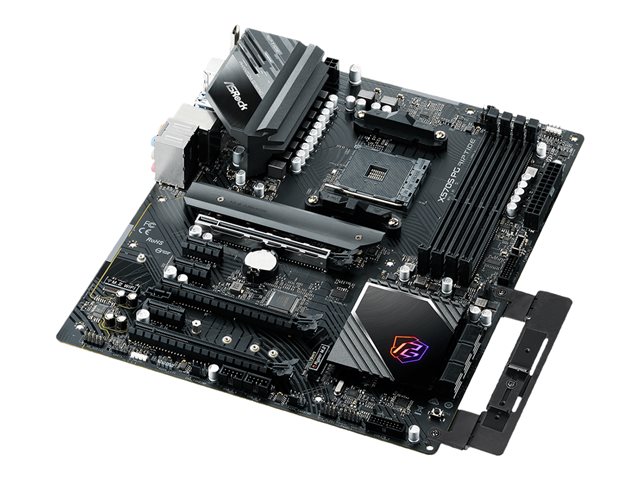

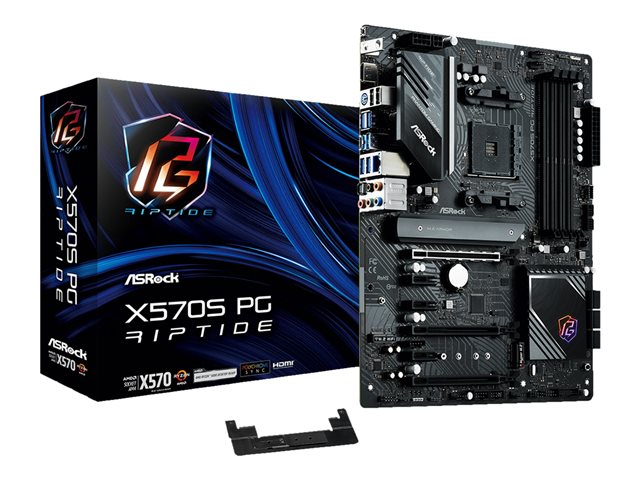

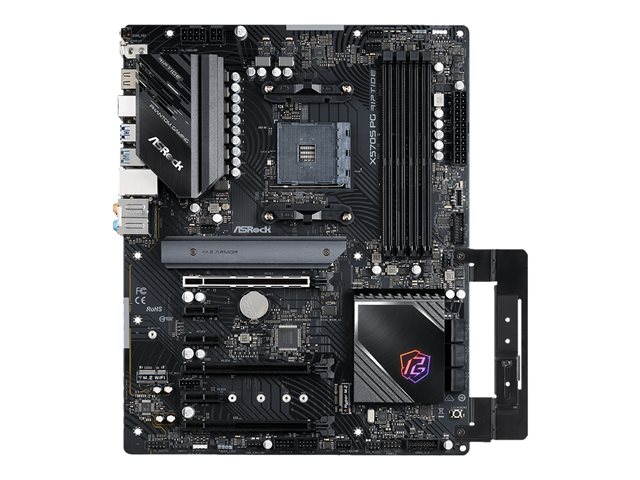

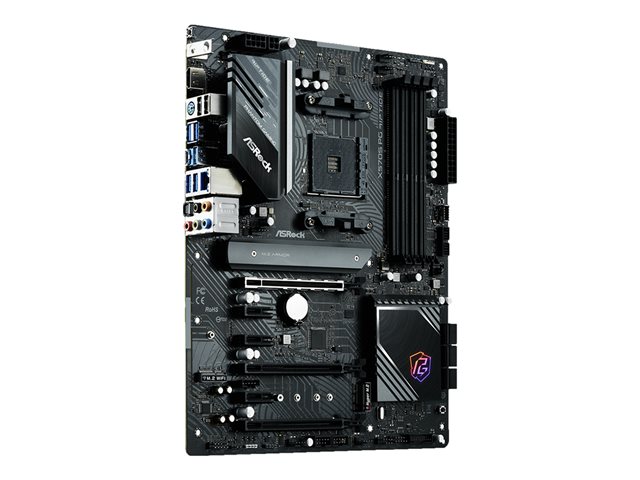

Дънна платка ASROCK X570S PG RIPTIDE AM4 DDR4 6xSATA 2xM.2 ATX MB X570S PG RIPTIDE
изчерпано
Сокет: AM4
Чипсет: AMD X570
Тип на паметта: DDR4
Физически размер: ATX
Слотове за памет: 4
Честота на паметта: 3200 MHz
Гаранция:
0.0
от 5.0
(0)
Купи и събери
2 точки
Плати по-лесно и сигурно с
Виж всички продукти на Asrock
Пазарувай по марка
Характеристики
| Физически размер | ATX |
| Чипсет | AMD X570 |
| Сокет | AM4 |
| Съвместими процесори | Ryzen (supports Ryzen 2000 Series/ 3000 Series/ 4000 G-Series/ 5000 Series) |
| BIOS | UEFI BIOS, ACPI 5.1 support, SMBIOS 2.3 support, JumperFree |
| Тип BIOS | AMI |
| Тип на паметта | DDR4 |
| Честота на паметта | 3200 MHz |
| ECC support | Non-ECC, ECC |
| Memory Registered / Buffered | Unbuffered |
| Слотове за памет | 4 |
| Максимална памет | 128 GB |
| Брой процесорни гнезда | 1 |
| Дисков интерфейс | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 |
| LAN порт | 2.5 Gigabit Ethernet |
| LAN controller | Killer E3100G |
| Звук | Realtek ALC897 |
| Звуков изход | HD Audio (8-channel) |
| Аудио стандарти | High Definition Audio |

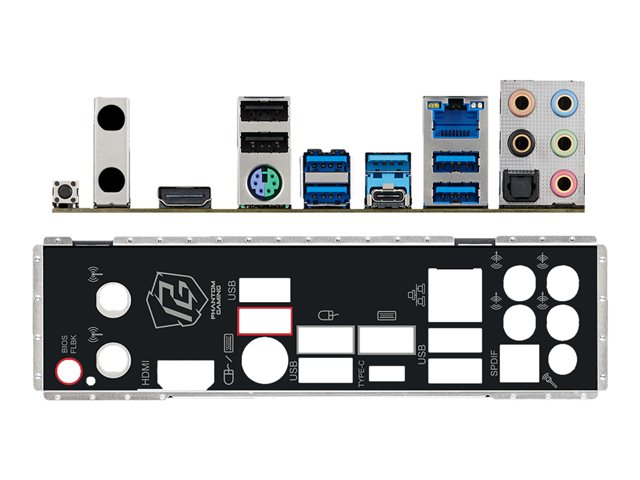

| Портове | 1 x USB 3.2 Gen 2 1 x USB-C Gen2 4 x USB 3.2 Gen 1 1 x HDMI 2 x USB 2.0 1 x LAN (2.5Gigabit Ethernet) 1 x audio line-out - mini-jack 1 x audio line-in - mini-jack 1 x microphone - mini-jack 1 x audio line-out (center/subwoofer) - mini-jack 1 x audio line-out (rear) - mini-jack 1 x TOSLINK 1 x PS/2 keyboard / mouse |
| Разширителни слотове | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 4.0 x16 (PCIe 4.0 x16 mode (Ryzen series CPUs Matisse); PCIe 3.0 x16 mode (Ryzen series CPUs Pinnacle Ridge); PCIe 3.0 x8 mode (Ryzen series CPUs Picasso)) 1 x PCIe 4.0 x16 (x4 mode) 1 x PCIe 4.0 x16 (x2 mode) 3 x PCIe 4.0 x1 1 x M.2 socket (2230 M.2 Key E slot) |
| Вътрешен интерфейс | 1 x Thunderbolt - header 1 x audio - header 4 x USB 2.0 - header 4 x USB 3.2 Gen 1 - header 1 x USB-C Gen2 - header |
| Wake on LAN | Wake on LAN (WOL) |
| Функции | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Софтуер |
Drivers & Utilities
Antivirus (Trial version) Google Chrome Browser Google ChromeToolbar ASRock Phantom Gaming Tuning ASRock Killer LAN ASRock Polychrome SYNC |
| Конектори за захранване | 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector |
| Наблюдение на хардуера |
CPU core temperature
chassis temperature CPU fan tachometer chassis fan tachometer system voltage CPU core voltage |
| Стандарти |
Plug and Play
FCC EuP Ready ErP Ready HDCP 2.3 CEC Tier II |
| Включени кабели | 2 x Serial ATA cable |
| Аксесоари | 3 x M.2 screws, standoff for M.2 socket, graphics card holder |
| Ширина | 30.5 cm |
| Дълбочина | 24.4 cm |
| Други характеристики |
ASRock Super Alloy
XXL Aluminum Alloy Heatsink Premium 60A Power Choke Dr.MOS MOSFET Premium Memory Alloy Choke Matte Black PCB High Density Glass Fabric PCB 2oz Copper PCB ASRock Steel Slot Gen4 ASRock Full Coverage M.2 Heatsink ASRock Hyper M.2 ASRock POST Status Checker (PSC) ASRock Full Spike Protection ASRock Live Update ASRock APP Shop Digi Power Design 10 Phase Power Design HDCP compliant Nahimic Audio Enhacer ESD Protection Energy Efficient Ethernet 802.3az Preboot eXecution Environment (PXE) Gold Plated Audio Hardware AMD CrossFireX technology support AMD Quad CrossFireX technology support 15µ Gold Contact Clear CMOS Button ASRock Full HD UEFI ASRock Instant Flash |
| Гаранция | 36 месеца |
| Код на продукта | X570S PG RIPTIDE |
Виж повече
Допълнителна информация
- Dr. MOS
Dr. MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance. - Premium 60A power choke
Compared to traditional chokes, ASRock's premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard. - Killer Ethernet E3100
The Killer E3100 2.5 Gbps Ethernet controller is designed specifically for competitive gamers and performance-hungry users. The enhanced detection and prioritization engine provides the ultimate networking experience for gaming and multimedia applications. - Intel Killer Prioritization Engine
The Intel Killer Prioritization Engine detects and optimally prioritizes over 1,000 different games, apps, and websites to deliver amazing online experiences, ensuring you get your lowest in-game latencies by prioritizing your gaming traffic above everything else. - Smart Access Memory
Conventional PC systems processor can only access a fraction of graphics memory and limits system performance. With AMD Smart Access Memory, the data channel gets expanded to harness the full potential of GPU memory, removes the bottleneck and increase performance. - Dual hyper M.2 for SSD
Supports the next generation PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning-fast data transferring experience. - Rule your own lighting way - Polychrome RGB
ASRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way! ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well. - Front USB 3.2 Gen2 Type-C
Front USB 3.2 Gen2 Type-C header delivers up to 10 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case. - Dual USB 3.2 Gen2 (Type-A + Type-C)
This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates. - Nahimic Audio
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details. - Post Status Checker
An easy troubleshooting tool that shows the CPU / DRAM / VGA / BOOT operation every time you start up the system. Post Status Checker is a fast and easy way to identify the source of the problem. - HDMI 4K @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.
