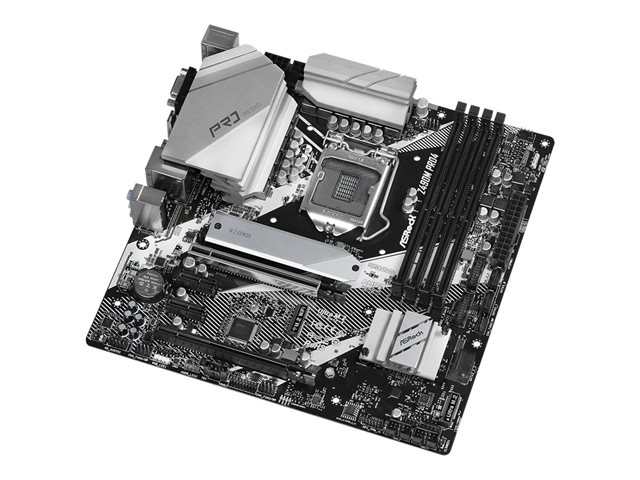

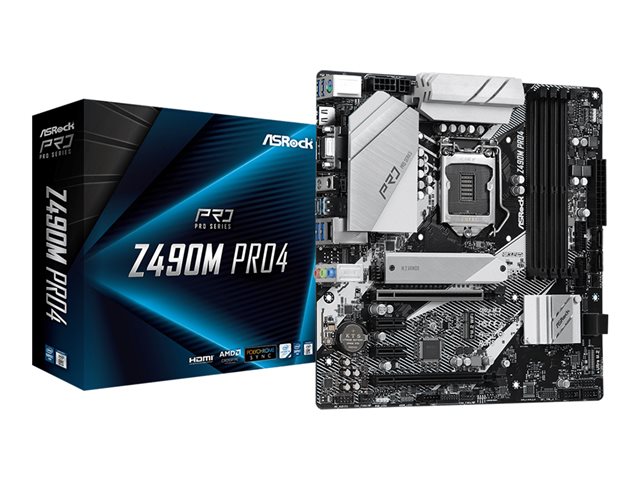

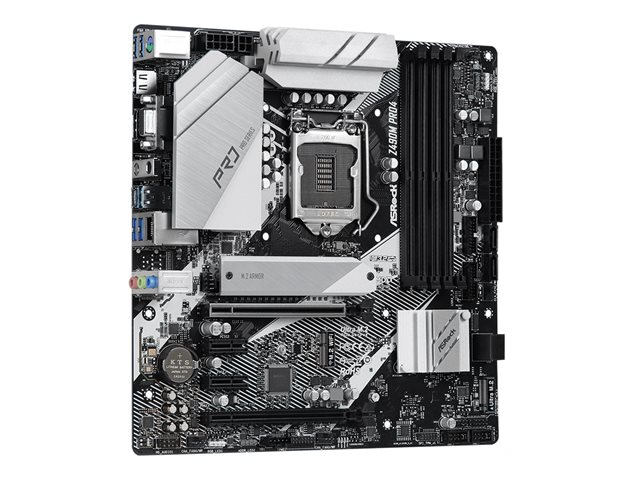

Дънна платка ASROCK Z490M Pro4 LGA 1200 DDR4 4500MHz+ 2 PCIe 3.0x16 7.1 CH HD Audio mATX MB Z490M PRO4
изчерпано
Сокет: LGA 1200
Чипсет: Intel Z490
Тип на паметта: DDR4
Физически размер: Micro ATX
Слотове за памет: 4
Честота на паметта: 2933 MHz
Гаранция:
0.0
от 5.0
(0)
Купи и събери
2 точки
Плати по-лесно и сигурно с
Виж всички продукти на Asrock
Пазарувай по марка
Характеристики
| Физически размер | Micro ATX |
| Чипсет | Intel Z490 |
| Сокет | LGA 1200 |
| Съвместими процесори | (supports 10th Generation Intel Core / Pentium Gold / Celeron) |
| BIOS | Multilingual BIOS, UEFI BIOS, SMBIOS 2.7 support, ACPI 6.0 support |
| Тип BIOS | AMI |
| Памет |
Two DDR Channels
Небуферирана XMP 2.0 |
| Тип на паметта | DDR4 |
| Честота на паметта | 2933 MHz |
| Формат на паметта | DIMM 288-pin |
| ECC support | Non-ECC, ECC (operate in non-ECC mode) |
| Memory Registered / Buffered | Unbuffered |
| Слотове за памет | 4 |
| Максимална памет | 128 GB |
| Брой процесорни гнезда | 1 |
| Контролер на съхранението |
Storage Controller:
SATA III-600 (1 x M.2 (Key M)) Storage Controller: Supports: Ниво 0, Ниво 1, Ниво 5, Ниво 1+ SATA III-600 (4) Storage Controller: PCI Express 3.0 x4 (1 x M.2) |
| Дисков интерфейс | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 SATA-600 / PCIe 3.0 -connectors: 2 x Ultra M.2 |
| RAID | Intel Rapid Storage Technology |
| LAN порт | Gigabit Ethernet |
| LAN standards | Gigabit Ethernet/Fast Ethernet/Ethernet |
| LAN controller | Intel I219V |
| Wi-Fi controller |
Wi-Fi Controller:
1 x M.2 (Key E) |
| Wi-Fi | Integrated |
| Звук | Realtek ALC1220 |
| Звуков изход | HD Audio (8-channel) |
| Аудио стандарти | Premium Blu-ray audio support |

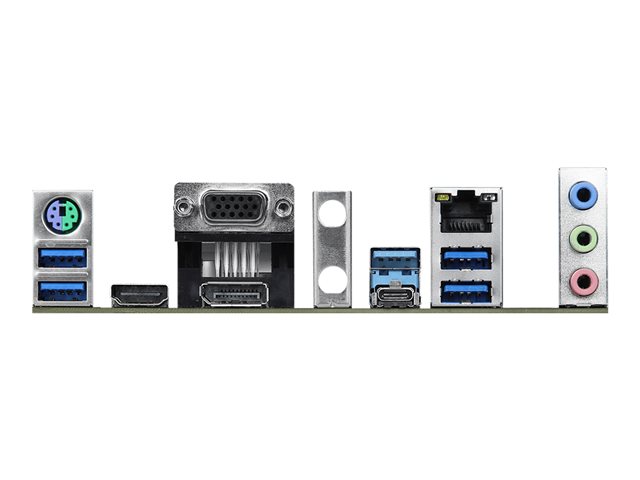

| Портове | 1 x LAN (Gigabit Ethernet) 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x microphone - mini-jack 4 x USB 3.2 Gen 1 1 x USB 3.2 Gen 2 1 x USB-C Gen2 1 x VGA 1 x HDMI 1 x PS/2 keyboard / mouse 1 x DisplayPort |
| Разширителни слотове | 1 x CPU 4 x DIMM 288-pin 2 x PCIe 3.0 x16 (dual x16, x4 mode; single card: x16 mode) 2 x PCIe 3.0 x1 1 x M.2 socket (Key E) |
| PCI slots | 2x PCI Express 3.0 x1, 2x PCI Express 3.0 x16 |
| Вътрешен интерфейс | 4 x USB 3.2 Gen 1 - header 1 x audio - header 4 x USB 2.0 - header 1 x Thunderbolt - header |
| Wake on LAN | Wake on LAN (WOL) |
| Функции | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 2.0, supported ECC modules operate in non-ECC mode |
| Софтуер |
Drivers & Utilities
ASRock A-Tuning Antivirus (Trial version) Google Chrome Browser Google ChromeToolbar ASRock XFast LAN ASRock Polychrome SYNC |
| Съвместими операционни системи | Microsoft Windows 10 Pro 64-bit (License) |
| Конектори за захранване | 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector |
| Наблюдение на хардуера |
CPU core temperature
chassis temperature CPU fan tachometer chassis fan tachometer system voltage CPU core voltage power supply fan tachometer |
| Стандарти | FCC, EuP Ready, ErP Ready |
| Включени кабели | 2 x Serial ATA cable |
| Аксесоари | I/O back cover, 3 x M.2 screws |
| Височина | 244 mm |
| Ширина | 24.4 cm |
| Дълбочина | 24.4 cm |
| Други характеристики |
ASRock Instant Flash
15µ Gold Contact AMD CrossFireX technology support AMD Quad CrossFireX technology support ASRock Internet Flash Digi Power Design Intel Quick Sync Video ESD Protection Energy Efficient Ethernet 802.3az Preboot eXecution Environment (PXE) Supports Intel K-Series unlocked CPU ASRock A-Tuning ASRock Full Spike Protection ASRock APP Shop ASRock Super Alloy High Density Glass Fabric PCB ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Easy RAID Installer Sapphire Black PCB Nahimic Audio Enhacer ASRock Live Update 10 Phase Power Design ASRock EZ Mode Intel Optane Memory Ready ASRock Ultra M.2 Premium 50A Power Choke ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology ASRock Steel Slots Intel Turbo Boost Max Technology 3.0 ASRock POST Status Checker (PSC) ASRock Full Coverage M.2 Heatsink |
| Гаранция | 36 месеца |
| Код на продукта | Z490M PRO4 |
Виж повече
Допълнителна информация
- Heat-dissipating PCB technology
Luxurious features extend to the onboard heat-dissipating PCB points. Heat-dissipating PCB gives the motherboard a more mysterious touch and this design effectively takes the heat away from the PCB. - Stunning lighting
ASRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way! ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. - Solid performer
Good M.2 SSD protection is important for longevity and stability. ASRock provides a completed M.2 armor solution that makes SSDs to run in a certain low temperature. - PCIe steel slot
The advanced PCIe steel slot packed with solid cover prevents any signal interference with the graphics cards. It also ensures heavy graphics cards to be well installed in the PCIe slot safely. - Dual USB
This motherboard has a pair of onboard Type-A and Type-C USB ports built on the rear I/O for supporting modern devices and to deliver fast data transfer rates. - Water pump header
This is not only a standard CPU fan header, but also supports water pumps! User also can adjust the voltage of water pump to get higher cooling performance with lower noise. - Spike protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock spike protection includes various technologies to prevent your motherboard's components from being damaged by these unexpected voltage spikes. - Premium power chokes
Compared to traditional chokes, ASRock's premium power chokes effectively make the saturation current better, thus providing enhanced and improved Vcore voltage to the motherboard.
Виж повече
Информация за производителя
| Контакт | [email protected] |
| Адрес | Bijsterhuizen 11-11 6546 AR Nijmegen |
| Уебсайт | https://www.asrock.com/index.bg.asp |
Виж повече
