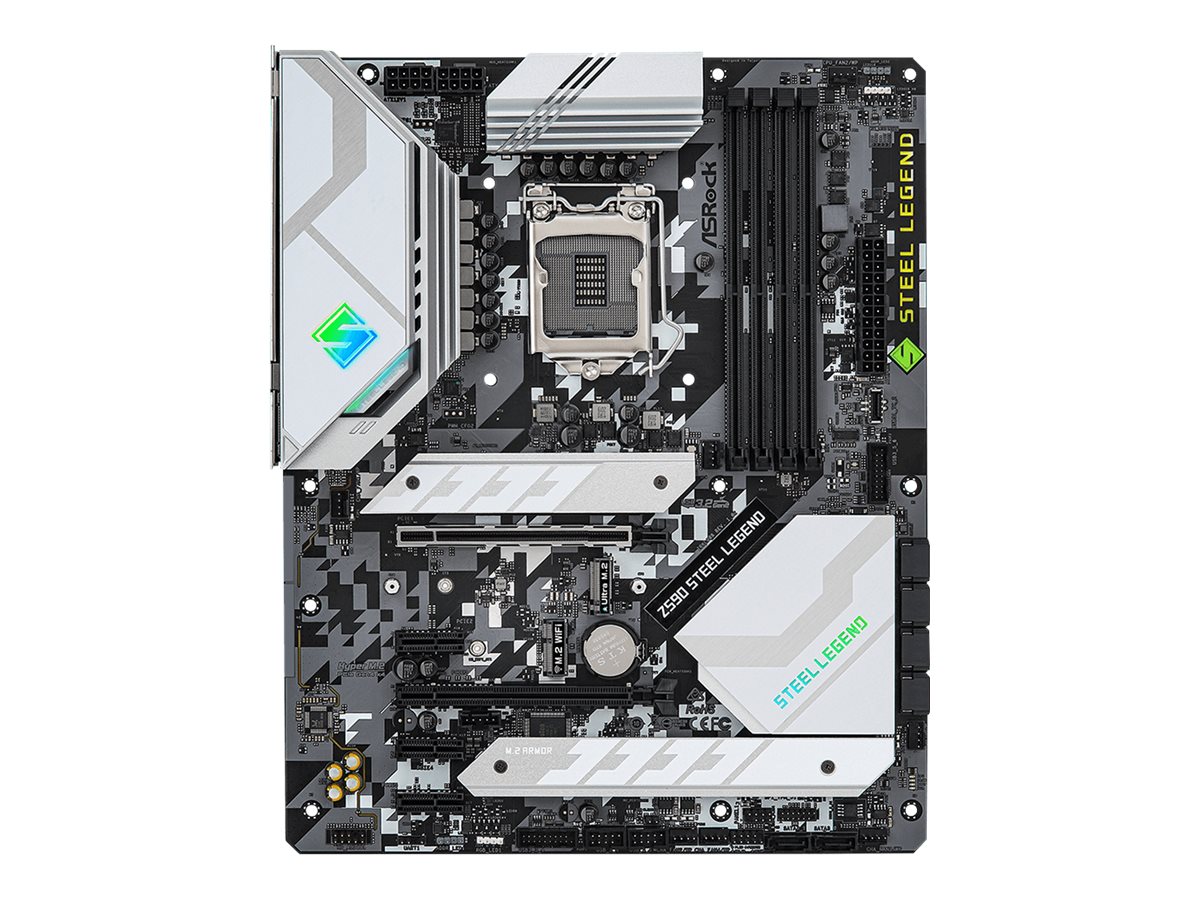

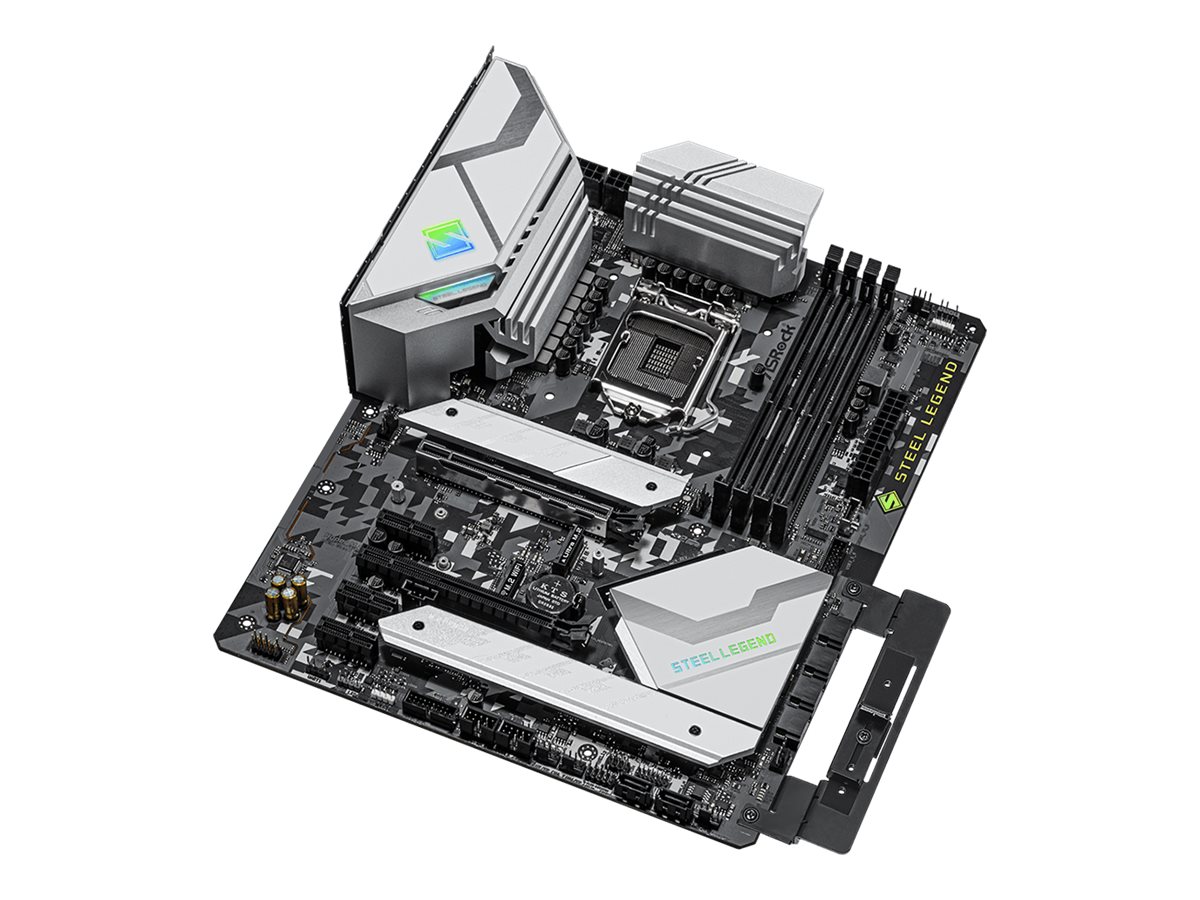

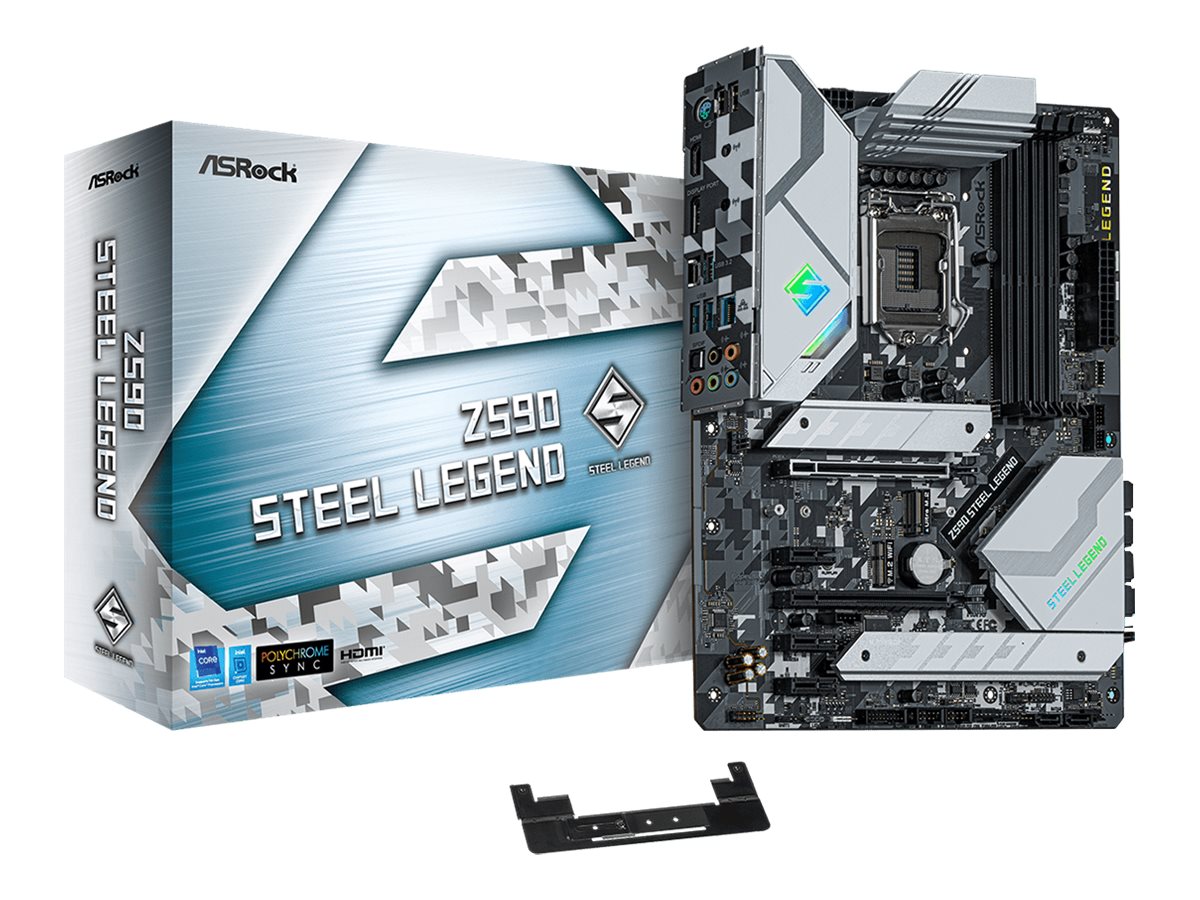

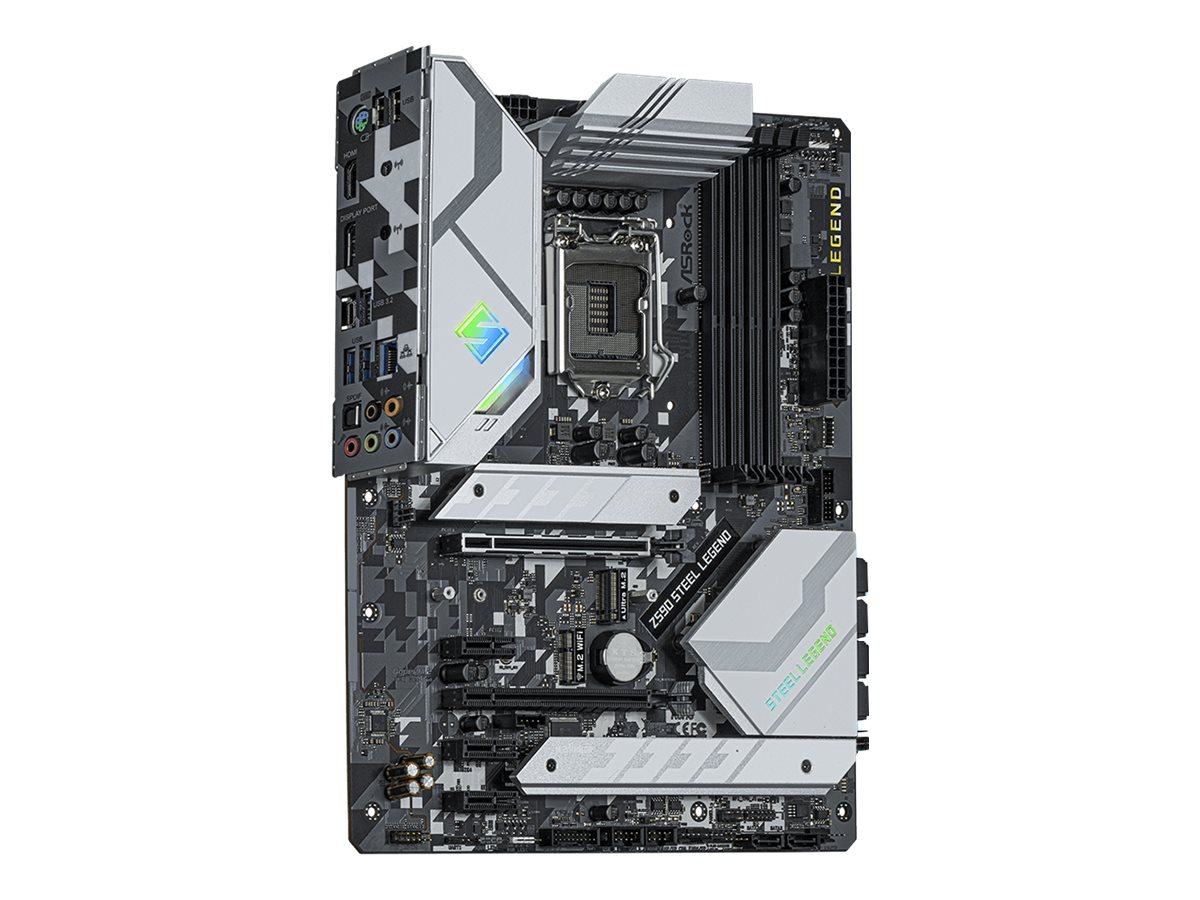

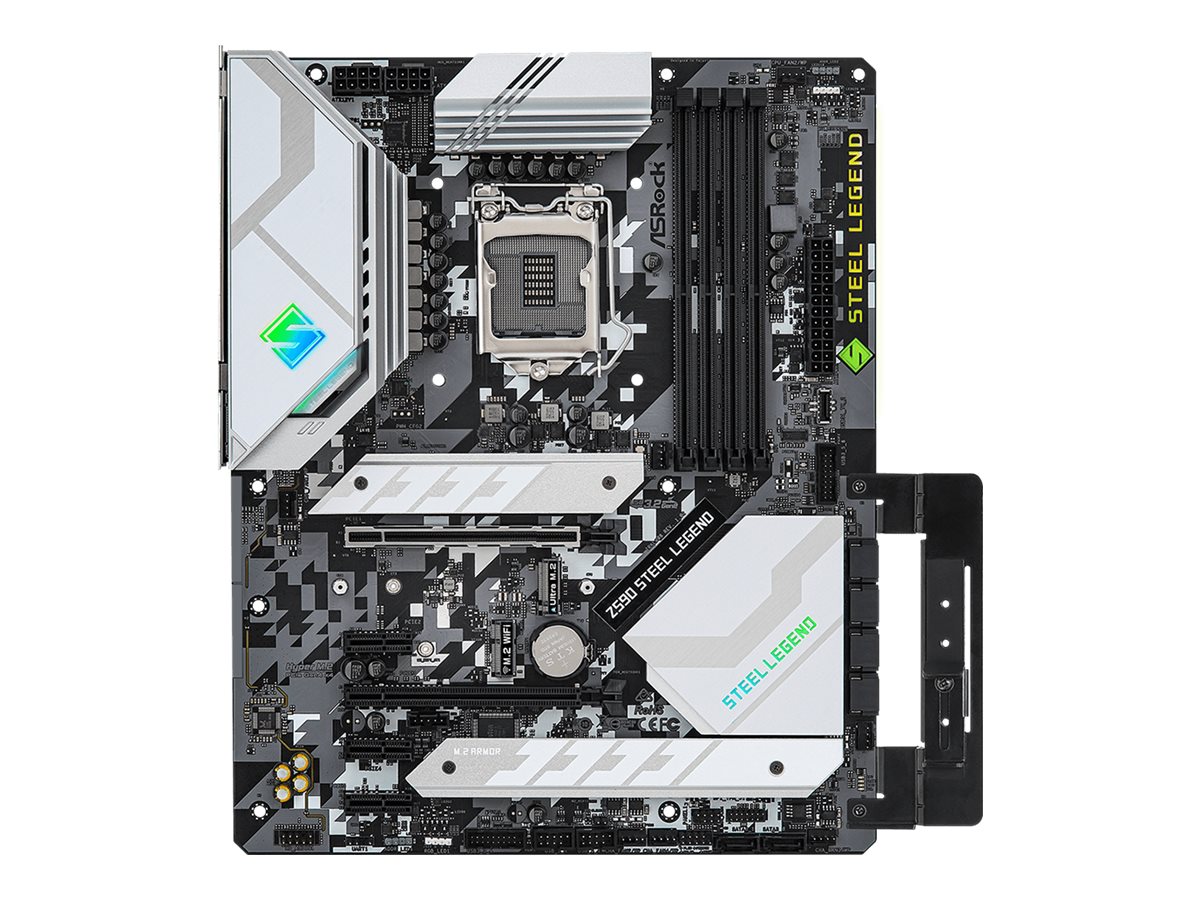

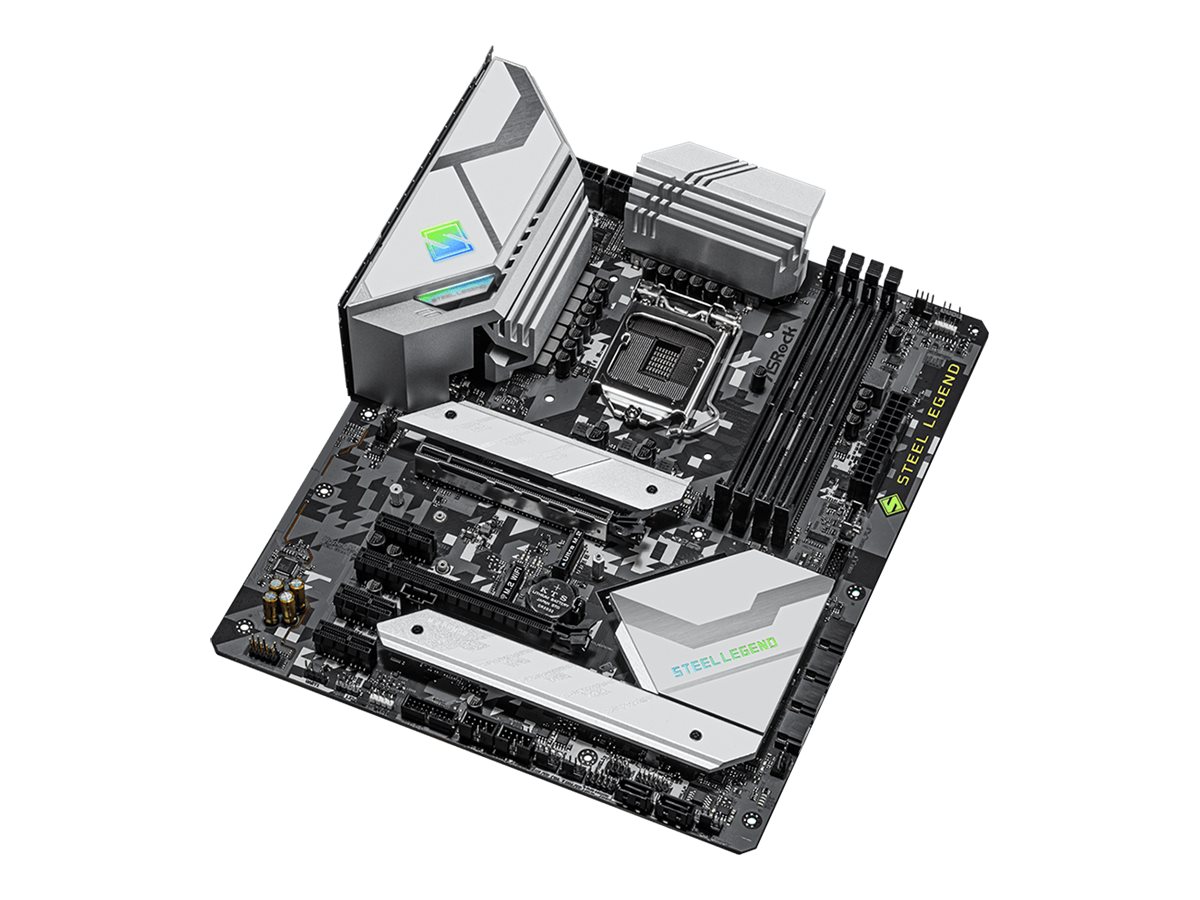

Дънна платка ASROCK Z590 Steel Legend LGA1200 4xDDR4 1xPCIe 4.0 x16 1xPCIe 3.0 x16 3xPCIe 3.0 x1 1xM.2 6 SATA3 7.1 CH HD Audio ATX MB Z590 STEEL LEGEND
изчерпано
Сокет: LGA 1200
Чипсет: Intel Z590
Тип на паметта: DDR4
Физически размер: ATX
Слотове за памет: 4
Гаранция:
0.0
от 5.0
(0)
Купи и събери
3 точки
Плати по-лесно и сигурно с
Виж всички продукти на Asrock
Пазарувай по марка
Характеристики
| Физически размер | ATX |
| Чипсет | Intel Z590 |
| Сокет | LGA 1200 |
| Съвместими процесори | (supports 10th and 11th Generation Intel Core) |
| BIOS | Multilingual BIOS, UEFI BIOS, SMBIOS 2.7 support, ACPI 6.0 support |
| Тип BIOS | AMI |
| Тип на паметта | DDR4 |
| ECC support | Non-ECC, ECC (operate in non-ECC mode) |
| Memory Registered / Buffered | Unbuffered |
| Слотове за памет | 4 |
| Максимална памет | 128 GB |
| Брой процесорни гнезда | 1 |
| Дисков интерфейс | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -connectors: 1 x Hyper M.2 SATA-600 / PCIe 3.0 -connectors: 2 x Ultra M.2 |
| RAID | Intel Rapid Storage Technology |
| LAN порт | 2.5 Gigabit Ethernet |
| LAN controller | Dragon RTL8125BG |
| Звук | Realtek ALC897 |
| Звуков изход | HD Audio (8-channel) |
| Аудио стандарти | High Definition Audio |

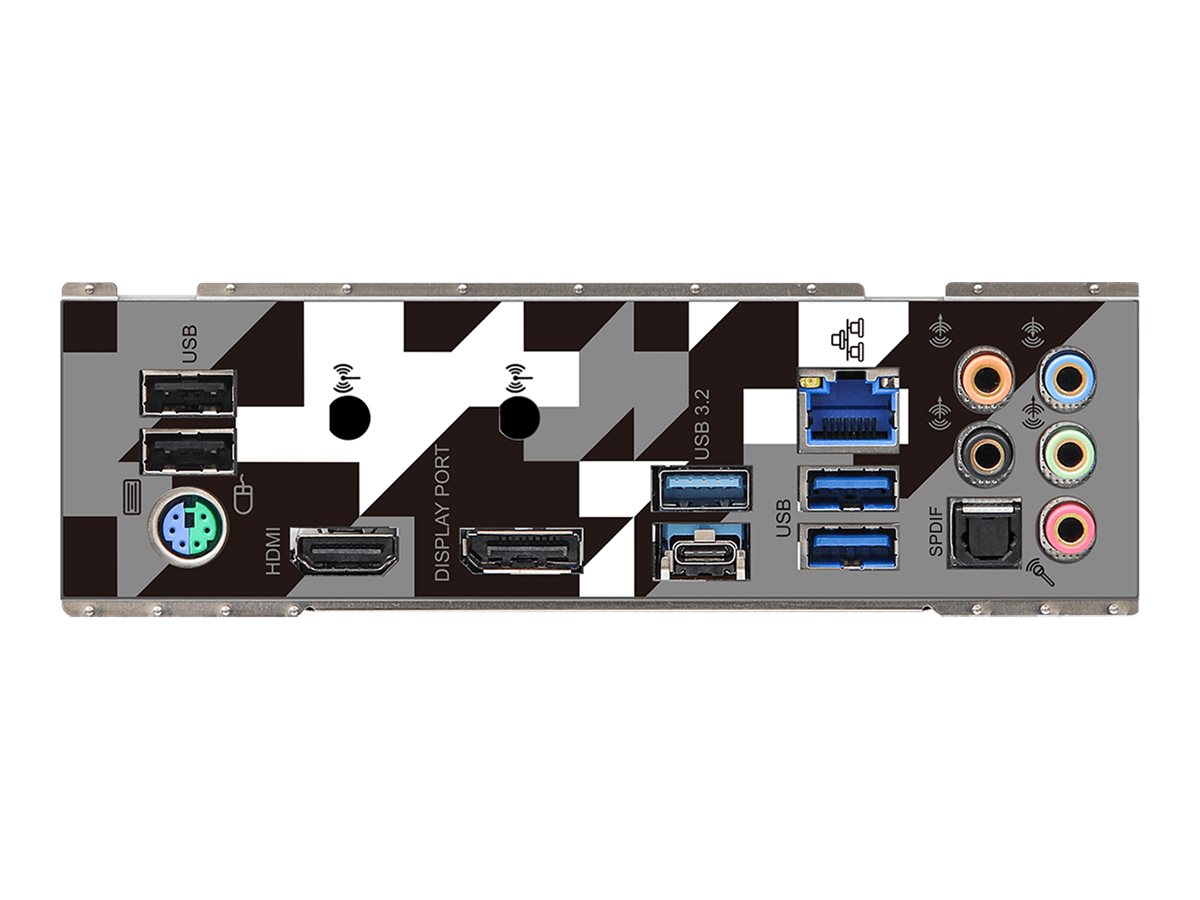

| Портове | 1 x HDMI 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x microphone - mini-jack 1 x DisplayPort 1 x PS/2 keyboard / mouse 1 x USB 3.2 Gen 2 1 x USB-C Gen2 2 x USB 3.2 Gen 1 2 x USB 2.0 1 x LAN (2.5Gigabit Ethernet) 1 x audio line-out (rear) 1 x TOSLINK 1 x audio line-out (center/subwoofer) |
| Разширителни слотове | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 4.0 x16 (PCIe 4.0 x16 mode (11th Gen Intel CPUs); PCIe 3.0 x16 mode (10th Gen Intel CPUs)) 1 x PCIe 3.0 x16 (x4 mode) 1 x M.2 socket (Key E) 3 x PCIe 3.0 x1 |
| Вътрешен интерфейс | 1 x SPI - header 1 x audio - header 1 x Thunderbolt - header 4 x USB 2.0 - header 4 x USB 3.2 Gen 1 - header 1 x USB-C Gen 2x2 - header |
| Wake on LAN | Wake on LAN (WOL) |
| Функции | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 2.0, supported ECC modules operate in non-ECC mode |
| Софтуер |
Drivers & Utilities
ASRock A-Tuning Antivirus (Trial version) Google Chrome Browser Google ChromeToolbar ASRock Dragon 2.5G LAN Software ASRock Polychrome SYNC |
| Конектори за захранване | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
| Наблюдение на хардуера |
CPU core temperature
chassis temperature CPU fan tachometer chassis fan tachometer system voltage CPU core voltage |
| Стандарти | FCC, ErP Ready, EuP Ready |
| Включени кабели | 2 x Serial ATA cable |
| Аксесоари | 4 x M.2 screws, 2 x standoff for M.2 socket, graphics card holder |
| Ширина | 30.5 cm |
| Дълбочина | 24.4 cm |
| Други характеристики |
14 DrMOS power stages
Nahimic Audio Enhacer XXL Aluminum Alloy Heatsink Premium Power Choke Nichicon 12K Black Caps I/O Armor shaped PCB design Matte Black PCB Glass Fabric PCB 2oz Copper PCB ASRock Steel Slots ASRock Full Coverage M.2 Heatsink ASRock Ultra USB Power ASRock POST Status Checker (PSC) ASRock Full Spike Protection ASRock Live Update ASRock APP Shop Digi Power Design Intel Turbo Boost Max Technology 3.0 Supports Intel K-Series unlocked CPU 15µ Gold Contact Gold Plated Audio Hardware ESD Protection Energy Efficient Ethernet 802.3az Preboot eXecution Environment (PXE) ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Instant Flash ASRock Internet Flash ASRock Easy RAID Installer ASRock Hyper M.2 AMD CrossFireX technology support AMD Quad CrossFireX technology support |
| Гаранция | 36 месеца |
| Код на продукта | Z590 STEEL LEGEND |
Виж повече
Допълнителна информация
- Style in details
Featuring sturdy components as well as more elaborately styled pieces. - PCIe 4.0 high speed M.2 solution
This motherboard is capable of accomadating multiple M. 2 storage devices, one of which can even support next generation PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience. - ASRock graphics card holder
Install your heavy graphics card on the holder; connect it to your motherboard and chassis with screws. Flexibly slide up and down to perfectly adjust the height required for your graphics card in place. - Dragon 2.5 Gb/s LAN
The intelligent 2.5 Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you'll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups. - USB 3.2 Gen2x2 Type-C
The USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way. - Flexible integrated I/O shield
Unlike most so called pre-mounted I/O shield that is only decorated with fancy color schemes. They reserve more tolerance space and allow IO shield is adjustable when installing, thus fitting chassis perfectly without any mechanical issue. - 2oz copper PCB
2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking, it's able to support the latest DDR4 memory modules with most extreme memory performance! - Nahimic audio
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details. - Post Status Checker
An easy troubleshooting tool that shows the CPU/DRAM/VGA/BOOT operation every time you start up the system. Post Status Checker is an fast and easy way to identify the source of the problem. - HDMI 4k @60 Hz
Supports the most recent HDMI 4K 60 Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry. - Water pump header
This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2 A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.
