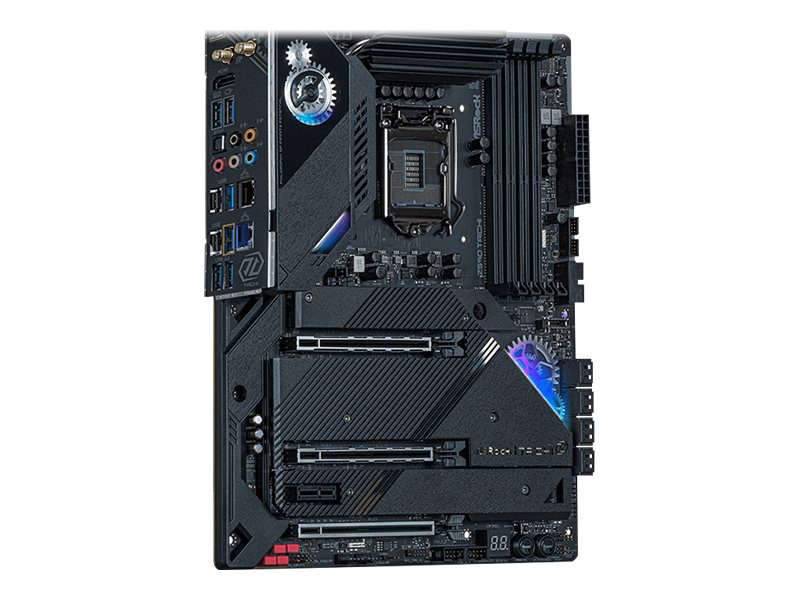

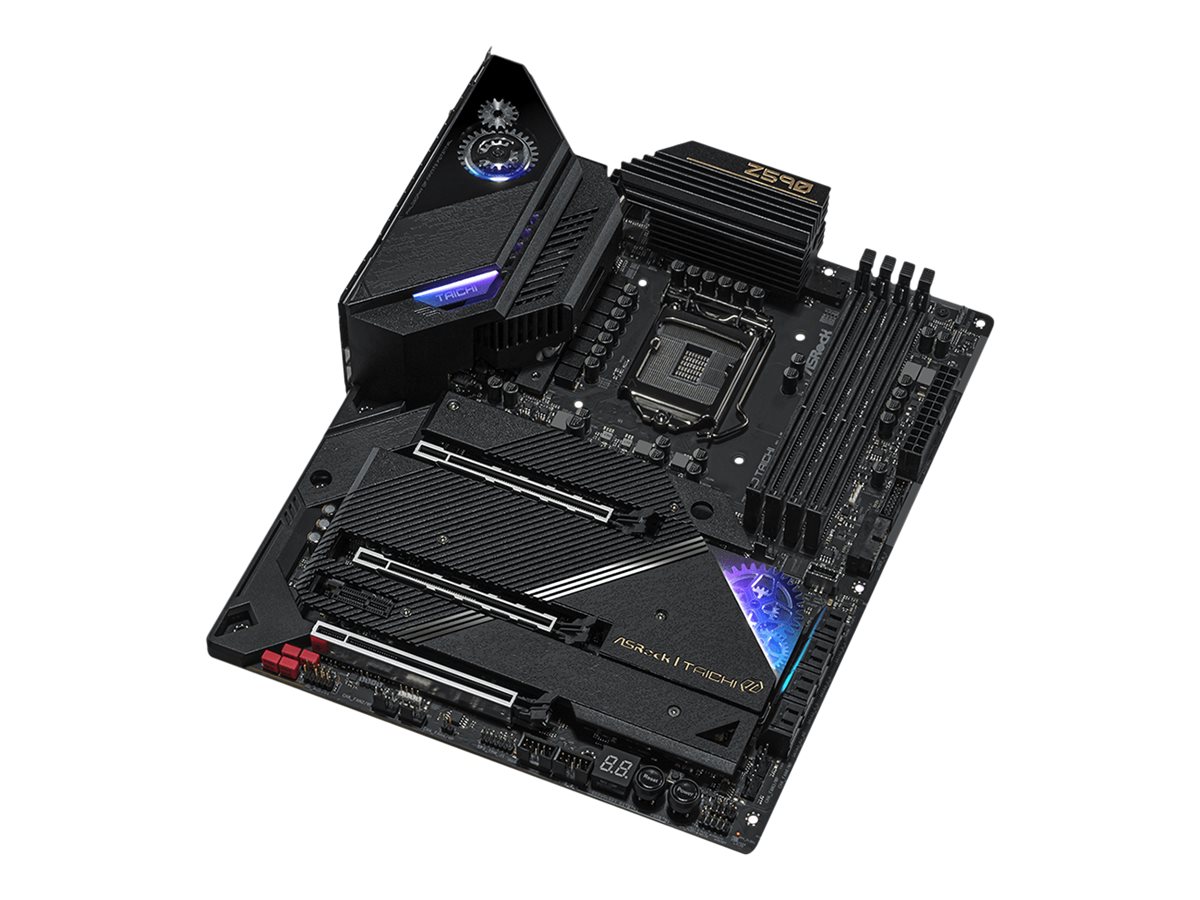

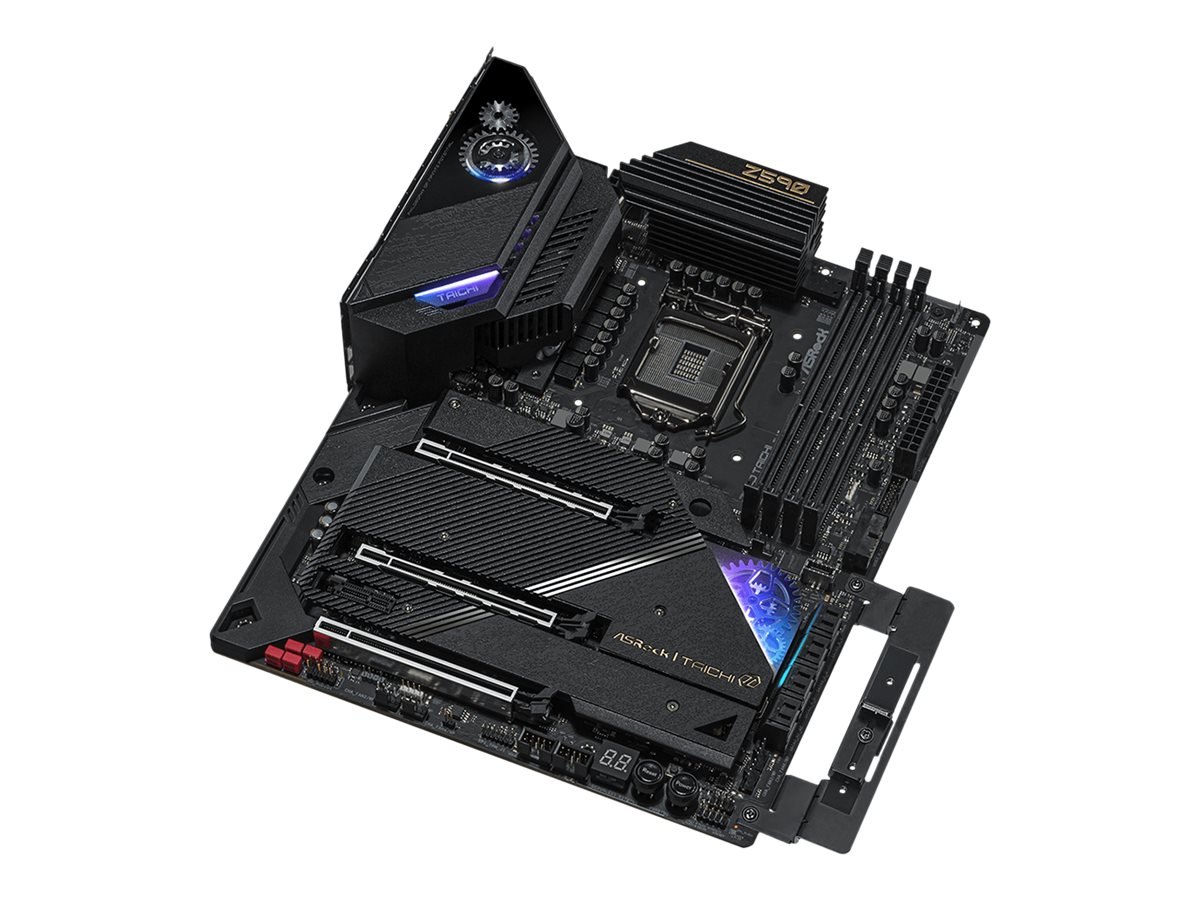

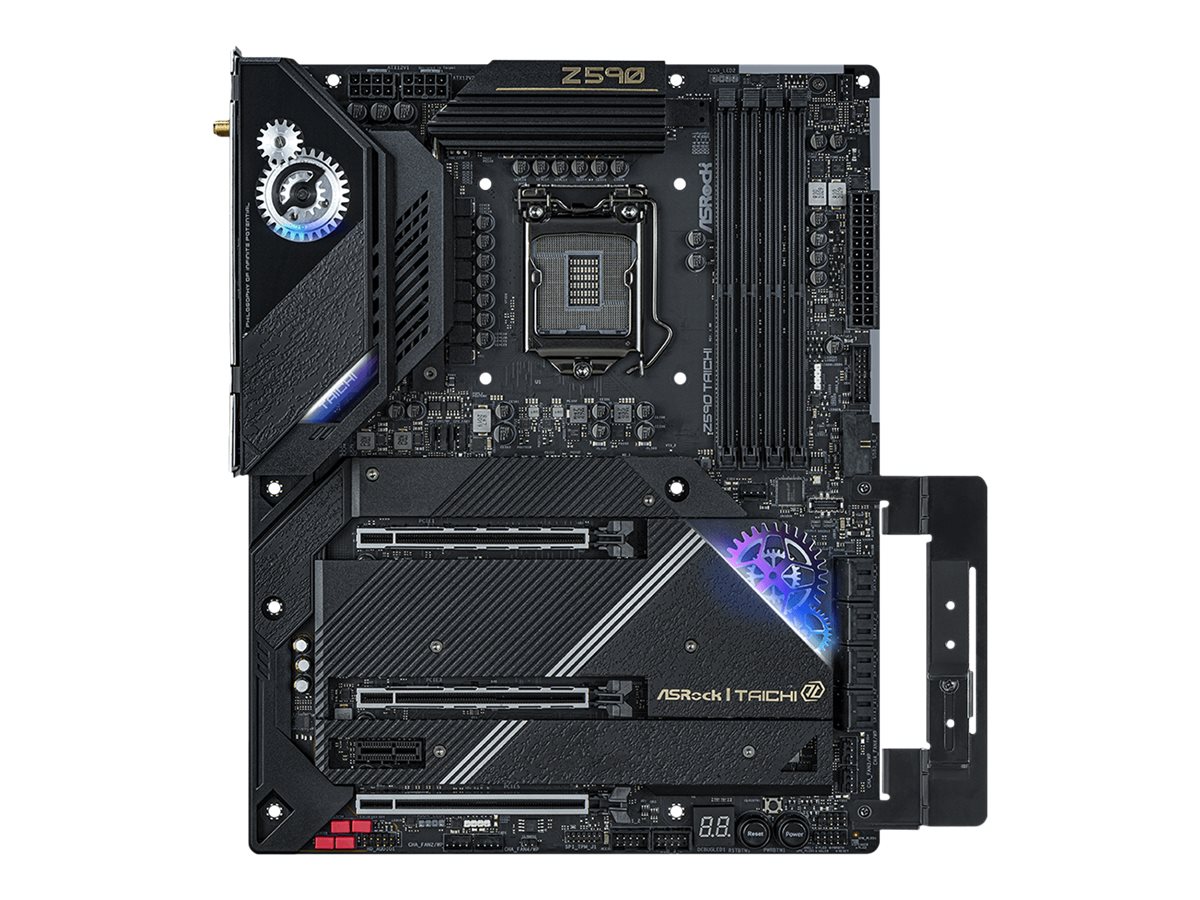

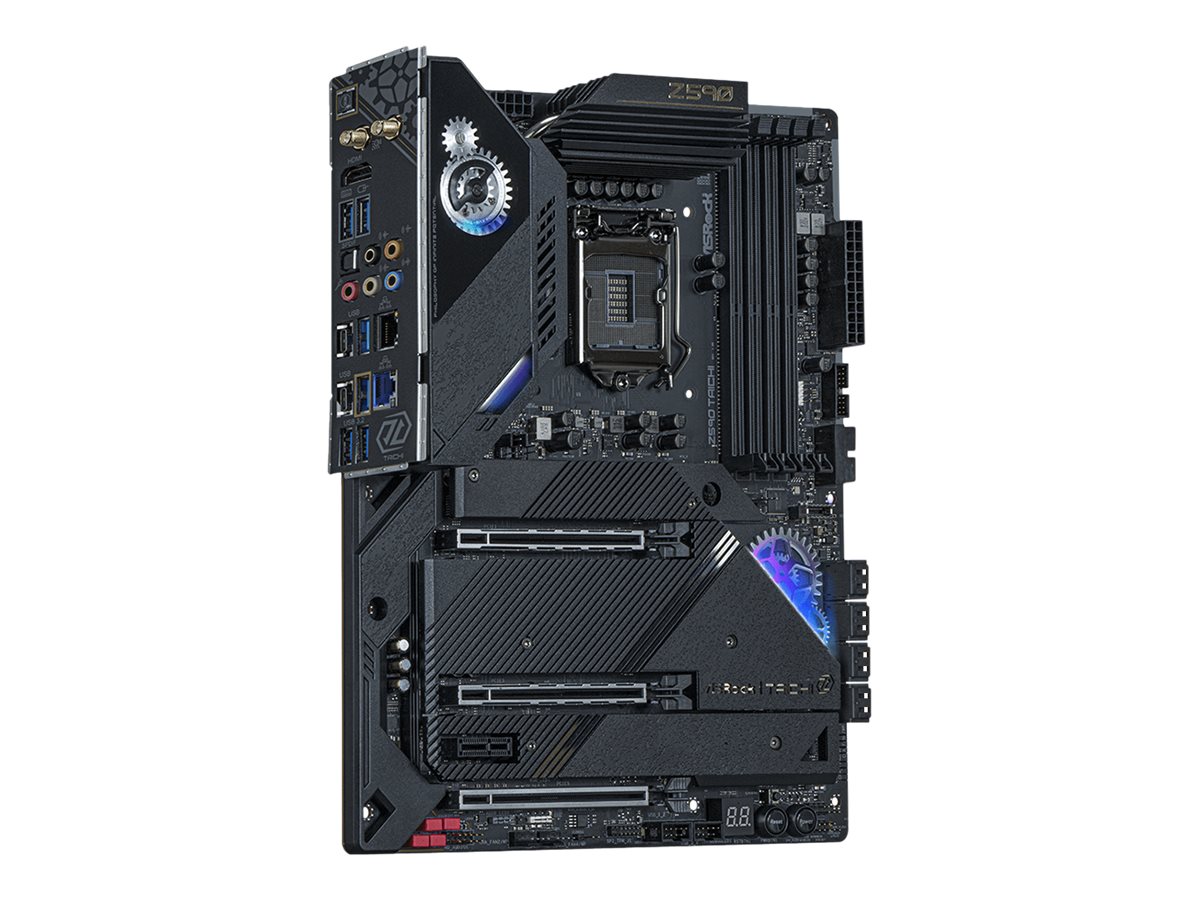

Дънна платка ASROCK Z590 TAICHI LGA1200 DDR4 8xSATA 3xM.2 WiFi ATX MB Z590 TAICHI
изчерпано
Сокет: LGA 1200
Чипсет: Intel Z590
Тип на паметта: DDR4
Физически размер: ATX
Слотове за памет: 4
Гаранция:
0.0
от 5.0
(0)
Купи и събери
6 точки
Плати по-лесно и сигурно с
Виж всички продукти на Asrock
Пазарувай по марка
Характеристики
| Физически размер | ATX |
| Чипсет | Intel Z590 |
| Сокет | LGA 1200 |
| Съвместими процесори | (supports 10th and 11th Generation Intel Core) |
| BIOS | Multilingual BIOS, UEFI BIOS, SMBIOS 2.7 support, ACPI 6.0 support |
| Тип BIOS | AMI |
| Тип на паметта | DDR4 |
| ECC support | Non-ECC, ECC (operate in non-ECC mode) |
| Memory Registered / Buffered | Unbuffered |
| Слотове за памет | 4 |
| Максимална памет | 128 GB |
| Брой процесорни гнезда | 1 |
| Дисков интерфейс | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ASMedia ASM1061: SATA-600 -connectors: 2 x 7pin Serial ATA SATA-600 / PCIe 3.0 -connectors: 2 x Ultra M.2 PCIe 4.0 -connectors: 1 x Hyper M.2 |
| RAID | Intel Rapid Storage Technology |
| LAN порт | Gigabit Ethernet, 2.5 Gigabit Ethernet, 802.11a/b/g/n/ax, Bluetooth 5.2 |
| LAN controller | Intel I219V / Killer E3100G / Killer AX1675x |
| Звук | Realtek ALC1220 |
| Звуков изход | HD Audio (8-channel) |
| Аудио стандарти | High Definition Audio, Premium Blu-ray audio support |

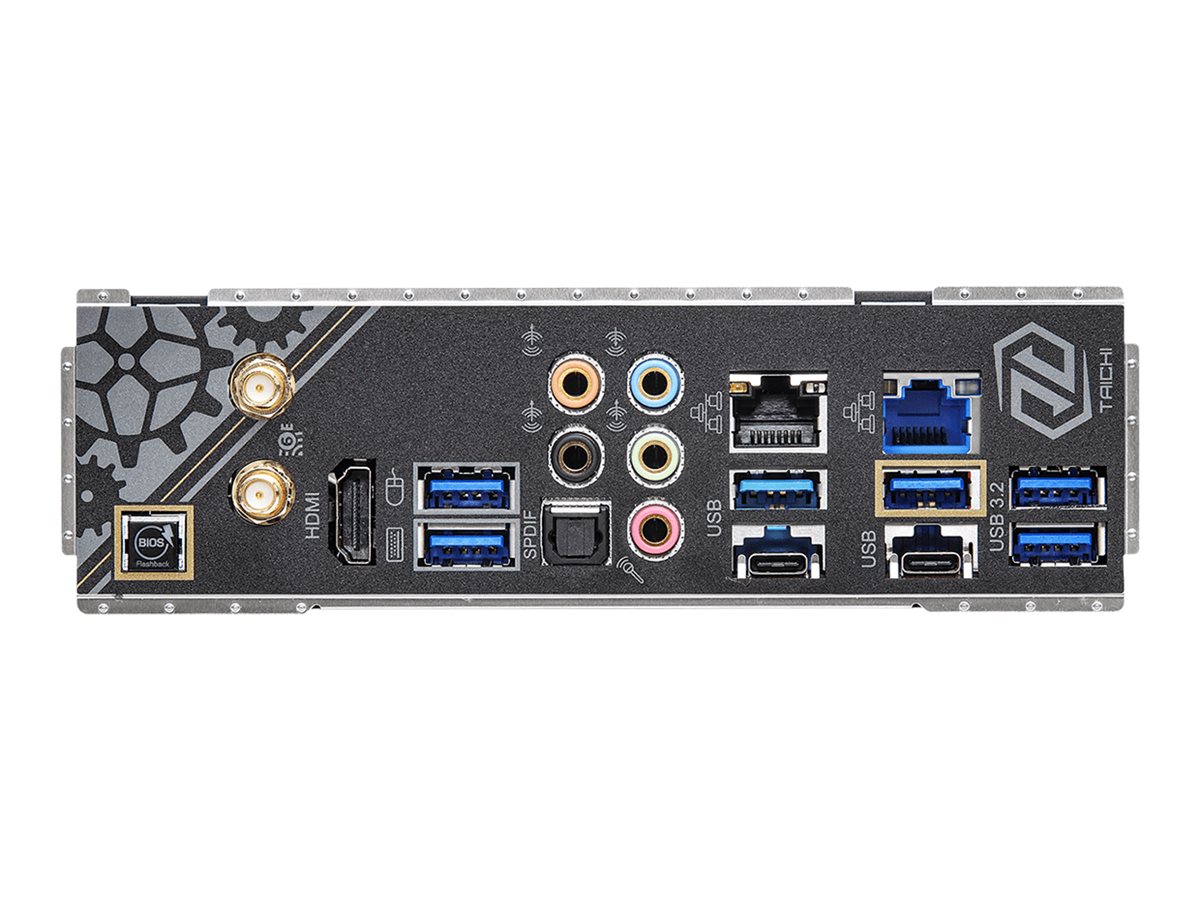

| Портове | 1 x LAN (Gigabit Ethernet) 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x microphone - mini-jack 4 x USB 3.2 Gen 1 2 x USB 3.2 Gen 2 2 x Thunderbolt 4/USB4 1 x HDMI 1 x LAN (2.5Gigabit Ethernet) 1 x TOSLINK 1 x audio line-out (center/subwoofer) - mini-jack 1 x audio line-out (rear) - mini-jack |
| Разширителни слотове | 1 x CPU 4 x DIMM 288-pin 3 x PCIe 4.0 x16 (dual: PCIe 4.0 x8, x8 mode; triple: PCIe 4.0 x8, x8, PCIe 3.0 x4 mode; single card: PCIe 4.0 x16 mode (11th Gen Intel CPUs)) 1 x PCIe 3.0 x1 1 x M.2 socket (Key E) |
| Вътрешен интерфейс | 4 x USB 3.2 Gen 1 - header 1 x audio - header 4 x USB 2.0 - header 1 x USB-C Gen 2x2 - header |
| Wake on LAN | Wake on LAN (WOL) |
| Функции | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 2.0, supported ECC modules operate in non-ECC mode |
| Софтуер |
Drivers & Utilities ASRock A-Tuning Antivirus (Trial version) Google Chrome Browser Google ChromeToolbar ASRock Polychrome SYNC ASRock Killer LAN Killer Control Center |
| Конектори за захранване | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
| Наблюдение на хардуера |
CPU core temperature chassis temperature CPU fan tachometer chassis fan tachometer system voltage CPU core voltage |
| Стандарти | FCC, EuP Ready, ErP Ready, CEC Tier II |
| Включени кабели | 4 x Serial ATA cable |
| Аксесоари |
3 x M.2 screws screwdriver 2 x standoff for M.2 socket graphics card holder wireless dongle USB bracket 1 x 3010 cooling fan with bracket and screw package 1 x 4010 cooling fan bracket and screw package 2 x ASRock WiFi 2.4/5/6 GHz Antennas |
| Ширина | 30.5 cm |
| Дълбочина | 24.4 cm |
| Други характеристики |
ASRock Instant Flash 15µ Gold Contact AMD CrossFireX technology support AMD Quad CrossFireX technology support AMD 3-way CrossFireX technology support ASRock Internet Flash Digi Power Design Intel Quick Sync Video ESD Protection Gold Plated Audio Hardware Energy Efficient Ethernet 802.3az Preboot eXecution Environment (PXE) Triple Monitor 8 Layer PCB Supports Intel K-Series unlocked CPU Clear CMOS Button Direct Drive Technology ASRock A-Tuning ASRock Full Spike Protection Debug LED ASRock APP Shop ASRock Super Alloy High Density Glass Fabric PCB ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Easy RAID Installer Dr.MOS MOSFET XXL Aluminum Alloy Heatsink Killer DoubleShot Pro Nahimic Audio Enhacer I/O Armor ASRock Live Update ASRock EZ Mode Premium Memory Alloy Choke Nichicon 12K Black Caps Matte Black PCB ASRock Steel Slots Pure Power-In PCB Isolate Shielding ASRock Ultra USB Power 14 Phase Power Design 2oz Copper PCB ASRock Hyper BCLK Engine III Water Pump Header pre-mounted I/O shield Intel Turbo Boost Max Technology 3.0 ESS 9218 SABRE HiFi DAC ASRock Full Coverage M.2 Heatsink Premium 90A Power Choke ASRock Hyper M.2 ASRock USB 3.2 Gen2 ASRock USB 4.0 CPU Direct Source LAN WIMA audio capacitors |
| Гаранция | 36 месеца |
| Код на продукта | Z590 TAICHI |
Виж повече
Допълнителна информация
- Premium 90A power chokes
Compared to traditional chokes, ASRock's premium 90A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard. - PCIe 4.0 high-speed M.2 solution
This motherboard is capable of accommodating multiple M.2 storage devices, one of which can even support the next-generation PCI Express 4.0 M.2 SSD. It is capable of performing twice the speed compared to previous 3rd generation, offering a lightning-fast data transferring experience. - Thunderbolt 4/USB 4.0 Type-C
The Thunderbolt 4/USB 4.0 technology brings speed and versatility to the most advanced USB Type-C, offering a fast and simple level of connection for work or home. It enables lightning-fast data transfer up to 40 Gbps and connects up to five Thunderbolt devices with a single wire. - Killer Ethernet E3100 + Wi-Fi 6E AX1675x solution
This motherboard comes with both Killer E3100 2.5G Ethernet and WiFi 6E solution. The enhanced detection and prioritization engine provides the ultimate networking experience for gaming and multimedia applications. - Nahimic audio
Whether you are using headphones, a headset, external or internal speakers via USB, Wi-Fi, analog output or even HDMI, Nahimic audio offers you the most engaging listening experience, vibrant and rich with details. - Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges. The excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard's components from being damaged by these unexpected voltage spikes.
