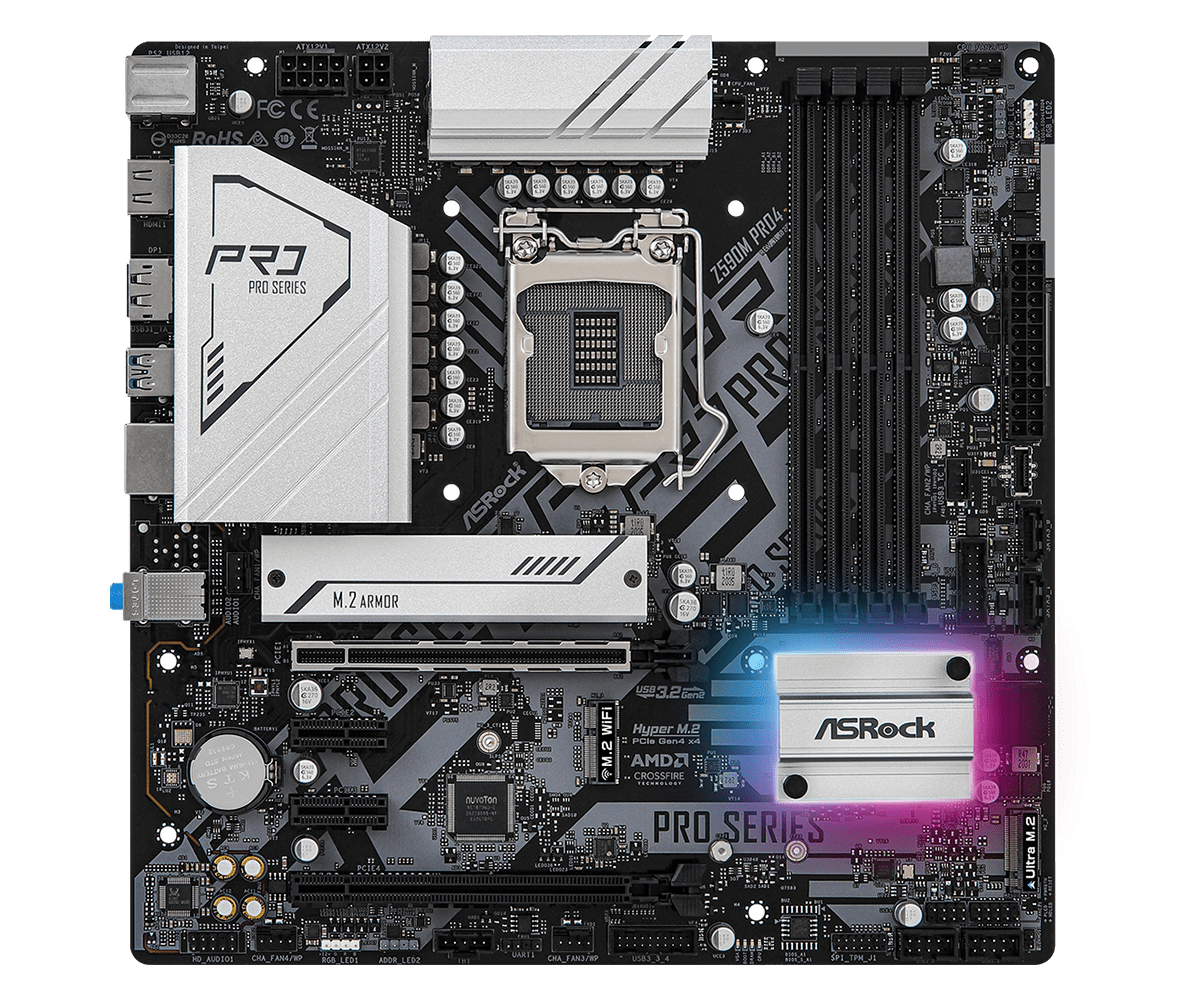

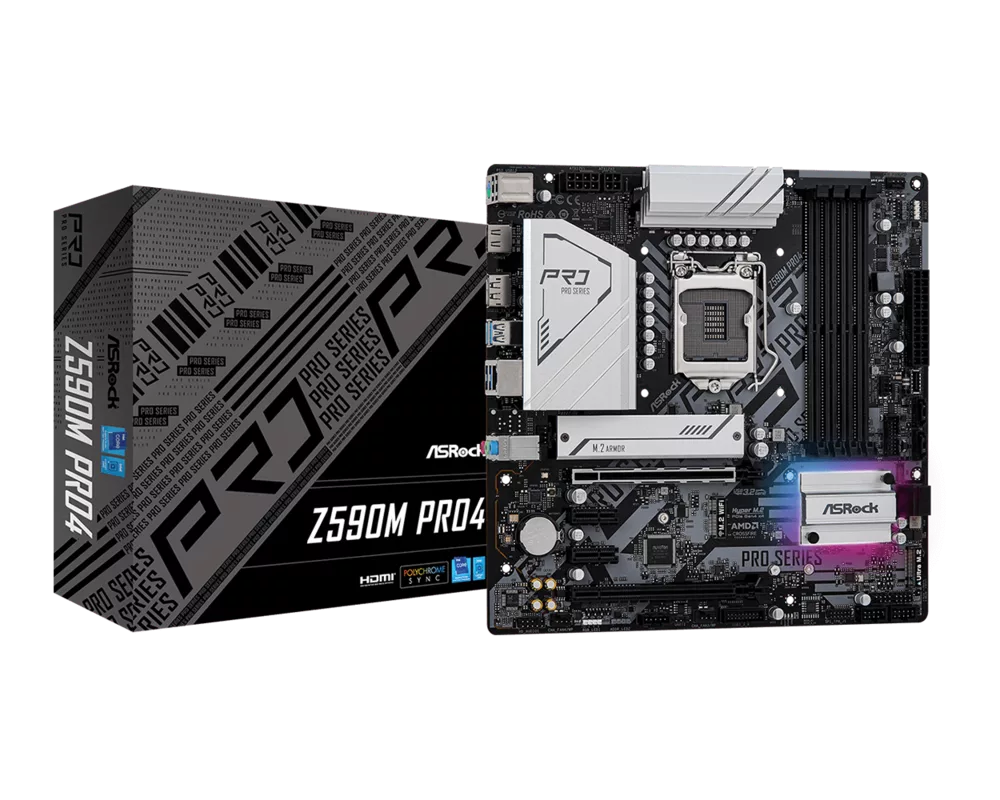

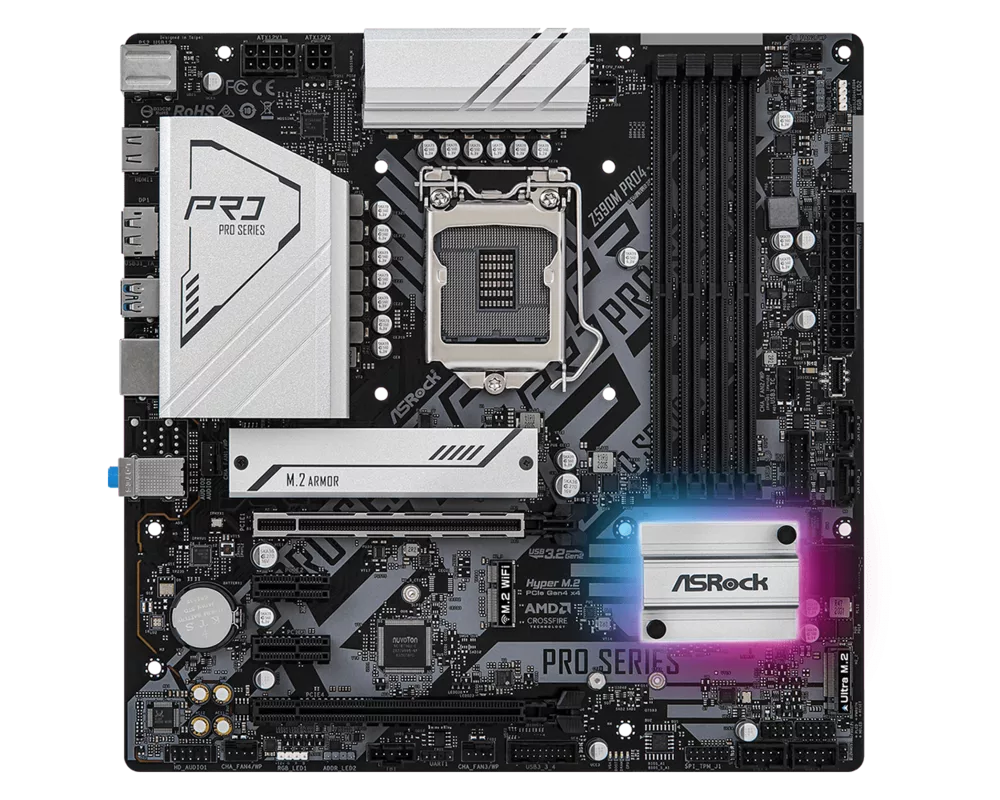

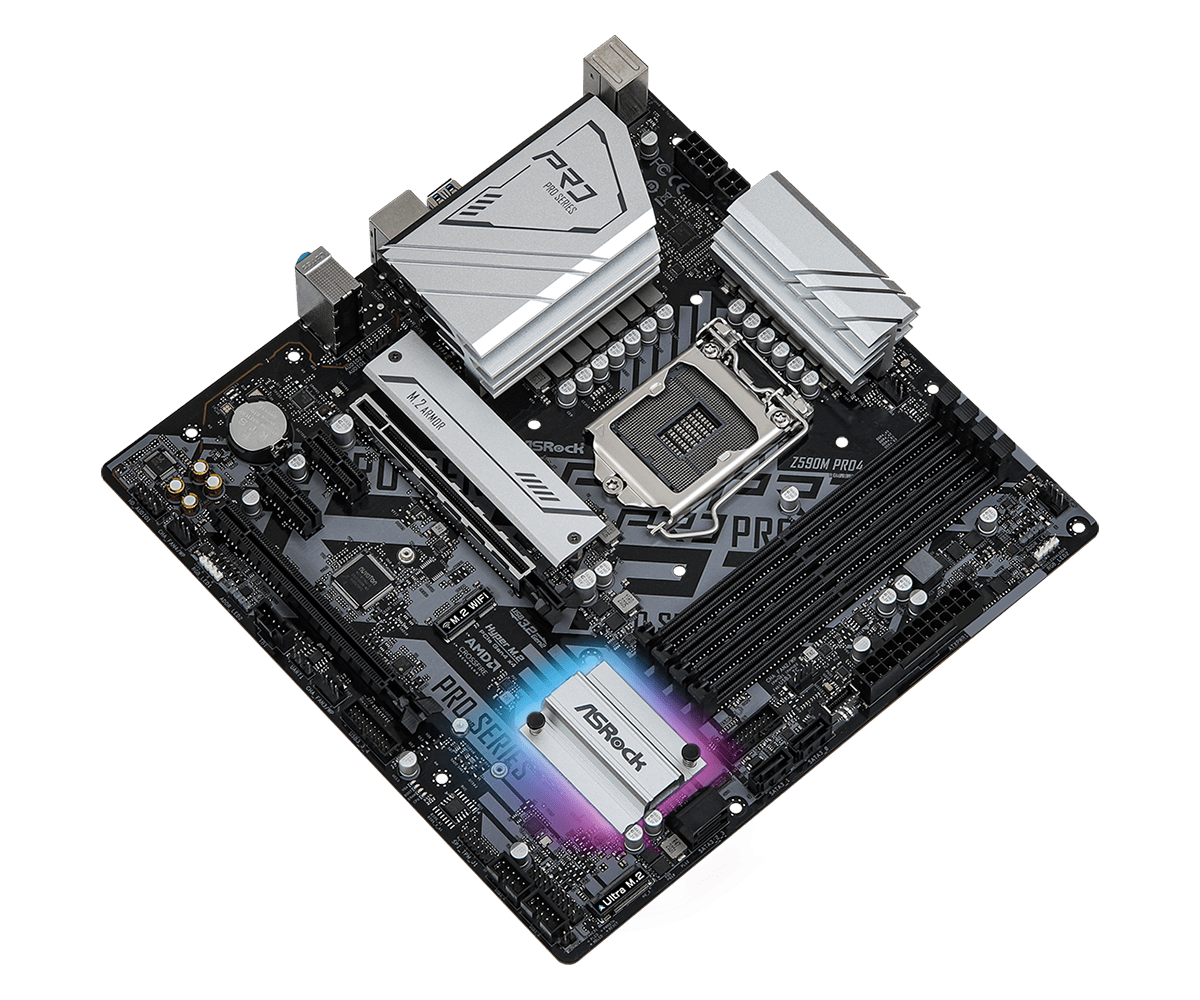

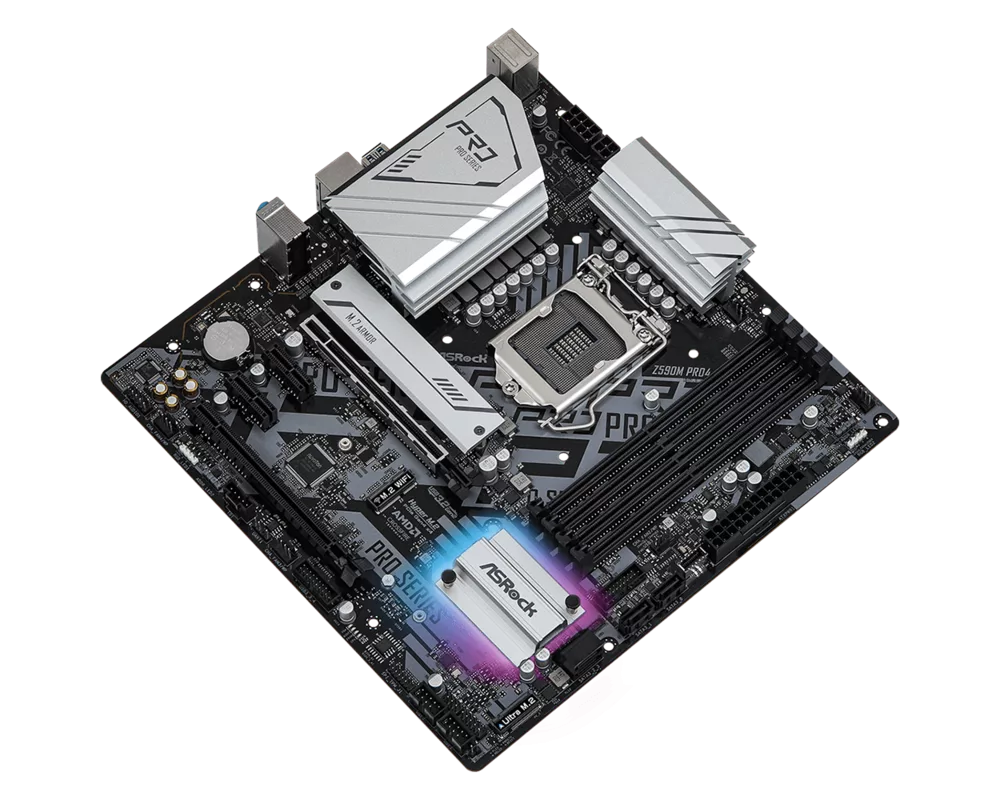

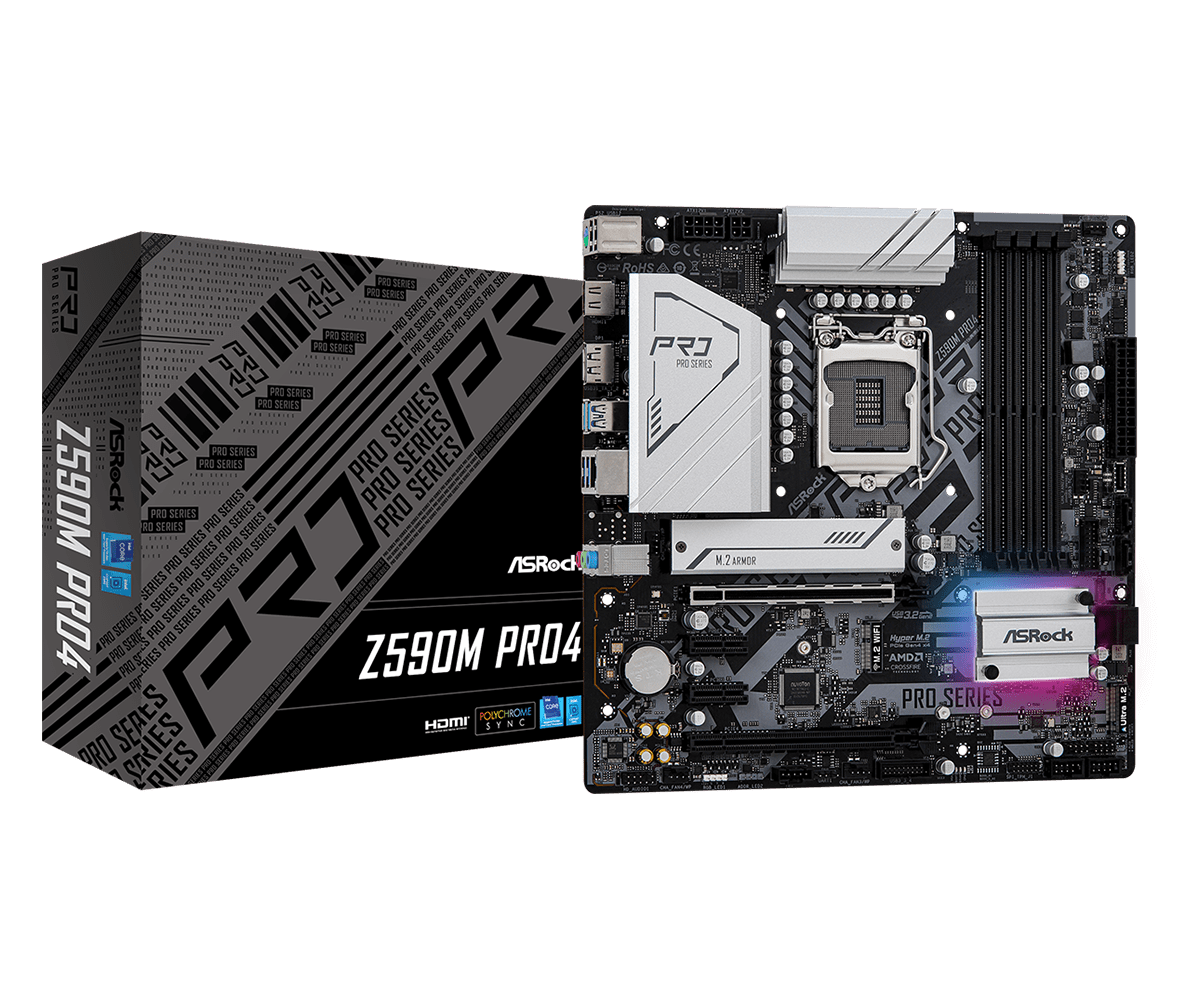

Дънна платка ASROCK Z590M PRO4 /LGA1200 Z590M PRO4
изчерпано
Сокет: LGA 1200
Чипсет: Intel Z590
Тип на паметта: DDR4
Физически размер: Micro ATX
Слотове за памет: 4
Честота на паметта: 3200 MHz
Гаранция:
0.0
от 5.0
(0)
Купи и събери
2 точки
Плати по-лесно и сигурно с
Виж всички продукти на Asrock
Пазарувай по марка
Характеристики
| Физически размер | Micro ATX |
| Чипсет | Intel Z590 |
| Сокет | LGA 1200 |
| Съвместими процесори | (supports 10th and 11th Generation Intel Core) |
| BIOS | Multilingual BIOS, UEFI BIOS, SMBIOS 2.7 support, ACPI 6.0 support |
| Тип BIOS | AMI |
| Памет | - Dual Channel DDR4 Memory Technology; - 4 x DDR4 DIMM Slots; - 11th Gen Intel® Core™ Processors support DDR4 non-ECC, un-buffered memory up to 4800+(OC)*; - 10th Gen Intel® Core™ Processors support DDR4 non-ECC, un-buffered memory up to 4666+(OC)*; - Supports ECC UDIMM memory modules (operate in non-ECC mode); - Max. capacity of system memory: 128GB**; - Supports Intel® Extreme Memory Profile (XMP) 2.0 |
| Тип на паметта | DDR4 |
| Честота на паметта | 3200 MHz |
| Формат на паметта | DIMM 288-pin |
| ECC support | Non-ECC, ECC (operate in non-ECC mode) |
| Memory Registered / Buffered | Unbuffered |
| Слотове за памет | 4 |
| Максимална памет | 128 GB |
| Слотове | 11th Gen Intel® Core™ Processors; 2 x PCI Express x16 Slots (PCIE1/PCIE4: single at Gen4x16 (PCIE1); dual at Gen4x16 (PCIE1) / Gen3x4 (PCIE4)); 10th Gen Intel® Core™ Processors; 2 x PCI Express x16 Slots (PCIE1/PCIE4: single at Gen3x16 (PCIE1); dual at Gen3x16 (PCIE1) / Gen3x4 (PCIE4)); 2 x PCI Express 3.0 x1 Slots; Supports AMD Quad CrossFireX™ and CrossFireX™; 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT) |
| Брой процесорни гнезда | 1 |
| Видео |
11th Gen Intel® Core™ Processors support Intel® Xe Graphics Architecture (Gen 12). 10th Gen Intel® Core™ Processors support Gen 9 Graphics; Graphics Media & Compute: Microsoft® DirectX 12 OpenGL 4.5 Intel® Built In Visuals Intel® Quick Sync Video Hybrid / Switchable Graphics OpenCL 2.1; Display & Content Security: Rec. 2020 (Wide Color Gamut) Microsoft® PlayReady 3.0 UHD/HDR Blu-ray Disc; Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers; Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz; Supports DisplayPort 1.4 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz; Supports Auto Lip Sync Deep Color (12bpc) xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required); Supports HDCP 2.3 with HDMI 2.0 and DisplayPort 1.4 Ports |
| Контролер на съхранението |
Storage Controller: Supports: Ниво 0, Ниво 1, Ниво 1+ SATA III-600 (4) Storage Controller: PCIe 4.0 x4/SATA (1 x M.2 (Key M)) Storage Controller: PCIe 3.0 x4/SATA (1 x M.2) |
| Дисков интерфейс | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 SATA-600 / PCIe 3.0 -connectors: 1 x Ultra M.2 SATA-600 / PCIe 4.0 -connectors: 1 x Hyper M.2 |
| RAID | Intel Rapid Storage Technology |
| LAN порт | Gigabit Ethernet |
| LAN standards | Gigabit Ethernet/Fast Ethernet/Ethernet |
| LAN controller | Intel I219V |
| Wi-Fi controller |
Wi-Fi Controller: 1 x M.2 (Key E) |
| Звук | Realtek ALC897 |
| Звуков изход | HD Audio (8-channel) |
| Аудио стандарти | High Definition Audio |

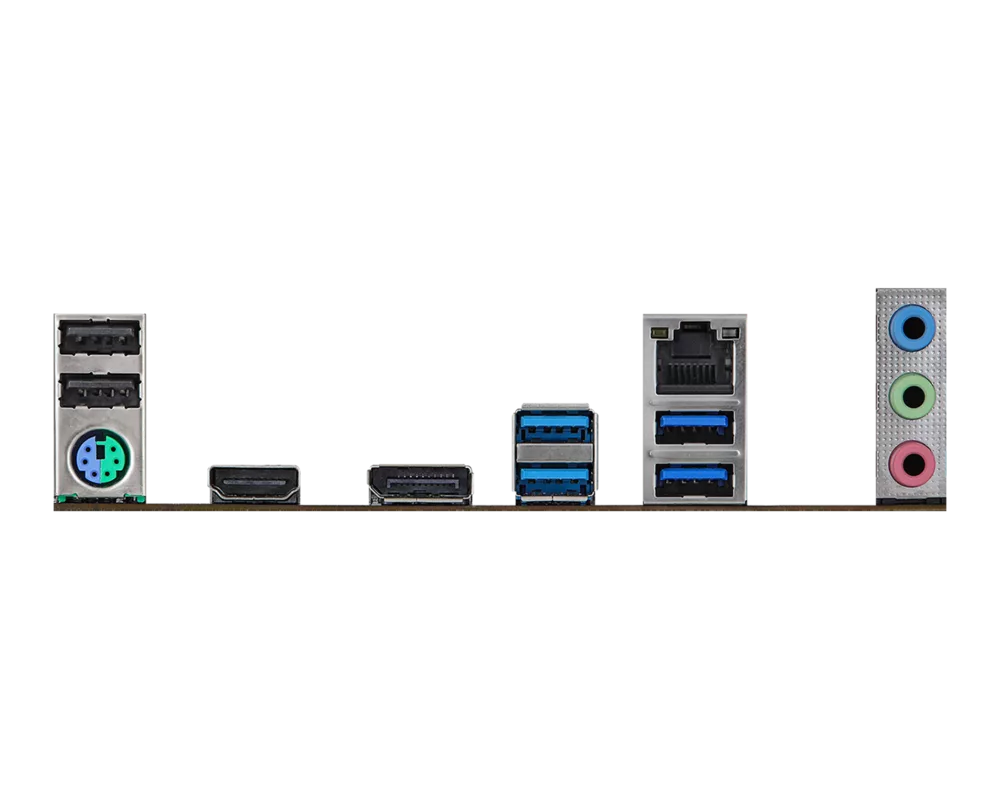

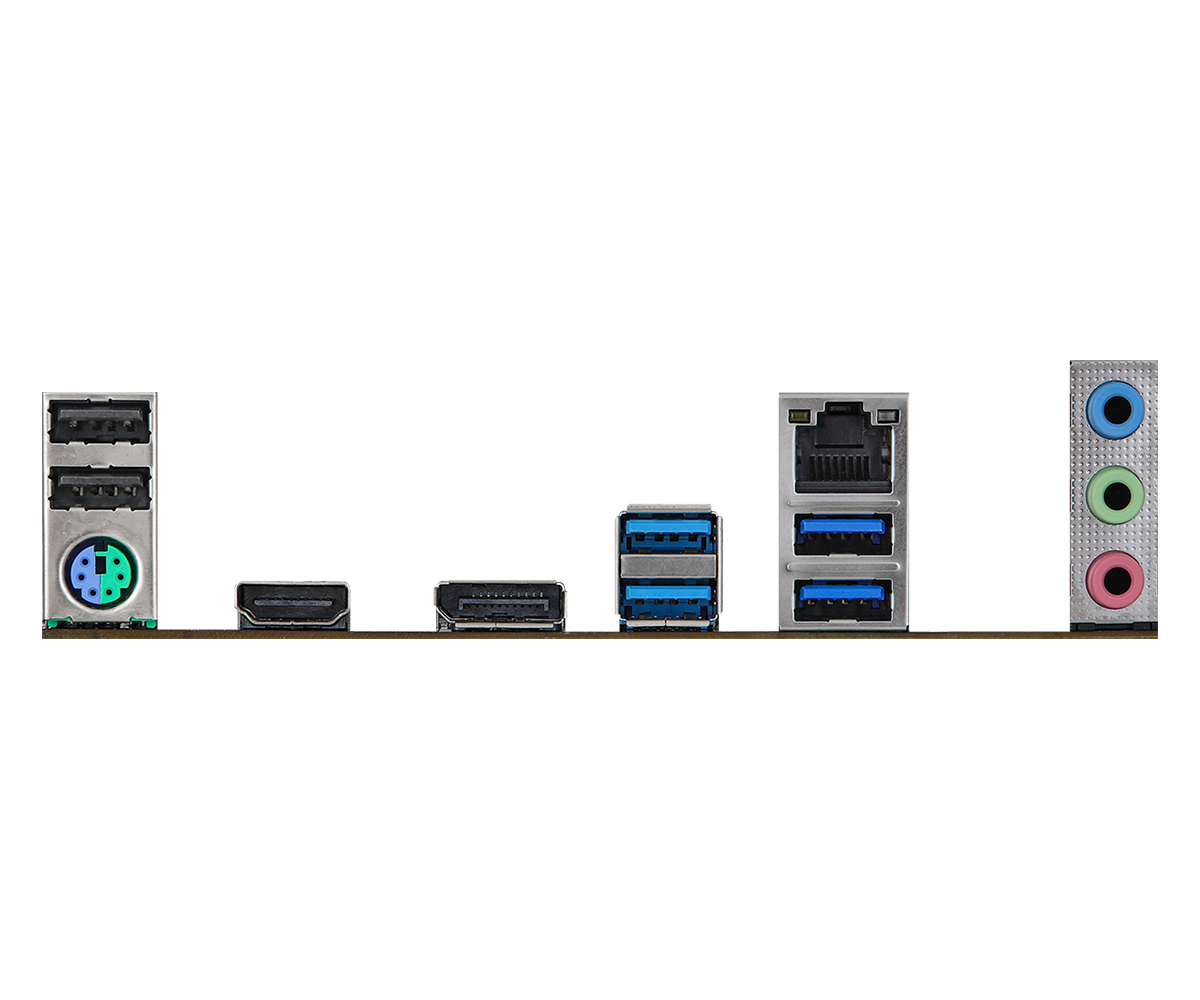

| Портове | 1 x LAN (Gigabit Ethernet) 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x microphone - mini-jack 2 x USB 3.2 Gen 1 2 x USB 3.2 Gen 2 2 x USB 2.0 1 x HDMI 1 x PS/2 keyboard / mouse 1 x DisplayPort |
| Разширителни слотове | 1 x CPU 4 x DIMM 288-pin 2 x PCIe 4.0 x16 (dual: PCIe 4.0 x16, PCIe 3.0 x4 mode; single card: PCIe 4.0 x16 mode (11th Gen Intel CPUs); dual: PCIe 3.0 x16, x4 mode; single card: PCIe 3.0 x16 mode (10th Gen Intel CPUs)) 2 x PCIe 3.0 x1 1 x M.2 socket (Key E) |
| PCI slots | 2x PCI Express 3.0 x1, 1x PCI Express 3.0 x16, 1x PCI Express 4.0 x16 |
| Вътрешен интерфейс | 4 x USB 3.2 Gen 1 - header 1 x audio - header 4 x USB 2.0 - header 1 x Thunderbolt - header 1 x USB-C Gen 1 - header |
| Wake on LAN | Wake on LAN (WOL) |
| Функции | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 2.0, supported ECC modules operate in non-ECC mode |
| Софтуер |
Drivers & Utilities ASRock A-Tuning Antivirus (Trial version) Google Chrome Browser Google ChromeToolbar ASRock XFast LAN ASRock Polychrome SYNC |
| Съвместими операционни системи | Microsoft Windows 10 Pro 64-bit (License) |
| Конектори | 1 x SPI TPM Header; - 1 x Chassis Intrusion and Speaker Header; - 2 x RGB LED Headers; - 2 x Addressable LED Headers; - 1 x CPU Fan Connector (4-pin); - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control); - 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control); - 1 x 24 pin ATX Power Connector; - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector); - 1 x 4 pin 12V Power Connector (Hi-Density Power Connector); - 1 x Front Panel Audio Connector; - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card); - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection); - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection); - 1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection) |
| Конектори за захранване | 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector |
| Наблюдение на хардуера |
CPU core temperature chassis temperature CPU fan tachometer chassis fan tachometer system voltage CPU core voltage |
| Стандарти | FCC, EuP Ready, ErP Ready |
| Включени кабели | 2 x Serial ATA cable |
| Аксесоари | I/O back cover, 3 x M.2 screws, standoff for M.2 socket |
| Височина | 244 мм |
| Ширина | 24.4 cm |
| Дълбочина | 24.4 cm |
| Други характеристики |
12 Phase Power Design ASRock Instant Flash AMD CrossFireX technology support AMD Quad CrossFireX technology support ASRock Internet Flash Digi Power Design Intel Quick Sync Video ESD Protection Energy Efficient Ethernet 802.3az Preboot eXecution Environment (PXE) Supports Intel K-Series unlocked CPU ASRock A-Tuning ASRock Full Spike Protection ASRock APP Shop ASRock Super Alloy High Density Glass Fabric PCB ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Easy RAID Installer Sapphire Black PCB Dr.MOS MOSFET Nahimic Audio Enhacer ASRock Live Update ASRock EZ Mode ASRock Steel Slots Premium Power Choke Intel Turbo Boost Max Technology 3.0 ASRock POST Status Checker (PSC) ASRock Full Coverage M.2 Heatsink ASRock Hyper M.2 ASRock USB 3.2 Gen2 |
| Гаранция | 24 месеца |
| Код на продукта | Z590M PRO4 |
