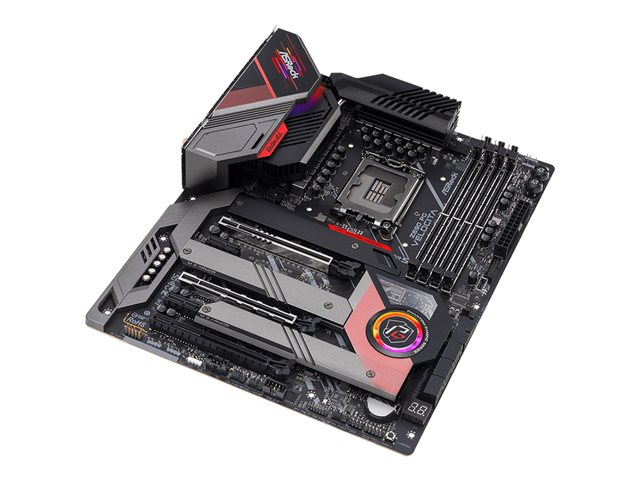

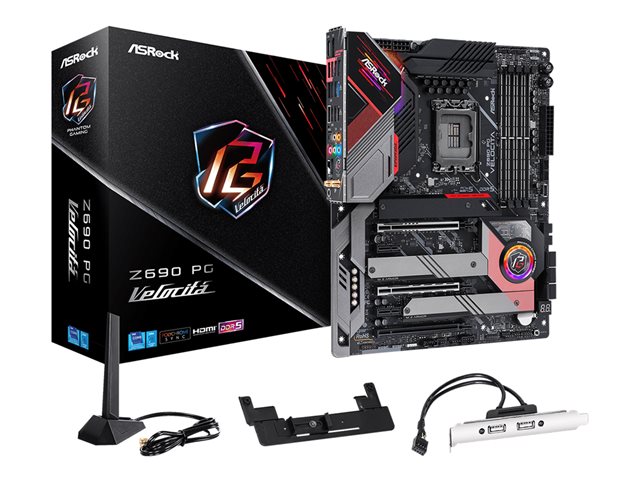

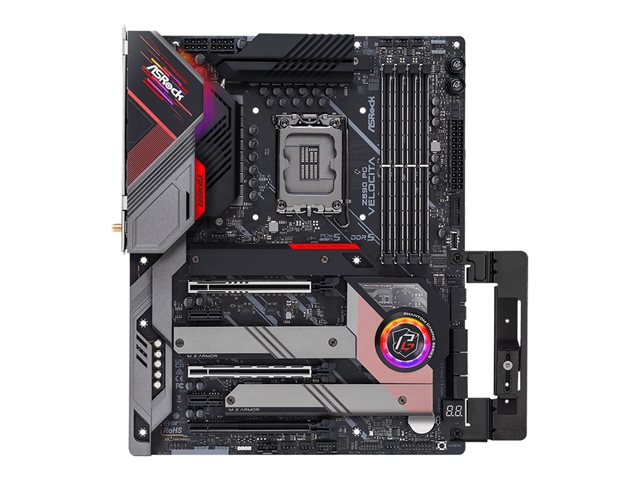

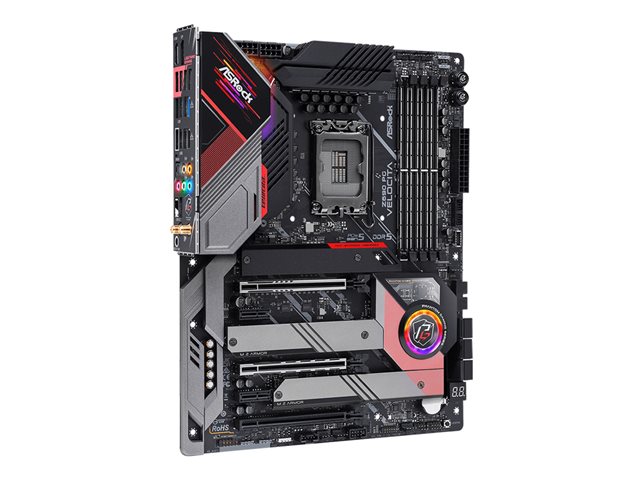

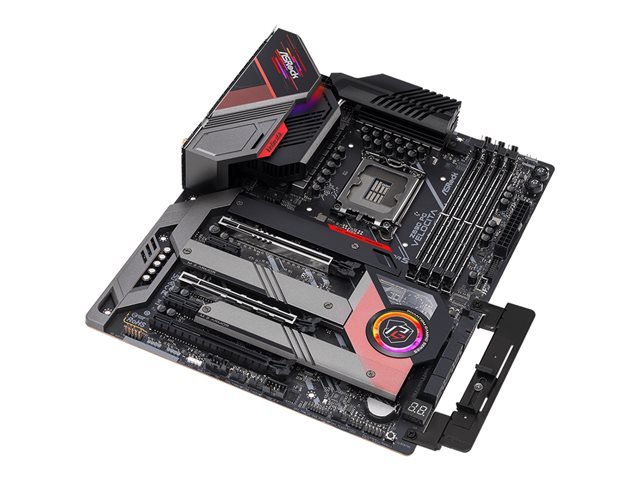

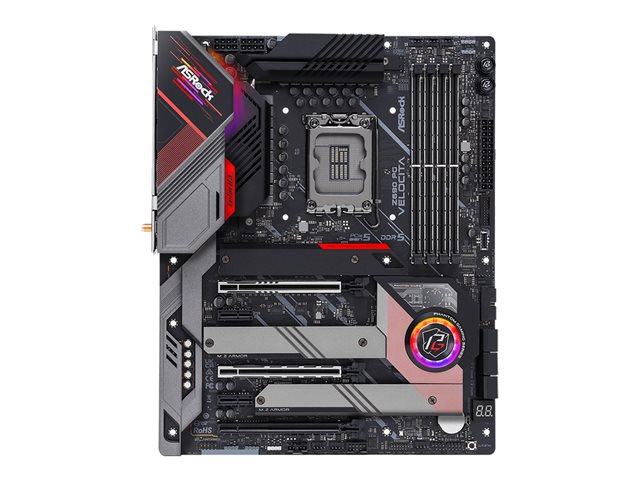

Дънна платка ASROCK Z690 PG VELOCITA LGA1700 ATX MB 4xDDR5 4xM.2 6xSATA Z690 PG VELOCITA
изчерпано
Сокет: LGA 1700
Чипсет: Intel Z690
Тип на паметта: DDR5
Физически размер: ATX
Слотове за памет: 4
Честота на паметта: 6400 MHz (O.C.)
Гаранция:
0.0
от 5.0
(0)
Купи и събери
5 точки
Плати по-лесно и сигурно с
Виж всички продукти на Asrock
Пазарувай по марка
Характеристики
| Физически размер | ATX |
| Чипсет | Intel Z690 |
| Сокет | LGA 1700 |
| Съвместими процесори | (supports 12th Generation Intel Core) |
| BIOS | UEFI BIOS, SMBIOS 2.7 support, ACPI 6.0 support |
| Тип BIOS | AMI |
| Тип на паметта | DDR5 |
| Честота на паметта | 6400 MHz (O.C.) |
| ECC support | Non-ECC |
| Memory Registered / Buffered | Unbuffered |
| Слотове за памет | 4 |
| Максимална памет | 128 GB |
| Брой процесорни гнезда | 1 |
| Дисков интерфейс | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 5 SATA-600 / PCIe 3.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 5 PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 5 |
| LAN порт | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth, Gigabit Ethernet |
| LAN controller | Intel I219V / Killer E3100G |
| Звук | Realtek ALC1220 |
| Звуков изход | HD Audio (8-channel) |
| Аудио стандарти | High Definition Audio, Premium Blu-ray audio support |

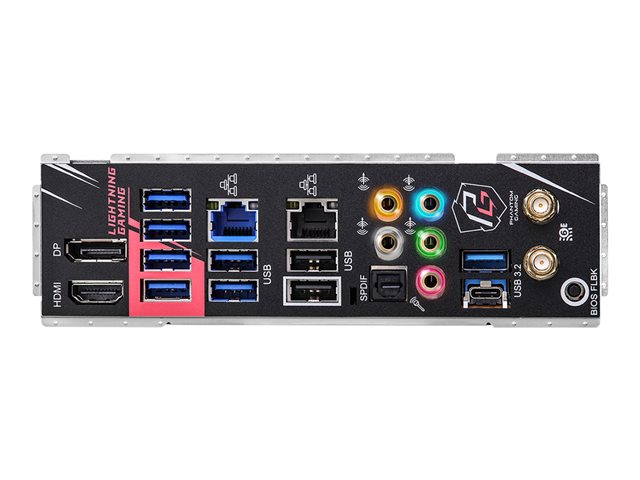

| Портове | 1 x HDMI 1 x DisplayPort 1 x USB 3.2 Gen 2 1 x USB-C Gen2 1 x LAN (2.5Gigabit Ethernet) 1 x LAN (Gigabit Ethernet) 6 x USB 3.2 Gen 1 1 x microphone - mini-jack 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x audio line-out (rear) - mini-jack 1 x audio line-out (center/subwoofer) - mini-jack 1 x TOSLINK |
| Разширителни слотове | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 5.0 x16 1 x PCIe 3.0 x16 (x2 mode) 1 x PCIe 4.0 x16 (x4 mode) 2 x PCIe 3.0 x1 |
| Вътрешен интерфейс | 2 x USB 2.0 - header 1 x USB-C Gen 2x2 - header 4 x USB 3.2 Gen 1 - header 1 x audio - header 1 x Thunderbolt - header |
| Wake on LAN | Wake on LAN (WOL) |
| Функции | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 3.0 |
| Софтуер |
Drivers & Utilities
ASRock Phantom Gaming Tuning Killer Control Center ASRock Polychrome SYNC Antivirus (Trial version) Google Chrome Browser Google ChromeToolbar |
| Конектори за захранване | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
| Наблюдение на хардуера |
Chassis temperature
system voltage CPU core temperature chassis fan tachometer CPU fan tachometer CPU overheating protection CPU core voltage |
| Стандарти |
HDCP 2.3
DisplayPort 1.4 FCC ErP Ready EuP Ready CEC Tier II |
| Включени кабели | 4 x Serial ATA cable |
| Аксесоари |
Graphics card holder
wireless dongle USB bracket 1 x 4010 cooling fan bracket and screw package 1 x 3010 cooling fan with bracket and screw package ASRock WiFi 2.4/5/6 GHz aerial 3 x M.2 screws 3 x standoff for M.2 socket |
| Ширина | 30.5 cm |
| Дълбочина | 24.4 cm |
| Други характеристики |
ASRock Super Alloy
Premium 60A Power Choke XXL Aluminum Alloy Heatsink Premium Memory Alloy Choke Nichicon 12K Black Caps I/O Armor Matte Black PCB High Density Glass Fabric PCB 8 Layer PCB Killer DoubleShot Pro ASRock Easy Driver Installer ASRock Full Coverage M.2 Heatsink ASRock Steel Slots ASRock Ultra USB Power ASRock Full Spike Protection ASRock Live Update ASRock APP Shop Digi Power Design 17 Phase Power Design ASRock Hyper BCLK Engine V Intel Hybrid Technology Intel Turbo Boost Max Technology 3.0 15µ Gold Contact Pure Power-In Direct Drive Technology PCB Isolate Shielding Gold Plated Audio Hardware Nahimic Audio Enhacer ESD Protection Energy Efficient Ethernet 802.3az Preboot eXecution Environment (PXE) AMD CrossFireX technology support Intel Optane Memory Ready Clear CMOS Button Debug LED ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Instant Flash ASRock Internet Flash ASRock Easy RAID Installer 2oz Copper PCB |
| Гаранция | 36 месеца |
| Код на продукта | Z690 PG VELOCITA |
Виж повече
Допълнителна информация
- SPS (Smart Power Stage)
Dr.MOS design features the latest SPS (Smart Power Stage) technology. It's optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability. - 17 power phase design
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well. - 8 Layer PCB
The 8 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with most extreme memory performance! - 2oz copper PCB
2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking. - Reinforced DIMM slot
The reinforced DIMM slot is surfaced mounted onto the motherboard to give better physical strength as well as a more stable memory signal, with this superior revolutionary design, it is able to dramatically overclock DRAM module up to insane frequency. - DIY friendly design
Due to the unique electrical architecture of DDR5 DIMM, there's a high risk of damaging the memory module if AC power isn't disconnected properly during removal or installation. To prevent this, ASRock has implemented a trouble free protection circuit on every DDR5 motherboard, lowers the risk of damaging your memory module. - PCIe 5.0 + Surface-Mount Tech
Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard. The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards. - PCIe Gen5 Blazing M.2
The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128GB/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs. - KiLLER E3100 + AX1675
The Killer Ethernet controller is designed especially for competitive gamers and performance-hungry users, this motherboard comes with both Killer E3100 2.5G Ethernet & Wi-Fi 6E solution, the enhanced detection and prioritization engine provides the ultimate networking experience for gaming and multimedia applications. - KiLLER Doubleshot Pro
Killer DoubleShot Pro allows the use of both the Killer Wireless and Killer Ethernet interfaces work at the same time which will give the end user max throughput as high as 4.9 Gbps, it automatically utilizes the fastest network connection for high priority traffic, this ensures the highest priority traffic will always be put on the fastest and most reliable link. - Nahimic audio
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details. - Lightning gaming ports
Aimed for die hard gamers and enthusiasts! Lightning Gaming Ports are sourced from two different controller interfaces that assist gamers in connecting the high speed mice/keyboard with the lower jitter and latency! - PCIe Gen4 x4 for SSD
This motherboard is capable of accommodating multiple M.2 storage devices, one of which can support PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience. - Anti-drop screw
Tired of dropping screws or screws missing inside chassis? The enhanced M.2 heatsink with anti-drop screw design that make sure installation process more easily. - Polychrome RGB
In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects. - Front USB 3.2 Gen2x2 Type-C
The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.
