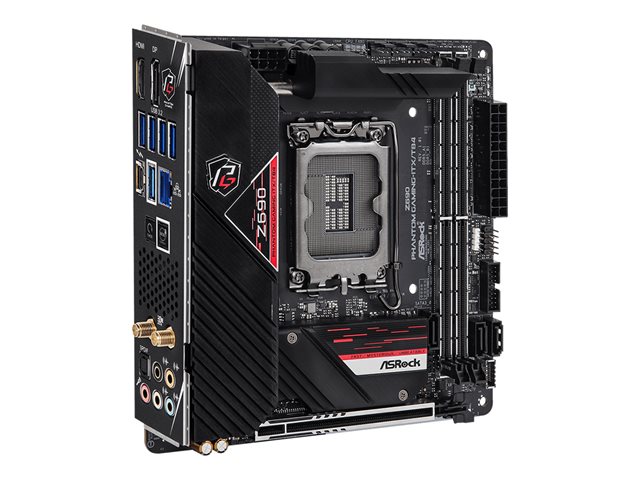

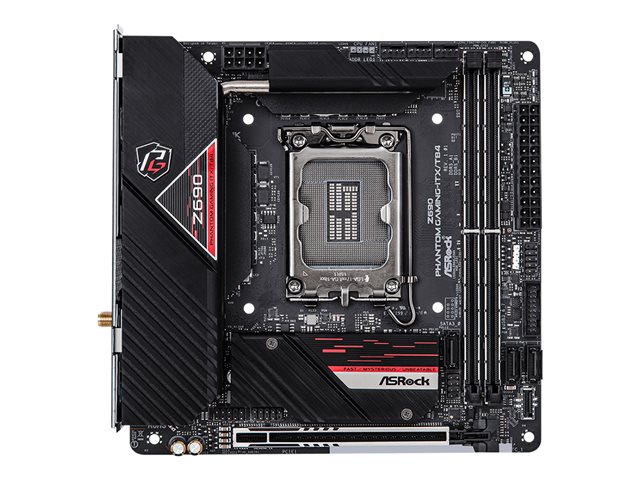

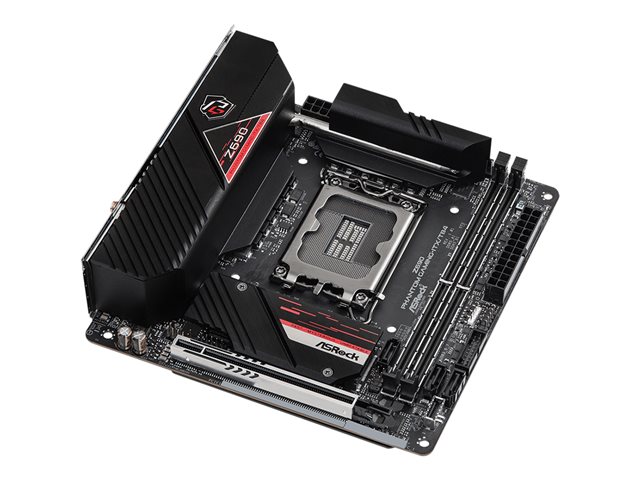

Дънна платка ASROCK Z690 PHANTOM GAMING-ITX Z690 PHANTOM GAMING-ITX/TB4
изчерпано
Сокет: LGA 1700
Чипсет: Intel Z690
Тип на паметта: DDR5
Физически размер: Mini-ITX
Слотове за памет: 2
Честота на паметта: 6400 MHz (O.C.)
Гаранция:
0.0
от 5.0
(0)
Купи и събери
3 точки
Плати по-лесно и сигурно с
Виж всички продукти на Asrock
Пазарувай по марка
Характеристики
| Физически размер | Mini-ITX |
| Чипсет | Intel Z690 |
| Сокет | LGA 1700 |
| Съвместими процесори | (supports 12th Generation Intel Core) |
| BIOS | UEFI BIOS, ACPI 6.0 support, SMBIOS 2.7 support |
| Тип BIOS | AMI |
| Тип на паметта | DDR5 |
| Честота на паметта | 6400 MHz (O.C.) |
| ECC support | Non-ECC |
| Memory Registered / Buffered | Unbuffered |
| Слотове за памет | 2 |
| Максимална памет | 64 GB |
| Брой процесорни гнезда | 1 |
| Дисков интерфейс | SATA-600 -connectors: 3 x 7pin SATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 5 SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 5 |
| LAN порт | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ax, Bluetooth |
| LAN controller | Killer E3100G |
| Звук | Realtek ALC1220 |
| Звуков изход | HD Audio (8-channel) |
| Аудио стандарти | High Definition Audio, Premium Blu-ray audio support |

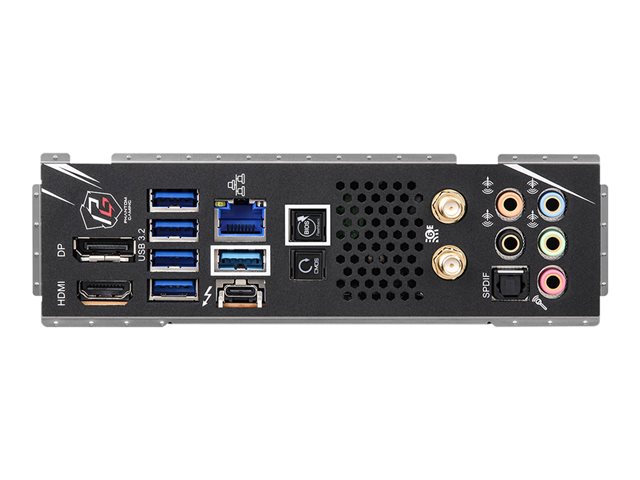

| Портове | 1 x HDMI 1 x audio line-out (center/subwoofer) - mini-jack 4 x USB 3.2 Gen 2 1 x USB 3.2 Gen 1 1 x LAN (2.5Gigabit Ethernet) 1 x audio line-out (rear) - mini-jack 1 x Thunderbolt 4/USB4 1 x microphone - mini-jack 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x DisplayPort 1 x TOSLINK |
| Разширителни слотове | 1 x CPU 2 x DIMM 288-pin 1 x PCIe 5.0 x16 1 x M.2 socket (for wireless module) |
| Вътрешен интерфейс | 2 x USB 2.0 - header 1 x USB-C Gen 2x2 - header 2 x USB 3.2 Gen 1 - header 1 x audio - header |
| Wake on LAN | Wake on LAN (WOL) |
| Функции | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 3.0 |
| Софтуер |
Drivers & Utilities
ASRock Phantom Gaming Tuning ASRock Polychrome SYNC Antivirus (Trial version) Google Chrome Browser Google ChromeToolbar Killer Control Center |
| Конектори за захранване | 24-pin main power connector, 8-pin ATX12V connector |
| Наблюдение на хардуера |
Chassis temperature
system voltage CPU core temperature chassis fan tachometer CPU fan tachometer CPU overheating protection CPU core voltage |
| Стандарти | FCC, ErP Ready, EuP Ready |
| Включени кабели | 2 x Serial ATA cable |

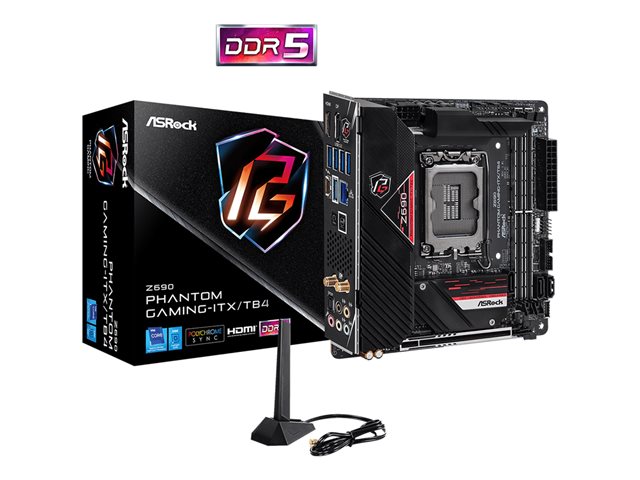

| Аксесоари | 2 x M.2 screws, ASRock WiFi 2.4/5/6 GHz aerial |
| Ширина | 17 cm |
| Дълбочина | 17 cm |
| Други характеристики |
ASRock USB 4.0
ASRock Super Alloy Premium 90A Power Choke Nichicon 12K Black Caps I/O Armor Matte Black PCB High Density Glass Fabric PCB 10 Layer PCB Killer DoubleShot Pro ASRock Auto Driver Installer ASRock Steel Slots ASRock Full Coverage M.2 Heatsink ASRock Hyper M.2 ASRock POST Status Checker (PSC) ASRock Full Spike Protection ASRock Live Update ASRock APP Shop Digi Power Design 11 Phase Power Design Intel Turbo Boost Max Technology 3.0 Intel Hybrid Technology Triple Monitor Pure Power-In Direct Drive Technology Nahimic Audio Enhacer ESD Protection Energy Efficient Ethernet 802.3az Preboot eXecution Environment (PXE) ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Instant Flash ASRock Internet Flash ASRock Easy RAID Installer |
| Гаранция | 36 месеца |
| Код на продукта | Z690 PHANTOM GAMING-ITX/TB4 |
Виж повече
Допълнителна информация
- Optimized VRM design
Dr.MOS design features the latest SPS (Smart Power Stage) technology. It's optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability. - 11 power phase design
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well. - 10 layer PCB
The 10 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with most extreme memory performance! - PCIe 5.0 + surface-mount tech
Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard. - DDR5 memory with protection circuit
The reinforced DIMM slot is surfaced mounted onto the motherboard to give better physical strength as well as a more stable memory signal, with this superior revolutionary design, it is able to dramatically overclock DRAM module up to insane frequency. - DIY friendly design
Due to the unique electrical architecture of DDR5 DIMM, there's a high risk of damaging the memory module if AC power isn't disconnected properly during removal or installation. To prevent this, ASRock has implemented a trouble free protection circuit on every DDR5 motherboard, lowers the risk of damaging your memory module. - High speed M.2 solution
This motherboard is capable of accommodating multiple M.2 storage devices, one of which can support PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience. - KiLLER networking
The Killer Ethernet controller is designed specically for competitive gamers and performance-hungry users, this motherboard comes with both Killer E3100 2.5G Ethernet & WiFi 6E solution, the enhanced detection and prioritization engine provides the ultimate networking experience for gaming and multimedia applications. - KiLLER Doubleshot Pro
Killer DoubleShot Pro allows the use of both the Killer Wireless and Killer Ethernet interfaces work at the same time which will give the end user max throughput as high as 4.9 Gbps, it automatically utilizes the fastest network connection for high priority traffic, this ensures the highest priority traffic will always be put on the fastest and most reliable link. - Thunderbolt 4/USB4 Type-C
Thunderbolt 4/USB4 technology brings speed and versatility to the most advanced USB Type-C, offering a fast and simple level of connection for work or home. It enables lightning-fast data transfer up to 40Gbps and connects external monitors, Thunderbolt, and USB devices with a single Thunderbolt 4 cable. - Fast charging technology
Enjoy the superfast charging rate, up to 9V@3A 27W with the next generation PD 3.0! - Nahimic audio
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details. - Polychrome RGB
This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects - Abundant USB
The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way. - USB 3.2 Gen2
This motherboard has four onboard Type-A USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates. - Auto driver installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD. - BIOS flashback
Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and power supply, No CPU, RAM or other components required. - Flexible integrated IO shield
Unlike most so called pre-mounted I/O shield that is only decorated with fancy color schemes.
