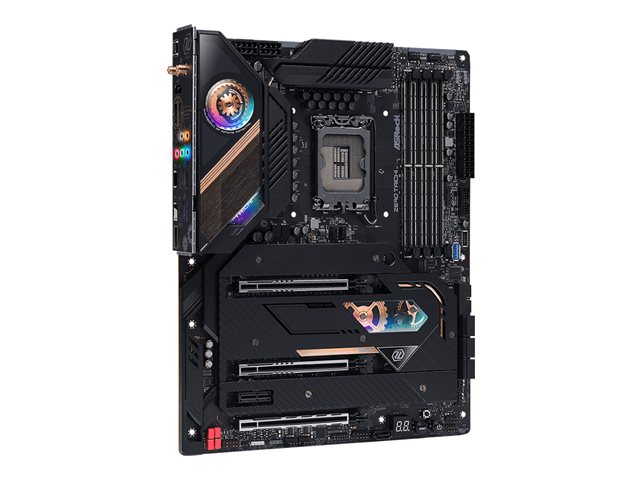

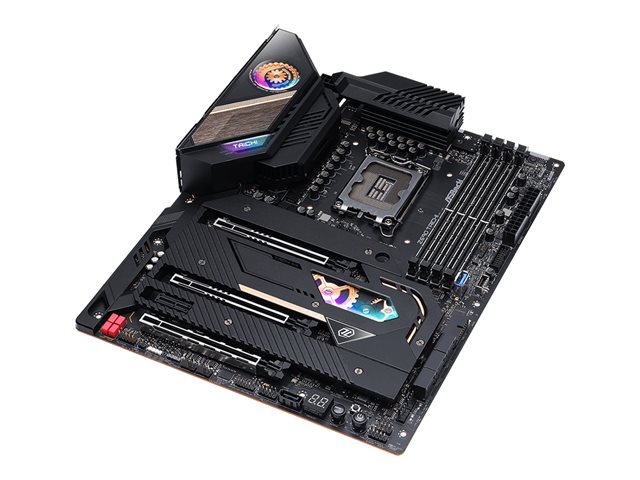

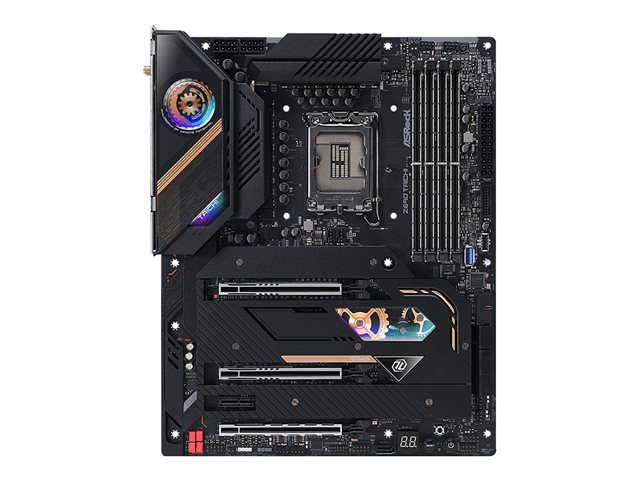

Дънна платка ASROCK Z690 TAICHI LGA1700 ATX MB 4xDDR5 4xM.2 6xSATA Z690 TAICHI
изчерпано
Сокет: LGA 1700
Чипсет: Intel Z690
Тип на паметта: DDR5
Физически размер: ATX
Слотове за памет: 4
Честота на паметта: 6400 MHz (O.C.)
Гаранция:
0.0
от 5.0
(0)
Купи и събери
7 точки
Плати по-лесно и сигурно с
Виж всички продукти на Asrock
Пазарувай по марка
Характеристики
| Физически размер | ATX |
| Чипсет | Intel Z690 |
| Сокет | LGA 1700 |
| Съвместими процесори | (supports 12th Generation Intel Core) |
| BIOS | Multilingual BIOS, UEFI BIOS, SMBIOS 2.7 support, ACPI 6.0 support |
| Тип BIOS | AMI |
| Тип на паметта | DDR5 |
| Честота на паметта | 6400 MHz (O.C.) |
| ECC support | Non-ECC |
| Memory Registered / Buffered | Unbuffered |
| Слотове за памет | 4 |
| Максимална памет | 128 GB |
| Брой процесорни гнезда | 1 |
| Дисков интерфейс | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 SATA-600 -connectors: 1 x 7pin Serial ATA SATA-600 / PCIe 3.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 5 PCIe 4.0 -connectors: 2 x Hyper M.2 - RAID 0 / RAID 1 / RAID 5 |
| LAN порт | Gigabit Ethernet, 2.5 Gigabit Ethernet, 802.11a/b/g/n/ax, Bluetooth 5.2 |
| LAN controller | Intel I219V / Killer E3100G / Killer AX1675 |
| Звук | Realtek ALC1220 |
| Звуков изход | HD Audio (8-channel) |
| Аудио стандарти | High Definition Audio, Premium Blu-ray audio support |

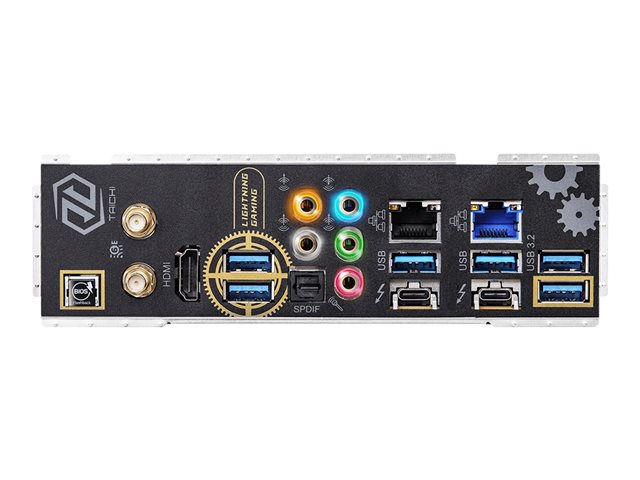

| Портове | 1 x LAN (Gigabit Ethernet) 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x microphone - mini-jack 4 x USB 3.2 Gen 1 2 x USB 3.2 Gen 2 2 x Thunderbolt 4/USB4 1 x HDMI 1 x LAN (2.5Gigabit Ethernet) 1 x TOSLINK 1 x audio line-out (center/subwoofer) - mini-jack 1 x audio line-out (rear) - mini-jack |
| Разширителни слотове | 1 x CPU 4 x DIMM 288-pin 2 x PCIe 5.0 x16 1 x PCIe 3.0 x1 1 x M.2 socket (Key E) 1 x PCIe 4.0 x16 |
| Вътрешен интерфейс | 4 x USB 3.2 Gen 1 - header 1 x USB-C Gen 2x2 - header 3 x USB 2.0 - header 1 x audio - header 1 x USB 3.2 Gen 1 - Type A |
| Wake on LAN | Wake on LAN (WOL) |
| Функции | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 3.0 |
| Софтуер |
ASRock A-Tuning
Killer Control Center ASRock Polychrome SYNC Antivirus (Trial version) Google Chrome Browser Google ChromeToolbar Drivers & Utilities |
| Конектори за захранване | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
| Наблюдение на хардуера |
CPU core temperature
chassis temperature CPU fan tachometer chassis fan tachometer system voltage CPU core voltage |
| Стандарти | FCC, EuP Ready, ErP Ready, CEC Tier II |
| Включени кабели | 4 x Serial ATA cable |

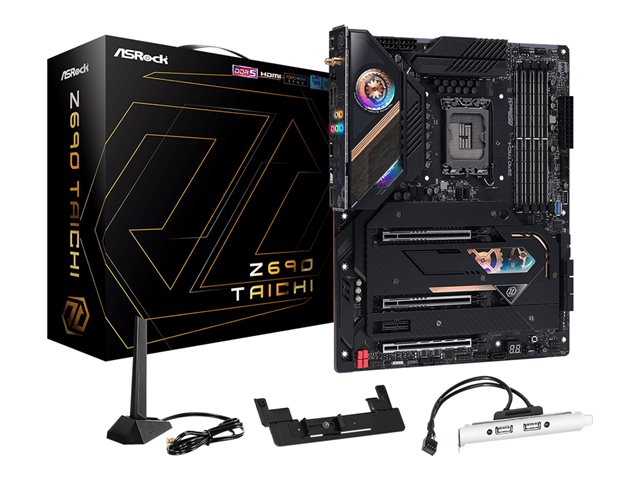

| Аксесоари |
Graphics card holder
wireless dongle USB bracket 1 x 3010 cooling fan with bracket and screw package 1 x 4010 cooling fan bracket and screw package ASRock WiFi 2.4/5/6 GHz aerial 3 x M.2 screws standoff for M.2 socket |
| Ширина | 30.5 cm |
| Дълбочина | 24.4 cm |
| Други характеристики |
ASRock USB 4.0
ASRock USB 3.2 Gen2 ASRock Super Alloy XXL Aluminum Alloy Heatsink Premium 90A Power Choke Premium Memory Alloy Choke Nichicon 12K Black Caps I/O Armor Matte Black PCB High Density Glass Fabric PCB 8 Layer PCB 2oz Copper PCB Server-Grade Low-Loss PCB Killer DoubleShot Pro ASRock Auto Driver Installer ASRock Steel Slots ASRock Full Coverage M.2 Heatsink ASRock Hyper M.2 ASRock Ultra USB Power ASRock Full Spike Protection ASRock APP Shop ASRock Live Update 20 Phase Power Design Digi Power Design Intel Hybrid Technology Intel Turbo Boost Max Technology 3.0 ASRock Hyper BCLK Engine V Pure Power-In Direct Drive Technology Gold Plated Audio Hardware Nahimic Audio Enhacer ESD Protection Energy Efficient Ethernet 802.3az Preboot eXecution Environment (PXE) ASRock A-Tuning ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Instant Flash ASRock Internet Flash ASRock Easy RAID Installer WIMA audio capacitors 15µ Gold Contact AMD CrossFireX technology support ESS 9218 SABRE HiFi DAC Smart Power Stage (SPS) technology DIY Friendly Design Surface Mount Technology (SMT) |
| Гаранция | 36 месеца |
| Код на продукта | Z690 TAICHI |
Виж повече
Допълнителна информация
- Optimized VRM design
Dr.MOS design features the latest SPS (Smart Power Stage) technology. It's optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability. - 20 power phase design
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well. - 8 layer PCB
The 8 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with most extreme memory performance! - 2oz copper PCB
2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking. - Reinforced DIMM slot
The reinforced DIMM slot is surfaced mounted onto the motherboard to give better physical strength as well as a more stable memory signal, with this superior revolutionary design, it is able to dramatically overclock DRAM module up to insane frequency. - DIY friendly design
Due to the unique electrical architecture of DDR5 DIMM, there's a high risk of damaging the memory module if AC power isn't disconnected properly during removal or installation. To prevent this, ASRock has implemented a trouble free protection circuit on every DDR5 motherboard, lowers the risk of damaging your memory module. - PCIe 5.0 + surface-mount tech
Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard. - KiLLER networking
The Killer Ethernet controller is designed specically for competitive gamers and performance-hungry users, this motherboard comes with both Killer E3100 2.5G Ethernet & Wi-Fi 6E solution, the enhanced detection and prioritization engine provides the ultimate networking experience for gaming and multimedia applications. - KiLLER Doubleshot Pro
Killer DoubleShot Pro allows the use of both the Killer Wireless and Killer Ethernet interfaces work at the same time which will give the end user max throughput as high as 4.9 Gbps, it automatically utilizes the fastest network connection for high priority traffic, this ensures the highest priority traffic will always be put on the fastest and most reliable link. - Thunderbolt technology
Thunderbolt 4/USB4 technology brings speed and versatility to the most advanced USB Type-C, offering a fast and simple level of connection for work or home. It enables lightning-fast data transfer up to 40Gbps and connects external monitors, Thunderbolt, and USB devices with a single Thunderbolt 4 cable. - High definition sound effects
Optimized for high end audio applications! Deliver crystal and balanced sound to satisfy even the pickiest audiophile. - Nahimic audio
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details. - Independent SATA & USB port
Protect your valuable data from hackers! ASRock has built in one SATA & USB port that is independent from others, once this feature is activated from BIOS setting, the independent SATA & USB port is cutoff from other ports to prevent malwares and ransomware from accessing. - ASRock graphics card holder

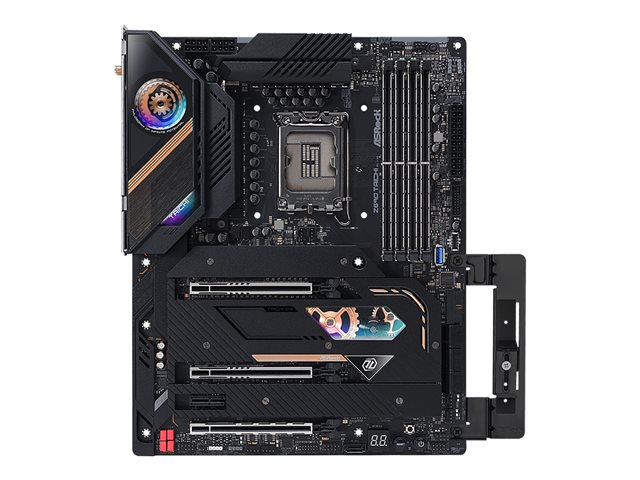

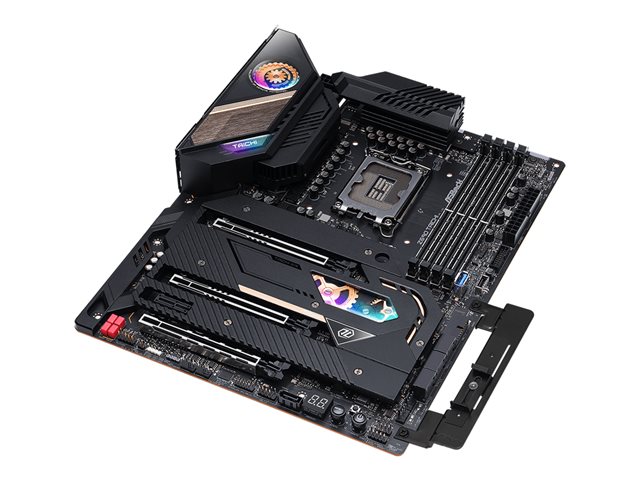

Install your heavy graphics card on the holder; connect it to your motherboard and chassis with screws. Flexibly slide up and down to perfectly adjust the height required for your graphics card in place. - Wireless dongle USB bracket
Allow ASRock to be your most trustworthy ally, providing the anti-interference hardware. Place your wireless dongle as far away as possible to prevent the noise impact between the devices on 2.4GHz data spectrum, this Wireless Dongle USB Bracket is packed with selected motherboards to aid you on building your PC without interference. - Lightning gaming ports
Aimed for die hard gamers and enthusiasts! Lightning Gaming Ports are sourced from two different controller interfaces that assist gamers in connecting the high speed mice/keyboard with the lower jitter and latency! - Polychrome RGB
In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects. - PCIe Gen4 x4 for SSD
This motherboard is capable of accommodating multiple M.2 storage devices, one of which can support PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience. - Anti-drop screw
The enhanced M.2 heat-sink with anti-drop screw design that make sure installation process more easily. - Front USB 3.2 Gen2x2 Type-C
The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way. - Auto driver installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD. - BIOS flashback
Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and power supply, No CPU, RAM or other components required. - Flexible integrated IO shield
Unlike most so called pre-mounted I/O shield that is only decorated with fancy color schemes. Asrock reserve more tolerance space and allow IO shield is adjustable when installing, thus fitting chassis perfectly without any mechanical issue.
