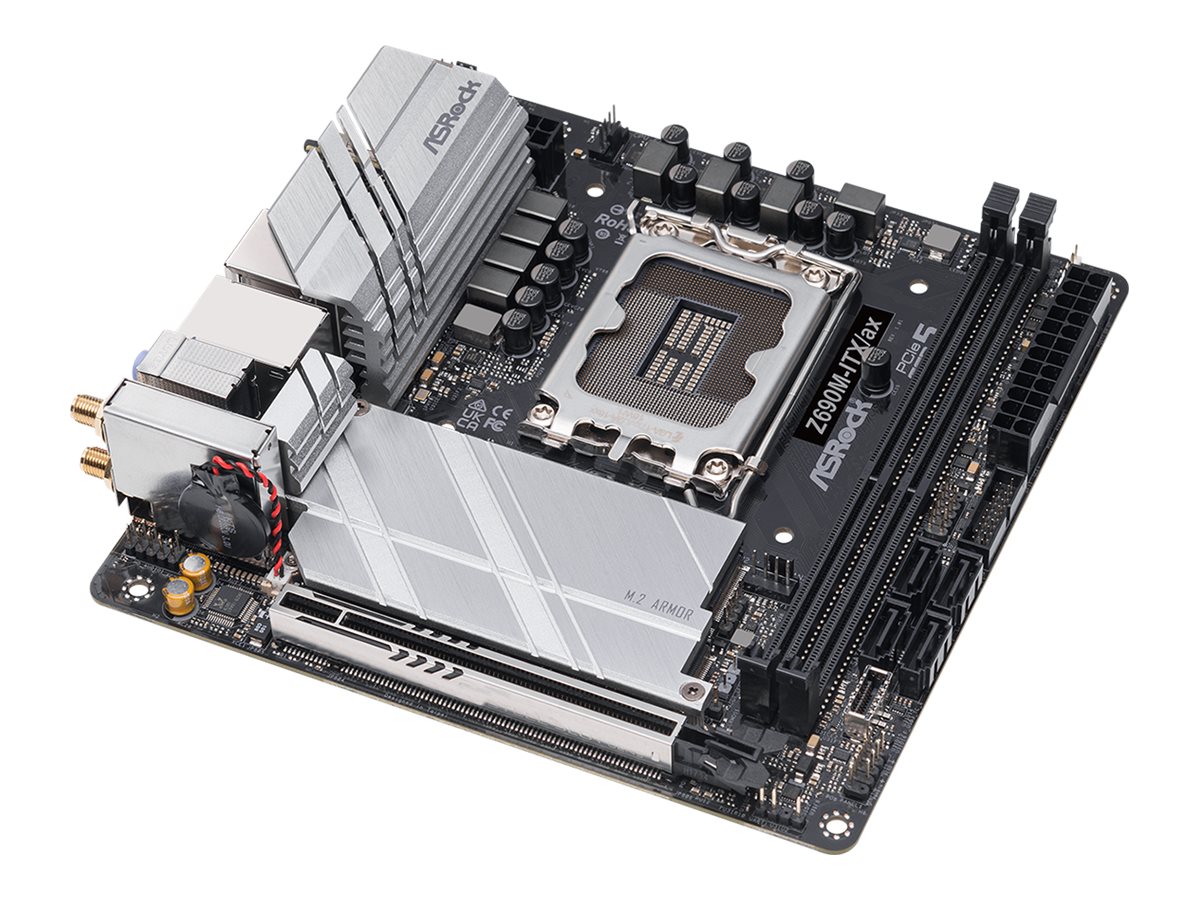

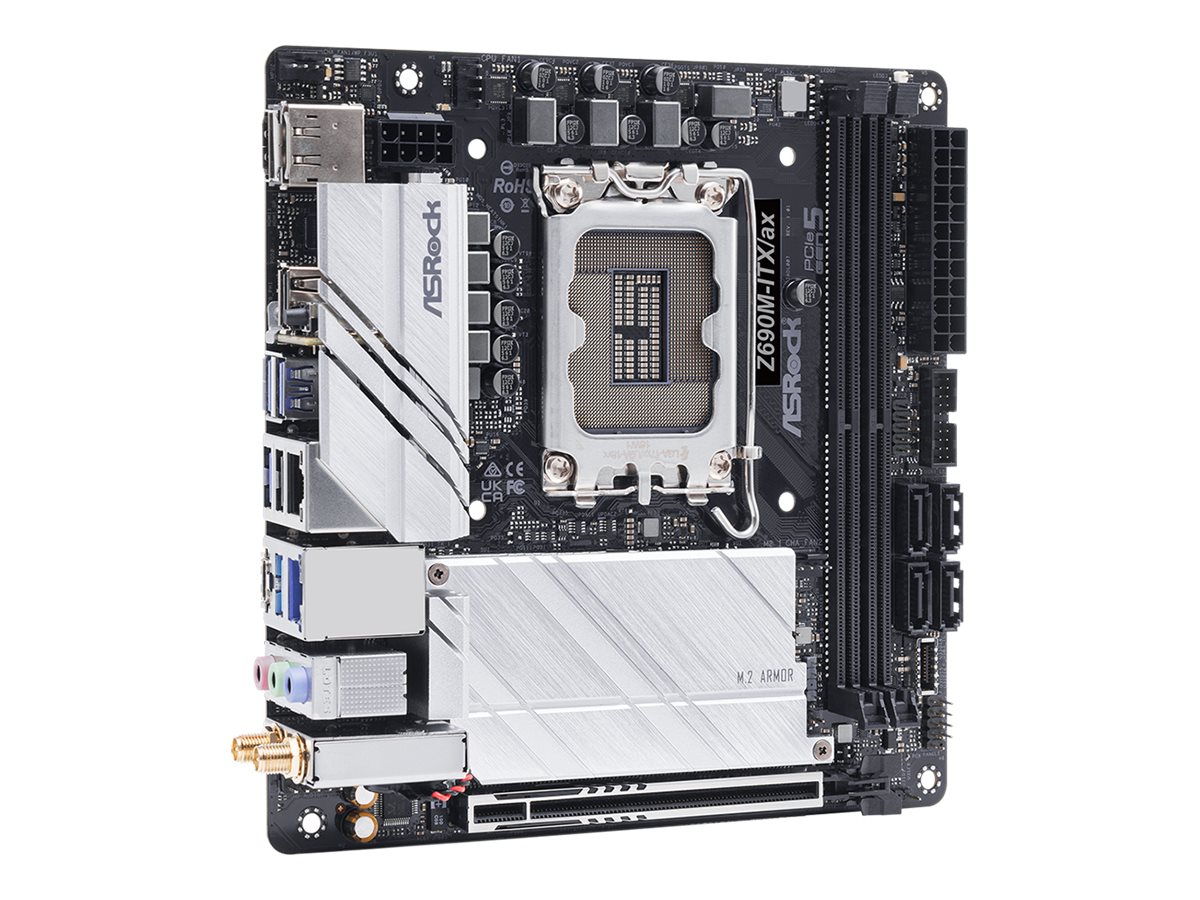

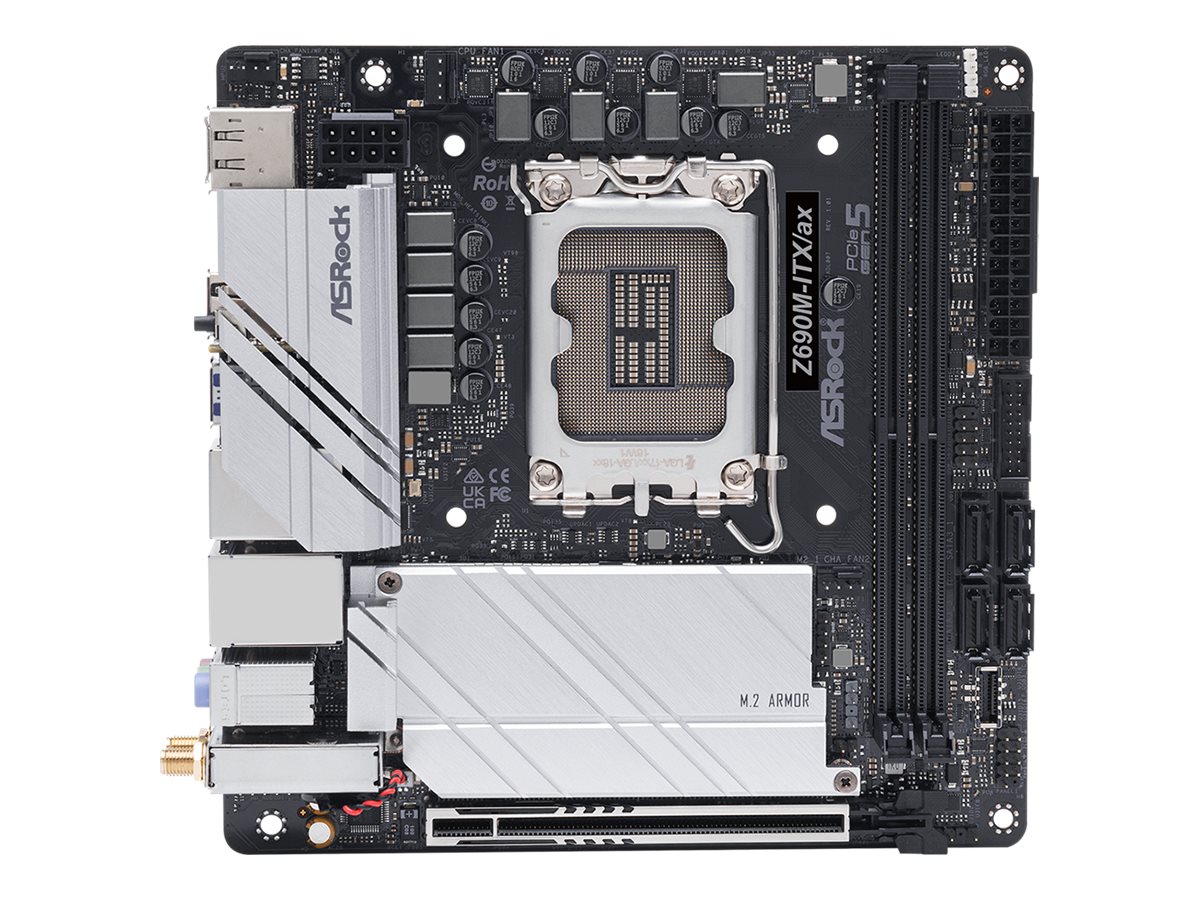

Дънна платка ASROCK Z690M-ITX Z690M-ITX/AX
изчерпано
Сокет: LGA 1700
Чипсет: Intel Z690
Тип на паметта: DDR4
Физически размер: Mini-ITX
Слотове за памет: 2
Гаранция:
0.0
от 5.0
(0)
Купи и събери
3 точки
Плати по-лесно и сигурно с
Виж всички продукти на Asrock
Пазарувай по марка
Характеристики
| Физически размер | Mini-ITX |
| Чипсет | Intel Z690 |
| Сокет | LGA 1700 |
| Съвместими процесори | (supports 12th Generation Intel Core) |
| BIOS | UEFI BIOS, ACPI 6.0 support, SMBIOS 2.7 support |
| Тип BIOS | AMI |
| Тип на паметта | DDR4 |
| ECC support | Non-ECC, ECC (operate in non-ECC mode) |
| Memory Registered / Buffered | Unbuffered |
| Слотове за памет | 2 |
| Максимална памет | 64 GB |
| Брой процесорни гнезда | 1 |
| Дисков интерфейс | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 5 SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 5 |
| LAN порт | 2.5 Gigabit Ethernet, Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth |
| LAN controller | Intel I219V / Dragon RTL8125BG |
| Звук | Realtek ALC897 |
| Звуков изход | HD Audio (8-channel) |
| Аудио стандарти | High Definition Audio |

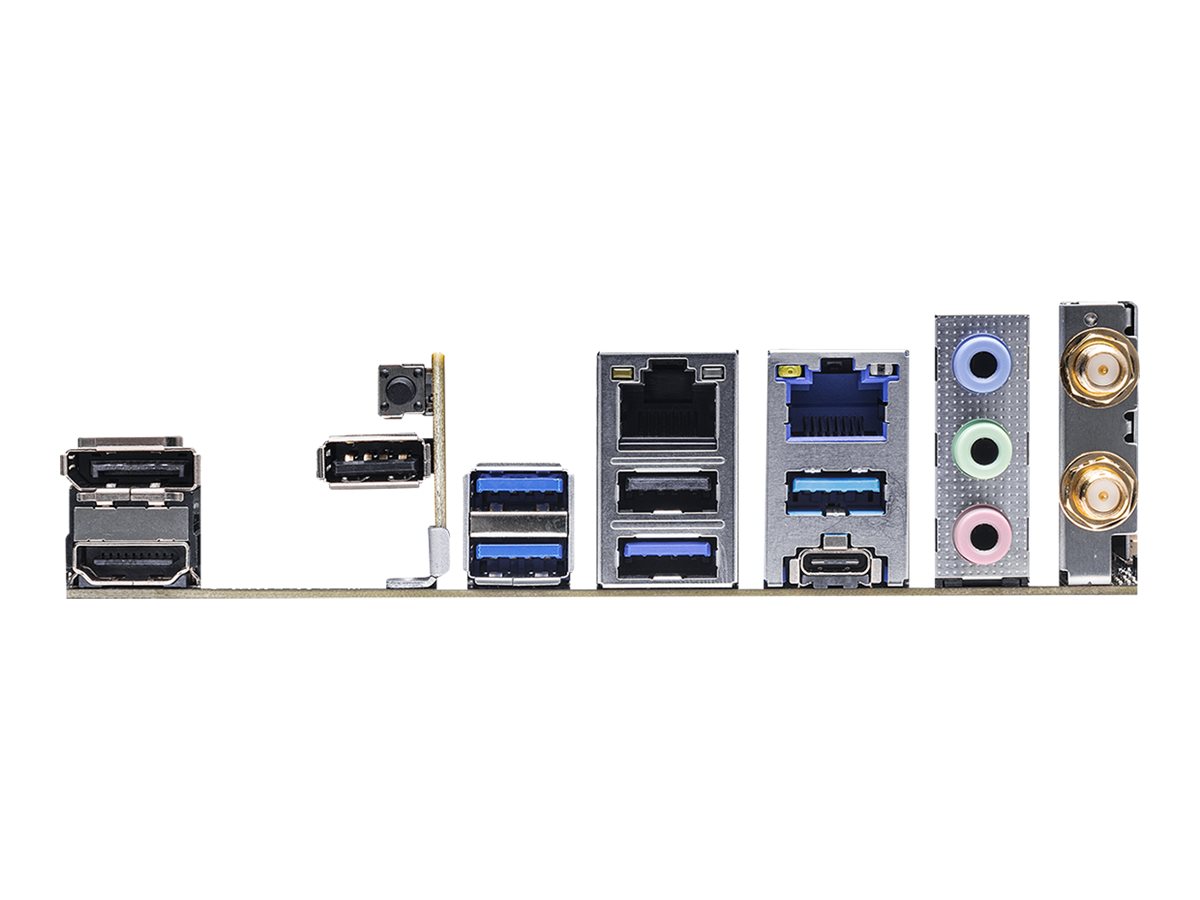

| Портове | 1 x HDMI 1 x DisplayPort 4 x USB 3.2 Gen 2 1 x USB-C Gen2x2 1 x LAN (2.5Gigabit Ethernet) 2 x USB 2.0 1 x audio line-out - mini-jack 1 x microphone - mini-jack 1 x audio line-in - mini-jack 1 x LAN (Gigabit Ethernet) |
| Разширителни слотове | 1 x CPU 2 x DIMM 288-pin 1 x PCIe 5.0 x16 1 x M.2 socket (for wireless module) |
| Вътрешен интерфейс | 2 x USB 2.0 - header 1 x USB-C Gen 2x2 - header 2 x USB 3.2 Gen 1 - header 1 x audio - header |
| Wake on LAN | Wake on LAN (WOL) |
| Функции | Dual channel memory architecture, supported ECC modules operate in non-ECC mode, Intel Extreme Memory Profiles (XMP) 2.0 |
| Софтуер |
Drivers & Utilities
ASRock A-Tuning ASRock Dragon 2.5G LAN Software ASRock Polychrome SYNC Antivirus (Trial version) Google Chrome Browser Google ChromeToolbar |
| Конектори за захранване | 24-pin main power connector, 8-pin ATX12V connector |
| Наблюдение на хардуера |
Chassis temperature
system voltage CPU core temperature chassis fan tachometer CPU fan tachometer CPU overheating protection CPU core voltage |
| Стандарти |
HDCP 2.3
DisplayPort 1.4 FCC ErP Ready EuP Ready |
| Включени кабели | 2 x Serial ATA cable |

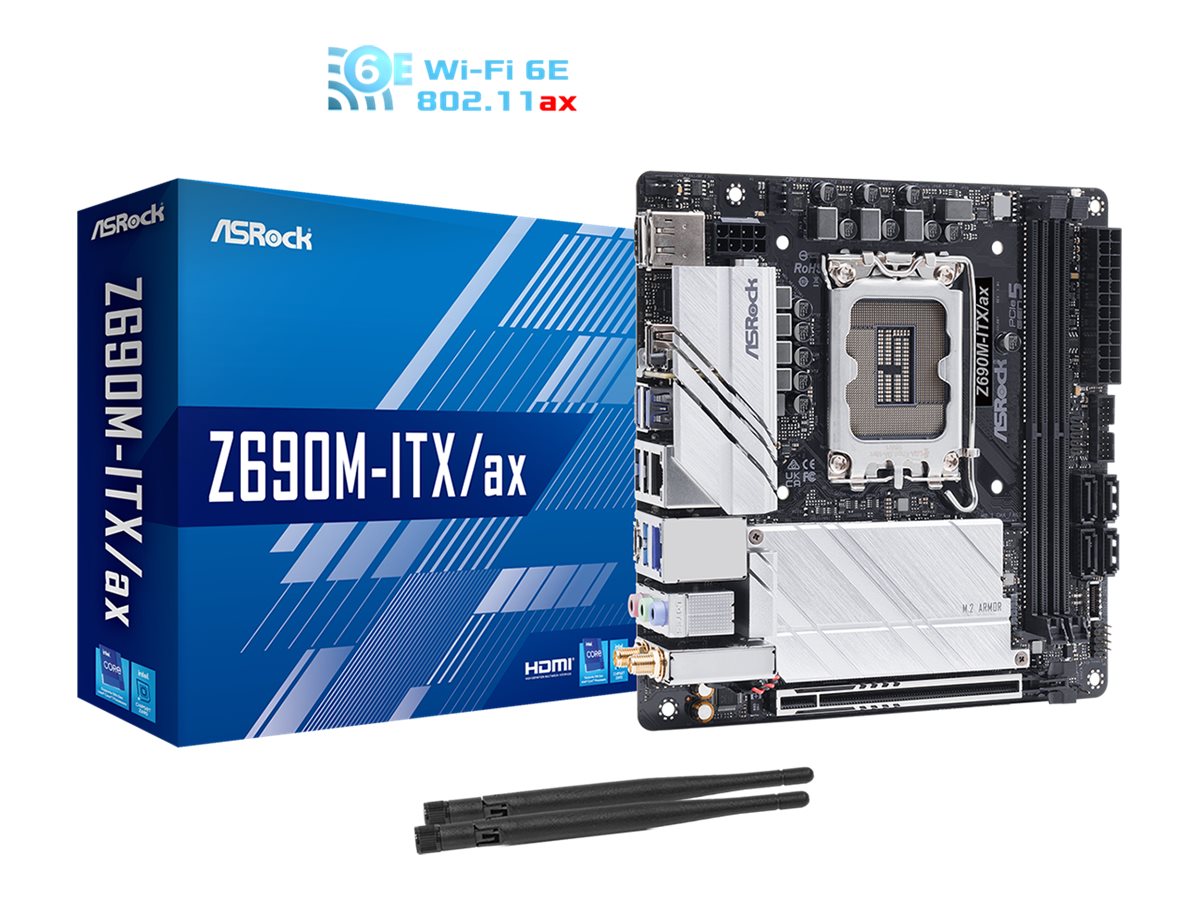

| Аксесоари | 2 x ASRock WiFi 2.4/5/6 GHz Antennas, 2 x M.2 screws |
| Ширина | 17 cm |
| Дълбочина | 17 cm |
| Други характеристики |
ASRock Super Alloy
Premium 60A Power Choke Dr.MOS MOSFET Sapphire Black PCB High Density Glass Fabric PCB Nichicon 12K Black Caps 8 Layer PCB ASRock Easy Driver Installer ASRock Steel Slots ASRock Full Coverage M.2 Heatsink ASRock Hyper M.2 ASRock Full Spike Protection ASRock Live Update ASRock APP Shop Digi Power Design 8 Phase Power Design Intel Turbo Boost Max Technology 3.0 Intel Hybrid Technology Nahimic Audio Enhacer Energy Efficient Ethernet 802.3az ESD Protection Preboot eXecution Environment (PXE) ASRock A-Tuning ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Instant Flash ASRock Internet Flash ASRock Easy RAID Installer |
| Гаранция | 36 месеца |
| Код на продукта | Z690M-ITX/AX |
Виж повече
Допълнителна информация
- Optimized VRM design
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance. - 8 power phase design
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well. - 8 layer PCB
The 8 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with most extreme memory performance! - PCIe 5.0 + surface-mount tech
Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard. - Nahimic audio
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details. - Polychrome RGB
This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects. - High speed M.2 solution
This motherboard is capable of accommodating multiple M.2 storage devices, one of which can support PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience. - Dragon 2.5 Gb/s LAN
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you'll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups. - Wi-Fi 6E 802.11ax
WiFi 6E technology has extended to the whole different 6GHz spectrum band, providing more Wi-Fi capability and giving an even better and faster internet traffic. In addition to deliver higher speeds, the WiFi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks. - USB 3.2 Gen2x2 20Gbps
The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way. - BIOS flashback
Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and power supply, No CPU, RAM or other components required.
