Дънна платка ASROCK Z790 PG-ITX Z790 PG-ITX/TB4
изчерпано
Сокет: LGA 1700
Чипсет: Intel Z790
Тип на паметта: DDR5
Физически размер: Mini-ITX
Слотове за памет: 2
Честота на паметта: 5600 MHz
Гаранция:
0.0
от 5.0
(0)
Купи и събери
5 точки
Плати по-лесно и сигурно с
Виж всички продукти на Asrock
Пазарувай по марка
Характеристики
| Физически размер | Mini-ITX |
| Чипсет | Intel Z790 |
| Сокет | LGA 1700 |
| Съвместими процесори | (supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron) |
| BIOS | UEFI BIOS |
| Тип BIOS | AMI |
| Тип на паметта | DDR5 |
| Честота на паметта | 5600 MHz |
| ECC support | Non-ECC |
| Memory Registered / Buffered | Unbuffered |
| Слотове за памет | 2 |
| Максимална памет | 96 GB |
| Брой процесорни гнезда | 1 |
| Дисков интерфейс | SATA-600 -connectors: 3 x 7pin SATA - RAID 0 / RAID 1 / RAID 5 PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 5 SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 5 |
| LAN порт | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth |
| LAN controller | Killer E3100X |
| Звук | Realtek ALC4082 |
| Звуков изход | HD Audio (8-channel) |
| Аудио стандарти | High Definition Audio |

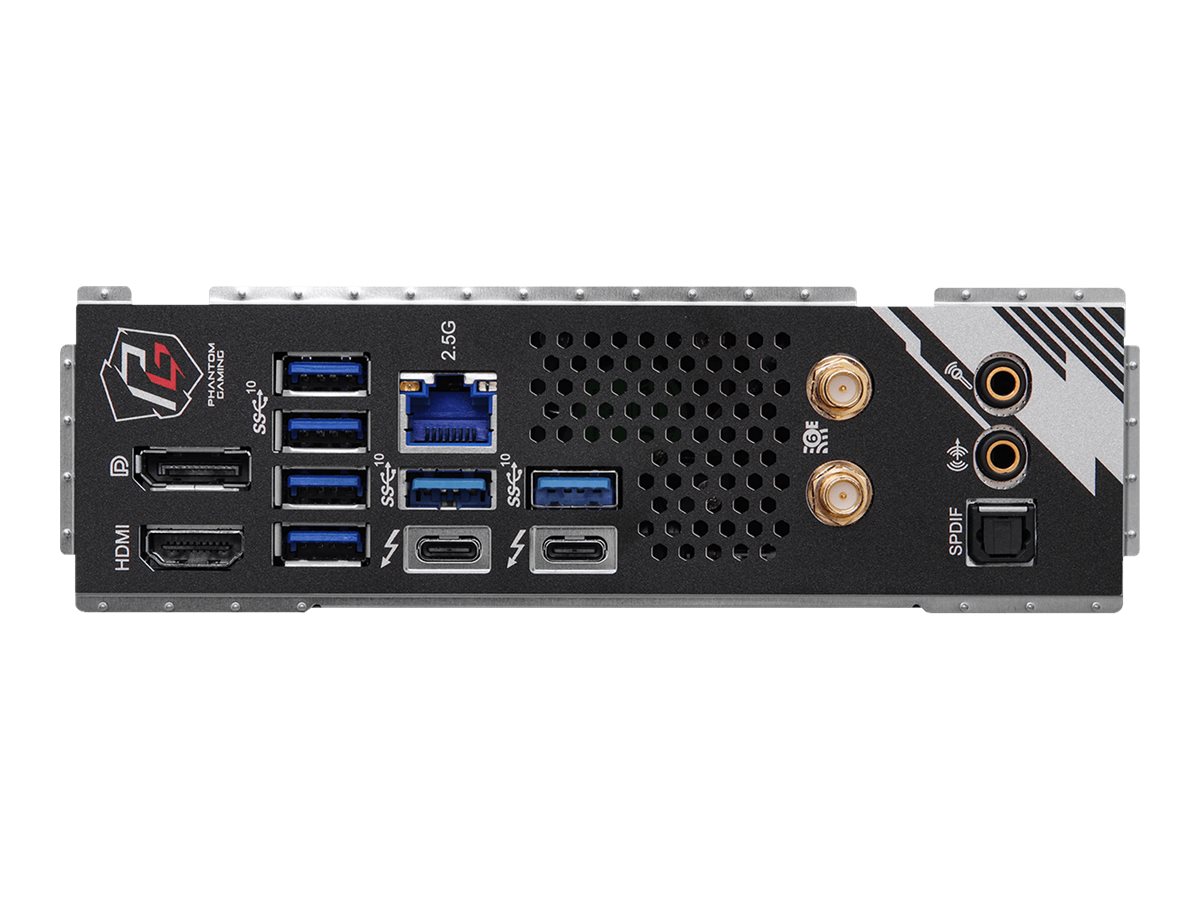

| Портове | 1 x HDMI 1 x DisplayPort 2 x Thunderbolt 4/USB4 6 x USB 3.2 Gen 2 1 x LAN (2.5Gigabit Ethernet) 2 x aerial 1 x SPDIF out 1 x microphone - mini-jack 1 x audio line-out - mini-jack |
| Разширителни слотове | 1 x CPU 2 x DIMM 288-pin 1 x PCIe 5.0 x16 1 x M.2 socket (2230 M.2 Key E slot) 3 x M.2 socket (2280 M.2 Key M slot) |
| Вътрешен интерфейс | 2 x USB 2.0 - header 2 x USB 3.2 Gen 1 - header 1 x USB-C 3.2 Gen 2x2 - header 1 x audio - header |
| Функции | Intel Extreme Memory Profiles (XMP) 3.0, dual channel memory architecture |
| Софтуер | ASRock Killer LAN, ASRock Phantom Gaming Tuning, Killer Control Center, ASRock Polychrome SYNC |
| Конектори за захранване | 24-pin main power connector, 8-pin ATX12V connector |
| Стандарти |
HDCP 2.3 DisplayPort 1.4 ErP Ready EuP Ready FCC Part 15 Subpart B |
| Включени кабели | 2 x Serial ATA cable |
| Аксесоари | ASRock WiFi 2.4/5/6 GHz aerial, 3 x M.2 screws, 2 x thermal pads for M.2 SSD |
| Ширина | 17 cm |
| Дълбочина | 17 cm |
| Други характеристики |
10+1+1 Phase Power Design 105A Smart Power Stage pre-mounted I/O shield Nichicon 12K Black Caps Enlarged Heatsink Armor Killer DoubleShot Pro ASRock Auto Driver Installer ASRock POST Status Checker (PSC) Intel Hybrid Technology Intel Turbo Boost Max Technology 3.0 Intel Adaptive Boost Technology (ABT) Intel Thermal Velocity Boost (TVB) Nahimic Audio Enhacer 15µ Gold Contact ESD Protection Water Pump Header Hi-Density Power Connectors Clear CMOS Button ASRock Full HD UEFI ASRock EZ Mode ASRock My Favorites in UEFI ASRock Instant Flash Easy RAID Installer 10 Layer PCB Windows 11 compatible reinforced PCIe slots Reinforced DIMM slot Surface Mount Technology (SMT) Smart Power Stage (SPS) technology Dr.MOS MOSFET DIY Friendly Design |
| Гаранция | 36 месеца |
| Код на продукта | Z790 PG-ITX/TB4 |
Виж повече
Допълнителна информация
- Optimized VRM design
Dr.MOS design features the SPS (Smart Power Stage) technology. It's optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability. - 10+1+1 power phase design
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well. - 10 layer PCB
The 10 layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! - DDR5 XMP and EXPO support
Derived from the "built for stable and reliable" designing concept, ASRock does not compromise on any details. This motherboards is built with low-loss materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel XMP/AMD EXPO capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all. - DDR5 memory with protection circuit
The reinforced DIMM slot is surfaced mounted onto the motherboard to give better physical strength as well as a more stable memory signal, with this superior revolutionary design, it is able to dramatically overclock DRAM module up to insane frequency. - DIY friendly design
Due to the unique electrical architecture of DDR5 DIMM, there's a high risk of damaging the memory module if AC power isn't disconnected properly during removal or installation. To prevent this, ASRock has implemented a trouble free protection circuit on every DDR5 motherboard, lowers the risk of damaging your memory module. - PCIe 5.0 + surface-mount technology
Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard. - KiLLER networking
The Killer Ethernet controller is designed especially for competitive gamers and performance-hungry users, this motherboard comes with both Killer E3100 2.5G Ethernet and WiFi 6E solution, the enhanced detection and prioritization engine provides the ultimate networking experience for gaming and multimedia applications. - KiLLER Doubleshot Pro technology
Killer DoubleShot Pro allows the use of both the Killer Wireless and Killer Ethernet interfaces work at the same time which will give the end user max throughput as high as 4.9 Gbps, it automatically utilizes the fastest network connection for high priority traffic, this ensures the highest priority traffic will always be put on faster and more reliable link. - Thunderbolt 4/USB4 Type-C
Thunderbolt 4/USB4 technology brings speed and versatility to the advanced USB Type-C, offering a fast and simple level of connection for work or home. It enables lightning-fast data transfer up to 40Gbps and connects external monitors, Thunderbolt, and USB devices with a single Thunderbolt 4 cable. - Fast charging technology
Enjoy the superfast charging rate with the next generation PD 3.0! - Audio that matters
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you more engaging listening experience, vibrant and rich with details. - Enhance communication quality
The Powerful algorithms to ensure better noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue. - Ultimate gaming experience
The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game. Enjoy the vibrant and high-quality Surround Sound on all your favorite audio devices: Jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all of your favorite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimize their technology and offer you better experience. - Polychrome RGB
his motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. - High speed M.2 solution
Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience. - Anti-drop screw
The enhanced M.2 heatsink with anti-drop screw design that make sure installation process more easily. - Front USB 3.2 Gen2x2 Type-C
The USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way. - Optical drive or driver DVD is no longer needed
ASRock motherboard already has its Ethernet driver prepacked in BIOS ROM, once finish installing the operation system, simply follow the instructions and allow ADI to download and install all necessary drivers automatically! - Flexible integrated IO shield
Unlike most so called pre-mounted I/O shield that is only decorated with fancy color schemes. ASRock reserve more tolerance space and allow IO shield is adjustable when installing, thus fitting chassis perfectly without any mechanical issue.
