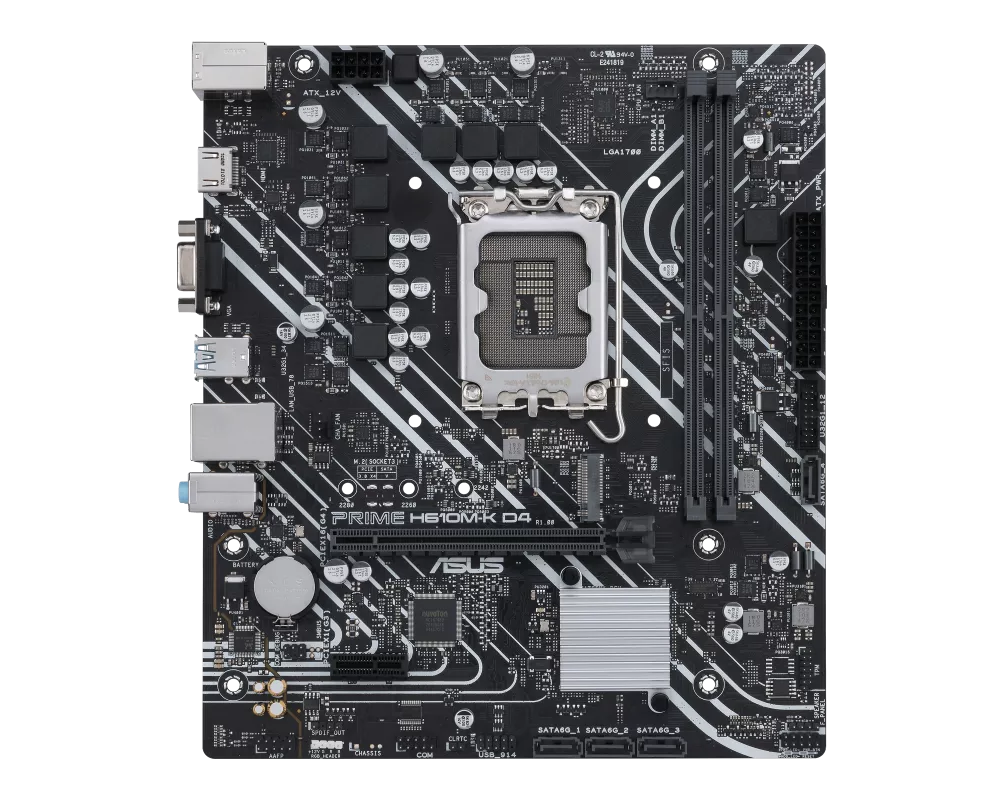

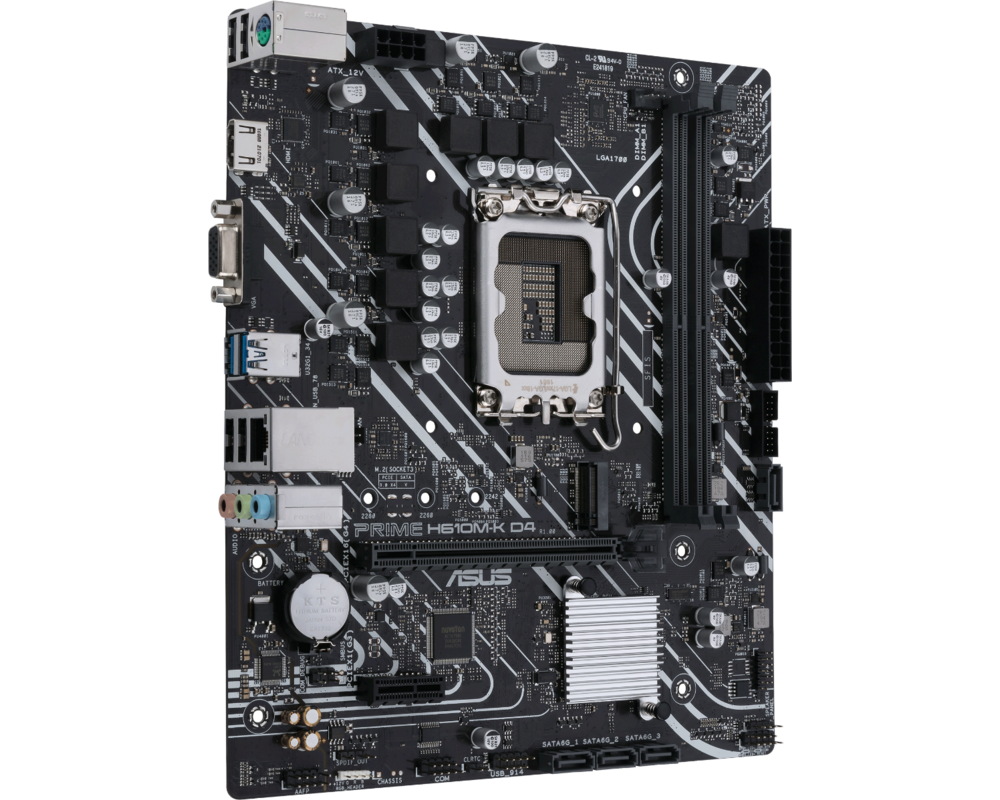

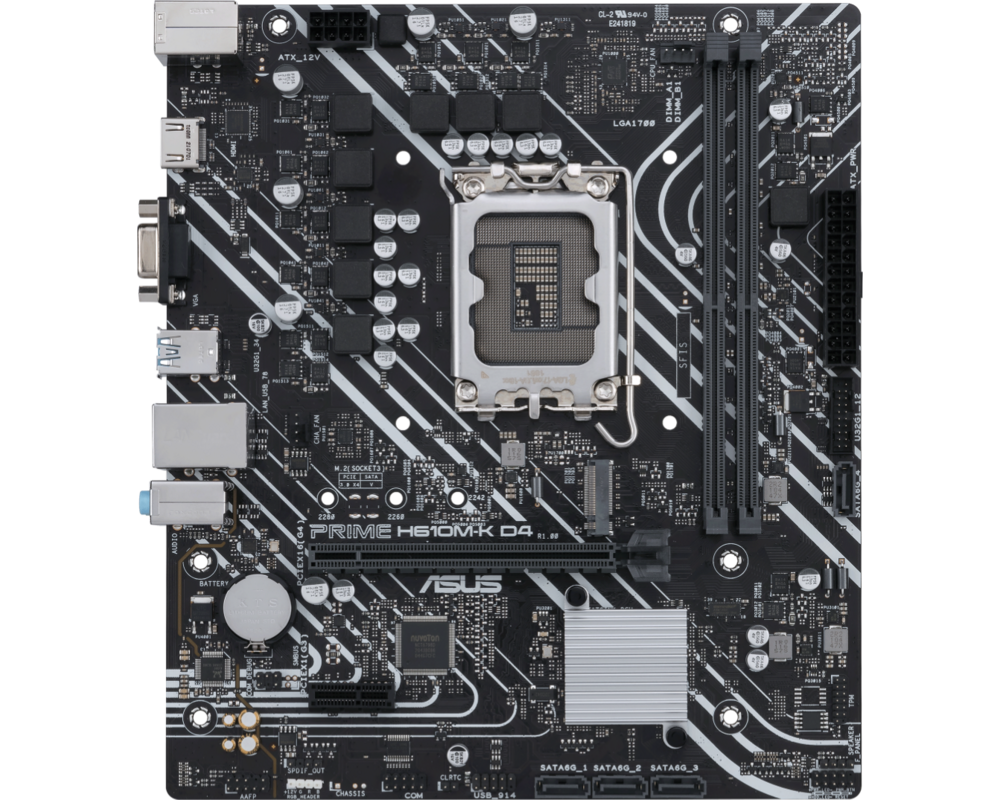

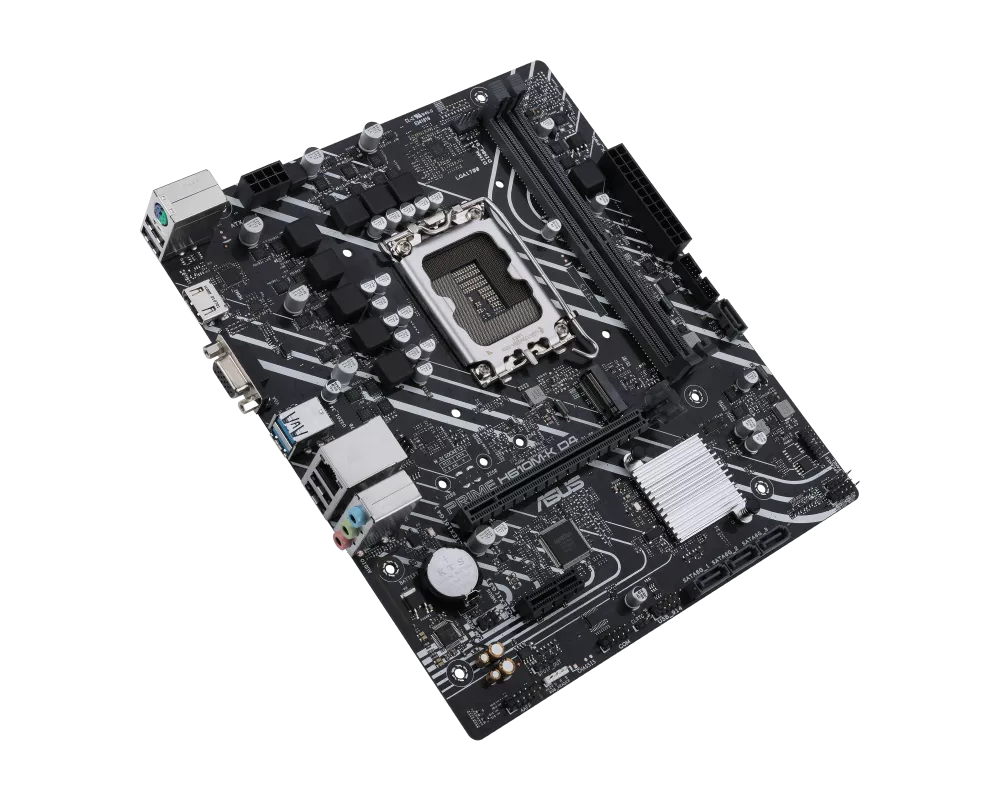

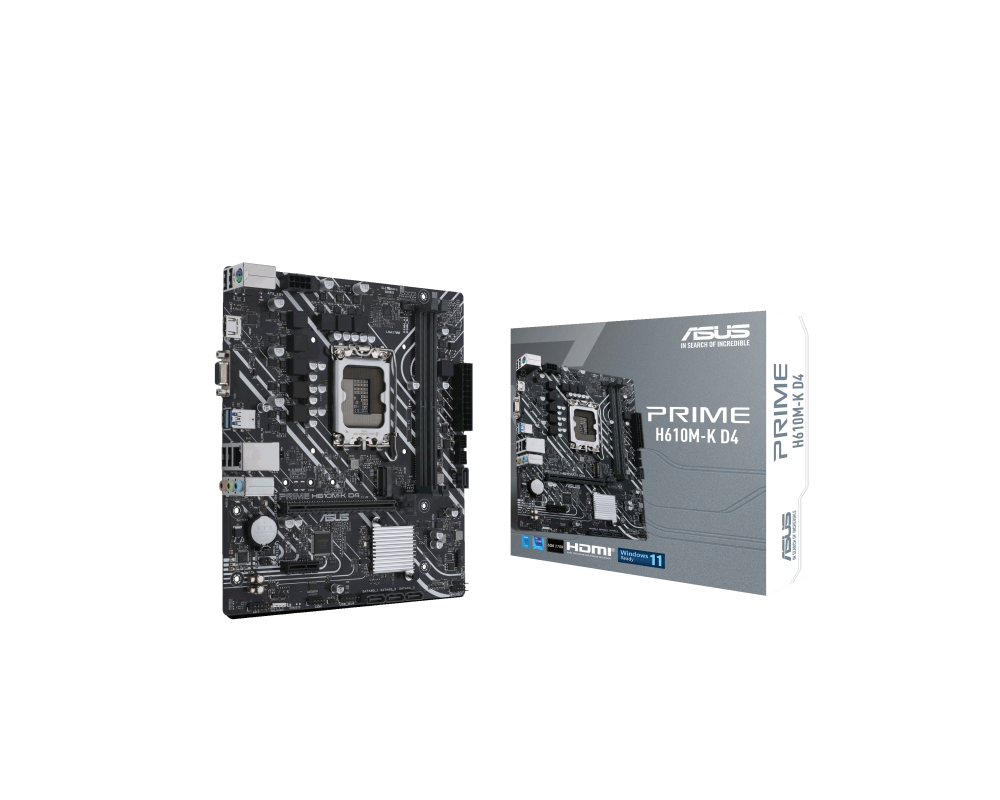

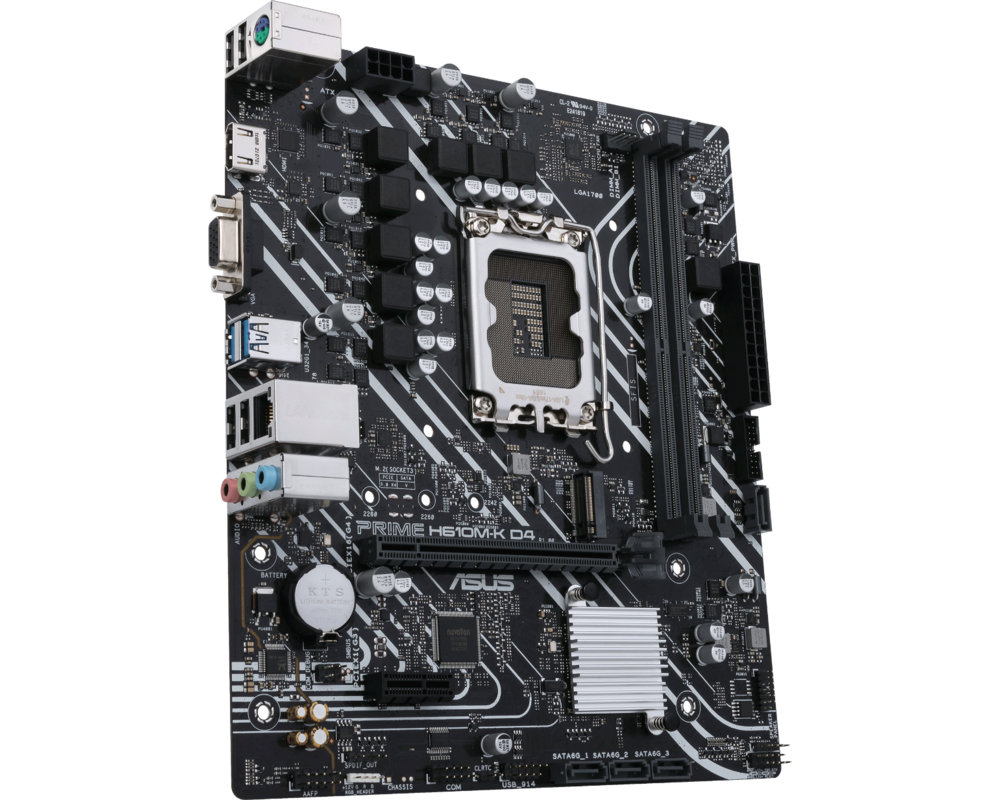

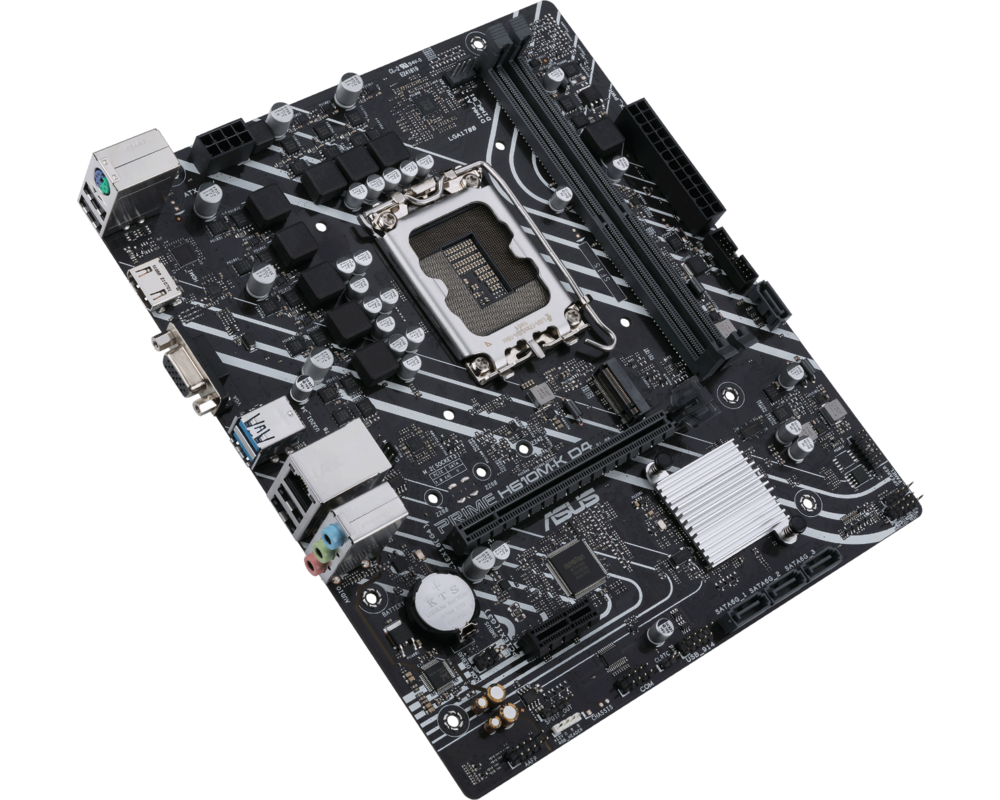

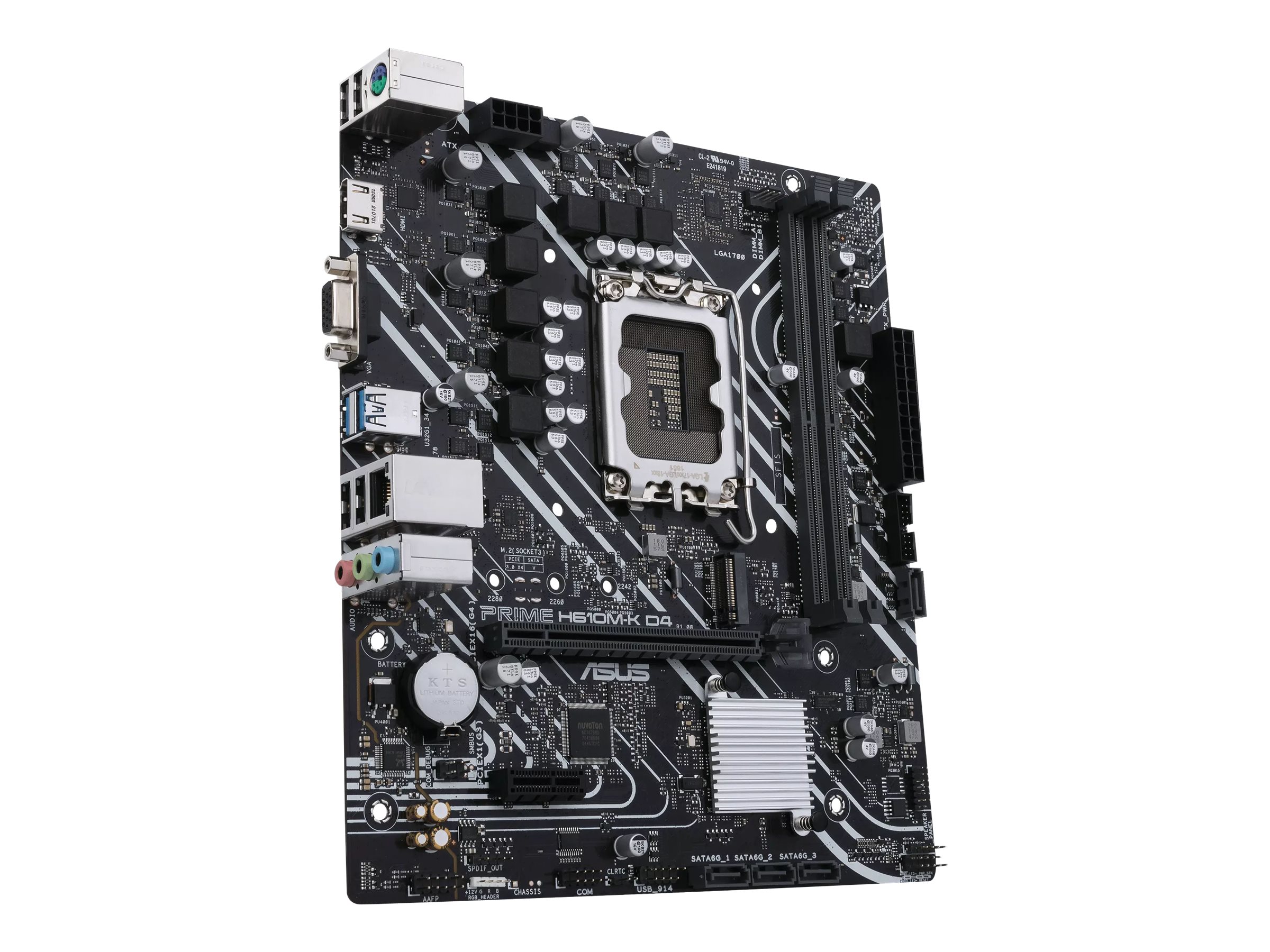

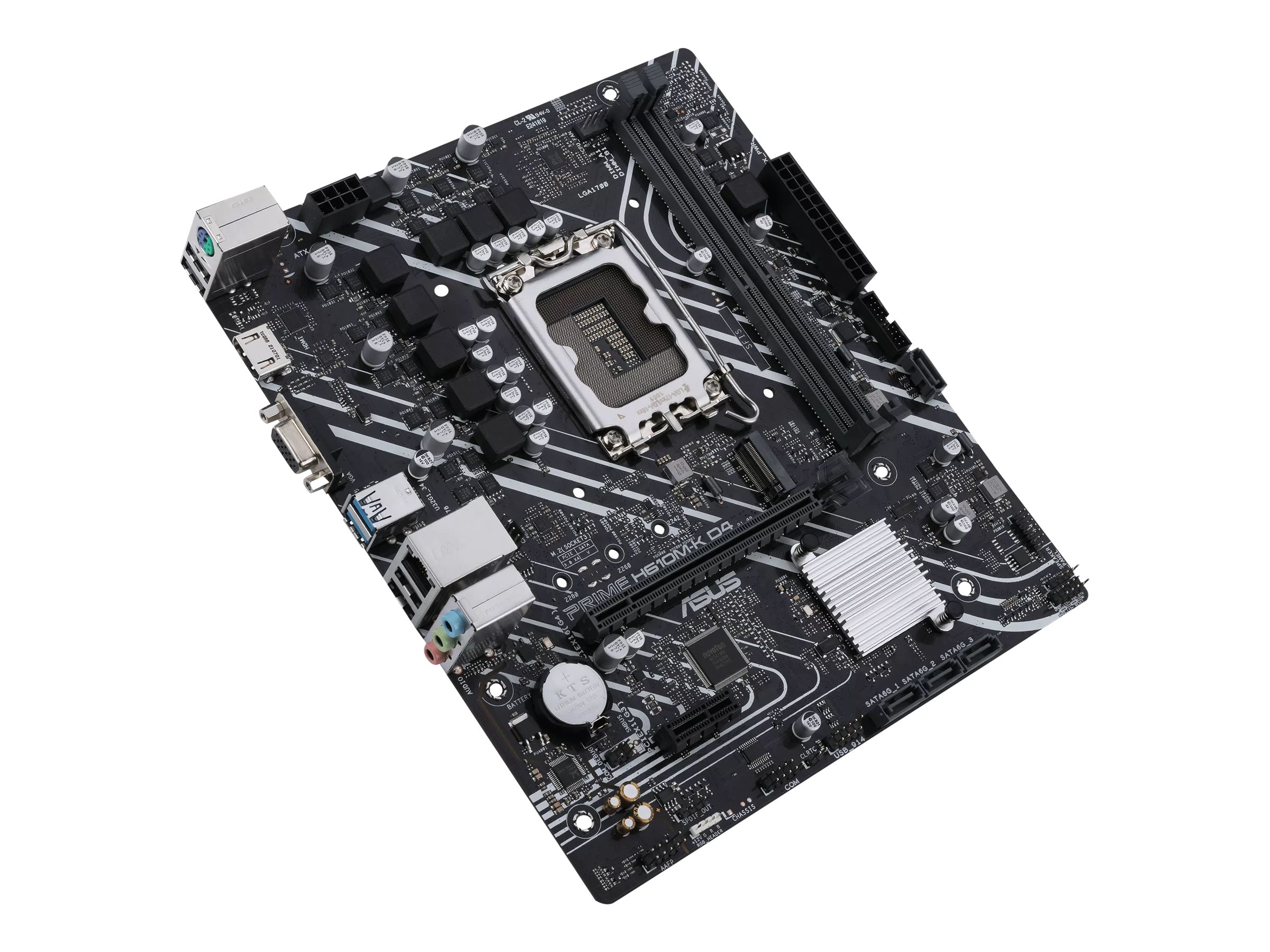

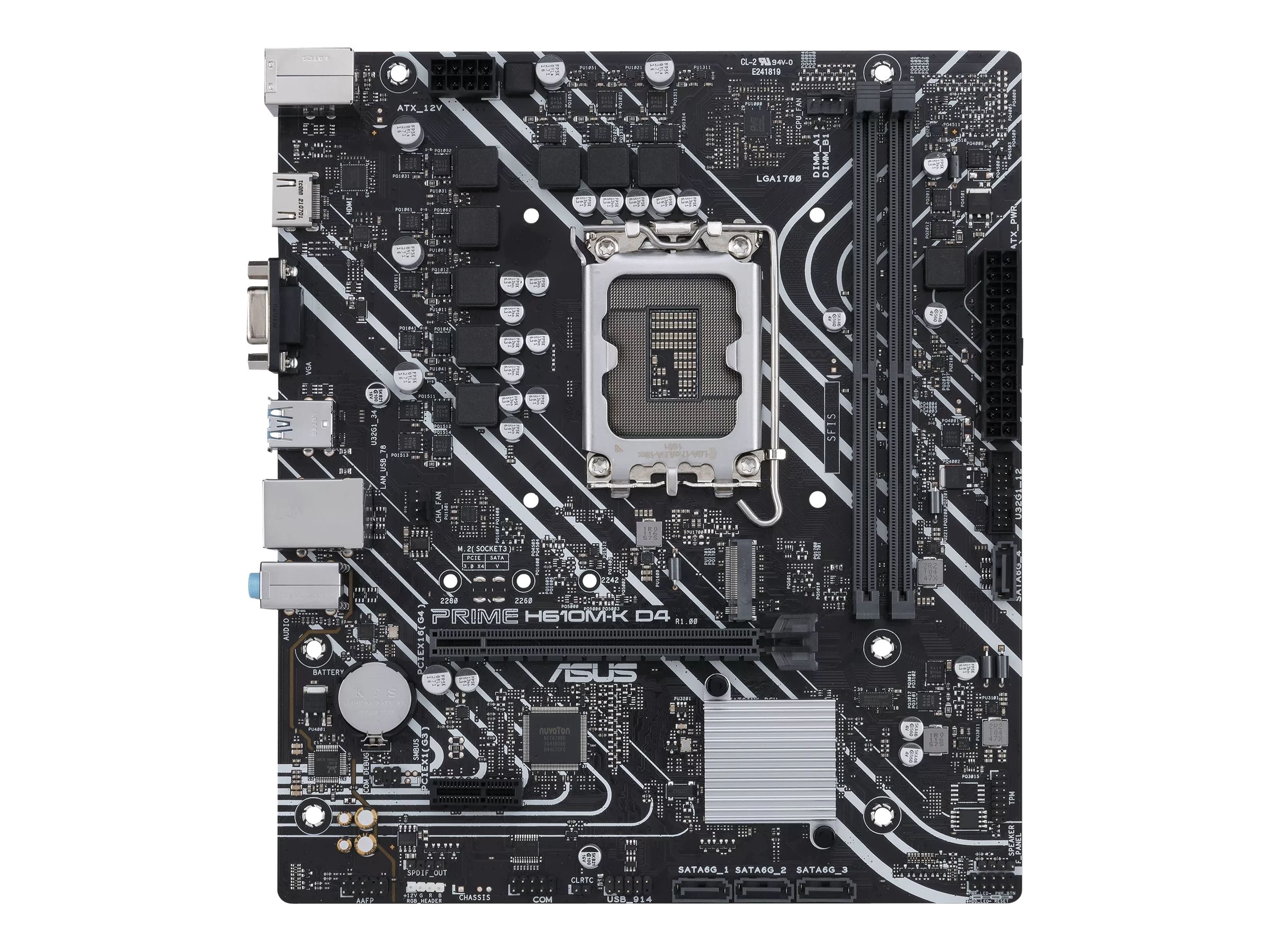

Дънна платка ASUS PRIME H610M-K D4, LGA 1700 mATX PRIME H610M-K D4
код FALL25
за 3% отстъпка
за 3% отстъпка
Сокет: LGA 1700
Чипсет: Intel H610
Тип на паметта: DDR4
Физически размер: Micro ATX
Слотове за памет: 2
Честота на паметта: 3200 MHz
Гаранция:
0.0
от 5.0
(0)
Купи и събери
3 точки
Плати по-лесно и сигурно с
Виж всички продукти на Asus
Пазарувай по марка
Характеристики
| Физически размер | Micro ATX |
| Чипсет | Intel H610 |
| Сокет | LGA 1700 |
| Съвместими процесори | Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors; Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Тип на паметта | DDR4 |
| Честота на паметта | 3200 MHz |
| Dual channel | Да |
| ECC support | Non-ECC |
| Memory Registered / Buffered | Unbuffered |
| Слотове за памет | 2 |
| Максимална памет | 64 GB |
| Слотове | Intel® 12th Gen Processors; 1 x PCIe 4.0 x16 slot; Intel® H610 Chipset; 1 x PCIe 3.0 x1 slot |
| Брой процесорни гнезда | 1 |
| Видео | 1 x D-Sub port; 1 x HDMI® port |
| Дисков интерфейс | Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports; Intel® H610 Chipset; M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes); 4 x SATA 6Gb/s ports |
| SATA | 4 x SATA 6Gb/s |
| M.2 slot | 1x M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) |
| LAN порт | 1 x Realtek 1Gb Ethernet |
| Звук | Realtek 7.1 Surround Sound High Definition Audio CODEC; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback; Audio Features; - Audio Shielding; - Dedicated audio PCB layers |
| Звуков изход | HD Audio (8-channel) |
| Аудио стандарти | High Definition Audio |

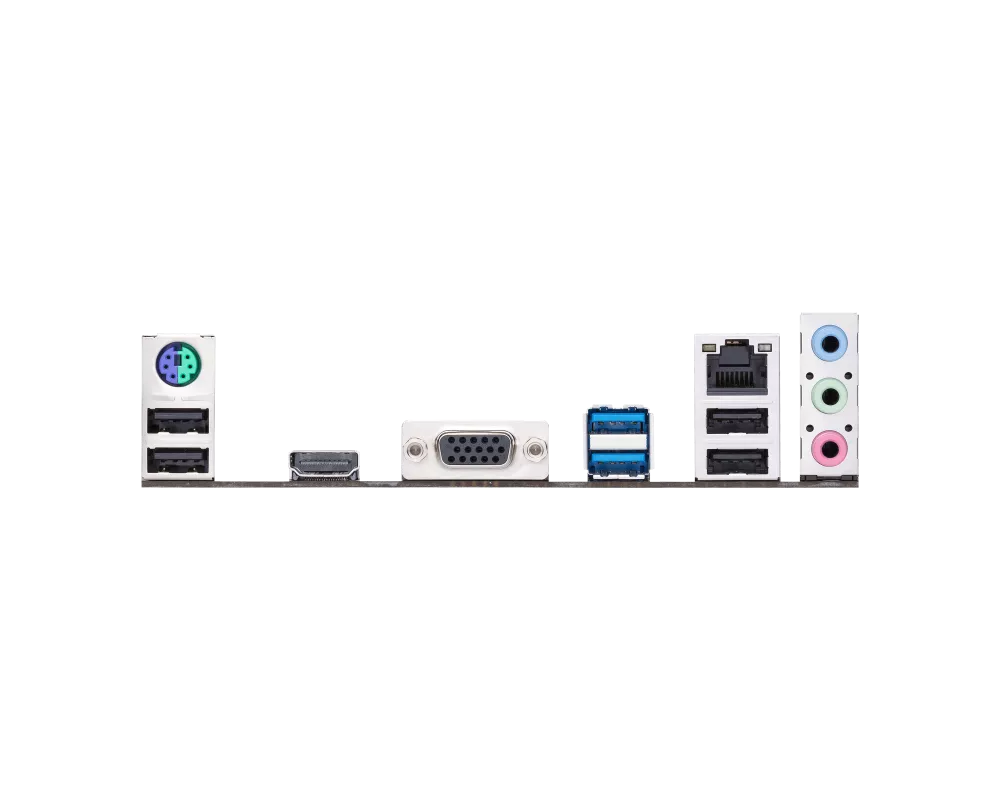

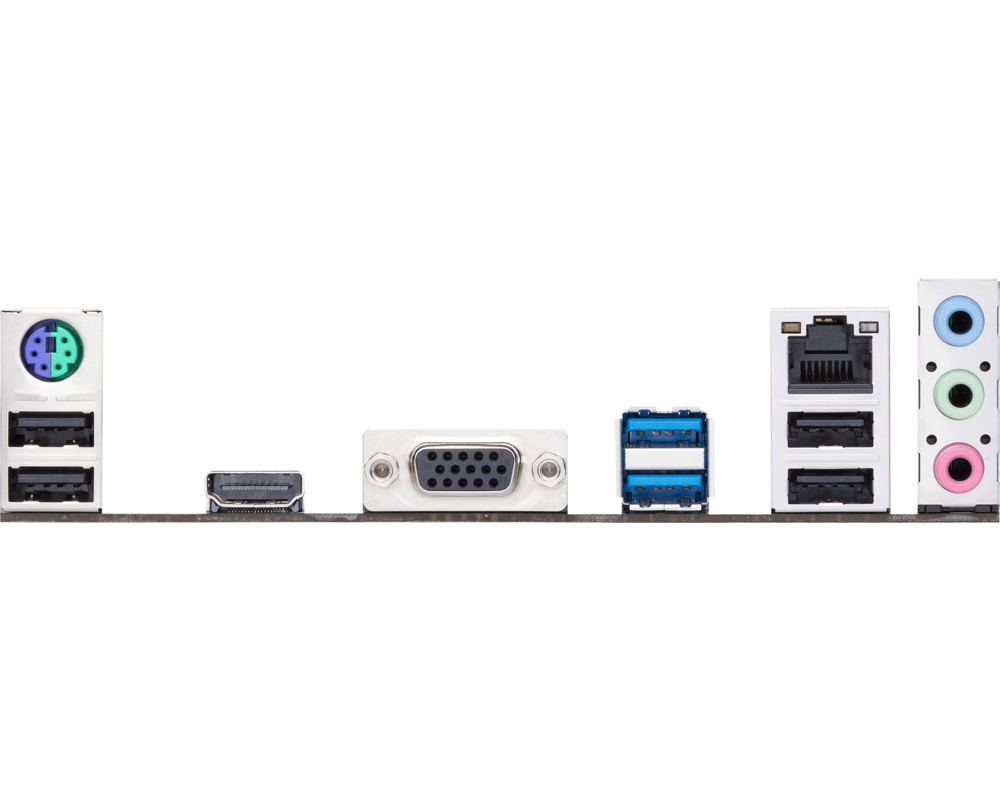

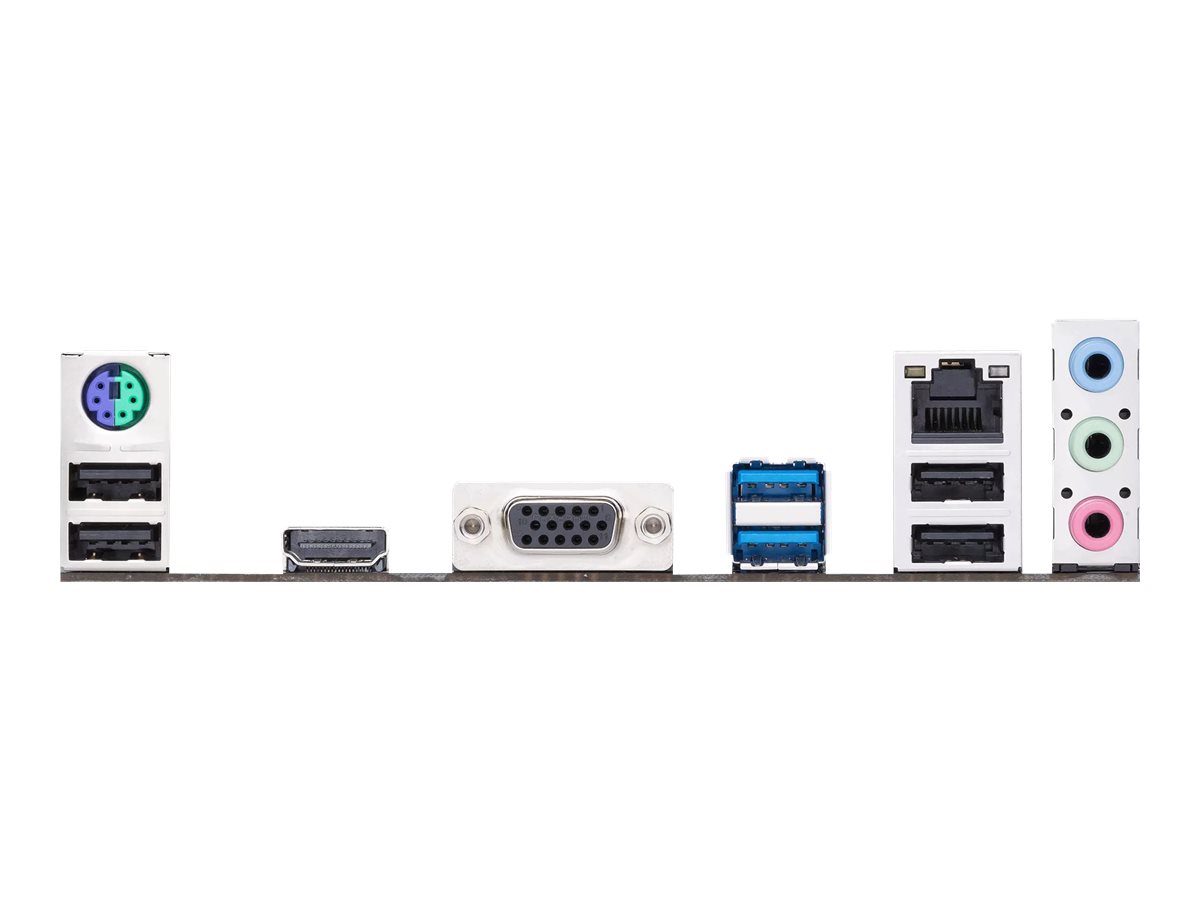

| Портове | 2 x USB 3.2 Gen 1 ports (2 x Type-A); 4 x USB 2.0 ports (4 x Type-A); 1 x D-Sub port; 1 x HDMI® port; 1 x Realtek 1Gb Ethernet port; 3 x Audio jacks; 1 x PS/2 Keyboard/Mouse combo port |
| Разширителни слотове | 1 x CPU, 2 x DIMM 288-pin, 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x1 |
| PCIe x1 | 1 |
| PCIe x16 | 1 |
| Вътрешен интерфейс | 2 x USB 2.0 - header, 2 x USB 3.2 Gen 1 - header, 1 x SPDIF out - header, 1 x audio - header, 1 x serial - header, 1 x speaker - header |
| Wake on LAN | Wake on LAN (WOL), wake on PME |
| Функции | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Софтуер | Drivers & Utilities, ASUS CPU-Z, ASUS AI Suite III, WinRAR, Norton AntiVirus (Trial) |
| Конектори | 1 x 4-pin CPU Fan header; 1 x 4-pin Chassis Fan header; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; 1 x M.2 slot (Key M); 4 x SATA 6Gb/s ports; 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports; 1 x USB 2.0 header supports additional 2 USB 2.0 ports; 1 x RGB header; 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (AAFP); 1 x S/PDIF Out header; 1 x Speaker header; 1 x SPI TPM header (14-1pin); 1 x 10-1 pin System Panel header |
| Конектори за захранване | 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector |
| Включени кабели | 2 x Serial ATA cable |

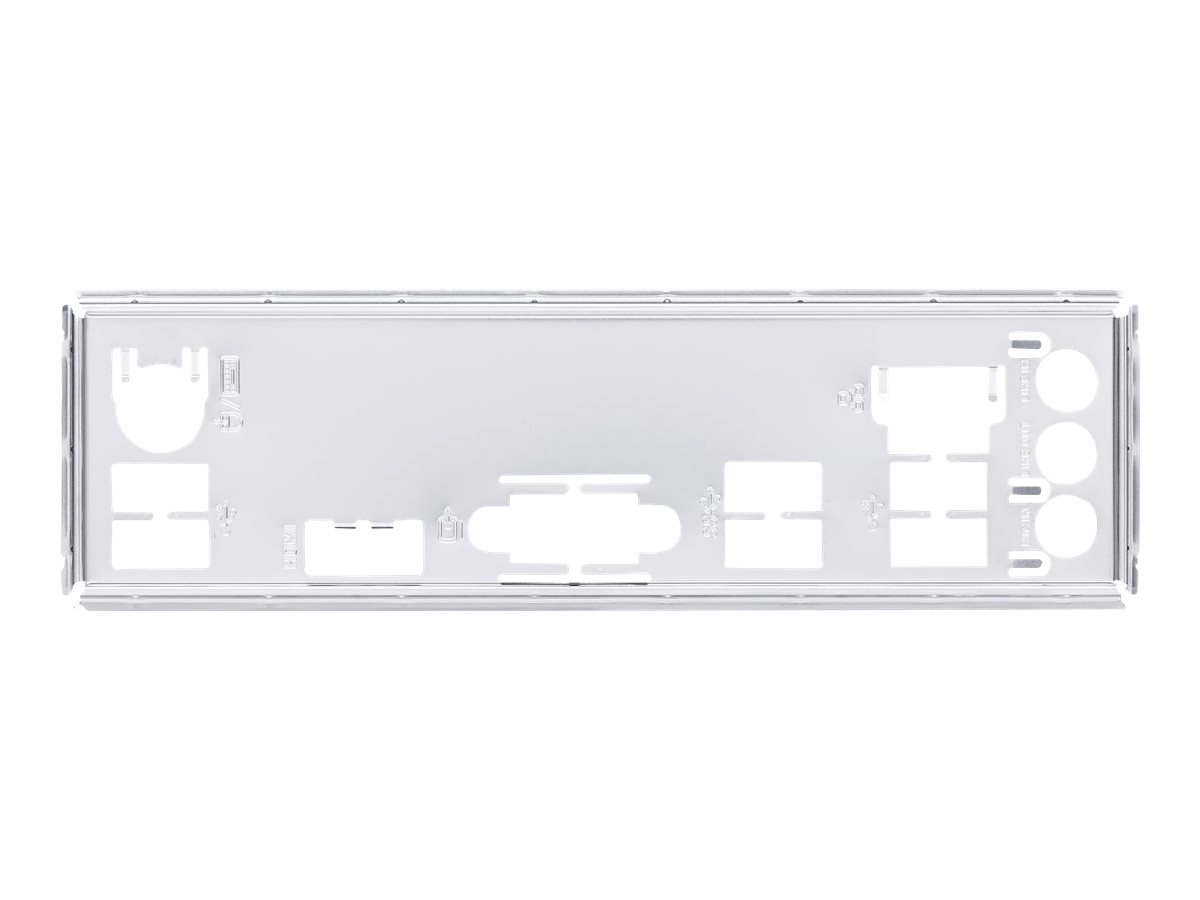

| Аксесоари | I/O back plate, 1 x M.2 screw |
| Ширина | 23.4 cm |
| Дълбочина | 20.3 cm |
| Други характеристики | Jack retasking, ASUS Q-Design, ASUS TurboV EVO, Q-DIMM, ASUS EZ DIY, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS EPU (Energy Processing Unit), Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, ASUS Fan Xpert 2+, LANGuard, ASUS Overvoltage Protection, ASUS 5X Protection III, ASUS SafeSlot Core, Intel Turbo Boost Max Technology 3.0, Armoury Crate |
| Гаранция | 36 месеца |
| Код на продукта | PRIME H610M-K D4 |
Виж повече
Допълнителна информация
- All-around energy efficiency
The Energy Processing Unit (EPU) automatically optimizes power consumption and maximizes energy savings with Away mode - a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers. - Precise digital power control
The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance. - Quick and simple setup
EZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings - all to help you get your rig up and running in no time. - VRM heatsink and thermal pad
The VRM heatsink and thermal pad improve heat transfer from the MOSFETs and chokes for better cooling performance. - Cooler by design
Prime H610 series feature comprehensive cooling controls that are configurable via Fan Xpert 2+ software or via the UEFI BIOS. - Dual M.2 slots (up to 32 Gbps)
Prime H610M-A D4 offers two M.2 slots that support data transfer speeds of up to 32 Gbps via PCIe 3.0, enabling quicker boot-up and app load times with OS or application drives. - PCIe 4.0
Prime H610 motherboards are designed specifically for 12th Generation Intel Core CPUs and offer PCIe 4.0 connectivity for the latest GPUs. The wide bandwidth and superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly. - USB 3.2 Gen 2 ports
Numerous USB ports support high-end rigs loaded with peripherals, including rear-panel USB Type-A ports with fast USB 3.2 Gen 2 for transmission speeds of up to 10 Gbps. - Aura Sync: outshine the competition
A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips and devices connected to the onboard RGB headers - and it can all be synced with an ever-growing portfolio of Aura-capable hardware. - Fortified PCIe slot prevents damage
SafeSlot Core is the ASUS-exclusive PCIe slot. Featuring a fortified design that's anchored to the motherboard by a special hook, SafeSlot Core provides 1.6x stronger retention and 1.3x greater shearing resistance than standard expansion slots.
