Дънна платка ASUS PRIME Z590-A LGA1200 ATX motherboard with PCIe 4.0 three M.2 slots 16 DrMOS power stages HDMI DP SATA PRIME Z590-A
изчерпано
Сокет: LGA 1200
Чипсет: Intel Z590
Тип на паметта: DDR4
Физически размер: ATX
Слотове за памет: 4
Честота на паметта: 2400 MHz, 2133 MHz, 2800 MHz,...
Гаранция:
0.0
от 5.0
(0)
Купи и събери
4 точки
Плати по-лесно и сигурно с
Виж всички продукти на Asus
Пазарувай по марка
Характеристики
| Физически размер | ATX |
| Чипсет | Intel Z590 |
| Сокет | LGA 1200 |
| Съвместими процесори | (supports 11th and 10th Generation Intel Core / Pentium Gold / Celeron) |
| BIOS | UEFI BIOS, ASUS EZ Flash 3 |
| Тип BIOS | AMI |
| Тип на паметта | DDR4 |
| Честота на паметта | 3200 MHz |
| ECC support | Non-ECC |
| Memory Registered / Buffered | Unbuffered |
| Слотове за памет | 4 |
| Максимална памет | 128 GB |
| Брой процесорни гнезда | 1 |
| Дисков интерфейс | SATA-600 -connectors: 6 x 7pin Serial ATA PCIe 4.0 -connectors: 1 x M.2 SATA-600 / PCIe 3.0 -connectors: 2 x M.2 |
| RAID | Intel Rapid Storage Technology |
| LAN порт | 2.5 Gigabit Ethernet |
| LAN controller | Intel I225-V |
| Звук | Realtek ALCS1200A |
| Звуков изход | HD Audio (8-channel) |
| Аудио стандарти | High Definition Audio, DTS:X Ultra |

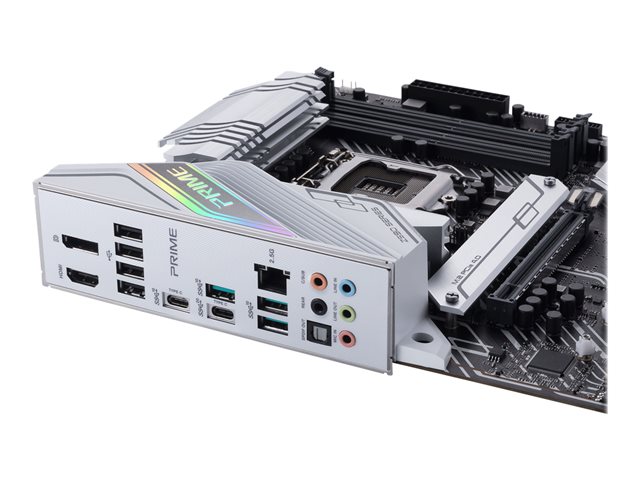

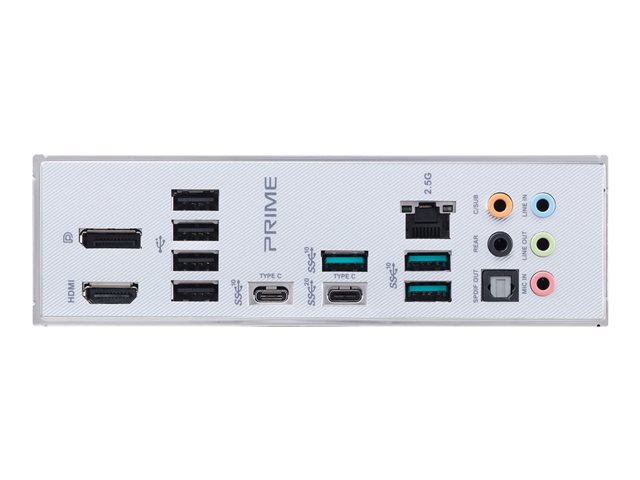

| Портове | 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x microphone - mini-jack 4 x USB 2.0 1 x DisplayPort 1 x HDMI 1 x LAN (2.5Gigabit Ethernet) 1 x USB-C Gen2 3 x USB 3.2 Gen 2 1 x USB-C Gen2x2 1 x audio line-out (center/subwoofer) - mini-jack 1 x audio line-out (rear) - mini-jack 1 x TOSLINK |
| Разширителни слотове | 1 x CPU 4 x DIMM 288-pin 3 x PCIe 4.0 x16 (PCIe 4.0 (11th Gen Intel CPUs), PCIe 3.0 (10th Gen Intel CPUs)) 1 x PCIe 3.0 x4 |
| Вътрешен интерфейс | 1 x Thunderbolt - header 2 x USB 3.2 Gen 1 - header 1 x audio - header 4 x USB 2.0 - header 1 x USB-C Gen 1 - header 1 x serial - header |
| Wake on LAN | Wake on LAN (WOL), wake on PME |
| Функции | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Софтуер |
Drivers & Utilities ASUS AI Charger ASUS CPU-Z ASUS AI Suite III ASUS EZ Update ASUS Turbo App ASUS EZ Flash 3 |
| Конектори за захранване | 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector |
| Стандарти | DisplayPort 1.4 |

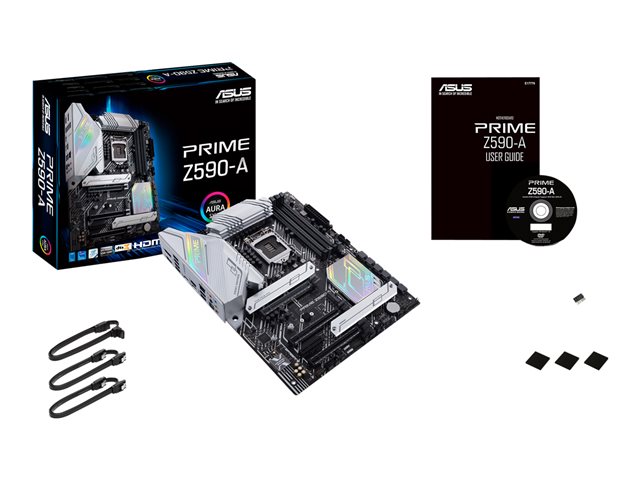

| Включени кабели | 3 x Serial ATA cable |
| Аксесоари | Q-Connector, M.2 Q-Latch, 2 x M.2 rubber package |
| Ширина | 30.5 cm |
| Дълбочина | 24.4 cm |
| Други характеристики |
Jack retasking ASUS Q-Design ESD Guards Q-DIMM ASUS EZ DIY Q-LED Q-Slot CrashFree BIOS 3 audio jack detect technology ASUS EPU (Energy Processing Unit) Intel Turbo Boost Technology 2.0 ASUS TPU (TurboV Processing Unit) ASUS DIGI+ VRM ASUS Enhanced DRAM Overcurrent Protection Preboot eXecution Environment (PXE) ASUS Stainless Steel Back I/O anti-pop function Turbo LAN LANGuard ASUS Overvoltage Protection ASUS Fan Xpert 4 ASUS SafeSlot Intel Optane Memory Ready ASUS 5X Protection III ASUS ProCool pre-mounted I/O shield Intel Turbo Boost Max Technology 3.0 ASUS Aura Sync ASUS OptiMem II Armoury Crate FlexKey button |
| Гаранция | 36 месеца |
| Код на продукта | PRIME Z590-A |
Виж повече
Допълнителна информация
- Tune it your way
Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME Z590-A motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity. - 5-way optimization
ASUS 5-way optimization makes your PC smart, taking care of complex tuning with just one click. It dynamically optimizes essential aspects of your system, providing overclocking and cooling profiles that are tailored for your rig. - ASUS AI overclocking
ASUS AI overclocking is an intelligent utility that helps you get the most out of your build by automatically profiling your CPU and cooling system to predict optimal voltage and frequency settings. A range of customizable settings is available for seasoned overclockers, and an auto-tuning option is available for beginners. - AI cooling
ASUS AI cooling function will automatically manage and control motherboard-connected fans to ensure optimal settings based on current system load and temperature. - UEFI BIOS
The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans. - Advanced tuning for serious tweakers
An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want. - Quick and simple setup
EZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality and one-click application of important settings - all to help you get your rig up and running in no time. - Cool to the сore
PRIME Z590-A is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads. - Build on a solid foundation
PRIME Z590-A is built to handle the additional cores and increased bandwidth of 11th generation Intel Core processors. PRIME Z590-A motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options. - ASUS OptiMem II
Revisions to the motherboard's trace routing provide the advanced Intel processors with unrestricted access to memory bandwidth. ASUS OptiMem II technology carefully maps memory signal pathways across different PCB layers to reduce vias and adds shielding zones that significantly reduce crosstalk. - Three M.2 slots (up to 64Gbps)
PRIME Z590-A offers a total of three M.2 slots, with one slot supporting data-transfer speeds of up to 64 Gbps via PCI Express 4.0, enabling quicker boot-up and app load times with OS or application drives. - PCIe 4.0 slot
PRIME Z590-A motherboards are designed specifically for 11th Gen Intel Core CPUs and offer PCIe 4.0 connectivity for powerful GPUs. The wide bandwidth and superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly. - Small details make a big difference
PRIME Z590-A adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look. - 2-way AI noise cancelation
This utility leverages a massive deep-learning database to reduce background noise from the microphone and incoming audio while preserving vocals at the same time. This removes distracting keyboard clatter, mouse clicks and other ambient noises so you can hear and be heard with crystal clarity while gaming or in calls. - Aura Sync: outshine the competition
A well-tuned enthusiast system deserves matching aesthetics. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips and devices connected to the onboard RGB headers - and it can all be synchronized with an ever-growing portfolio of Aura-capable hardware. - SafeSlot: protect your graphics card
SafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance. Manufactured in a single step using an insert-molding process, SafeSlot integrates fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points.
