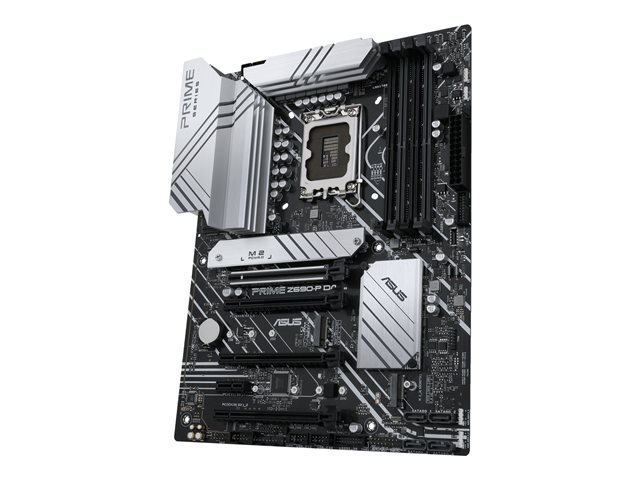

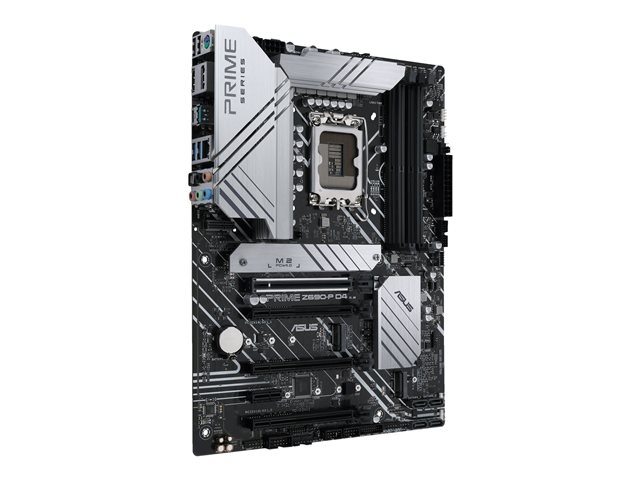

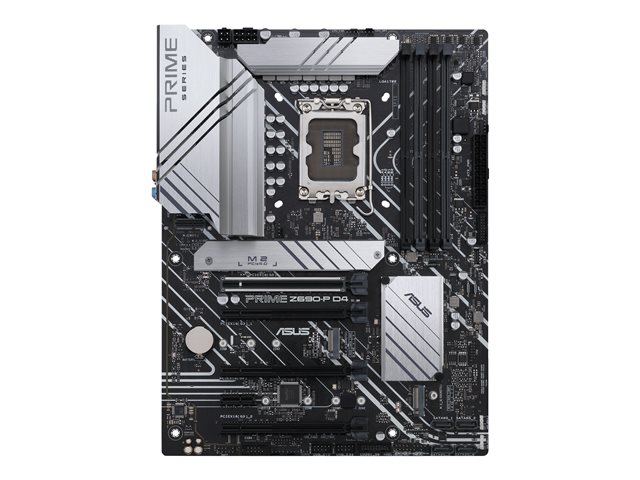

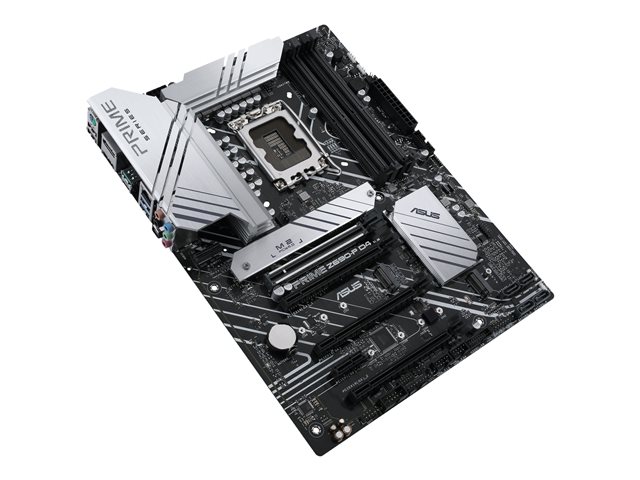

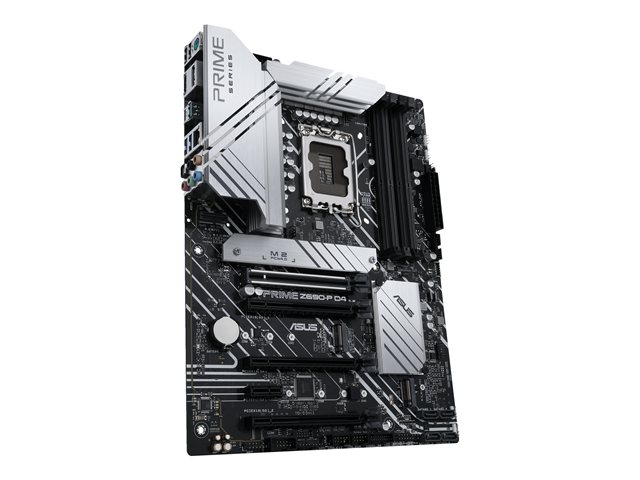

Дънна платка ASUS PRIME Z690-P D4 LGA 1700 PRIME Z690-P D4
изчерпано
Сокет: LGA 1700
Чипсет: Intel Z690
Тип на паметта: DDR4
Физически размер: ATX
Слотове за памет: 4
Честота на паметта: 3200 MHz
Гаранция:
0.0
от 5.0
(0)
Купи и събери
3 точки
Плати по-лесно и сигурно с
Виж всички продукти на Asus
Пазарувай по марка
Характеристики
| Физически размер | ATX |
| Чипсет | Intel Z690 |
| Сокет | LGA 1700 |
| Съвместими процесори | (supports 12th Generation Intel Core / Pentium Gold / Celeron) |
| BIOS | UEFI BIOS, ASUS EZ Flash 3 |
| Тип BIOS | AMI |
| Тип на паметта | DDR4 |
| Честота на паметта | 3200 MHz |
| ECC support | Non-ECC |
| Memory Registered / Buffered | Unbuffered |
| Слотове за памет | 4 |
| Максимална памет | 128 GB |
| Брой процесорни гнезда | 1 |
| Дисков интерфейс | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 5 SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 5 |
| RAID | Intel Rapid Storage Technology |
| LAN порт | 2.5 Gigabit Ethernet |
| Звуков изход | HD Audio (8-channel) |
| Аудио стандарти | High Definition Audio |

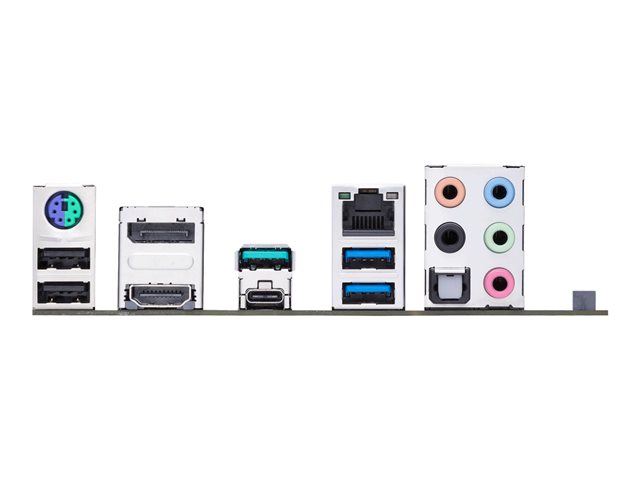

| Портове | 1 x DisplayPort 1 x HDMI 1 x USB-C Gen2x2 1 x USB 3.2 Gen 2 2 x USB 3.2 Gen 1 1 x audio line-in - mini-jack 1 x audio line-out (center/subwoofer) - mini-jack 1 x audio line-out (rear) - mini-jack 1 x audio line-out - mini-jack 1 x microphone - mini-jack 1 x TOSLINK 2 x USB 2.0 1 x LAN (2.5Gigabit Ethernet) 1 x PS/2 keyboard / mouse |
| Разширителни слотове | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 5.0 x16 1 x PCIe 4.0 x16 (x4 mode) 1 x PCIe 3.0 x1 2 x PCIe 3.0 x16 (x4 mode) 1 x M.2 socket (for Intel CNVi wireless module) |
| Вътрешен интерфейс | 4 x USB 2.0 - header 1 x USB-C Gen 1 - header 4 x USB 3.2 Gen 1 - header 1 x audio - header 1 x SPI - header 1 x serial - header 1 x Thunderbolt - header |
| Wake on LAN | Wake on LAN (WOL), wake on PME |
| Функции | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Софтуер |
Drivers & Utilities
ASUS AI Suite III ASUS TurboV EVO Utility ASUS CPU-Z Norton AntiVirus (Trial) WinRAR |
| Конектори за захранване | 24-pin main power connector, 8-pin ATX12V connector, 4-pin ATX12V connector |

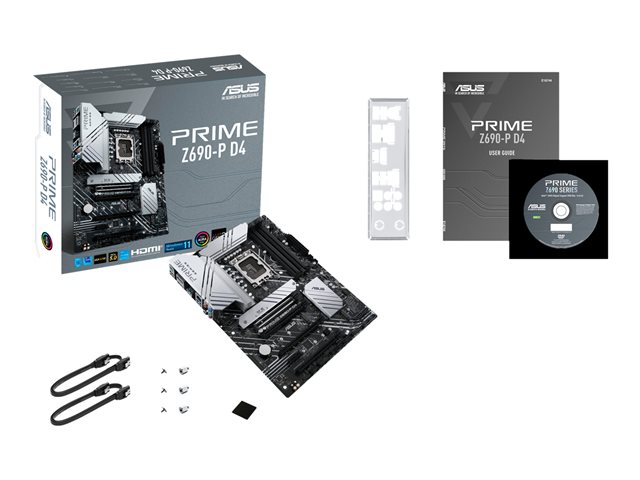

| Включени кабели | 2 x Serial ATA cable |

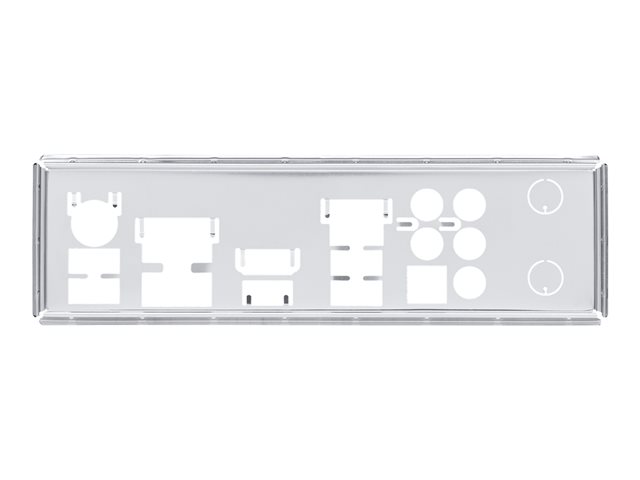

| Аксесоари | I/O back plate, 1 x M.2 rubber package, 2 x M.2 screws |
| Ширина | 30.5 cm |
| Дълбочина | 23.4 cm |
| Други характеристики |
Intel Turbo Boost Technology 2.0
Intel Turbo Boost Max Technology 3.0 ASUS OptiMem II Intel Optane Memory Ready LANGuard ASUS 5X Protection III ASUS DIGI+ VRM ASUS Overvoltage Protection ASUS SafeSlot ASUS Stainless Steel Back I/O ASUS Q-Design Q-DIMM Q-Slot M.2 heatsink ASUS EZ DIY ASUS ProCool ASUS Aura Sync Armoury Crate ASUS Fan Xpert 4 ASUS TurboV EVO ASUS EPU (Energy Processing Unit) CrashFree BIOS 3 Preboot eXecution Environment (PXE) 14+1 DrMOS power stages Q-LED Core |
| Гаранция | 36 месеца |
| Код на продукта | PRIME Z690-P D4 |
Виж повече
Допълнителна информация
- Flexibility
Comprehensive controls form the foundation of the ASUS Prime series. The Prime Z690 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity. - All-around energy efficiency
The Energy Processing Unit (EPU) automatically optimizes power consumption and maximizes energy savings with Away mode - a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers. - Flexible air- and liquid-cooling controls
ASUS Fan Xpert 4 software provides comprehensive control over fans and all-in-one (AiO) cooler. Whether cooling with air or water, an Auto-Tuning mode intelligently configures all parameters with a single click. There's also an Extreme Quiet mode that reduces all fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans and AiO cooler can also be controlled via the UEFI BIOS. - Precise digital power control
The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance. - UEFI BIOS
The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans. - Advanced tuning for serious tweakers
An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want. - Quick and simple setup
EZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings - all to help you get your rig up and running in no time. - Intuitive graphical fan control
Fine-tune individual fan settings simply by dragging a curve with the mouse. - Aura on/off mode (stealth)
Easily enable or disable Aura RGB lighting, for a subdued aesthetic touch. - Cooling
Prime Z690 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads. - M.2 Heatsink
An M.2 heatsink takes care of the two M.2 slots, warding off throttling that can occur with M.2 storage during sustained transfers. - VRM heatsinks and high-quality thermal pads
Two massive VRM heatsinks and high-quality thermal pads improve heat transfer from the MOSFETs and chokes for better cooling performance. - Cooler by design
Prime Z690 series features comprehensive cooling controls that are configurable via Fan Xpert 4 software or via the UEFI BIOS. - ProCool Connectors
Proprietary connectors augment the motherboard's link to the PSU with 4 pin+8 pin connectors that pass 12 volts of power directly to the processors. Each jack features solid pins that can handle more current than hollow-pin connectors. - Customization
Prime Z690 series adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look. - Audio
Combined onboard features deliver elevated audio. Intelligent design and premium hardware create audio quality unlike anything you've ever experienced. - Audio shielding
Separates analog/digital signal domains, significantly reducing multi-lateral interference. - Separate layer for left and right tracks
Ensures minimal crosstalk between audio paths. - Premium audio capacitors
Premium parts provide an immersive sound signature, with exceptional fidelity. - World-class circuit-protecting power design
An exclusive circuit design with built-in voltage regulators to protect your motherboard from damage caused by unexpected high-level voltages from unstable or inferior power supplies. - Short-circuit damage prevention
Onboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system and connected devices. - 3X corrosion-resistance for greater durability
Corrosion-resistant stainless-steel back I/O panels bonded with chromium oxide have a lifespan that's three times longer than ordinary panels.
