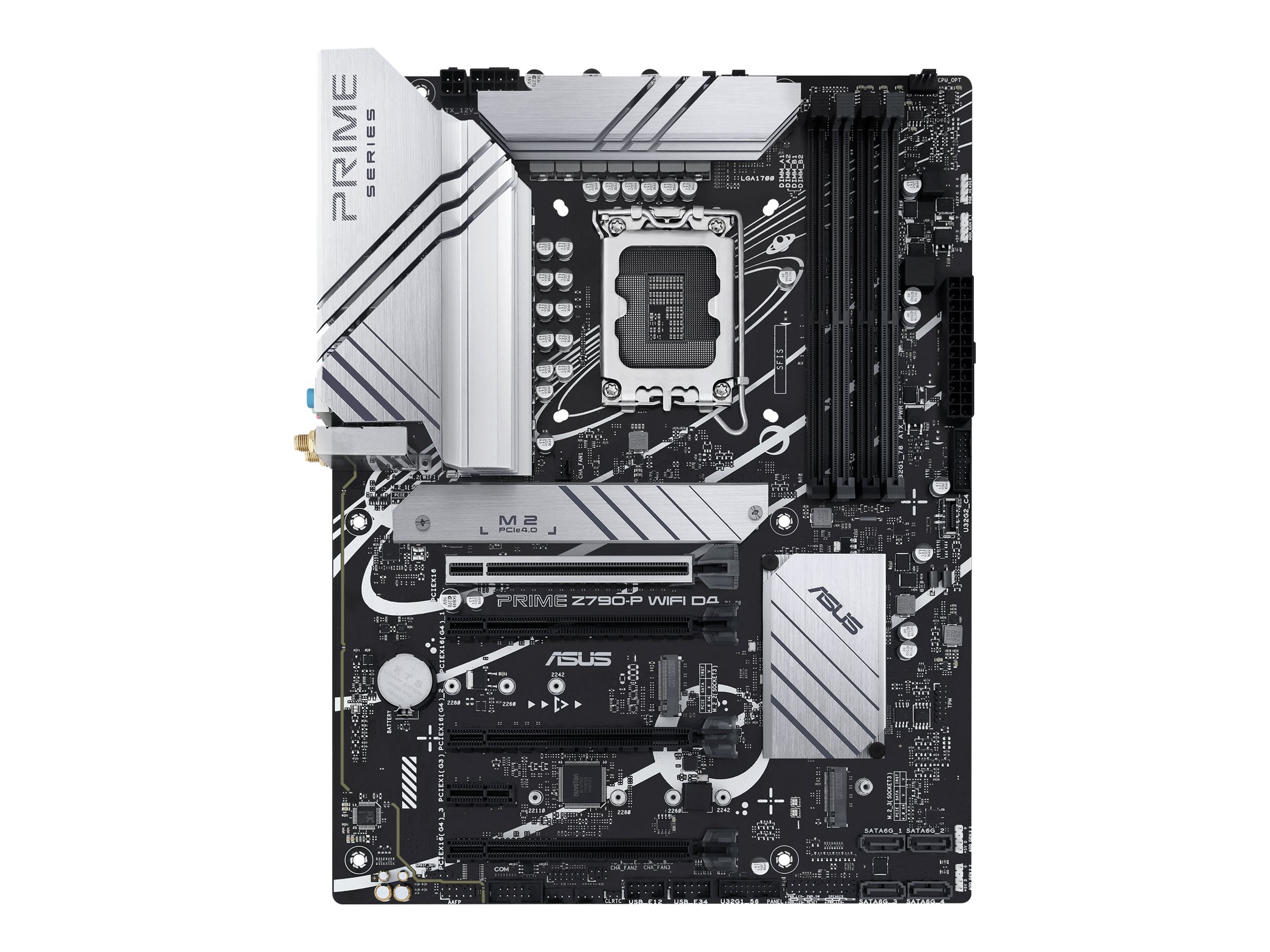

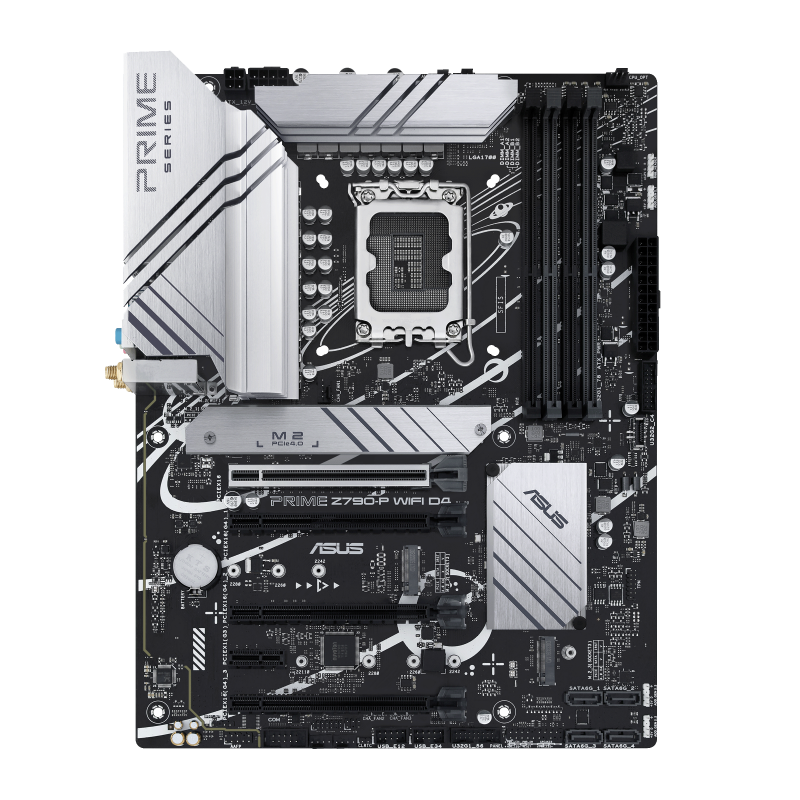

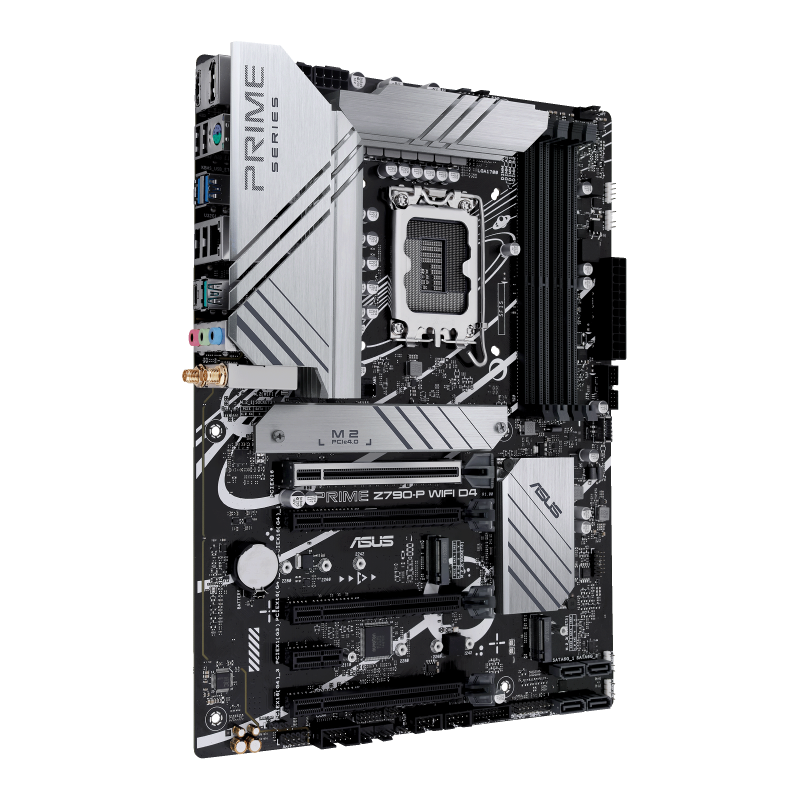

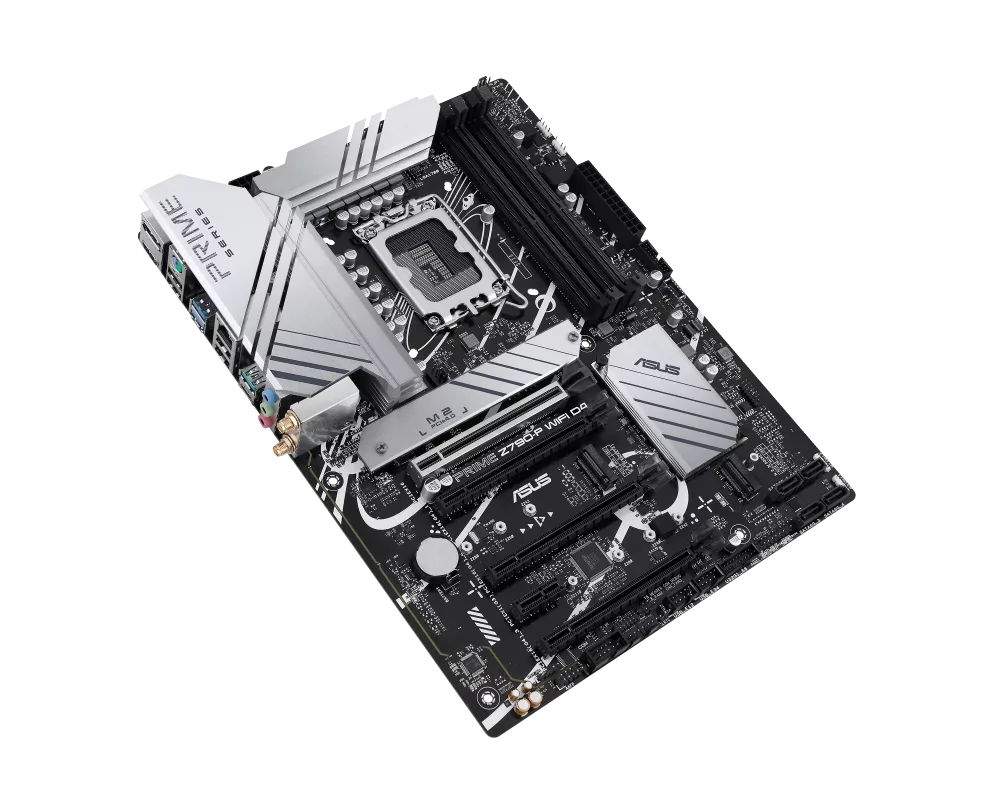

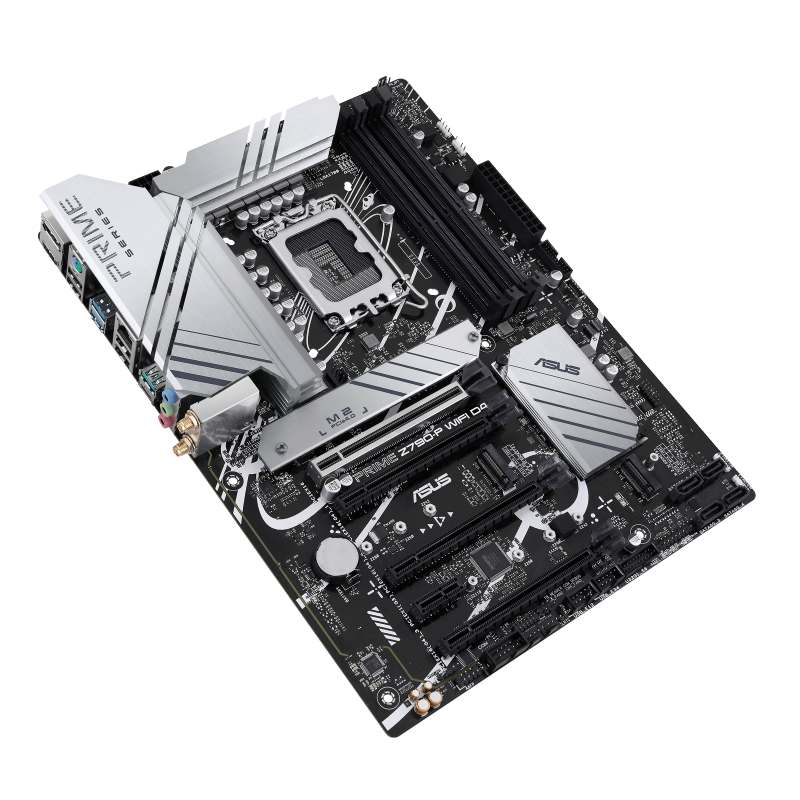

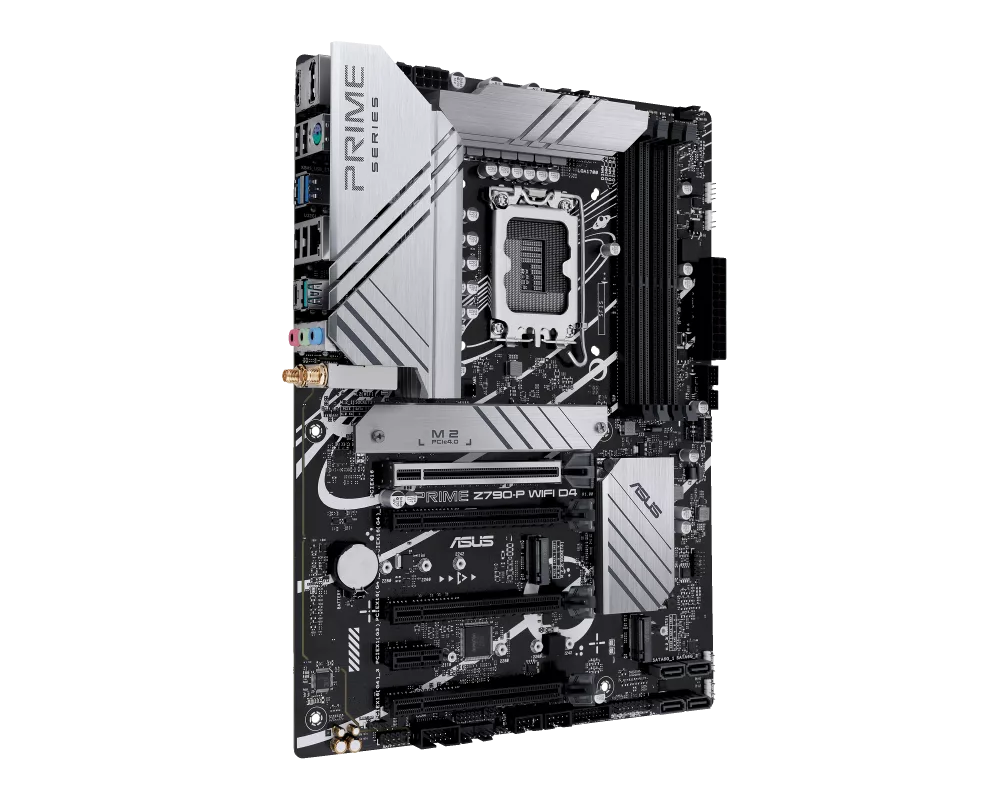

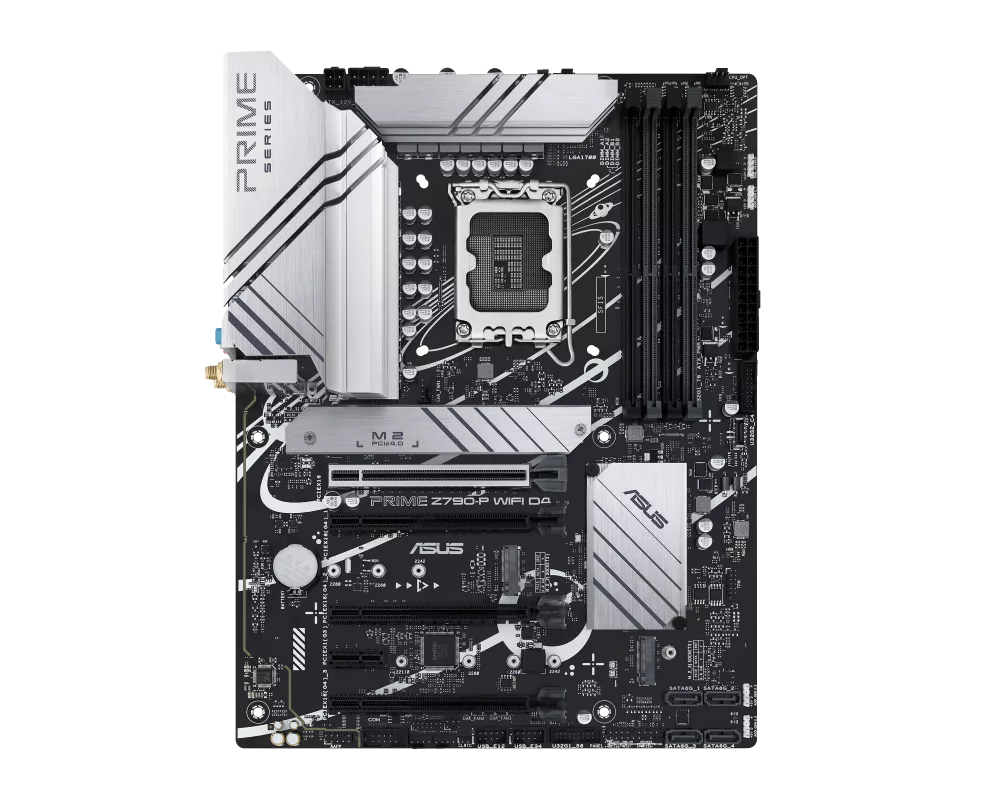

Дънна платка ASUS PRIME Z790-P WIFI D4 MB LGA1700 4xDIMM DDR4 3xM.2 4xSATA 90MB1DB0-M0EAY0
изчерпано
Сокет: LGA 1700
Чипсет: Intel Z790
Тип на паметта: DDR4
Физически размер: ATX
Слотове за памет: 4
Честота на паметта: 3200 MHz
Гаранция:
0.0
от 5.0
(0)
Купи и събери
3 точки
Плати по-лесно и сигурно с
Виж всички продукти на Asus
Пазарувай по марка
Характеристики
| Физически размер | ATX |
| Чипсет | Intel Z790 |
| Сокет | LGA 1700 |
| Съвместими процесори | (supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron) |
| BIOS | UEFI BIOS, ASUS EZ Flash 3 |
| Тип BIOS | AMI |
| Тип на паметта | DDR4 |
| Честота на паметта | 3200 MHz |
| ECC support | Non-ECC |
| Memory Registered / Buffered | Unbuffered |
| Слотове за памет | 4 |
| Максимална памет | 128 GB |
| Слотове | Intel® 13th & 12th Gen Processors; 1 x PCIe 5.0 x16 slot; Intel® Z790 Chipset; 3 x PCIe 4.0 x16 slots (support x4 mode); 1 x PCIe 3.0 x1 slot |
| Брой процесорни гнезда | 1 |
| Видео | 1 x DisplayPort; 1 x HDMI® port |
| Дисков интерфейс | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5, PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5, SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| RAID | Intel Rapid Storage Technology |
| LAN порт | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2 |
| Звук | Realtek 7.1 Surround Sound High Definition Audio CODEC; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback; Audio Features; - Audio Shielding; - Premium audio capacitors; - Dedicated audio PCB layers |
| Звуков изход | HD Audio (8-channel) |
| Аудио стандарти | High Definition Audio |

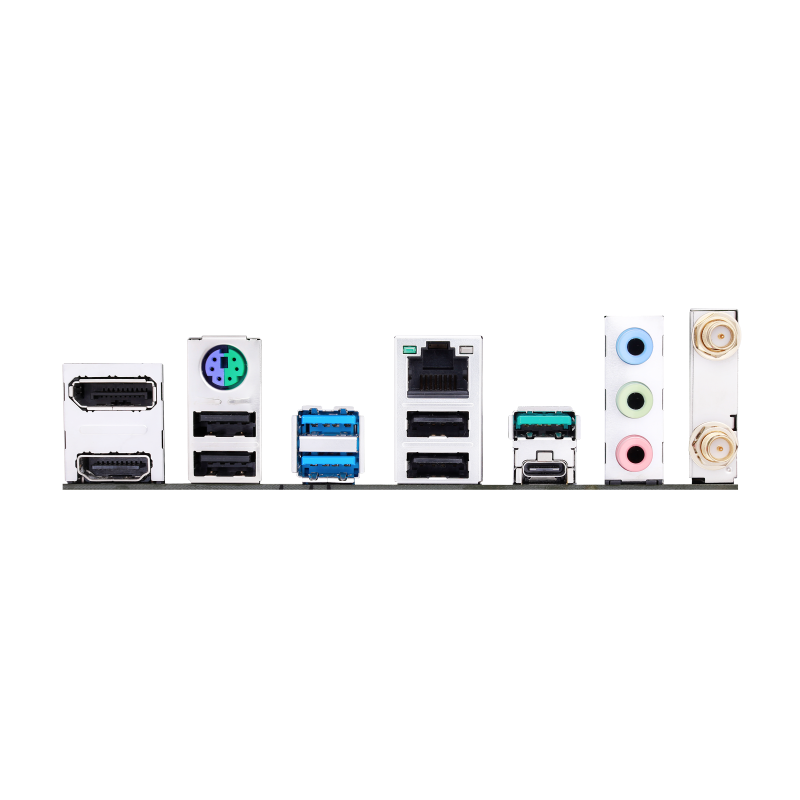

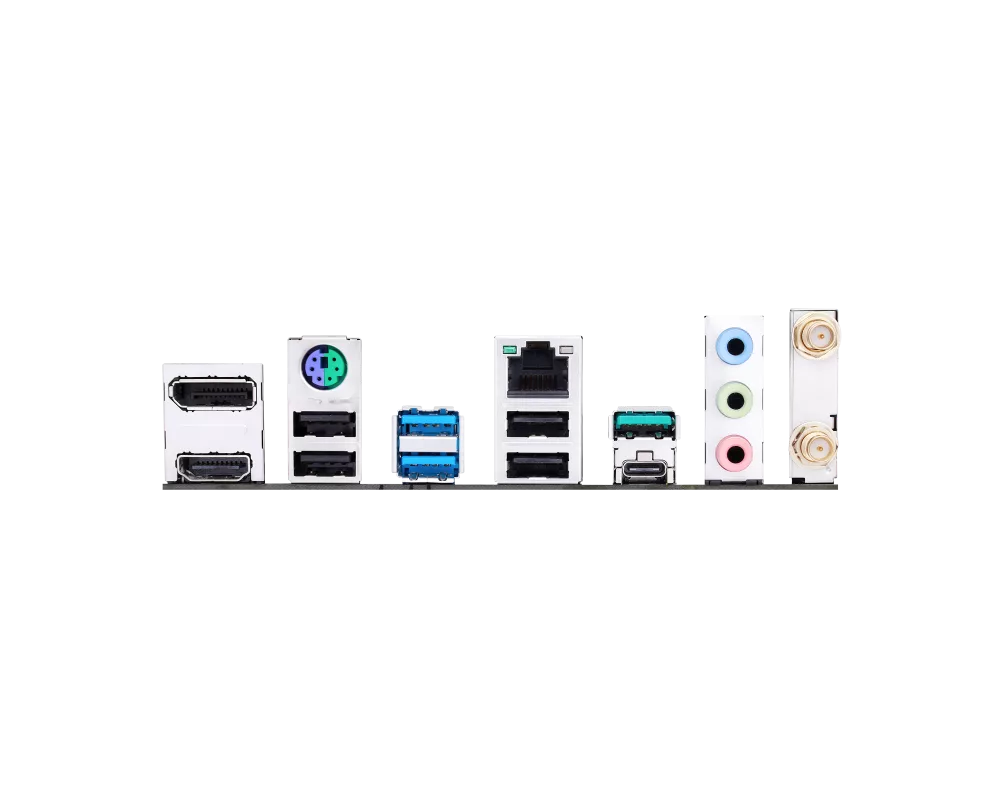

| Портове | 1 x DisplayPort, 1 x HDMI, 1 x USB-C 3.2 Gen2x2, 1 x USB 3.2 Gen 2, 2 x USB 3.2 Gen 1, 4 x USB 2.0, 1 x audio line-in - mini-jack, 1 x microphone - mini-jack, 1 x audio line-out - mini-jack, 2 x aerial, 1 x LAN (2.5Gigabit Ethernet), 1 x PS/2 keyboard / mouse |
| Разширителни слотове | 1 x CPU, 4 x DIMM 288-pin, 1 x PCIe 5.0 x16, 3 x PCIe 4.0 x16 (x4 mode), 1 x PCIe 3.0 x1, 2 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot), 1 x M.2 socket (2242/2260/2280 M.2 Key M slot) |
| Вътрешен интерфейс | 4 x USB 2.0 - header, 1 x USB-C 3.2 Gen 2 - header, 4 x USB 3.2 Gen 1 - header, 1 x audio - header, 1 x SPI - header, 1 x serial - header, 1 x SPDIF out - header, 1 x Thunderbolt - header |
| Wake on LAN | Wake on LAN (WOL), wake on PME |
| Функции | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Софтуер | ASUS CPU-Z, ASUS AI Suite III, PC Cleaner, WinRAR, MyAsus, Armoury Crate, ASUS Fan Xpert 4, Norton 360 Deluxe (60 days trial) |
| Конектори | 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 3 x 4-pin Chassis Fan headers; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; 1 x 4-pin +12V Power connector; 3 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; 1 x USB 3.2 Gen 2 connector (supports USB Type-C®); 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports; 3 x Addressable Gen 2 headers; 1 x Aura RGB header; 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (AAFP); 1 x S/PDIF Out header; 1 x SPI TPM header (14-1pin); 1 x 20-5pin System Panel header; 1 x Thunderbolt™ (USB4®) Header |
| Конектори за захранване | 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector |
| Стандарти | VCCI Class B ITE, JATE, WEEE, FCC Part 15 Class B, DisplayPort 1.4, EU RoHS, EU REACH |

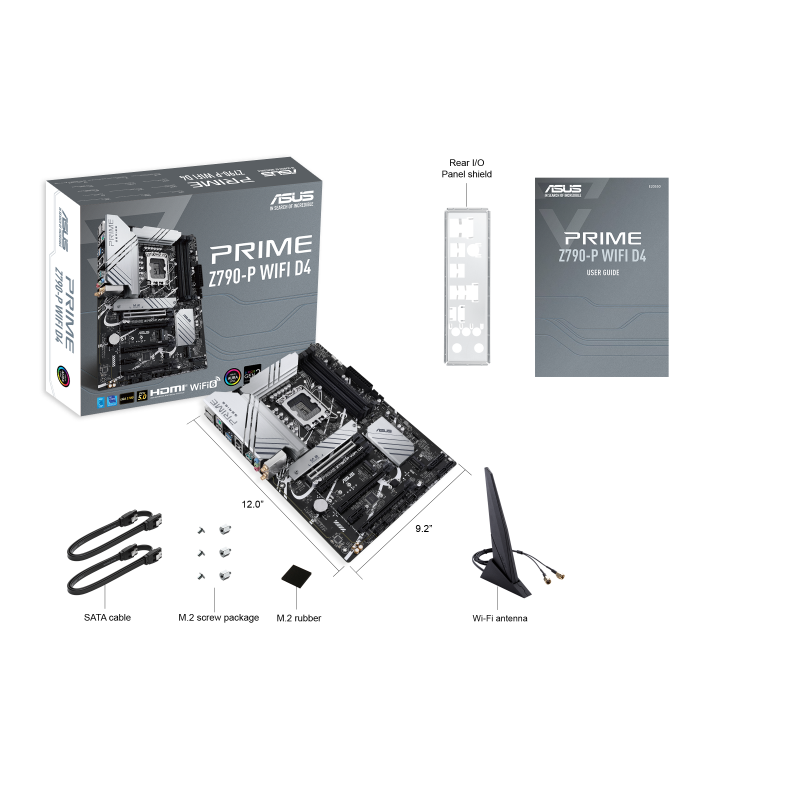

| Включени кабели | 2 x Serial ATA cable |

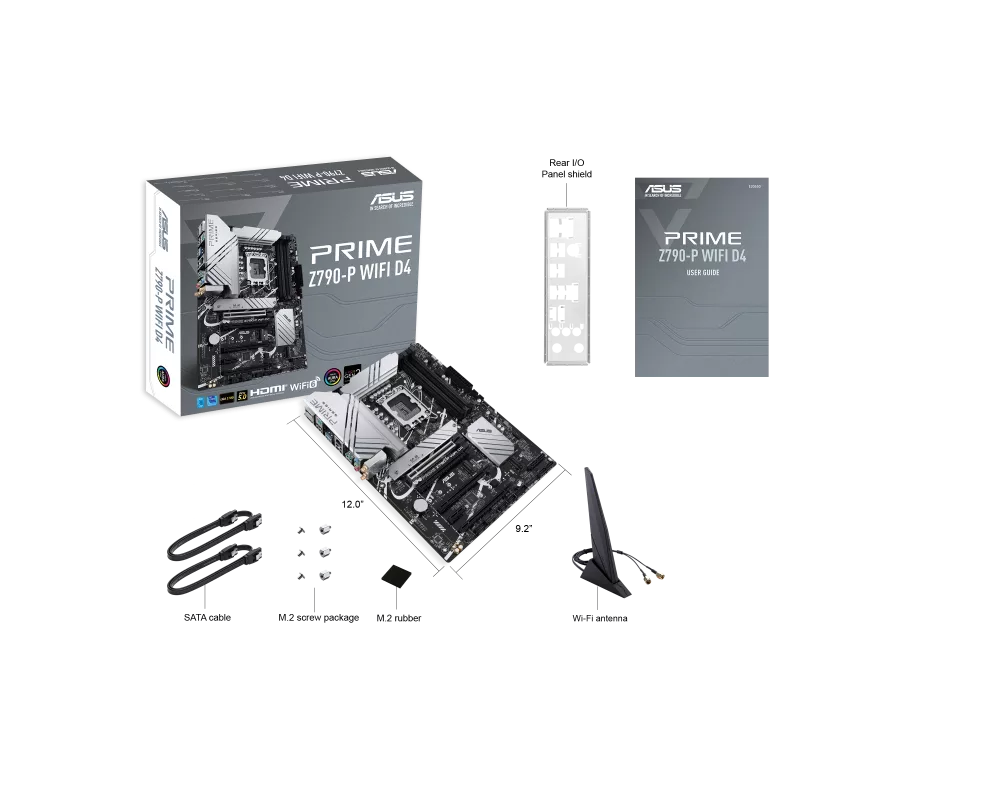

| Аксесоари | IO shield, ASUS Wi-Fi moving aerial, 1 x M.2 rubber package, 2 x M.2 SSD screw package |
| Ширина | 30.5 cm |
| Дълбочина | 23.4 cm |
| Други характеристики | ASUS Q-Design, ASUS TurboV EVO, Q-DIMM, ASUS EZ DIY, Q-Slot, CrashFree BIOS 3, ASUS DIGI+ VRM, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, LANGuard, Water Cooling Ready Heatsink Design, overvoltage protection, ASUS 5X Protection III, M.2 heatsink, ASUS ProCool, ASUS Aura Sync, ASUS OptiMem II, ASUS SafeSlot Core+, DIY Friendly Design, Q-LED Core, VRM heatsink design, 50A Power Stage, 14+1 Phase Power Design |
| Гаранция | 36 месеца |
| Код на продукта | 90MB1DB0-M0EAY0 |
Виж повече
Допълнителна информация
- Intelligent Control
ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans. - AI Cooling II
AI Cooling II balances the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then it monitors CPU temperatures to dynamically adjust fans to optimal speeds. - UEFI BIOS
The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans. - M.2 heatsink
The flexible M.2 heatsink with removable captive screws can take care of the M.2 1 or M.2 3 slot, warding off throttling that can occur with M.2 storage during sustained transfers. - VRM heatsinks and thermal pads
The extensive surface area of the massive heatsinks cover the VRMs and chokes to improve heat dissipation. Together with specially engineered thermal pads, they improve heat transfer from the MOSFETs and chokes for better cooling performance. - Robust power design
Stable power is essential to extract every last bit of performance out of Intel processors. The PRIME Z790-P WIFI D4 is geared to cater to the demands of these high-core-count CPUs. - DDR4 5333 (OC)
Improvements to trace routing design provide the latest Intel processors with enhanced access to memory bandwidth. ASUS OptiMem II technology carefully maps memory signal pathways across different PCB layers to reduce path distance, and it adds shielding zones that significantly reduce crosstalk. - ASUS OptiMem II
Revisions to the motherboard's trace routing provide the Intel processors with unrestricted access to memory bandwidth. ASUS OptiMem II technology carefully maps memory signal pathways across different PCB layers to reduce vias and adds shielding zones that significantly reduce crosstalk. - Three M.2 slots (up to 64 Gbps)
PRIME Z790-P WIFI D4 offers a total of three M.2 slots that support data-transfer speeds of up to 64 Gbps via PCIe 4.0, enabling quicker boot-up and app load times with OS or application drives. - PCIe 5.0 slot
PCIe 5.0 offers twice the data transfer speed of PCIe 4.0, making it robust enough to handle new data-heavy tasks. PCIe 5.0 also brings other benefits, such as electrical changes to improve signal integrity, backward-compatible CEM connectors for add-in cards, and compatibility with previous versions of PCI Express. - USB 3.2 Gen 2x2 Type-C
A batch of USB ports support high-end rigs loaded with peripherals, including the rear USB Type-C connector with ultrafast USB 3.2 Gen 2x2 for transmission speeds of up to 20 Gbps. - Thunderbolt 4 (USB4 compliant)
PRIME Z790-P WIFI D4 motherboard features USB4 support via a Thunderbolt (USB4) header. Additionally, this card has a daisy-chain function for multi-screen connection and supports up to dual displays with 4K resolution. - Realtek 2.5 Gb Ethernet
Realtek 2.5 Gb Ethernet reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster, smoother data transfers.
