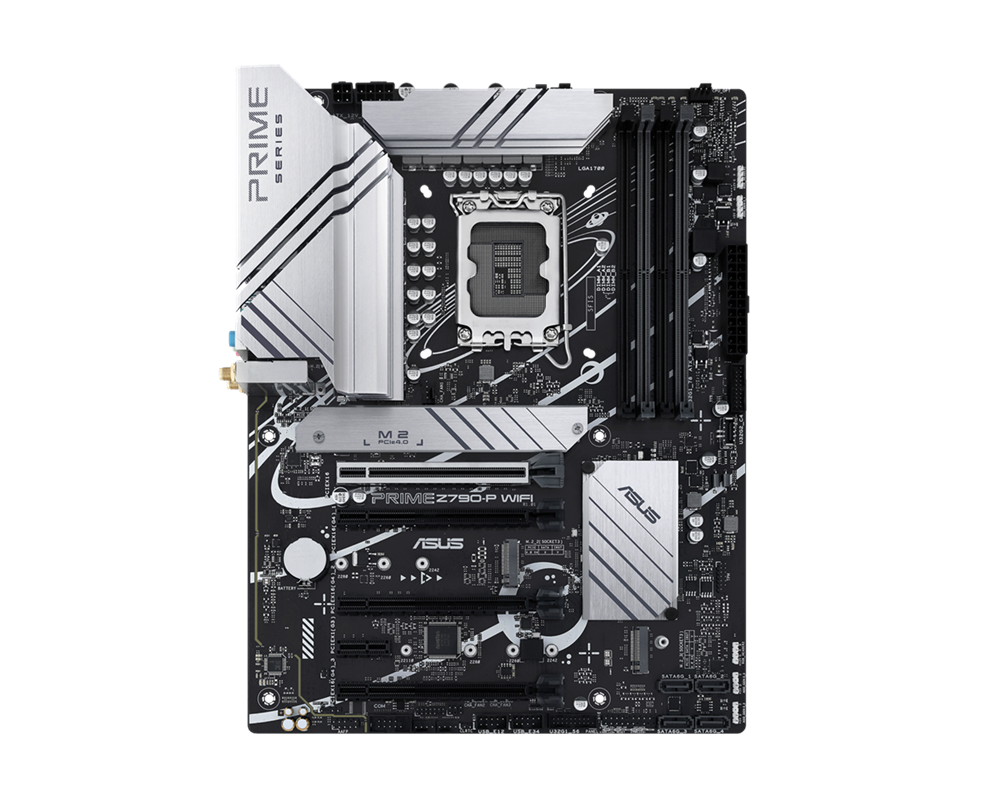

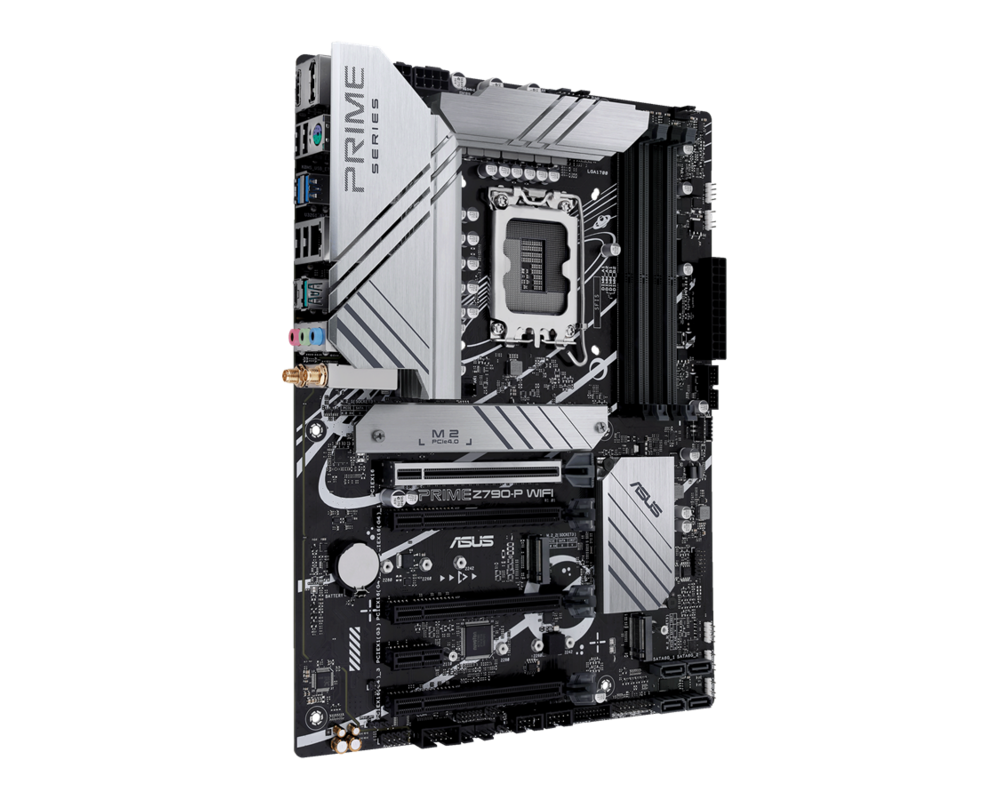

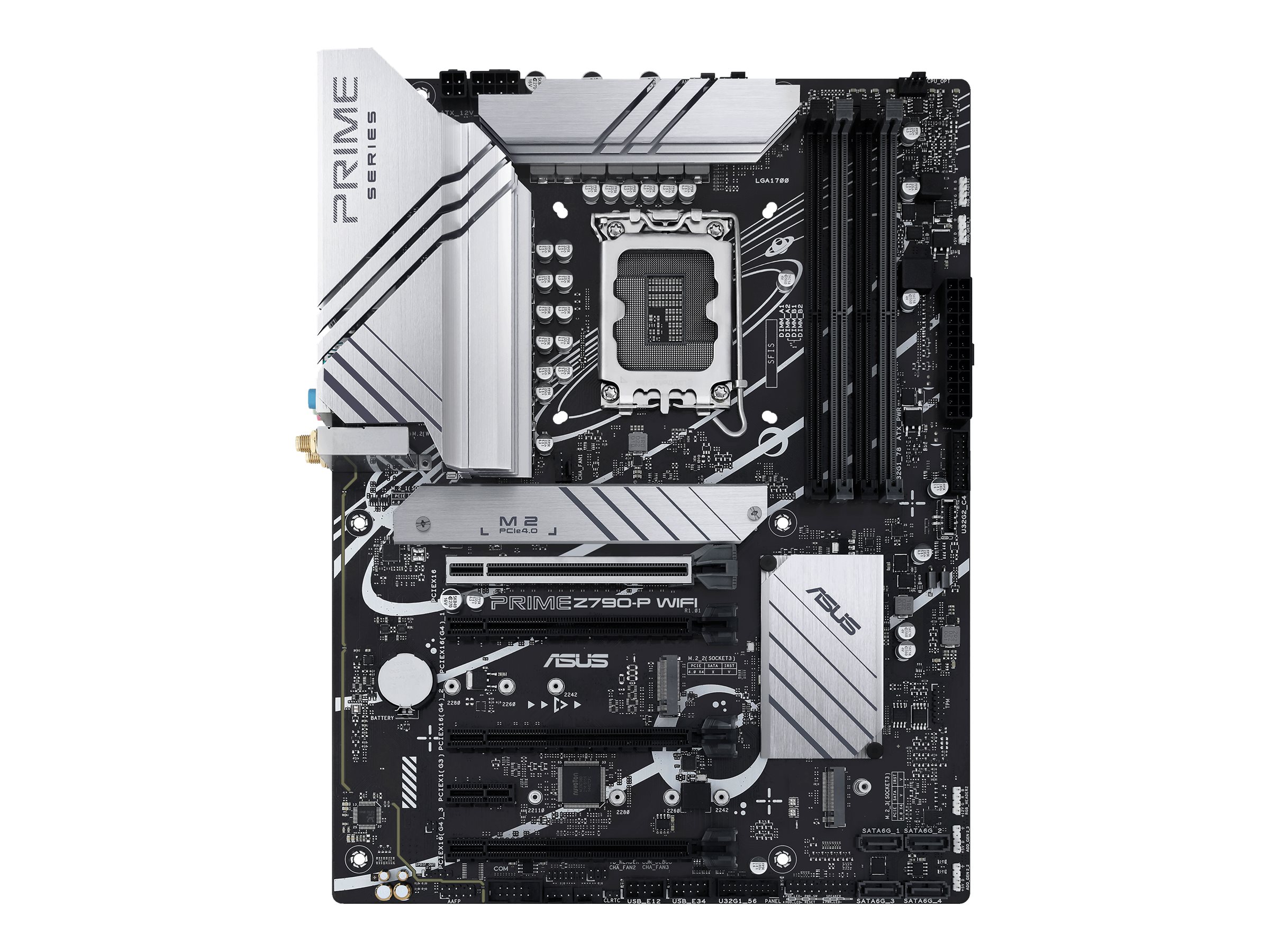

Дънна платка ASUS PRIME Z790-P WIFI LGA 1700 4DDR5 ATX 4xSATA MB 1xHDMI 1xDP 3xM.2 90MB1CJ0-M0EAY0
изчерпано
Сокет: LGA 1700
Чипсет: Intel® Z790
Тип на паметта: DDR5
Физически размер: ATX
Слотове за памет: 4
Честота на паметта: 7200 MHz
Гаранция:
0.0
от 5.0
(0)
Купи и събери
3 точки
Плати по-лесно и сигурно с
Виж всички продукти на Asus
Пазарувай по марка
Характеристики
| Серия | Prime |
| Серия | Prime |
| Физически размер | ATX |
| Чипсет | Intel® Z790 |
| Сокет | LGA 1700 |
| Съвместими процесори | Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors;Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 |
| BIOS | 192 (128+64) Mb Flash ROM, UEFI AMI BIOS |
| Тип BIOS | AMI |
| Тип на паметта | DDR5 |
| Честота на паметта | 7200 MHz |
| ECC support | Non-ECC, on-die ECC |
| Memory Registered / Buffered | Unbuffered |
| Слотове за памет | 4 |
| Максимална памет | 192 GB |
| Слотове | PCIe 5.0 x16 slot, 3 PCIe 4.0 x16 slots, PCIe 3.0 x1 slot |
| Брой процесорни гнезда | 1 |
| Видео | 1 x DisplayPort;1 x HDMI® port |
| Дисков интерфейс | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports;Intel® Core™ Processors (14th & 13th & 12th Gen);M.2_1 slot (Key M), type 2242/ 2260/ 2280/ 22110 (supports PCIe 4.0 x4 mode);Intel® Z790 Chipset;M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode);M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes);4 x SATA 6Gb/s ports; Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10 |
| M.2 slot | 3 M.2 slots (Key M) |
| RAID | Intel Rapid Storage Technology |
| LAN порт | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2 |
| Wi-Fi | Wi-Fi 6 |
| Звук | Realtek 7.1 Surround Sound High Definition Audio CODEC;- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking;- Supports up to 24-Bit/192 kHz playback;Audio Features;- Audio Shielding;- Premium audio capacitors;- Dedicated audio PCB layers; A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output |
| Звуков изход | HD Audio (8-channel) |
| Аудио стандарти | High Definition Audio |

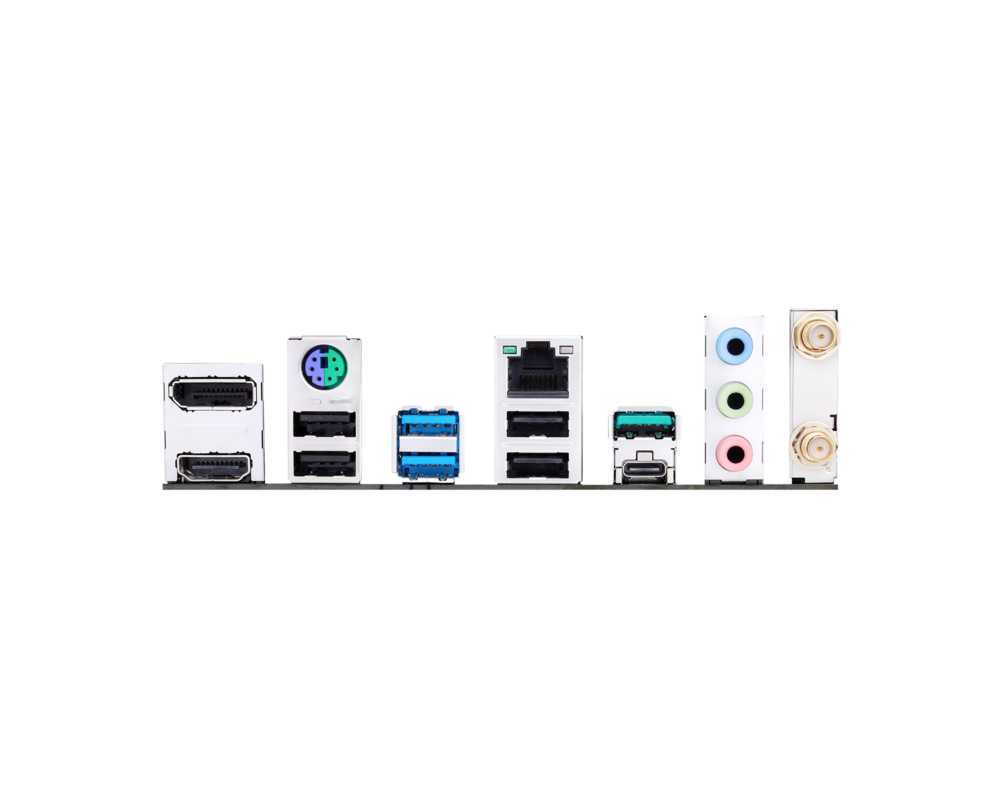

| Портове | USB 3.2 Gen 2x2 port, USB 3.2 Gen 2 port, 2 USB 3.2 Gen 1 ports, 4 USB 2.0 ports, DisplayPort, HDMI, Realtek 2.5Gb Ethernet port, 3 Audio jacks, PS/2 Keyboard/Mouse combo port |
| Разширителни слотове | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 5.0 x16 3 x PCIe 4.0 x16 (x4 mode) 1 x PCIe 3.0 x1 1 x M.2 socket (2242/2260/2280 M.2 Key M slot) 2 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot) M.2 socket (Key E) |
| Вътрешен интерфейс | 4 x USB 2.0 - header 4 x USB 3.2 Gen 1 - header 1 x USB-C 3.2 Gen 2 - header 1 x serial - header 1 x SPI - header 1 x SPDIF out - header 1 x audio - header 1 x Thunderbolt - header |
| Wake on LAN | Wake on PME, wake on LAN (WOL) |
| Характеристики | ASUS 5X PROTECTION III, ASUS Q-Design, ASUS Thermal Solution, ASUS EZ DIY, Aura Sync |
| Софтуер | ASUS Exclusive Software |
| Съвместими операционни системи | Windows 11, Windows 10 64-bit |
| Конектори | Fan and Cooling related;1 x 4-pin CPU Fan header;1 x 4-pin CPU OPT Fan header;1 x 4-pin AIO Pump header;3 x 4-pin Chassis Fan headers;Power related;1 x 24-pin Main Power connector;1 x 8-pin +12V Power connector;1 x 4-pin +12V Power connector;Storage related;3 x M.2 slots (Key M);4 x SATA 6Gb/s ports;USB;1 x USB 3.2 Gen 2 connector (supports USB Type-C®);2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports;2 x USB 2.0 headers support 4 additional USB 2.0 ports;Miscellaneous;3 x Addressable Gen 2 headers;2 x Aura RGB headers;1 x Clear CMOS header;1 x COM Port header;1 x Front Panel Audio header (AAFP);1 x S/PDIF Out header;1 x SPI TPM header (14-1pin);1 x 20-5pin System Panel header;1 x Thunderbolt™ (USB4®) Header |
| Конектори за захранване | 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector |
| Стандарти | VCCI Class B ITE, JATE, WEEE, FCC Part 15 Class B, DisplayPort 1.4, EU RoHS, EU REACH |
| Включени кабели | 2 x Serial ATA cable |

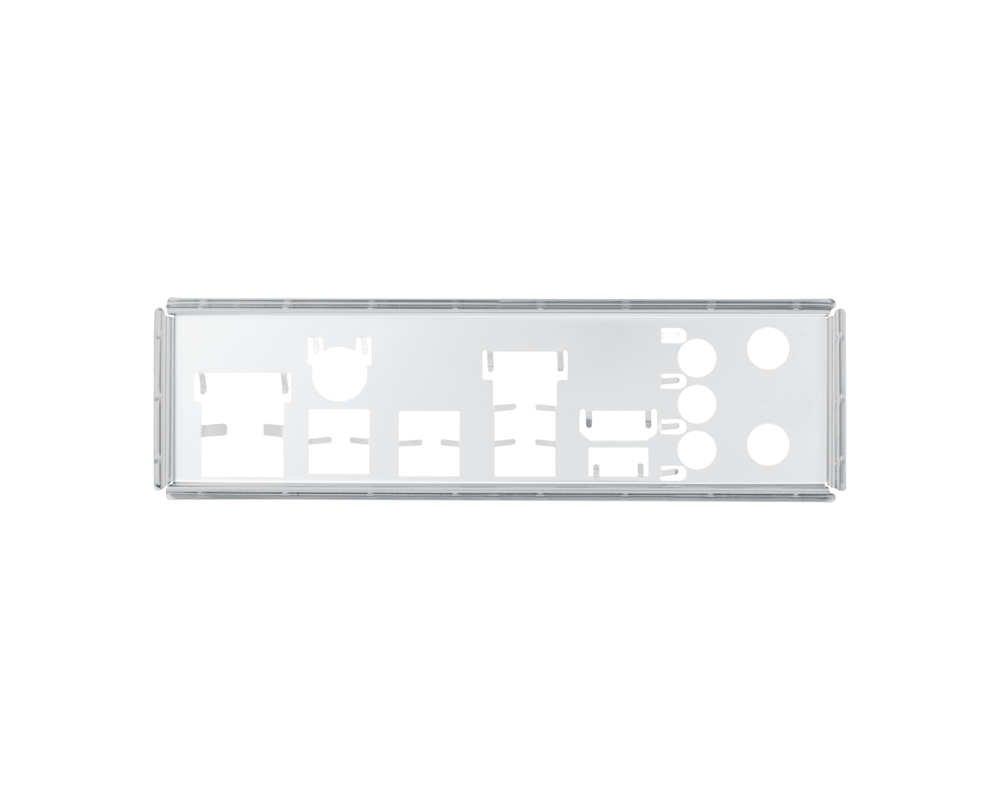

| Аксесоари | IO shield, 1 x M.2 rubber package, 2 x M.2 screw package, ASUS Wi-Fi moving aerial |
| Ширина | 30.5 cm |
| Дълбочина | 23.4 cm |
| Други характеристики | ASUS OptiMem II, Intel Turbo Boost Max Technology 3.0, Intel Turbo Boost Technology 2.0, Preboot eXecution Environment (PXE), CrashFree BIOS 3, LANGuard, overvoltage protection, ASUS SafeSlot Core+, ASUS Stainless Steel Back I/O, ASUS Q-Design, Q-DIMM, Q-LED Core, Q-Slot, M.2 heatsink, VRM heatsink design, ASUS EZ DIY, ASUS ProCool, ASUS Aura Sync, ASUS 5X Protection III, 14+1 Phase Power Design |
| Гаранция | 36 месеца |
| Код на продукта | 90MB1CJ0-M0EAY0 |
Виж повече
Допълнителна информация
- Flexibility
Comprehensive controls form the foundation of the ASUS Prime series. The Prime Z790-P Wi-Fi motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity. - Intelligent Control
ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for new comers to PC DIY, as well as more comprehensive features for seasoned veterans. - Cooling
Prime Z790-P Wi-Fi motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads. - Performance
The Prime Z790-P Wi-Fi motherboard is built to handle the high core counts and bandwidth demands of 13th Gen Intel Core processors. ASUS Z790 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options. - Robust power design
Stable power is essential to extract every last bit of performance out of Intel processors. The Prime Z790-P Wi-Fi is geared to cater to the demands of these high-core-count CPUs. - Combined onboard features deliver elevated audio
Intelligent design and premium hardware create audio quality unlike anything you've ever experienced.
