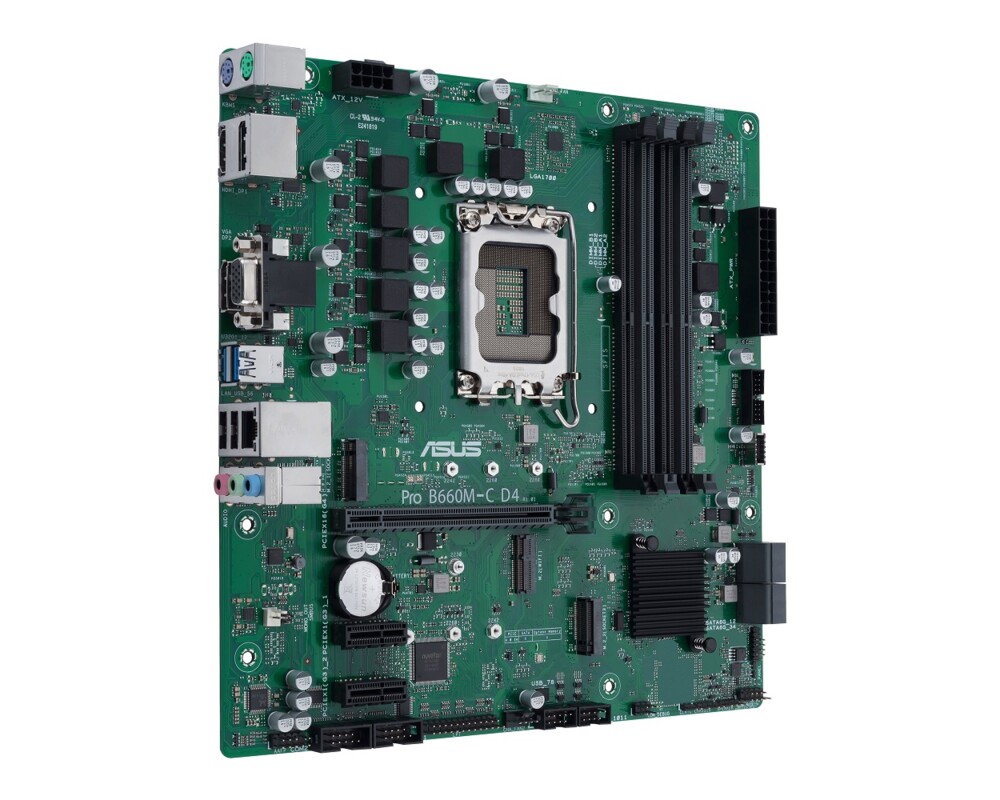

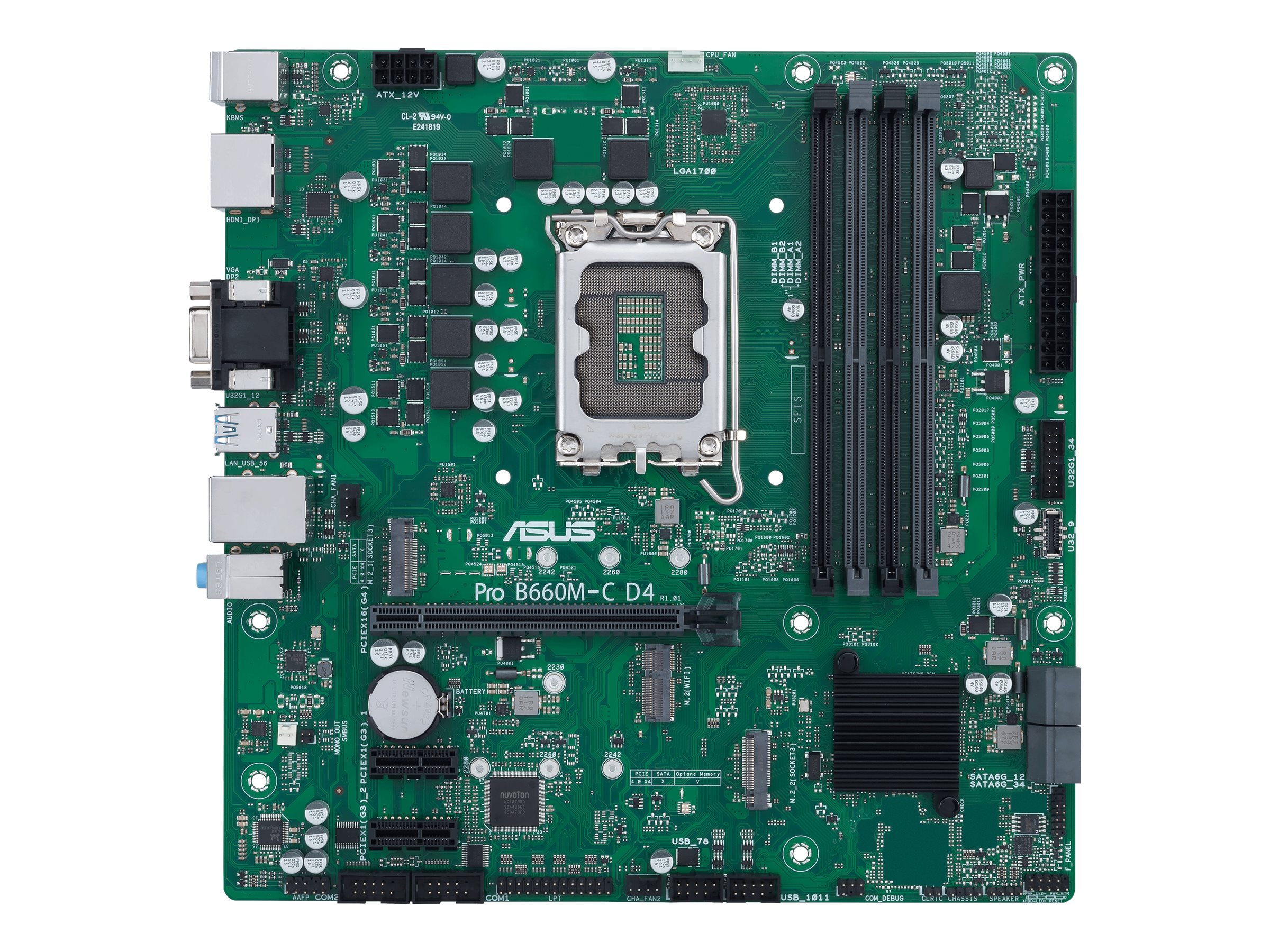

Дънна платка ASUS PRO B660M-C D4-CSM LGA1700 4xDIMM DDR4 TPM 4xSATA 2xM.2 1xHDMI 1xVGA 2xDP MB 90MB19B0-M1EAYC
код FALL25
за 3% отстъпка
за 3% отстъпка
Сокет: LGA 1700
Чипсет: Intel B660
Тип на паметта: DDR4
Физически размер: Micro ATX
Слотове за памет: 4
Честота на паметта: 3200 MHz
Гаранция:
0.0
от 5.0
(0)
Купи и събери
3 точки
Плати по-лесно и сигурно с
Виж всички продукти на Asus
Пазарувай по марка
Характеристики
| Физически размер | Micro ATX |
| Чипсет | Intel B660 |
| Сокет | LGA 1700 |
| Съвместими процесори | (supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron) |
| BIOS | 128Mb Flash ROM |
| Тип на паметта | DDR4 |
| Честота на паметта | 3200 MHz |
| ECC support | Non-ECC |
| Memory Registered / Buffered | Unbuffered |
| Слотове за памет | 4 |
| Максимална памет | 128 GB |
| Слотове | Intel® 12th Gen Processors; 1 x PCIe 4.0/3.0 x16 slot; Intel® B660 Chipset; 2 x PCIe 3.0 x1 slots |
| Брой процесорни гнезда | 1 |
| Видео | 1 x D-Sub; 2 x DisplayPort; 1 x D-Sub port; 1 x HDMI® port |
| Дисков интерфейс | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -connectors: 2 x M.2 |
| RAID | Intel Rapid Storage Technology |
| LAN порт | Gigabit Ethernet |
| Звук | ALC897; Realtek 7.1 Surround Sound High Definition Audio CODEC; - Supports: Jack-detection, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback " |
| Звуков изход | HD Audio (8-channel) |
| Аудио стандарти | High Definition Audio |
| Портове | 1 x HDMI 2 x DisplayPort 1 x VGA 1 x LAN (Gigabit Ethernet) 2 x USB 3.2 Gen 1 2 x USB 2.0 1 x PS/2 keyboard 1 x microphone - mini-jack 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x PS/2 mouse |
| Разширителни слотове | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 4.0 x16 2 x PCIe 3.0 x1 1 x M.2 socket (2242/2260/2280 M.2 Key M slot) |
| Вътрешен интерфейс |
4 x USB 2.0 - header
2 x USB 3.2 Gen 1 - header 1 x USB-C Gen 1 - header 1 x audio - header 2 x serial - header 1 x speaker - header |
| Wake on LAN | Wake on LAN (WOL), wake on PME |
| Функции | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Конектори | 1 x 4-pin CPU Fan header; 2 x 4-pin Chassis Fan headers; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; 2 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; 1 x USB 3.2 Gen 1 connector (suppports USB Type-C®); 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support additional 4 USB 2.0 ports; 1 x Clear CMOS header; 1 x Chassis Intrude header; 2 x COM Port headers; 1 x Front Panel Audio header (AAFP); 1 x COM debug header; 1 x LPT header; 1 x Mono-out header(with Amp IC); 1 x M.2 slot (Key E); 1 x SMBUS header; 1 x Speaker header; 1 x 10-1 pin System Panel header |
| Конектори за захранване | 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector |
| Стандарти |
VCCI Class B ITE
JATE FCC Part 15 Class B DisplayPort 1.4 EU RoHS EU REACH |
| Включени кабели | 2 x Serial ATA cable |
| Аксесоари | 2 x M.2 screws, IO shield, ACC Express Activation Key Card |
| Ширина | 24.4 cm |
| Дълбочина | 24.4 cm |
| Други характеристики |
Jack retasking
ASUS EZ DIY audio jack detect technology Preboot eXecution Environment (PXE) overcurrent protection LANGuard ASUS OptiMem ASUS Self Recovering BIOS ASUS Event Log ASUS Commercial BIOS kit TPM IC Onboard ASUS Control Center Express (ACC Express) Q-LED Core |
| Гаранция | 36 месеца |
| Код на продукта | 90MB19B0-M1EAYC |
Виж повече
Допълнителна информация
- Internationally certified business motherboard
ASUS Business motherboards are enterprise proven with leading quality that exceeds industry standards. Certified by multiple international safety and environmental organizations, ASUS Business motherboards provide a safe, secure and sustainable solution, making them the ideal choice for your business. - PCIe 4.0
This business motherboard is specially designed for 12th Gen Intel Core processors and offer PCIe 4.0 connectivity for storage devices and graphics cards. Wide bandwidth and superfast transmission speeds empower you to create feature-rich builds that deliver optimal performance wherever it's needed. - ASUS self-recovering BIOS
ASUS-exclusive BIOS protection technology automatically recovers the system BIOS with a verified backup in the event of an update failure, preventing the need to replace or reinstall hardware. - Protection against moisture and corrosion
An innovative moisture-resistant coating protects the motherboard in humid environments, such as factories, libraries, data centers and internet cafes. It also minimizes internal corrosion by preventing adhesion and migration of moisture, prolonging the life of the motherboard. - Stainless steel back I/O
Corrosion-resistant stainless steel back I/O panels bonded with chromium oxide have a lifespan that's three times longer than ordinary panels. - World-class circuit-protecting power design
An exclusive circuit design with built-in voltage regulators to protect your chipset, connectivity ports, and audio codecs from damage caused by unexpected high-level voltages from unstable or inferior power supplies. - Pumped-up throughput
ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology and premium anti-EMI surface-mounted capacitors ensuring a more reliable connection and better throughput, plus electrostatically guarded and surge-protected components for greater tolerance to static electricity and improved protection against surges. - Q-LED Core display
The Q-LED Core display produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues.
