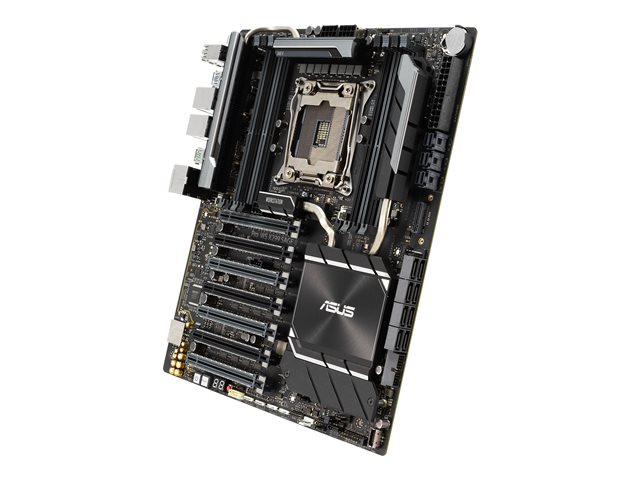

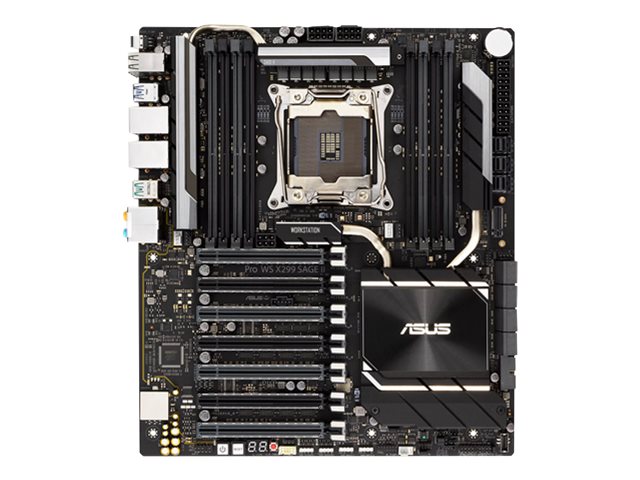

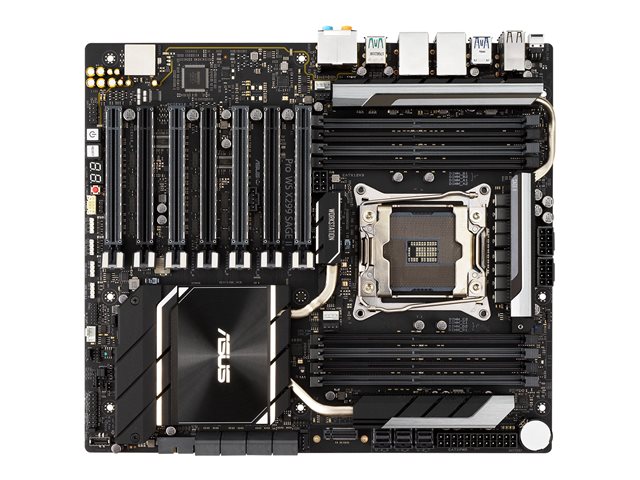

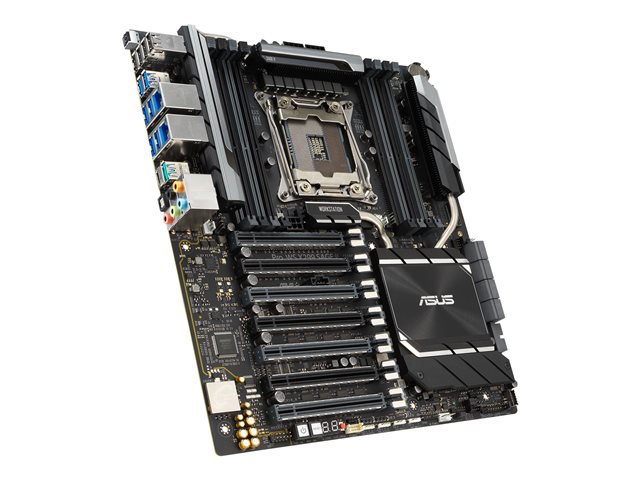

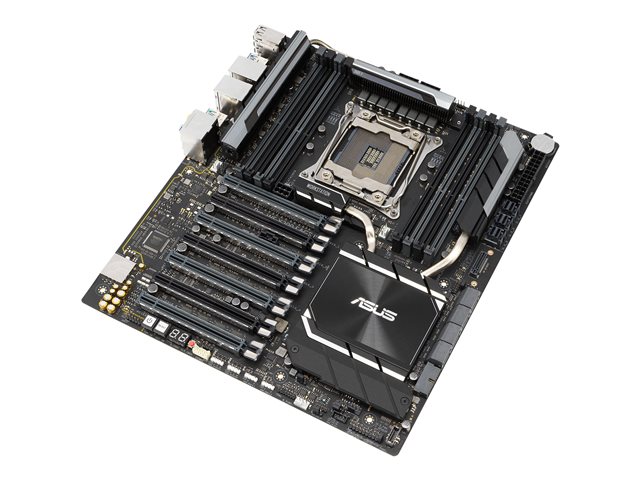

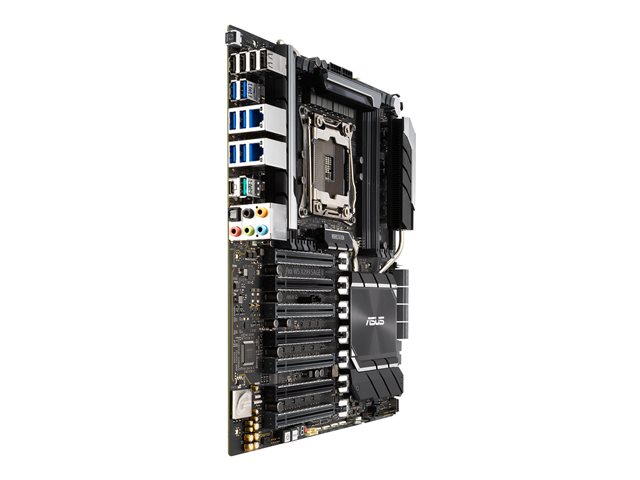

Дънна платка ASUS PRO WS X299 SAGE II LGA 2066 DDR4 8xSATA 2xM.2 CEB Workstation MB PRO WS X299 SAGE II
изчерпано
Сокет: LGA 2066
Чипсет: Intel X299
Тип на паметта: DDR4
Физически размер: Motherboard - SSI CEB
Слотове за памет: 8
Честота на паметта: 2933 MHz
Гаранция:
0.0
от 5.0
(0)
Купи и събери
7 точки
Плати по-лесно и сигурно с
Виж всички продукти на Asus
Пазарувай по марка
Характеристики
| Физически размер | Motherboard - SSI CEB |
| Чипсет | Intel X299 |
| Сокет | LGA 2066 |
| Съвместими процесори | Core X |
| BIOS | Multilingual BIOS, ASUS EZ Flash, USB BIOS Flashback |
| Тип на паметта | DDR4 |
| Честота на паметта | 2933 MHz |
| ECC support | Non-ECC |
| Memory Registered / Buffered | Unbuffered |
| Слотове за памет | 8 |
| Максимална памет | 256 GB |
| Брой процесорни гнезда | 1 |
| Дисков интерфейс | SATA-600 -connectors: 8 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 3.0 -connectors: 2 x M.2 PCIe 3.0 -connectors: 3 x U.2 |
| RAID | Intel Rapid Storage Technology |
| LAN порт | 2 x Gigabit Ethernet |
| LAN controller | Intel I225-LM |
| Звук | Realtek ALCS1220A |
| Звуков изход | HD Audio (8-channel) |
| Аудио стандарти | DTS Connect, High Definition Audio, DTS Headphone:X, DTS:X Ultra |

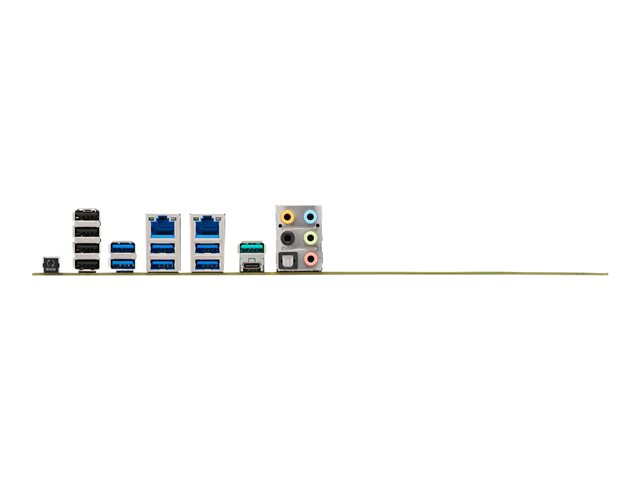

| Портове | 2 x LAN (Gigabit Ethernet) 6 x USB 3.2 Gen 1 4 x USB 2.0 1 x TOSLINK 1 x USB 3.2 Gen 2 1 x USB-C Gen2 1 x audio line-out - mini-jack 1 x microphone - mini-jack 1 x audio line-out (center/subwoofer) - mini-jack 1 x audio line-out (rear) - mini-jack 1 x audio line-in - mini-jack |
| Разширителни слотове |
1 x CPU
8 x DIMM 288-pin
7 x PCIe 3.0 x16 (x16
x16/x16 x16/x16/x16 x16/x16/x16/x16 x16/x8/x8/x8/x8/x8/x8 modes) |
| Вътрешен интерфейс | 2 x USB 3.2 Gen 1 - header 1 x USB 3.2 Gen 2 - header 1 x serial - header 1 x Thunderbolt - header |
| Функции | Intel Extreme Memory Profiles (XMP) |
| Софтуер | Drivers & Utilities, ASUS AI Charger+, ASUS AI Suite III, ASUS Turbo App |
| Конектори за захранване | 24-pin main power connector, 6-pin ATX12V connector, 2 x 8-pin ATX12V connectors |
| Включени кабели | 1 x serial panel 8 x Serial ATA cable |
| Аксесоари |
I/O back plate
1 x M.2 screw 2-Way SLI Bridge vertical M.2 bracket set MOS cooling kit 3-Way SLI Bridge RGB Addressable LED extension cable Q-Connector 4-Way SLI Bridge |
| Ширина | 30.5 cm |
| Дълбочина | 26.7 cm |
| Други характеристики |
CrashFree BIOS
jack retasking ASUS Q-Design ESD Guards Q-DIMM ASUS EZ DIY Q-LED Q-Slot ASUS Q-Connector audio jack detect technology ASUS EPU (Energy Processing Unit) ASUS Q-Shield ASUS TPU (TurboV Processing Unit) Intel Smart Response Technology NVIDIA 4-way SLI Technology Support ASUS 8 Phase CPU Power Design ASUS DIGI+ Power Control ASUS 2 Phase DRAM Power Design AMD 4-way CrossFireX technology support ASUS Enhanced DRAM Overcurrent Protection Clear CMOS Button ASUS Stainless Steel Back I/O ASUS Fan Xpert 3 Dual Intelligent Processors 5 ASUS Overvoltage Protection ASUS Crystal Sound 3 Intel Turbo Boost Technology 3.0 Intel Optane Memory Ready ASUS 5X Protection III ASUS SafeSlot Core Intel VROC support ASUS PRO Clock II Technology ASUS Aura Sync |
| Гаранция | 36 месеца |
| Код на продукта | PRO WS X299 SAGE II |
Виж повече
Допълнителна информация
- Breakthrough performance
This high-end desktop platform raises the stakes with powerful processors that boast cores, cache, and bandwidth. The Pro WS X299 Sage II is ready for the additional processing power that plows through CPU-intensive tasks, and the extra bandwidth allows you to add more GPUs and NVMe SSDs to accelerate a wide range of work. - Four dual-slot GPUs support
Pro WS X299 Sage II fits up to four dual-slot graphics cards and supports both NVIDIA SLI and AMD CrossFire 4-way configurations to enable multi-GPU setups that harness the full power of the latest graphics technologies. - Make your memory go faster
With optimized trace paths for time-aligned signaling and minimal crosstalk, ASUS T-Topology offers enhanced memory stability and compatibility, allowing support for fast memory speeds. - Advanced Internet
2.5G onboard Ethernet kicks your Ethernet connection up a notch with bandwidth improvement. Using your existing Ethernet cable, you can take advantage this networking upgrade to experience smoother, lag-free gaming, immediately stream high-resolution videos and enjoy faster file transfers. - Tune it your way
Comprehensive controls form the foundation of the ASUS X299. The Pro WS X299 Sage II packs flexible tools to tune every aspect of your system to deliver the performance that you desire. - AI Overclocking
ASUS AI Overclocking makes automatic tuning faster and smarter than ever before. It profiles the CPU and cooling to predict the optimal configuration for each individual system. - Cool to the core
Effective cooling is extremely important, even at stock speeds. That is why the Pro WS X299 Sage II allows consolidated cooling control of the entire system, even for the most hardcore rigs. It comes equipped with onboard heatsinks, an array of fan headers, the Fan Extension Card II, options for water pump and AIO headers. - Outshine your competition
A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB headers. And it can all be synced with an ever-growing portfolio of Aura-capable ASUS hardware.
