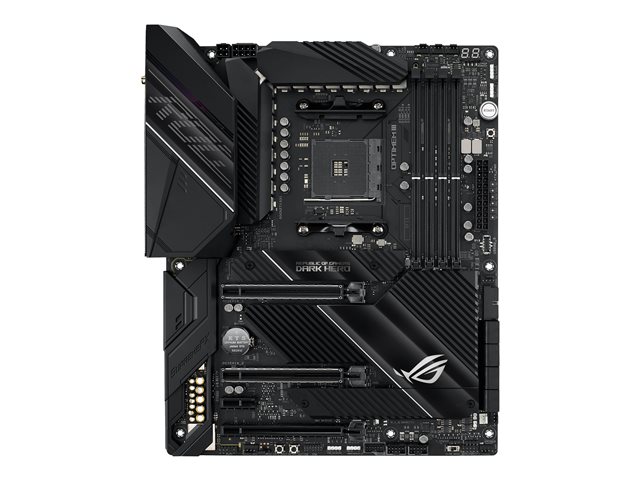

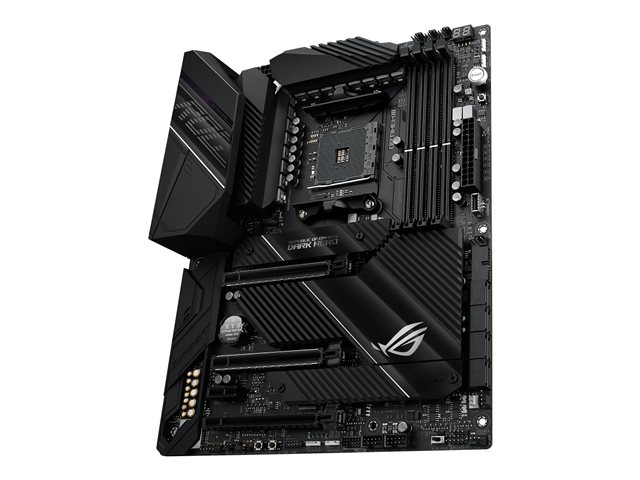

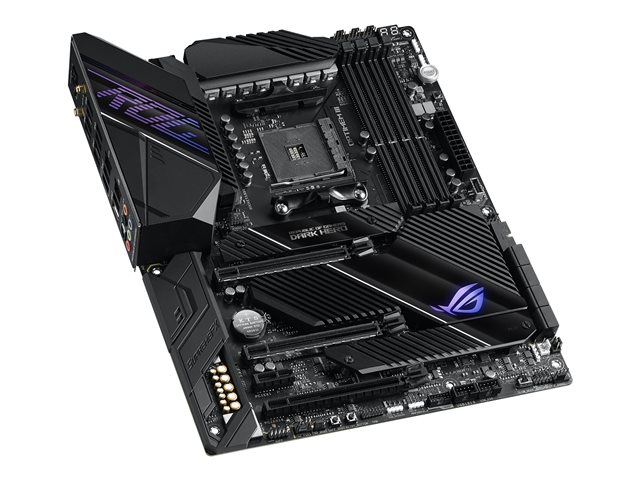

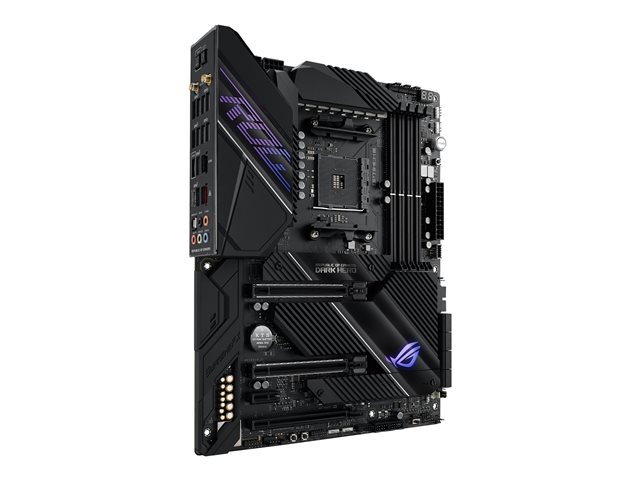

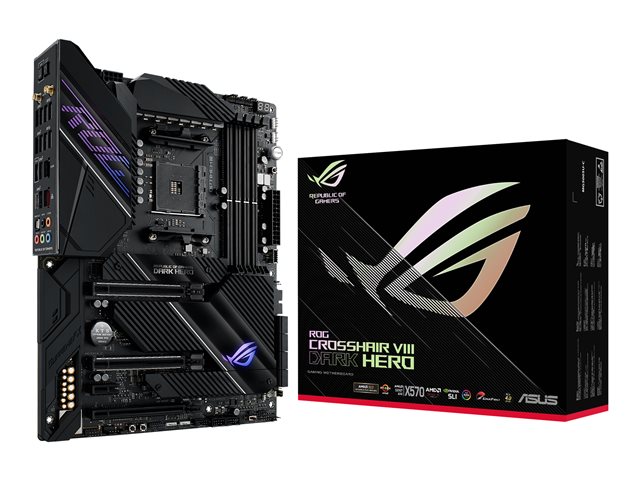

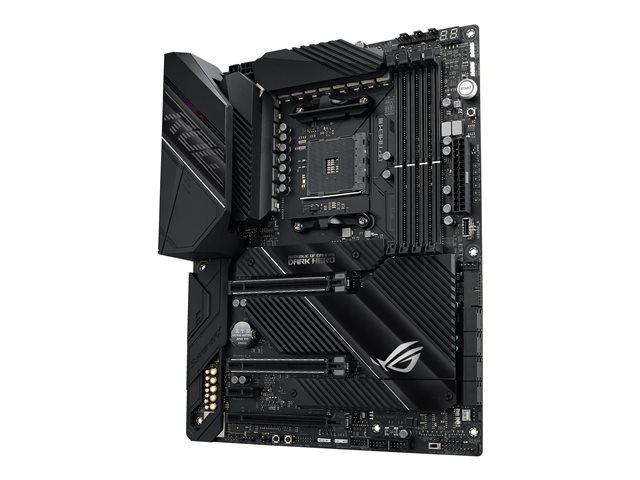

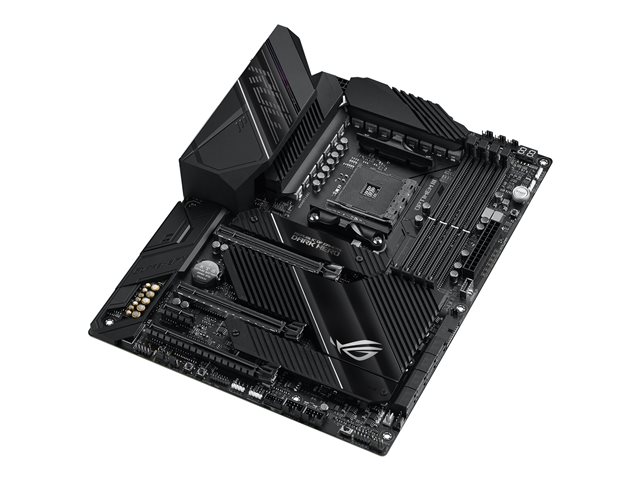

Дънна платка ASUS ROG CROSSHAIR VIII DARK HERO AMD X570 ATX gaming motherboard with PCIe 4.0 16 WiFi 6 802.11ax 2.5Gbps USB 3.2 SATA M.2 RGB 90MB1760-M0EAY0
изчерпано
Сокет: AM4
Чипсет: AMD X570
Тип на паметта: DDR4
Физически размер: ATX
Слотове за памет: 4
Честота на паметта: 3200 MHz
Гаранция:
0.0
от 5.0
(0)
Купи и събери
6 точки
Плати по-лесно и сигурно с
Виж всички продукти на Asus
Пазарувай по марка
Характеристики
| Физически размер | ATX |
| Чипсет | AMD X570 |
| Сокет | AM4 |
| Съвместими процесори | Ryzen (supports 2nd and 3rd Generation Ryzen / 1st, 2nd and 3rd Generation Ryzen with Radeon Graphics) |
| BIOS |
WfM 2.0 support
USB BIOS Flashback UEFI BIOS SMBIOS 3.2 support ACPI 6.2 support |
| Тип BIOS | AMI |
| Тип на паметта | DDR4 |
| Честота на паметта | 3200 MHz |
| ECC support | ECC |
| Memory Registered / Buffered | Unbuffered |
| Слотове за памет | 4 |
| Максимална памет | 128 GB |
| Брой процесорни гнезда | 1 |
| Дисков интерфейс | SATA-600 -connectors: 8 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 SATA-600 / PCIe 4.0 -connectors: 2 x M.2 |
| LAN порт | Gigabit Ethernet, 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.1 |
| LAN controller | Intel I211-AT / Realtek RTL8125-CG / Intel AX200 |
| Звук | SupremeFX |
| Звуков изход | HD Audio (8-channel) |
| Аудио стандарти | High Definition Audio |

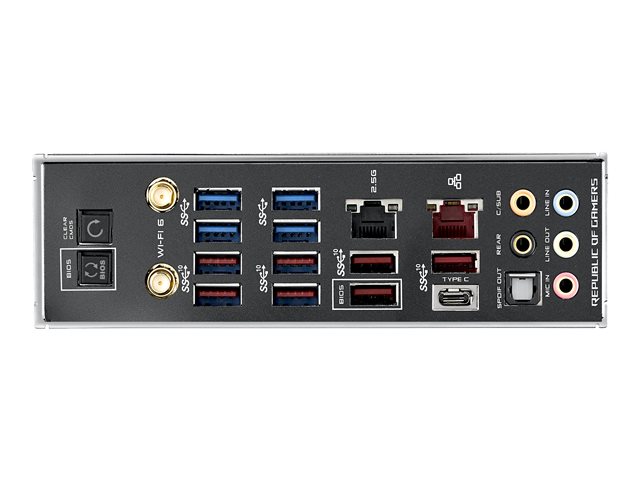

| Портове | 1 x LAN (Gigabit Ethernet) 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x microphone - mini-jack 1 x TOSLINK 4 x USB 3.2 Gen 1 7 x USB 3.2 Gen 2 1 x audio line-out (center/subwoofer) - mini-jack 1 x audio line-out (rear) - mini-jack 1 x LAN (2.5Gigabit Ethernet) 1 x USB-C Gen2 |
| Разширителни слотове | 1 x CPU 4 x DIMM 288-pin 2 x PCIe 4.0 x16 (PCIe 4.0 x16/x0, x8/x8 modes (with 3rd Generation Ryzen CPU); PCIe 3.0 x16/x0, x8/x8, x8/x0 modes (with 2nd Generation Ryzen CPU and 3rd Generation Ryzen CPU with Radeon Graphics)) 1 x PCIe 4.0 x16 1 x PCIe 4.0 x1 |
| Вътрешен интерфейс | 4 x USB 2.0 - header 1 x USB 3.2 Gen 2 - header 2 x USB 3.2 Gen 1 - header 1 x audio - header |
| Wake on LAN | Wake on LAN (WOL) |
| Функции | Dual channel memory architecture |
| Софтуер | Drivers & Utilities |
| Конектори за захранване | 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector |
| Включени кабели | 4 x Serial ATA cable |

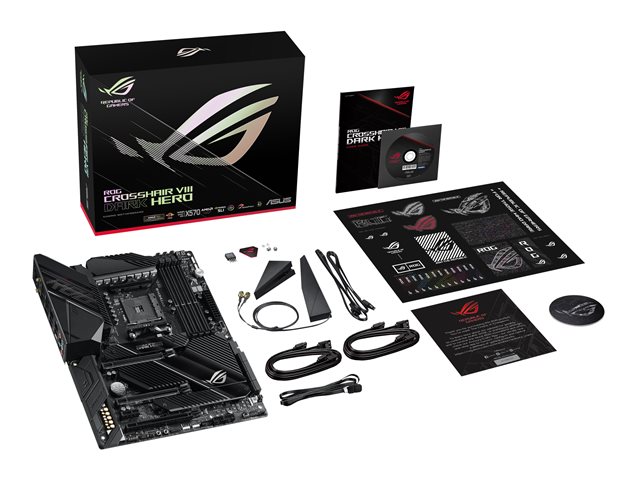

| Аксесоари |

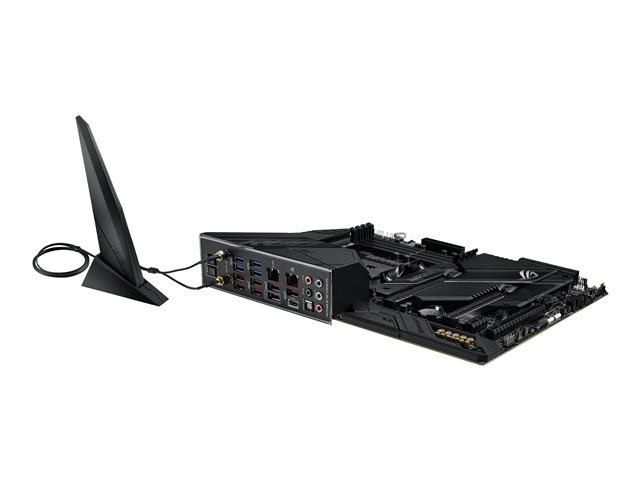

External antenna
1 x M.2 screw ROG coasters RGB (RGBW) LED strip extension cable ROG big sticker ROG thank you card RGB Addressable LED extension cable Q-Connector |
| Ширина | 30.5 cm |
| Дълбочина | 24.4 cm |
| Други характеристики |
Jack retasking
ASUS Q-Design Q-DIMM Q-LED Q-Slot ASUS Q-Connector audio jack detect technology NVIDIA 3-way SLI Technology Support Q-Code SupremeFX Shielding technology AMD CrossFireX technology support AMD 3-way CrossFireX technology support Preboot eXecution Environment (PXE) anti-pop function LANGuard ESS ES9023P |
| Гаранция | 36 месеца |
| Код на продукта | 90MB1760-M0EAY0 |
Виж повече
Допълнителна информация
- ASUS Optimem III
Infused with proprietary memory trace layout tweaks that improve signal integrity and mitigate noise, Optimem III allows memory kits to run at lower latencies, reduced voltages, and operate at higher frequencies. Stack the Dark Hero with your favorite modules and maximize Zen 3 processors throughput for applications that demand massive bandwidth, or balance infinity fabric and memory performance for a diverse range of workloads. - Cooling
Maintaining system stability is paramount under high load, so Crosshair VIII Dark Hero employs passive chipset cooling with large VRM and chipset heatsinks that strike the right balance between surface area and mass. - VRM heatsink
The two VRM heatsinks are placed above the MOSFETs and chokes, and are connected by a heat pipe to further increase surface area for heat dissipation. - M.2 heatsink
Two dedicated heatsinks keep the dual M.2 SSDs at the optimum operating temperature for consistent performance and reliability. - High-conductivity thermal pad
A high-quality thermal pad improves overall heat transfer from the system by bridging the heat generated by the power stages to the heatsink. - Passive chipset heatsink
A dedicated chipset heatsink draws heat away to maintain optimum operating temperatures. - Optimization
ROG Crosshair VIII Dark Hero is packed with intuitive and flexible tools to allow customization across all system parameters to deliver the performance you want. - Accurate voltage monitoring
Conventional motherboards use single-ended sensing tapped from a location that isn't ideal, leading to a large disparity between the actual voltage fed to the CPU and the value reported to software. ROG Crosshair VIII Dark Hero features a differential-sensing circuit and delicate IC that simplify overclocking and tuning by allowing you to track voltages more accurately. - Personalize
In addition to extraordinary performance, ROG Crosshair VIII Dark Hero provides extensive styling and customization options to let you build a system that truly stands apart.
