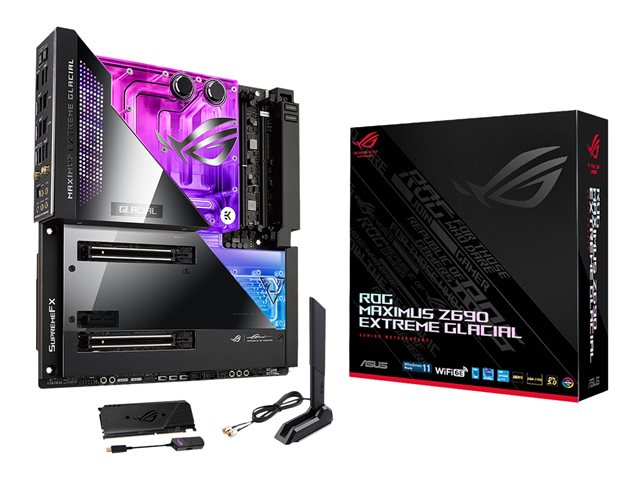

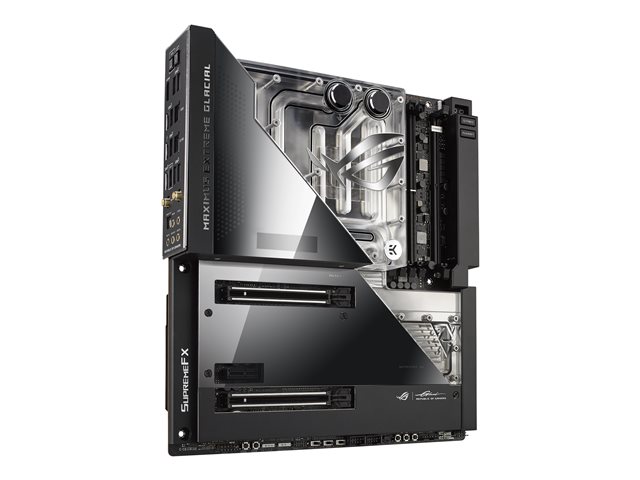

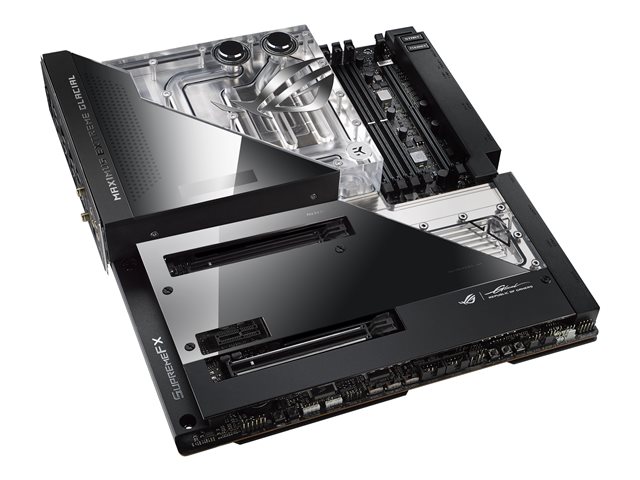

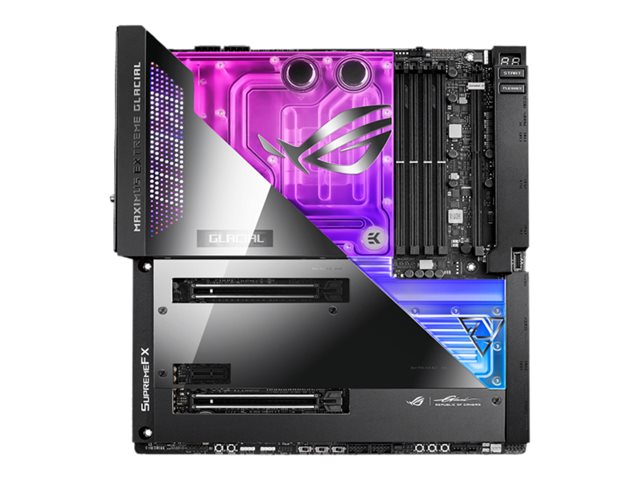

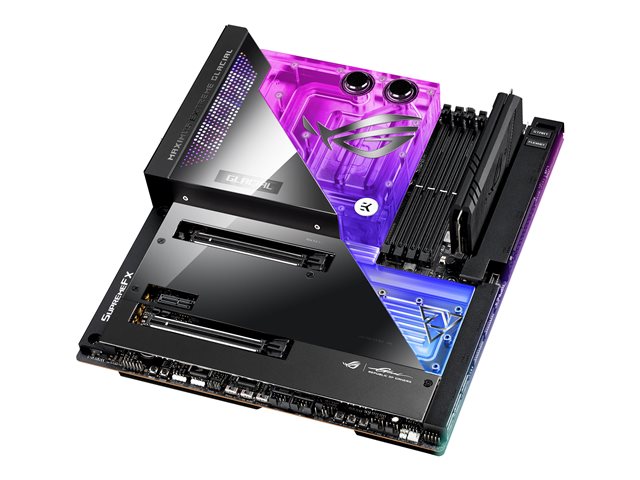

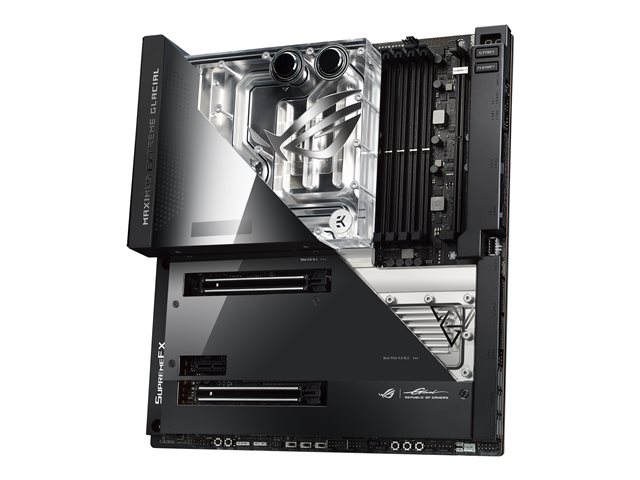

Дънна платка ASUS ROG MAXIMUS Z690 EXTREME GLACIAL LGA 1700 ROG MAXIMUS Z690 EXTREME GLACIAL
изчерпано
Сокет: LGA 1700
Чипсет: Intel Z690
Тип на паметта: DDR5
Физически размер: Extended ATX
Слотове за памет: 4
Честота на паметта: 4800 MHz
Гаранция:
0.0
от 5.0
(0)
Купи и събери
25 точки
Плати по-лесно и сигурно с
Виж всички продукти на Asus
Пазарувай по марка
Характеристики
| Физически размер | Extended ATX |
| Чипсет | Intel Z690 |
| Сокет | LGA 1700 |
| Съвместими процесори | (supports 12th Generation Intel Core / Pentium Gold / Celeron) |
| BIOS |
UEFI BIOS
ASUS EZ Flash 3 BIOS FlashBack MemTest86 Dual BIOS |
| Тип BIOS | AMI |
| Тип на паметта | DDR5 |
| Честота на паметта | 4800 MHz |
| ECC support | Non-ECC |
| Memory Registered / Buffered | Unbuffered |
| Слотове за памет | 4 |
| Максимална памет | 128 GB |
| Брой процесорни гнезда | 1 |
| Дисков интерфейс | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -connectors: 3 x M.2 - RAID 0 / RAID 1 / RAID 5 SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 5 SATA-600 -connectors: 2 x 7pin Serial ATA PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 5 |
| RAID | Intel Rapid Storage Technology |
| LAN порт | 10 Gigabit Ethernet, 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2 |
| Звук | SupremeFX (ALC4082) |
| Звуков изход | HD Audio (8-channel) |
| Аудио стандарти | High Definition Audio, DTS Sound Unbound |

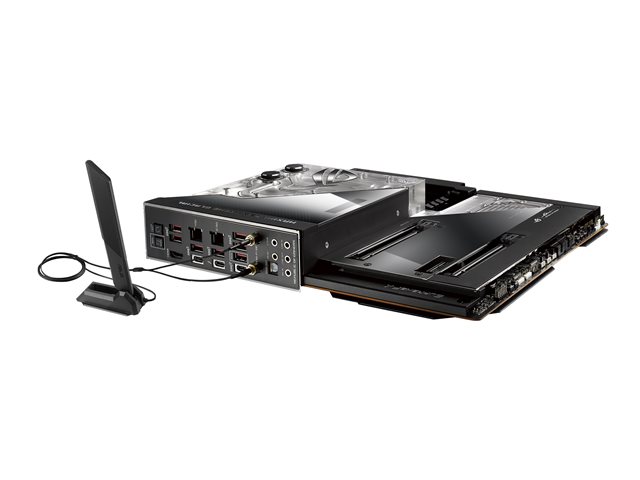

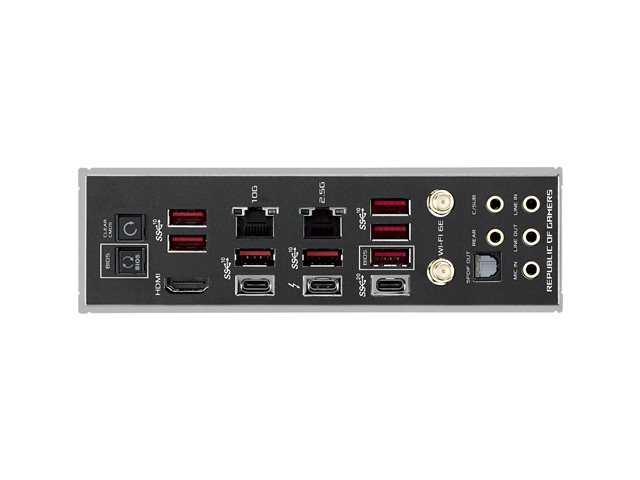

| Портове | 1 x Thunderbolt 4/USB4 1 x HDMI 7 x USB 3.2 Gen 2 1 x USB-C Gen2 1 x audio line-in - mini-jack 1 x audio line-out (center/subwoofer) - mini-jack 1 x audio line-out (rear) - mini-jack 1 x audio line-out - mini-jack 1 x microphone - mini-jack 1 x TOSLINK 1 x LAN (10Gigabit Ethernet) 1 x USB-C Gen2x2 1 x LAN (2.5Gigabit Ethernet) |
| Разширителни слотове | 1 x CPU 4 x DIMM 288-pin 2 x PCIe 5.0 x16 (dual x8 mode; single card: x16 mode) 1 x PCIe 3.0 x1 |
| Вътрешен интерфейс | 4 x USB 2.0 - header 1 x USB-C Gen 2x2 - header 4 x USB 3.2 Gen 1 - header 1 x Thunderbolt 4 - header 1 x audio - header |
| Wake on LAN | Wake on LAN (WOL), wake on PME |
| Функции | Dual channel memory architecture |
| Софтуер |
Drivers & Utilities
ROG GameFirst VI ROG CPU-Z Sonic Studio Virtual Mixer Sonic Suite Companion BullGuard Internet Security (1 year licence) AIDA64 Extreme (1 year licence) ASUS AURA Creator ASUS AI Suite III ASUS Turbo App WinRAR MyAsus ROG True Voltician |
| Конектори за захранване | 24-pin main power connector, 2 x 8-pin ATX12V connectors, 6-pin ATX12V connector |
| Включени кабели | 7 x Serial ATA cable |

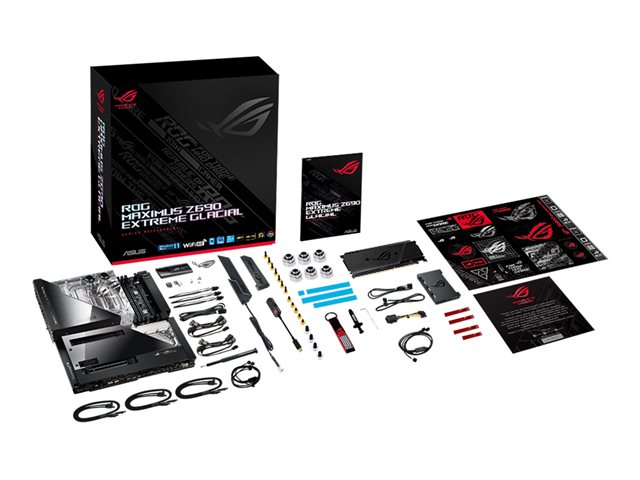

| Аксесоари |
1 to 3 ARGB LED splitter cable
1 to 2 ARGB LED splitter cable 2 x 1 to 4 fan splitter cable RGB (RGBW) LED strip extension cable 3 in 1 thermistor cables pack ROG Fan Controller ROG DIMM.2 expansion card with heatsink ROG True Voltician ASUS Wi-Fi moving aerial 1 x M.2 screw Q-Connector ROG CLAVIS DAC ROG VGA holder ROG key chain ROG fan stickers screwdriver ROG thank you card thermal pad for M.2 SSD |
| Ширина | 30.5 cm |
| Дълбочина | 27.7 cm |
| Други характеристики |
Intel Turbo Boost Technology 2.0
Intel Turbo Boost Max Technology 3.0 ASUS OptiMem III LANGuard audio jack detect technology jack retasking ESS SABRE9018Q2C DAC/AMP FlexKey button Start button ReTry button Safe boot button ASUS Extreme Engine Digi+ ASUS Q-Design M.2 Q-Latch PCIe Slot Q-Release Q-Code ASUS Q-Connector Q-DIMM Q-LED Q-Slot M.2 heatsink ASUS EZ DIY Clear CMOS Button ASUS ProCool II pre-mounted I/O shield ASUS SafeSlot SafeDIMM ASUS Aura Sync CPU Socket lever protector Quick Charge 4+ ASUS HYDRANODE ASUS 2" LiveDash OLED GameFirst VI Sonic Radar III Sonic Studio III Armoury Crate ASUS Fan Xpert 4 ASUS TPU (TurboV Processing Unit) ASUS EPU (Energy Processing Unit) ASUS DIGI+ VRM CrashFree BIOS 3 ASUS DIGI+ Power Control AniMe Matrix LED display 24+1 power stages DIY Friendly Design Preboot eXecution Environment (PXE) EK Ultrablock |
| Гаранция | 36 месеца |
| Код на продукта | ROG MAXIMUS Z690 EXTREME GLACIAL |
Виж повече
Допълнителна информация
- ROG X EK UltraBlock

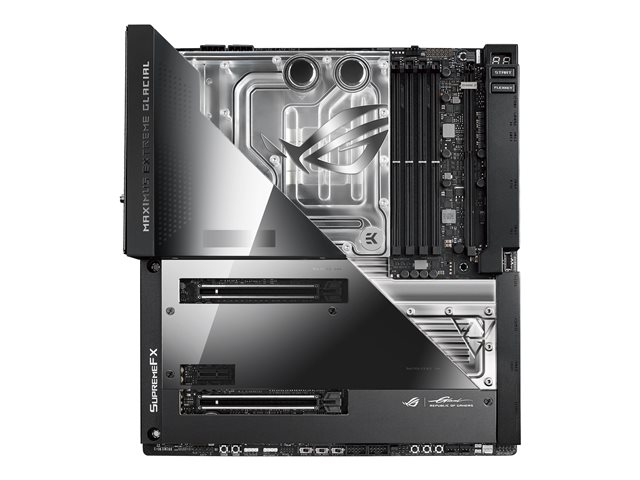

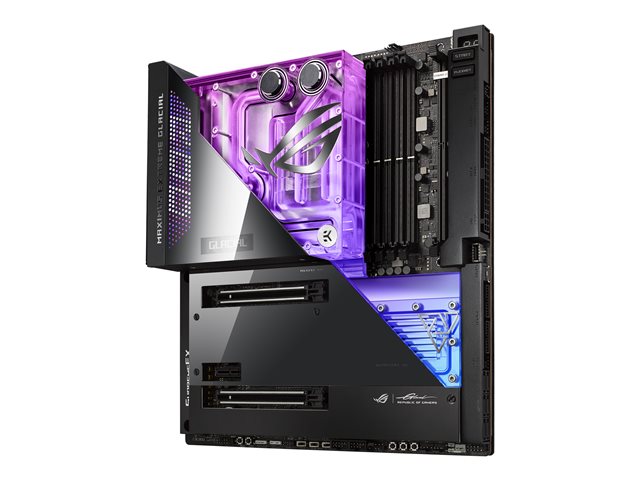

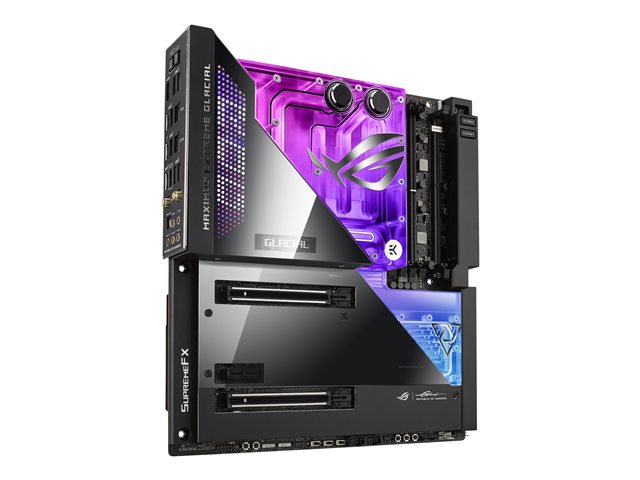

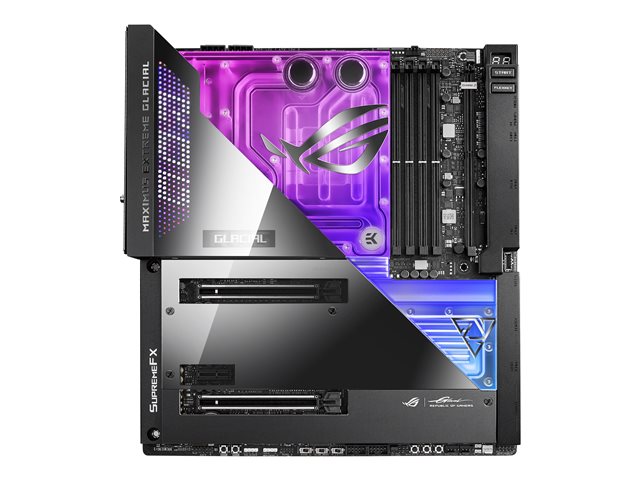

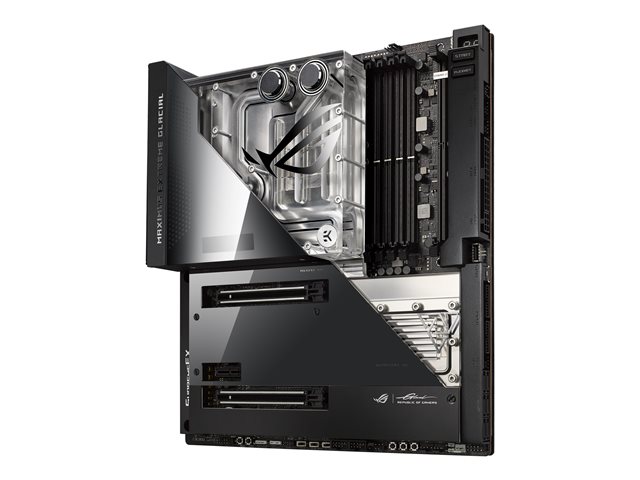

The Z690 Extreme Glacial UltraBlock is far more than a heatsink with water channels. This product of a close collaboration with industry leader EK Water Blocks is a complete solution for custom-loop motherboard cooling, covering the CPU, VRMs, onboard M.2 slots, PCH, and even the integrated LAN. EK Active Contact Cooling can keep M.2 drives at optimal temperatures, while 57 microfins swiftly channel water over the central processor. The ROG Water-Cooling Zone offers a sensor array that continually monitors coolant flow, temperatures, and seal integrity, and the PCH cooling block features a fin stack to enhance heat dissipation. Meanwhile, the UltraBlock has an aesthetic to match its performance, thanks to the AniMe Matrix display and a 2-inch OLED LiveDash that can display live system stats. - Cooler by design
ROG Maximus Z690 Extreme Glacial features comprehensive cooling options that are configurable via Fan Xpert 4 or the UEFI BIOS. Each header can be set to monitor and react to three user-configurable thermal sensors for workload-based cooling, and all settings can be easily managed by Fan Xpert 4 or via the UEFI. - ROG water-cooling zone
Dual water-temperature headers and a flow-rate header feed information straight into the AI Suite utility, allowing you to track coolant temperatures and the flow rate of the entire loop. A dedicated header can supply over 3 amps to a high-performance PWM or DC water pumps. - ROG Fan Controller
The ROG Fan Controller offers an additional six headers that can be controlled via FanXpert 4. The card features two temperature-sensor headers, along with two thermistors that can be attached to various components. There are also six ARGB headers to illuminate ARGB fans. - DDR memory optimization with AEMP
Comprehensive memory tuning options are the cornerstone of ROG motherboards. For DDR5, the Maximus Z690 lineup breaks performance limits by providing a stacked suite of overclocking parameters for not only high-speed kits, but even entry-level memory modules that have a locked power management IC (PMIC). - WiFi 6E
Onboard WiFi 6E technology takes advantage of the newly available radio spectrum in the 6 GHz band, providing up to three times the bandwidth of the 5 GHz band and up to seven 160 MHz bands to deliver ultrafast wireless networking speeds along with improved capacity and better performance in dense wireless environments. - Marvell Aqtion 10 Gbps Ethernet
Designed to meet the demanding requirements of power users and content creators, 10 Gbps onboard Ethernet provides a new level of home networking. With up to 10 times the bandwidth of standard gigabit Ethernet, you'll enjoy streaming uncompressed 4K UHD videos and system backups and file transfers that are faster than ever before. - Intel 2.5 Gb Ethernet
Onboard 2.5 Gb Ethernet gives your wired connection a boost, with up to a 2.5X improvement over standard Ethernet connections for faster file transfers, smoother lag-free gaming and high-res video streaming. - USB 3.2 Gen 2X2 front-panel connector with Quick Charge 4+
Quick Charge 4+ technology can rapidly charge devices at up to 60W with a PCIe power supply cable plugged into the nearby 6-pin connector. - Two Thunderbolt 4 USB-C ports
Each port delivers up to 40 Gbps of bidirectional bandwidth for the latest high-speed devices and drives. Thunderbolt 4 also supports up to two external 4K displays and extends PCIe bandwidth to up to 32 Gbps. - PCIe 5.0-ready
ROG Maximus Z690 Extreme Glacial is equipped with a PCIe 5.0 slot ideal for video cards and two PCIe 5.0 slots designed for M.2 drives, putting it on the cutting edge of GPU and storage device technology. - ROG DIMM.2
The ROG DIMM.2 module is an innovative expansion card that allows two M.2 drives to be connected via a DDR4 interface. You can then add a metal heatsink, helping to control thermals for maximum performance while elevating aesthetics. - SupremeFX
ROG SupremeFX audio technology delivers an exceptional 113 dB signal-to-noise ratio on the line-in connection to provide best-ever recording quality. There's also a low-dropout regulator for clean power delivery to the SupremeFX ALC4082 codec, and an ESS 9018Q2C integrated DAC. - Optimization
ROG Maximus Z690 Extreme Glacial features advanced automatic and interactive performance optimization, including the TurboV Processing Unit, digitally controlled voltage regulators, Fan Xpert 4 and core-specific application assignment. - Personalization
In addition to Aura Sync RGB customization, the ROG Maximus Z690 Extreme Glacial's VRMs and I/O cover are graced with an ASUS-exclusive design known as the AniMe Matrix Display, while a 2-inch OLED LiveDash can show live system information or user-customizable graphics.
