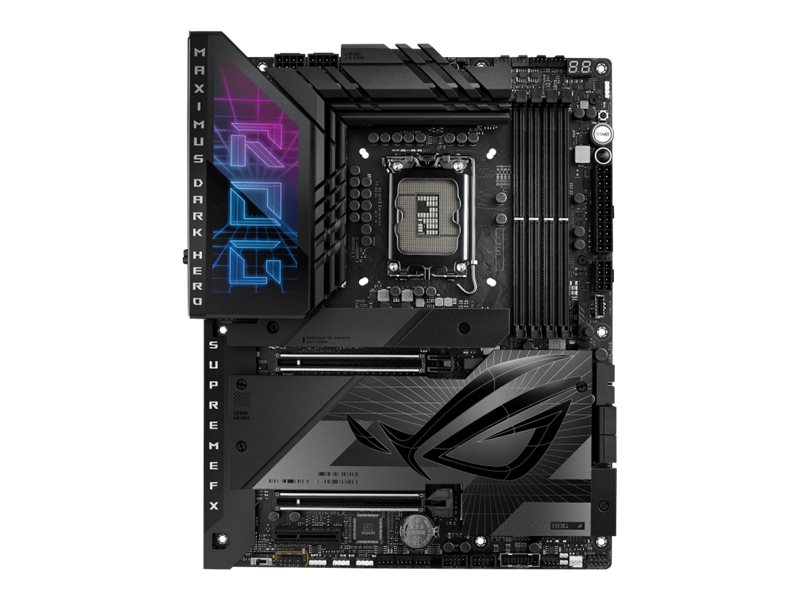

Дънна платка ASUS ROG MAXIMUS Z790 DARK HERO, LGA 1700, DDR5, ATX, Wi-Fi 7, AURA Sync RGB ROG-Z790-D-HERO
изчерпано
Сокет: LGA 1700
Чипсет: Intel Z790
Тип на паметта: DDR5
Физически размер: ATX - 30.5 x 24.4 cm
Слотове за памет: 4
Гаранция:
0.0
от 5.0
(0)
Купи и събери
16 точки
Плати по-лесно и сигурно с
Виж всички продукти на Asus
Пазарувай по марка
Характеристики
| Физически размер | ATX - 30.5 x 24.4 cm |
| Чипсет | Intel Z790 |
| Сокет | LGA 1700 |
| Съвместими процесори | 12-то Поколение Intel, 13-то Поколение Intel, 14-то Поколение Intel |
| BIOS | UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode |
| Тип BIOS | AMI |
| Тип на паметта | DDR5 |
| Dual channel | Да |
| ECC support | Non-ECC, on-die ECC |
| Memory Registered / Buffered | Unbuffered |
| Слотове за памет | 4 |
| Максимална памет | 192 GB |
| Брой процесорни гнезда | 1 |
| Дисков интерфейс | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5, PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5, PCIe 4.0 -connectors: 4 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| SATA | 6 x SATA 6Gb/s |
| M.2 slot | M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode), M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) |
| RAID | NVMe RAID 0/1/5, SATA RAID 0/1/5/10 |
| LAN порт | ASUS LANGuard, 1 x Intel® 2.5Gb Ethernet |
| Звук | SupremeFX Shielding Technology, Premium audio capacitors, Supports up to 32-Bit/384 kHz playback, Gold-plated audio jacks, ESS® SABRE9018Q2C DAC/AMP, ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082, Rear optical S/PDIF out port, High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) |
| Звуков изход | HD Audio (8-channel) |
| Аудио стандарти | High Definition Audio, DTS Sound Unbound |
| Портове | 1 x Clear CMOS button, 1 x Wi-Fi Module, 1 x HDMI, 1 x RJ-45, 1 x optical S/PDIF Out connector, 1 x BIOS Flashback Button, 5 x Audio jacks |
| Разширителни слотове | 1 x CPU, 4 x DIMM 288-pin, 1 x PCIe 5.0 x16, 1 x PCIe 5.0 x16 (auto turn-off if M.2 is occupied), 1 x PCIe 4.0 x4, 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot), 2 x M.2 socket (2242/2260/2280 M.2 Key M slot), 2 x M.2 socket (2280 M.2 Key M slot) |
| PCIe x4 | 1 |
| PCIe x16 | 2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes), 1 x PCIe 4.0 x16 slot (supports x4, x4/x4 modes) |
| Вътрешен интерфейс | 1 x USB-C 3.2 Gen 2x2 - header 4 x USB 3.2 Gen 1 - header 4 x USB 2.0 - header 1 x audio - header |
| Wake on LAN | Wake on LAN (WOL), wake on PME |
| Функции | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Софтуер | ROG CPU-Z, ROG GameFirst Utility, ASUS AI Suite III, ASUS Turbo App, PC Cleaner, Sonic Studio Virtual Mixer, BullGuard Internet Security (1 year licence), MemTest86, ASUS AURA Creator, AIDA64 Extreme (1 year licence), MyAsus, Armoury Crate, ASUS Fan Xpert 4, Adobe Creative Cloud (free trial), WinRAR (40 days trial), Intel Unison |
| Конектори за захранване | 1 x 24-pin Main Power connector, 2 x 8-pin +12V Power connector, 1 x 8-Pin PCIe Power connector |
| Стандарти | DisplayPort 1.4 |
| Включени кабели | 4 x Serial ATA cable |
| Аксесоари | Thermal pad for M.2 SSD, Q-Connector, ROG key chain, 1 x M.2 rubber package, USB drive, ROG stickers, ROG VIP card, 3 x M.2 backplate Q-Latch, 3 x M.2 backplate rubber package, ASUS Wi-Fi Q-antenna, DDR5 fan holder, ARGB RGB extension cable |
| Ширина | 30.5 cm |
| Дълбочина | 24.4 cm |
| Други характеристики | ASUS Q-Design, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, ASUS Extreme Engine Digi+, CrashFree BIOS 3, Intel Turbo Boost Technology 2.0, Q-Code, Preboot eXecution Environment (PXE), Clear CMOS Button, LANGuard, Lighting Control, ASUS SafeSlot, ASUS SafeDIMM, M.2 heatsink, Water Pump Header, pre-mounted I/O shield, Intel Turbo Boost Max Technology 3.0, ASUS Aura Sync, MicroFine Alloy Chokes, 10K Black Metallic Capacitors, FlexKey button, ASUS ProCool II, M.2 Q-Latch, 20+1+2 Phase Power Design, ReTry button, Start button, PCIe Slot Q-Release, CPU Socket lever protector, VRM heatsink design, BIOS FlashBack button, metal backplate, ASUS Enhanced Memory Profile (AEMP) II, M.2 heatsink backplate, Q-Antenna, Q-Connector |
| Гаранция | 36 месеца |
| Код на продукта | ROG-Z790-D-HERO |
Виж повече
Допълнителна информация
- ROG overclocking technologies
Psyche up and engage the Dark Hero overclocker in you, with onboard intelligence to scan, predict, and adapt CPU performance parameters, and tools to command and track system vitals. - Differential sensing
Conventional motherboards use single-ended sensing tapped from a location that isn't ideal, leading to a large disparity between the actual voltage fed to the CPU and the value reported to software. The ROG Maximus Z790 Dark Hero features a differential-sensing circuit and delicate IC that simplify overclocking and tuning by allowing you to track voltages more accurately. - Teamed power architecture
Today's CPU architectures place incredible demands on motherboard power design by transitioning from deep power-saving modes, going from lower-power mode to full load in an instant. The latest ROG VRM architecture rises to the challenge by utilizing teamed power stages to rapidly swing current, while maintaining exemplary thermal performance. - Thermal performance
Each VRM component serves a specific purpose. PWM controllers and phase-doublers control the circuit, and the power stages do the heavy lifting from an electrical and thermal standpoint. The power stages feature low RDSON to reduce switching and conduction losses, helping to improve overall thermal headroom. - VRM and aluminum I/O heatsink
A VRM heatsink on the MOSFETs and chokes is connected to the aluminum I/O cover via an embedded heatpipe to increase mass and surface area for dissipation. - M.2 heatsinks and backplates
Large aluminum heatsinks provide extensive surface area to cool mounted M.2 drives, and each of the three onboard slots has a dedicated backplate for additional heat dissipation. - 2.5Gb Ethernet
Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard 2.5Gbps Ethernet. - PCIE slot Q-release
A physical button unlocks the first PCIe slot's security latch with one tap, greatly simplifying the process of detaching a PCIe card from the motherboard when it's time to upgrade to a new GPU or other compatible device.
