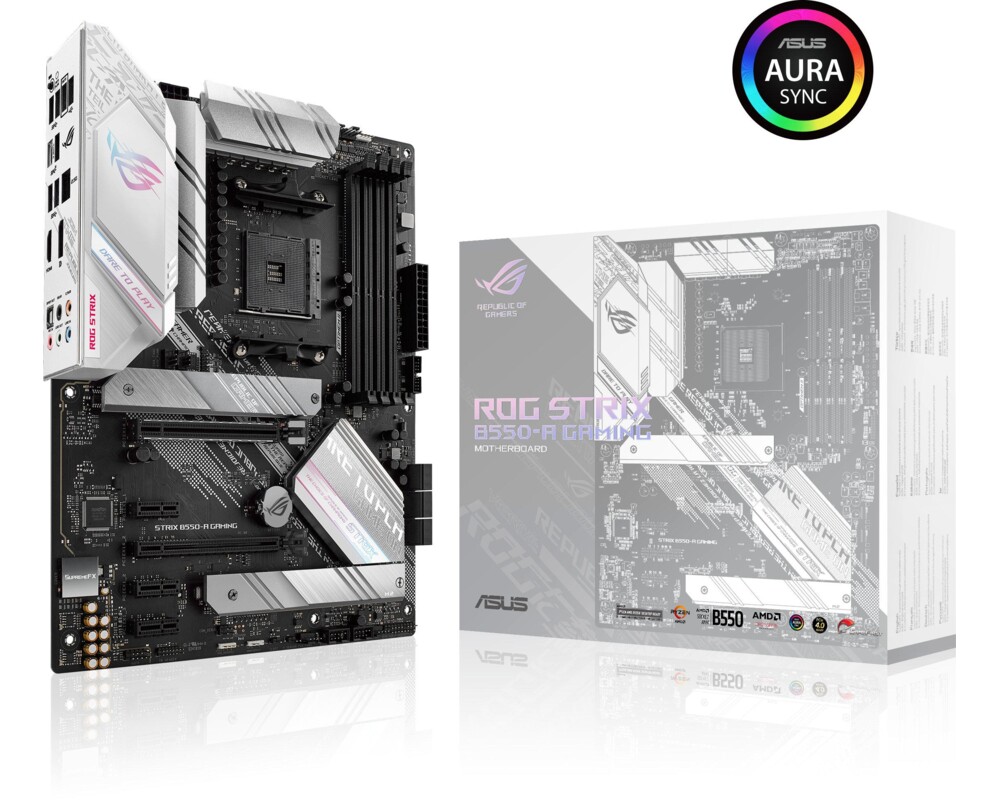

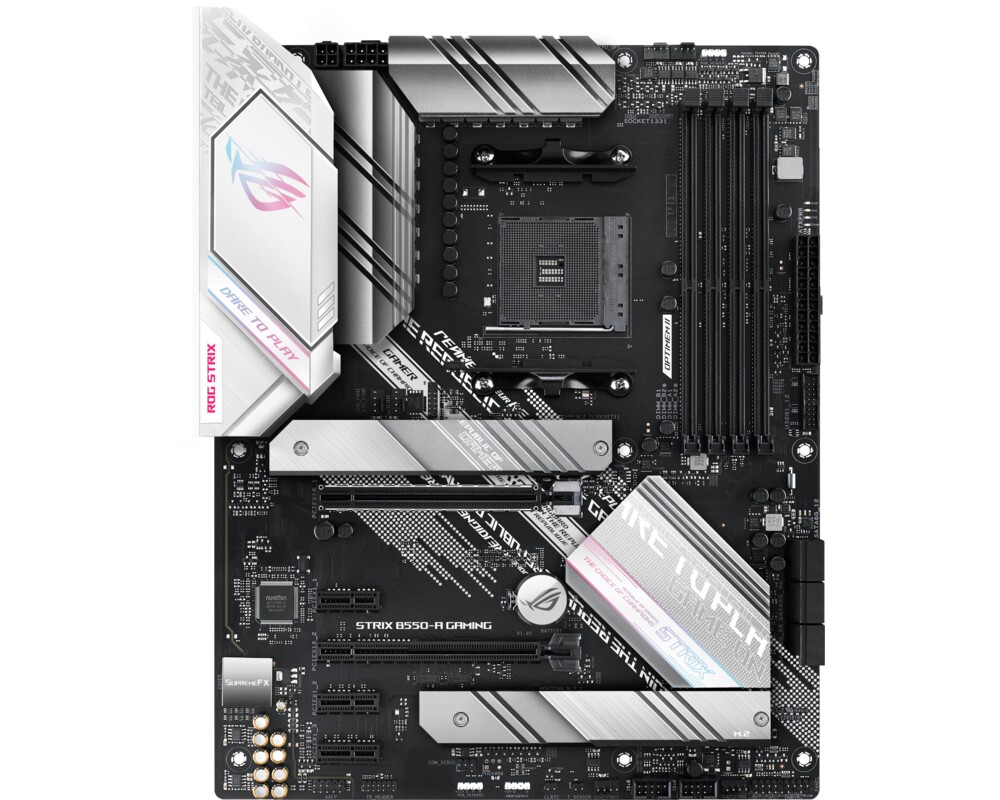

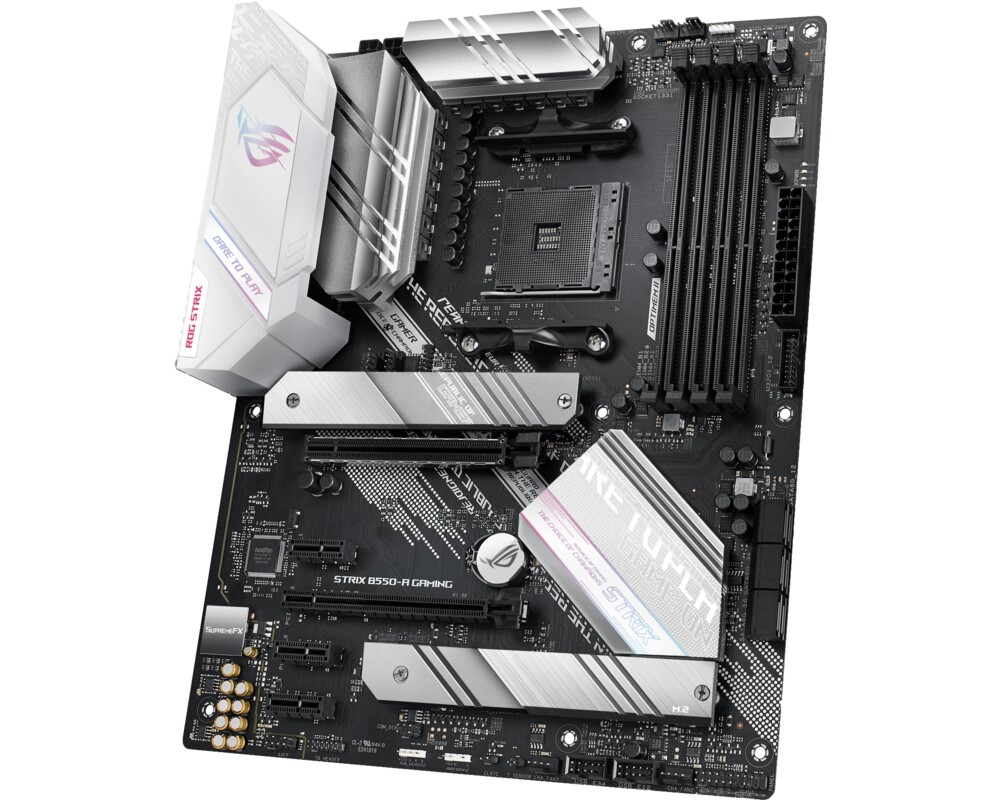

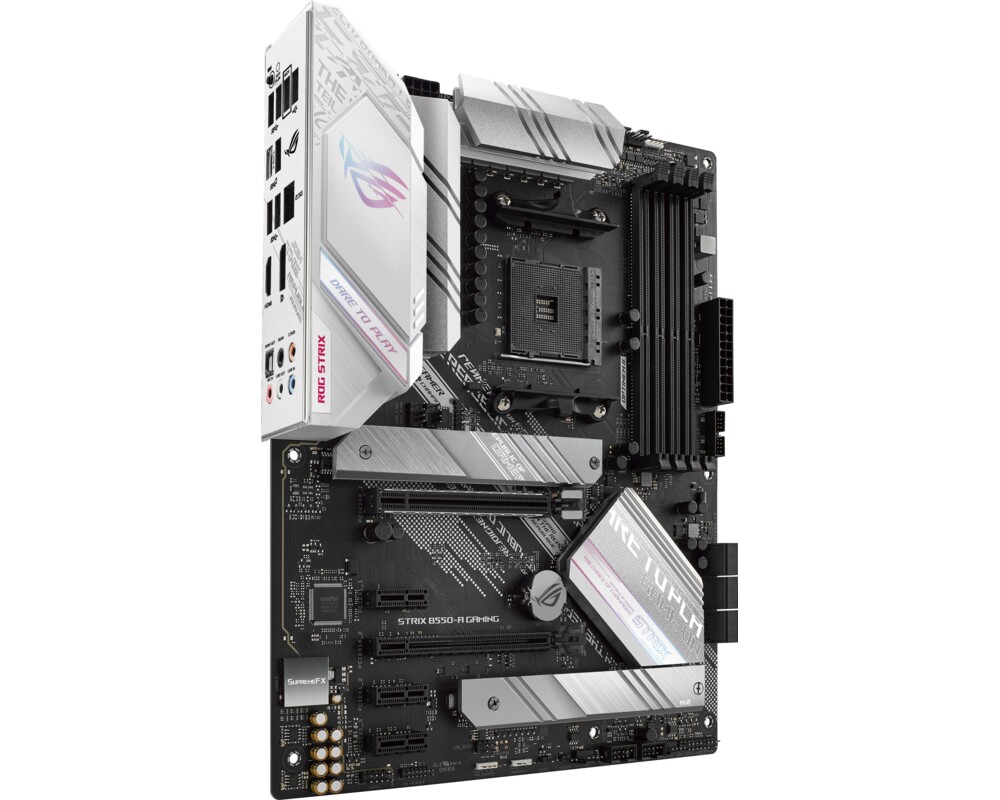

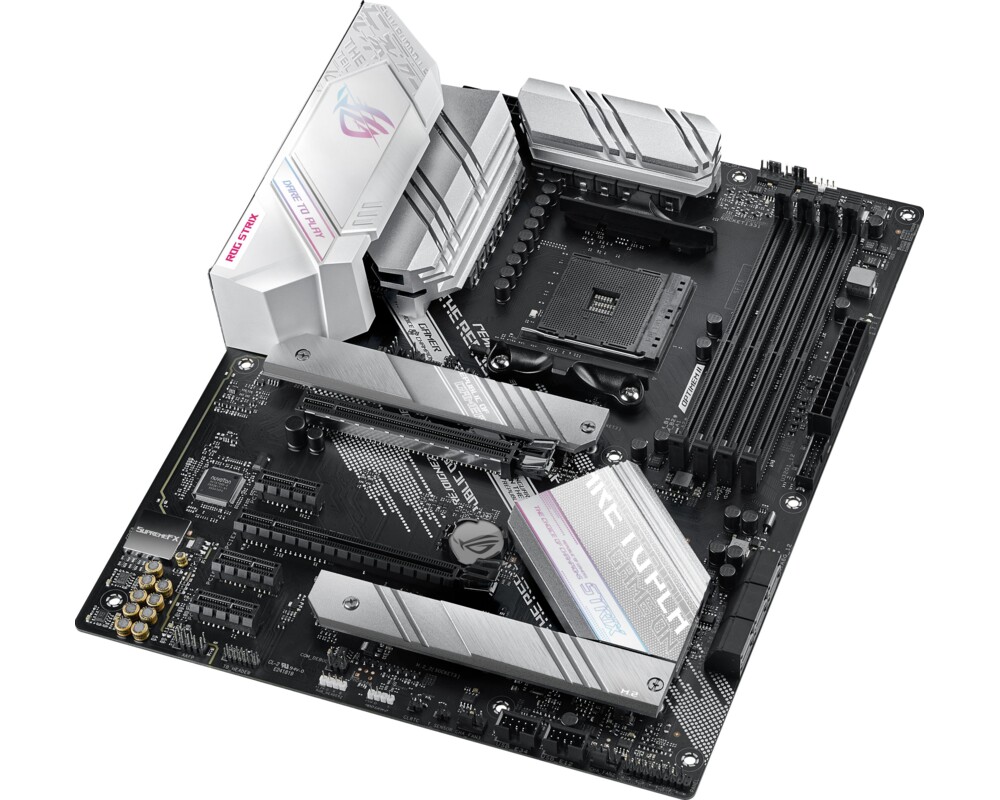

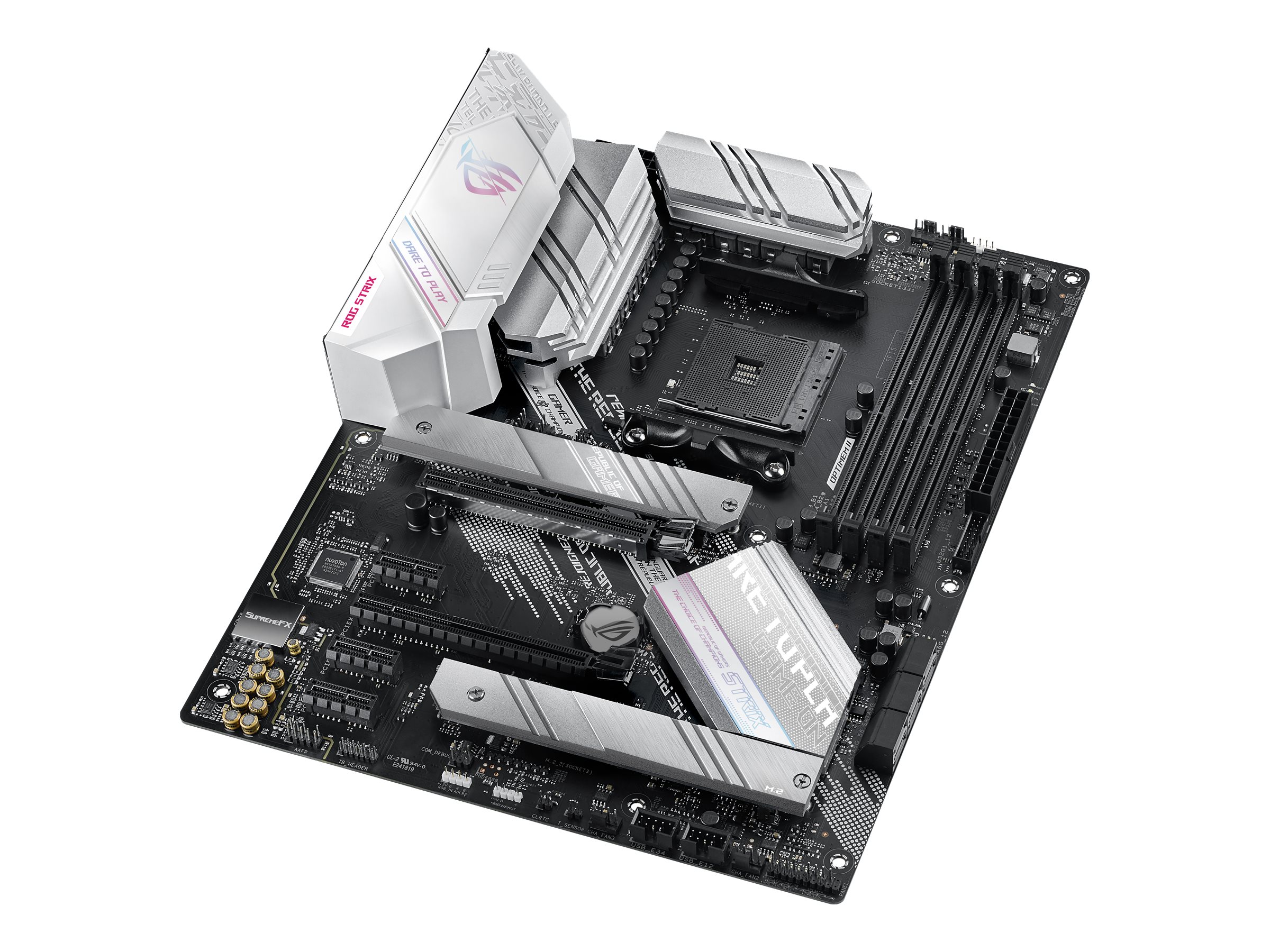

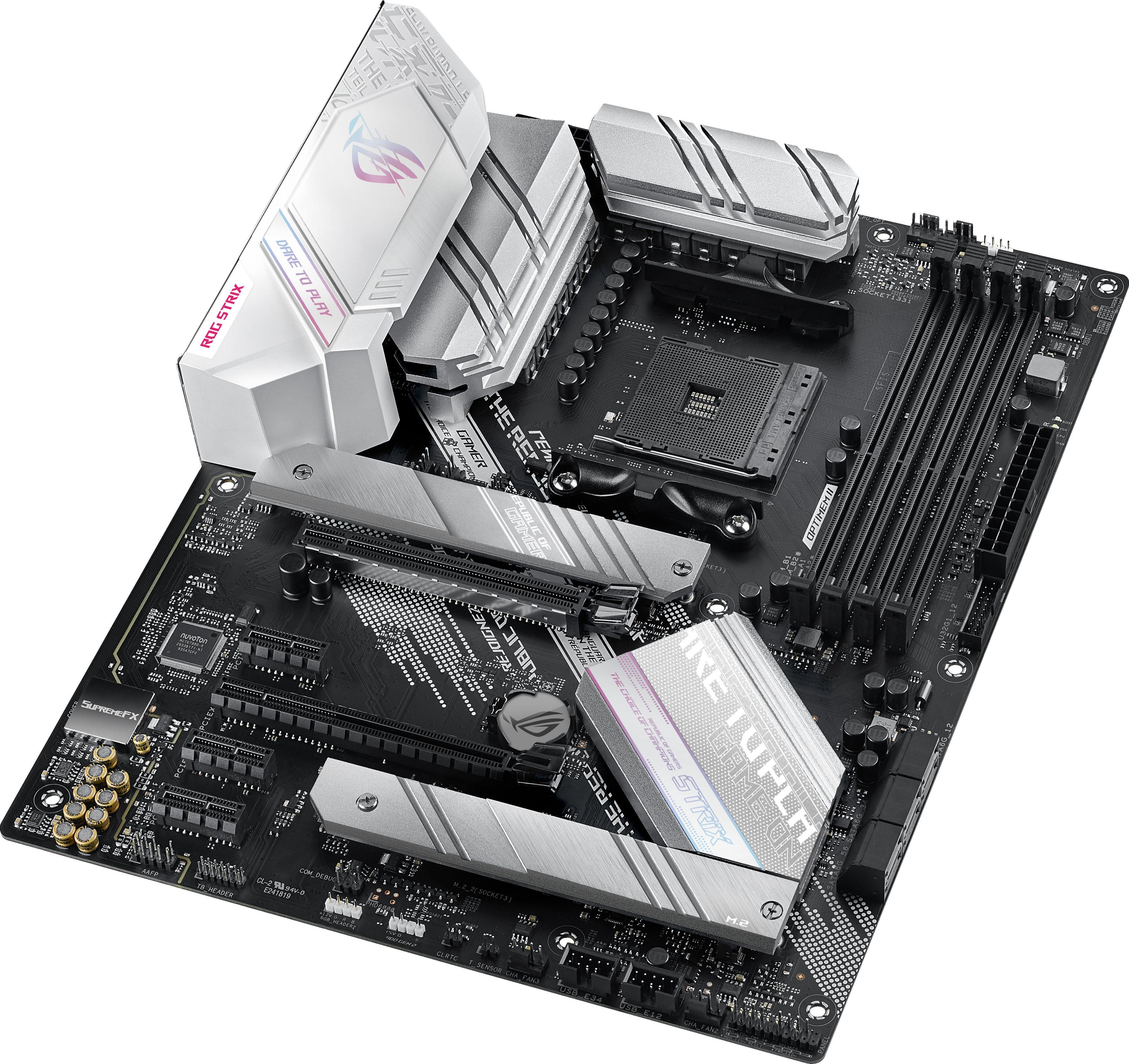

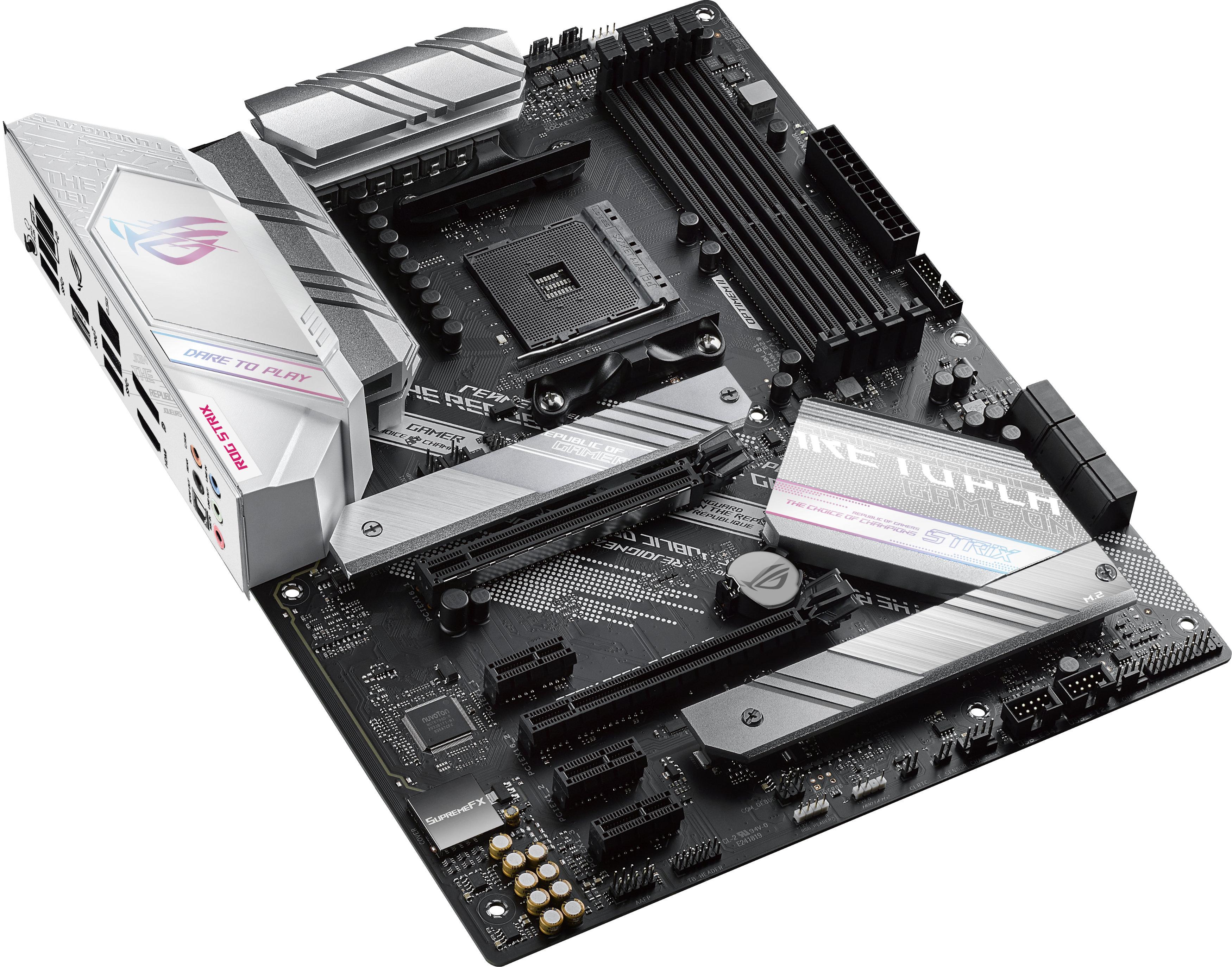

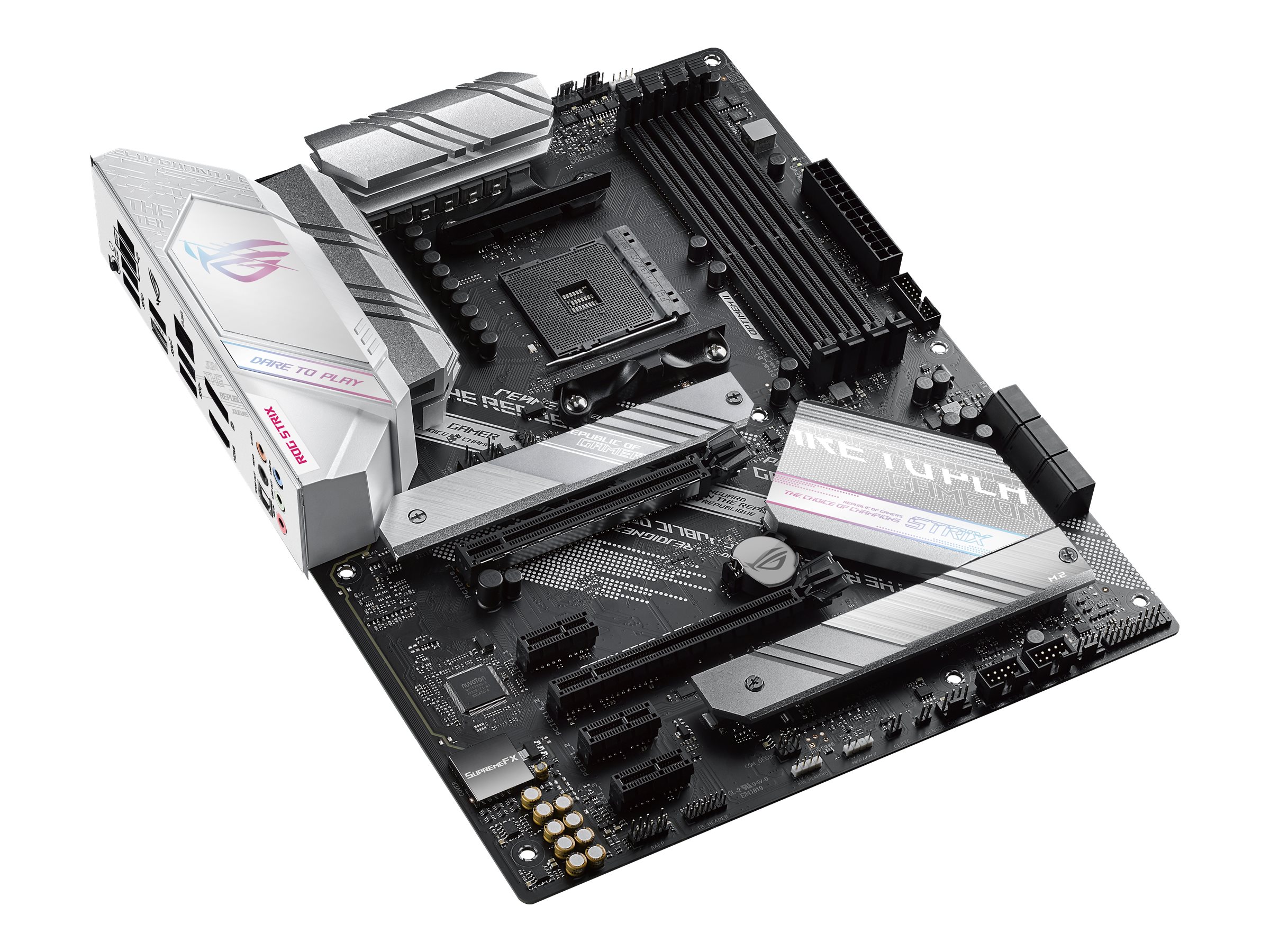

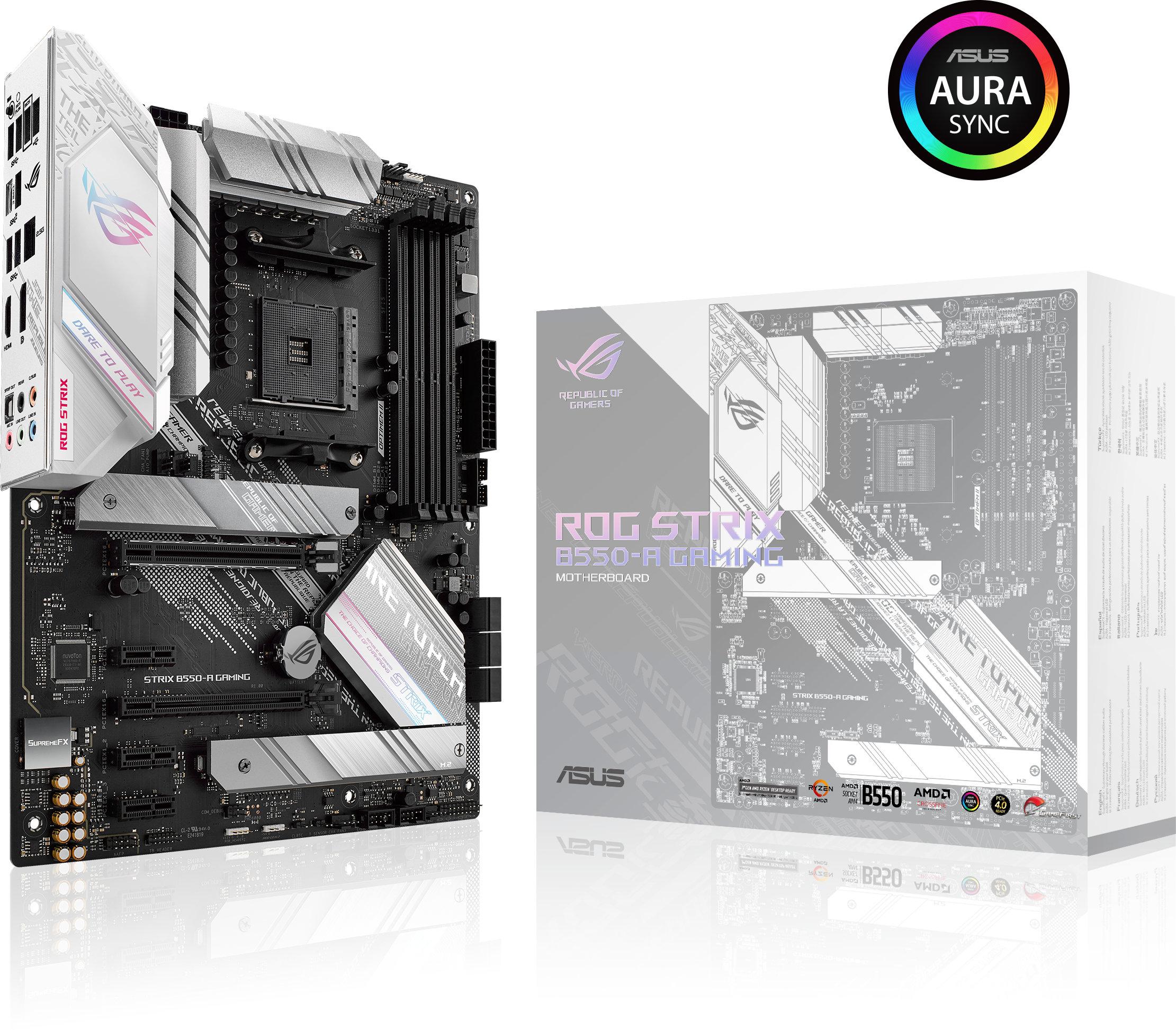

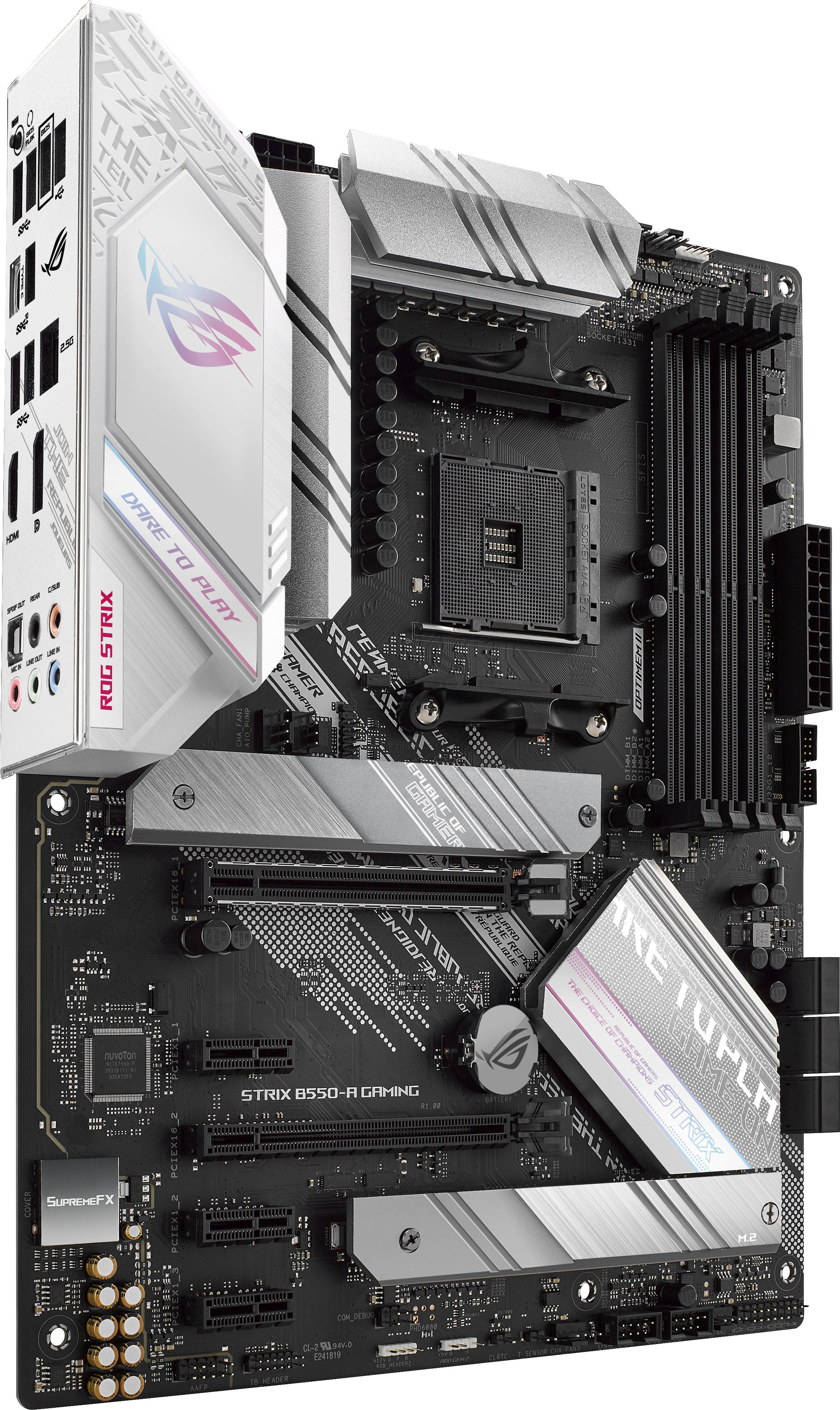

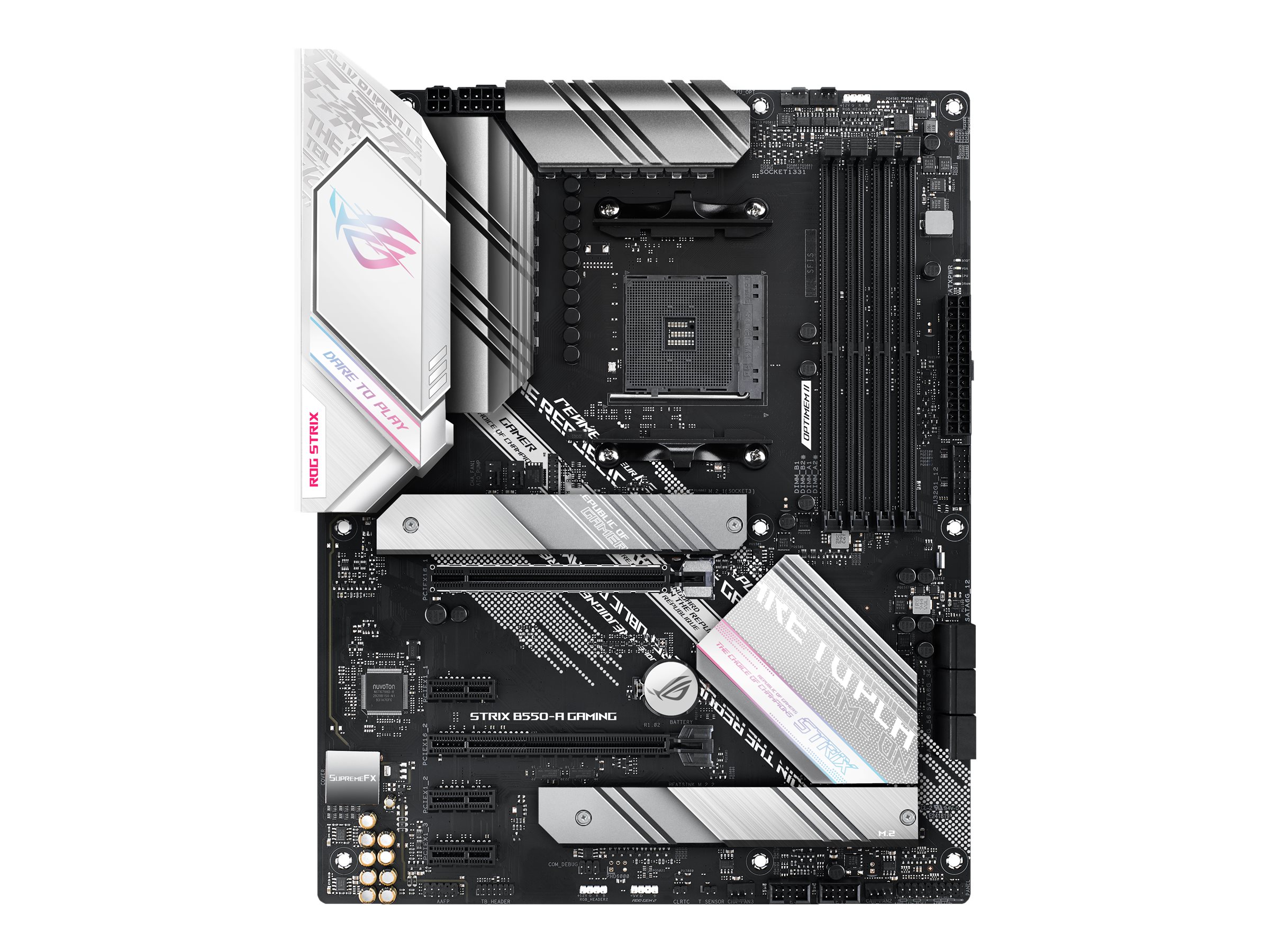

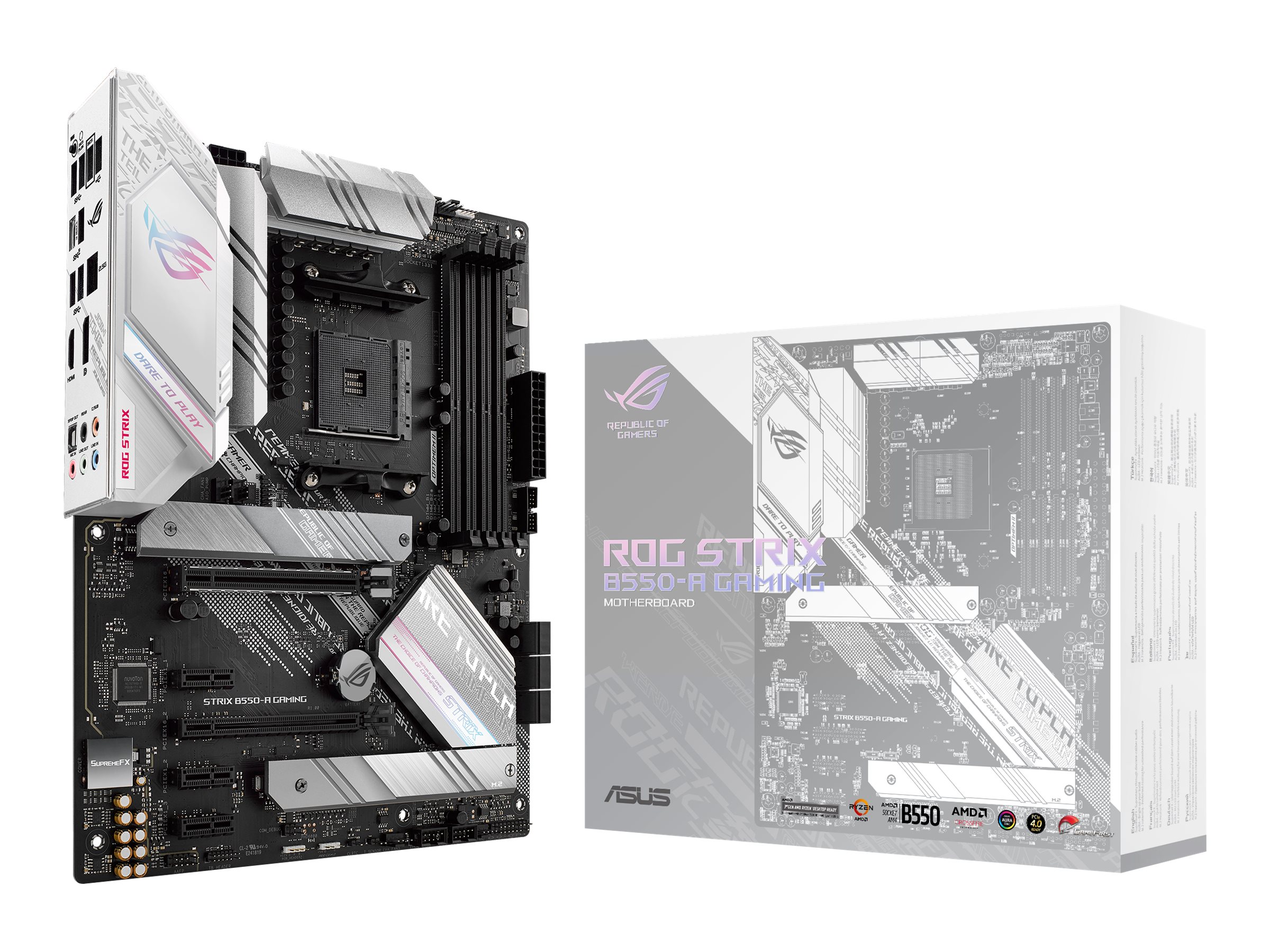

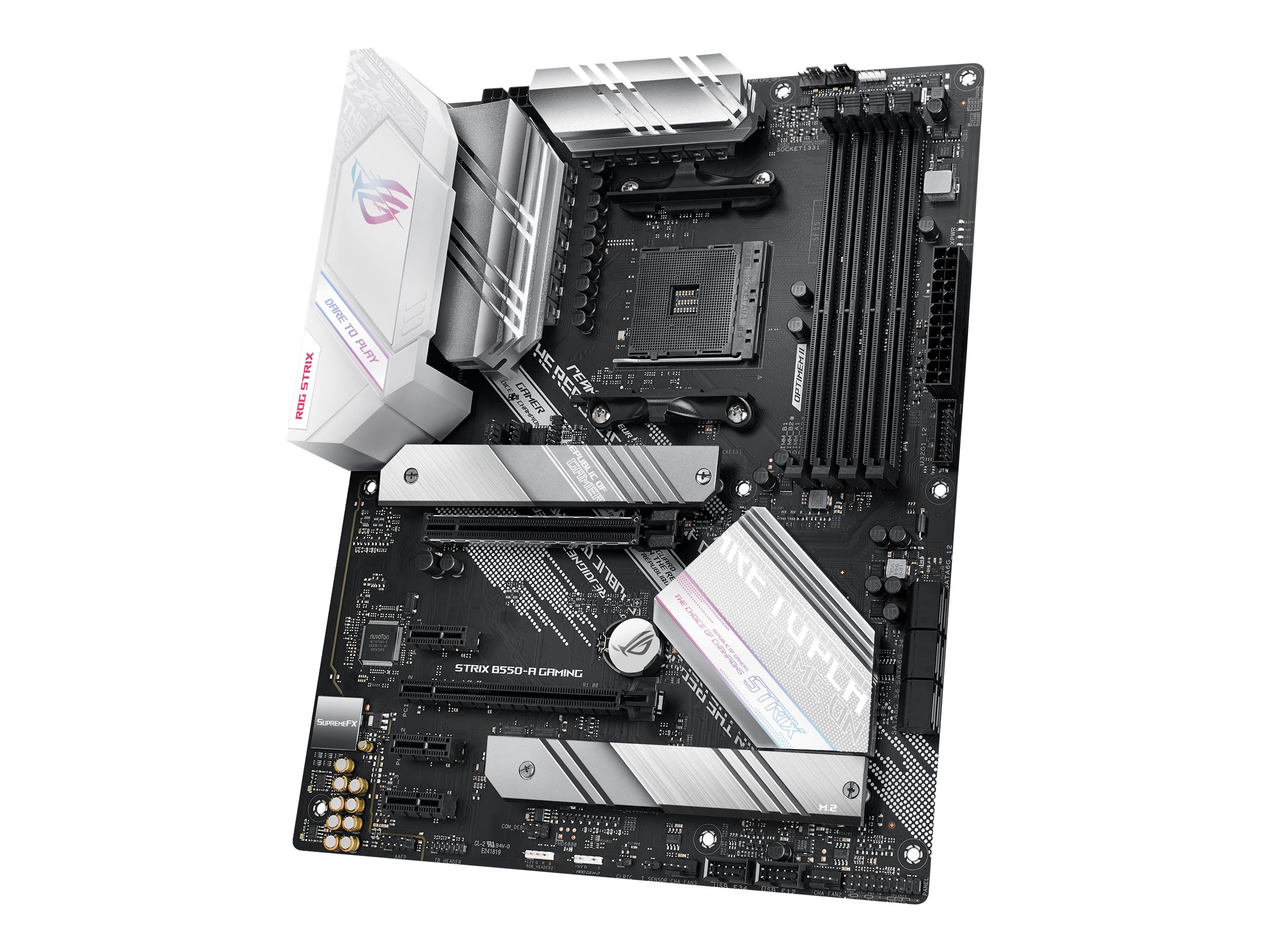

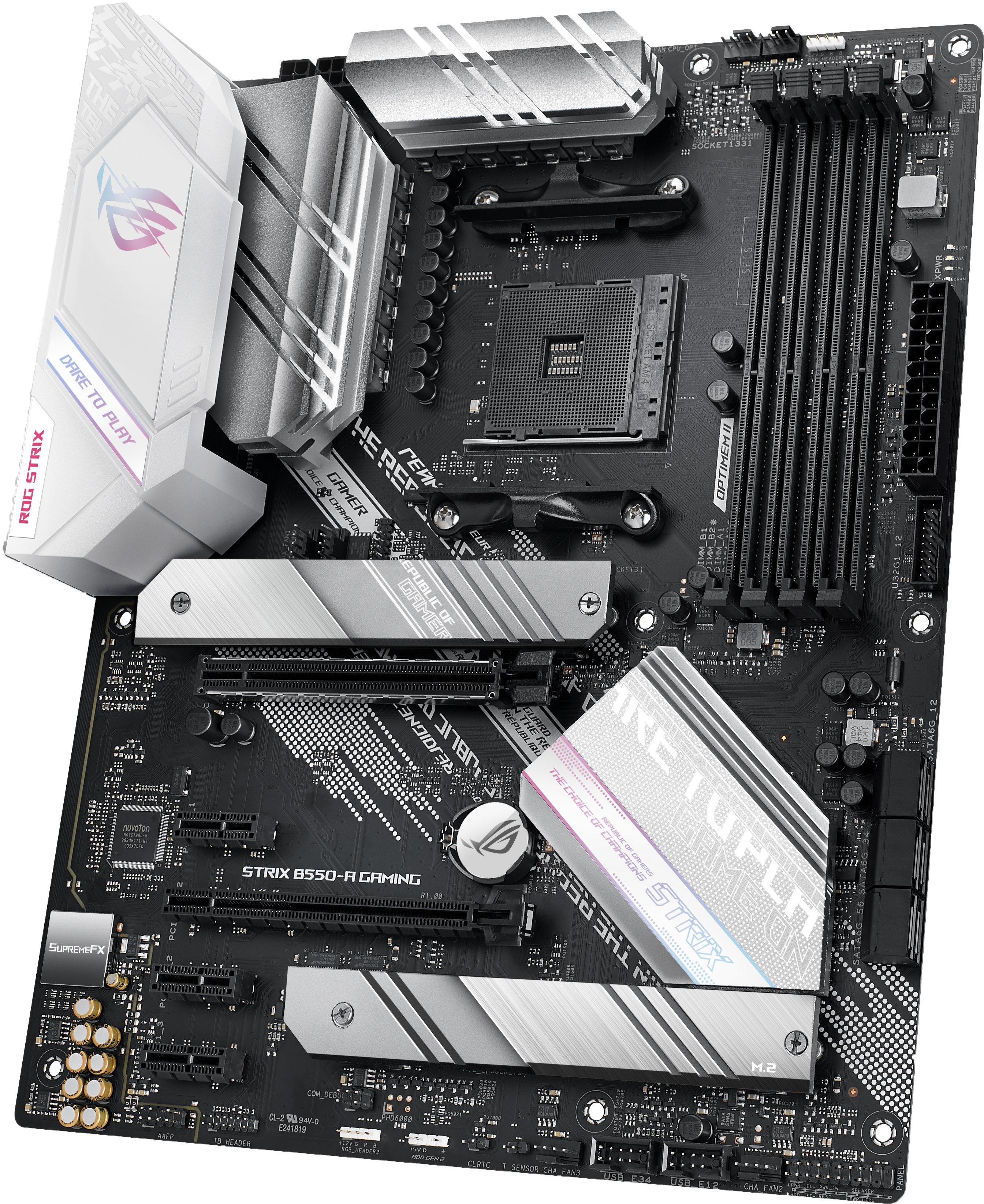

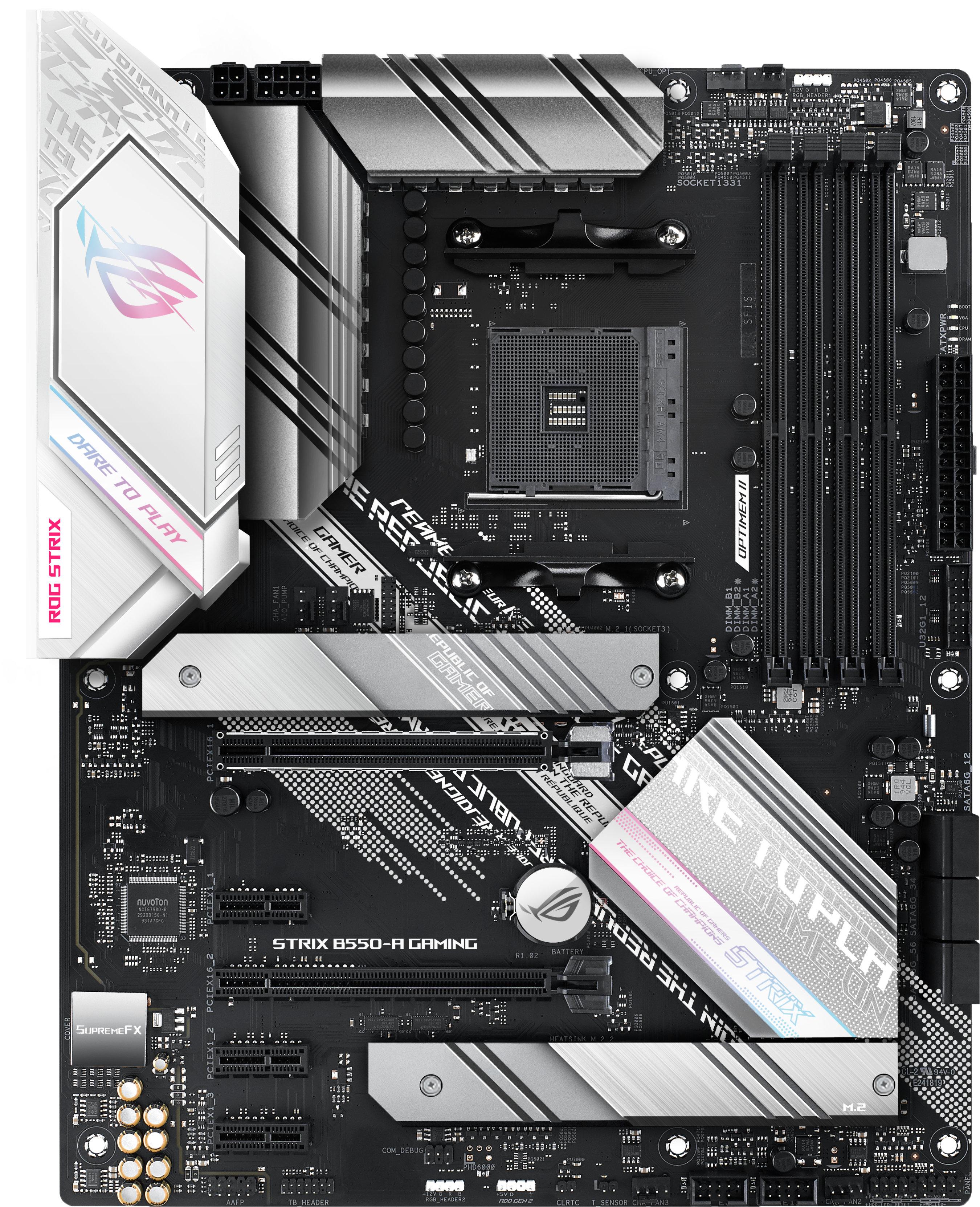

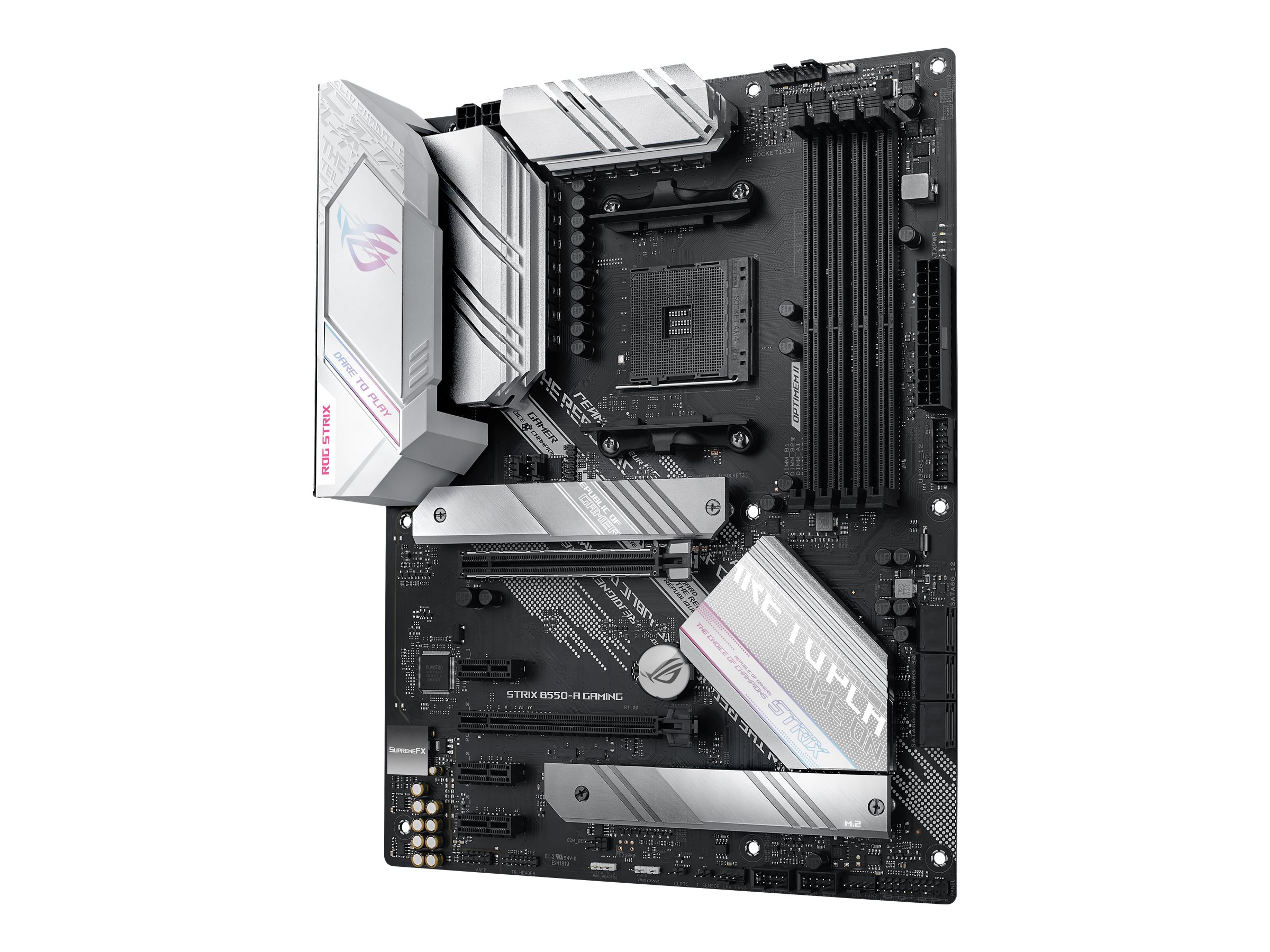

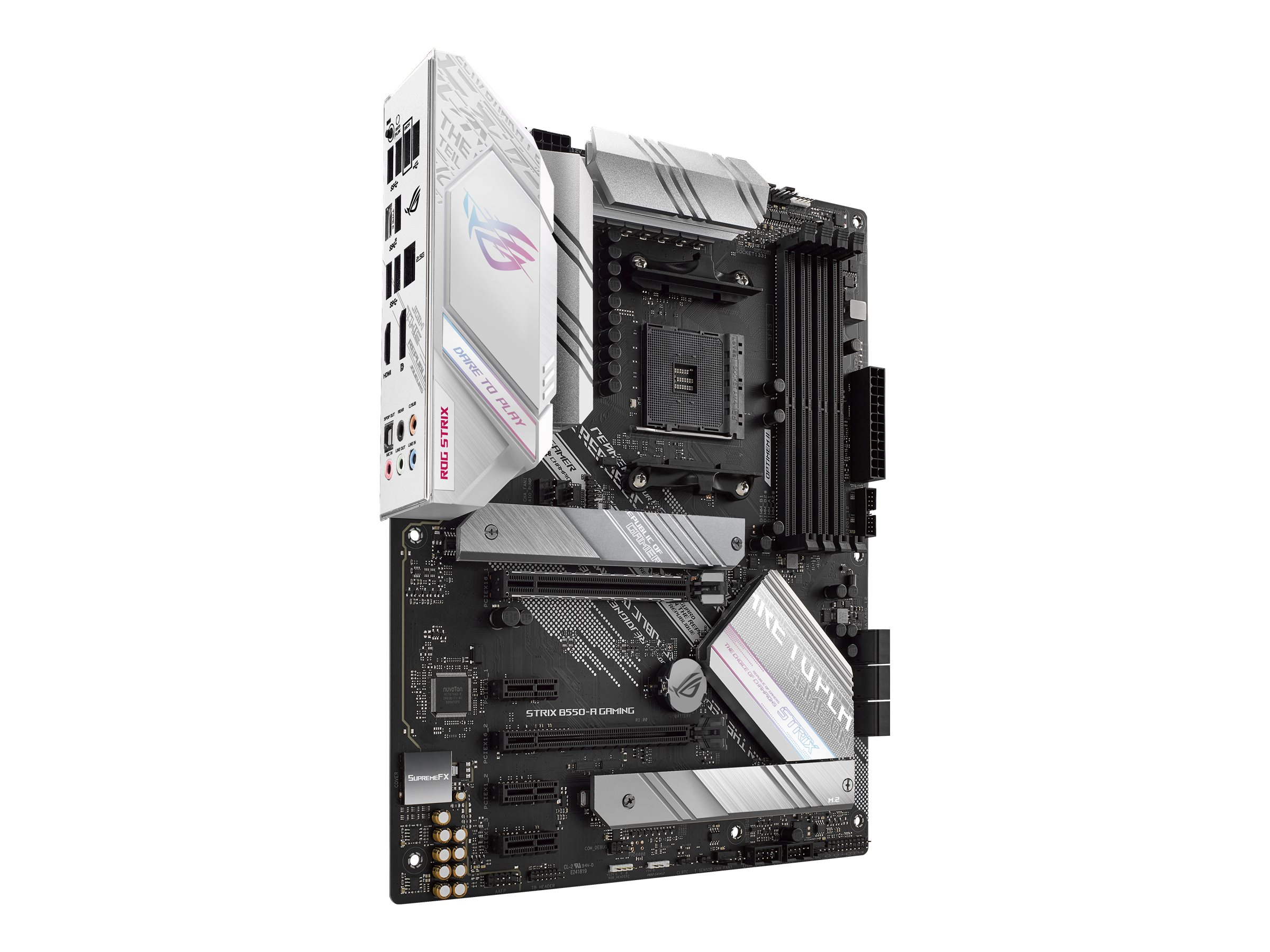

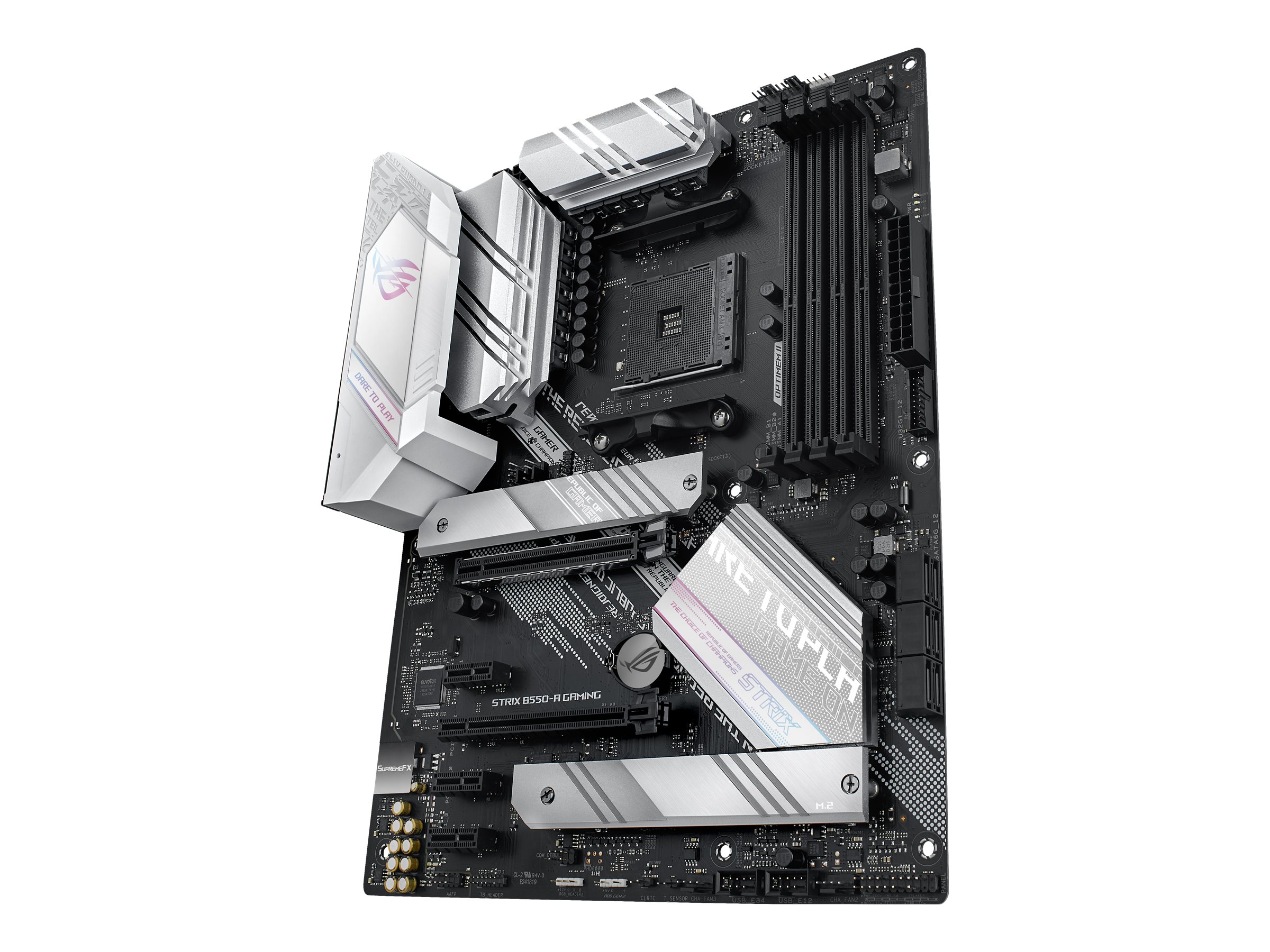

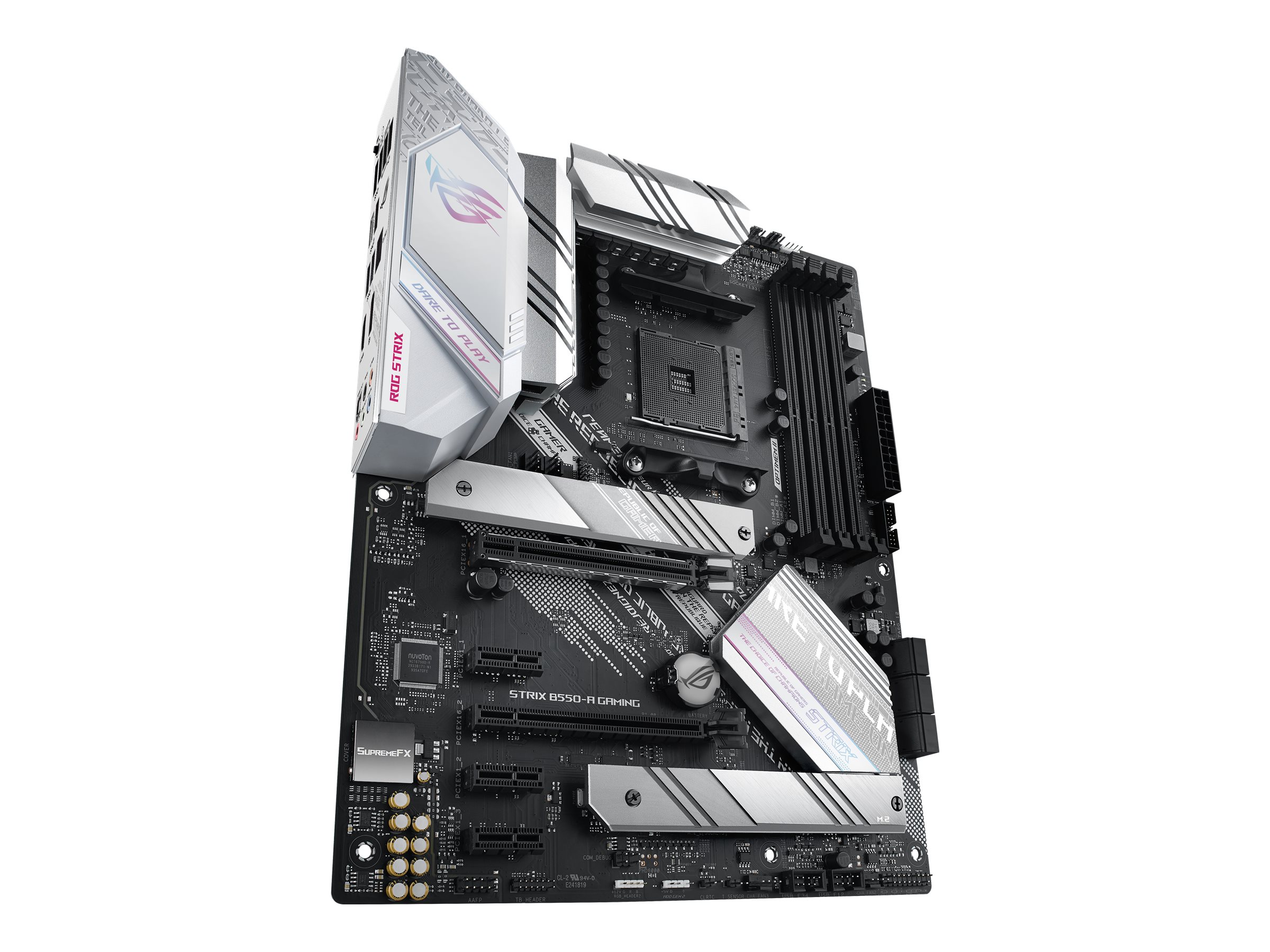

Дънна платка ASUS ROG STRIX B550-A GAMING AM4 B550 USB3.2 M.2 SATA MB ROG STRIX B550-A GAMING
Виж всички продукти на Asus
| Физически размер | ATX |
| Чипсет | AMD B550 |
| Сокет | AM4 |
| Съвместими процесори | Ryzen (supports 3rd Generation Ryzen) |
| BIOS | BIOS FlashBack, UEFI BIOS |
| Тип BIOS | AMI |
| Тип на паметта | DDR4 |
| Честота на паметта | 3200 MHz |
| Dual channel | Да |
| ECC support | Non-ECC, ECC |
| Memory Registered / Buffered | Unbuffered |
| Слотове за памет | 4 |
| Максимална памет | 128 GB |
| Брой процесорни гнезда | 1 |
| Слот за видео картата | PCI Express |
| Вградено видео | Integrated Graphics in the AMD Ryzen™ with Radeon™ Vega Graphics |
| Multi-GPU | AMD 2-Way CrossFireX Technology |
| Дисков интерфейс | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 SATA-600 / PCIe 4.0 -connectors: 1 x M.2 SATA-600 / PCIe 3.0 -connectors: 1 x M.2 |
| SATA | 6 x SATA3 6.0 Gb/s |
| M.2 slot | 1 x M.2 socket 3 with M Key, Type 2242/2260/2280/22110 PCIE 3.0 x4 and SATA modes, 1 x M.2 Socket 3 with M Key type 2242/2260/2280/22110 SATA and PCIe 4.0 x4 SSD support) |
| RAID | 0,1,10 |
| LAN порт | 2.5 Gigabit Ethernet |
| LAN controller | Intel I255-V |
| Звук | SupremeFX (S1220A) |
| Звуков изход | HD Audio (8-channel) |
| Аудио стандарти | High Definition Audio, DTS Sound Unbound |

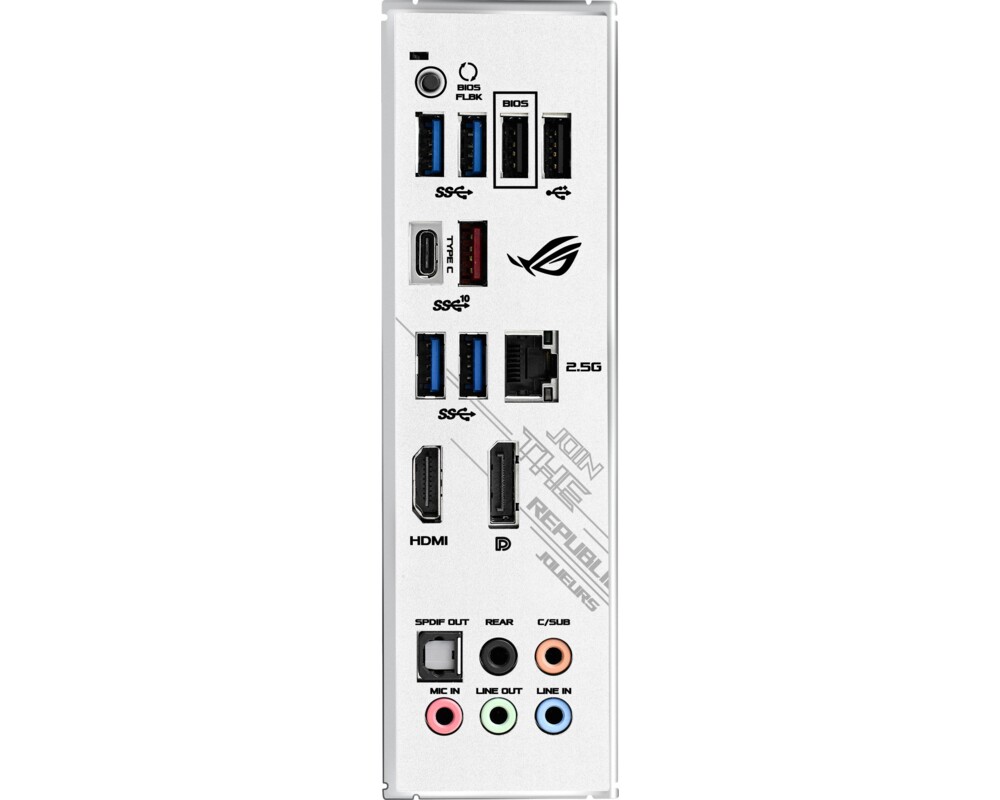

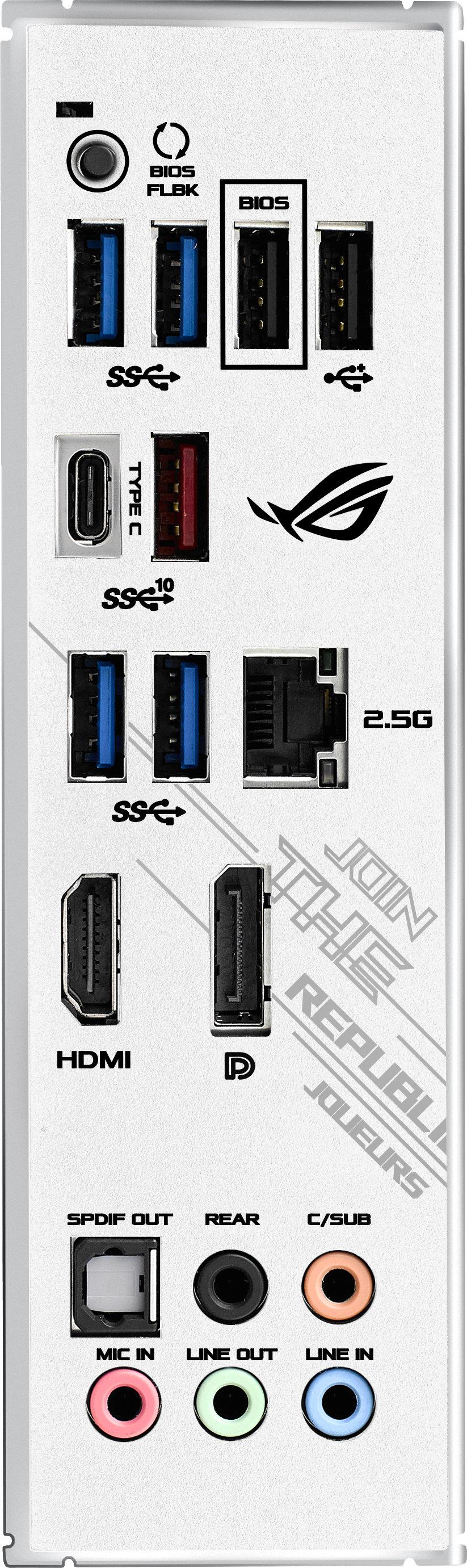

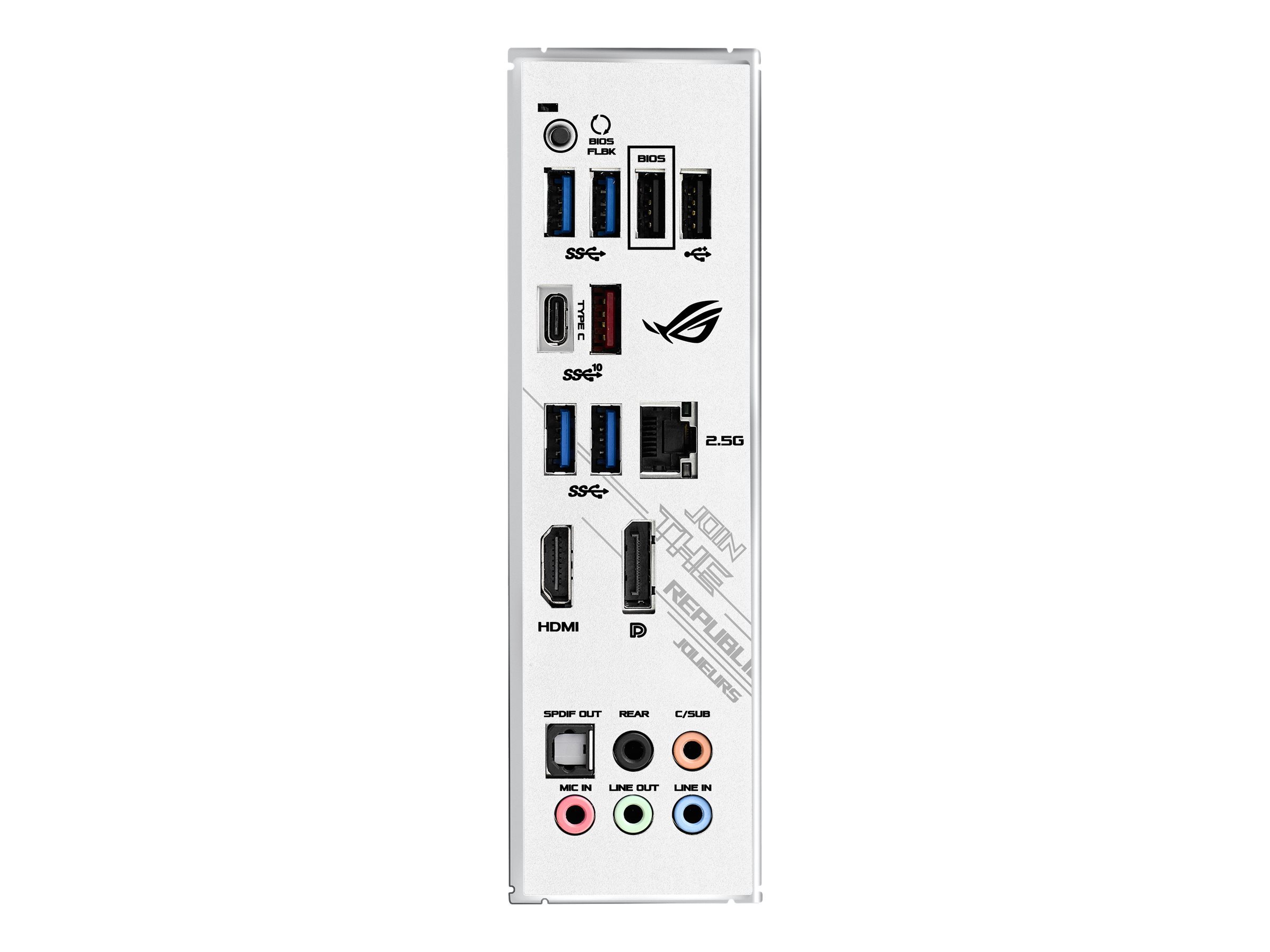

| Портове | 1 x LAN (2.5Gigabit Ethernet) 4 x USB 3.2 Gen 1 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x microphone - mini-jack 1 x USB-C Gen2 1 x USB 3.2 Gen 2 1 x TOSLINK 1 x audio line-out (center/subwoofer) - mini-jack 1 x audio line-out (rear) - mini-jack 2 x USB 2.0 1 x DisplayPort 1 x HDMI |
| Разширителни слотове | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 4.0 x16 (PCIe 4.0 x16 mode (Ryzen series CPUs Matisse); PCIe 3.0 x16 mode (Ryzen series APUs)) 1 x PCIe 3.0 x16 (x4 mode) 3 x PCIe 3.0 x1 |
| PCIe x1 | 3 |
| PCIe x16 | 1 x PCIe 3.0/2.0 x16, 1 x PCIe 4.0/3.0 x16 |
| Вътрешен интерфейс | 4 x USB 2.0 - header 2 x USB 3.2 Gen 1 - header 1 x Thunderbolt - header 1 x audio - header |
| USB 2.0 | 2 |
| USB 3.2 | 5 |
| USB Type-C | 1 |
| Wake on LAN | Wake on LAN (WOL), wake on PME |
| Функции | Dual channel memory architecture |
| Софтуер |
Drivers & Utilities
ROG CPU-Z ASUS AI Suite III ASUS EZ Update Overwolf ASUS EZ Flash 3 Antivirus WinRAR ASUS ROG RAMCache III Sonic Studio Virtual Mixer ROG GameFirst VI |
| Конектори за захранване | 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector |
| Стандарти | DisplayPort 1.2 |

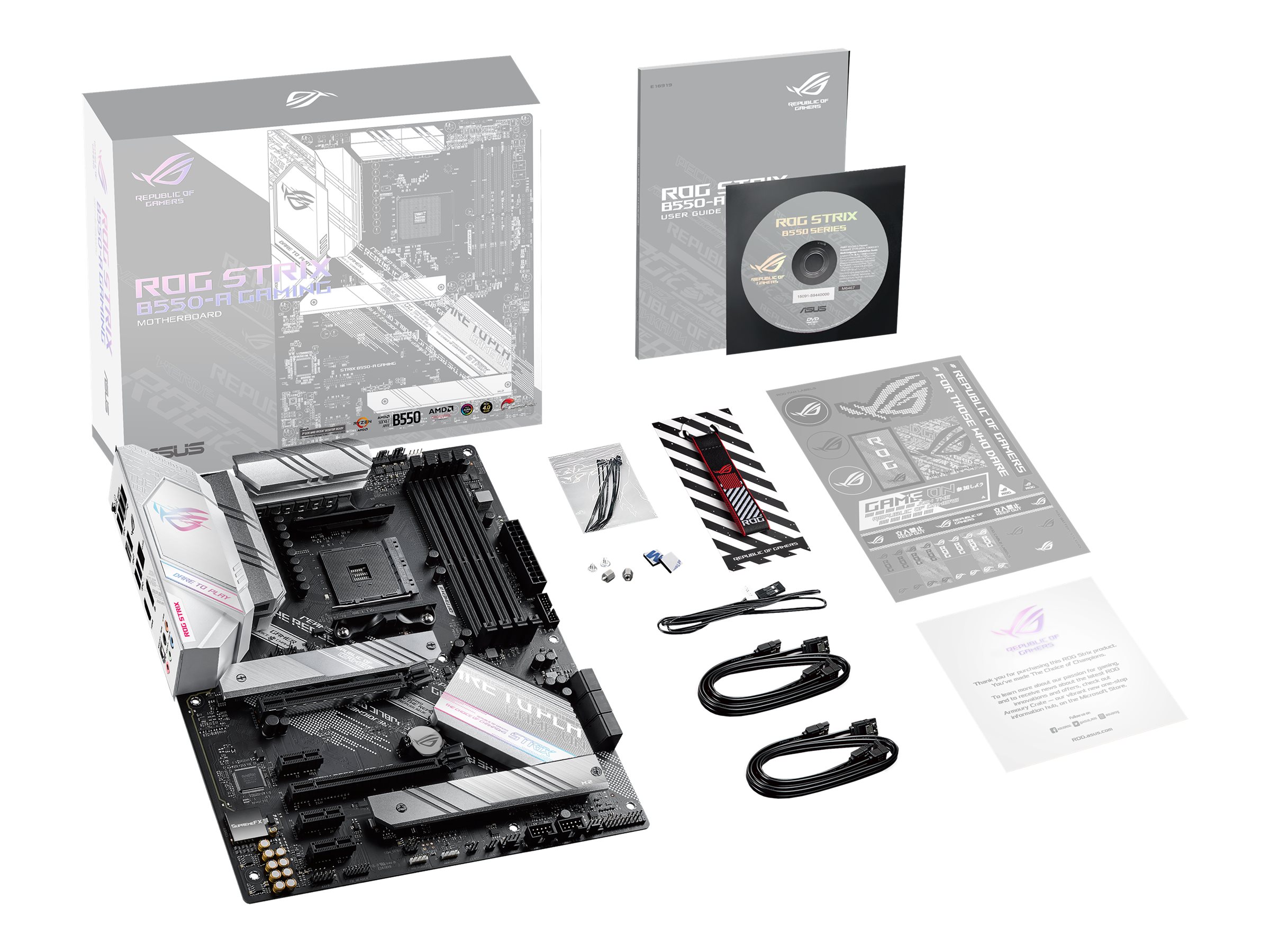

| Включени кабели | 4 x Serial ATA cable |
| Аксесоари |
Cable ties
1 x M.2 screw ROG fan stickers ROG thank you card RGB Addressable LED extension cable rubber pad |
| Ширина | 30.5 cm |
| Дълбочина | 24.4 cm |
| Други характеристики |
Jack retasking
ASUS Q-Design 12+2 Phase Power Design Q-DIMM ASUS EZ DIY Q-LED Q-Slot CrashFree BIOS 3 audio jack detect technology ASUS EPU (Energy Processing Unit) ASUS DIGI+ VRM SupremeFX Shielding technology AMD CrossFireX technology support Preboot eXecution Environment (PXE) LANGuard ASUS Fan Xpert 4 ASUS SafeSlot Sonic Radar III Sonic Studio III ASUS ProCool pre-mounted I/O shield ASUS Aura Sync ASUS OptiMem II Armoury Crate GameFirst VI |
| Гаранция | 36 месеца |
| Код на продукта | ROG STRIX B550-A GAMING |
Дънна платка ASUS ROG STRIX B550-A GAMING socket AM4, 4xDDR4, Aura Sync, PCIe 4.0, Dual M.2, 2.5GB Lan
RISE ABOVE THE BATTLEFIELD.
Designed for those seeking to get the most out of their build, ROG Strix B550 Gaming series motherboards offer a feature-set usually found in the higher-end ROG Strix X570 Gaming series, including the latest PCIe® 4.0 connectivity. Offering robust power delivery and effective cooling, ROG Strix B550-A Gaming is well-equipped to handle 3rd Gen AMD Ryzen™ CPUs. As an added bonus, outstanding performance is complemented by a stunning silver-and-white finish and cyberpunk-inspired aesthetics that present a standout look.
- AMD AM4 socket: Ready for Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
- Best gaming connectivity: PCIe® 4.0-ready, dual M.2, USB 3.2 Gen 2 Type-C® plus HDMI™ 2.1 and DisplayPort 1.2 output support
- Smooth networking: Intel® 2.5Gb Ethernet with ASUS LANGuard
- Robust power solution: Teamed power stages with ProCool power connector, high-quality alloy chokes and durable capacitors
- Renowned software: Intuitive dashboards for UEFI BIOS and ASUS AI Networking make it easy to configure gaming builds
- DIY-friendly design: Includes pre-mounted I/O shield, BIOS FlashBack™, Q-LEDs and SafeSlot
- Unmatched personalization: ASUS-exclusive Aura Sync RGB lighting, including Aura RGB header and addressable Gen 2 RGB header
- Industry-leading gaming audio: AI Noise-Canceling Microphone, SupremeFX S1220A codec, DTS® Sound Unbound™ and Sonic Studio III for immersive audio
