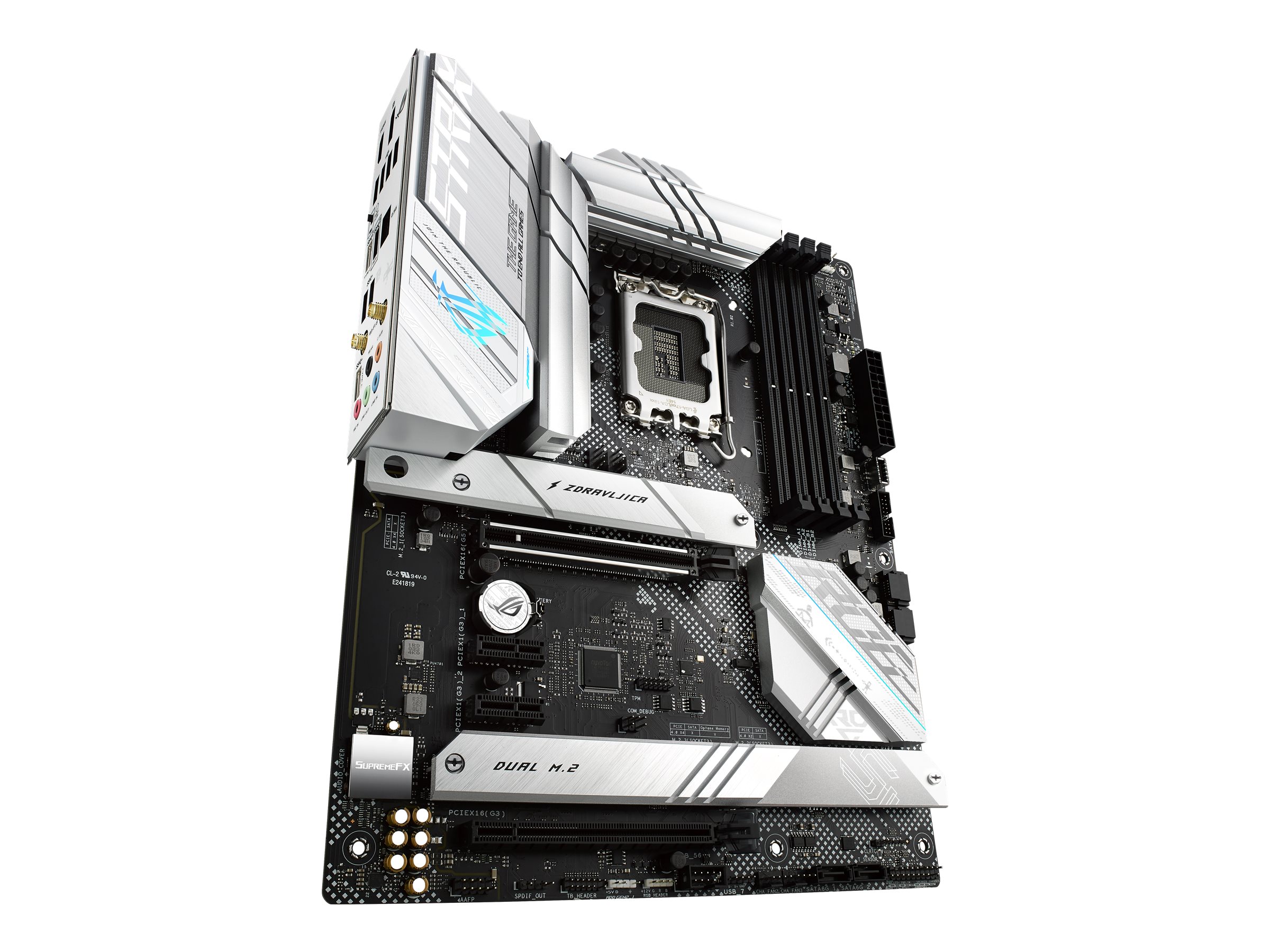

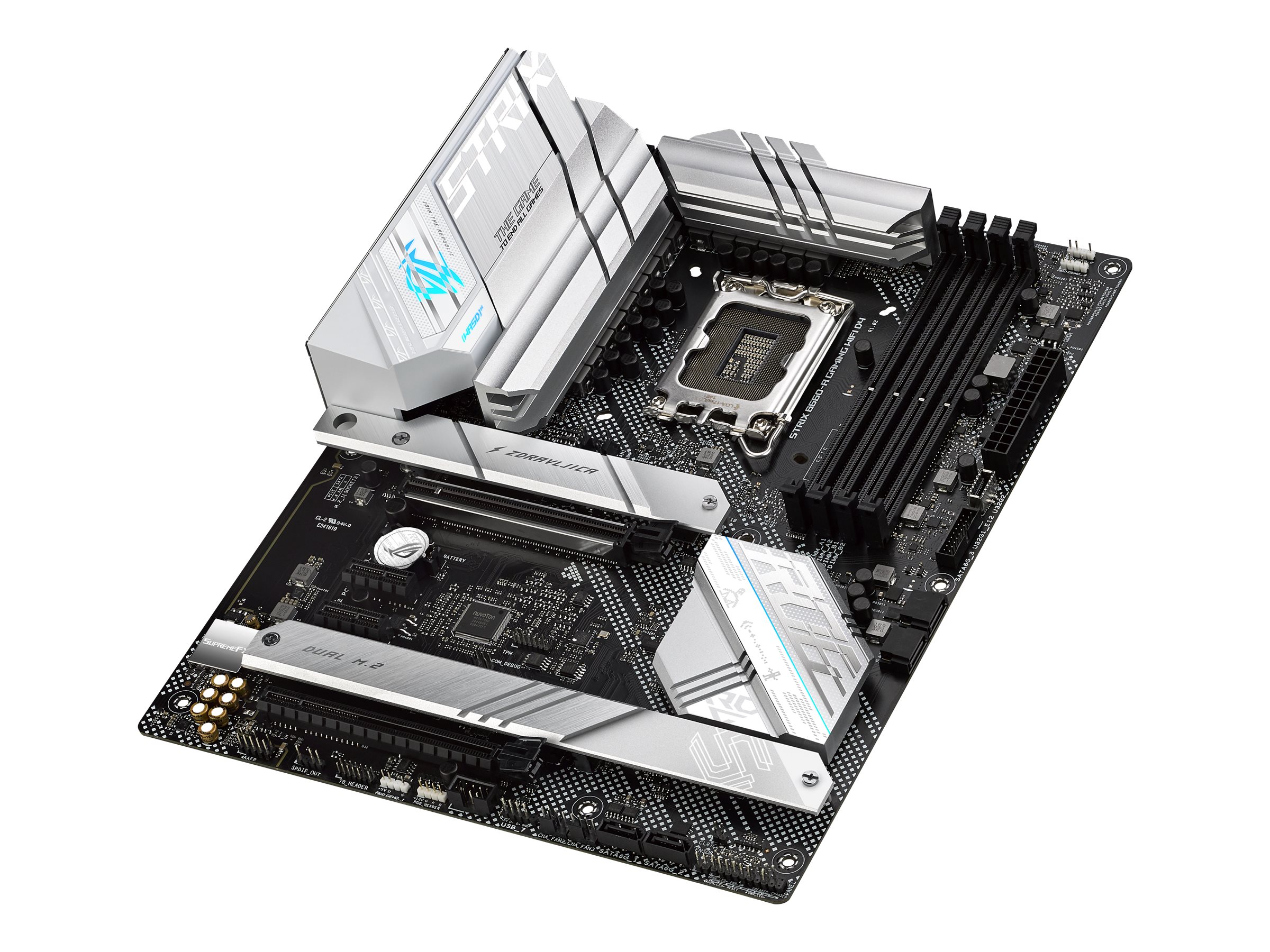

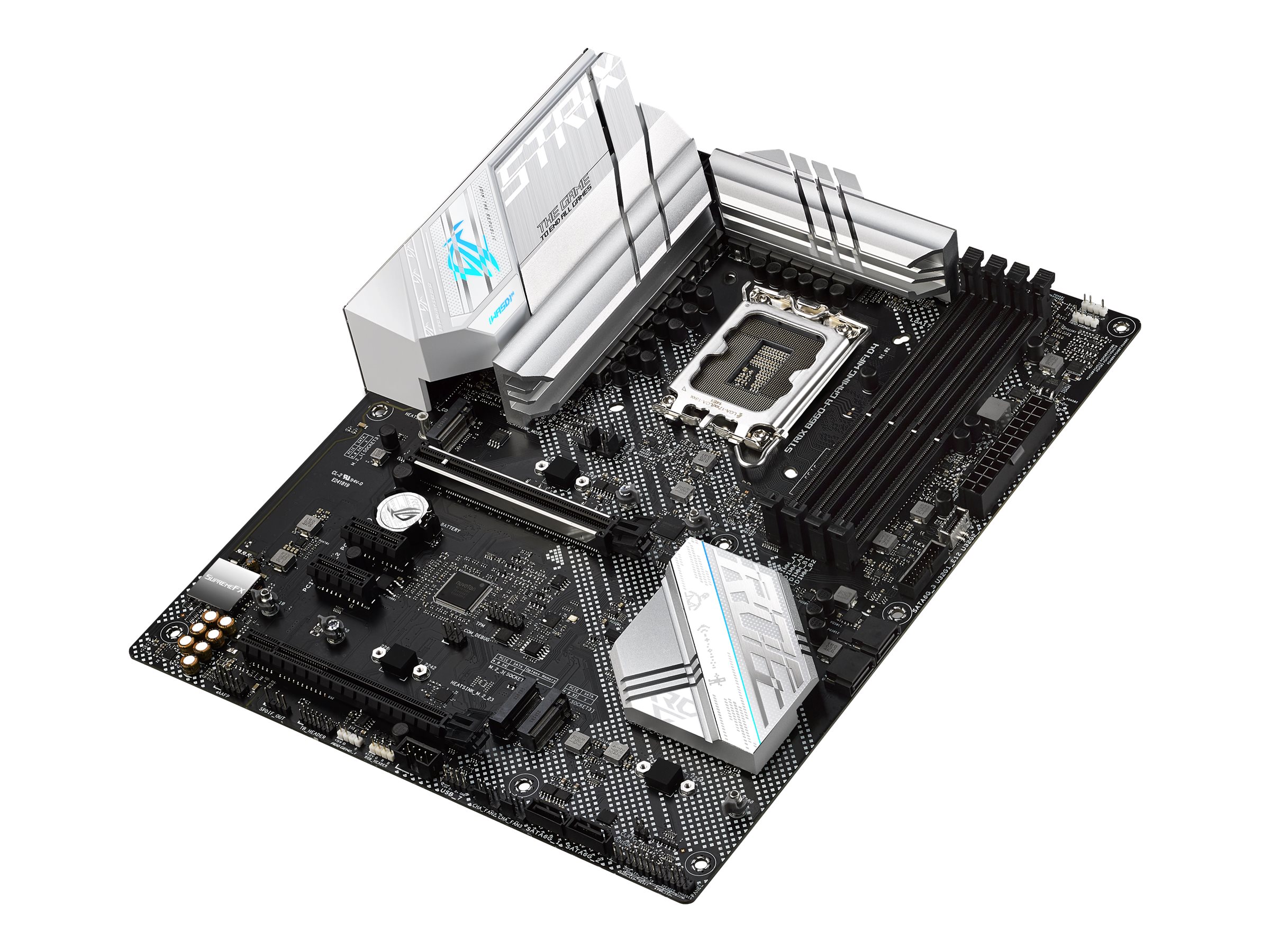

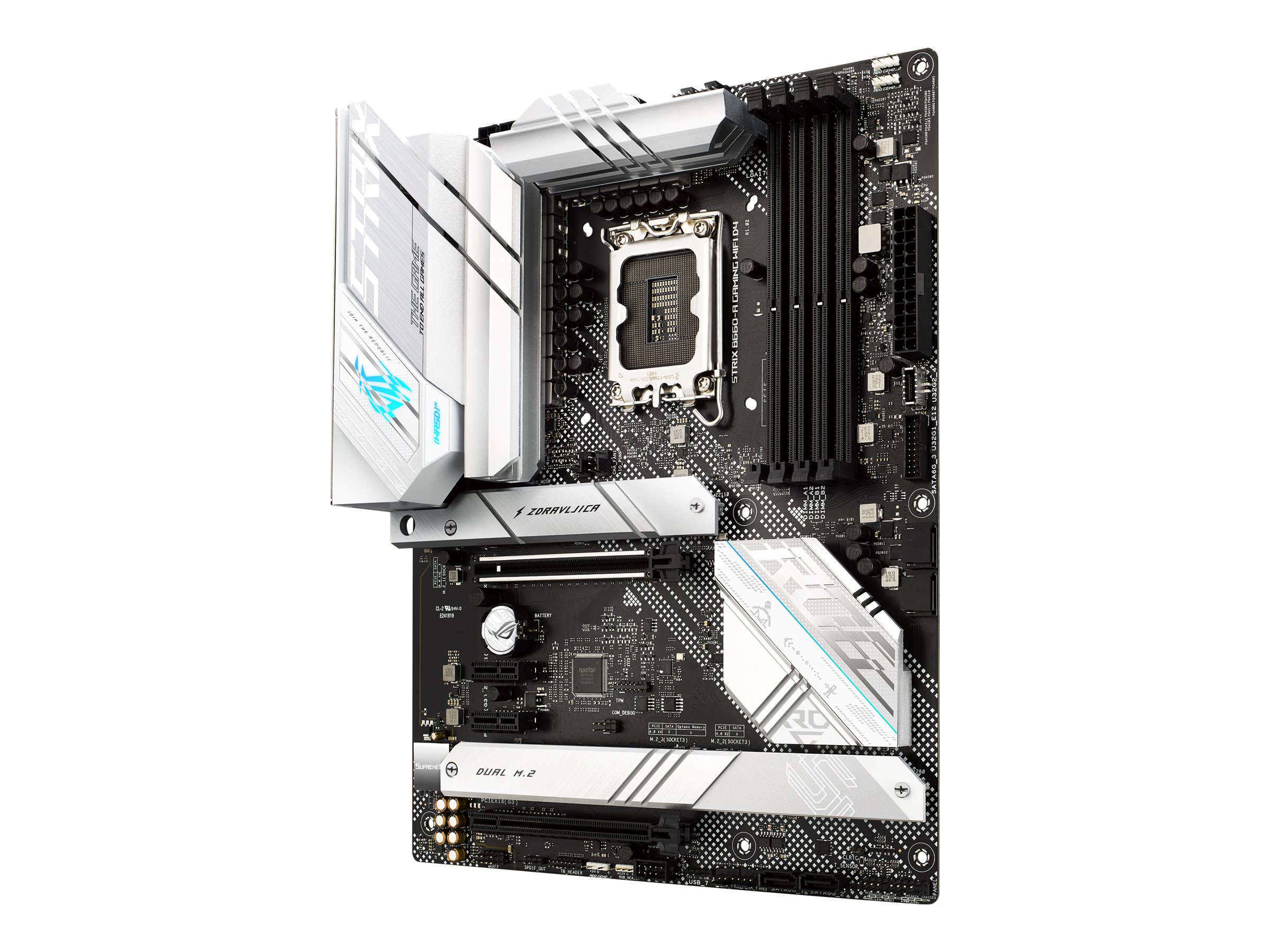

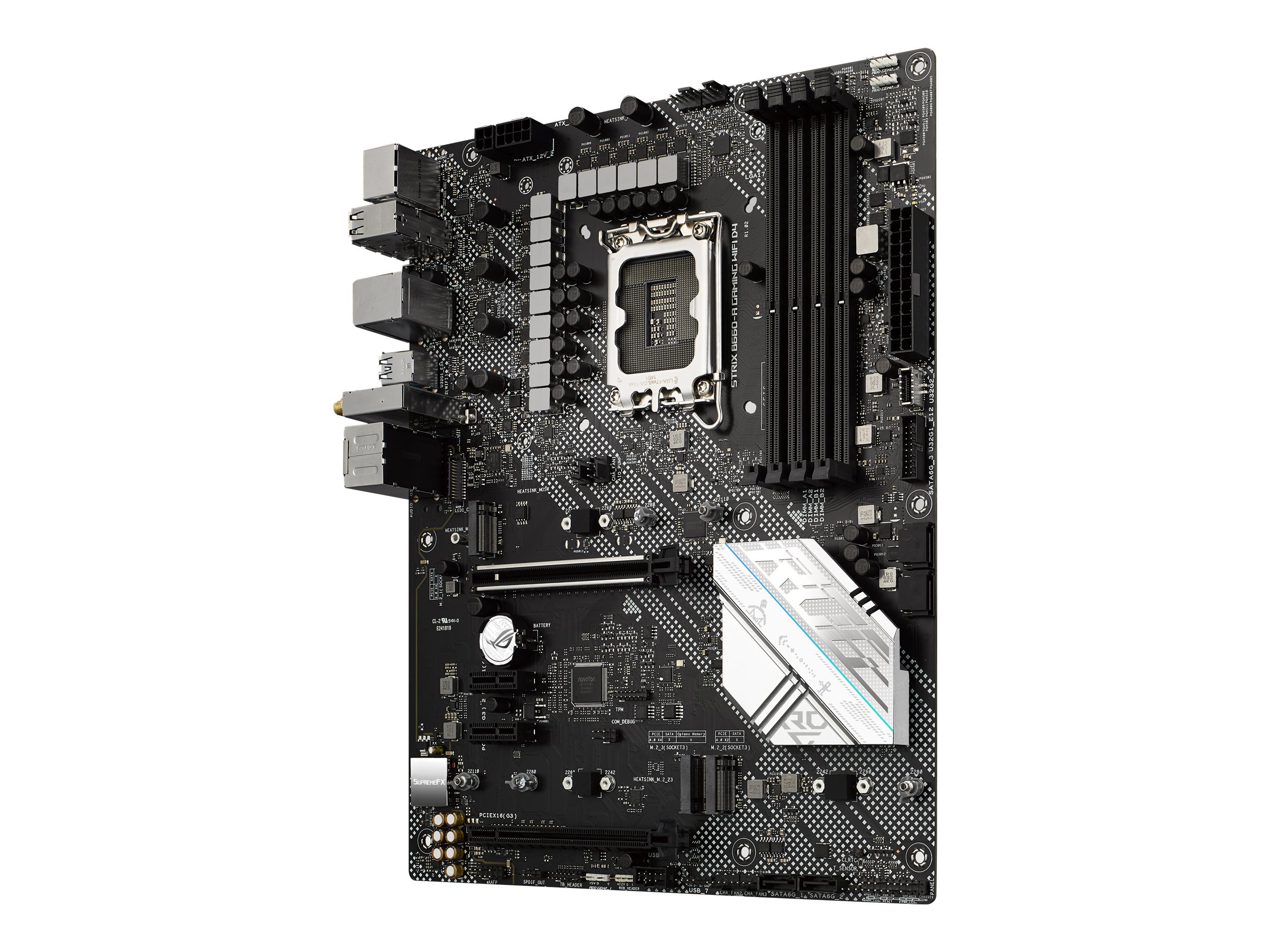

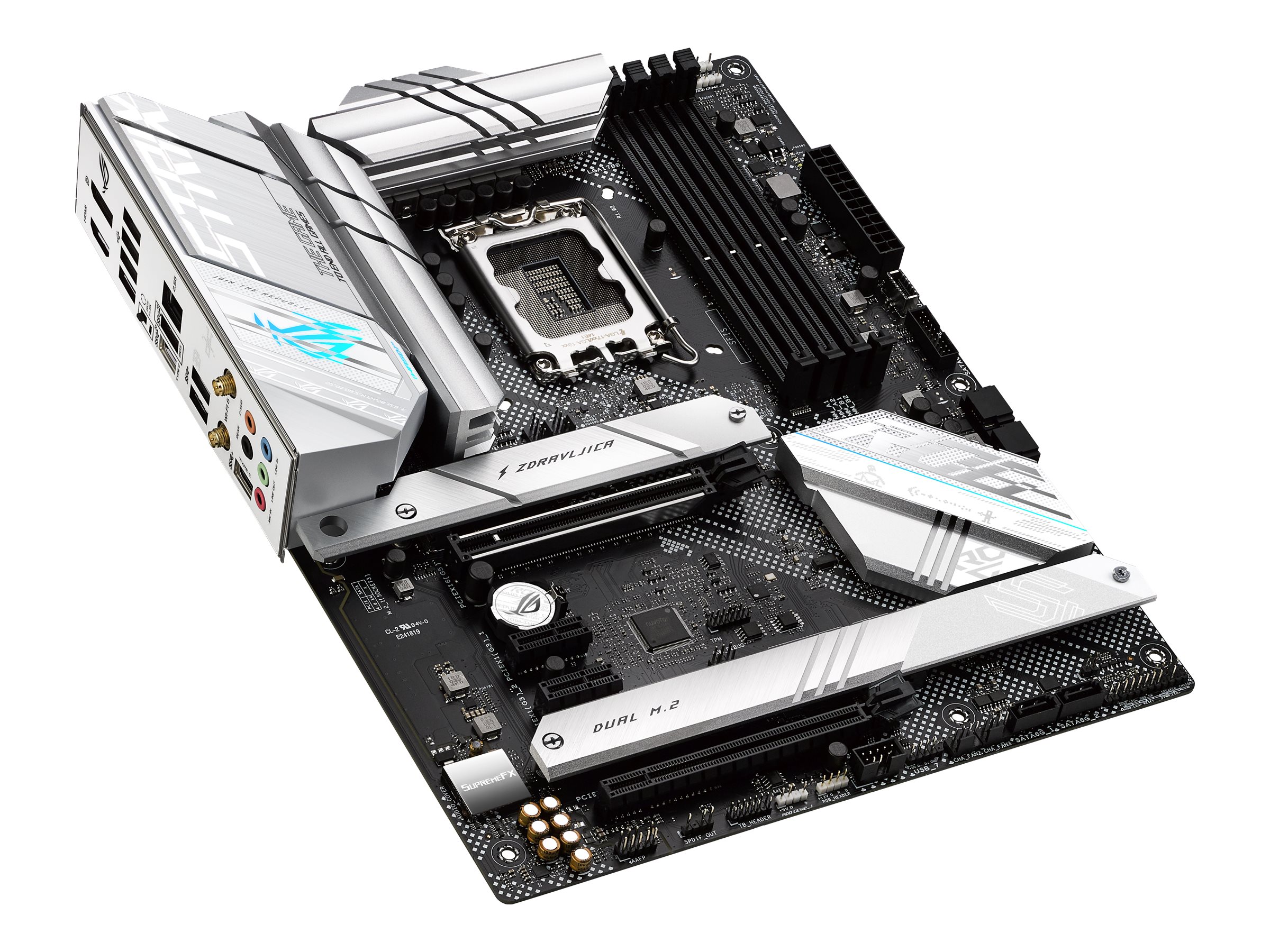

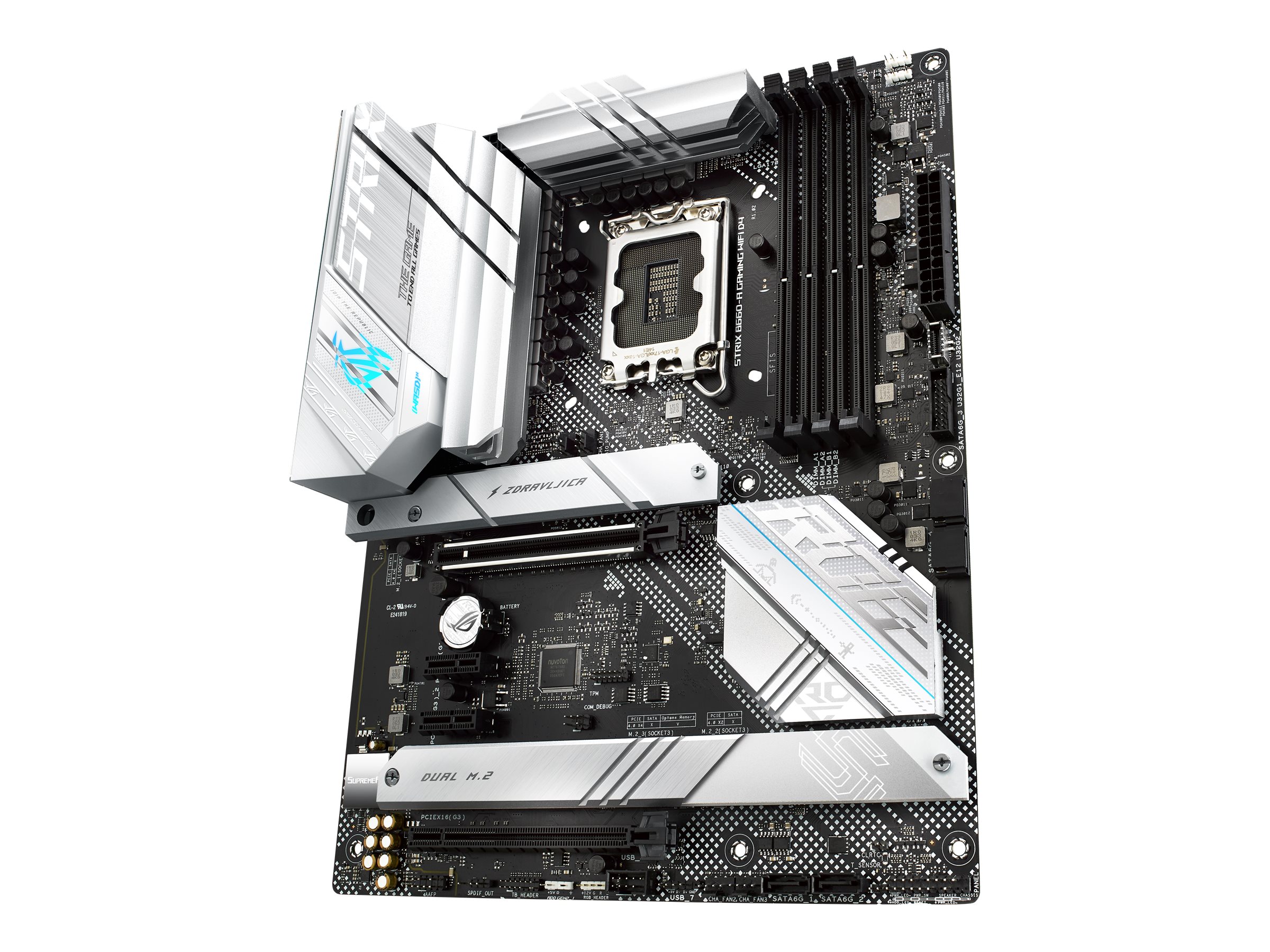

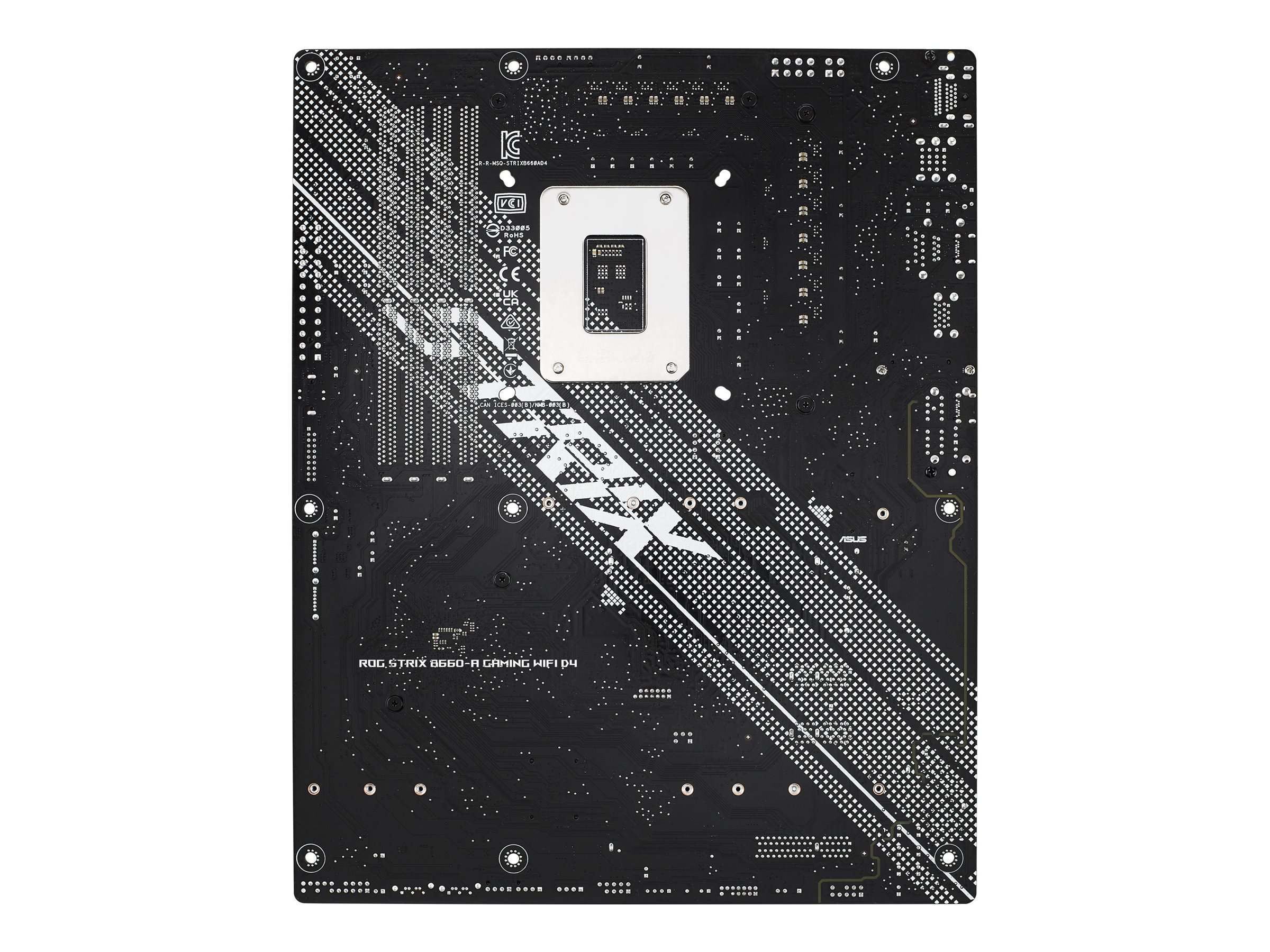

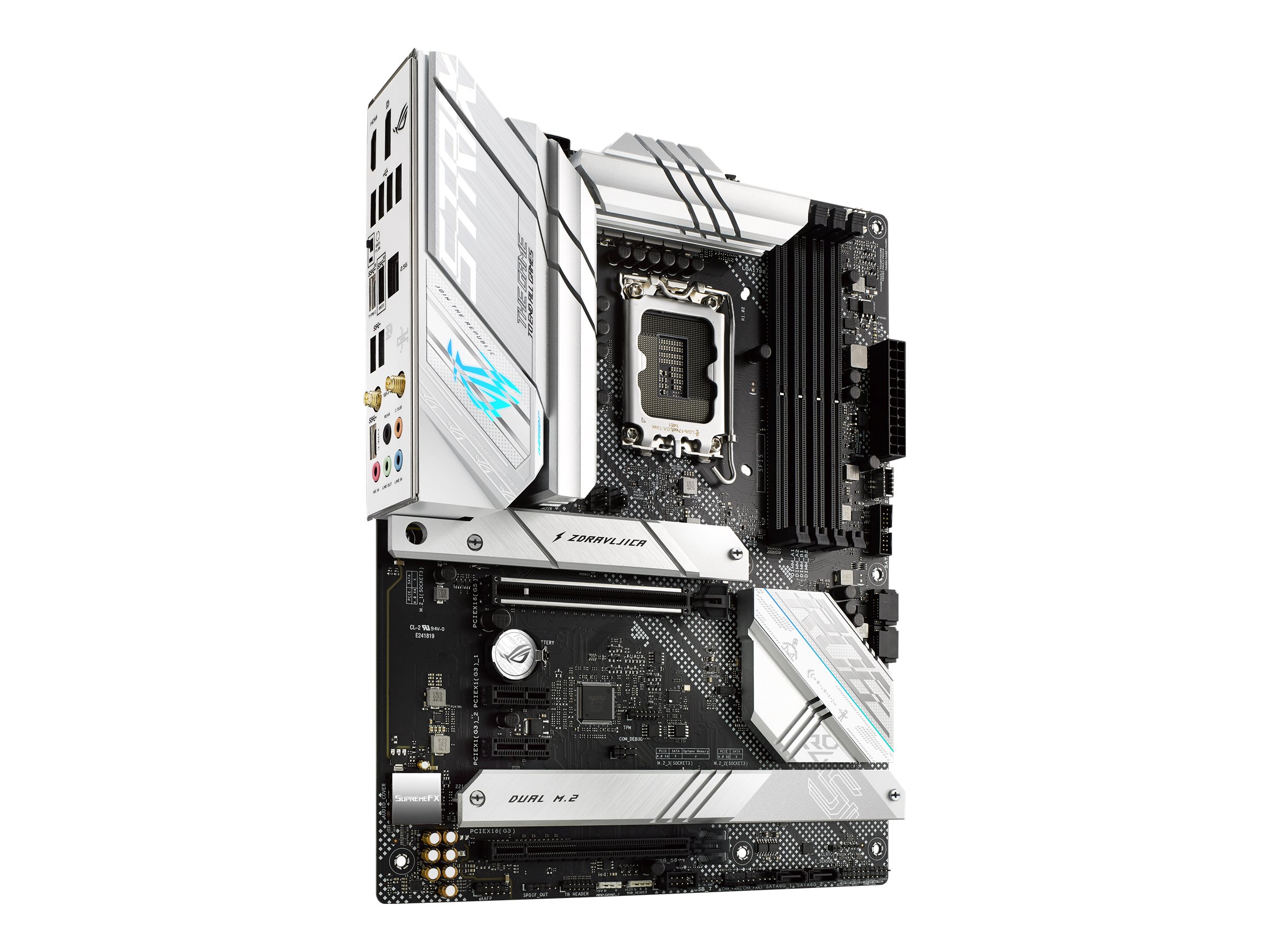

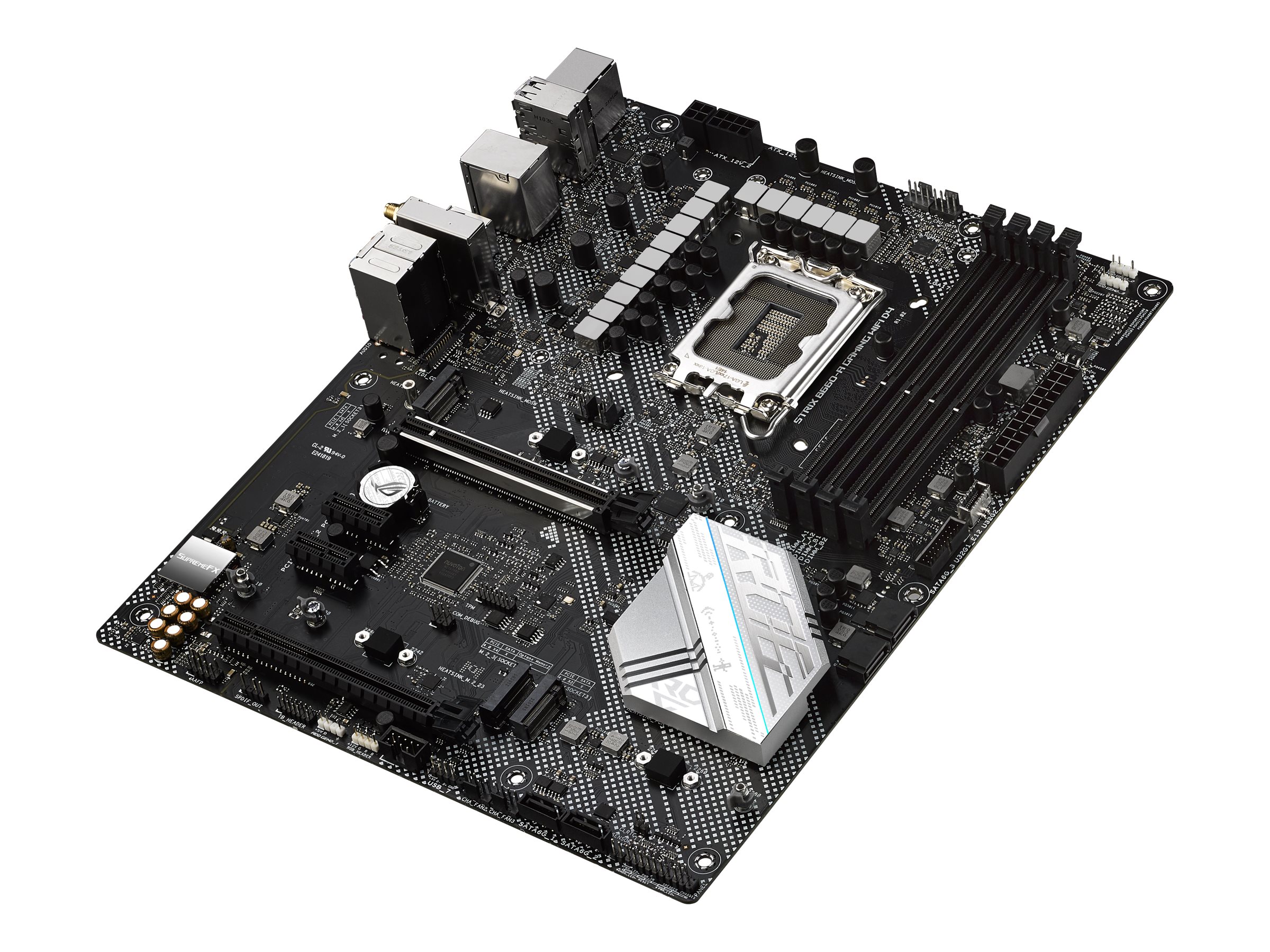

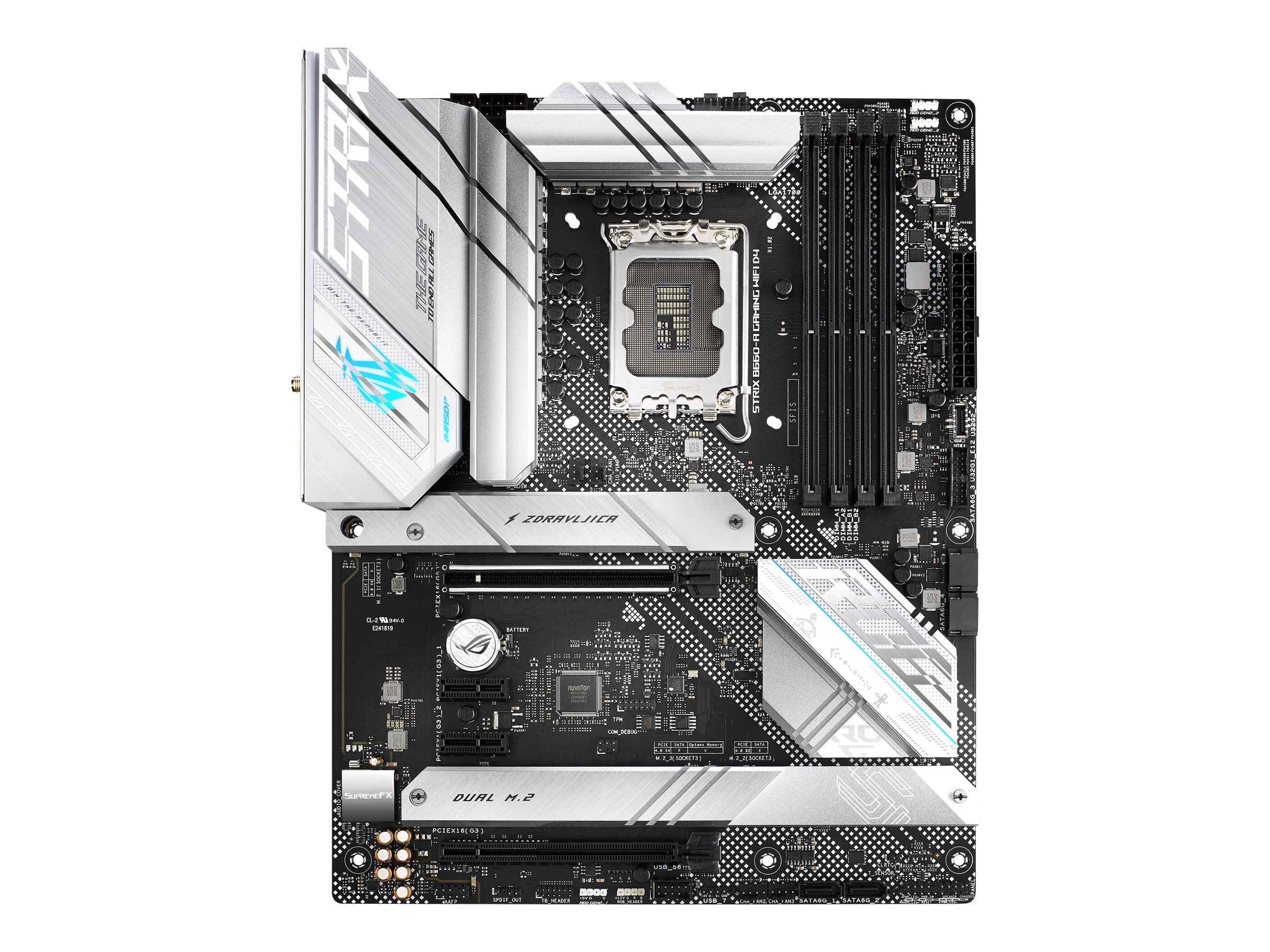

Дънна платка ASUS ROG STRIX B660-A GAMING WIFI D4 LGA 1700 1xDP 1xHDMI 1xPCle 5.0 x16 slot ROG STRIX B660-A GAMING WIFI D4
изчерпано
Сокет: LGA 1700
Чипсет: Intel B660
Тип на паметта: DDR4
Физически размер: ATX
Слотове за памет: 4
Честота на паметта: 3200 MHz
Гаранция:
0.0
от 5.0
(0)
Купи и събери
3 точки
Плати по-лесно и сигурно с
Виж всички продукти на Asus
Пазарувай по марка
Характеристики
| Физически размер | ATX |
| Чипсет | Intel B660 |
| Сокет | LGA 1700 |
| Съвместими процесори | (supports 12th Generation Intel Core / Pentium Gold / Celeron) |
| BIOS | UEFI BIOS, ASUS EZ Flash 3, MemTest86 |
| Тип BIOS | AMI |
| Тип на паметта | DDR4 |
| Честота на паметта | 3200 MHz |
| ECC support | Non-ECC |
| Memory Registered / Buffered | Unbuffered |
| Слотове за памет | 4 |
| Максимална памет | 128 GB |
| Брой процесорни гнезда | 1 |
| Дисков интерфейс | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -connectors: 3 x M.2 |
| RAID | Intel Rapid Storage Technology |
| LAN порт | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2 |
| Звук | SupremeFX (ALC4080) |
| Звуков изход | HD Audio (8-channel) |
| Аудио стандарти | High Definition Audio, DTS Sound Unbound |

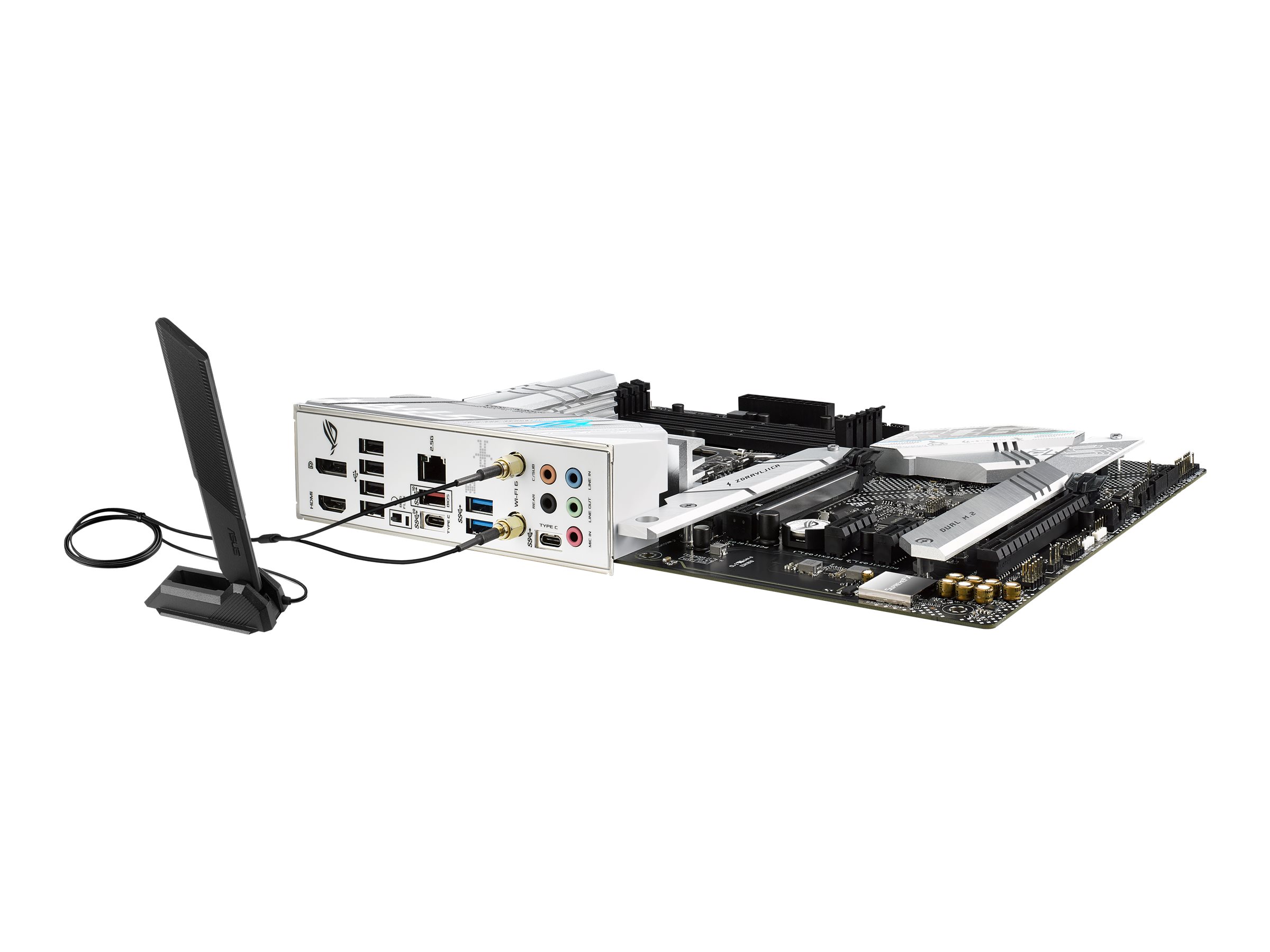

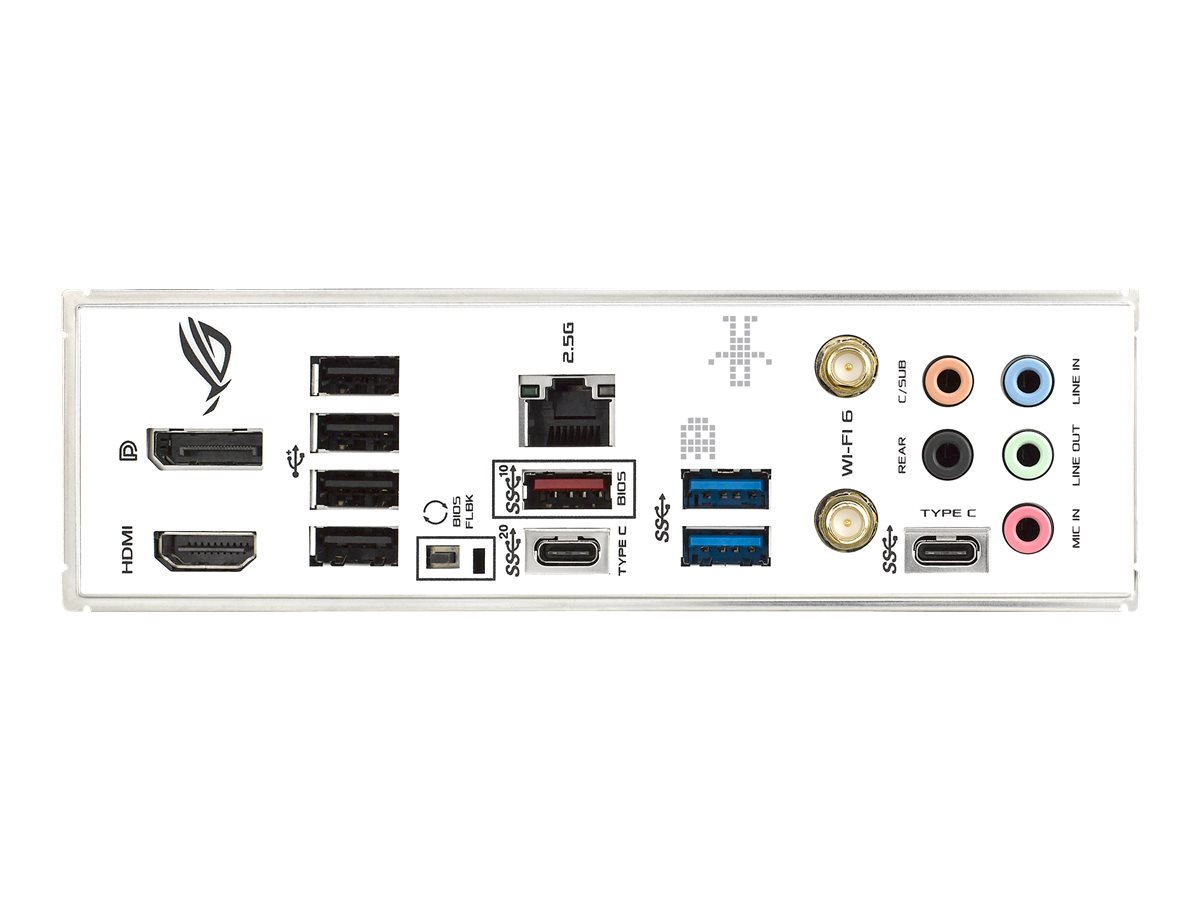

| Портове | 1 x HDMI 1 x DisplayPort 1 x LAN (2.5Gigabit Ethernet) 1 x USB-C Gen2x2 4 x USB 2.0 1 x USB 3.2 Gen 2 2 x USB 3.2 Gen 1 1 x microphone - mini-jack 1 x audio line-in - mini-jack 1 x audio line-out (rear) - mini-jack 1 x audio line-out (center/subwoofer) - mini-jack 1 x audio line-out - mini-jack 1 x USB-C Gen1 |
| Разширителни слотове | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 5.0 x16 1 x PCIe 3.0 x16 (x4 mode) 2 x PCIe 3.0 x1 |
| Вътрешен интерфейс | 3 x USB 2.0 - header 2 x USB 3.2 Gen 1 - header 1 x USB-C Gen2 - header 1 x audio - header 1 x Thunderbolt - header 1 x SPDIF out - header |
| Wake on LAN | Wake on LAN (WOL), wake on PME |
| Функции | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Софтуер |
Drivers & Utilities
ROG CPU-Z ASUS AI Suite III ASUS Turbo App ASUS EZ Flash 3 Antivirus WinRAR Sonic Studio Virtual Mixer ROG GameFirst VI AIDA64 Extreme (60 days trial) ASUS AURA Creator Sonic Suite Companion MyAsus |
| Конектори за захранване | 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector |

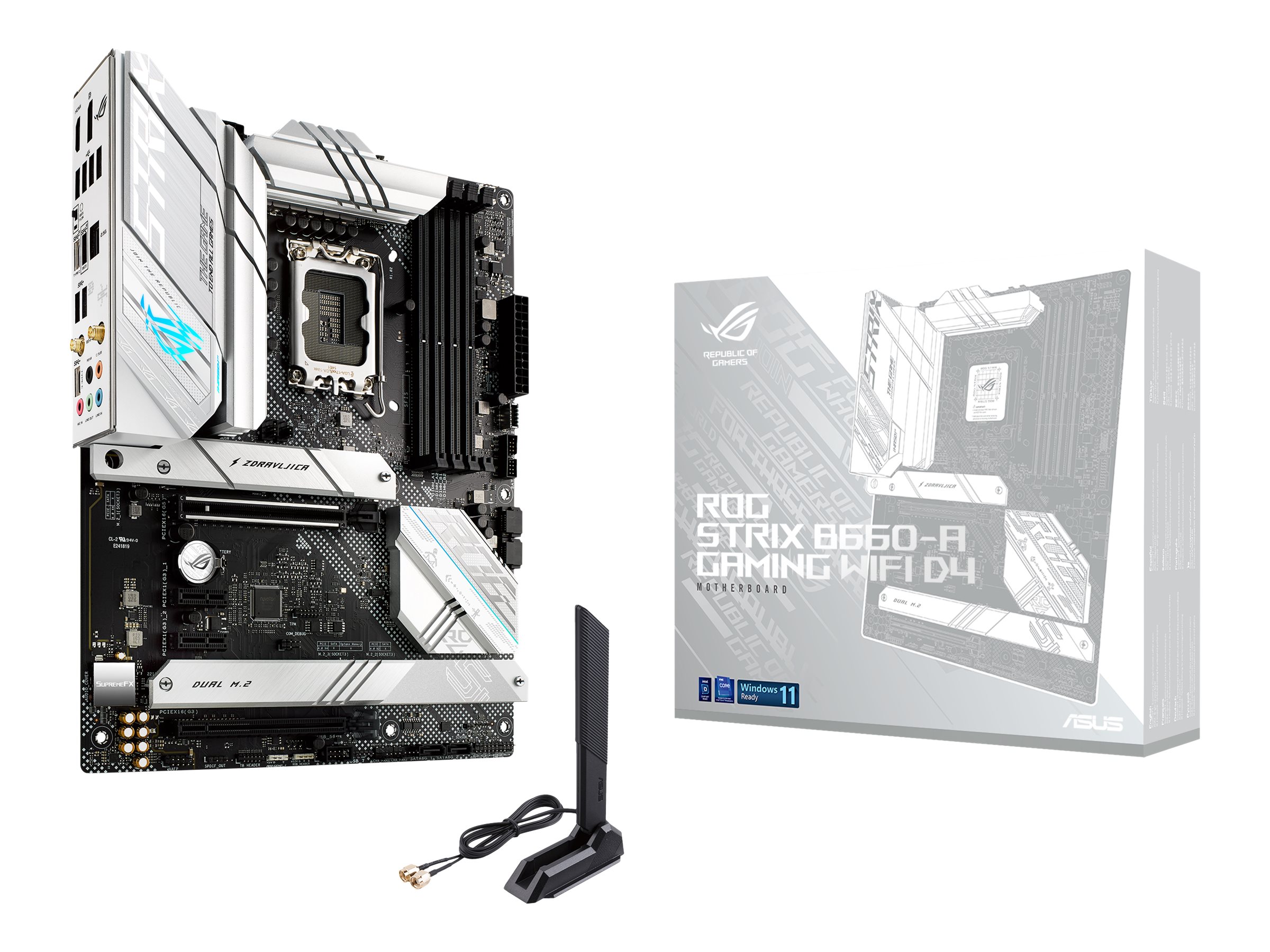

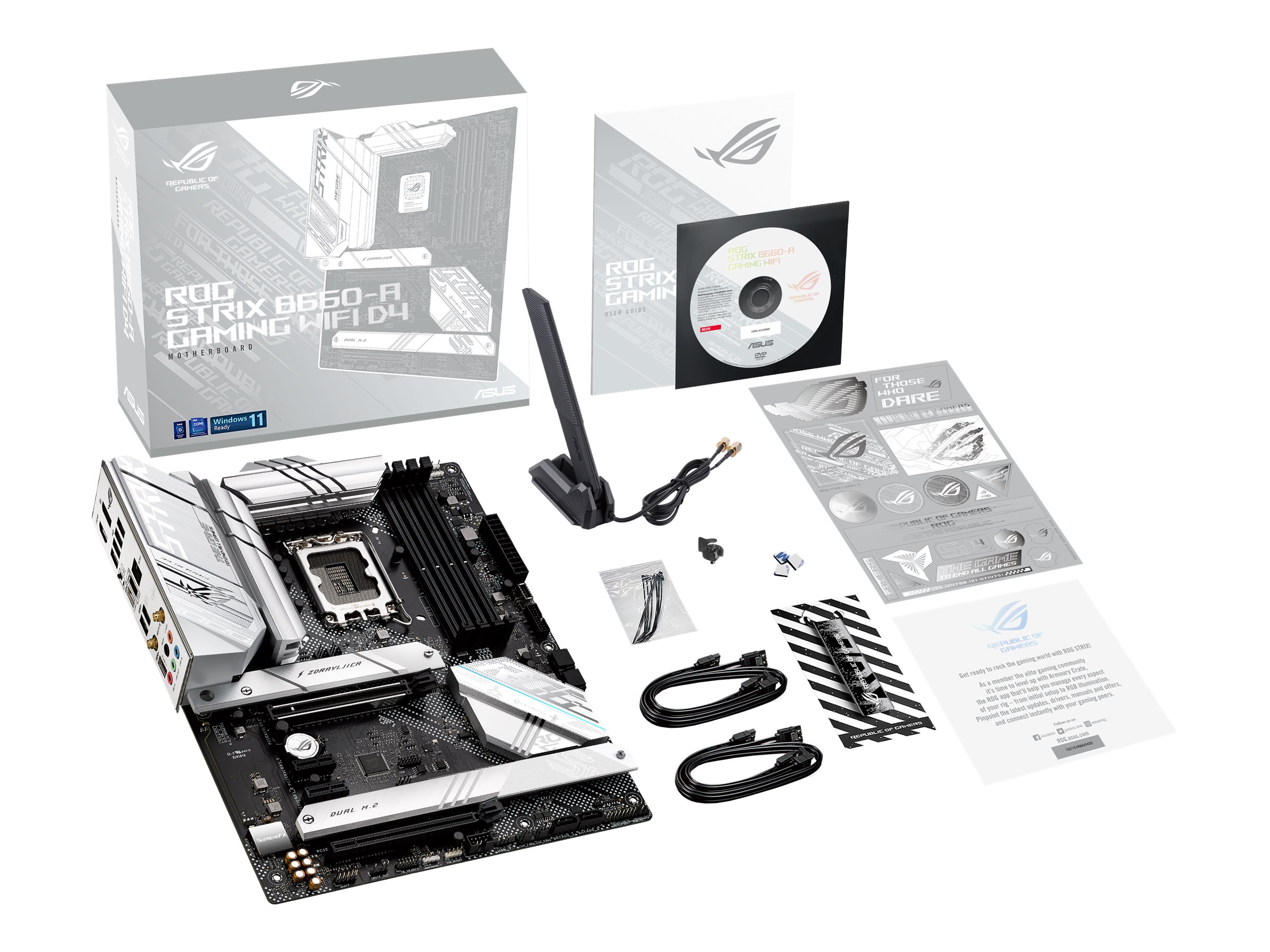

| Включени кабели | 4 x Serial ATA cable |
| Аксесоари |
Cable ties
STRIX stickers ROG thank you card ROG key chain ASUS Wi-Fi moving aerial 1 x M.2 rubber package M.2 Q-Latch |
| Ширина | 30.5 cm |
| Дълбочина | 24.4 cm |
| Други характеристики |
Jack retasking
ASUS Q-Design ASUS TurboV EVO Q-DIMM ASUS EZ DIY Q-LED Q-Slot ASUS Extreme Engine Digi+ CrashFree BIOS 3 audio jack detect technology ASUS EPU (Energy Processing Unit) Intel Turbo Boost Technology 2.0 ASUS DIGI+ VRM SupremeFX Shielding technology Preboot eXecution Environment (PXE) LANGuard 6 Layer PCB ASUS Fan Xpert 4 ASUS SafeSlot Intel Optane Memory Ready Sonic Radar III Sonic Studio III ASUS SafeDIMM M.2 heatsink ASUS ProCool pre-mounted I/O shield Intel Turbo Boost Max Technology 3.0 ASUS Aura Sync ASUS OptiMem II Armoury Crate 12+1 Phase Power Design DIY Friendly Design FlexKey button GameFirst VI Savitech SV3H712 amplifier M.2 Q-Latch Windows 11 compatible CPU Socket lever protector |
| Гаранция | 36 месеца |
| Код на продукта | ROG STRIX B660-A GAMING WIFI D4 |
Виж повече
Допълнителна информация
- All-round performance
Robust power delivery and comprehensive cooling features ensure exceptional performance, while AI-powered enhancements optimize network settings and improve in-game communication - all to help you maximize the full potential of your rig. - Teamed power stages
12+1 power stages combine high-side and low-side MOSFETS and drivers into a single package, delivering the power and efficiency that the latest Intel processors can take full advantage of. - Alloy chokes and capacitors
High-end chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards. - ProCool power connector
The ASUS ProCool socket is built to exacting specifications to ensure flush contact with the PSU power lines, enabling lower impedance and better heat dissipation. - Digi+ power control
The Digi+ voltage regulator module (VRM) is one of the finest in the industry, ensuring ultra-smooth and clean power delivery to the CPU. - Six-layer PCB
A multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom. - Cooler by design
ROG Strix B660 motherboards feature comprehensive cooling options that configurable via the Fan Xpert 4 tool in Armory Crate or within the UEFI BIOS. - Two-way AI noise cancelation
This powerful ASUS-exclusive utility leverages a massive deep-learning database to reduce background noise from the microphone and incoming audio while preserving voices. Distracting keyboard clatter, mouse clicks and other ambient noises are removed so you can hear and be heard with perfect clarity while gaming or during calls. - OptiMem III
With proprietary memory trace layout tweaks that improve signal integrity and mitigate noise, OptiMem III allows memory kits to run at lower latencies, reduced voltages, and operate at higher frequencies. Stack ROG Strix B660-A Gaming WiFi D4 with your favorite modules and maximize the throughput of the 12th Gen Intel Core Alder Lake processor for applications that demand massive bandwidth. - PCIe performance
With three strategically placed M.2 slots, ROG Strix B660-A Gaming WiFi D4 takes full advantage of CPU and chipset bandwidth to usher in support for dizzyingly quick PCIe 4.0 SSDs and high-capacity drives that blaze past traditional SATA-based storage. - Play in style
A striking silver-white aesthetic with complementary RGB lighting delivers a build that stands out in every way. Pair the ROG Strix B660-A Gaming WiFi D4 with other products from the diverse ROG ecosystem to create a fully customized gaming setup that reflects your personal style. - Undeniably ROG Strix
The ROG Strix B660-A Gaming WiFi D4 will turn heads with a striking silver-white finish that contrasts with a bold Aura RGB-illuminated glitch-effect logo. Meanwhile, parallel strakes and dotted text on the aluminum I/O shroud, M.2 and PCH heatsinks tie the whole aesthetic together and underline the ROG Strix fundamentals of speed, diversity and attitude. - Outshine the competition
ROG Strix motherboards deliver sterling performance and superior aesthetics to outshine the competition. They also feature built-in ASUS Aura technology that enables full RGB lighting control, and a variety of presets for both embedded RGB LEDs and third-party lighting strips. In addition, all lighting can be easily synced with other Aura-capable ASUS hardware. - ROG gives you more
ROG-exclusive software utilities deliver intuitive audio tuning and gaming enhancements so you can configure your gaming build the way you want. To further aid system setup and performance tuning, the highly acclaimed AIDA64 and MemTest86 utilities have also been added to the mix. - UEFI BIOS
The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY and more comprehensive features for seasoned veterans. - 5-way optimization
The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans. - M.2 Q-latch
The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the drive and neatly eliminate traditional screws. - Certified compatibility
ROG Strix motherboards undergo an extensive certification program to ensure compatibility with the widest range of components and devices. Qualified Vendor List (QVL) provides a reference for identifying guaranteed-compatible components and memory. ASUS AIO coolers are also compatible with a wide variety of CPUs, up to and including 12th Gen Intel processors, giving you ultimate flexibility to cool the CPU that fits your needs.
