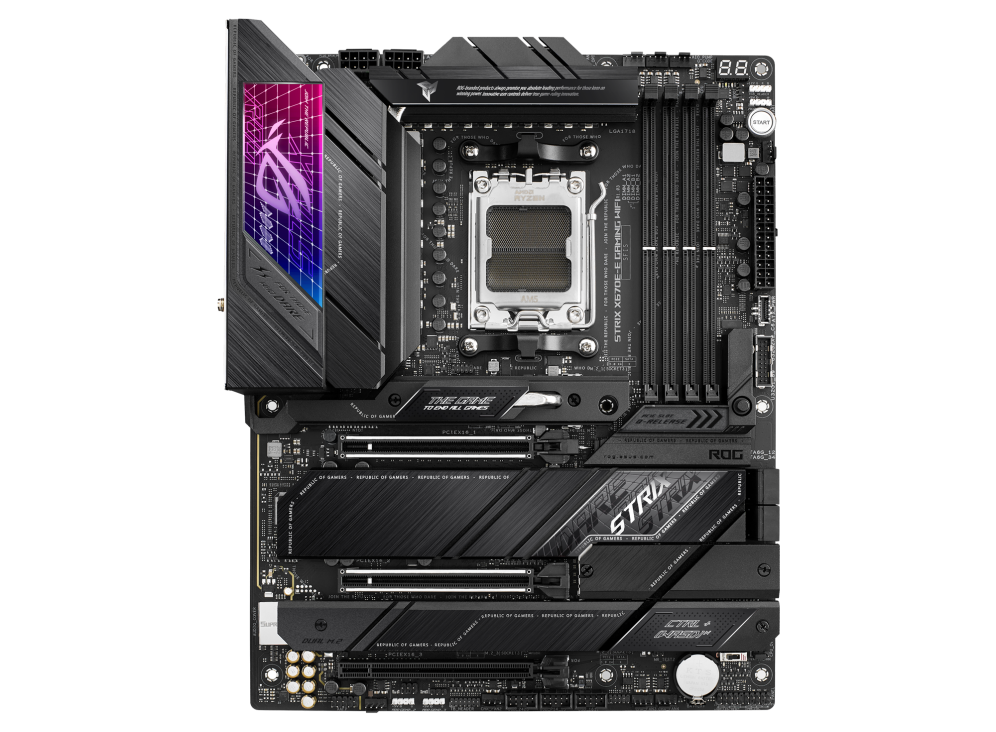

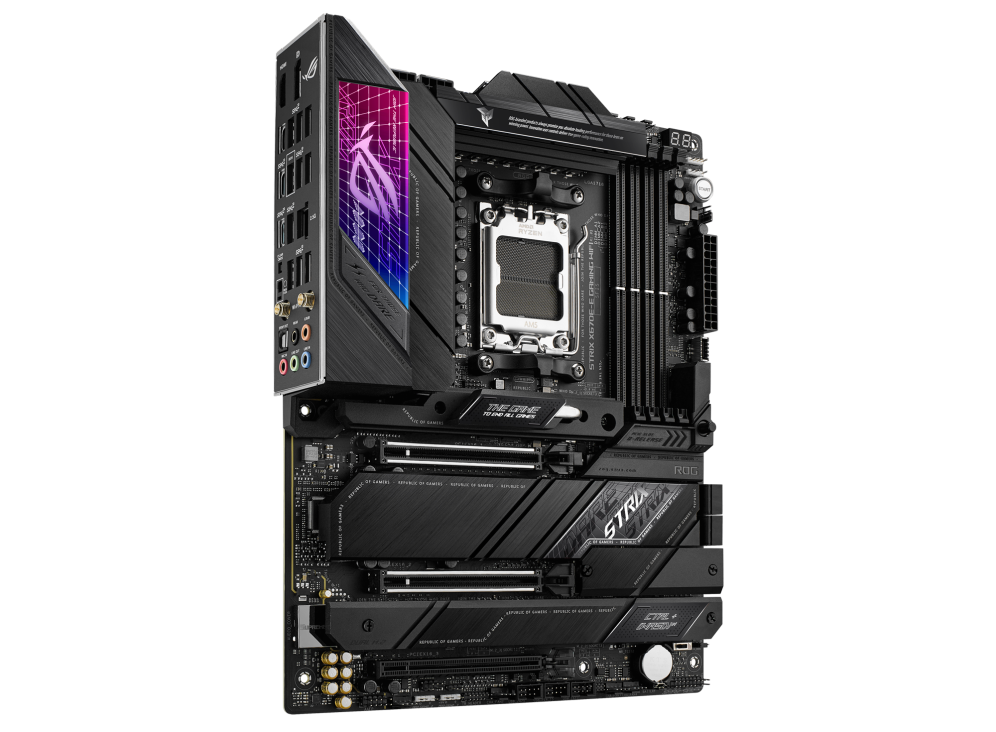

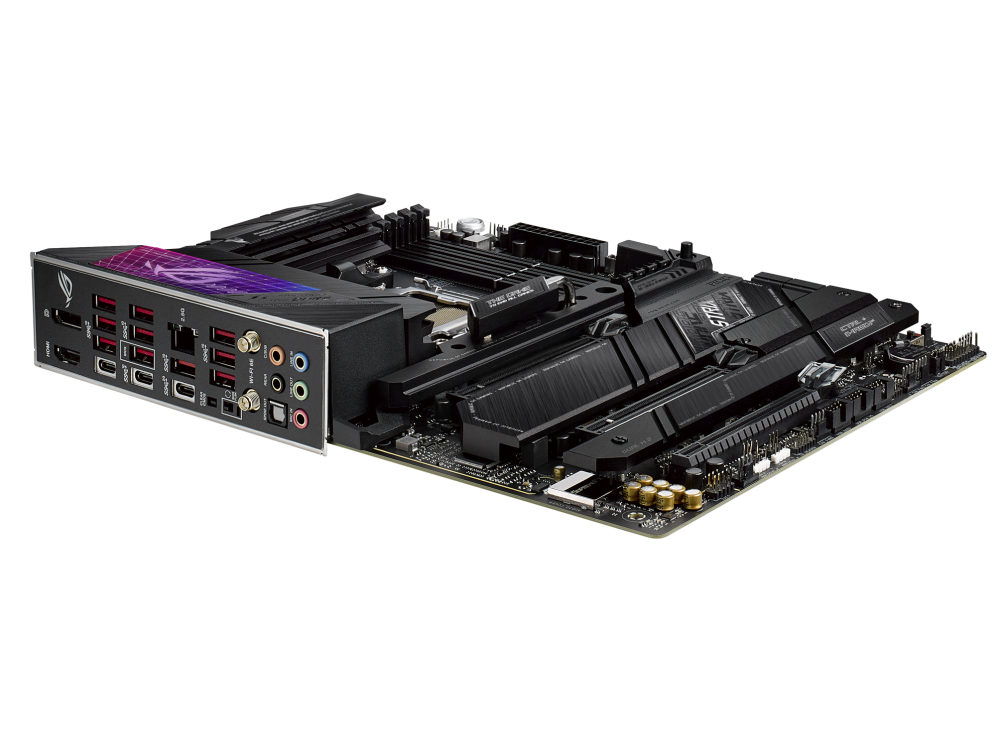

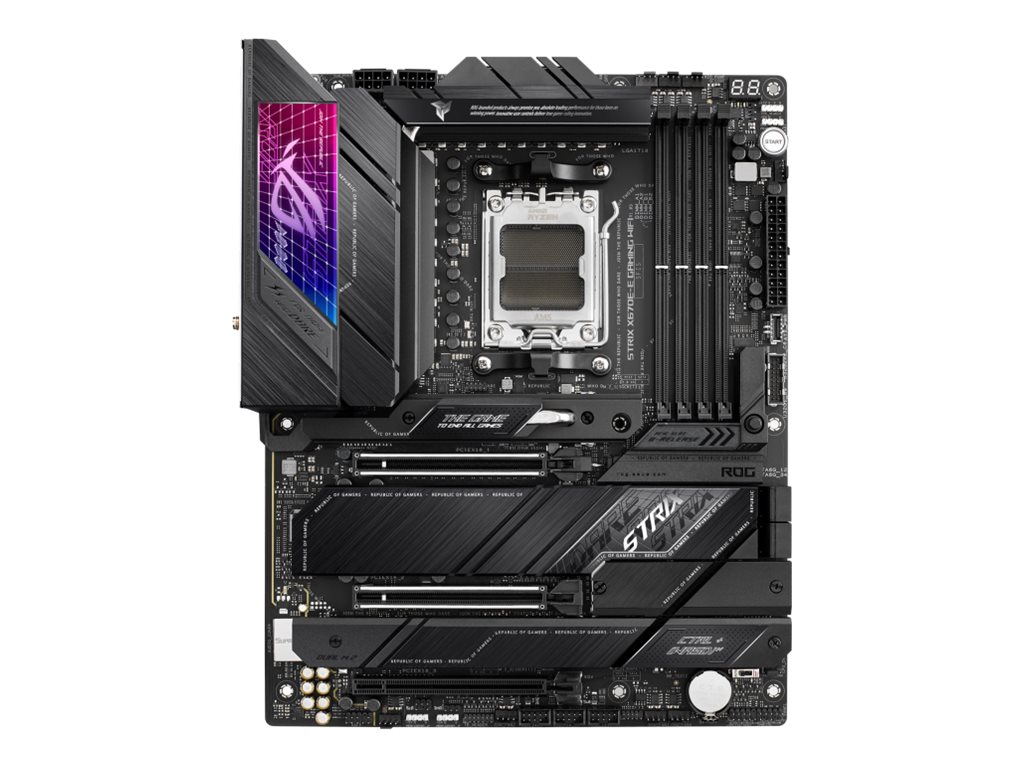

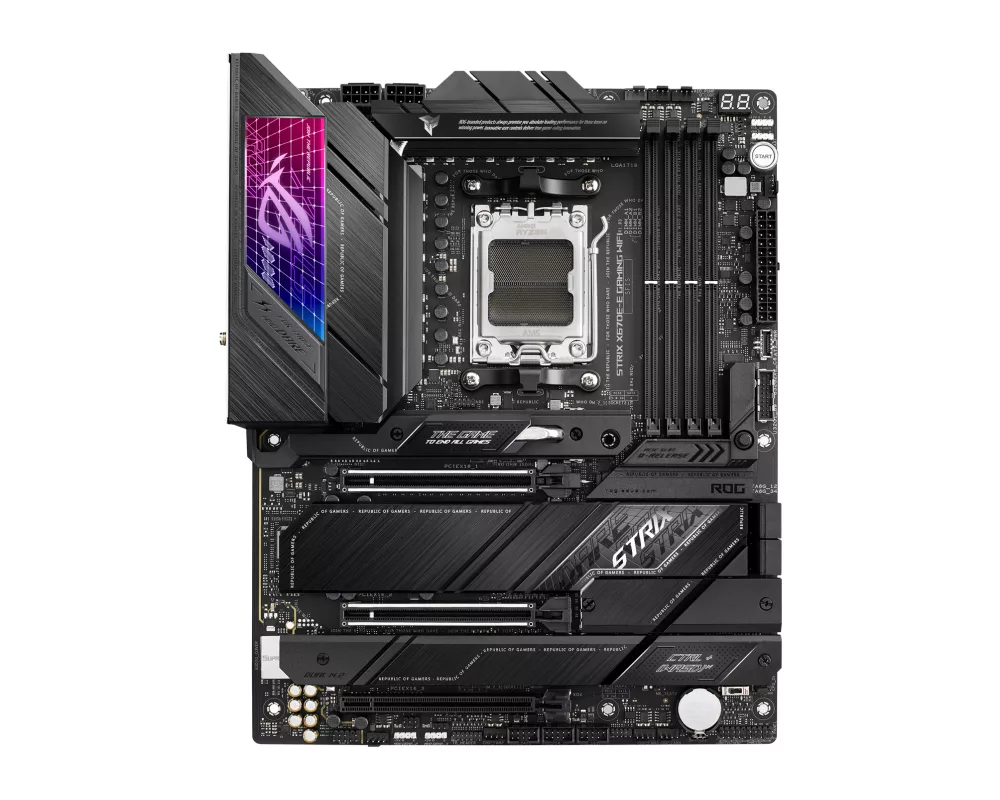

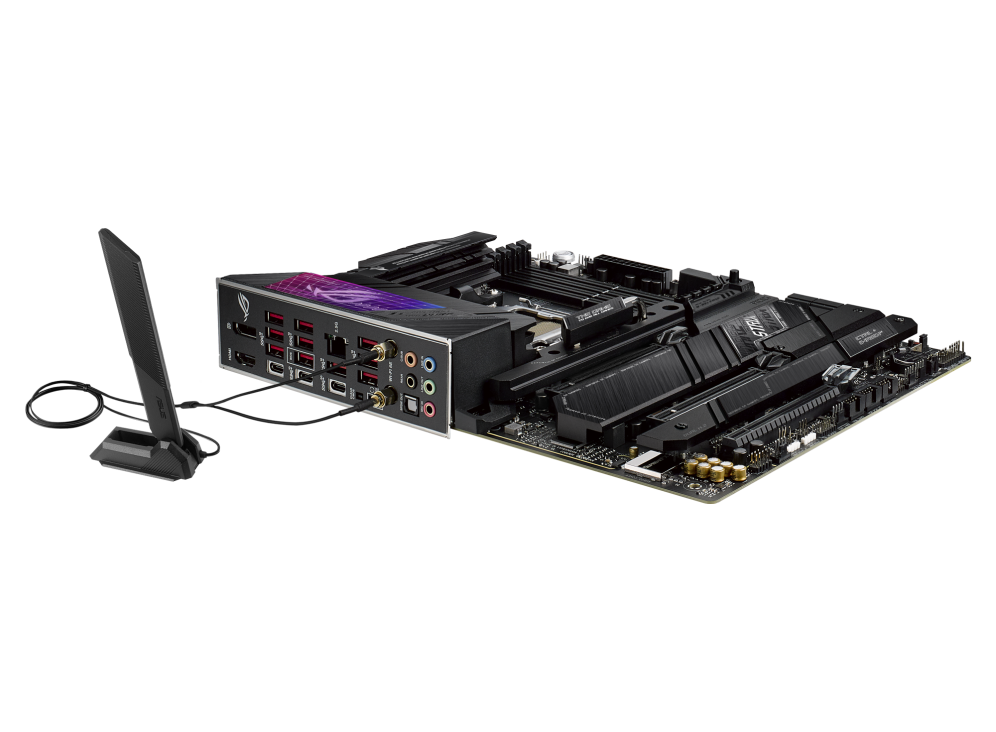

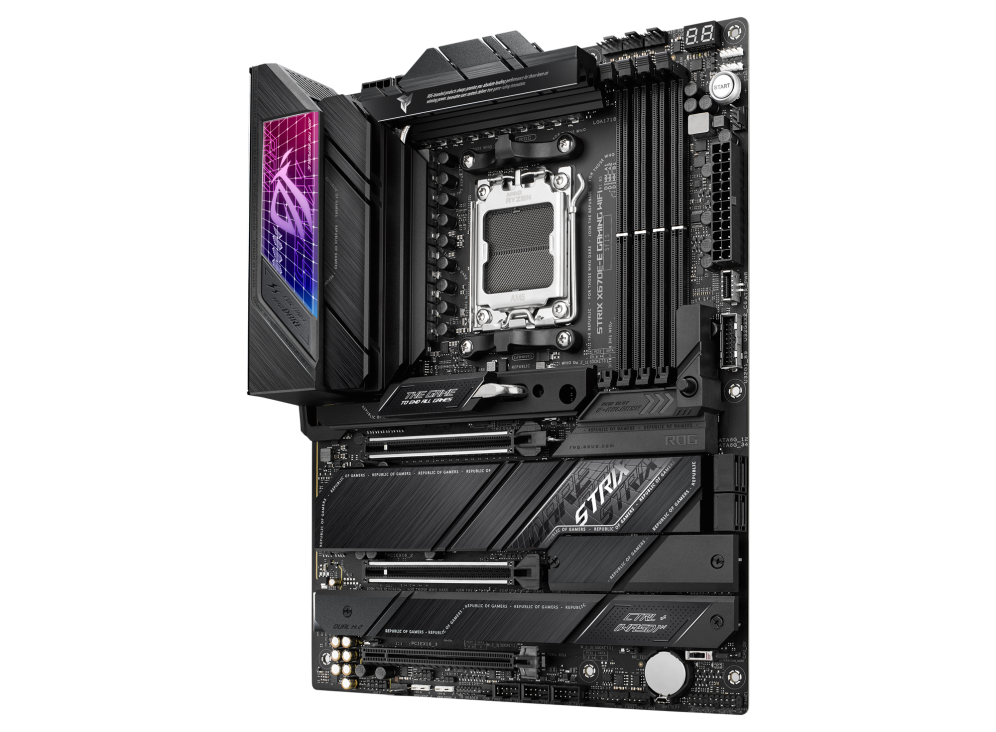

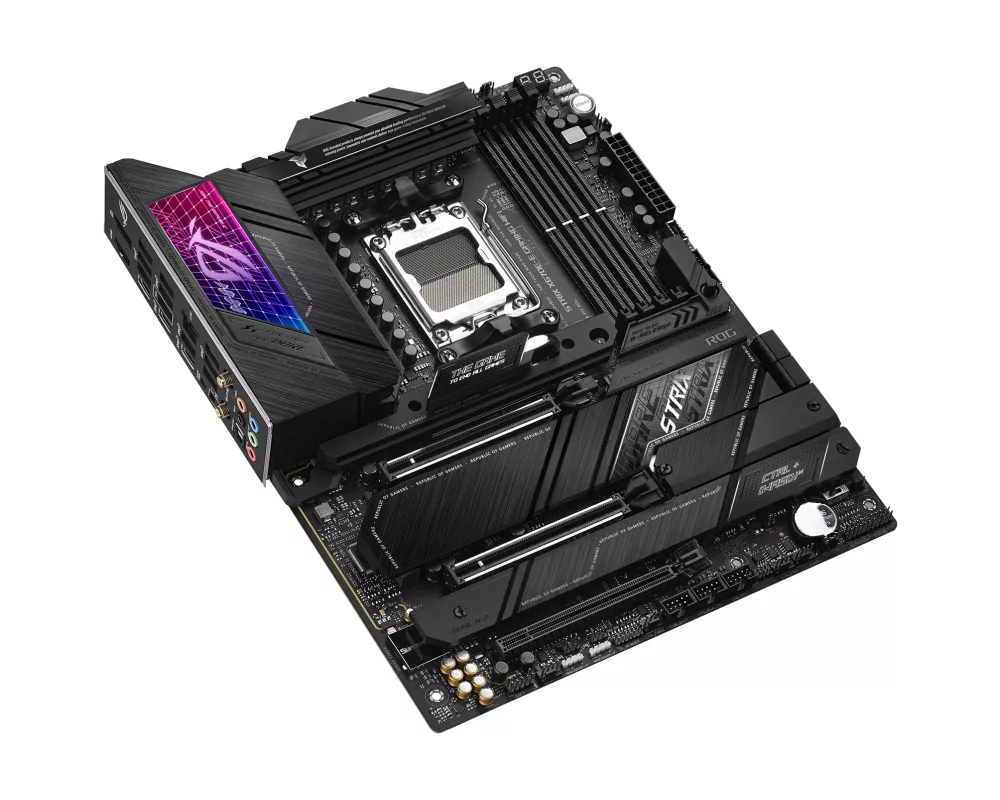

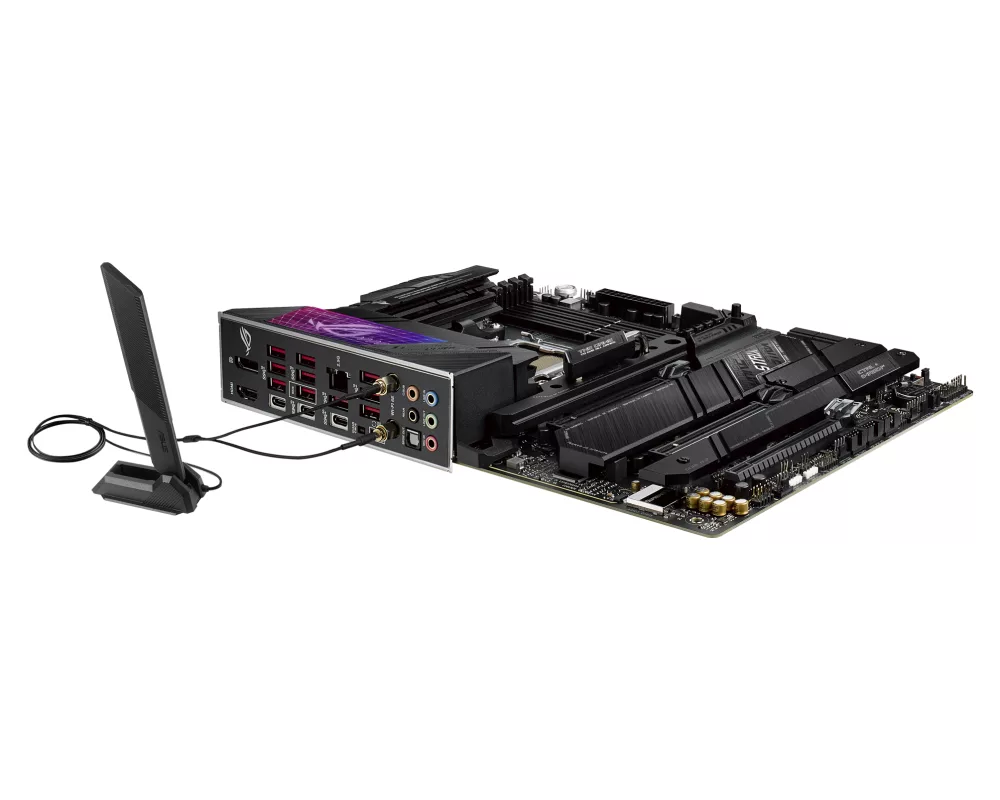

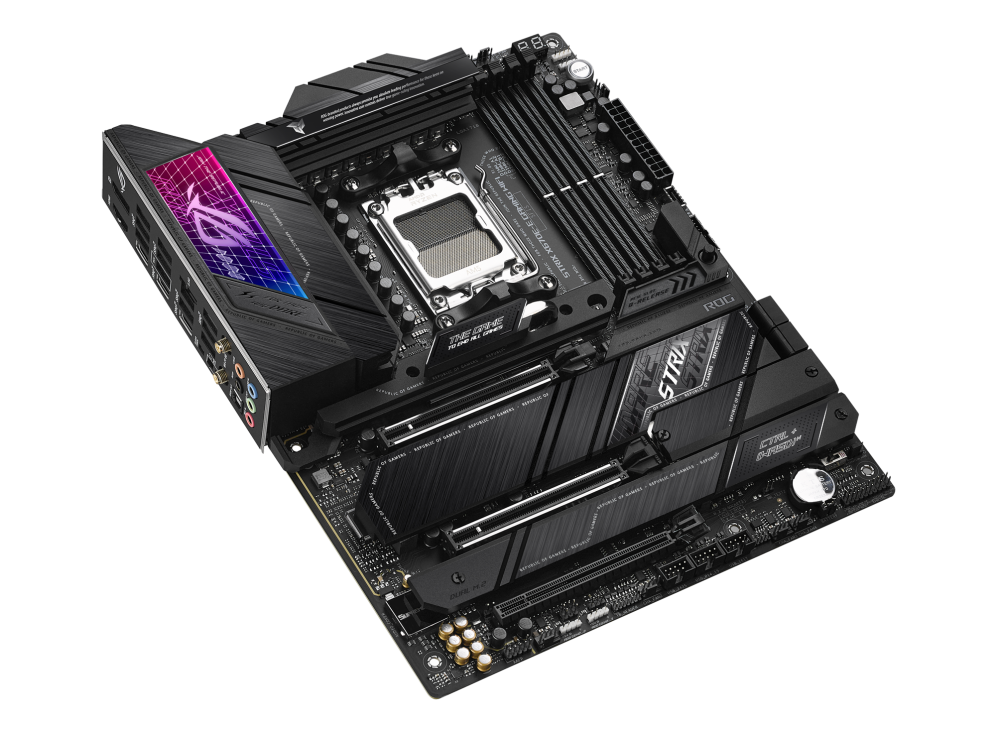

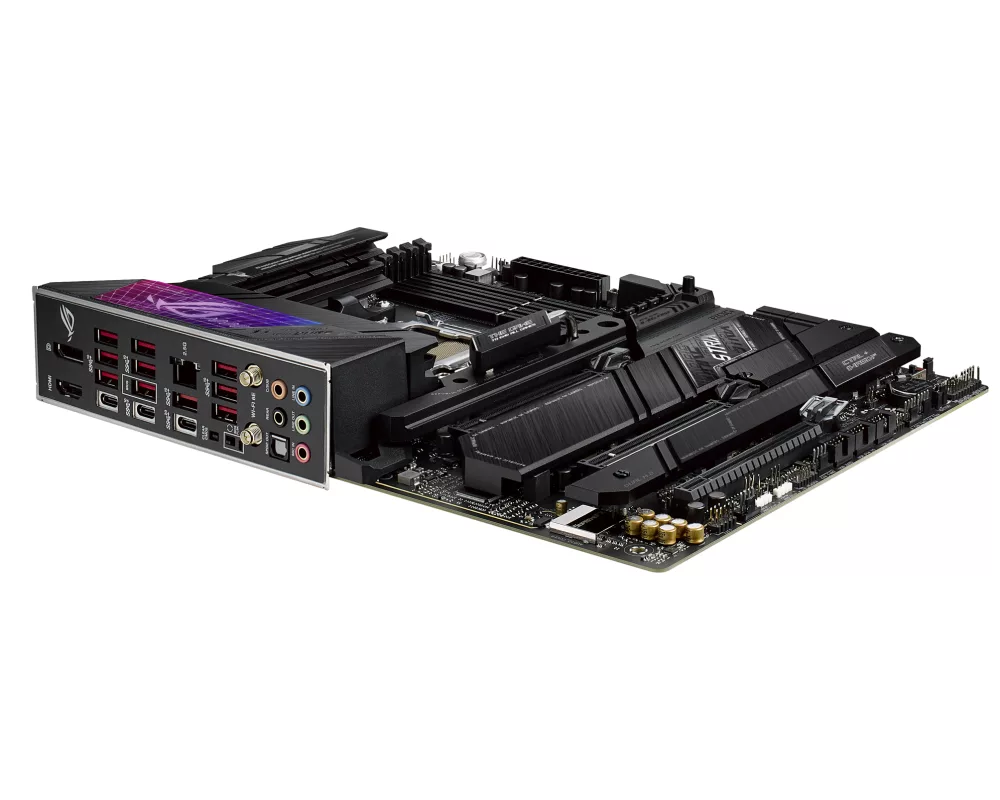

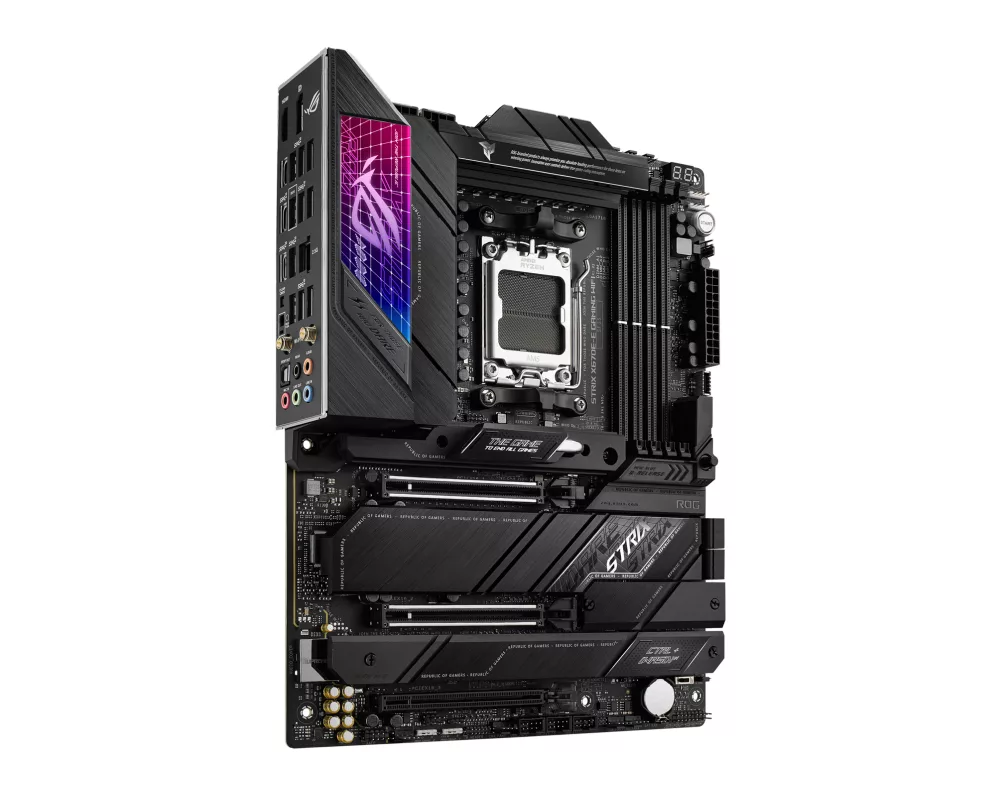

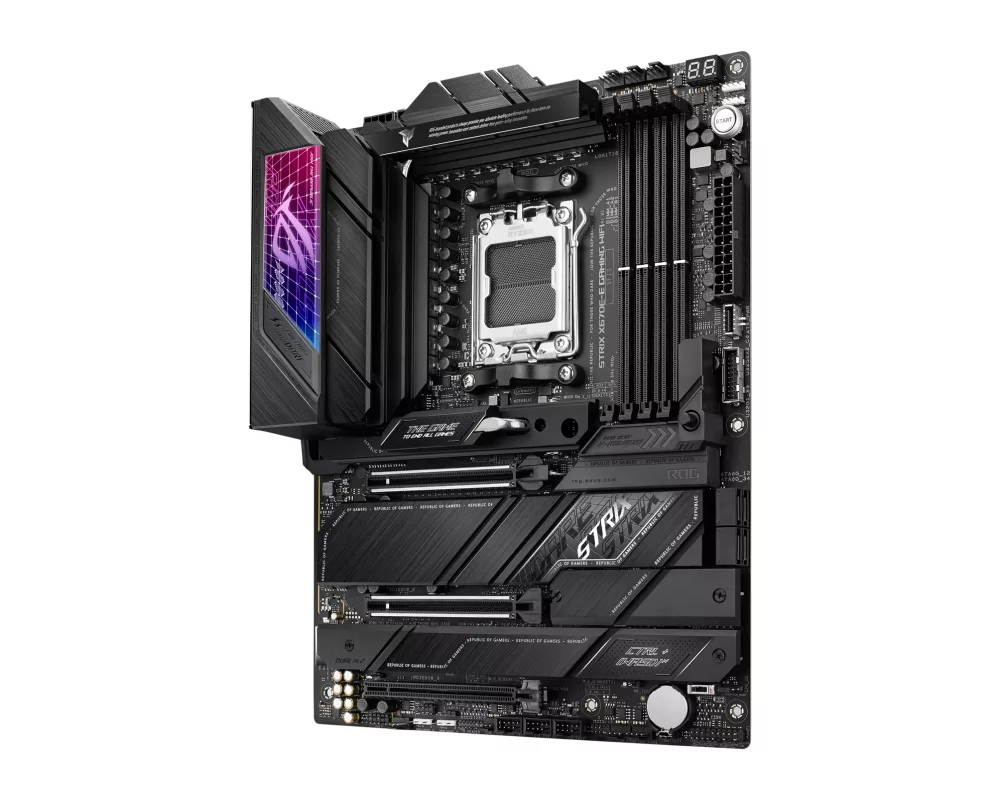

Дънна платка ASUS ROG STRIX X670E-E GAMING WIFI AM5 ATX MB 4xDIMM DDR5 4xM.2 6xSATA 90MB1BR0-M0EAY0
изчерпано
Сокет: AM5
Чипсет: AMD X670E
Тип на паметта: DDR5
Физически размер: ATX
Слотове за памет: 4
Честота на паметта: 5200 MHz
Гаранция:
0.0
от 5.0
(0)
Купи и събери
7 точки
Плати по-лесно и сигурно с
Виж всички продукти на Asus
Пазарувай по марка
Характеристики
| Физически размер | ATX |
| Чипсет | AMD X670E |
| Сокет | AM5 |
| Съвместими процесори | Ryzen (supports Ryzen 7000 Series) |
| BIOS | UEFI BIOS, ASUS EZ Flash 3 |
| Тип BIOS | AMI |
| Тип на паметта | DDR5 |
| Честота на паметта | 5200 MHz |
| Dual channel | Да |
| ECC support | Non-ECC, on-die ECC |
| Memory Registered / Buffered | Unbuffered |
| Слотове за памет | 4 |
| Максимална памет | 192 GB |
| Брой процесорни гнезда | 1 |
| Дисков интерфейс | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 PCIe 5.0 -connectors: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 |
| SATA | 4 x SATA 6Gb/s |
| M.2 slot |
M.2_3 slot (Key M)
type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)) M.2_1 slot (Key M) type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M) type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_4 slot (Key M) type 2242/2260/2280 (supports PCIe 4.0 x4 ) |
| RAID | 0,1,10 |
| LAN порт | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2 |
| Звук | Realtek ALC4080 |
| Звуков изход | HD Audio (8-channel) |
| Аудио стандарти | High Definition Audio |
| Портове | 2 x aerial 1 x HDMI 1 x DisplayPort 1 x USB-C 3.2 Gen2x2 10 x USB 3.2 Gen 2 2 x USB-C 3.2 Gen 2 1 x audio line-out (rear) - mini-jack 1 x microphone - mini-jack 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x audio line-out (center/subwoofer) - mini-jack 1 x SPDIF out 1 x LAN (2.5Gigabit Ethernet) |
| Разширителни слотове | 1 x CPU 4 x DIMM 288-pin 2 x PCIe 5.0 x16 (x16/x0, x8/x4 modes) 1 x PCIe 4.0 x16 (x4 mode) 3 x M.2 socket (2242/2260/2280 M.2 Key M slot) 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot) |
| PCIe x1 | 1 |
| PCIe x16 | 1 x PCIe 4.0 x16 slot (supports x4 mode), 2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes) |
| Вътрешен интерфейс | 1 x USB-C 3.2 Gen 2x2 - header 2 x USB 3.2 Gen 1 - header 6 x USB 2.0 - header 1 x audio - header 1 x Thunderbolt - header |
| Wake on LAN | Wake on LAN (WOL), wake on PME |
| Функции | Dual channel memory architecture, AMD EXPO technology |
| Софтуер |
ROG CPU-Z
ASUS AI Suite III ASUS Turbo App PC Cleaner WinRAR ROG GameFirst VI AIDA64 Extreme (60 days trial) ASUS AURA Creator Armoury Crate Sonic Studio III Sonic Radar III ASUS Fan Xpert 4 |
| Конектори за захранване | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
| Стандарти |
VCCI Class B ITE
JATE WEEE FCC Part 15 Class B DisplayPort 1.4 EU RoHS UKCA EU REACH |
| Включени кабели | 2 x Serial ATA cable |
| Аксесоари |
Cable ties
STRIX stickers ROG thank you card thermal pad for M.2 SSD ROG key chain ASUS Wi-Fi moving aerial M.2 Q-Latch 2 x M.2 rubber package graphics card holder M.2 backplate rubber package M.2 backplate Q-Latch M.2 heatsink |
| Ширина | 30.5 cm |
| Дълбочина | 24.4 cm |
| Други характеристики |
Jack retasking
ASUS Q-Design Q-DIMM ASUS EZ DIY Q-LED Q-Slot ASUS Extreme Engine Digi+ CrashFree BIOS 3 audio jack detect technology ASUS TPU (TurboV Processing Unit) ASUS DIGI+ VRM Q-Code 8 Layer PCB Clear CMOS Button LANGuard ASUS SafeSlot ASUS SafeDIMM M.2 heatsink Water Pump Header pre-mounted I/O shield ASUS Aura Sync ASUS OptiMem II DIY Friendly Design ASUS ProCool II Savitech SV3H712 amplifier M.2 Q-Latch 5K Black Metallic Capacitors Start button PCIe Slot Q-Release VRM heatsink design BIOS FlashBack button BIOS FlashBack LED ASUS Enhanced Memory Profile (AEMP) 110A Power Stage 18+2 Phase Power Design |
| Гаранция | 36 месеца |
| Код на продукта | 90MB1BR0-M0EAY0 |
Виж повече
Допълнителна информация
- PCIe 5.0
Blazing fast storage is at your command with three PCIe 5.0 M.2 slots and one PCIe 4.0 M.2 slot. Push speeds even further, create a mirrored backup, or both; NVMe and SATA RAID configurations (0/1/10) are available through AMD RAID Xpert2. PCIe 5.0 support also extends to two x16 extension slots, which include SafeSlot to support heavy graphics cards and Q-release (top slot only) for easy upgrades. - AI Overclocking
Tuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation. - Dynamic OC Switcher
Lightly-threaded tasks get fantastic uplift using AMD Precision Boost Overdrive (PBO), but all-core frequencies can be pushed higher via traditional overclocking. The Dynamic OC Switcher dynamically engages PBO or your preferred settings based on the CPU current or temperature, giving you the best of both worlds. Core Flex and PBO Enhancement can also be deployed to work in tandem with the Dynamic OC Switcher and further bolster performance on both sides of the aisle. - Core Flex
Core Flex empowers you to smash limits farther than ever before by letting you control clock, power, and thermals in creative ways. In its simplest form, you can maximize base clock during lighter loads and set breakpoints to gradually reduce CPU core frequency as temperature or current increases. But the system is extremely adaptable, supporting multiple user-controlled functions that can manipulate power, current, and temperature limits independently so that you can bend CPU performance to your will. - Asynchronous clock
For next-level frequency flexibility, the ROG Strix X670E-E features a built-in clock generator that isolates CPU base clock from memory, PCIe, and the Infinity Fabric speed. Drive CPU performance to its absolute brink while maintaining the stability of related clock domains. - PBO enhancement
AMD Precision Boost Overdrive (PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD's algorithm can leverage the motherboard's robust power solution to ramp up performance even higher. - Teamed power architecture
18 + 2 power stages, strategically teamed to rapidly respond to load changes and drive Ryzen 7000 through any workload. - Alloy chokes and durable capacitors
Hi-end chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards. - 2x 8-pin ProCool II power connectors
ProCool II connectors are precision-built to ensure flush contact with PSU power lines. A metal sheath improves heat dissipation and lowers electrical impedance. - DIGI+ power control
The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, switching frequency, and power-efficiency settings, allowing you to fine-tune CPU voltage regulation for ultimate stability and performance. - Eight-layer PCB
A multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom. - DDR5 strength
For those who want to fly past stock DDR5 speeds, the Strix X670E-E is primed and ready for enthusiast-grade kits courtesy of vast AMD EXtended Profiles for Overclocking (EXPO) support. Seasoned veterans can further tweak performance via the extensive array of settings in the UEFI. - AEMP
ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules. AEMP automatically detects the memory chips on your kit and then presents optimized frequency, timing and voltage profiles that you can effortlessly apply to unleash performance. - Wi-Fi 6E
Onboard Wi-Fi 6E technology takes advantage of newly available spectrum in the 6 GHz band to provide up to seven 160 MHz channels for ultrafast throughput and better performance in dense wireless environments. - Intel 2.5G Ethernet
Onboard Intel 2.5 Gbps Ethernet gives your wired connection a boost, with speeds that are 2.5 times faster than standard Ethernet connections for speedy file transfers, low-latency gaming, and high-res video streaming. - Undeniably ROG Strix
The ROG Strix X670E-E Gaming WiFi makes quite a statement compared to its slightly more subdued brethren. A high-contrast monochromatic colorway includes silver metal components and white design accents on top of a black PCB and dark metallic heatsinks. Aggressive angles and a splash of customizable RGB on the I/O shroud help it stand out even further from the crowd. - Outshine the competition
ROG Strix motherboards feature ASUS Aura technology, enabling full lighting control and a variety of presets for both onboard RGB LEDs and third-party accessories. Effects can be easily synced across compatible ROG graphics cards, monitors, keyboards, and mice to give your setup a unified look.
