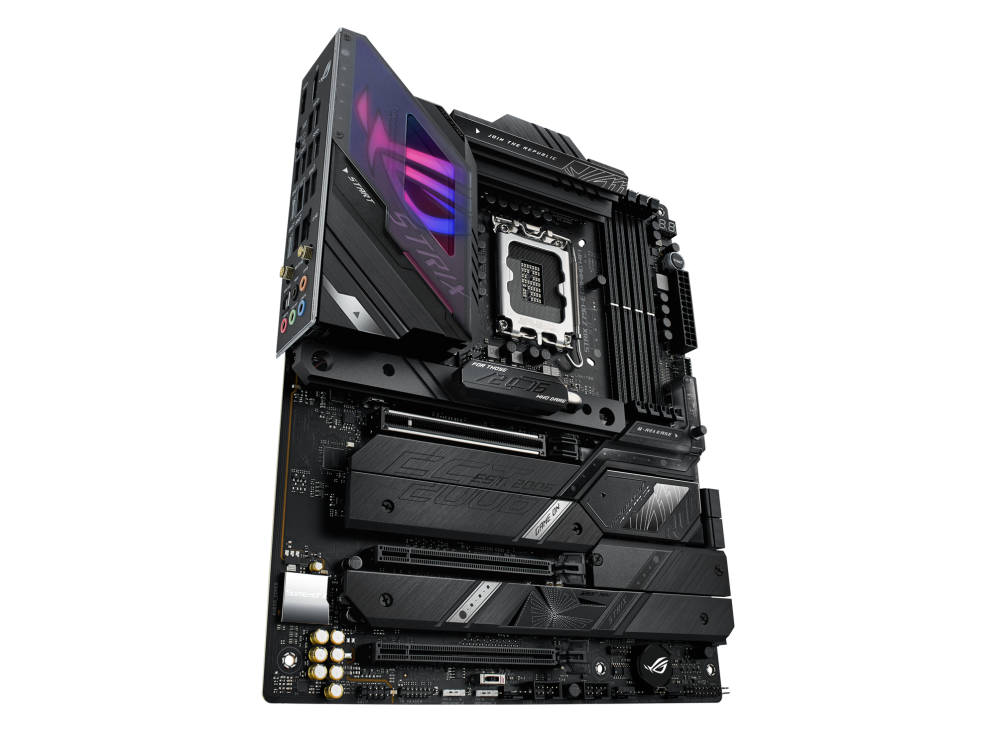

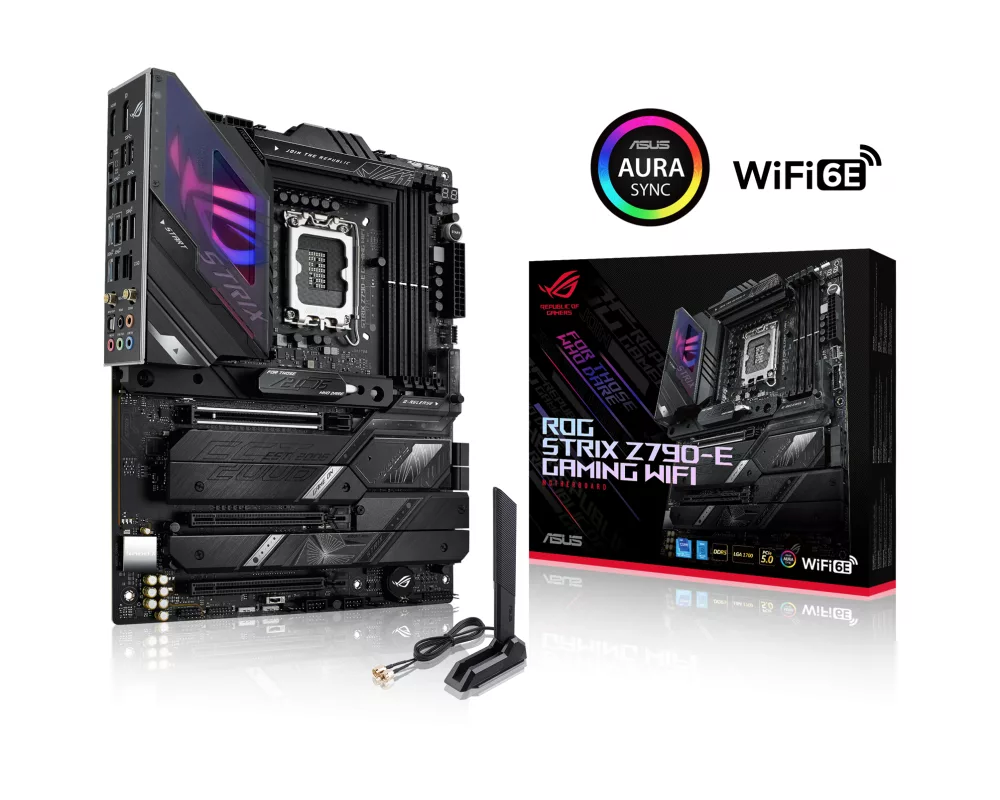

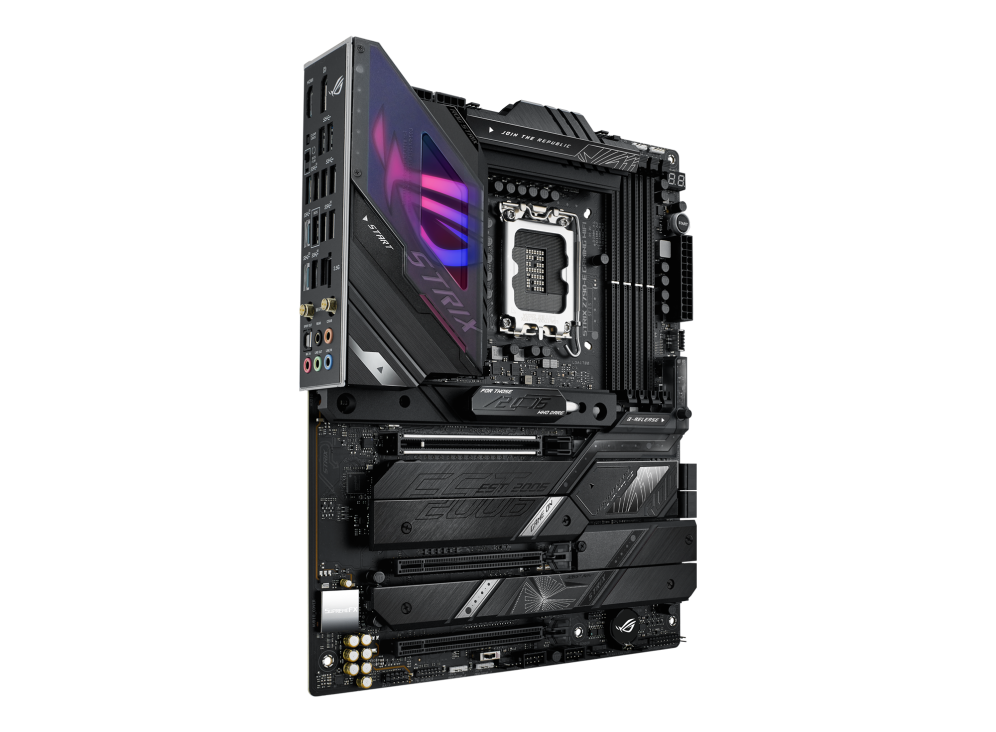

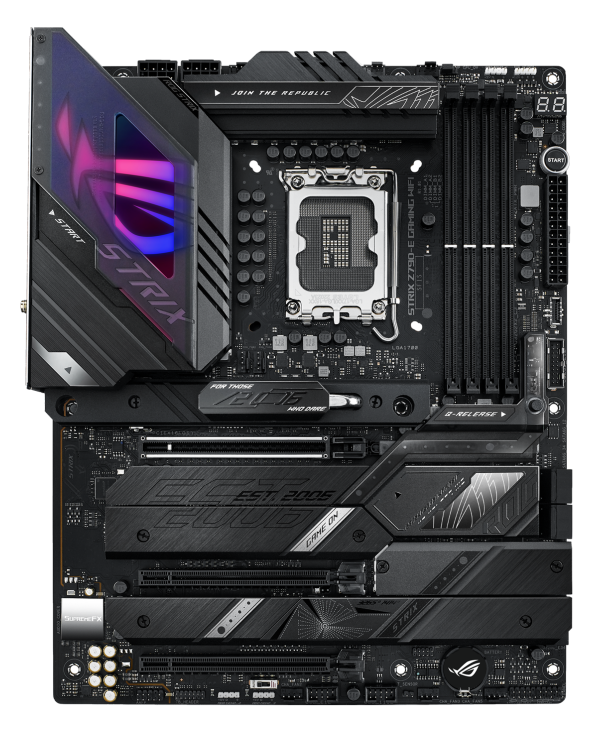

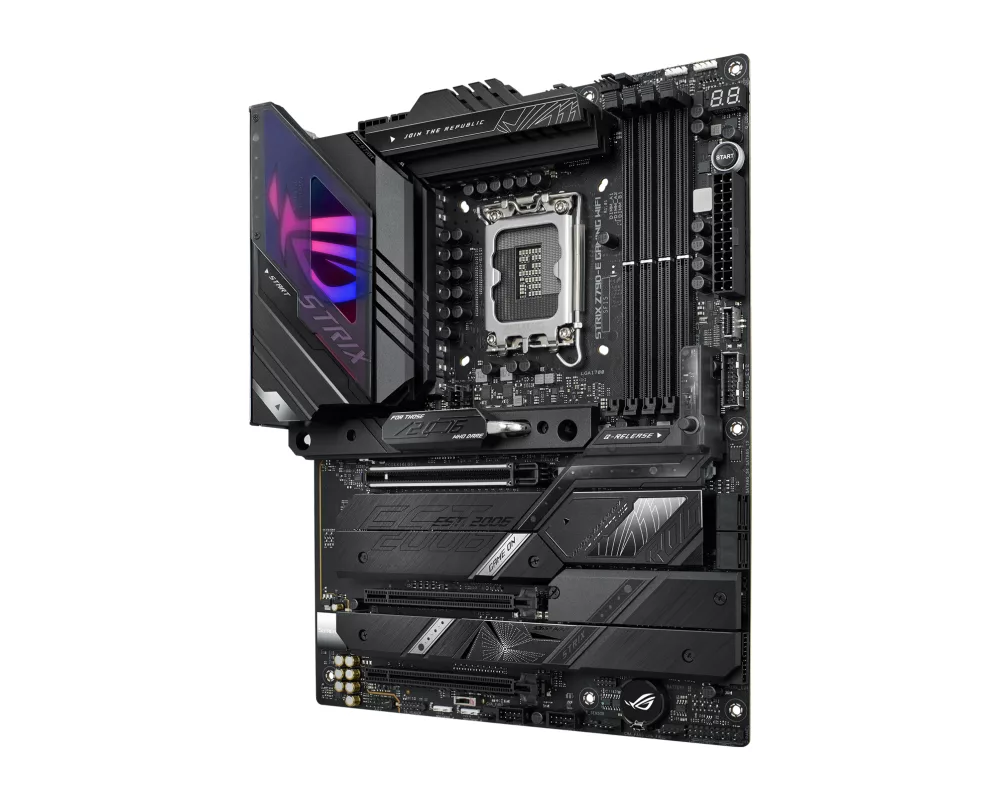

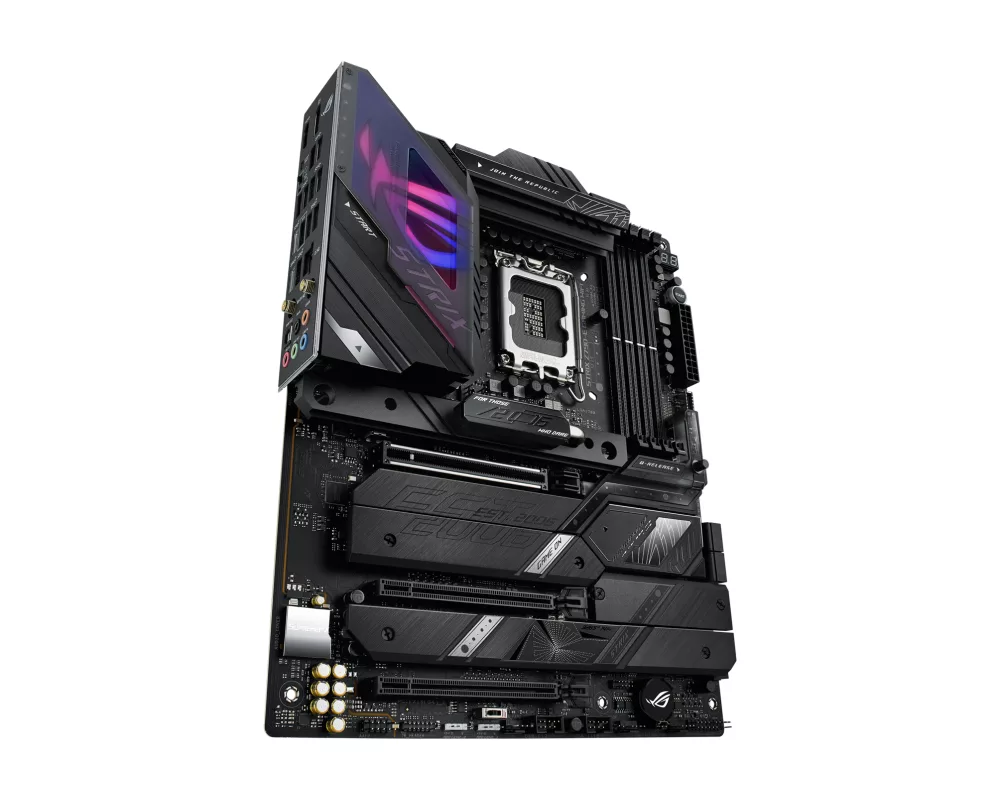

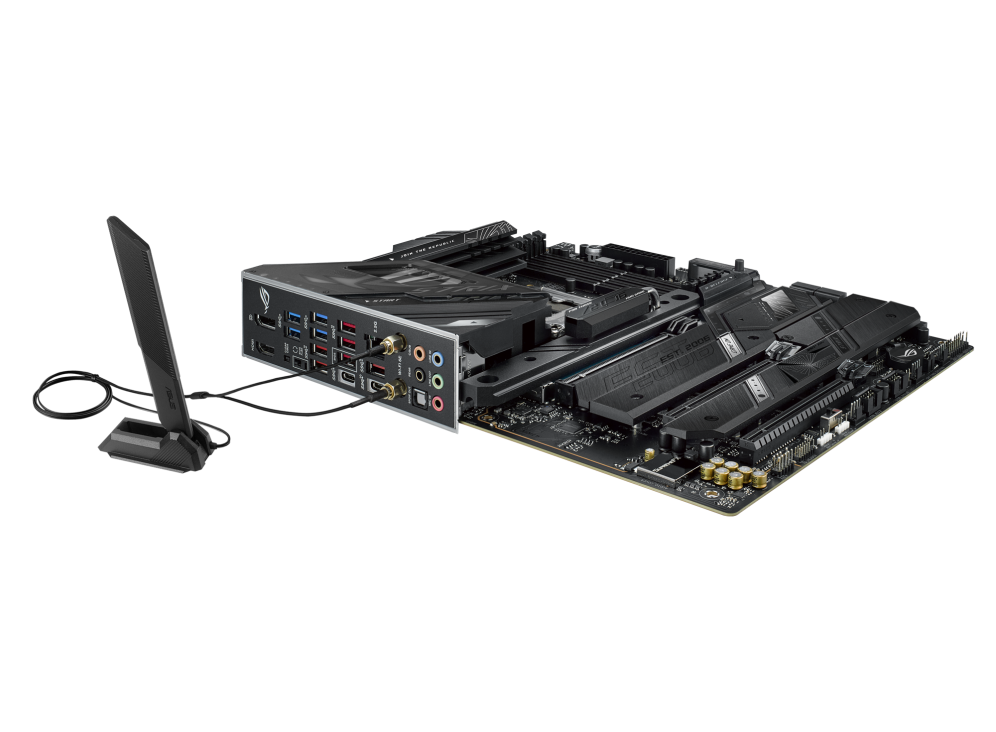

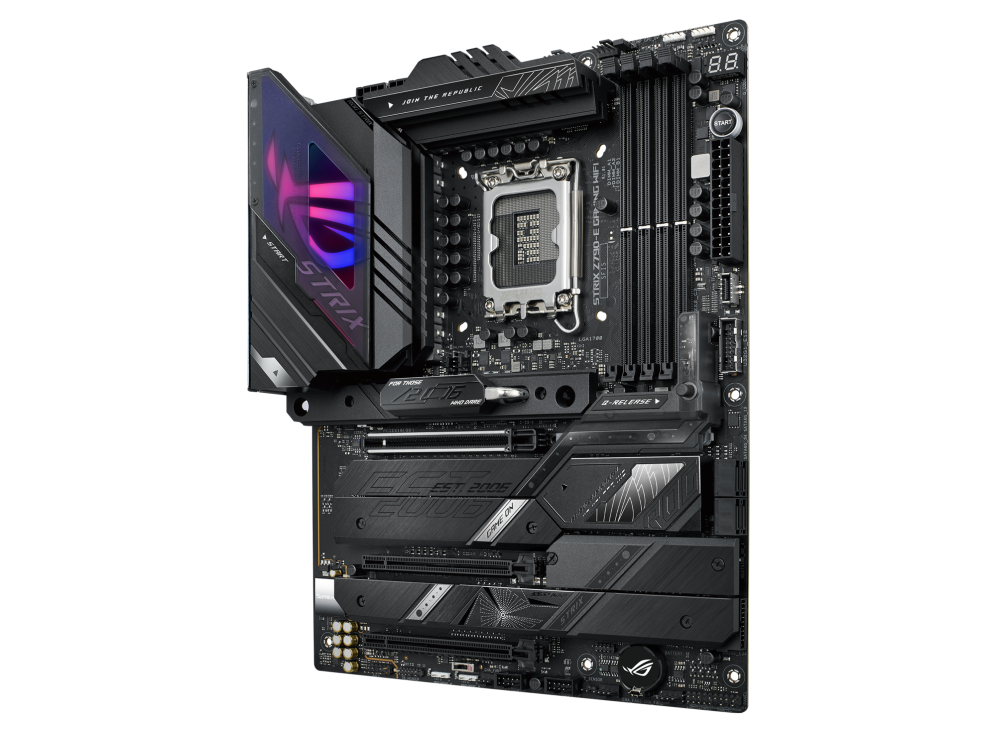

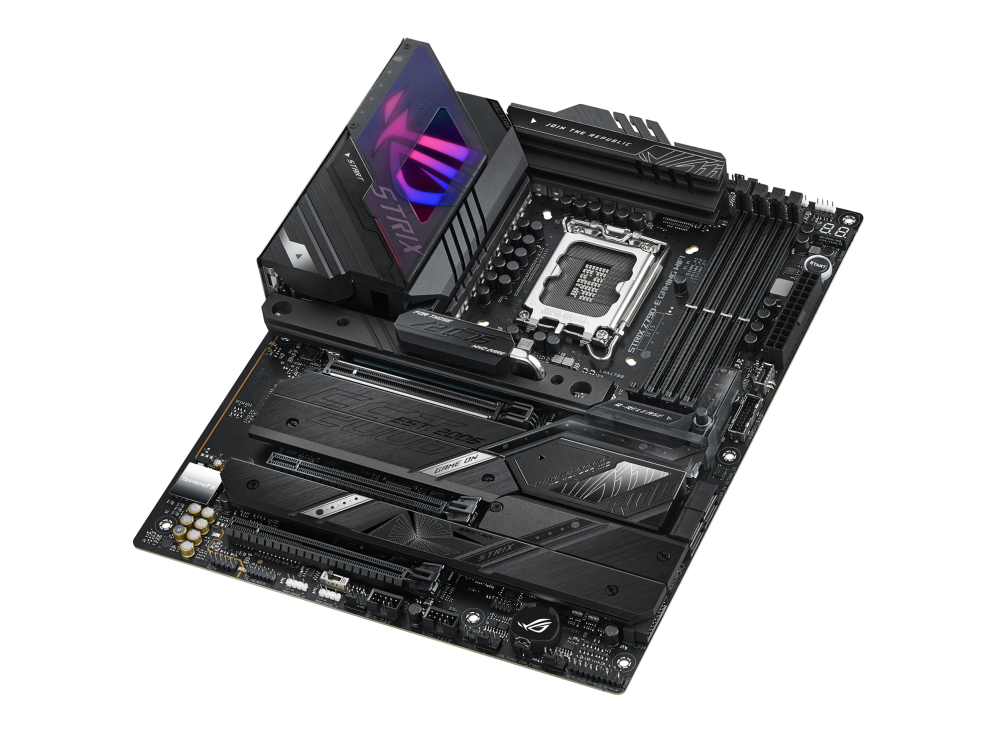

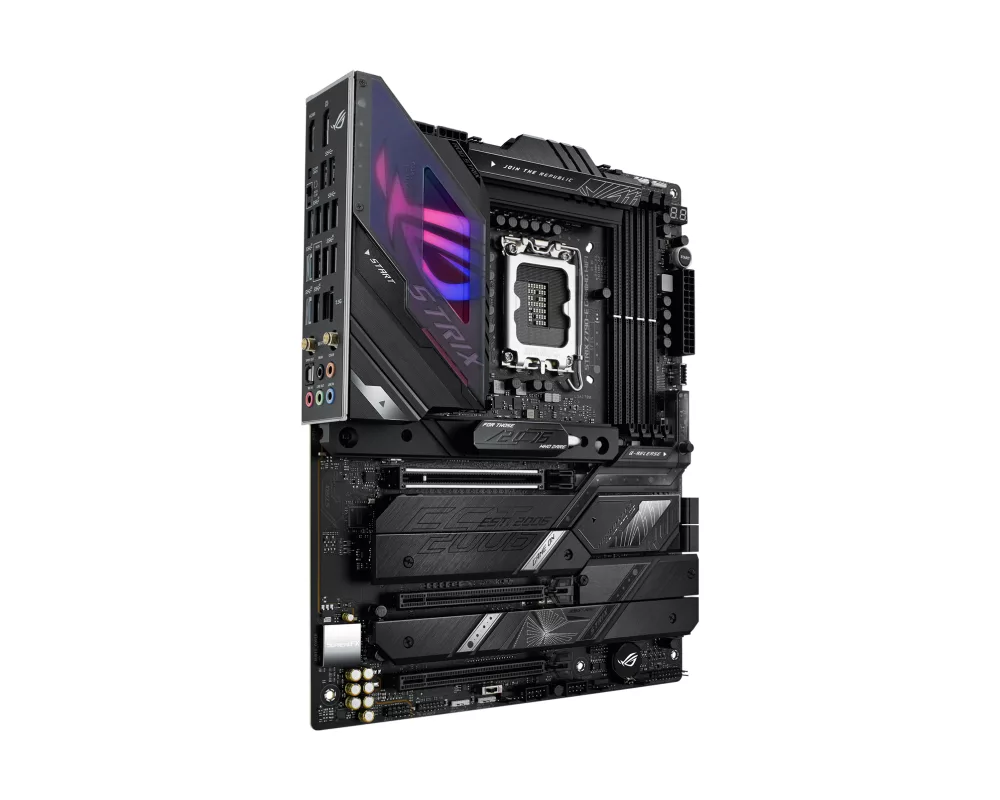

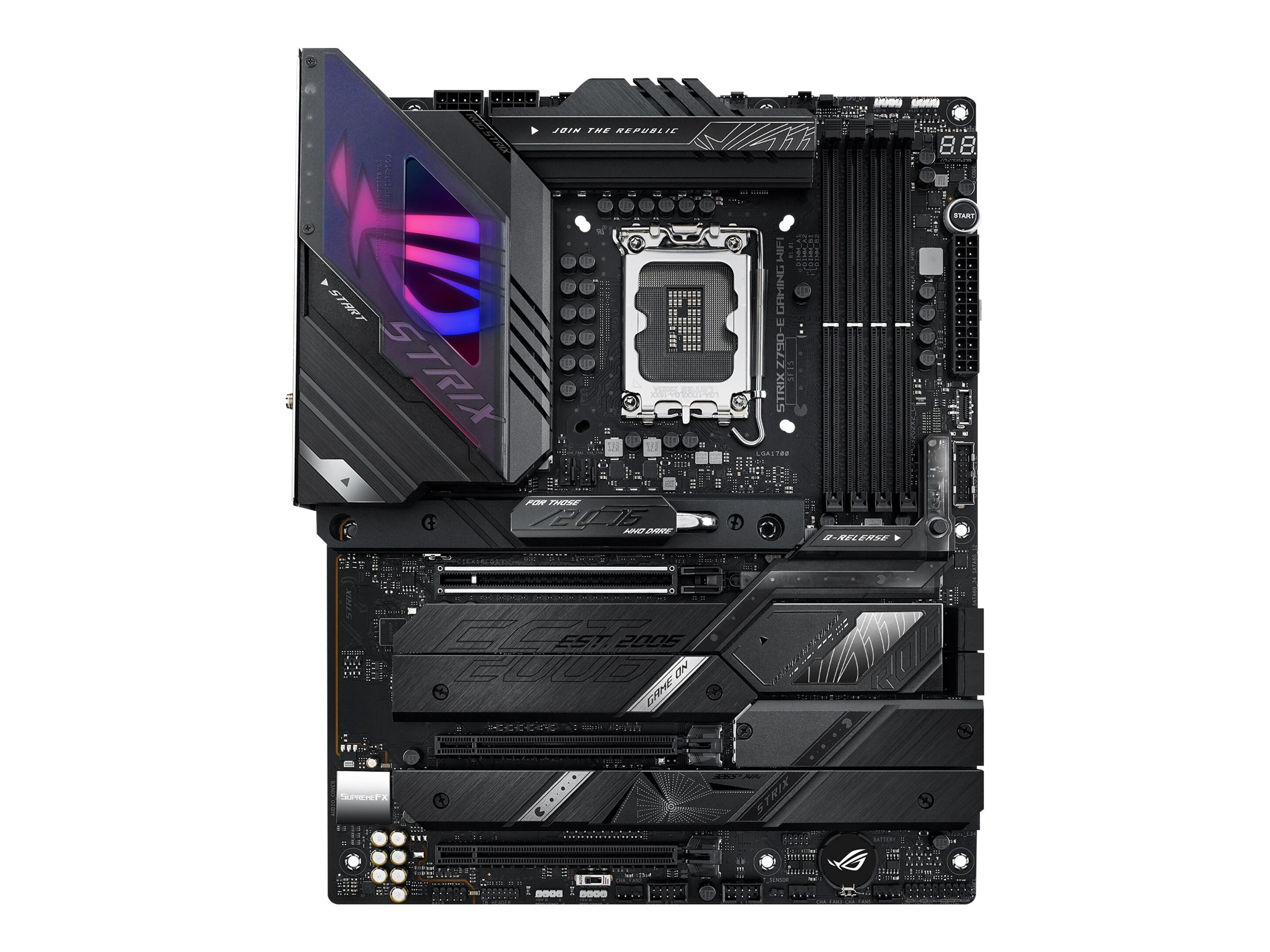

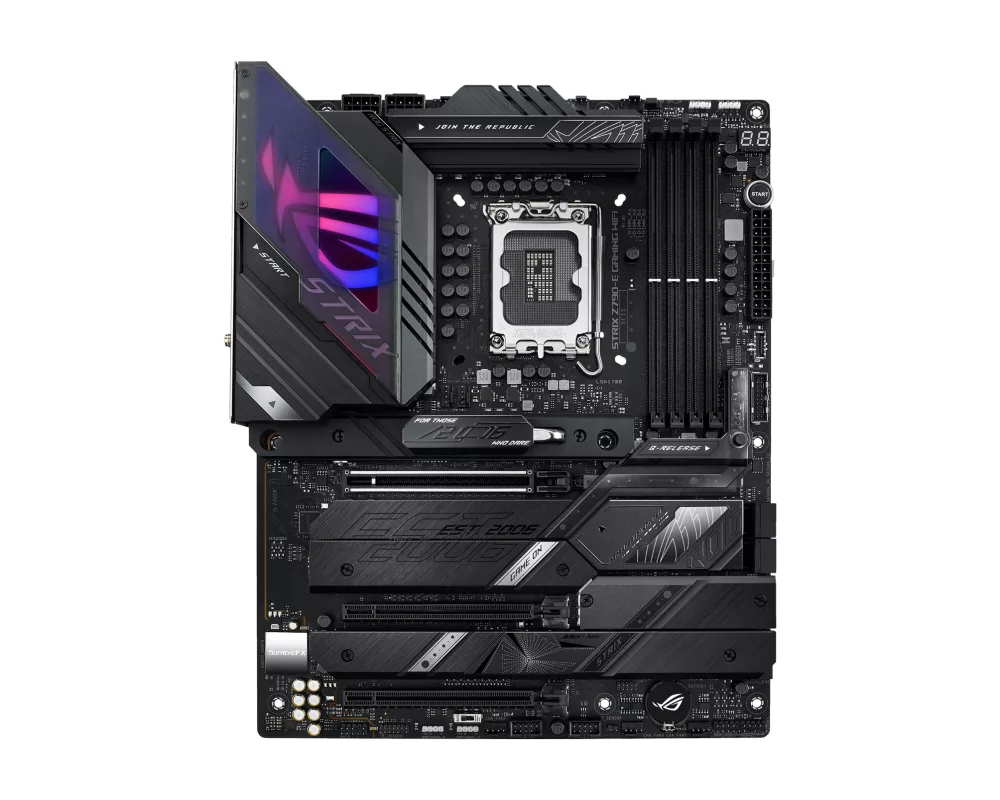

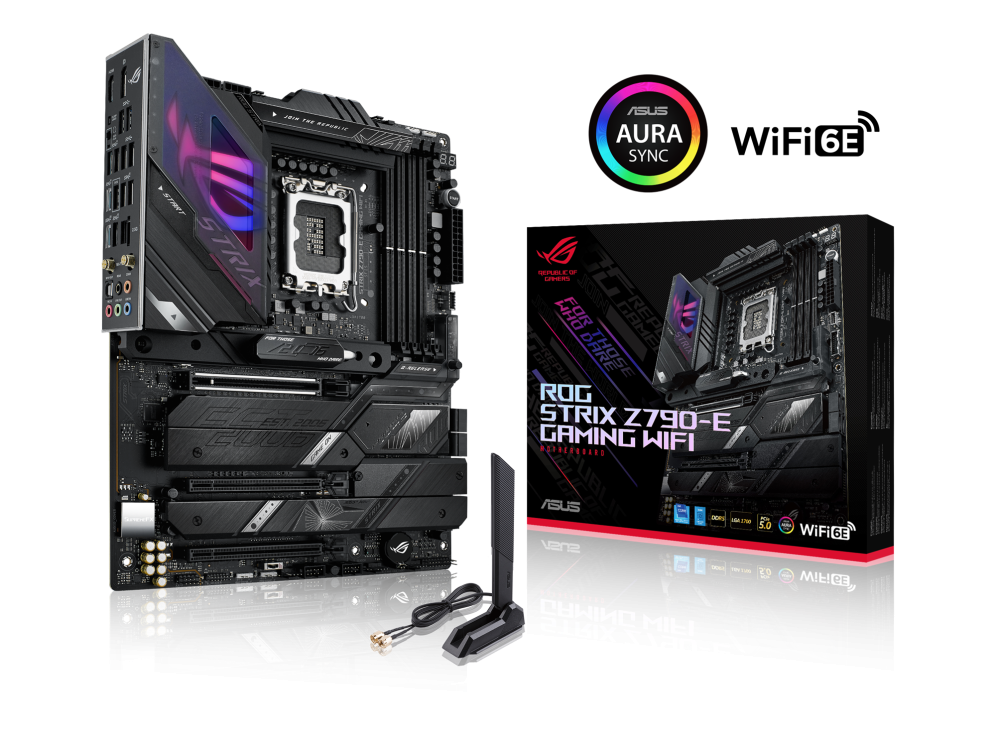

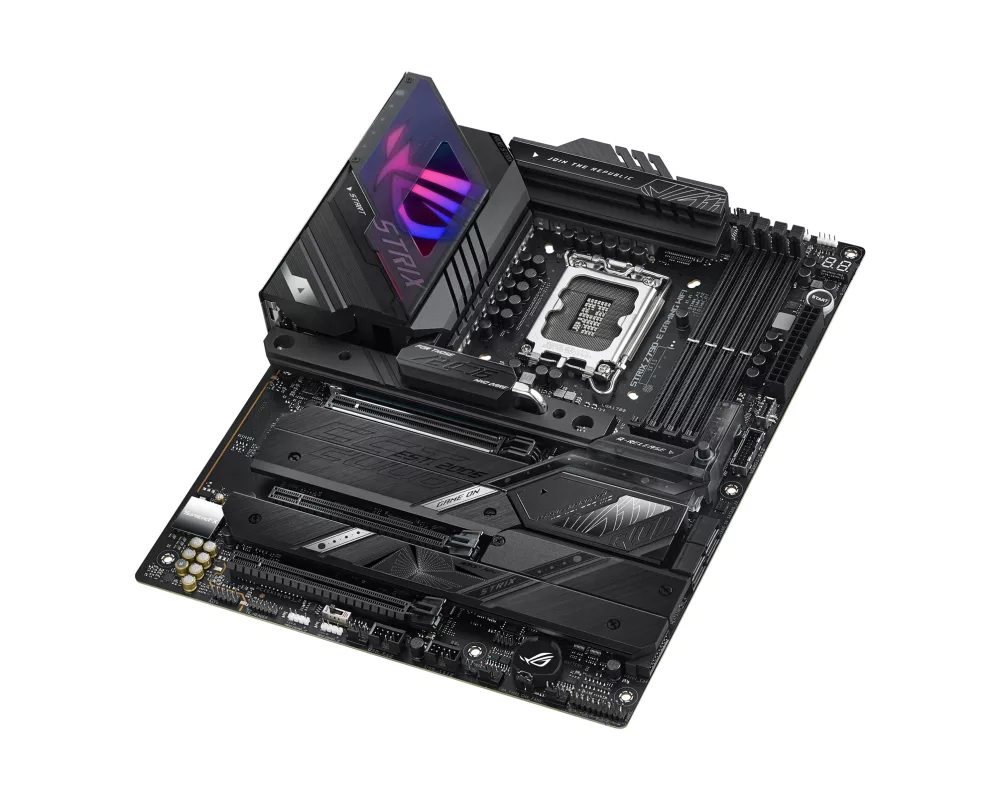

Дънна платка ASUS ROG STRIX Z790-E GAMING WIFI, LGA 1700, ATX, Wi-Fi 6E, AURA Sync RGB, DDR5 ROG-Z790-E-WF
изчерпано
Сокет: LGA 1700
Чипсет: Intel Z790
Тип на паметта: DDR5
Физически размер: ATX
Слотове за памет: 4
Честота на паметта: 5600 MHz
Гаранция:
0.0
от 5.0
(0)
Купи и събери
7 точки
Плати по-лесно и сигурно с
Виж всички продукти на Asus
Пазарувай по марка
Характеристики
| Физически размер | ATX |
| Чипсет | Intel Z790 |
| Сокет | LGA 1700 |
| Съвместими процесори | (supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron) |
| BIOS | UEFI BIOS, ASUS EZ Flash 3, MemTest86 |
| Тип BIOS | AMI |
| Тип на паметта | DDR5 |
| Честота на паметта | 5600 MHz |
| Dual channel | Да |
| ECC support | Non-ECC, on-die ECC |
| Memory Registered / Buffered | Unbuffered |
| Слотове за памет | 4 |
| Максимална памет | 192 GB |
| Брой процесорни гнезда | 1 |
| Слот за видео картата | PCI Express |
| Дисков интерфейс | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -connectors: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| SATA | 4 x SATA 6Gb/s |
| M.2 slot |
M.2_2 slot (Key M)
type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_1 slot (Key M) type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M) type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) M.2_5 slot (Key M) type 2242/2260/2280 (supports PCIe 4.0 x4 mode & SATA modes) M.2_3 slot (Key M) type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) |
| RAID | Intel Rapid Storage Technology |
| LAN порт | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax |
| Wi-Fi | Wi-Fi 6E, 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax), Supports 2.4/5/6GHz frequency band |
| Звук | Realtek ALC4080 |
| Звуков изход | HD Audio (8-channel) |
| Аудио стандарти | High Definition Audio, DTS Sound Unbound |

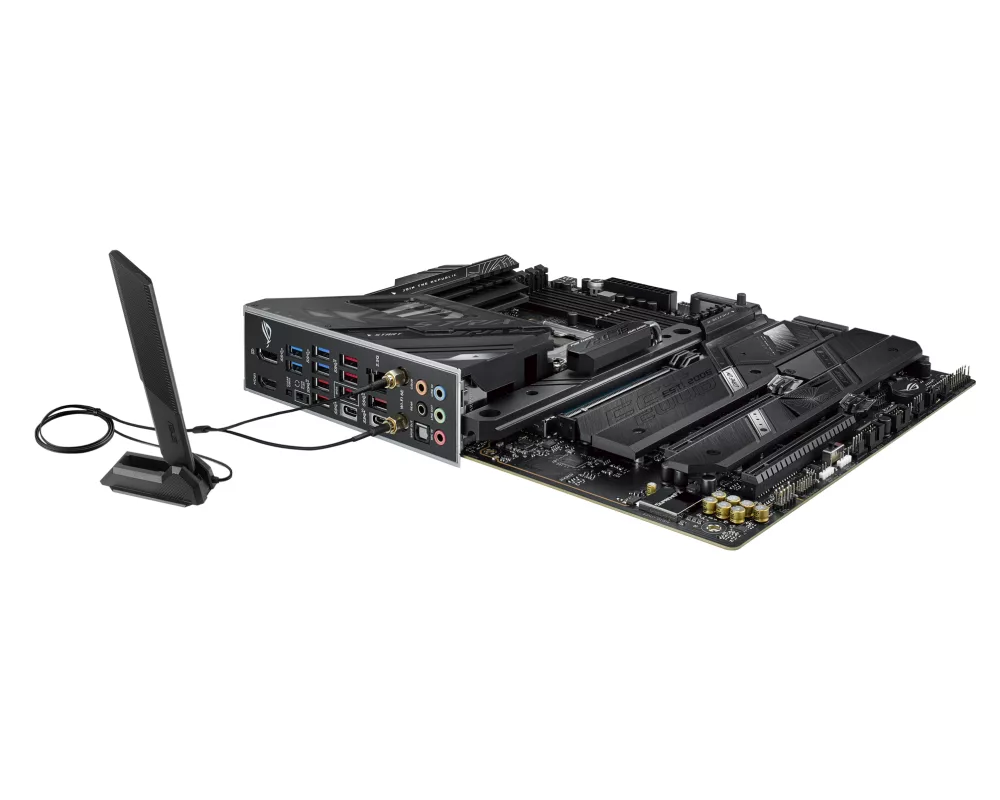

| Портове | 1 x HDMI 1 x DisplayPort 1 x USB-C 3.2 Gen2x2 1 x USB-C 3.2 Gen 2 6 x USB 3.2 Gen 2 4 x USB 2.0 1 x audio line-out - mini-jack 1 x microphone - mini-jack 1 x audio line-out (center/subwoofer) - mini-jack 1 x audio line-out (rear) - mini-jack 1 x audio line-in - mini-jack 1 x SPDIF out 1 x LAN (2.5Gigabit Ethernet) 2 x aerial |
| Разширителни слотове | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 5.0 x16 1 x PCIe 4.0 x16 (x4 mode) 1 x PCIe 3.0 x1 4 x M.2 socket (2242/2260/2280 M.2 Key M slot) 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot) |
| PCIe x1 | 1 |
| PCIe x16 | 1 x PCIe 5.0 x16 slot, 2 x PCIe 4.0 x16 slots (support x4 mode) |
| Вътрешен интерфейс |
1 x USB-C 3.2 Gen 2x2 - header
4 x USB 3.2 Gen 1 - header 4 x USB 2.0 - header 1 x audio - header 1 x Thunderbolt - header |
| USB 2.0 | 2 |
| USB 3.2 | 4 x USB 3.2 Gen 1 Type-A, 2 x USB 3.2 Gen 2 Type-A |
| USB Type-C | 2 |
| Bluetooth | Bluetooth V5.3 |
| Wake on LAN | Wake on LAN (WOL), wake on PME |
| Функции | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Софтуер |
ROG CPU-Z
ASUS AI Suite III ASUS Turbo App PC Cleaner WinRAR Sonic Studio Virtual Mixer ROG GameFirst VI AIDA64 Extreme (60 days trial) ASUS AURA Creator Sonic Suite Companion MyAsus Armoury Crate Sonic Studio III Sonic Radar III ASUS Fan Xpert 4 Norton 360 for Gamers |
| Конектори за захранване | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
| Стандарти |
VCCI Class B ITE
JATE WEEE FCC Part 15 Class B DisplayPort 1.4 EU RoHS EU REACH |
| Включени кабели | 2 x Serial ATA cable |

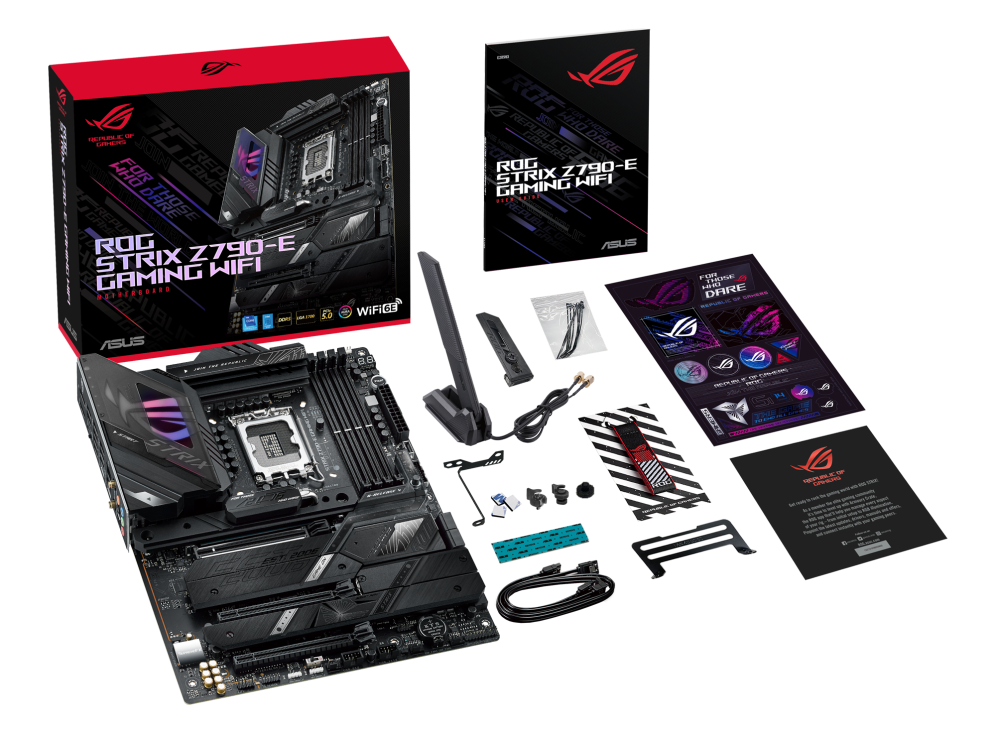

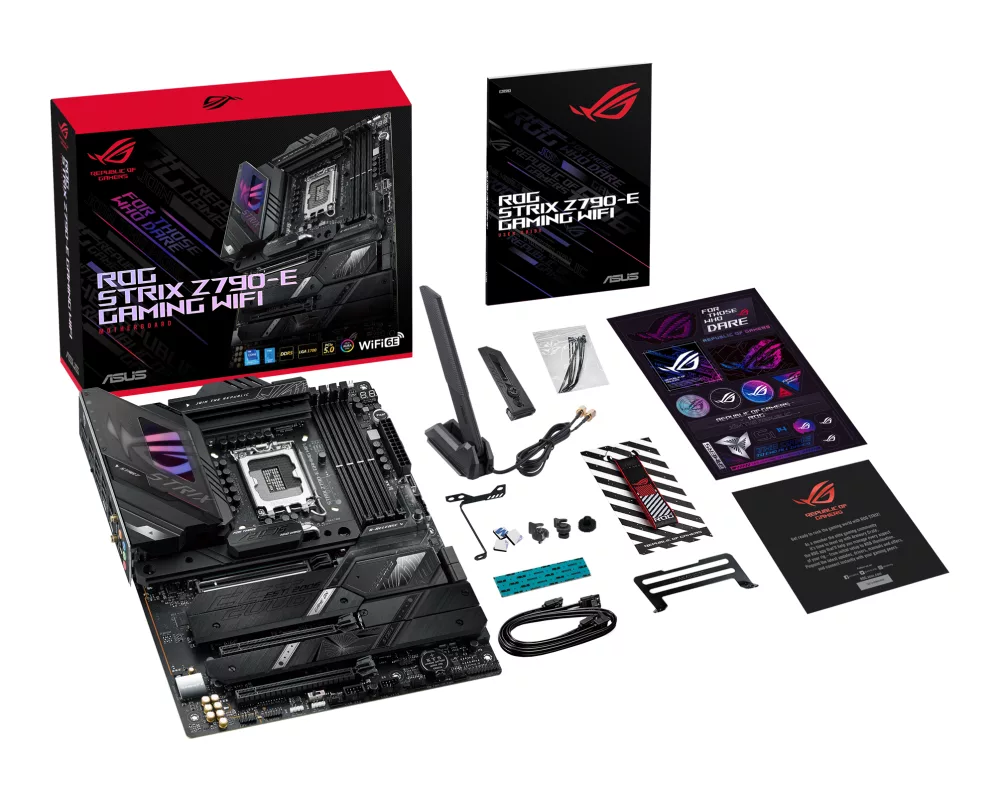

| Аксесоари |
Cable ties
ROG thank you card thermal pad for M.2 SSD ROG key chain ASUS Wi-Fi moving aerial M.2 Q-Latch 2 x M.2 rubber package M.2 backplate rubber package M.2 backplate Q-Latch RAM fan holder VRM fan holder |
| Ширина | 30.5 cm |
| Дълбочина | 24.4 cm |
| Размери | 30.5 cm x 24.4 cm |
| Други характеристики |
Jack retasking
ASUS Q-Design Q-DIMM ASUS EZ DIY Q-LED Q-Slot ASUS Extreme Engine Digi+ audio jack detect technology Intel Turbo Boost Technology 2.0 ASUS TPU (TurboV Processing Unit) ASUS DIGI+ VRM SupremeFX Shielding technology Preboot eXecution Environment (PXE) Clear CMOS Button ASUS SafeSlot ASUS SafeDIMM M.2 heatsink ASUS ProCool Water Pump Header pre-mounted I/O shield Intel Turbo Boost Max Technology 3.0 ASUS Aura Sync ASUS OptiMem II DIY Friendly Design FlexKey button ASUS ProCool II 18+1 Phase Power Design Savitech SV3H712 amplifier M.2 Q-Latch 5K Black Metallic Capacitors Start button PCIe Slot Q-Release CPU Socket lever protector VRM heatsink design BIOS FlashBack button BIOS FlashBack LED 90A Power Stage |
| Гаранция | 36 месеца |
| Код на продукта | ROG-Z790-E-WF |
Виж повече
Допълнителна информация
- PCIe slot Q-release
A physical button unlocks the PCIe slot's security latch with one tap, greatly simplifying the process of detaching a PCIe card from the motherboard when it's time to upgrade to a new GPU or other compatible device. - M.2 Q-Latch
The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the drive and neatly eliminate traditional screws. - Clear CMOS
The Clear CMOS button quickly resets BIOS settings to factory default. It can also be used to reboot the PC if incorrect BIOS settings have been selected. - BIOS Flashback
BIOS FlashBack is a safe and simple way to update BIOS. Just drop the (UEFI) BIOS file onto a FAT32-formatted USB stick, plug it into the USB BIOS FlashBack port, and press the button. Updates can even be performed without having memory or a CPU installed. - Q-Code
The onboard LED panel shows 2-digit diagnostic codes, providing a valuable reference for troubleshooting common boot problems and hardware issues. - Start button
This convenient button removes the need to manually jump hard-to-reach pins during testing and troubleshooting. - All-round performance
Every aspect of the Strix Z790-E is finely tuned so the processor, memory, and connected devices can run in lockstep in order to achieve breakneck speeds. - AI Overclocking
Tuning is faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation. - PCIe 5.0
Fully embracing the standard, the Strix Z790-E offers end-to-end PCIe 5.0 support. The topmost x16 expansion slot is Gen 5-ready, and is protected with a SafeSlot retention bracket to bear the weight of the latest graphics cards. One of the onboard M.2 slots is geared for blistering 16 GB/s read and write speeds thanks to its PCIe 5.0 interface, while all the rest can deliver still-impressive 8 GB/s transfers. Every M.2 slot is covered with substantial heatsinks to dispatch the heat of next-gen drives. - VRM heatsink array
Covering the power solution are two thick heatsinks with strategic airflow channels for increased heat dissipation while powering high-performance processors. - Excellent connectivity
Lightning-fast networking keeps the Strix Z790-E in sync with the outside world for uninterrupted gaming and creation. In addition to breakneck data transfers, connected devices can top-up quickly thanks to 30 W charging support. And SupremeFX audio makes sound clear and punchy to shape truly immersive experiences. - Wi-Fi 6E
Onboard Wi-Fi 6E technology takes advantage of newly available spectrum in the 6 GHz band to provide up to seven 160 MHz channels for ultrafast throughput and better performance in dense wireless environments. - Intel 2.5G Ethernet
Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Intel 2.5 Gbps Ethernet. - Play in style
Black PCB and heatsinks compliment most hardware, and customizable RGB lighting furthers the flexibility. Pair the Strix Z790-E with other products from the diverse ROG ecosystem to create a fully customized gaming setup that reflects your personal style.
