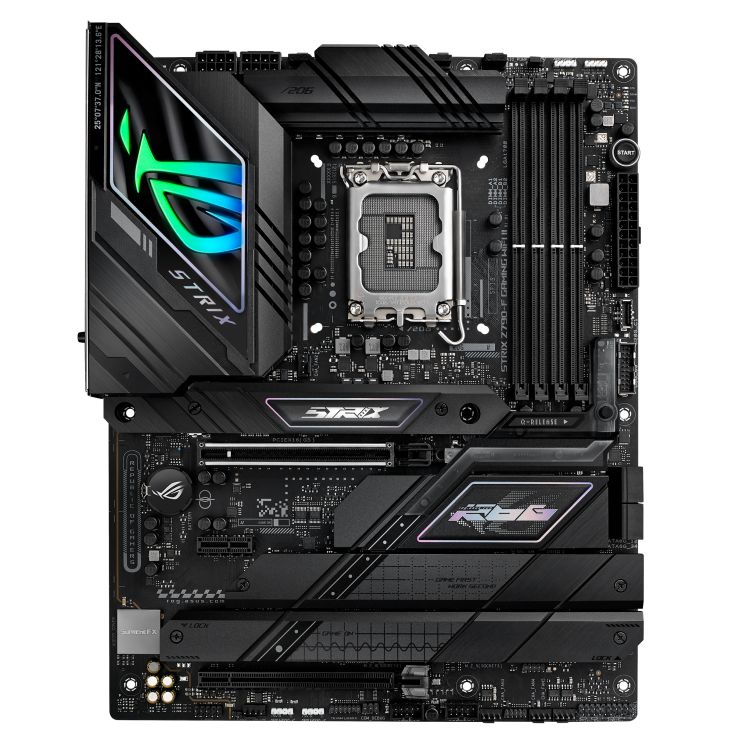

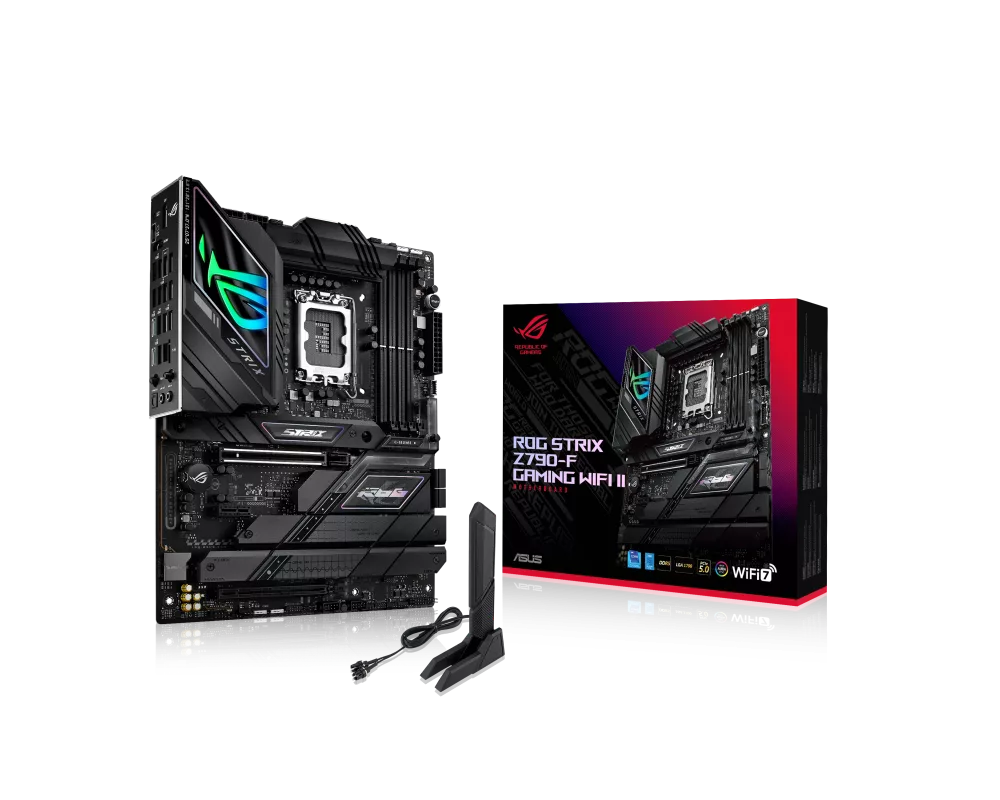

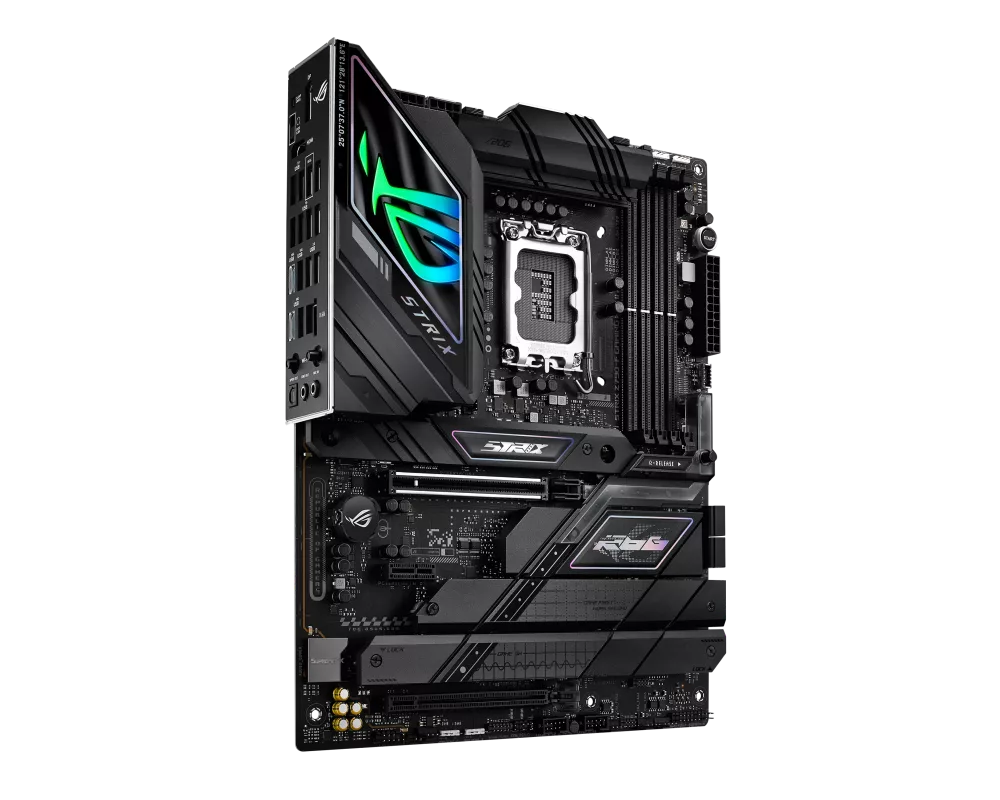

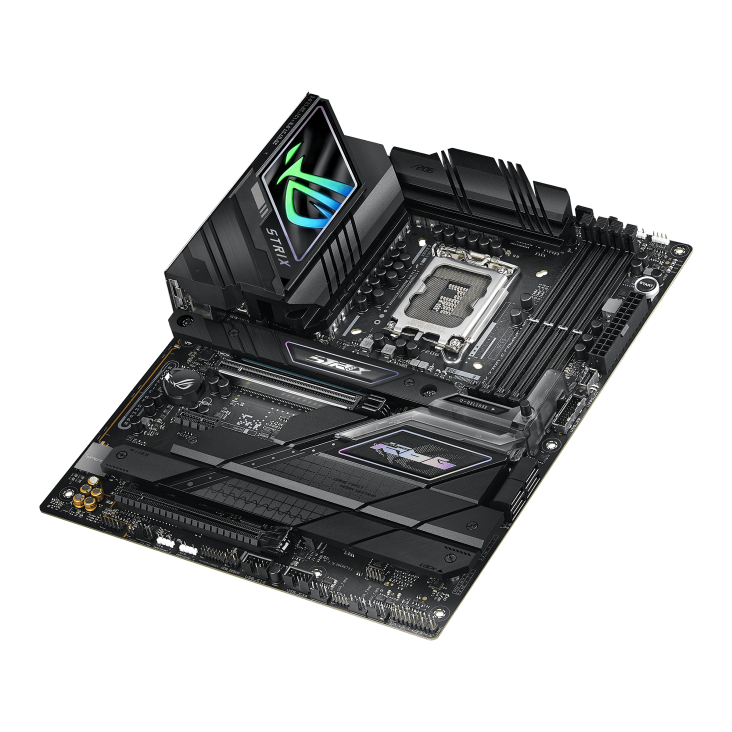

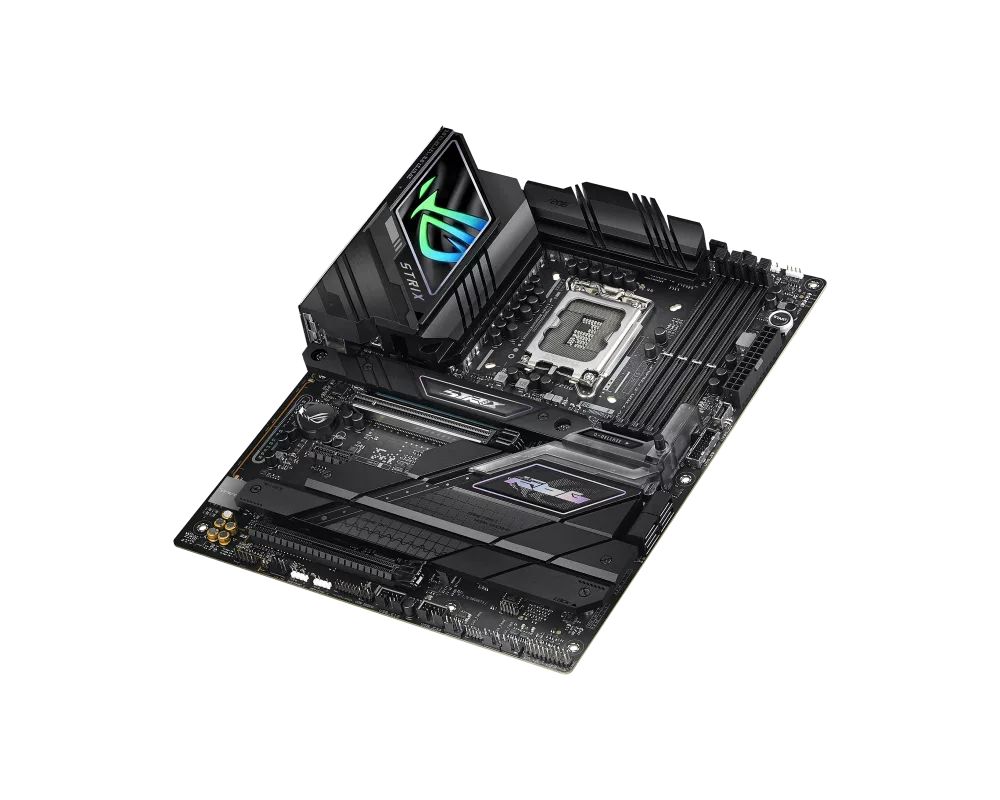

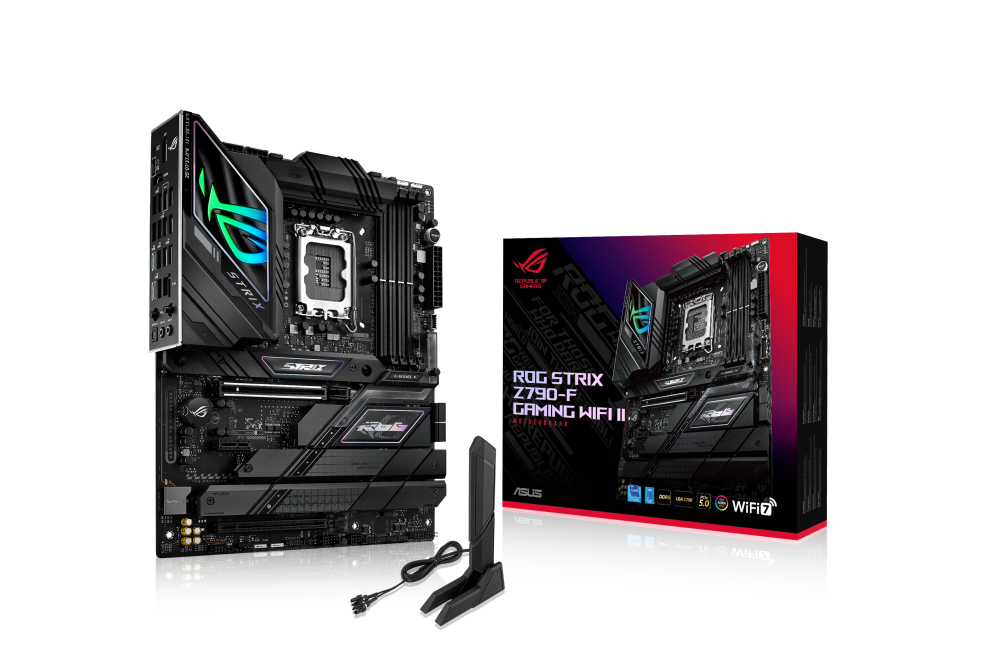

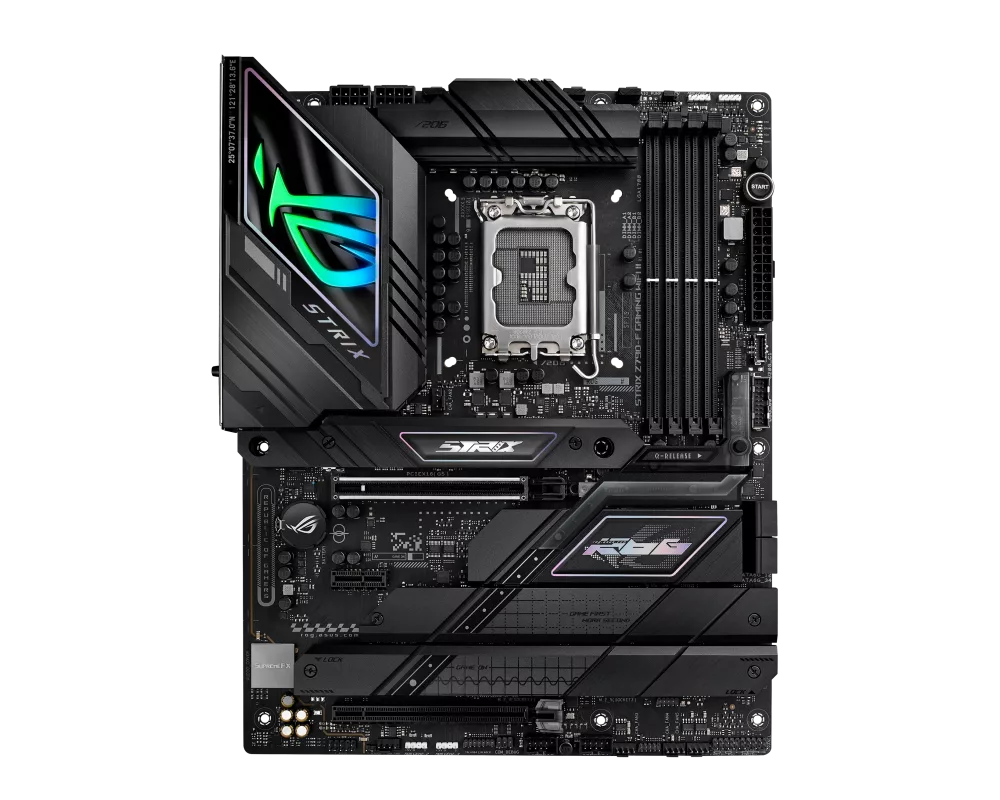

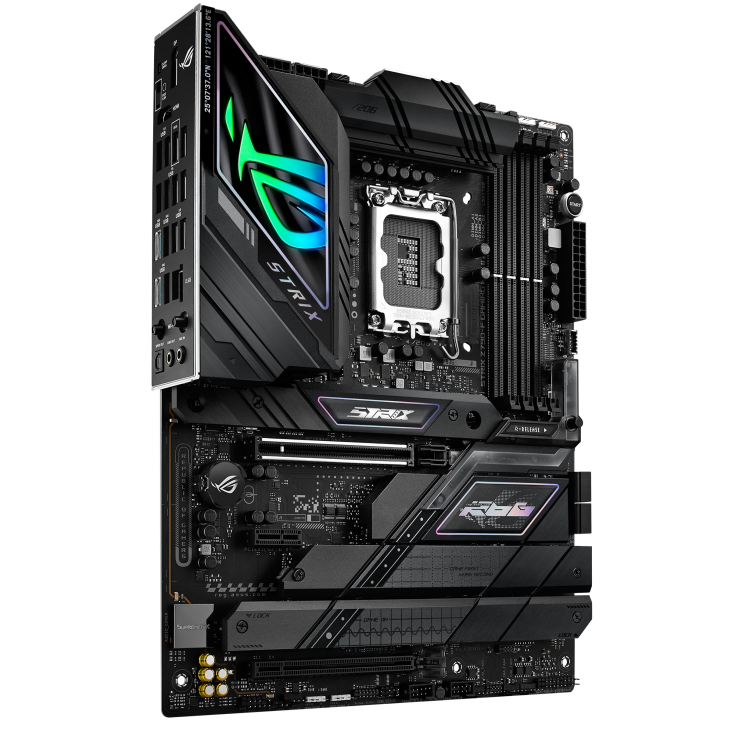

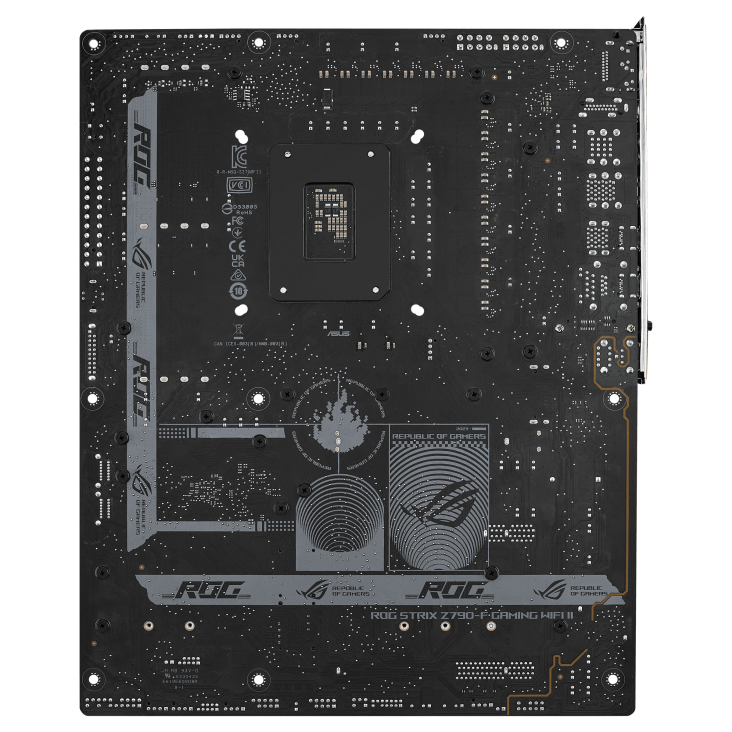

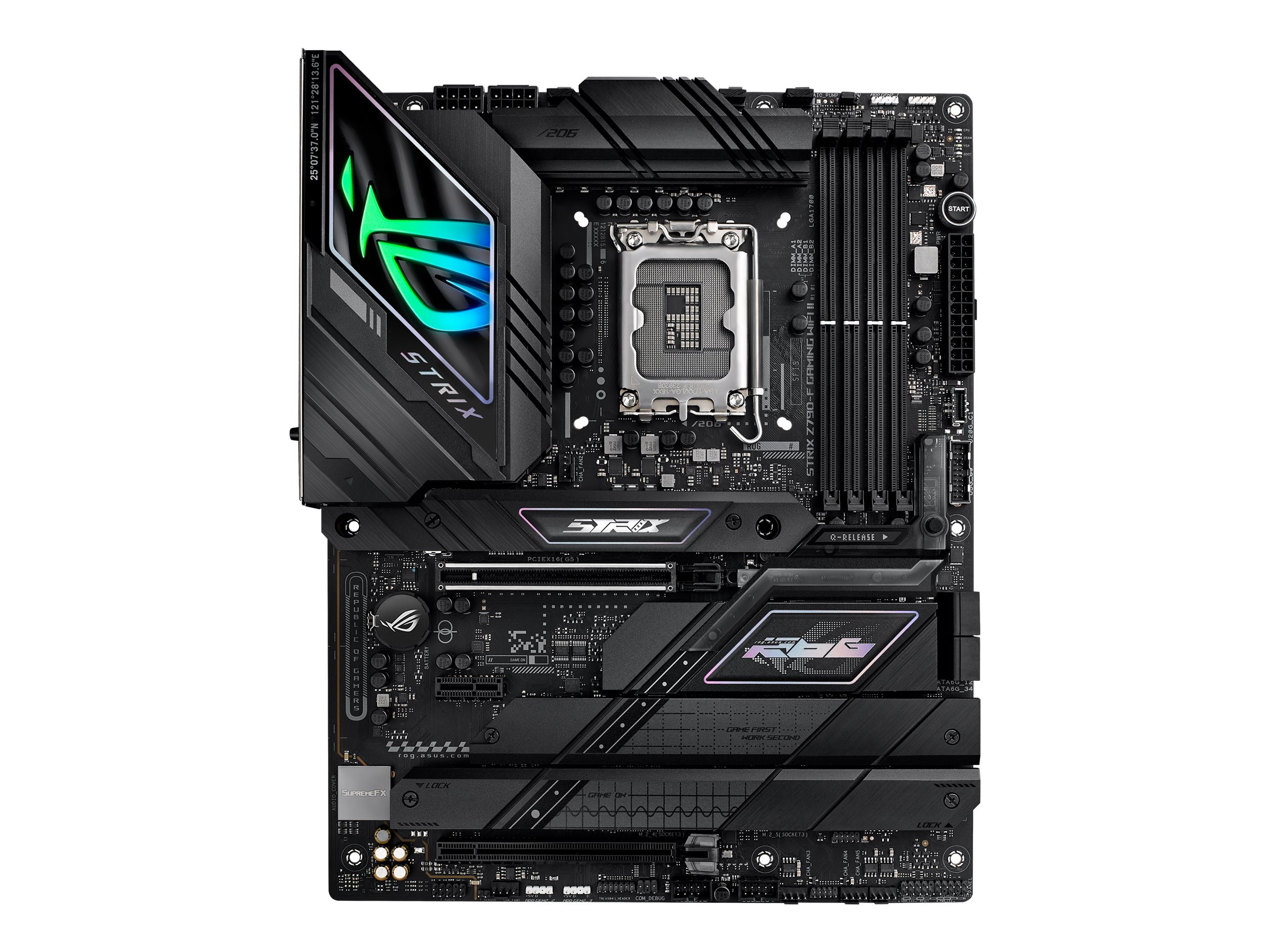

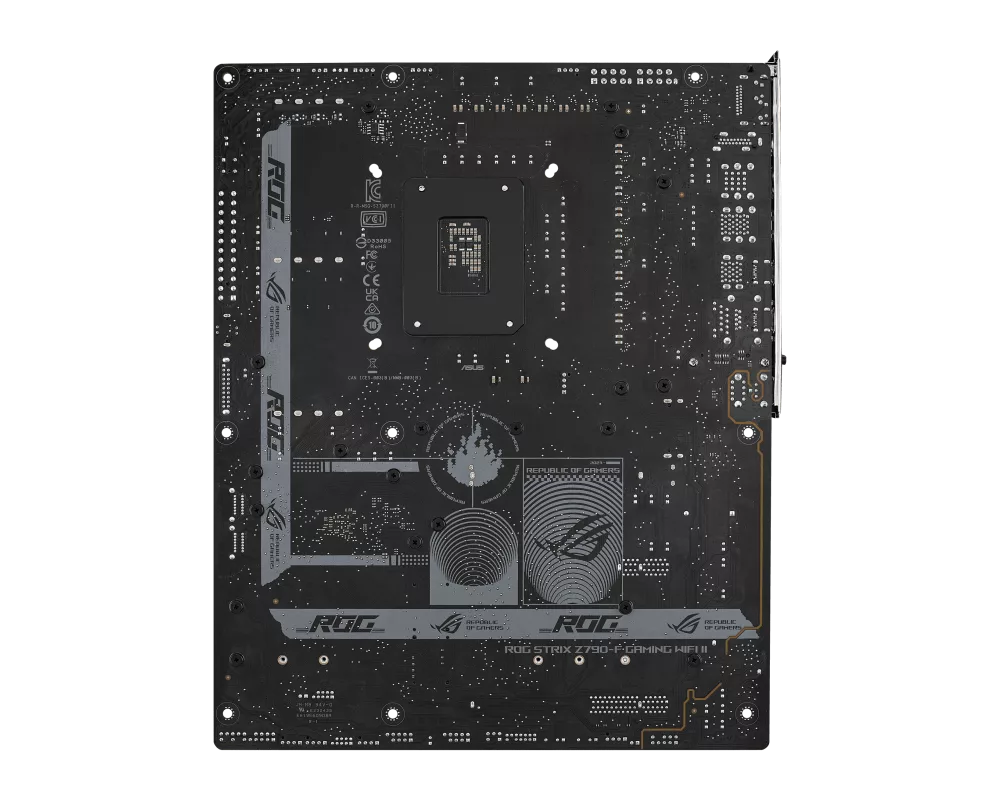

Дънна платка ASUS ROG STRIX Z790-F GAMING WIFI II LGA 1700 4DDR5 ATX 4xSATA MB 1xHDMI 1xDP 5xM.2 90MB1FM0-M0EAY0
изчерпано
Сокет: LGA 1700
Чипсет: Intel Z790
Тип на паметта: DDR5
Физически размер: ATX
Слотове за памет: 4
Честота на паметта: 5600 MHz
Гаранция:
0.0
от 5.0
(0)
Купи и събери
5 точки
Плати по-лесно и сигурно с
Виж всички продукти на Asus
Пазарувай по марка
Характеристики
| Физически размер | ATX |
| Чипсет | Intel Z790 |
| Сокет | LGA 1700 |
| Съвместими процесори | (supports 12th/13th and 14th Generation Intel Core / Pentium Gold / Celeron) |
| BIOS | UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode |
| Тип BIOS | AMI |
| Тип на паметта | DDR5 |
| Честота на паметта | 5600 MHz |
| ECC support | Non-ECC, on-die ECC |
| Memory Registered / Buffered | Unbuffered |
| Слотове за памет | 4 |
| Максимална памет | 192 GB |
| Слотове | Intel® CoreTM Processors (14th & 13th & 12th Gen); 1 x PCIe 5.0x16 slot (supports x16 mode); Intel® Z790 Chipset ; 1 x PCIe 4.0 x16 slot (supports x4 mode); 1x PCIe 3.0 x1 slot |
| Брой процесорни гнезда | 1 |
| Видео | 1 x DisplayPort; 1 x HDMITM port |
| Дисков интерфейс | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -connectors: 4 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| RAID | Intel Rapid Storage Technology |
| LAN порт | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4 |
| Звук | SupremeFX (ALC4080) |
| Аудио стандарти | High Definition Audio, DTS Sound Unbound |

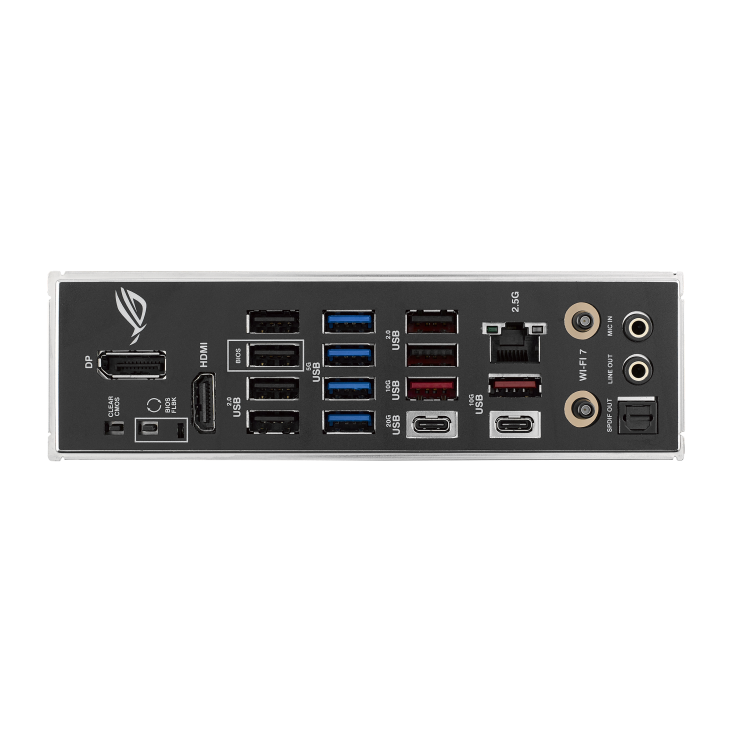

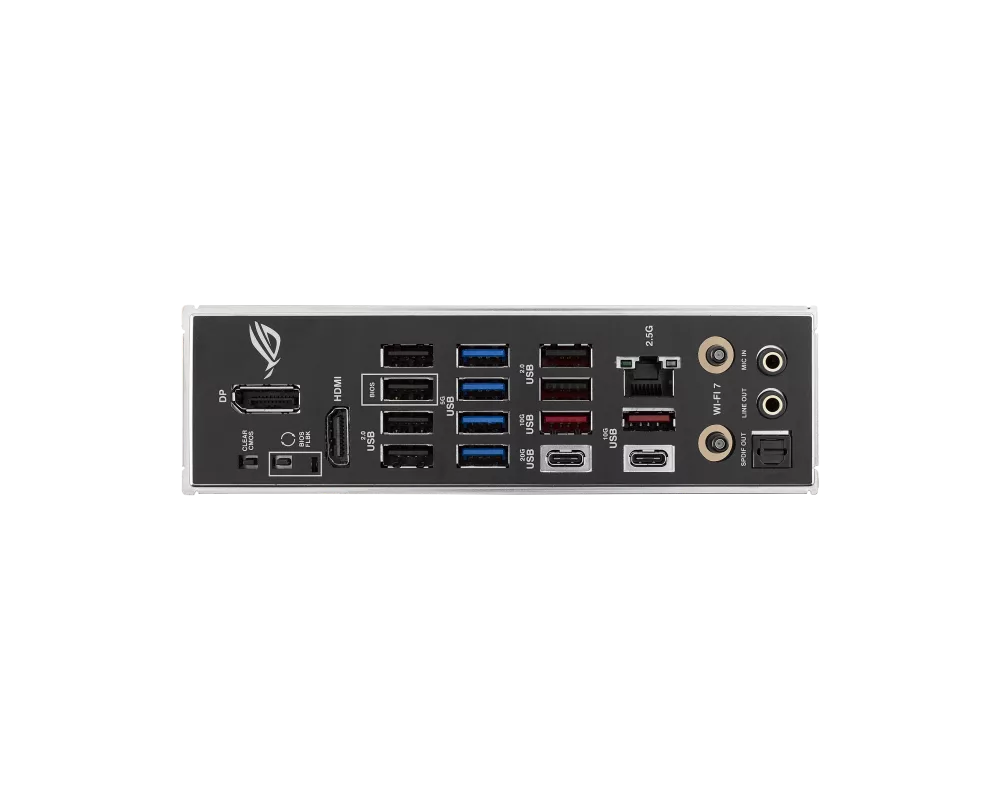

| Портове | 1 x HDMI 1 x DisplayPort 1 x USB-C 3.2 Gen2x2 1 x USB-C 3.2 Gen 2 2 x USB 3.2 Gen 2 4 x USB 3.2 Gen 1 6 x USB 2.0 1 x microphone - mini-jack 1 x audio line-out - mini-jack 1 x LAN (2.5Gigabit Ethernet) 1 x SPDIF out 2 x aerial |
| Разширителни слотове | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 5.0 x16 1 x PCIe 4.0 x16 (x4 mode) 1 x PCIe 3.0 x1 2 x M.2 socket (2280 M.2 Key M slot) 2 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot) 1 x M.2 socket (2242/2260/2280 M.2 Key M slot) |
| Вътрешен интерфейс | 1 x USB-C 3.2 Gen 2x2 - header 2 x USB 3.2 Gen 1 - header 4 x USB 2.0 - header 1 x audio - header 1 x Thunderbolt 4 - header |
| Wake on LAN | Wake on LAN (WOL), wake on PME |
| Функции | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Софтуер | ROG CPU-Z, ROG GameFirst Utility, ASUS AI Suite III, ASUS Turbo App, PC Cleaner, Sonic Studio Virtual Mixer, AIDA64 Extreme (60 days trial), MemTest86, ASUS AURA Creator, MyAsus, Armoury Crate, Sonic Radar III, ASUS Fan Xpert 4, Norton 360 for Gamers (60 days trial), Adobe Creative Cloud (free trial), WinRAR (40 days trial), USB Wattage Watcher, Intel Unison |
| Конектори | 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 5 x 4-pin Chassis Fan headers; 1 x 24-pin Main Power connector; 2 x 8-pin +12V Power connector; 5 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; 1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD) ; 1 x USB 5Gbps header supports 2 additional USB 5G ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports; 3 x Addressable Gen 2 headers; 1 x Aura RGB header; 1 x CPU Over Voltage jumper; 1 x Front Panel Audio header (F_AUDIO); 1 x Start button; 1 x 20-3 pin System Panel header with Chassis intrude function; 1 x Thermal Sensor header; 1 x Thunderbolt™ (USB4®) header |
| Конектори за захранване | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
| Стандарти | DisplayPort 1.4 |
| Включени кабели | 2 x Serial ATA cable |
| Аксесоари | Cable ties, STRIX stickers, thermal pad for M.2 SSD, ROG key chain, M.2 Q-Latch, 2 x M.2 rubber package, M.2 backplate rubber package, M.2 backplate Q-Latch, ASUS Wi-Fi Q-antenna |
| Ширина | 30.5 cm |
| Дълбочина | 24.4 cm |
| Други характеристики | ASUS Q-Design, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, ASUS Extreme Engine Digi+, CrashFree BIOS 3, ASUS TPU (TurboV Processing Unit), ASUS DIGI+ VRM, Preboot eXecution Environment (PXE), Clear CMOS Button, LANGuard, 6 Layer PCB, Lighting Control, ASUS SafeSlot, ASUS SafeDIMM, M.2 heatsink, pre-mounted I/O shield, ASUS Aura Sync, ASUS OptiMem II, ASUS ProCool II, M.2 Q-Latch, 5K Black Metallic Capacitors, 16+1+2 Phase Power Design, Start button, PCIe Slot Q-Release, CPU Socket lever protector, BIOS FlashBack button, BIOS FlashBack LED, ASUS Enhanced Memory Profile (AEMP) II, M.2 heatsink backplate, Q-Antenna |
| Гаранция | 36 месеца |
| Код на продукта | 90MB1FM0-M0EAY0 |
Виж повече
Допълнителна информация

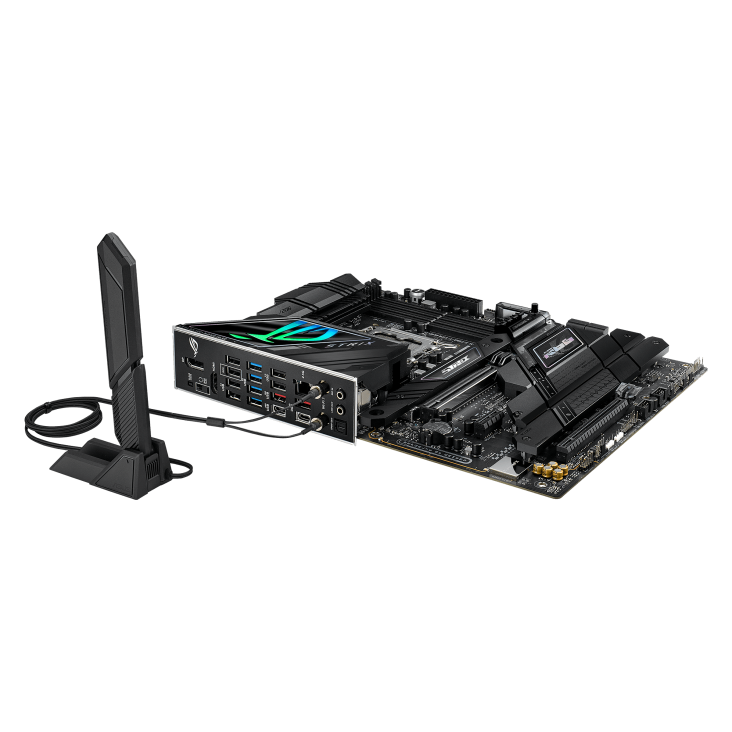

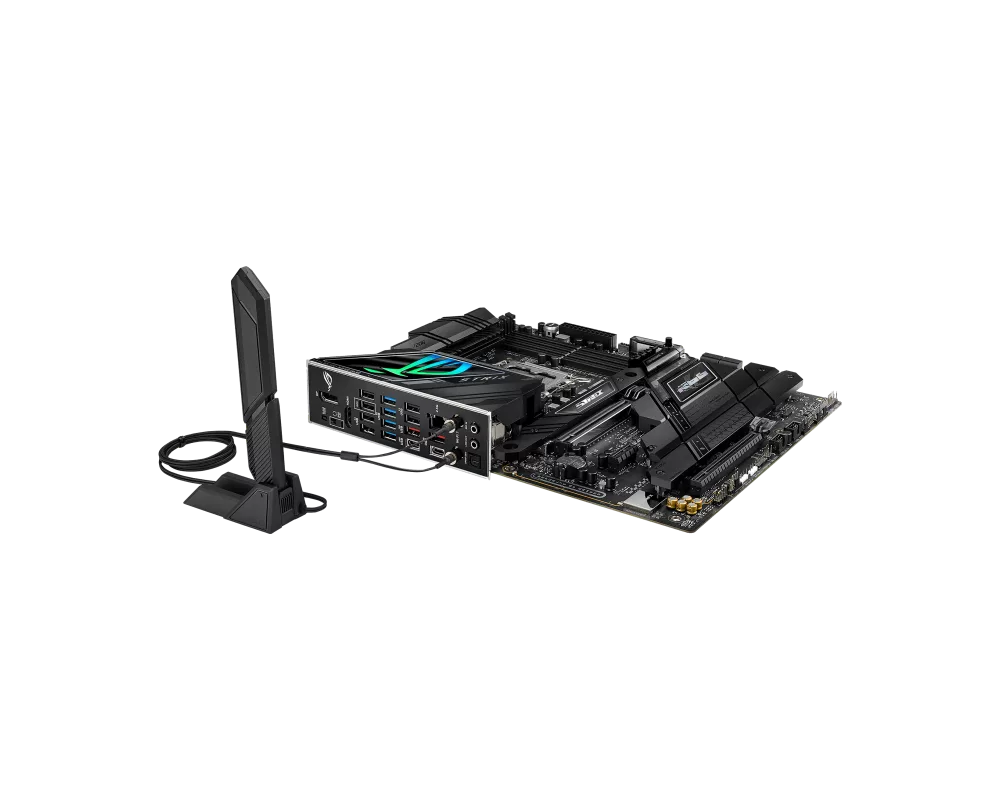

- Q-Antenna
With Q-Antenna, attaching a Wi-Fi antenna to your PC is easy and fast. Instead of slowly rotating two fasteners until they finally lock in, they just snap into place. Less hassle and more consistent performance. - M.2 Q-Latch
The innovative Q-Latch makes it easy to install or remove an SSD from an M.2 slot. The design employs a simple locking mechanism to secure the drive, eliminating the need for a traditional screw. - PCIE slot Q-release
A physical button unlocks the first PCIe slot's security latch with one press, greatly simplifying the process of detaching a PCIe card from the motherboard when it's time to upgrade to a new GPU or other compatible device. - Q-LED
The on-board Q-LED troubleshooting lights give PC builders a quick indicator to confirm that key components - CPU, RAM, graphics card, storage devices - are functioning normally during startup. Builders can use the Q-LED feature to correct power delivery issues affecting their motherboard, and it can also alert them when memory modules have not been properly installed - even before attempting to boot a newly built PC. - Clear CMOS and BIOS flashback
The Clear CMOS button quickly resets BIOS settings to factory default. It can also be used to reboot the PC if incorrect BIOS settings have been selected. BIOS FlashBack is a safe and simple way to update BIOS. Just drop the (UEFI) BIOS file onto a FAT32-formatted USB stick, plug it into the USB BIOS FlashBack port, and press the button. Updates can even be performed without having memory or a CPU installed. - All-round performance
Robust power delivery, breakneck DDR5 memory, speedy storage, and comprehensive cooling elevate any build with the ROG Strix Z790-A II at its center. - AI Overclocking
Tuning is faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation. - VRM heatsinks
Covering the power solution are two thick heatsinks with strategic airflow channels for increased heat dissipation while powering high-performance processors.
