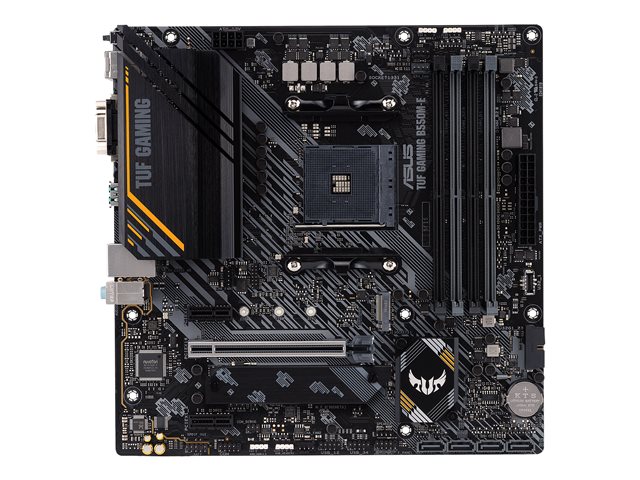

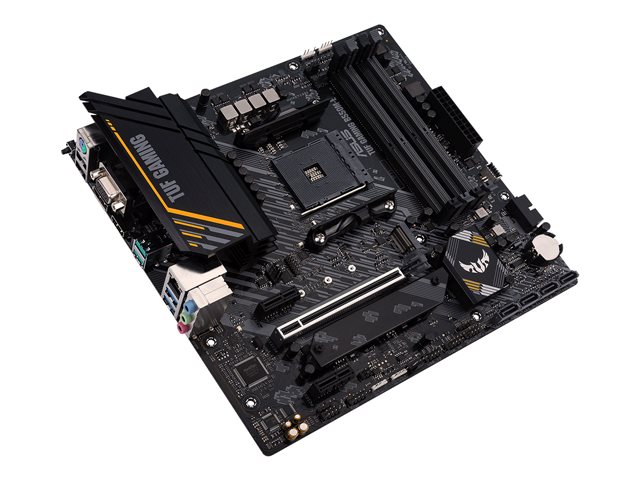

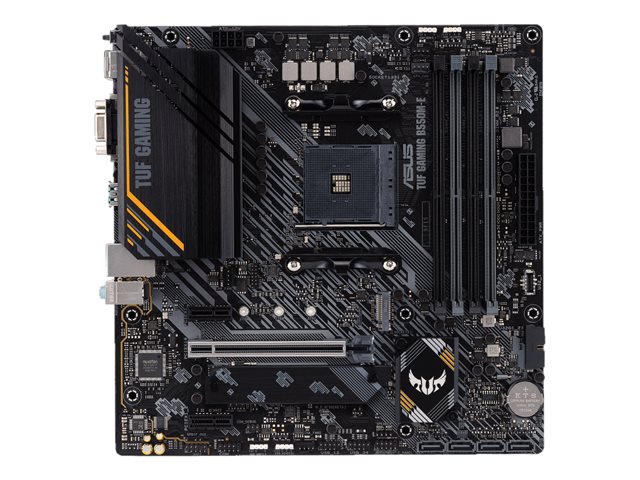

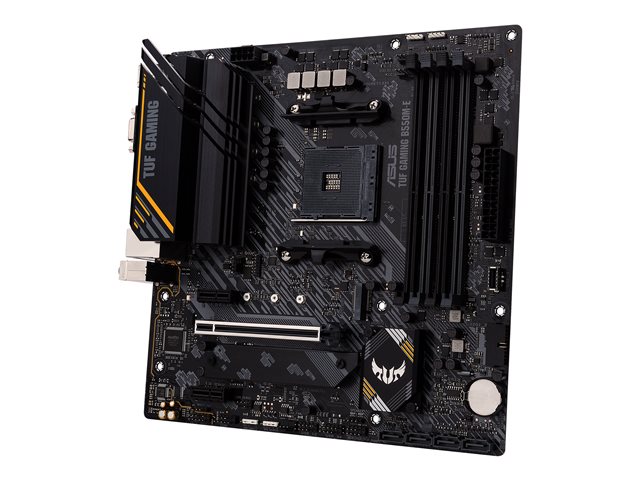

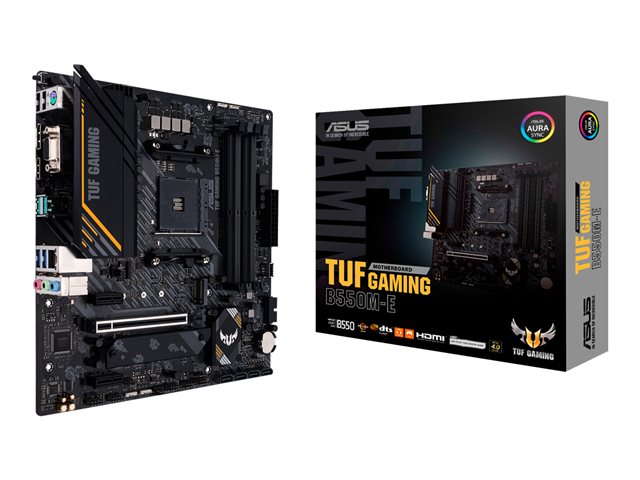

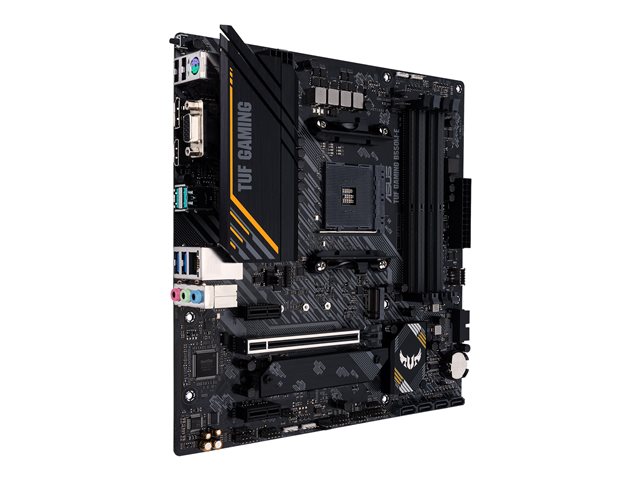

Дънна платка ASUS TUF GAMING B550M-E AM4 B550 DUAL M.2 DP HDMI AURA MB TUF GAMING B550M-E
изчерпано
Сокет: AM4
Чипсет: AMD B550
Тип на паметта: DDR4
Физически размер: Micro ATX
Слотове за памет: 4
Честота на паметта: 3200 MHz
Гаранция:
0.0
от 5.0
(0)
Купи и събери
2 точки
Плати по-лесно и сигурно с
Виж всички продукти на Asus
Пазарувай по марка
Характеристики
| Физически размер | Micro ATX |
| Чипсет | AMD B550 |
| Сокет | AM4 |
| Съвместими процесори | Ryzen (supports Ryzen 3000 Series/ 4000 G-Series/ 5000 Series) |
| BIOS | UEFI BIOS, ASUS EZ Flash 3 |
| Тип BIOS | AMI |
| Тип на паметта | DDR4 |
| Честота на паметта | 3200 MHz |
| ECC support | ECC, non-ECC |
| Memory Registered / Buffered | Unbuffered |
| Слотове за памет | 4 |
| Максимална памет | 128 GB |
| Брой процесорни гнезда | 1 |
| Дисков интерфейс | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 SATA-600 / PCIe 4.0 -connectors: 1 x M.2 SATA-600 / PCIe 3.0 -connectors: 1 x M.2 |
| LAN порт | Gigabit Ethernet |
| Звуков изход | HD Audio (8-channel) |
| Аудио стандарти | High Definition Audio, DTS Custom |

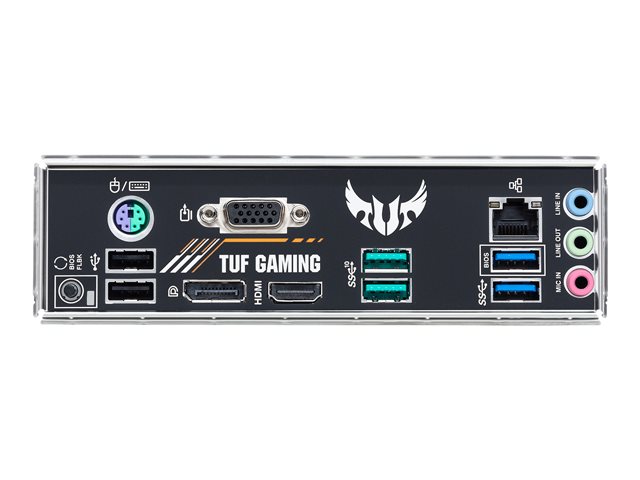

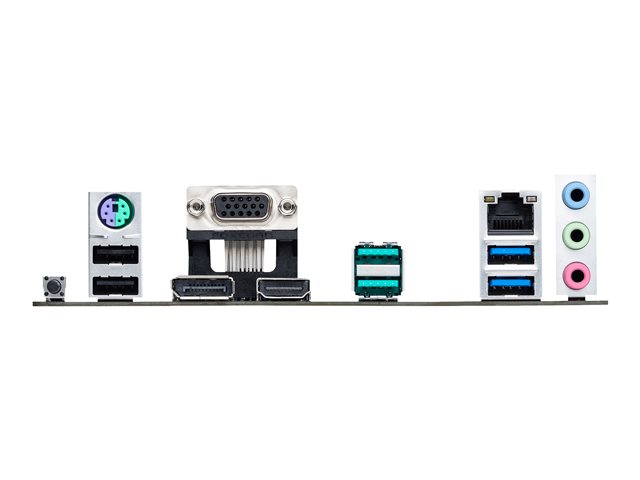

| Портове | 1 x DisplayPort 1 x LAN (Gigabit Ethernet) 2 x USB 3.2 Gen 1 2 x USB 3.2 Gen 2 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x microphone - mini-jack 1 x PS/2 keyboard / mouse 1 x HDMI 1 x VGA 2 x USB 2.0 |
| Разширителни слотове | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 4.0 x16 2 x PCIe 3.0 x1 |
| Вътрешен интерфейс | 4 x USB 2.0 - header 2 x USB 3.2 Gen 1 - header 1 x audio - header 1 x serial - header 1 x speaker - header 1 x USB-C Gen 1 - header 1 x SPDIF out - header 1 x SPI - header |
| Wake on LAN | Wake on LAN (WOL) |
| Софтуер |
Drivers & Utilities
ASUS AI Suite III ASUS TUF GAMING CPU-Z ASUS AI Charger DAEMON Tools WinRAR Norton AntiVirus (Trial) ASUS EZ Update |
| Конектори за захранване | 24-pin main power connector, 8-pin ATX12V connector |

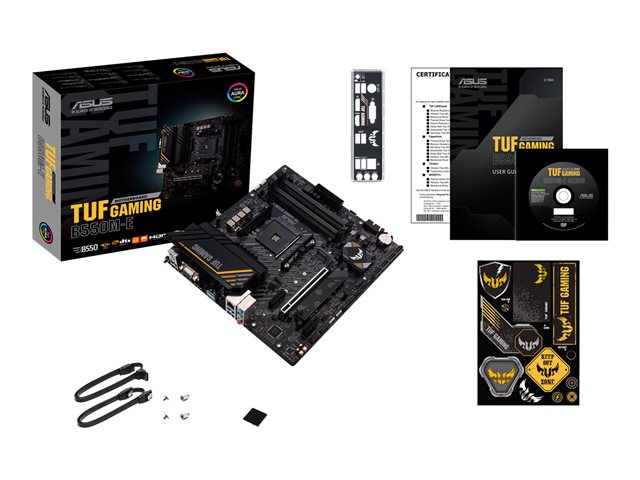

| Включени кабели | 2 x Serial ATA cable |
| Аксесоари | I/O back cover, 1 x M.2 screw, 1 x M.2 rubber package, TUF stickers |
| Ширина | 24.4 cm |
| Дълбочина | 24.4 cm |
| Други характеристики |
Jack retasking
audio jack detect technology ASUS TUF Protection ASUS DIGI+ VRM ASUS Enhanced DRAM Overcurrent Protection TUF ESD Guards TUF LANGuard ASUS SafeSlot Core+ ASUS Stainless Steel Back I/O ASUS Overvoltage Protection ASUS Q-Design Q-DIMM Q-Slot M.2 heatsink ASUS EZ DIY ASUS Aura Sync Armoury Crate ASUS TurboV EVO ASUS EPU (Energy Processing Unit) ASUS Fan Xpert 2+ Turbo LAN CrashFree BIOS 3 |
| Гаранция | 36 месеца |
| Код на продукта | TUF GAMING B550M-E |
Виж повече
Допълнителна информация
- Rock-solid performance
With upgraded power delivery and comprehensive cooling options to fuel the CPUs, plus support for faster memory and storage, TUF GAMING B550M-E is the perfect foundation for your next high-core-count battle rig. - PCIe 4.0 M.2
TUF Gaming B550M series motherboard supports PCIe 4.0 M.2 slot and provides NVMe SSD RAID support for an incredible performance boost. - USB 3.2 Gen 2 Type-A
Extensive USB support ensures connections to a wide array of peripherals. TUF GAMING B550M-E series motherboard includes two USB 3.2 Gen 2 Type-A ports that deliver increased bandwidth. - USB 3.2 Gen 1 Type-C connector
Numerous USB ports support gaming rigs loaded with peripherals, including a front-panel USB Type-C connector with fast USB 3.2 Gen 1 connectivity for compatible cases. - Easy PC DIY
TUF Gaming motherboard is designed to be easy to set up and configure just the way you want - even for first-time builders. The TUF Gaming Alliance ecosystem makes selecting compatible parts easy. TUF Gaming motherboard gives you everything you need to build your dream gaming rig without adding complexity. - SafeSlot Core+
SafeSlot Core+ is the ASUS-exclusive PCIe slot fortified with a one-piece stainless steel brace that shields the slot to protect it from damage. The metal cover is tightly secured to the slot with hooks, and the entire assembly is firmly anchored to the PCB with strengthened solder points to provide a secure foundation for heavyweight graphics cards. - ESD Guards
ESD Guards prolong the life of components while preventing damage from electrostatic discharge, providing protection for up to +/- 10 kV of air discharge and +/- 6 kV of contact discharge - greatly surpassing the respective industry standards of +/- 6 kV and +/- 4 kV. - TUF LANGuard
TUF LANGuard is a military-grade innovation that integrates advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput, protecting the motherboard from lightning strikes and static electricity. - DRAM overvoltage protection
Onboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system and connected devices. - Stainless steel back I/O panel
TUF Gaming motherboard has a corrosion-resistant stainless steel back I/O panel bonded with chromium oxide to provide a longer lifespan. - Immersive gaming
TUF Gaming B550M-E provides a complete, high-performance gaming package with a long list of features to improve your experience, including ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming, and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere.
Виж повече
Информация за производителя
| Контакт | [email protected] |
| Адрес | Asus Global PTE. LTD. 10 Changi Business Park Central 2 486030 Singapore, SG |
| Уебсайт | https://www.asus.com |
| Партньорска информация | PIC.bg е доверен партньор на Asus |
Виж повече
Ние от PIC.bg постоянно полагаме усилия информацията на тази страница да е точна. В редки случаи съдържанието може да е некоректно. Всички снимки са с информативна цел и е възможно да съдържат аксесоари, които не са включени в стандартния пакет. Някои от спецификациите или цените могат да бъдат променяни от производителя без предизвестие или да съдържат експлоатационни грешки. Всички промоции, посочени в сайта, се предлагат до изчерпаване на количествата.
